C#3*3图像平滑

public class ConvMatrix
        {
            public int TopLeft = 0, TopMid = 0, TopRight = 0;
            public int MidLeft = 0, Pixel = 1, MidRight = 0;
            public int BottomLeft = 0, BottomMid = 0, BottomRight = 0;
            public int Factor = 1;
            public int Offset = 0;
            public void SetAll(int nVal)
            {
                TopLeft = TopMid = TopRight = MidLeft = Pixel = MidRight = BottomLeft = BottomMid = BottomRight = nVal;
            }
        }
         Bitmap m_Bitmap = new Bitmap(1, 1);
 private void OpenImage_Click(object sender, EventArgs e)
        {
            OpenFileDialog openFileDialog = new OpenFileDialog();
            openFileDialog.Filter = @"Bitmap文件(*.bmp)|*.bmp|Jpeg文件(*.jpg)|*.jpg|所有合适文件(*.bmp;*.jpg)|*.bmp;*.jpg";
            openFileDialog.FilterIndex = 2;
            openFileDialog.RestoreDirectory = true;
            if (DialogResult.OK == openFileDialog.ShowDialog())
            {
                m_Bitmap = (Bitmap)Bitmap.FromFile(openFileDialog.FileName, false);
            }
            this.pictureBox1.Image = m_Bitmap;
        }
 private void button4_Click(object sender, EventArgs e)
        {
            ConvMatrix m = new ConvMatrix();
            m.SetAll(1);
            m.Pixel = 1;
            m.Factor = 1 + 8;
            Conv3x3(m_Bitmap, m);
            this.pictureBox1.Image = m_Bitmap;
        }
 public  bool Conv3x3(Bitmap b, ConvMatrix m)
        {
            if (0 == m.Factor) return false;

            Bitmap bSrc = (Bitmap)b.Clone();
            BitmapData bmData = b.LockBits(new Rectangle(0, 0, b.Width, b.Height), ImageLockMode.ReadWrite, PixelFormat.Format24bppRgb);
            BitmapData bmSrc = bSrc.LockBits(new Rectangle(0, 0, bSrc.Width, bSrc.Height), ImageLockMode.ReadWrite, PixelFormat.Format24bppRgb);

            int stride = bmData.Stride;
            int stride2 = stride * 2;
            System.IntPtr Scan0 = bmData.Scan0;
            System.IntPtr SrcScan0 = bmSrc.Scan0;

            unsafe
            {
                byte* p = (byte*)(void*)Scan0;
                byte* pSrc = (byte*)(void*)SrcScan0;

                int nOffset = stride - b.Width * 3;
                int nWidth = b.Width - 2;
                int nHeight = b.Height - 2;

                int nPixel;

                for (int y = 0; y < nHeight; ++y)
                {
                    for (int x = 0; x < nWidth; ++x)
                    {
                        nPixel = ((((pSrc[2] * m.TopLeft) + (pSrc[5] * m.TopMid) + (pSrc[8] * m.TopRight) +
                            (pSrc[2 + stride] * m.MidLeft) + (pSrc[5 + stride] * m.Pixel) + (pSrc[8 + stride] * m.MidRight) +
                            (pSrc[2 + stride2] * m.BottomLeft) + (pSrc[5 + stride2] * m.BottomMid) + (pSrc[8 + stride2] * m.BottomRight)) / m.Factor) + m.Offset);

                        if (nPixel < 0) nPixel = 0;
                        if (nPixel > 255) nPixel = 255;

                        p[5 + stride] = (byte)nPixel;

                        nPixel = ((((pSrc[1] * m.TopLeft) + (pSrc[4] * m.TopMid) + (pSrc[7] * m.TopRight) +
                            (pSrc[1 + stride] * m.MidLeft) + (pSrc[4 + stride] * m.Pixel) + (pSrc[7 + stride] * m.MidRight) +
                            (pSrc[1 + stride2] * m.BottomLeft) + (pSrc[4 + stride2] * m.BottomMid) + (pSrc[7 + stride2] * m.BottomRight)) / m.Factor) + m.Offset);

                        if (nPixel < 0) nPixel = 0;
                        if (nPixel > 255) nPixel = 255;

                        p[4 + stride] = (byte)nPixel;

                        nPixel = ((((pSrc[0] * m.TopLeft) + (pSrc[3] * m.TopMid) + (pSrc[6] * m.TopRight) +
                            (pSrc[0 + stride] * m.MidLeft) + (pSrc[3 + stride] * m.Pixel) + (pSrc[6 + stride] * m.MidRight) +
                            (pSrc[0 + stride2] * m.BottomLeft) + (pSrc[3 + stride2] * m.BottomMid) + (pSrc[6 + stride2] * m.BottomRight)) / m.Factor) + m.Offset);

                        if (nPixel < 0) nPixel = 0;
                        if (nPixel > 255) nPixel = 255;

                        p[3 + stride] = (byte)nPixel;

                        p += 3;
                        pSrc += 3;
                    }
                    p += nOffset;
                    pSrc += nOffset;
                }
            }

            b.UnlockBits(bmData);
            bSrc.UnlockBits(bmSrc);

            return true;
        }

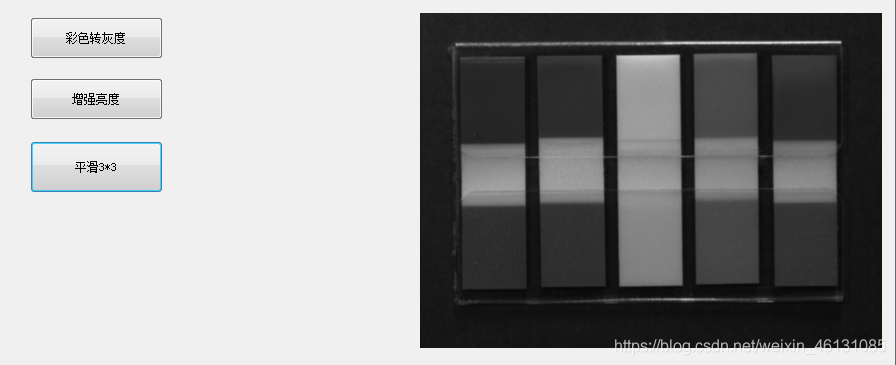

在这里插入图片描述

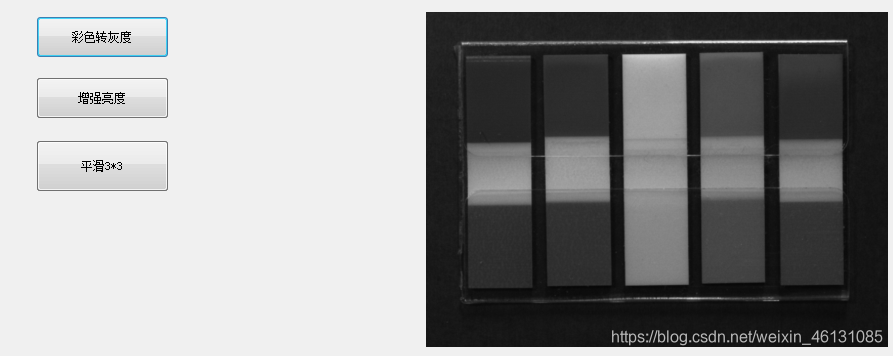

在这里插入图片描述
