呼吸灯

时序图
代码
vivado时序

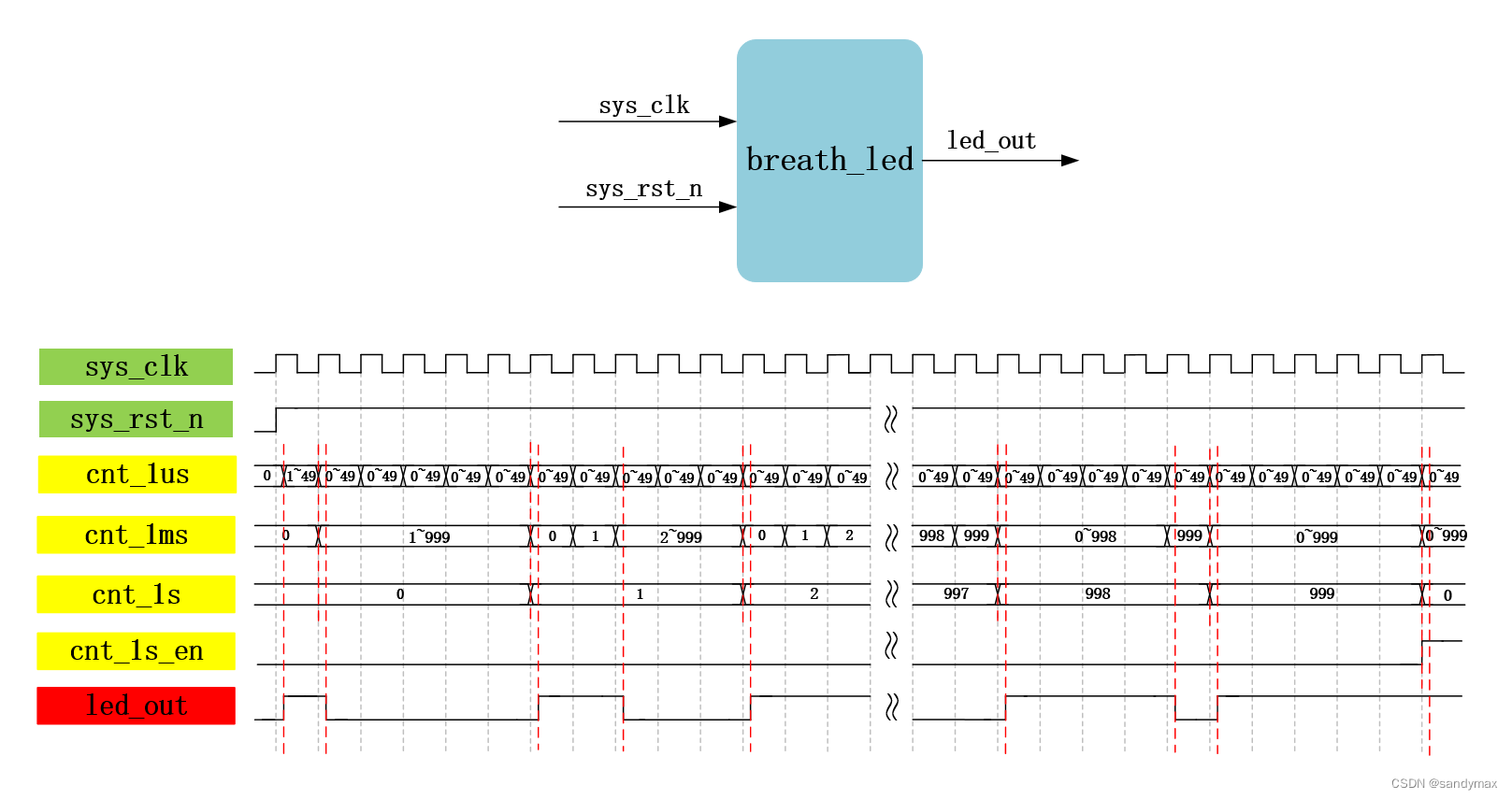

时序图

在这里插入图片描述

代码

breath_led.v文件

module  breath_led
#(
    parameter   CNT_1US_MAX = 6'd49,
    parameter   CNT_1MS_MAX = 10'd999,
    parameter   CNT_1S_MAX = 10'd999
)
(
    input   wire    sys_clk     ,
    input   wire    sys_rst_n   ,

    output  reg     led_out
);

reg     [5:0]   cnt_1us; //系统时钟为20ns,最大值49，需要6位
reg     [9:0]  cnt_1ms; //最大值999，需要10位
reg     [9:0]  cnt_1s;  //最大值999，需要10位
reg            cnt_en;  //使能信号，完成取反操作

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        cnt_1us <= 6'd0;
    else    if(cnt_1us == CNT_1US_MAX) //计时1us
        cnt_1us <= 6'd0;
    else
        cnt_1us <= cnt_1us + 6'd1;

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        cnt_1ms <= 10'd0;
    else    if(cnt_1ms == CNT_1MS_MAX && cnt_1us == CNT_1US_MAX) //计时1ms
        cnt_1ms <= 10'd0;
    else    if(cnt_1us == CNT_1US_MAX)
        cnt_1ms <= cnt_1ms + 10'd1;
    else
        cnt_1ms <= cnt_1ms;

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        cnt_1s <= 10'd0;
    else    if(cnt_1s == CNT_1S_MAX && cnt_1ms == CNT_1MS_MAX && cnt_1us == CNT_1US_MAX) //计时1s
        cnt_1s <= 10'd0;
    else    if(cnt_1ms == CNT_1MS_MAX && cnt_1us == CNT_1US_MAX)
        cnt_1s <= cnt_1s + 10'd1;
    else
        cnt_1s <= cnt_1s;

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        cnt_en <= 1'b0;
    else    if(cnt_1s == CNT_1S_MAX && cnt_1ms == CNT_1MS_MAX && cnt_1us == CNT_1US_MAX)
        cnt_en <= ~cnt_en;
    else
        cnt_en <=  cnt_en;

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        led_out <= 1'b1;
    else    if((cnt_en == 1'b0 &&cnt_1ms <= cnt_1s)
                || (cnt_en == 1'b1 &&cnt_1ms >= cnt_1s))
        led_out <= 1'b0;
    else
        led_out <= 1'b1;




endmodule

tb_breath_led.v文件

`timescale  1ns/1ns
module  tb_breath_led();

//声明变量
reg     sys_clk;
reg     sys_rst_n;

wire    led_out;

//初始化变量
initial
    begin
        sys_clk = 1'b0;
        sys_rst_n <= 1'b0;

        #20
        sys_rst_n <= 1'b1;

    end

//系统时钟初始化,周期为20ns
always #10 sys_clk = ~sys_clk;

//实例化
breath_led
#(
    .CNT_1US_MAX(6'd6) ,
    .CNT_1MS_MAX(10'd9) ,
    .CNT_1S_MAX (10'd9)
)
breath_led_inst
(
    .sys_clk    (sys_clk),
    .sys_rst_n  (sys_rst_n),

    .led_out    (led_out)
);


endmodule
