整体链路
- 创建容器
- 加载配置文件,封装BeanDefinitional对象
- 调用BeanFactoryProcess方法
- 实例化对象,通过BeanFactory调用反射代码进行实例化
- 初始化
- 得到完成对象
各个链路详解
- 创建容器的过程
主函数进去之后
package main;
import org.springframework.context.support.AbstractApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
/**
* @author
* @date
*/
public class SpringBeanLifecycleApplication {
public static void main(String[] args) {
//创建容器
AbstractApplicationContext context = new ClassPathXmlApplicationContext("classpath:Bean-Lifecycle.xml");
Book bean = context.getBean(Book.class);
System.out.println(bean);
context.registerShutdownHook();
}
}

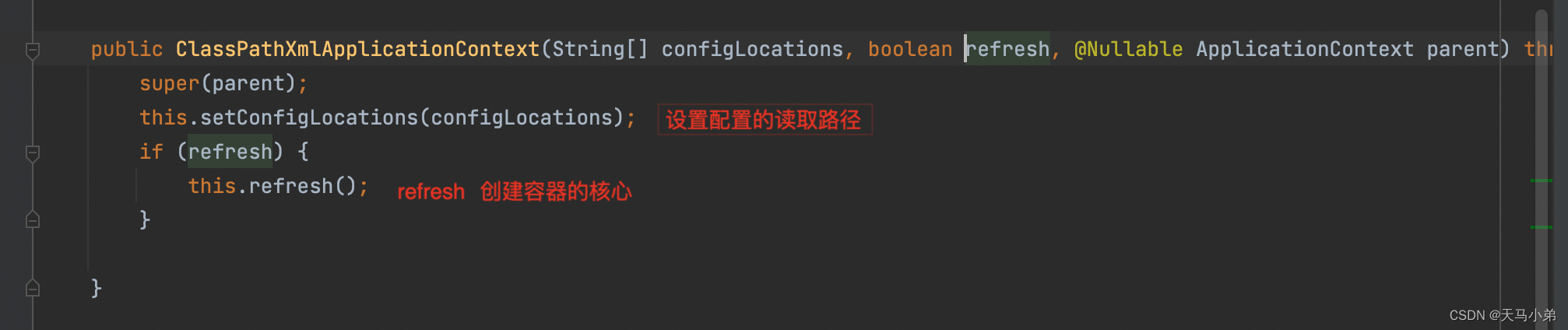

设置配置的读取路径
调用refresh方法进行创建容器
public void refresh() throws BeansException, IllegalStateException {
synchronized(this.startupShutdownMonitor) {
StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");
this.prepareRefresh();
ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
this.prepareBeanFactory(beanFactory);
try {
this.postProcessBeanFactory(beanFactory);
StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
this.invokeBeanFactoryPostProcessors(beanFactory);
this.registerBeanPostProcessors(beanFactory);
beanPostProcess.end();
this.initMessageSource();
this.initApplicationEventMulticaster();
this.onRefresh();
this.registerListeners();
this.finishBeanFactoryInitialization(beanFactory);
this.finishRefresh();
} catch (BeansException var10) {
if (this.logger.isWarnEnabled()) {
this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt: " + var10);
}
this.destroyBeans();
this.cancelRefresh(var10);
throw var10;
} finally {
this.resetCommonCaches();
contextRefresh.end();
}
}
}refresh方法中包含了(refresh是核心、重点)
1. prepareRefresh() //refresh的预处理
protected void prepareRefresh() {
//设置一些属性，转化为激活状态
this.startupDate = System.currentTimeMillis();
this.closed.set(false);
this.active.set(true);
if (logger.isDebugEnabled()) {
if (logger.isTraceEnabled()) {
logger.trace("Refreshing " + this);
}
else {
logger.debug("Refreshing " + getDisplayName());
}
}
//初始化上下文环境中的任何占位符属性源
//空方法，留给子类继承然后重写
initPropertySources();
//对自定义属性的一些校验
getEnvironment().validateRequiredProperties();
//创建早期的监听list
if (this.earlyApplicationListeners == null) {
this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
}
else {
//重新设置
this.applicationListeners.clear();
保存容器中的一些早期的事件
this.applicationListeners.addAll(this.earlyApplicationListeners);
}
// Allow for the collection of early ApplicationEvents,
// to be published once the multicaster is available...
this.earlyApplicationEvents = new LinkedHashSet<>();
}
2. ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory(); //刷新获取beanFactory
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
//刷新beanFactory
refreshBeanFactory();
//获取beanFactory
return getBeanFactory();
}
refreshBeanFactory()
@Override
//设置序列化id,BeanFactory是一开始调用父类无参构造创建的
protected final void refreshBeanFactory() throws IllegalStateException {
if (!this.refreshed.compareAndSet(false, true)) {
throw new IllegalStateException(
"GenericApplicationContext does not support multiple refresh attempts: just call 'refresh' once");
}
this.beanFactory.setSerializationId(getId());
}
getBeanFactory
public final ConfigurableListableBeanFactory getBeanFactory() {
DefaultListableBeanFactory beanFactory = this.beanFactory;
if (beanFactory == null) {
throw new IllegalStateException("BeanFactory not initialized or already closed - call 'refresh' before accessing beans via the ApplicationContext");
} else {
return beanFactory;
}
}
3. this.prepareBeanFactory(beanFactory); //beanFactory的预准备工作
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
//设置类的加载器
beanFactory.setBeanClassLoader(getClassLoader());
if (!shouldIgnoreSpel) {
//设置bean的表达式解析器
beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
}
beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));
//添加部分BeanPostProcessor：ApplicationContextAwareProcessor
beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
//设置忽略的自动装配的接口，就不能自动装配了
beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
beanFactory.ignoreDependencyInterface(ApplicationStartup.class);
//注册可以解析的自动装配，我们可以在任何地方注入
beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
beanFactory.registerResolvableDependency(ResourceLoader.class, this);
beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
beanFactory.registerResolvableDependency(ApplicationContext.class, this);
//设置添加bean的后置处理器：ApplicationListenerDetector
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));
//设置和aspectj相关的支持：loadTimeWeaver
if (!NativeDetector.inNativeImage() && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
//添加后置处理器
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
//为类型匹配设置临时ClassLoader。
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
//注册一些默认的与环境相关的单实例bean
if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
}
if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
}
if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
}
if (!beanFactory.containsLocalBean(APPLICATION_STARTUP_BEAN_NAME)) {
beanFactory.registerSingleton(APPLICATION_STARTUP_BEAN_NAME, getApplicationStartup());
}
}
4. this.postProcessBeanFactory(beanFactory); //beanFactory完成后进行的后置处理
空方法，留给子类继承重写，可以自己添加一些自己需要的配置在里面。子类通过重写这个方法来在BeanFactory创建并预准备完成以后作进一步的设置
5. this.invokeBeanFactoryPostProcessors(beanFactory); //执行BeanFactoryPostProcessor
1、执行所有的BeanFactoryPostProcessor：beanFactory的后置处理器，在bean创建并准备完成后执行
2、判断，如果成立就添加一个LoadTimeWeaverAwareProcessor和一个ContextTypeMatchClassLoader组件。
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());
if (!NativeDetector.inNativeImage() && beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
}
其中的invokeBeanFactoryPostProcessors主要逻辑如下: （1）判断beanFactory是不是BeanDefinitionRegistry类型的（默认是true的） （2）先获取到所有的BeanDefinitionRegistryPostProcessor （3）通过优先级先后执行所有的BeanDefinitionRegistryPostProcessor 1、首先是执行实现了PriorityOrdered接口的，先加入到 currentRegistryProcessors中，然后排序，再加入到registryProcessors中，依次执行BeanDefinitionRegistryPostProcessor方法 2、在执行实现了Ordered顺序接口的BeanDefinitionPostPeocessor，流程和上面的一模一样，postProcessor.postProcessBeanDefinitionRegistry(registry) 3、最后一步，执行没有实现任何优先级或者顺序接口的BeanDefinitionRegistryPostProcessor。postProcessor.postProcessBeanDefinitionRegistry(registry) （4）再通过优先级先后执行所有的BeanFactoryPostProcessor，流程和上面第(3)步一样。都是判断类型，排序，执行。
6. this.registerBeanPostProcessors(beanFactory); //注册BeanPostProcessor（Bean的后置处理器,这里的处理器也方便后期扩展）
总的来说就是根据接口先后注册bean的后置处理器。
（1）先是实现PriorityOrdered接口的
（2）然后是实现Order接口的
（3）其次是没有接口的
（4）最后是实现MergeBeanDefinitionPostProcessor的。
（5）在最终还注册了一个ApplicationListener的探测器，用于检测后续注册的bean是不是ApplicationListener类型的。
public static void registerBeanPostProcessors(
ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {
int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;
beanFactory.addBeanPostProcessor(new BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));
//创建不同的list分别存储不同类型的beanPostProcessor
List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
List<BeanPostProcessor> internalPostProcessors = new ArrayList<>();
List<String> orderedPostProcessorNames = new ArrayList<>();
List<String> nonOrderedPostProcessorNames = new ArrayList<>();
for (String ppName : postProcessorNames) {
//首先判断是不是PriorityOrdered类型的
if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
//添加进priorityOrderedPostProcessors的list中
priorityOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
//其次添加Ordered类型的
else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
orderedPostProcessorNames.add(ppName);
}
else {
//最后再添加没有实现排序接口类型的
nonOrderedPostProcessorNames.add(ppName);
}
}
// 首先注册priorityOrdered接口类型的bean后置处理器
sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);
// 其次，注册实现Order接口的bean后置处理器，在注册之前做一些处理
List<BeanPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
for (String ppName : orderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
orderedPostProcessors.add(pp);
//判断是不是MergedBeanDefinitionPostProcessor类型的
if (pp instanceof MergedBeanDefinitionPostProcessor) {
//如果是就添加进internalPostProcessors：内部bean后置处理器
internalPostProcessors.add(pp);
}
}
//排序并注册
sortPostProcessors(orderedPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, orderedPostProcessors);
//最后，注册所有常规的bean，没有实现Ordered等接口的bean
List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
for (String ppName : nonOrderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
nonOrderedPostProcessors.add(pp);
//一样判断是不是MergedBeanDefinitionPostProcessor类型的
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
//进行注册
registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);
//最后。注册所有的internalPostProcessors，也就是注册MergedBeanDefinitionPostProcessor类型的后置处理器
sortPostProcessors(internalPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, internalPostProcessors);
//注册一个ApplicationListener的探测器，用于监听注册的bean是不是application类型的
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));
}
7. this.initMessageSource(); //初始化MessageSource组件（国际化功能：消息绑定、消息解析）
protected void initMessageSource() {
//获取beanFactory
ConfigurableListableBeanFactory beanFactory = getBeanFactory();
//判断beanFactory中是否包含id为messageSource的组件
if (beanFactory.containsLocalBean(MESSAGE_SOURCE_BEAN_NAME)) {
//如果是，就赋值
this.messageSource = beanFactory.getBean(MESSAGE_SOURCE_BEAN_NAME, MessageSource.class);
//同样判断messageSource是不是HierarchicalMessageSource类型的
if (this.parent != null && this.messageSource instanceof
HierarchicalMessageSource) {
//如果是，就强制转换
HierarchicalMessageSource hms = (HierarchicalMessageSource) this.messageSource;
//设置父类的messageSource 或者直接以父类作为messageSource
if (hms.getParentMessageSource() == null) {
hms.setParentMessageSource(getInternalParentMessageSource());
}
}
if (logger.isTraceEnabled()) {
logger.trace("Using MessageSource [" + this.messageSource + "]");
}
}
else {
//如果没有这个组件，就new一个DelegatingMessageSource
//然后以id为messageSource进行注册，添加到beanFactory中
DelegatingMessageSource dms = new DelegatingMessageSource();
dms.setParentMessageSource(getInternalParentMessageSource());
this.messageSource = dms;
beanFactory.registerSingleton(MESSAGE_SOURCE_BEAN_NAME, this.messageSource);
if (logger.isTraceEnabled()) {
logger.trace("No '" + MESSAGE_SOURCE_BEAN_NAME + "' bean, using [" + this.messageSource + "]");
}
}
}
8. this.initApplicationEventMulticaster(); //初始化事件派发器
protected void initApplicationEventMulticaster() {
//获取beanFactory
ConfigurableListableBeanFactory beanFactory = getBeanFactory();
//判断是否有id为applicationEventMulticaster的时间派发器
if (beanFactory.containsLocalBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME)) {
//如果有，就直接赋值
this.applicationEventMulticaster =
beanFactory.getBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, ApplicationEventMulticaster.class);
if (logger.isTraceEnabled()) {
logger.trace("Using ApplicationEventMulticaster [" + this.applicationEventMulticaster + "]");
}
}
else {
//如果没有，就new一个SimpleApplicationEventMulticaster
this.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);
//然后，以id为applicationEventMulticaster注册到beanFactory中
beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, this.applicationEventMulticaster);
if (logger.isTraceEnabled()) {
logger.trace("No '" + APPLICATION_EVENT_MULTICASTER_BEAN_NAME + "' bean, using " +
"[" + this.applicationEventMulticaster.getClass().getSimpleName() + "]");
}
}
}
9. this.onRefresh(); //留给子类重写的(扩展)
用于给子类重写，然后可以自己注册一些组件进去…
protected void onRefresh() throws BeansException {
// For subclasses: do nothing by default.
}
10. this.registerListeners(); //注册所有的ApplicationListener
protected void registerListeners() {
//注册静态监听器
for (ApplicationListener<?> listener : getApplicationListeners()) {
getApplicationEventMulticaster().addApplicationListener(listener);
}
//这里获取所有的ApplicationListenerBean，添加到事件派发器中
String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
for (String listenerBeanName : listenerBeanNames) {
getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
}
//派发之前步骤产生的早期事件
Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
this.earlyApplicationEvents = null;
if (!CollectionUtils.isEmpty(earlyEventsToProcess)) {
for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
getApplicationEventMulticaster().multicastEvent(earlyEvent);
}
}
}
11. this.finishBeanFactoryInitialization(beanFactory); //实例化所有的单实例bean(重点、重点、重点)
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
//初始化转换服务：id为conversionService
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
//这部分不太清楚，看意思应该是注册解析注解属性的解析器
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
}
//提前初始化LoadTimeWeaverAware,可以提前注册它们的转换器
//aspectj相关
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
getBean(weaverAwareName);
}
//停止使用临时的类加载器进行类型匹配
beanFactory.setTempClassLoader(null);
//设置允许缓存所有的bean定义信息，不希望再发生改变。也就是bean的信息定义成什么样就什么样了
beanFactory.freezeConfiguration();
//初始化所有剩下的单实例bean
beanFactory.preInstantiateSingletons();
}
关键： beanFactory.preInstantiateSingletons()
（1）获取所有的bean名字：new ArrayList<>(this.beanDefinitionNames)
（2）根据bean的名字获取所有bean：String beanName : beanNames
（3）获取bean的定义信息RootBeanDefinition：RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName)
（4）判断是不是非抽象的、单例的、和不是懒加载的
1、判断是否是FactoryBean,也就是说判断是不是实现FactoryBean接口的bean
2、不是工厂bean，就调用getBean(beanName)来创建对象，等于ioc.getBean()
（1）调用doGetBean(name, null, null, false)
（2）doGetBean方法中首先获取转化过后的bean的名字，比如去掉一些前缀
（3）根据名字获取缓存中保存的单实例bean，如果能获取到，说明被创建过（所有创建过的单实例bean都会被缓存起来），缓存的Map是：
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);
（4）如果缓存（Map中）获取不到，就开始创建bean
（5）首先判断有没有父工厂（父子容器相关的）
（6）markBeanAsCreated(beanName)，标记当前bean被创建了，防止多线程创建多个bean等
（7）RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName)，拿到bean的定义信息，判断是不是抽象类，如果是就抛异常throw new BeanIsAbstractException(beanName)
（8）String[] dependsOn = mbd.getDependsOn()，获取所有bean依赖的其他bean，如果有就调用getBean创建 => getBean(dep)。
（9) 启动单实例bean的创建流程=>createBean(beanName, mbd, args),
1、拿到bean的定义信息，解析bean的类型…
2、Object bean = resolveBeforeInstantiation(beanName, mbdToUse)，先提前拦截返回代理对象 内部判断是不是InstantiationAwareBeanPostProcessor类型的，如果是就触发
postProcessBeforeInstantiation方法，再判断这个方法返回值是不是空，如果不是， 就触发postProcessAfterInitialization方法。（实际上这里并不会产生代理对象
的）
3、如果前面的InstantiationAwareBeanPostProcessor没有返回代理对象，就会调用Object beanInstance = doCreateBean(beanName, mbdToUse, args)创建bean，创建过程如下：
（1）首先判断是不是单实例，如果是就从缓存中移除
（2）instanceWrapper = createBeanInstance(beanName, mbd, args)：创建bean实例， 这个方法调用完之后，bean的对象就出来了。内部调用工厂方法或者利用对象构造器创建bean实例
（3）applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName），调用后置处理器来处理bean的定义信息内部调用MergedBeanDefinitionPostProcessor的postProcessMergedBeanDefinition(mbd, beanType, beanName)方法
（4）populateBean(beanName, mbd, instanceWrapper)：为Bean属性赋值。
1、在第（2）步实例化之后拿到InstantiationAwareBeanPostProcessor的后置处理器，执行它的 postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)方法后置处理
2、从缓存中拿到InstantiationAwareBeanPostProcessor后置处理器，执行postProcessPropertyValues方法，相当于把属性存起来，给后面真正赋值用
3、应用Bean属性的值, applyPropertyValues(beanName, mbd, bw, pvs),内部使用各种set方法进行赋值
（5）exposedObject = initializeBean(beanName, exposedObject, mbd)：初始化bean
1、invokeAwareMethods(beanName, bean)，执行xxxAware接口的方法，内部判断是不是BeanNameAware、BeanClassLoaderAware、BeanFactoryAware接口的，如果是就设置
2、applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName)：执行后置处理器执行初始化之前的方法，这一步证明还没真正初始化
3、invokeInitMethods(beanName, wrappedBean, mbd)， 执行初始化方法
(1) 是否是InitializingBean接口的实现，如果是就执行接口规定的初始化
(2) String initMethodName = mbd.getInitMethodName() 判断是否是自定义的初始化方法，如果是，内部反射invoke调用初始化方法.
4、wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName)，执行后置处理器初始化之后的方法,内部调用postProcessAfterInitialization方法。
（6) registerDisposableBeanIfNecessary(beanName, bean, mbd)，注册Bean的销毁方法，比如注册一些销毁接口…
（5）preInstantiateSingletons的最后一步=>所有bean都利用getBean创建完成以后的流程：检查所有的bean是否是SmartInitializingSingleton接口的，如果是，就执行smartSingleton.afterSingletonsInstantiated()方法，比如EventListener
12. this.finishReresh( );
完成beanFactory的初始化创建工作，完成后IOC容器就创建完成了
protected void finishRefresh() {
//清除一些资源缓存，例如ASM
clearResourceCaches();
//初始化和生命周期有关的后置处理器，内部获取id为lifecycleProcessor的组件
//如果没有，就调用方法创建一个id为lifecycleProcessor的DefaultLifecycleProcessor
initLifecycleProcessor();
getLifecycleProcessor().onRefresh();
//发布容器刷新完成事件，流程就是使用派发器派发ApplicationListener
publishEvent(new ContextRefreshedEvent(this));
if (!NativeDetector.inNativeImage()) {
LiveBeansView.registerApplicationContext(this);
}
}
目录
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
