提示：文章是centos-8服务器搭建MongoDB4.0.10版本的MongoDB副本及一主一从一仲裁

文章目录

前言

MongoDB 的 副本集（Replica Set） 是 MongoDB 高可用性的一种实现方式。副本集由一组节点组成，这些节点通过同步数据确保数据冗余和故障恢复。副本集为数据库提供数据高可用性、容错能力和故障转移能力。

📚 副本集的核心概念：

1、Primary 节点（主节点）：

副本集中的主节点负责接收写操作。
在任何时刻，副本集只能有一个主节点。
所有写操作都只能通过主节点进行，主节点会将数据同步到从节点。

2、Secondary 节点（从节点）：

从节点是主节点的副本，存储主节点数据的备份。
从节点只进行读取操作，不能直接进行写入。
从节点通过复制主节点的操作日志（oplog）来同步数据。
如果主节点失败，从节点中的一个会被选举为新的主节点（自动故障转移）。

3、Arbiter（仲裁节点）：

仲裁节点不存储数据，仅仅用于参与选举过程。
仲裁节点帮助副本集确定选举（即当发生主节点故障时，确定哪个从节点成为主节点）。
它没有数据存储，所以不会承担数据同步的责任。
仲裁节点通常在副本集成员数是偶数时添加，以确保选举时有足够的投票。

4、Oplog（操作日志）：

主节点的每次写操作都会记录到操作日志（oplog）中，所有从节点会不断地从主节点的 oplog 中复制数据，从而保持数据同步。

5、Replication（复制）：

每个副本集成员都保持一个操作日志（oplog），主节点的每次写操作都会首先记录在自己的 oplog 中，并将这些操作应用到从节点。

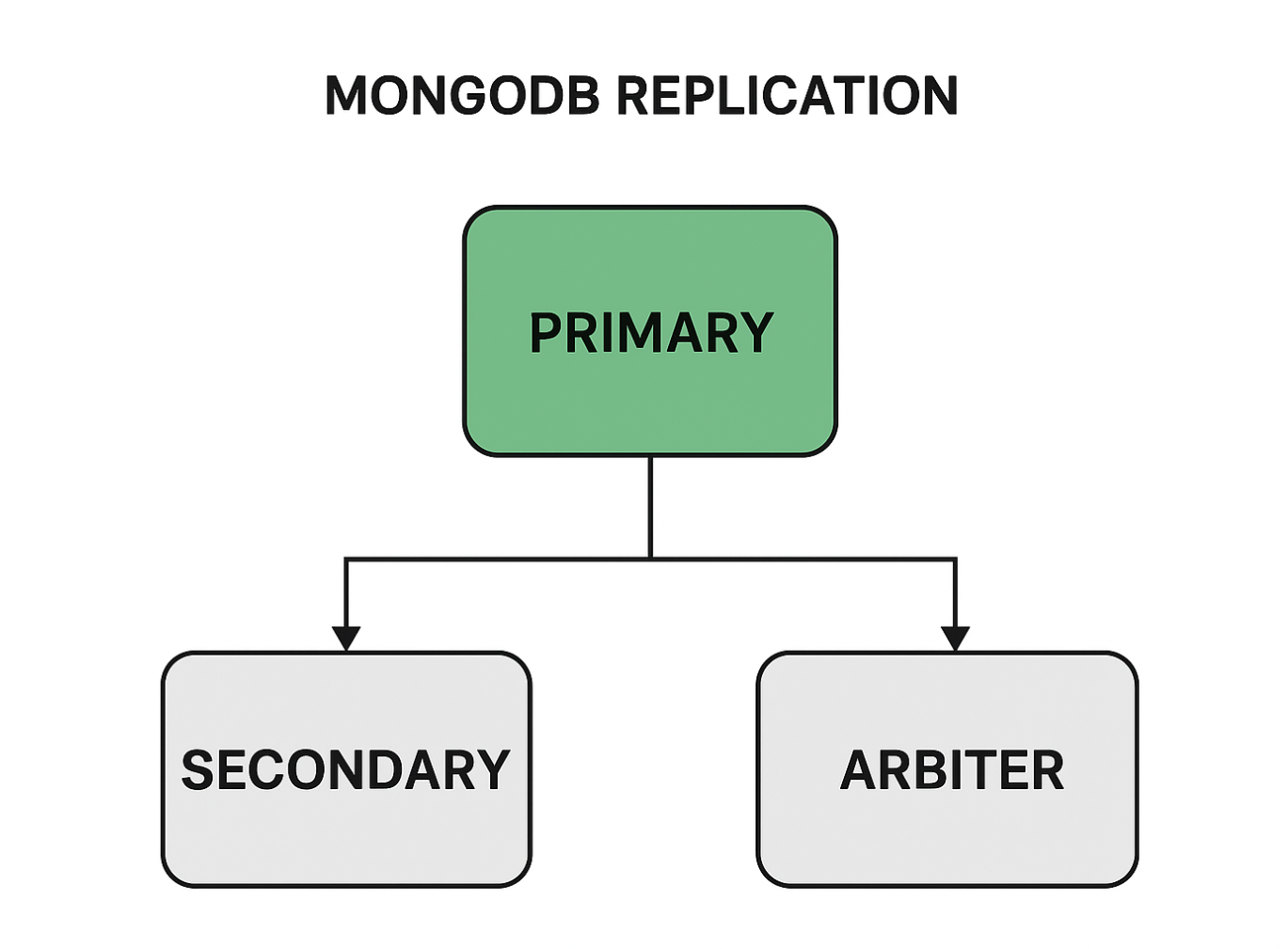

📝 副本集架构示意图：

在这里插入图片描述

✅ 副本集的优势：

1、高可用性：

副本集可以自动进行故障转移，如果主节点发生故障，副本集会自动选举出新的主节点，确保服务的持续运行。

2、数据冗余：

数据会被复制到多个节点上，避免了单点故障，提升数据安全性。

3、负载均衡：

读取操作可以从从节点中读取，减轻主节点的负担，提高系统的可伸缩性。

4、自动故障恢复：

如果主节点宕机，副本集会自动触发选举，选出新的主节点，从而确保系统的高可用性。

5、数据一致性：

副本集保证主节点和从节点的数据一致性，所有的数据变化首先会应用到主节点，然后同步到从节点。

MongoDB 副本集中有多个状态：

状态说明
PRIMARY主节点，可读写
SECONDARY从节点，只读
ARBITER仲裁节点
STARTUP第一次启动
STARTUP2正在加入 replica set
RECOVERING恢复中，不可读写
DOWN掉线
ROLLBACK回滚状态
OTHER既不是 PRIMARY，也不是 SECONDARY，也不是 ARBITER

👉 OTHER 常见于：副本集初始化失败、未加入、或配置不正确。

提示：以下是本篇文章正文内容，下面案例可供参考

一、环境需求

示例：pandas 是基于NumPy 的一种工具，该工具是为了解决数据分析任务而创建的。

公网IP内网IP系统服务器规划环境服务
150.158.123.17172.17.48.74centos-8主节点PRIMARYmongodb-linux-x86_64-4.0.10.tgz
101.35.12.56172.17.48.61centos-8仲裁节点（只做选举不做数据存储）ARBITERmongodb-linux-x86_64-4.0.10.tgz
124.220.41.219172.17.48.34centos-8从节点SECONDARYmongodb-linux-x86_64-4.0.10.tgz

二、三台机器同时安装

2.1、下载压缩包

wget https://fastdl.mongodb.org/linux/mongodb-linux-x86_64-4.0.10.tgz

2.2、解压到指定路径

tar xvf mongodb-linux-x86_64-4.0.10.tgz -C /usr/local/

2.3、创建软连接

cd /usr/local/
ln -s mongodb-linux-x86_64-4.0.10 mongodb

2.4、进入路径创建目录

cd /usr/local/mongodb && mkdir config

2.5、配置主配置文件

cd config
vim mongodb-27017.conf
添加如下配置
bind_ip = 0.0.0.0   ##设置0.0.0.0是都可以连接如果想本机连接的话设置127.0.0.1
port = 27017        ##定义端口号
dbpath = /usr/local/mongodb/27017   ##数据存放路径
logpath = /usr/local/mongodb/mongodb_27017.log  ##日志存放路径
logappend = true   ##日志使用追加的方式
fork = true   ##以守护进程的方式运行MongoDB，创建服务器进程
auth = true  ##启用验证，true是启用验证false是不启用
directoryperdb = true  ## 设置每个数据库将被保存在一个单独的目录
storageEngine = wiredTiger
shardsvr=true   ##如果不添加这项，后续进行分片不成功
replSet = test  ##副本集名称一个副本集（主从仲）三台机器名称一样
#keyFile = /usr/local/mongodb/config/mongodb-keyfile  ##高版本不需要配置密钥

2.6、创建存储和日志路径

[root@VM-48-41-centos config]# mkdir -p /usr/local/mongodb/27017

2.7、创建命令软链接

[root@VM-48-41-centos config]# ln -s /usr/local/mongodb/bin/* /usr/local/bin/

2.8、启动、关闭mongdb

[root@VM-48-41-centos config]# mongod -f /usr/local/mongodb/config/mongodb-27017.conf
[root@VM-48-41-centos config]# mongod -f /usr/local/mongodb/config/mongodb-27017.conf --shutdown

三、以下操作在任意一台机器操作（本人在106.54.228.229机器上操作）

3.1、登录mongodb，创建副本集

[root@VM-48-74-centos config]# mongo --port 27017
MongoDB shell version v4.0.10
connecting to: mongodb://127.0.0.1:27017/?gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("f474bf2f-e8de-4755-9d3d-a706e0a55f40") }
MongoDB server version: 4.0.10
Server has startup warnings:
2025-11-14T16:06:33.144+0800 I STORAGE  [initandlisten]
2025-11-14T16:06:33.144+0800 I STORAGE  [initandlisten] ** WARNING: Using the XFS filesystem is strongly recommended with the WiredTiger storage engine
2025-11-14T16:06:33.144+0800 I STORAGE  [initandlisten] **          See http://dochub.mongodb.org/core/prodnotes-filesystem
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten] ** WARNING: You are running this process as the root user, which is not recommended.
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten]
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten]
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/transparent_hugepage/enabled is 'always'.
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten] **        We suggest setting it to 'never'
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten]
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten] ** WARNING: soft rlimits too low. rlimits set to 6628 processes, 100001 files. Number of processes should be at least 50000.5 : 0.5 times number of files.
2025-11-14T16:06:33.355+0800 I CONTROL  [initandlisten]
> config = {_id: "test", members: [] }   ##创建副本及
{ "_id" : "test", "members" : [ ] }
> config.members.push({_id: 0, host: "172.17.48.74:27017", "priority": 1})   ## 一定要注意三个 _id只能唯一，不能一样
1
> config.members.push({_id: 1, host: "172.17.48.61:27017", "priority": 1})
2
> config.members.push({_id: 2, host: "172.17.48.34:27017", "priority": 1})
3
> rs.initiate(config)
{
        "ok" : 1,
        "operationTime" : Timestamp(1763107708, 1),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763107708, 1),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}

注意：SECONDARY：为从节点、PRIMARY：为主节点、ARBITER：为仲裁节点

3.2、查看副本及状态

test:SECONDARY>
test:PRIMARY>
test:PRIMARY>  rs.status()
{
        "set" : "test",
        "date" : ISODate("2025-11-14T08:10:21.107Z"),
        "myState" : 1,
        "term" : NumberLong(1),
        "syncingTo" : "",
        "syncSourceHost" : "",
        "syncSourceId" : -1,
        "heartbeatIntervalMillis" : NumberLong(2000),
        "optimes" : {
                "lastCommittedOpTime" : {
                        "ts" : Timestamp(1763107820, 1),
                        "t" : NumberLong(1)
                },
                "readConcernMajorityOpTime" : {
                        "ts" : Timestamp(1763107820, 1),
                        "t" : NumberLong(1)
                },
                "appliedOpTime" : {
                        "ts" : Timestamp(1763107820, 1),
                        "t" : NumberLong(1)
                },
                "durableOpTime" : {
                        "ts" : Timestamp(1763107820, 1),
                        "t" : NumberLong(1)
                }
        },
        "lastStableCheckpointTimestamp" : Timestamp(1763107780, 1),
        "members" : [
                {
                        "_id" : 0,
                        "name" : "172.17.48.74:27017",
                        "health" : 1,
                        "state" : 1,
                        "stateStr" : "PRIMARY",     ## 可以看出172.17.48.74这台机器是主节点
                        "uptime" : 228,
                        "optime" : {
                                "ts" : Timestamp(1763107820, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:10:20Z"),
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "could not find member to sync from",
                        "electionTime" : Timestamp(1763107719, 1),
                        "electionDate" : ISODate("2025-11-14T08:08:39Z"),
                        "configVersion" : 1,
                        "self" : true,
                        "lastHeartbeatMessage" : ""
                },
                {
                        "_id" : 1,
                        "name" : "172.17.48.61:27017",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",    ## 可以看出172.17.48.61这台机器是从节点
                        "uptime" : 112,
                        "optime" : {
                                "ts" : Timestamp(1763107810, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1763107810, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:10:10Z"),
                        "optimeDurableDate" : ISODate("2025-11-14T08:10:10Z"),
                        "lastHeartbeat" : ISODate("2025-11-14T08:10:19.220Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:10:19.185Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "172.17.48.74:27017",
                        "syncSourceHost" : "172.17.48.74:27017",
                        "syncSourceId" : 0,
                        "infoMessage" : "",
                        "configVersion" : 1
                },
                {
                        "_id" : 2,
                        "name" : "172.17.48.34:27017",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",    ## 可以看出172.17.48.34这台机器是从节点
                        "uptime" : 112,
                        "optime" : {
                                "ts" : Timestamp(1763107810, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1763107810, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:10:10Z"),
                        "optimeDurableDate" : ISODate("2025-11-14T08:10:10Z"),
                        "lastHeartbeat" : ISODate("2025-11-14T08:10:19.219Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:10:20.144Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "172.17.48.61:27017",
                        "syncSourceHost" : "172.17.48.61:27017",
                        "syncSourceId" : 1,
                        "infoMessage" : "",
                        "configVersion" : 1
                }
        ],
        "ok" : 1,
        "operationTime" : Timestamp(1763107820, 1),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763107820, 1),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}

注意：从以上的状态可以看出，10.10.1.3是主节点，10.10.1.5和10.10.1.6是从节点，为此我们需要做的是一主一从一仲裁步骤如下：
注意：在高版本以后 3.x 或 4.x 需要提前创建账号才能使用 rs.add()

四、创建账号密码

4.1、以下结果在主节点上操作：

test:PRIMARY> use admin
switched to db admin
test:PRIMARY> db.createUser({user:"root",pwd:"root",roles:[{role:"root",db:"admin"}]});
Successfully added user: {
        "user" : "root",
        "roles" : [
                {
                        "role" : "root",
                        "db" : "admin"
                }
        ]
}

4.2、增加节点->primary 执行(先验证账号密码)。

test:PRIMARY> use admin
switched to db admin
test:PRIMARY> db.auth('root','root')
1

注意：查看后会有两个从节点选一台服务做仲裁点在添加仲裁节点之前必须要先进入admin下，具体操作如下：

五、创建仲裁节点

注意：在主节点下操作进入admin后执行

5.1、删除从裁点

test:PRIMARY> rs.remove("172.17.48.61:27017")
{
        "ok" : 1,
        "operationTime" : Timestamp(1763108229, 1),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763108229, 1),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}

5.2、添加仲裁点

test:PRIMARY> rs.addArb("172.17.48.61:27017")
{
        "ok" : 1,
        "operationTime" : Timestamp(1763108440, 2),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763108440, 2),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}

5.3、再次查看状态

test:PRIMARY> rs.status()
{
        "set" : "test",
        "date" : ISODate("2025-11-14T08:27:30.420Z"),
        "myState" : 1,
        "term" : NumberLong(1),
        "syncingTo" : "",
        "syncSourceHost" : "",
        "syncSourceId" : -1,
        "heartbeatIntervalMillis" : NumberLong(2000),
        "optimes" : {
                "lastCommittedOpTime" : {
                        "ts" : Timestamp(1763108840, 1),
                        "t" : NumberLong(1)
                },
                "readConcernMajorityOpTime" : {
                        "ts" : Timestamp(1763108840, 1),
                        "t" : NumberLong(1)
                },
                "appliedOpTime" : {
                        "ts" : Timestamp(1763108840, 1),
                        "t" : NumberLong(1)
                },
                "durableOpTime" : {
                        "ts" : Timestamp(1763108840, 1),
                        "t" : NumberLong(1)
                }
        },
        "lastStableCheckpointTimestamp" : Timestamp(1763108800, 1),
        "members" : [
                {
                        "_id" : 0,
                        "name" : "172.17.48.74:27017",
                        "health" : 1,
                        "state" : 1,
                        "stateStr" : "PRIMARY",
                        "uptime" : 1257,
                        "optime" : {
                                "ts" : Timestamp(1763108840, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:27:20Z"),
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "electionTime" : Timestamp(1763107719, 1),
                        "electionDate" : ISODate("2025-11-14T08:08:39Z"),
                        "configVersion" : 3,
                        "self" : true,
                        "lastHeartbeatMessage" : ""
                },
                {
                        "_id" : 2,
                        "name" : "172.17.48.34:27017",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",
                        "uptime" : 1141,
                        "optime" : {
                                "ts" : Timestamp(1763108840, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1763108840, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:27:20Z"),
                        "optimeDurableDate" : ISODate("2025-11-14T08:27:20Z"),
                        "lastHeartbeat" : ISODate("2025-11-14T08:27:28.860Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:27:28.862Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "172.17.48.74:27017",
                        "syncSourceHost" : "172.17.48.74:27017",
                        "syncSourceId" : 0,
                        "infoMessage" : "",
                        "configVersion" : 3
                },
                {
                        "_id" : 3,
                        "name" : "172.17.48.61:27017",
                        "health" : 0,
                        "state" : 8,
                        "stateStr" : "(not reachable/healthy)",    ##出现报错（无法到达/正常）
                        "uptime" : 0,
                        "lastHeartbeat" : ISODate("2025-11-14T08:27:29.955Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:20:40.865Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "Error connecting to 172.17.48.61:27017 :: caused by :: Connection refused",
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "configVersion" : -1
                }
        ],
        "ok" : 1,
        "operationTime" : Timestamp(1763108840, 1),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763108840, 1),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}
不用担心此时不要慌退出mongodb执行以下命令
注意：先关闭在重启先重启主节点在重启添加仲裁节点，也可以先登录mongodb如果出现以下提示，直接启动
在101.35.12.56机器上操作：
[root@VM-48-61-centos config]# mongod -f /usr/local/mongodb/config/mongodb-27017.conf
about to fork child process, waiting until server is ready for connections.
forked process: 23224
child process started successfully, parent exiting
[root@VM-48-61-centos config]# mongo --port 27017
MongoDB shell version v4.0.10
connecting to: mongodb://127.0.0.1:27017/?gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("3ac76d4f-315c-49a9-8ea2-15fc106c075a") }
MongoDB server version: 4.0.10
Welcome to the MongoDB shell.
For interactive help, type "help".
For more comprehensive documentation, see
        http://docs.mongodb.org/
Questions? Try the support group
        http://groups.google.com/group/mongodb-user
Server has startup warnings:
2025-11-14T16:30:32.498+0800 I STORAGE  [initandlisten]
2025-11-14T16:30:32.498+0800 I STORAGE  [initandlisten] ** WARNING: Using the XFS filesystem is strongly recommended with the WiredTiger storage engine
2025-11-14T16:30:32.498+0800 I STORAGE  [initandlisten] **          See http://dochub.mongodb.org/core/prodnotes-filesystem
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten] ** WARNING: You are running this process as the root user, which is not recommended.
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten]
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten]
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/transparent_hugepage/enabled is 'always'.
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten] **        We suggest setting it to 'never'
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten]
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten] ** WARNING: soft rlimits too low. rlimits set to 6628 processes, 100001 files. Number of processes should be at least 50000.5 : 0.5 times number of files.
2025-11-14T16:30:32.704+0800 I CONTROL  [initandlisten]
2025-11-14T16:30:32.717+0800 I REPL     [replexec-0]
2025-11-14T16:30:32.717+0800 I REPL     [replexec-0] ** WARNING: This replica set uses arbiters, but readConcern:majority is enabled
2025-11-14T16:30:32.717+0800 I REPL     [replexec-0] **          for this node. This is not a recommended configuration. Please see
2025-11-14T16:30:32.717+0800 I REPL     [replexec-0] **          https://dochub.mongodb.org/core/psa-disable-rc-majority-4.0
2025-11-14T16:30:32.717+0800 I REPL     [replexec-0]
test:ARBITER>
可以看出变成了仲裁节点

5.4、150.158.123.17主节点查看状态

test:PRIMARY> rs.status()
{
        "set" : "test",
        "date" : ISODate("2025-11-14T08:32:45.607Z"),
        "myState" : 1,
        "term" : NumberLong(1),
        "syncingTo" : "",
        "syncSourceHost" : "",
        "syncSourceId" : -1,
        "heartbeatIntervalMillis" : NumberLong(2000),
        "optimes" : {
                "lastCommittedOpTime" : {
                        "ts" : Timestamp(1763109160, 1),
                        "t" : NumberLong(1)
                },
                "readConcernMajorityOpTime" : {
                        "ts" : Timestamp(1763109160, 1),
                        "t" : NumberLong(1)
                },
                "appliedOpTime" : {
                        "ts" : Timestamp(1763109160, 1),
                        "t" : NumberLong(1)
                },
                "durableOpTime" : {
                        "ts" : Timestamp(1763109160, 1),
                        "t" : NumberLong(1)
                }
        },
        "lastStableCheckpointTimestamp" : Timestamp(1763109160, 1),
        "members" : [
                {
                        "_id" : 0,
                        "name" : "172.17.48.74:27017",
                        "health" : 1,
                        "state" : 1,
                        "stateStr" : "PRIMARY",     ## 主节点
                        "uptime" : 1572,
                        "optime" : {
                                "ts" : Timestamp(1763109160, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:32:40Z"),
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "electionTime" : Timestamp(1763107719, 1),
                        "electionDate" : ISODate("2025-11-14T08:08:39Z"),
                        "configVersion" : 3,
                        "self" : true,
                        "lastHeartbeatMessage" : ""
                },
                {
                        "_id" : 2,
                        "name" : "172.17.48.34:27017",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",    ## 从节点
                        "uptime" : 1456,
                        "optime" : {
                                "ts" : Timestamp(1763109160, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1763109160, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:32:40Z"),
                        "optimeDurableDate" : ISODate("2025-11-14T08:32:40Z"),
                        "lastHeartbeat" : ISODate("2025-11-14T08:32:44.860Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:32:44.862Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "172.17.48.74:27017",
                        "syncSourceHost" : "172.17.48.74:27017",
                        "syncSourceId" : 0,
                        "infoMessage" : "",
                        "configVersion" : 3
                },
                {
                        "_id" : 3,
                        "name" : "172.17.48.61:27017",
                        "health" : 1,
                        "state" : 7,
                        "stateStr" : "ARBITER",      ## 仲裁节点
                        "uptime" : 131,
                        "lastHeartbeat" : ISODate("2025-11-14T08:32:44.007Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:32:44.719Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "configVersion" : 3
                }
        ],
        "ok" : 1,
        "operationTime" : Timestamp(1763109160, 1),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763109160, 1),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}

六、验证主从宕机，101.35.12.56机器是否选举124.220.41.219作为主

6.1、在150.158.123.17机器主节点操作

[root@VM-48-74-centos config]#  mongod -f /usr/local/mongodb/config/mongodb-27017.conf --shutdown
killing process with pid: 13376

6.2、在124.220.41.219机器上操作，查看集群状态

[root@VM-48-34-centos config]# mongo --port 27017
MongoDB shell version v4.0.10
connecting to: mongodb://127.0.0.1:27017/?gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("7fedca55-0386-4105-807a-778da3bdf525") }
MongoDB server version: 4.0.10
Welcome to the MongoDB shell.
For interactive help, type "help".
For more comprehensive documentation, see
        http://docs.mongodb.org/
Questions? Try the support group
        http://groups.google.com/group/mongodb-user
Server has startup warnings:
2025-11-14T16:06:40.386+0800 I STORAGE  [initandlisten]
2025-11-14T16:06:40.386+0800 I STORAGE  [initandlisten] ** WARNING: Using the XFS filesystem is strongly recommended with the WiredTiger storage engine
2025-11-14T16:06:40.386+0800 I STORAGE  [initandlisten] **          See http://dochub.mongodb.org/core/prodnotes-filesystem
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten] ** WARNING: You are running this process as the root user, which is not recommended.
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten]
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten]
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/transparent_hugepage/enabled is 'always'.
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten] **        We suggest setting it to 'never'
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten]
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten] ** WARNING: soft rlimits too low. rlimits set to 6628 processes, 100001 files. Number of processes should be at least 50000.5 : 0.5 times number of files.
2025-11-14T16:06:40.593+0800 I CONTROL  [initandlisten]
test:PRIMARY>  rs.status()   ##其实在你登录之后就可以看出已经是主节点了（test:PRIMARY）
{
        "set" : "test",
        "date" : ISODate("2025-11-14T08:37:40.151Z"),
        "myState" : 1,
        "term" : NumberLong(3),
        "syncingTo" : "",
        "syncSourceHost" : "",
        "syncSourceId" : -1,
        "heartbeatIntervalMillis" : NumberLong(2000),
        "optimes" : {
                "lastCommittedOpTime" : {
                        "ts" : Timestamp(1763109360, 1),
                        "t" : NumberLong(1)
                },
                "readConcernMajorityOpTime" : {
                        "ts" : Timestamp(1763109360, 1),
                        "t" : NumberLong(1)
                },
                "appliedOpTime" : {
                        "ts" : Timestamp(1763109455, 1),
                        "t" : NumberLong(3)
                },
                "durableOpTime" : {
                        "ts" : Timestamp(1763109455, 1),
                        "t" : NumberLong(3)
                }
        },
        "lastStableCheckpointTimestamp" : Timestamp(1763109360, 1),
        "members" : [
                {
                        "_id" : 0,
                        "name" : "172.17.48.74:27017",
                        "health" : 0,
                        "state" : 8,
                        "stateStr" : "(not reachable/healthy)",    ##已经宕机了
                        "uptime" : 0,
                        "optime" : {
                                "ts" : Timestamp(0, 0),
                                "t" : NumberLong(-1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(0, 0),
                                "t" : NumberLong(-1)
                        },
                        "optimeDate" : ISODate("1970-01-01T00:00:00Z"),
                        "optimeDurableDate" : ISODate("1970-01-01T00:00:00Z"),
                        "lastHeartbeat" : ISODate("2025-11-14T08:37:38.558Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:36:02.860Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "Error connecting to 172.17.48.74:27017 :: caused by :: Connection refused",
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "configVersion" : -1
                },
                {
                        "_id" : 2,
                        "name" : "172.17.48.34:27017",
                        "health" : 1,
                        "state" : 1,
                        "stateStr" : "PRIMARY",   ## 变成主节点
                        "uptime" : 1860,
                        "optime" : {
                                "ts" : Timestamp(1763109455, 1),
                                "t" : NumberLong(3)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:37:35Z"),
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "could not find member to sync from",
                        "electionTime" : Timestamp(1763109374, 1),
                        "electionDate" : ISODate("2025-11-14T08:36:14Z"),
                        "configVersion" : 3,
                        "self" : true,
                        "lastHeartbeatMessage" : ""
                },
                {
                        "_id" : 3,
                        "name" : "172.17.48.61:27017",
                        "health" : 1,
                        "state" : 7,
                        "stateStr" : "ARBITER",
                        "uptime" : 426,
                        "lastHeartbeat" : ISODate("2025-11-14T08:37:38.553Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:37:38.718Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "configVersion" : 3
                }
        ],
        "ok" : 1,
        "operationTime" : Timestamp(1763109455, 1),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763109455, 1),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}

6.3、在回到150.158.123.17机器上模拟故障解决

[root@VM-48-74-centos config]#  mongod -f /usr/local/mongodb/config/mongodb-27017.conf
about to fork child process, waiting until server is ready for connections.
forked process: 25469
child process started successfully, parent exiting

6.4、再次回到124.220.41.219机器查看集群状态

test:PRIMARY> rs.status()
{
        "set" : "test",
        "date" : ISODate("2025-11-14T08:40:27.321Z"),
        "myState" : 1,
        "term" : NumberLong(3),
        "syncingTo" : "",
        "syncSourceHost" : "",
        "syncSourceId" : -1,
        "heartbeatIntervalMillis" : NumberLong(2000),
        "optimes" : {
                "lastCommittedOpTime" : {
                        "ts" : Timestamp(1763109625, 1),
                        "t" : NumberLong(3)
                },
                "readConcernMajorityOpTime" : {
                        "ts" : Timestamp(1763109625, 1),
                        "t" : NumberLong(3)
                },
                "appliedOpTime" : {
                        "ts" : Timestamp(1763109625, 1),
                        "t" : NumberLong(3)
                },
                "durableOpTime" : {
                        "ts" : Timestamp(1763109625, 1),
                        "t" : NumberLong(3)
                }
        },
        "lastStableCheckpointTimestamp" : Timestamp(1763109585, 1),
        "members" : [
                {
                        "_id" : 0,
                        "name" : "172.17.48.74:27017",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",    ##看出172.17.48.74机器之前是主故障恢复后变成从了
                        "uptime" : 56,
                        "optime" : {
                                "ts" : Timestamp(1763109625, 1),
                                "t" : NumberLong(3)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1763109625, 1),
                                "t" : NumberLong(3)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:40:25Z"),
                        "optimeDurableDate" : ISODate("2025-11-14T08:40:25Z"),
                        "lastHeartbeat" : ISODate("2025-11-14T08:40:26.561Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:40:26.811Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "172.17.48.34:27017",
                        "syncSourceHost" : "172.17.48.34:27017",
                        "syncSourceId" : 2,
                        "infoMessage" : "",
                        "configVersion" : 3
                },
                {
                        "_id" : 2,
                        "name" : "172.17.48.34:27017",
                        "health" : 1,
                        "state" : 1,
                        "stateStr" : "PRIMARY",    ## 可以看出172.17.48.34是主
                        "uptime" : 2027,
                        "optime" : {
                                "ts" : Timestamp(1763109625, 1),
                                "t" : NumberLong(3)
                        },
                        "optimeDate" : ISODate("2025-11-14T08:40:25Z"),
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "electionTime" : Timestamp(1763109374, 1),
                        "electionDate" : ISODate("2025-11-14T08:36:14Z"),
                        "configVersion" : 3,
                        "self" : true,
                        "lastHeartbeatMessage" : ""
                },
                {
                        "_id" : 3,
                        "name" : "172.17.48.61:27017",
                        "health" : 1,
                        "state" : 7,
                        "stateStr" : "ARBITER",
                        "uptime" : 593,
                        "lastHeartbeat" : ISODate("2025-11-14T08:40:26.553Z"),
                        "lastHeartbeatRecv" : ISODate("2025-11-14T08:40:26.718Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "configVersion" : 3
                }
        ],
        "ok" : 1,
        "operationTime" : Timestamp(1763109625, 1),
        "$clusterTime" : {
                "clusterTime" : Timestamp(1763109625, 1),
                "signature" : {
                        "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
                        "keyId" : NumberLong(0)
                }
        }
}

由以上得出结论：在主宕机之后会选举从未主节点，但是之前的主当即后回复，不会再变成主，而是从。

七、开启账号密码认证（可选）因为本人在4.2章节创建了

7.1、三台机器关闭

mongod -f /usr/local/mongodb/config/mongodb-27017.conf --shutdown

7.2、因为之前的主配置文件里面有一个修改三台机器

vim mongodb-27017.conf
添加如下配置
bind_ip = 0.0.0.0
port = 27017
dbpath = /usr/local/mongodb/27017
logpath = /usr/local/mongodb/mongodb_27017.log
logappend = true
fork = true
auth = false ##将false 变为true
directoryperdb = true
storageEngine = wiredTiger
shardsvr=true
replSet = test
keyFile = /usr/local/mongodb/config/mongodb-keyfile  ##去掉注释

7.3、配置mongodb-keyfile 秘钥，在150.158.123.17机器主节点上操作

[root@VM-48-74-centos config]# openssl rand -base64 756 > /usr/local/mongodb/config/mongodb-keyfile
[root@VM-48-74-centos config]# chmod 600 /usr/local/mongodb/config/mongodb-keyfile
[root@VM-48-74-centos config]# scp /usr/local/mongodb/config/mongodb-keyfile root@172.17.48.61:/usr/lo
cal/mongodb/config/
[root@VM-48-74-centos config]# scp /usr/local/mongodb/config/mongodb-keyfile root@172.17.48.34:/usr/lo
cal/mongodb/config/

7.4、101.35.12.56和124.220.41.219机器上操作

chmod 600 /usr/local/mongodb/config/mongodb-keyfile

7.5、三台机器启动

mongod -f /usr/local/mongodb/config/mongodb-27017.conf

7.6、三台机器登录查看状态

登录mongodb
mongo --port 27017 -u root -p root --authenticationDatabase admin

注意：进入后你才能看到 PRIMARY / SECONDARY，否则只能进入 OTHER。

7.6.1、150.158.123.17机器查看

[root@VM-48-74-centos config]# mongo --port 27017 -u root -p root --authenticationDatabase admin
MongoDB shell version v4.0.10
connecting to: mongodb://127.0.0.1:27017/?authSource=admin&gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("a08b6689-af02-4f03-92d3-ef9137ca19d4") }
MongoDB server version: 4.0.10
Server has startup warnings:
2025-11-14T17:44:28.804+0800 I STORAGE  [initandlisten]
2025-11-14T17:44:28.804+0800 I STORAGE  [initandlisten] ** WARNING: Using the XFS filesystem is strongly recommended with the WiredTiger storage engine
2025-11-14T17:44:28.804+0800 I STORAGE  [initandlisten] **          See http://dochub.mongodb.org/core/prodnotes-filesystem
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten] ** WARNING: You are running this process as the root user, which is not recommended.
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten]
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten]
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/transparent_hugepage/enabled is 'always'.
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten] **        We suggest setting it to 'never'
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten]
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten] ** WARNING: soft rlimits too low. rlimits set to 6628 processes, 100001 files. Number of processes should be at least 50000.5 : 0.5 times number of files.
2025-11-14T17:44:28.923+0800 I CONTROL  [initandlisten]
test:PRIMARY>  ## 主节点

7.6.2、101.35.12.56机器查看

[root@VM-48-61-centos config]# mongo --port 27017 -u root -p root --authenticationDatabase admin
MongoDB shell version v4.0.10
connecting to: mongodb://127.0.0.1:27017/?authSource=admin&gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("2fd829e9-6ba8-436d-b62d-eba6d53ee1b2") }
MongoDB server version: 4.0.10
Server has startup warnings:
2025-11-14T17:23:46.211+0800 I STORAGE  [initandlisten]
2025-11-14T17:23:46.211+0800 I STORAGE  [initandlisten] ** WARNING: Using the XFS filesystem is strongly recommended with the WiredTiger storage engine
2025-11-14T17:23:46.211+0800 I STORAGE  [initandlisten] **          See http://dochub.mongodb.org/core/prodnotes-filesystem
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten] ** WARNING: You are running this process as the root user, which is not recommended.
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten]
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten]
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/transparent_hugepage/enabled is 'always'.
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten] **        We suggest setting it to 'never'
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten]
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten] ** WARNING: soft rlimits too low. rlimits set to 6628 processes, 100001 files. Number of processes should be at least 50000.5 : 0.5 times number of files.
2025-11-14T17:23:46.451+0800 I CONTROL  [initandlisten]
2025-11-14T17:23:46.483+0800 I REPL     [replexec-0]
2025-11-14T17:23:46.483+0800 I REPL     [replexec-0] ** WARNING: This replica set uses arbiters, but readConcern:majority is enabled
2025-11-14T17:23:46.483+0800 I REPL     [replexec-0] **          for this node. This is not a recommended configuration. Please see
2025-11-14T17:23:46.483+0800 I REPL     [replexec-0] **          https://dochub.mongodb.org/core/psa-disable-rc-majority-4.0
2025-11-14T17:23:46.483+0800 I REPL     [replexec-0]
test:ARBITER>   ##仲裁节点

7.6.3、124.220.41.219机器查看

[root@VM-48-34-centos config]# mongo --port 27017 -u root -p root --authenticationDatabase admin
MongoDB shell version v4.0.10
connecting to: mongodb://127.0.0.1:27017/?authSource=admin&gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("f43052f1-8de3-489a-a74c-69fe7e7fab86") }
MongoDB server version: 4.0.10
Server has startup warnings:
2025-11-14T17:45:53.925+0800 I STORAGE  [initandlisten]
2025-11-14T17:45:53.925+0800 I STORAGE  [initandlisten] ** WARNING: Using the XFS filesystem is strongly recommended with the WiredTiger storage engine
2025-11-14T17:45:53.925+0800 I STORAGE  [initandlisten] **          See http://dochub.mongodb.org/core/prodnotes-filesystem
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten] ** WARNING: You are running this process as the root user, which is not recommended.
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten]
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten]
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/transparent_hugepage/enabled is 'always'.
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten] **        We suggest setting it to 'never'
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten]
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten] ** WARNING: soft rlimits too low. rlimits set to 6628 processes, 100001 files. Number of processes should be at least 50000.5 : 0.5 times number of files.
2025-11-14T17:45:54.161+0800 I CONTROL  [initandlisten]
2025-11-14T17:45:54.195+0800 I REPL     [replexec-0]
2025-11-14T17:45:54.195+0800 I REPL     [replexec-0] ** WARNING: This replica set uses arbiters, but readConcern:majority is enabled
2025-11-14T17:45:54.195+0800 I REPL     [replexec-0] **          for this node. This is not a recommended configuration. Please see
2025-11-14T17:45:54.195+0800 I REPL     [replexec-0] **          https://dochub.mongodb.org/core/psa-disable-rc-majority-4.0
2025-11-14T17:45:54.195+0800 I REPL     [replexec-0]
test:SECONDARY>    ##从节点

总结

MongoDB 副本集是高可用性架构的核心组件，能够提供数据冗余、容错和自动故障转移能力。通过设置主节点、从节点和仲裁节点，可以保证数据的高可用性并实现数据自动同步。

副本集非常适合需要高可用性的生产环境，特别是当需要确保系统在单个节点发生故障时仍然能继续运行。

是Judy咋！
关注
一文读懂MongoDB之主从模式搭建
野熊佩骑的博客
01-06 1182
本文详细介绍了MongoDB 3.6.3版本主从模式搭建过程。主要内容包括：在两台CentOS 7.7服务器上分别配置主库(node01)和从库(node02)，创建必要目录、下载安装包、配置keyfile安全认证，并详细说明了主从节点的配置文件参数设置。重点阐述了如何启动MongoDB服务、创建管理用户以及验证主从数据同步功能。文中特别指出MongoDB 4.0+版本不再支持主从复制，并提供了从库查询主库地址的管理命令。通过完整的步骤演示，确保读者能够成功搭建MongoDB主从复制环境。
使用docker-compose 搭建mongo多副本
qq_40315096的博客
06-05 1641
MongoDB副本集（Replica Set）是有自动故障恢复功能的主从集群，有一个Primary节点和一个或者多个Secondary节点组成。副本集没有固定的主节点，当主节点发生故障时，整个集群会选举一个主节点 为系统提供服务以保证系统的高可用。副本集拥有三种节点:主节点、从节点、仲裁节点1.负责处理客户端请求,读、写数据。2.从主节点中复制数据，并可以接收读请求。在主节点故障时可通过投票选举出新的主节点。3.不持有数据副本，只参与投票过程，决定哪个节点成为主节点。
MongoDB学习系列 -- 主从复制搭建
ydm东方旭日的专栏
08-05 478
在开始今天内容的学习之前我们先来了解一下背景知识。 mongodb的数据是存储在服务启动时指定的--dbpath目录下，备份数据只需要拷贝该目录即可。 学过mysql、sql server数据库的同学对于数据库数据的冷热备份一定不陌生，其中mysql数据库提供了mysqldump的备份命令来进行数据的热备份。那MongoDB是不是也原生的提供了一些命令来支持我们的备份操作呢？ 答案是肯定的，...
MongoDB-6.0.24 主从复制搭建和扩容缩容详解
zyb378747350的专栏
06-03 1037
源码编译安装参考：https://blog.csdn.net/zyb378747350/article/details/148307411。rs.addArb("ip:port") #新增仲裁节点。rs.remove("ip:port") #删除一个节点。rs.status() #查看整体复制集群状态。rs.isMaster() #查看当前是否是主节点。rs.add("ip:port") #新增从节点。#查看主从复制集群的从库状态信息(延迟、成员)rs.conf() #查看配置。
MongoDB - 主从模式和副本集的创建
it_lihongmin的博客
08-19 1410
MongoDB与redis等都非常的相似，集群可以有主从模式（master-slaver）、副本集、副本集Arbiter（redis的哨兵模式）、以及分片模式（redis的hash槽）。所以全面的了解MongoDB还是很有必要的，从主从模式开始。 一、主从模式 1、主从模式使用场景 主从模式下当主节点发生异常的时候，从节点不能升级为主节点继续提供服务（即故障转移），并且需要显...
MongoDB-4.4.2单机安装以及副本集配置
weixin_43054437的博客
06-02 2146
目录 1 MongoDB-4.4.2的单机安装 1.1 软件包的下载 1.2 安装MongoDB-4.4.2 1.2.1 解压 1.2.2 重命名 1.2.3 配置环境变量 1.3 启动MongoDB 1.3.1 编辑配置文件 1.3.3 执行如下命令使用指定的配置来启动 MongoDB 1.3.4 本机连接测试 1.4 关闭MongoDB 1.5设置MongoDB以systemctl的方式启动 2 MongoDB的副本集部署 2.1 副本集的介绍 2.2 副本集配置 2..
日志分析平台--mongodb副本集搭建
菜鸟运维升级之路
11-11 468
该系列主要是以开源组件es、mongodb、graylog为主，搭建一套生产环境日志平台，与常见的elk日志平台相对比，该日志平台部署简易、且占用服务器资源较少，整体不是很重，适用于TOB、TOG项目使用。反观elk平台更适用于TOC项目，且维护成本较高，依赖组件较多。因此，本系列主要从es集群搭建、mongodb搭建、graylog搭建、页面配置、微服务日志接入、graylog日志报警接入展开。
MongoDB学习---副本集搭建
12-25 521
副本集搭建一. MongoDB 副本集介绍二. 环境准备1. 配置主机名2. 搭建副本集三. 副本集中添加节点（自动同步原有的数据）四. 副本集节点中删除五. 副本集查看节点状态六. Springboot 操作副本集 mongoDB中的主从复制(4.0版本废弃) 主从复制就没有去测试 主从复制是mongoDB最常用的复制方式,这种方式非常灵活,可用于备份,故障恢复和扩展等. 一. MongoDB 副本集介绍 MongoDB 副本集（Replica Set）是有自动故障恢复功能的主从集群，有一个P
mongodb主从
qq_73797346的博客
02-15 1005
MongoDB复制集（replication Set）的主要意义在于实现服务高可用，它的实现依赖于两个方面的功能一个典型的复制集由3个以上具有投票权的节点组成：（PSS PSA-建议5节点）复制集节点之间的数据复制：当一个修改操作发生，无论是插入、更新或删除，到达主节点时，它对数据的操作将被记录下来（经过一些必要的转换）；这些记录称为oplog从节点通过在主节点上打开一个tailable游标不断获取新进入主节点的oplog，并在自己的数据库上回放，以此保证更主节点数据一致。
详解mongoDB主从复制搭建详细过程
09-09
在MongoDB中，主从复制的搭建主要包括以下几个步骤： 1. **MongoDB的安装**： 首先，你需要从MongoDB官方网站下载适合你服务器的操作系统的稳定版本。对于Linux系统，可以使用`wget`或`curl`命令下载tar.gz文件，...
MongoDB的主从复制及副本集的replSet配置教程
12-16
主从复制是MongoDB最常用的复制方式。可用于备份，故障恢复和读扩展等。 基本就是搭建一个主节点和一个或多个从节点，每个从节点需要知道主节点的地址。运行mongod –master启动主服务器。运行mongod –slave –...
利用三个云服务器，搭建MongoDB副本集模式（主从模式）
LJWWD的博客
04-12 1499
首先我们需要在三台服务器上分别下载和安装mongoDB。
mongodb的副本集搭建(主从)
橙子的随笔集
12-11 1446
mongodb副本集的搭建，验证和选举过程。
【DB】MongoDB 安装及基于MongoDB Compass的数据管理
正经教主是个热衷于正经学习分享的教主。
11-11 1196
本文详细介绍了MongoDB的安装配置方法及基本使用指南。
MongoDB 操作命令
qq_51537858的博客
11-10 249
本文介绍了MongoDB的常用命令操作，包括登录、查询和更新三部分内容。登录命令详细说明了连接参数配置；查询部分包含集合查看、选择和使用findOne查询记录；更新操作则提供了updateOne和updateMany两种更新方式示例，涵盖了单条和批量记录更新的语法。这些命令覆盖了MongoDB日常使用的基本场景，为数据库操作提供了实用参考。
MongoDB知识点与技巧总结
weixin_49538406的博客
11-12 674
NoSQL数据库与MongoDB核心要点解析 NoSQL数据库（Not Only SQL）采用非关系数据模型，包括键值、文档、列存储等类型，适合大数据、高并发场景，但无法完全替代关系数据库。MongoDB作为主流文档型NoSQL数据库，具有面向文档、高性能、易扩展等优势。其核心特性包括：32位系统限制2GB数据；journal机制保障崩溃恢复；分片技术实现水平扩展；复制集确保高可用；GridFS支持大文件存储。使用中需注意索引优化、连接监控、数据迁移等运维细节。MongoDB虽支持多文档事务，但设计理念仍侧
MongoDB的基本操作（适配Node.js全栈项目）
qq_32436781的博客
11-13 531
Schema用于约束文档结构（字段类型、默认值、验证规则等），Model是 Schema 的实例化，对应 MongoDB 的 Collection。// 定义用户 Schematype: String, // 字段类型required: true, // 必传unique: true, // 唯一（不可重复）trim: true // 自动去除首尾空格},age: {min: 0, // 最小值验证default: 0 // 默认值},email: {
MongoDB 分片
最新发布
froginwe11的博客
11-13 245
MongoDB 分片是一种有效的数据存储和扩展机制，能够提高数据库的读写性能和存储容量。在实际应用中，需要根据具体场景选择合适的分片策略，并注意相关配置和注意事项。
93-MongoDB-Linux
11-12 164
4.配置mongod.conf文件。mongod.conf配置文件。提供源文件 参见下面的图片。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
