XLNet：Generalized Autoregressive Pretraining for Language Understanding（2019-6-19）

模型概述

XLNet 中提出了一种比较有意思的观点，将当前预训练模型分为了两类 AR (Auto Regression，自回归) 和 AE (Auto Encoder，自编码器)。 XLNet 将 AR 和 AE 两种方法的优点结合起来，XLNet 使用了 PLM（Permutation Language Model，排列组合语言模型）实现这一目的。

另外，由于使用排列组合模型，使用Transformer的自注意力会导致不知道预测的是哪一个token，XLNet通过双流自注意力机制来实现目标位置感知。

模型优化

排列组合语言模型

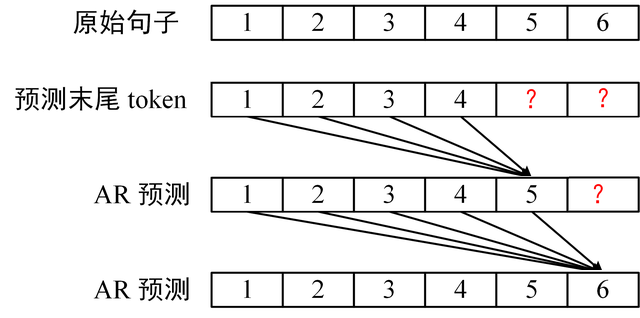

自回归语言模型就是根据上文内容预测下一个可能跟随的单词，也就是常说的自左向右的语言模型，或者反过来也行，就是根据下文预测前面的单词。

自回归语言模型有优点有缺点，缺点是只能利用上文或者下文的信息，不能同时利用上文和下文的信息，它的优点，其实跟下游NLP任务有关，比如生成类NLP任务，比如文本摘要，机器翻译等，在实际生成内容的时候，就是从左向右的，自回归语言模型天然匹配这个过程。

GPT 就是典型的自回归语言模型。ELMO尽管看上去利用了上文，也利用了下文，但是本质上仍然是自回归LM，这个跟模型具体怎么实现有关系。ELMO是做了两个方向（从左到右以及从右到左两个方向的语言模型），但是是分别有两个方向的自回归LM，然后把LSTM的两个方向的隐节点状态拼接到一起，来体现双向语言模型这个事情的。所以其实是两个自回归语言模型的拼接，本质上仍然是自回归语言模型。

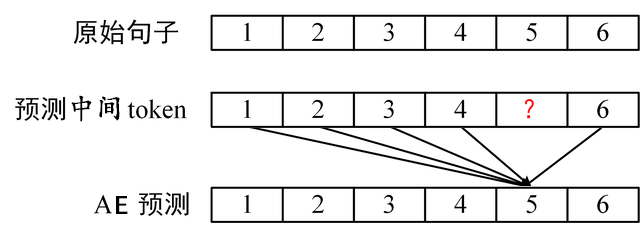

自编码语言模型是根据上下文单词来预测上下文中的单词。它能比较自然地融入双向语言模型，同时看到被预测单词的上文和下文。优缺点正好和自回归LM反过来，它能比较自然地融入双向语言模型，同时看到被预测单词的上文和下文，缺点主要在输入侧引入[Mask]标记，导致预训练阶段和Fine-tuning阶段不一致的问题，因为Fine-tuning阶段是看不到[Mask]标记的。

BERT通过在输入X中随机Mask掉一部分单词，然后根据上下文单词来预测这些被Mask掉的单词。

排列组合语言模型将句子中的单词随机排列，然后采用自回归的方式预测末尾的几个单词。这样一来，在预测单词的时候就可以同时利用该单词双向的信息，并且能学到单词间的依赖。

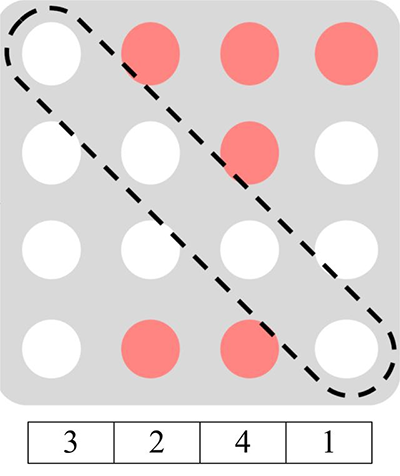

XLNet 中通过 Attention Mask 实现 PLM，而无需真正修改句子 token 的顺序。例如原来的句子是 [1,2,3,4]，如果随机生成的序列时 [3,2,4,1]，则输入到 XLNet 的句子仍然是 [1,2,3,4]，但是掩码需要修改成下图。

图中的掩码矩阵，红色表示不遮掩，白色表示遮掩。第 1 行表示 token 1 的掩码，在序列 3241中处于最后，能够看到前面的324，因此第一行的第2、3、4的圈圈都是红色，表示不遮掩。第2行表示token2的掩码，在序列3241中位于第二个，它只能看到前面的3，因此第二行的第3个圈圈为红色。第3行表示token3的掩码，在序列3241中处于最前面，因为它前面没有任何token，因此它看不到任何的token，所以4个圈圈都应为白色，表示遮掩。

双流自注意力：

XLNet 打乱了句子的顺序，这时在预测的时候 token 的位置信息会非常重要，同时在预测的时候也必须将 token 的内容信息遮掩起来 (否则输入包含了要预测的内容信息，模型就无法学到知识)。也就是说 XLNet 需要看到 token 的位置信息，但是又不能看到 token 的内容信息，因此 XLNet 采用了两个 Stream 实现这一目的：

Query Stream，对于每一个 token，其对应的 Query Stream 只包含了该 token 的位置信息，注意是 token 在原始句子的位置信息，不是重新排列的位置信息。
Content Stream，对于每一个 token，其对应的 Content Stream 包含了该 token 的内容信息。

Query Stream 计算：
Query Stream 用 g表示，Content Stream 用 h 表示，使用 Query Stream 对要预测的位置进行预测的时候，Q (Query) 向量是用 g 计算得到的，包含该位置的位置信息，而 K (Key) 和 V (Value) 是用 h 计算的，包含其他 token 的内容信息。下图展示了如何通过当前层的 g 计算下一层 g 的过程，图中的排列是 [3,2,4,1]，计算的 token 是 1。

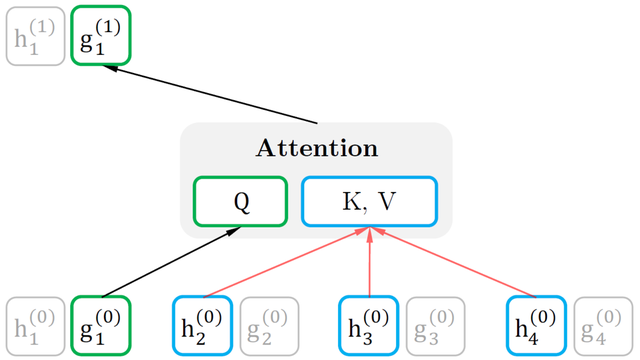

可以看到在计算 token 1 的 Q 向量时，只使用了 token 1 的 Query Stream g，即模型只得到 token 1 的位置信息。而向量 K，V 使用 token 3, 2, 4 进行计算，所以模型可以得到 token 3, 2, 4 的内容信息。因为 token 1 是排列 [3,2,4,1] 的最后一位。这一个过程的掩码矩阵和上一节的是一样的 ，对角线上都为白色，即遮掩当前预测位置的内容信息 h。

Content Stream 计算：
Content Stream 包含了 token 的内容信息，因为 XLNet 的层数很多，需要将 token 的内容传递到下一层。这一层的 Q, K, V 都是利用 h 计算的。Content Stream 的计算如下图所示。

可以看到，在计算下一层的 h1时，也会利用 token 1 当前的内容信息，这样就可以将 token 的内容传递到下一层，但是注意 XLNet 在预测时只是用 g (Query Stream)。计算 Content Stream 时候的掩码矩阵如下图所示。

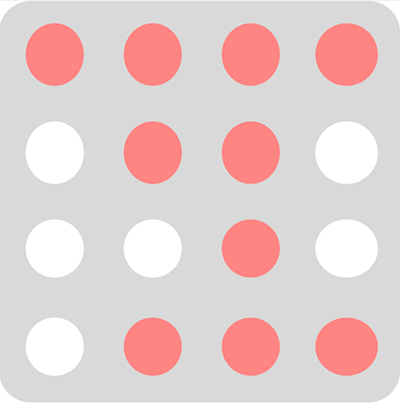

和 Query Stream 的掩码矩阵区别在于对角线，Content Stream 不遮掩对角线，使得当前 token 的信息可以传递到下一层。

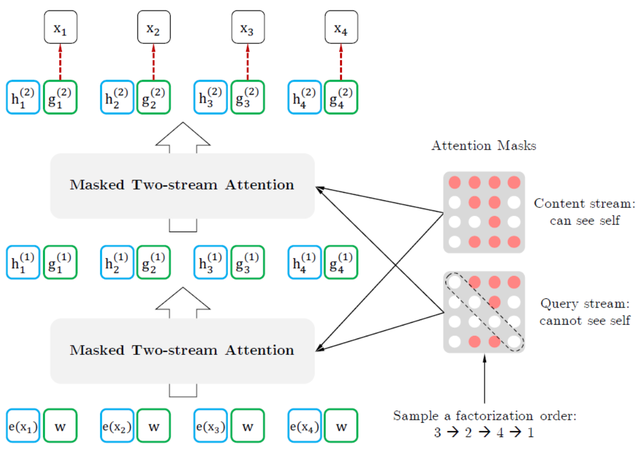

将 Query Stream 和 Content Stream 组合在一起，如下图所示。

图中最下面的一层是输入层，其中 e(x) 初始为单词的词向量，而 w 初始为一个可训练的向量。代码如下，如果有什么看不懂的地方可以留言。

class TFXLNetRelativeAttention(layers.Layer):
    def __init__(self, config, **kwargs):
        super().__init__(**kwargs)

        if config.d_model % config.n_head != 0:
            raise ValueError(
                f"The hidden size ({config.d_model}) is not a multiple of the number of attention "
                f"heads ({config.n_head}"
            )

        self.n_head = config.n_head
        self.d_head = config.d_head
        self.d_model = config.d_model
        self.scale = 1 / (config.d_head ** 0.5)
        self.initializer_range = config.initializer_range
        self.output_attentions = config.output_attentions

        self.layer_norm = layers.LayerNormalization(epsilon=config.layer_norm_eps, name="layer_norm")
        self.dropout = layers.Dropout(config.dropout)

    def rel_attn_core(
            self,
            q_head,
            k_head_h,
            v_head_h,
            k_head_r,
            seg_mat,
            attn_mask,
            head_mask,
            output_attentions,
            training=False
    ):
        ac = tf.einsum("ibnd,jbnd->ijbn", q_head + self.r_w_bias, k_head_h)

        bd = tf.einsum("ibnd,jbnd->ijbn", q_head + self.r_r_bias, k_head_r)
        bd = self.rel_shift(bd, klen=shape_list(ac[1]))

        if seg_mat is None:
            ef = 0
        else:
            ef = tf.einsum("ibnd,snd->ibns", q_head + self.r_s_bias, self.seg_embed)
            ef = tf.einsum("ijbs,ibns->ijbn", seg_mat, ef)

        attn_score = (ac + bd + ef) * self.scale
        if attn_mask is not None:
            if attn_mask.dtype == tf.float16 or attn_mask.dtype == tf.bfloat16:
                attn_score = attn_score - 65500 * attn_mask
            else:
                attn_score = attn_score - 1e30 * attn_mask

        attn_prob = stable_softmax(attn_score, axis=1)
        attn_prob = self.dropout(attn_prob, training=training)

        if head_mask is not None:
            attn_prob = attn_prob * head_mask

        attn_vec = tf.einsum("ijbn,jbnd->ibnd", attn_prob, v_head_h)

        if output_attentions:
            return attn_vec, attn_prob
        return attn_vec

    def rel_shift(self, x, klen=-1):
        x_size = shape_list(x)
        x = tf.reshape(x, (x_size[1], x_size[0], x_size[2], x_size[3]))
        x = x[1:, ...]
        x = tf.reshape(x, (x_size[0], x_size[1] - 1, x_size[2], x_size[3]))
        x = x[:, 0:klen, :, :]
        return x

    def build(self, input_shape):
        initializer = get_initializer(self.initializer_range)
        self.q = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="q"
        )
        self.k = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="k"
        )
        self.v = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="v"
        )
        self.o = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="o"
        )
        self.r = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="r"
        )
        self.r_r_bias = self.add_weight(
            shape=(self.n_head, self.d_head), initializer="zeros", trainable=True, name="r_r_bias"
        )
        self.r_s_bias = self.add_weight(
            shape=(self.n_head, self.d_head), initializer="zeros", trainable=True, name="r_s_bias"
        )
        self.r_w_bias = self.add_weight(
            shape=(self.n_head, self.d_head), initializer="zeros", trainable=True, name="r_w_bias"
        )
        self.seg_embed = self.add_weight(
            shape=(2, self.n_head, self.d_head), initializer=initializer, trainable=True, name="seg_embed"
        )
        super().build(input_shape)

    def post_attention(self, h, attn_vec, residual=True, training=False):
        # shape: (..., n_head, d_head) - > (..., d_model)
        attn_out = tf.einsum("ibnd,hnd->ibh", attn_vec, self.o)
        attn_out = self.dropout(attn_out, training=training)
        # 残差连接
        if residual:
            attn_out = attn_out + h
        output = self.layer_norm(attn_out)

        return output

    def call(
            self,
            h,
            g,
            attn_mask_h,
            attn_mask_g,
            r,
            seg_mat,
            mems,
            target_mapping,
            head_mask,
            output_attentions,
            training=False
    ):
        if g is not None:
            if mems is not None and len(shape_list(mems)) > 1:
                # shape: (mlen+qlen, bsz, d_model)
                cat = tf.concat([mems, h], axis=0)
            else:
                # shape: (qlen, bsz, d_model)
                cat = h
            # h stream
            # [qlen, bsz, n_head, d_head]
            q_head_h = tf.einsum("ibh,hnd->ibnd", h, self.q)
            k_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.k)
            v_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.v)

            k_head_r = tf.einsum("ibh,hnd->ibnd", r, self.r)

            attn_vec_h = self.rel_attn_core(
                q_head_h,
                k_head_h,
                v_head_h,
                k_head_r,
                seg_mat,
                attn_mask_h,
                head_mask,
                output_attentions,
                training=training
            )
            if output_attentions:
                attn_vec_h, attn_prob_h = attn_vec_h
            output_h = self.post_attention(h, attn_vec_h, training=training)

            # g stream
            q_head_g = tf.einsum("ibh,hnd->ibnd", g, self.q)

            if target_mapping is not None:
                q_head_g = tf.einsum("mbnd,mlb->lbnd", q_head_g, target_mapping)
                attn_vec_g = self.rel_attn_core(
                    q_head_g,
                    k_head_h,
                    v_head_h,
                    k_head_r,
                    seg_mat,
                    attn_mask_g,
                    head_mask,
                    output_attentions,
                    training=training
                )
                if output_attentions:
                    attn_vec_g, attn_prob_g = attn_vec_g
                attn_vec_g = tf.einsum("lbnd,mlb->mbnd", attn_vec_g, target_mapping)
            else:
                attn_vec_g = self.rel_attn_core(
                    q_head_g,
                    k_head_h,
                    v_head_h,
                    k_head_r,
                    seg_mat,
                    attn_mask_g,
                    head_mask,
                    output_attentions,
                    training=training
                )
                if output_attentions:
                    attn_vec_g, attn_prob_g = attn_vec_g

            output_g = self.post_attention(g, attn_vec_g, training=training)

            if output_attentions:
                attn_prob = attn_prob_h, attn_prob_g
        else:
            if mems is not None and len(shape_list(mems)) > 1:
                cat = tf.concat([mems, h], axis=0)
            else:
                cat = h
            q_head_h = tf.einsum("ibh,hnd->ibnd", h, self.q)
            k_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.k)
            v_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.v)
            k_head_r = tf.einsum("ibh,hnd->ibnd", r, self.r)
            attn_vec = self.rel_attn_core(
                q_head_h,
                k_head_h,
                v_head_h,
                k_head_r,
                seg_mat,
                attn_mask_h,
                head_mask,
                output_attentions,
                training=training
            )
            if output_attentions:
                attn_vec, attn_prob = attn_vec

            output_h = self.post_attention(h, attn_vec, training=training)
            output_g = None

        outputs = (output_h, output_g)
        if output_attentions:
            outputs = outputs + (attn_prob, )
        return outputs

XLNet 将句子重新排列，然后根据排列后的顺序使用 AR 方式预测，但是由于句子是随机排列的，会导致优化比较困难且收敛速度慢。因此 XLNet 采用了 Partial Prediction (部分预测) 的方式进行训练，对于排列后的句子，只预测句子末尾的 1/K 个 token。

例如 K=4，就是只预测最后 1/4 的 token。给定句子 [1,2,3,4,5,6,7,8] 和一种随机排列 [2,8,3,4,5,1,7,6]，则只预测 7 和 6。论文中训练 XLNet-Large 时使用的 K 为 6，大约是预测末尾 14.3%的 token。

XLNet还将transformer-xl的两个最重要的技术点应用了进来，即相对位置编码与片段循环机制。具体内容详见TranformerXL这一部分。

模型参考

论文地址：https://arxiv.org/abs/1906.08237

代码地址：https://github.com/zihangdai/xlnet

模型代码如下（基于hugging face）：

from dataclasses import dataclass
from typing import Optional, List, Tuple

import tensorflow as tf
from tensorflow.keras import layers
from transformers import shape_list
from transformers.activations_tf import get_tf_activation
from transformers.modeling_tf_utils import get_initializer
from transformers.tf_utils import stable_softmax
from transformers.utils import ModelOutput


class TFXLNetModel(tf.keras.Model):
    def __init__(self, config, *inputs, **kwargs):
        super().__init__(config, *inputs, **kwargs)

        self.xlnet = TFXLNetMainLayer(config, name="xlnet")

    def call(
        self,
        input_ids=None,
        attention_mask=None,
        mems=None,
        perm_mask=None,
        target_mapping=None,
        token_type_ids=None,
        input_mask=None,
        head_mask=None,
        inputs_embeds=None,
        use_mems=None,
        output_attentions=None,
        output_hidden_states=None,
        return_dict=None,
        training=False
    ):
        outputs = self.xlnet(
            input_ids=input_ids,
            attention_mask=attention_mask,
            mems=mems,
            perm_mask=perm_mask,
            target_mapping=target_mapping,
            token_type_ids=token_type_ids,
            input_mask=input_mask,
            head_mask=head_mask,
            inputs_embeds=inputs_embeds,
            use_mems=use_mems,
            output_attentions=output_attentions,
            output_hidden_states=output_hidden_states,
            return_dict=return_dict,
            training=training
        )
        return outputs


class TFXLNetMainLayer(layers.Layer):
    def __init__(self, config, **kwargs):
        super().__init__(**kwargs)

        self.config = config
        self.output_hidden_states = config.output_hidden_states
        self.output_attentions = config.output_attentions
        self.return_dict = config.return_dict

        self.mem_len = config.mem_len
        self.reuse_len = config.reuse_len
        self.d_model = config.d_model
        self.same_length = config.same_length
        self.attn_type = config.attn_type
        self.bi_data = config.bi_data
        self.clamp_len = config.clamp_len
        self.n_layer = config.n_layer
        self.use_bfloat16 = config.use_bfloat16
        self.initializer_range = config.initializer_range

        self.word_embedding = TFSharedEmbeddings(
            config.vocab_size,
            config.d_model,
            initializer_range=config.initializer_range,
            name="word_embedding"
        )
        self.layers = [TFXLNetLayer(config, name=f"layer_._{i}") for i in range(config.n_layer)]
        self.dropout = layers.Dropout(config.dropout)

        self.use_mems_eval = config.use_mems_eval
        self.use_mems_train = config.use_mems_train

    def build(self, input_shape):
        initializer = get_initializer(self.initializer_range)
        self.mask_emb = self.add_weight(
            shape=(1, 1, self.d_model),
            initializer=initializer,
            trainable=True,
            name="mask_emb"
        )

    def create_mask(self, qlen, mlen):
        """
              same_length=False:      same_length=True:
              <mlen > <  qlen >       <mlen > <  qlen >
           ^ [0 0 0 0 0 1 1 1 1]     [0 0 0 0 0 1 1 1 1]
             [0 0 0 0 0 0 1 1 1]     [1 0 0 0 0 0 1 1 1]
        qlen [0 0 0 0 0 0 0 1 1]     [1 1 0 0 0 0 0 1 1]
             [0 0 0 0 0 0 0 0 1]     [1 1 1 0 0 0 0 0 1]
           v [0 0 0 0 0 0 0 0 0]     [1 1 1 1 0 0 0 0 0]
        """
        attn_mask = tf.ones([qlen, qlen])
        mask_u = tf.linalg.band_part(attn_mask, 0, -1)
        mask_dia = tf.linalg.band_part(attn_mask, 0, 0)
        attn_mask_pad = tf.zeros([qlen, mlen])
        ret = tf.concat([attn_mask_pad, mask_u - mask_dia], axis=1)
        if self.same_length:
            mask_l = tf.linalg.band_part(attn_mask, -1, 0)
            ret = tf.concat([ret[:, : qlen] + mask_l - mask_dia, ret[:, qlen:]], axis=1)
        return ret

    def relative_positional_encoding(self, qlen, klen, bsz=None):
        freq_seq = tf.range(0, self.d_model, 2.0)
        inv_freq = 1 / (10000 ** (freq_seq / self.d_model))

        if self.attn_type == "bi":
            beg, end = klen, -qlen
        elif self.attn_type == "uni":
            beg, end = klen, -1
        else:
            raise ValueError(f"Unknown `attn_type` {self.attn_type}.")

        if self.bi_data:
            fwd_pos_seq = tf.range(beg, end, -1.0)
            bwd_pos_seq = tf.range(-beg, -end, 1.0)

            if self.clamp_len > 0:
                fwd_pos_seq = tf.clip_by_value(fwd_pos_seq, -self.clamp_len, self.clamp_len)
                bwd_pos_seq = tf.clip_by_value(bwd_pos_seq, -self.clamp_len, self.clamp_len)

            if bsz is not None:
                if bsz % 2 != 0:
                    raise ValueError(f"With bi_data, the batch size {bsz} should be divisible by 2")
                fwd_pos_emb = self.positional_embedding(fwd_pos_seq, inv_freq, bsz // 2)
                bwd_pos_emb = self.positional_embedding(bwd_pos_seq, inv_freq, bsz // 2)
            else:
                fwd_pos_emb = self.positional_embedding(fwd_pos_seq, inv_freq)
                bwd_pos_emb = self.positional_embedding(bwd_pos_seq, inv_freq)
            pos_emb = tf.concat([fwd_pos_emb, bwd_pos_emb], axis=1)
        else:
            fwd_pos_seq = tf.range(beg, end, -1.0)
            if self.clamp_len > 0:
                fwd_pos_seq = tf.clip_by_value(fwd_pos_seq, -self.clamp_len, self.clamp_len)
            pos_emb = self.positional_embedding(fwd_pos_seq, inv_freq, bsz)
        return pos_emb

    @staticmethod
    def positional_embedding(pos_seq, inv_freq, bsz=None):
        sinusoid_inp = tf.einsum("i,d->id", pos_seq, inv_freq)
        pos_emb = tf.concat([tf.sin(sinusoid_inp), tf.cos(sinusoid_inp)], axis=-1)
        pos_emb = pos_emb[:, None, :]

        if bsz is not None:
            pos_emb = tf.tile(pos_emb, [1, bsz, 1])
        return pos_emb

    def cache_mem(self, curr_out, prev_mem):
        if self.reuse_len is not None and self.reuse_len > 0:
            curr_out = curr_out[: self.reuse_len]

        if self.mem_len is None or self.mem_len == 0:
            cutoff = 0
        else:
            cutoff = -self.mem_len
        if prev_mem is None:
            new_mem = curr_out[cutoff:]
        else:
            new_mem = tf.concat([prev_mem, curr_out], 0)[cutoff: ]
        return tf.stop_gradient(new_mem)

    def call(
        self,
        input_ids=None,
        attention_mask=None,
        mems=None,
        perm_mask=None,
        target_mapping=None,
        token_type_ids=None,
        input_mask=None,
        head_mask=None,
        inputs_embeds=None,
        use_mems=None,
        output_attentions=None,
        output_hidden_states=None,
        return_dict=None,
        training=False,
    ):
        if training and use_mems is None:
            use_mems = self.use_memes_train
        else:
            use_mems = self.use_mems_eval

        if input_ids is not None and inputs_embeds is not None:
            raise ValueError("You cannot specify both input_ids and inputs_embeds at the same time")
        elif input_ids is not None:
            input_ids = tf.transpose(input_ids, perm=(1, 0))
            qlen, bsz = shape_list(input_ids)[: 2]
        elif inputs_embeds is not None:
            inputs_embeds = tf.transpose(inputs_embeds, perm=(1, 0, 2))
            qlen, bsz = shape_list(inputs_embeds)[: 2]
        else:
            raise ValueError("You have to specify either input_ids or inputs_embeds")

        token_type_ids = tf.transpose(token_type_ids, perm=(1, 0)) if token_type_ids is not None else None
        # input_mask中的0、1与attention_mask中0、1含义相反
        # input_mask中0表示不遮掩，1表示遮掩
        input_mask = tf.transpose(token_type_ids, perm=(1, 0)) if input_mask is not None else None
        # attention_mask中1表示不遮掩，0表示遮掩
        attention_mask = tf.transpose(attention_mask, perm=(1, 0)) if attention_mask is not None else None
        # xlnet实现随机排列是通过perm_mask来实现的
        # perm_mask[k, i, j]=1表示在batch k中第i个单词可以看到第j个单词
        # 比如序列1、2、3、4的随机排序3、2、4、1对应的perm_mask
        # [[1 0 0 0]
        # [1 1 0 1]
        # [1 1 1 1]
        # [1 0 0 1]]
        # perm_mask中第3行只有第3列为1，因为3在最前面，只能看到自己
        # 第4行中第2、3、4列都为1，也就是说4能够看到2、3和自己
        perm_mask = tf.transpose(perm_mask, perm=(1, 2, 0)) if perm_mask is not None else None
        # target_mapping[k, i, j]表示在batch k中第i个预测的单词在序列的第j个位置
        # 用于预训练任务中，在下游任务中应设置为None
        target_mapping = tf.transpose(target_mapping, perm=(1, 2, 0)) if target_mapping is not None else None

        mlen = shape_list(mems[0])[0] if mems is not None and mems[0] is not None else 0
        klen = mlen + qlen

        if self.attn_type == "uni":
            attn_mask = self.create_mask(qlen, mlen)
            attn_mask = attn_mask[:, :, None, None]
        elif self.attn_type == "bi":
            attn_mask = None
        else:
            raise ValueError(f"Unsupported attention type: {self.attn_type}")

        if input_mask is None and attention_mask is not None:
            one_cst = tf.constant(1.0)
            input_mask = 1.0 - tf.cast(attention_mask, dtype=one_cst.dtype)
        if input_mask is not None and perm_mask is not None:
            data_mask = input_mask[None, :, :] + perm_mask
        elif input_mask is not None and perm_mask is None:
            data_mask = input_mask[None, :, :]
        elif input_mask is None and perm_mask is not None:
            data_mask = perm_mask
        else:
            data_mask = None

        if data_mask is not None:
            if mlen > 0:
                mems_mask = tf.zeros([shape_list(data_mask)[0], mlen, bsz])
                data_mask = tf.concat([mems_mask, data_mask], axis=1)
            if attn_mask is None:
                attn_mask = data_mask[:, :, :, None]
            else:
                attn_mask += data_mask[:, :, :, None]

        if attn_mask is not None:
            attn_mask = tf.cast(attn_mask > 0, dtype=attn_mask.dtype)

        if attn_mask is not None:
            # non_tgt_mask对比attn_mask的对角线，由1变成0
            # 也就是说non_tgt_mask可以看到自身
            # non_tgt_mask参与计算content stream
            non_tgt_mask = -tf.eye(qlen)
            if mlen > 0:
                non_tgt_mask = tf.concat([tf.zeros([qlen, qlen]), non_tgt_mask], axis=-1)
            non_tgt_mask = tf.cast((attn_mask + non_tgt_mask[:, :, None, None]) > 0, dtype=non_tgt_mask.dtype)
        else:
            non_tgt_mask = None

        # Word embedding
        if inputs_embeds is not None:
            word_emb_k = inputs_embeds
        else:
            word_emb_k = self.word_embedding(input_ids)
        # output_h为content stream，表示初始输入的词向量
        # shape:(qlen, bsz, d_model)
        output_h = self.dropout(word_emb_k, training=training)
        if target_mapping is not None:
            word_emb_q = tf.tile(self.mask_emb, [shape_list(target_mapping)[0], bsz, 1])
            # output_g为query stream，表示初始输入的位置向量
            output_g = self.dropout(word_emb_q, training=training)
        else:
            output_g = None

        # Segment embedding
        if token_type_ids is not None:
            if mlen > 0:
                mem_pad = tf.zeros([mlen, bsz], dtype=token_type_ids.type)
                cat_ids = tf.concat([mem_pad, token_type_ids], 0)
            else:
                cat_ids = token_type_ids
            # 1表示token_type_ids中位置i的token参与到位置j的计算时，对应的分句不是同一个分句
            # shape: (qlen, klen, bsz)
            seg_mat = tf.cast(
                tf.logical_not(tf.equal(token_type_ids[:, None], cat_ids[None, :])),
                dtype=token_type_ids.dtype
            )
            # 将token_type_ids转化成one-hot形式
            # shape: (qlen, klen, bsz, 2)
            seg_mat = tf.one_hot(seg_mat, 2)
        else:
            seg_mat = None

        # Position embedding
        pos_emb = self.relative_positional_encoding(qlen, klen, bsz=bsz)
        pos_emb = self.dropout(pos_emb, training=training)

        if head_mask is not None:
            raise NotImplementedError
        else:
            head_mask = [None] * self.n_layer

        new_mems = ()
        if mems is None:
            mems = [None] * len(self.layers)

        attentions = [] if output_attentions else None
        hidden_states = [] if output_hidden_states else None
        for i, layer_module in enumerate(self.layers):
            if use_mems:
                new_mems = new_mems + (self.cache_mem(output_h, mems[i]))
            if output_hidden_states:
                hidden_states.append((output_h, output_g) if output_g is not None else output_h)

            outputs = layer_module(
                output_h,
                output_g,
                non_tgt_mask,
                attn_mask,
                pos_emb,
                seg_mat,
                mems[i],
                target_mapping,
                head_mask[i],
                output_attentions,
                training=training
            )
            output_h, output_g = outputs[: 2]
            if output_attentions:
                attentions.append(outputs[2])

        if output_hidden_states:
            hidden_states.append((output_h, output_g) if output_g is not None else output_h)

        output = self.dropout(output_g if output_g is not None else output_h, training=training)

        output = tf.transpose(output, perm=(1, 0, 2))

        if not use_mems:
            new_mems = None
        if output_hidden_states:
            if output_g is not None:
                hidden_states = tuple(tf.transpose(h, perm=(1, 0, 2)) for hs in hidden_states for h in hs)
            else:
                hidden_states = tuple(tf.transpose(hs, perm=(1, 0, 2)) for hs in hidden_states)
        if output_attentions:
            if target_mapping is not None:
                attentions = tuple(
                    tuple(tf.transpose(attn_stream, perm=(2, 3, 0, 1)) for attn_stream in t) for t in attentions
                )
            else:
                attentions = tuple(tf.transpose(t, perm=(2, 3, 0, 1)) for t in attentions)

        if not return_dict:
            return tuple(v for v in [output, new_mems, hidden_states, attentions] if v is not None)

        return TFXLNetModelOutput(
            last_hidden_state=output, mems=new_mems, hidden_states=hidden_states, attentions=attentions
        )


class TFSharedEmbeddings(layers.Layer):
    def __init__(self, vocab_size, hidden_size, initializer_range, **kwargs):
        super().__init__(**kwargs)

        self.vocab_size = vocab_size
        self.hidden_size = hidden_size
        self.initializer_range = hidden_size ** -0.5 if initializer_range is None else initializer_range

    def build(self, input_shape):
        self.weight = self.add_weight(
            "weight", shape=[self.vocab_size, self.hidden_size], initializer=get_initializer(self.initializer_range)
        )
        super().build(input_shape)

    def call(self, inputs, mode="embedding"):
        if mode == "embedding":
            return self._embedding(inputs)
        elif mode == "linear":
            return self._linear(inputs)
        else:
            raise ValueError(f"mode {mode} is not valid.")

    def _embedding(self, input_ids):
        return tf.gather(self.weight, input_ids)

    def _linear(self, inputs):
        first_dims = shape_list(inputs)[-1]
        x = tf.reshape(inputs, [-1, self.hidden_size])
        logits = tf.matmul(x, self.weight, transpose_b=True)
        return tf.reshape(logits, [first_dims] + [self.vocab_size])


class TFXLNetLayer(layers.Layer):
    def __init__(self, config, **kwargs):
        super().__init__(**kwargs)

        self.rel_attn = TFXLNetRelativeAttention(config, name="rel_attn")
        self.ff = TFXLNetFeedForward(config, name="ff")
        self.dropout = layers.Dropout(config.dropout)

    def call(
            self,
            output_h,
            output_g,
            non_tgt_mask,
            attn_mask,
            pos_emb,
            seg_mat,
            mems,
            target_mapping,
            head_mask,
            output_attentions,
            training=False
    ):
        outputs = self.rel_attn(
            output_h,
            output_g,
            non_tgt_mask,
            attn_mask,
            pos_emb,
            seg_mat,
            mems,
            target_mapping,
            head_mask,
            output_attentions,
            training=training
        )
        output_h, output_g = outputs[: 2]

        if output_g is not None:
            output_g = self.ff(output_g, training=training)
        output_h = self.ff(output_h, training=training)

        outputs = (output_h, output_g) + outputs[2:]
        return outputs


class TFXLNetRelativeAttention(layers.Layer):
    def __init__(self, config, **kwargs):
        super().__init__(**kwargs)

        if config.d_model % config.n_head != 0:
            raise ValueError(
                f"The hidden size ({config.d_model}) is not a multiple of the number of attention "
                f"heads ({config.n_head}"
            )

        self.n_head = config.n_head
        self.d_head = config.d_head
        self.d_model = config.d_model
        self.scale = 1 / (config.d_head ** 0.5)
        self.initializer_range = config.initializer_range
        self.output_attentions = config.output_attentions

        self.layer_norm = layers.LayerNormalization(epsilon=config.layer_norm_eps, name="layer_norm")
        self.dropout = layers.Dropout(config.dropout)

    def rel_attn_core(
            self,
            q_head,
            k_head_h,
            v_head_h,
            k_head_r,
            seg_mat,
            attn_mask,
            head_mask,
            output_attentions,
            training=False
    ):
        ac = tf.einsum("ibnd,jbnd->ijbn", q_head + self.r_w_bias, k_head_h)

        bd = tf.einsum("ibnd,jbnd->ijbn", q_head + self.r_r_bias, k_head_r)
        bd = self.rel_shift(bd, klen=shape_list(ac[1]))

        if seg_mat is None:
            ef = 0
        else:
            ef = tf.einsum("ibnd,snd->ibns", q_head + self.r_s_bias, self.seg_embed)
            ef = tf.einsum("ijbs,ibns->ijbn", seg_mat, ef)

        attn_score = (ac + bd + ef) * self.scale
        if attn_mask is not None:
            if attn_mask.dtype == tf.float16 or attn_mask.dtype == tf.bfloat16:
                attn_score = attn_score - 65500 * attn_mask
            else:
                attn_score = attn_score - 1e30 * attn_mask

        attn_prob = stable_softmax(attn_score, axis=1)
        attn_prob = self.dropout(attn_prob, training=training)

        if head_mask is not None:
            attn_prob = attn_prob * head_mask

        attn_vec = tf.einsum("ijbn,jbnd->ibnd", attn_prob, v_head_h)

        if output_attentions:
            return attn_vec, attn_prob
        return attn_vec

    def rel_shift(self, x, klen=-1):
        x_size = shape_list(x)
        x = tf.reshape(x, (x_size[1], x_size[0], x_size[2], x_size[3]))
        x = x[1:, ...]
        x = tf.reshape(x, (x_size[0], x_size[1] - 1, x_size[2], x_size[3]))
        x = x[:, 0:klen, :, :]
        return x

    def build(self, input_shape):
        initializer = get_initializer(self.initializer_range)
        self.q = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="q"
        )
        self.k = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="k"
        )
        self.v = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="v"
        )
        self.o = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="o"
        )
        self.r = self.add_weight(
            shape=(self.d_model, self.n_head, self.d_head), initializer=initializer, trainable=True, name="r"
        )
        self.r_r_bias = self.add_weight(
            shape=(self.n_head, self.d_head), initializer="zeros", trainable=True, name="r_r_bias"
        )
        self.r_s_bias = self.add_weight(
            shape=(self.n_head, self.d_head), initializer="zeros", trainable=True, name="r_s_bias"
        )
        self.r_w_bias = self.add_weight(
            shape=(self.n_head, self.d_head), initializer="zeros", trainable=True, name="r_w_bias"
        )
        self.seg_embed = self.add_weight(
            shape=(2, self.n_head, self.d_head), initializer=initializer, trainable=True, name="seg_embed"
        )
        super().build(input_shape)

    def post_attention(self, h, attn_vec, residual=True, training=False):
        # shape: (..., n_head, d_head) - > (..., d_model)
        attn_out = tf.einsum("ibnd,hnd->ibh", attn_vec, self.o)
        attn_out = self.dropout(attn_out, training=training)
        # 残差连接
        if residual:
            attn_out = attn_out + h
        output = self.layer_norm(attn_out)

        return output

    def call(
            self,
            h,
            g,
            attn_mask_h,
            attn_mask_g,
            r,
            seg_mat,
            mems,
            target_mapping,
            head_mask,
            output_attentions,
            training=False
    ):
        if g is not None:
            if mems is not None and len(shape_list(mems)) > 1:
                # shape: (mlen+qlen, bsz, d_model)
                cat = tf.concat([mems, h], axis=0)
            else:
                # shape: (qlen, bsz, d_model)
                cat = h
            # h stream
            # [qlen, bsz, n_head, d_head]
            q_head_h = tf.einsum("ibh,hnd->ibnd", h, self.q)
            k_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.k)
            v_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.v)

            k_head_r = tf.einsum("ibh,hnd->ibnd", r, self.r)

            attn_vec_h = self.rel_attn_core(
                q_head_h,
                k_head_h,
                v_head_h,
                k_head_r,
                seg_mat,
                attn_mask_h,
                head_mask,
                output_attentions,
                training=training
            )
            if output_attentions:
                attn_vec_h, attn_prob_h = attn_vec_h
            output_h = self.post_attention(h, attn_vec_h, training=training)

            # g stream
            q_head_g = tf.einsum("ibh,hnd->ibnd", g, self.q)
            # target_mapping
            # shape: (num_predict, qlen, bsz)
            # 一般而言num_predict = qlen
            if target_mapping is not None:
                q_head_g = tf.einsum("mbnd,mlb->lbnd", q_head_g, target_mapping)
                attn_vec_g = self.rel_attn_core(
                    q_head_g,
                    k_head_h,
                    v_head_h,
                    k_head_r,
                    seg_mat,
                    attn_mask_g,
                    head_mask,
                    output_attentions,
                    training=training
                )
                if output_attentions:
                    attn_vec_g, attn_prob_g = attn_vec_g
                attn_vec_g = tf.einsum("lbnd,mlb->mbnd", attn_vec_g, target_mapping)
            else:
                attn_vec_g = self.rel_attn_core(
                    q_head_g,
                    k_head_h,
                    v_head_h,
                    k_head_r,
                    seg_mat,
                    attn_mask_g,
                    head_mask,
                    output_attentions,
                    training=training
                )
                if output_attentions:
                    attn_vec_g, attn_prob_g = attn_vec_g

            output_g = self.post_attention(g, attn_vec_g, training=training)

            if output_attentions:
                attn_prob = attn_prob_h, attn_prob_g
        else:
            if mems is not None and len(shape_list(mems)) > 1:
                cat = tf.concat([mems, h], axis=0)
            else:
                cat = h
            q_head_h = tf.einsum("ibh,hnd->ibnd", h, self.q)
            k_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.k)
            v_head_h = tf.einsum("ibh,hnd->ibnd", cat, self.v)
            k_head_r = tf.einsum("ibh,hnd->ibnd", r, self.r)
            attn_vec = self.rel_attn_core(
                q_head_h,
                k_head_h,
                v_head_h,
                k_head_r,
                seg_mat,
                attn_mask_h,
                head_mask,
                output_attentions,
                training=training
            )
            if output_attentions:
                attn_vec, attn_prob = attn_vec

            output_h = self.post_attention(h, attn_vec, training=training)
            output_g = None

        outputs = (output_h, output_g)
        if output_attentions:
            outputs = outputs + (attn_prob, )
        return outputs


class TFXLNetFeedForward(layers.Layer):
    def __init__(self, config, **kwargs):
        super().__init__(**kwargs)
        self.layer_norm = tf.keras.layers.LayerNormalization(epsilon=config.layer_norm_eps, name="layer_norm")
        self.layer_1 = tf.keras.layers.Dense(
            config.d_inner, kernel_initializer=get_initializer(config.initializer_range), name="layer_1"
        )
        self.layer_2 = tf.keras.layers.Dense(
            config.d_model, kernel_initializer=get_initializer(config.initializer_range), name="layer_2"
        )
        self.dropout = tf.keras.layers.Dropout(config.dropout)
        if isinstance(config.ff_activation, str):
            self.activation_function = get_tf_activation(config.ff_activation)
        else:
            self.activation_function = config.ff_activation

    def call(self, inp, training=False):
        output = inp
        output = self.layer_1(output)
        output = self.activation_function(output)
        output = self.dropout(output, training=training)
        output = self.layer_2(output)
        output = self.dropout(output, training=training)
        output = self.layer_norm(output + inp)
        return output


@dataclass
class TFXLNetModelOutput(ModelOutput):
    last_hidden_state: tf.Tensor = None
    mems: Optional[List[tf.Tensor]] = None
    hidden_states: Optional[Tuple[tf.Tensor]] = None
    attentions: Optional[Tuple[tf.Tensor]] = None
