注：文章是本人对官网阅读的一些常用知识总结

前言

flink是一个分布式处理事件数据流的框架和处理引擎，其中有限数据集被称为批处理，是大数据主流运用的计算引擎之一。

一、Flink SQL 应用

1.示例

--建表--
CREATE TABLE employee_information (
    emp_id INT,
    name VARCHAR,
    dept_id INT
) WITH (
    'connector' = 'filesystem',
    'path' = '/path/to/something.csv',
    'format' = 'csv'
);

SELECT * from employee_information WHERE dept_id = 1;

--窗口 & 窗口聚合--
SELECT window_start, window_end, SUM(price)
  FROM TABLE(
    TUMBLE(TABLE Bid, DESCRIPTOR(bidtime), INTERVAL '10' MINUTES))
  GROUP BY window_start, window_end;
SELECT window_start, window_end, SUM(price)
  FROM TABLE(
    HOP(TABLE Bid, DESCRIPTOR(bidtime), INTERVAL '5' MINUTES, INTERVAL '10' MINUTES))
  GROUP BY window_start, window_end;

--分组聚合--
SELECT COUNT(*)
FROM Orders
GROUP BY order_id

--join--
SELECT *
FROM Orders
INNER JOIN Product
ON Orders.product_id = Product.id;
SELECT *
FROM Orders
LEFT JOIN Product
ON Orders.product_id = Product.id

flink sql和hive sql最大区别在于数据具有时间语义，这一点在开发时要注意；数据关联，聚合，排序等有中间状态的要注意状态膨胀，合理设置TTL及时间窗口和范围尤为重要。

概览 | Apache Flink

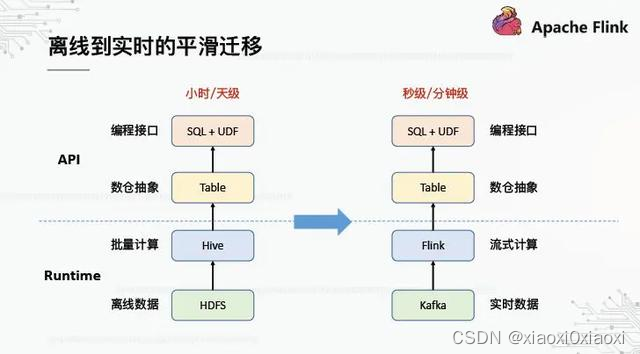

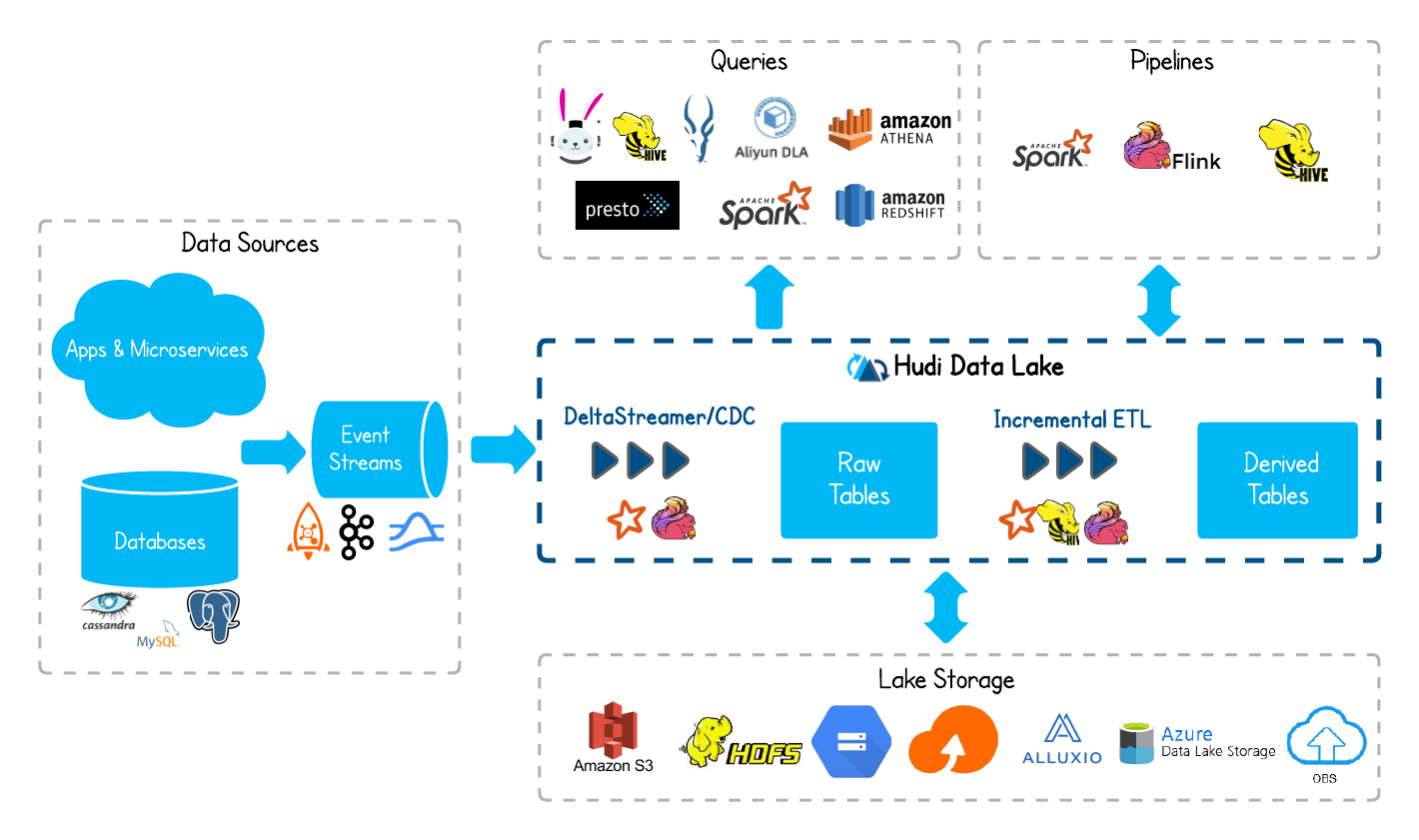

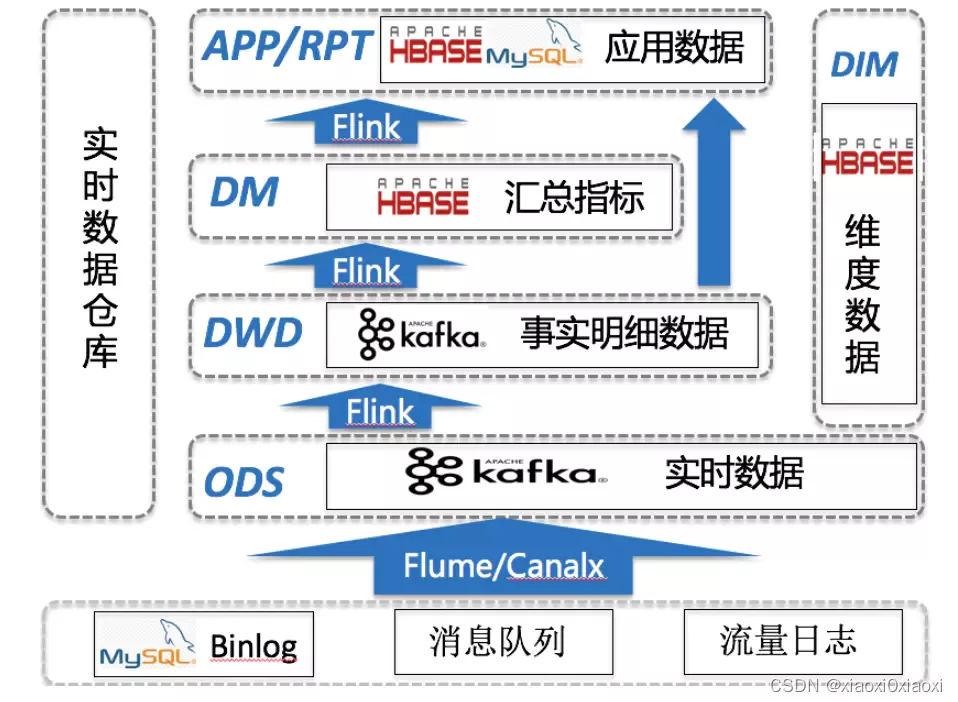

2.应用场景

二、FLink API应用

1.示例

快速构建maven项目：

$ mvn archetype:generate \
    -DarchetypeGroupId=org.apache.flink \
    -DarchetypeArtifactId=flink-walkthrough-datastream-java \
    -DarchetypeVersion=1.15.0 \
    -DgroupId=frauddetection \
    -DartifactId=frauddetection \
    -Dversion=0.1 \
    -Dpackage=spendreport \
    -DinteractiveMode=false

public class FraudDetectionJob {

    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        DataStream<Transaction> transactions = env
            .addSource(new TransactionSource())
            .name("transactions");

        DataStream<Alert> alerts = transactions
            .keyBy(Transaction::getAccountId)
            .process(new FraudDetector())
            .name("fraud-detector");

        alerts
            .addSink(new AlertSink())
            .name("send-alerts");

        env.execute("Fraud Detection");
    }
}

基于 DataStream API 实现欺诈检测 | Apache Flink

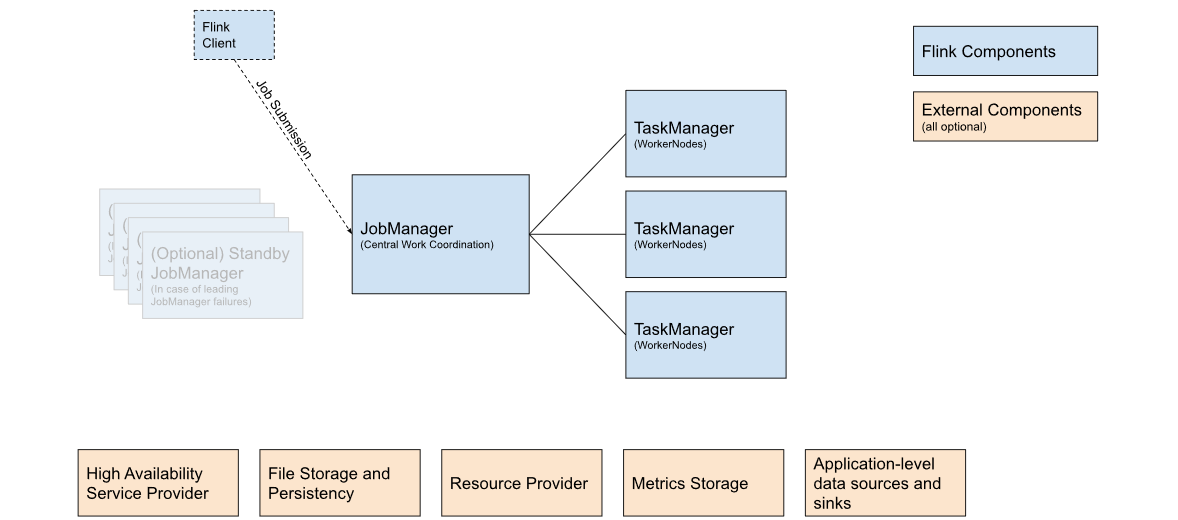

三、Flink 架构

JobManager: Flink 的中心工作协调组件的名称，负责收集Job的状态信息,并管理Flink集群中从节点TaskManager

TaskManager: 是实际执行 Flink 作业工作的服务,内部启动多个线程Slot执行具体的SubTask

四、Flink部署和示例

概览 | Apache Flink

1.hadoop集成当作sql执行引擎

2.K8S集成，CI/CD提交应用

3.本地模式

Streaming ETL for MySQL and Postgres with Flink CDC — CDC Connectors for Apache Flink® documentation

1> 准备docker环境

cd .. && mkdir flink_cdc_etl
touch docker-compose.yml
docker-compose -f ./docker-compose.yml up -d --build
mkdir flink && cd flink
touch docker-compose.yml
docker-compose -f ./docker-compose.yml up -d --build
docker ps

flin_cdc_etl/docker-compose.yml

version: '2.1'
services:
  postgres:
    image: debezium/example-postgres:1.1
    ports:
      - "5432:5432"
    environment:
      - POSTGRES_DB=postgres
      - POSTGRES_USER=postgres
      - POSTGRES_PASSWORD=postgres
  mysql:
    image: debezium/example-mysql:1.1
    ports:
      - "3306:3306"
    environment:
      - MYSQL_ROOT_PASSWORD=123456
      - MYSQL_USER=mysqluser
      - MYSQL_PASSWORD=mysqlpw
  elasticsearch:
    image: elastic/elasticsearch:7.6.0
    environment:
      - cluster.name=docker-cluster
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
      - discovery.type=single-node
    ports:
      - "9200:9200"
      - "9300:9300"
    ulimits:
      memlock:
        soft: -1
        hard: -1
      nofile:
        soft: 65536
        hard: 65536
  kibana:
    image: elastic/kibana:7.6.0
    ports:
      - "5601:5601"

flink/docker-compose.yml

version: "2.2"

networks:
  flink_cdc_etl_default:
    external: true

services:
  jobmanager:
    image: flink:1.13.2-java8
    networks:
      - "flink_cdc_etl_default"
    ports:
      - "8081:8081"
    command: jobmanager
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: jobmanager

  taskmanager:
    image: flink:1.13.2-java8
    networks:
      - "flink_cdc_etl_default"
    depends_on:
      - jobmanager
    command: taskmanager
    scale: 1
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: jobmanager
        taskmanager.numberOfTaskSlots: 4

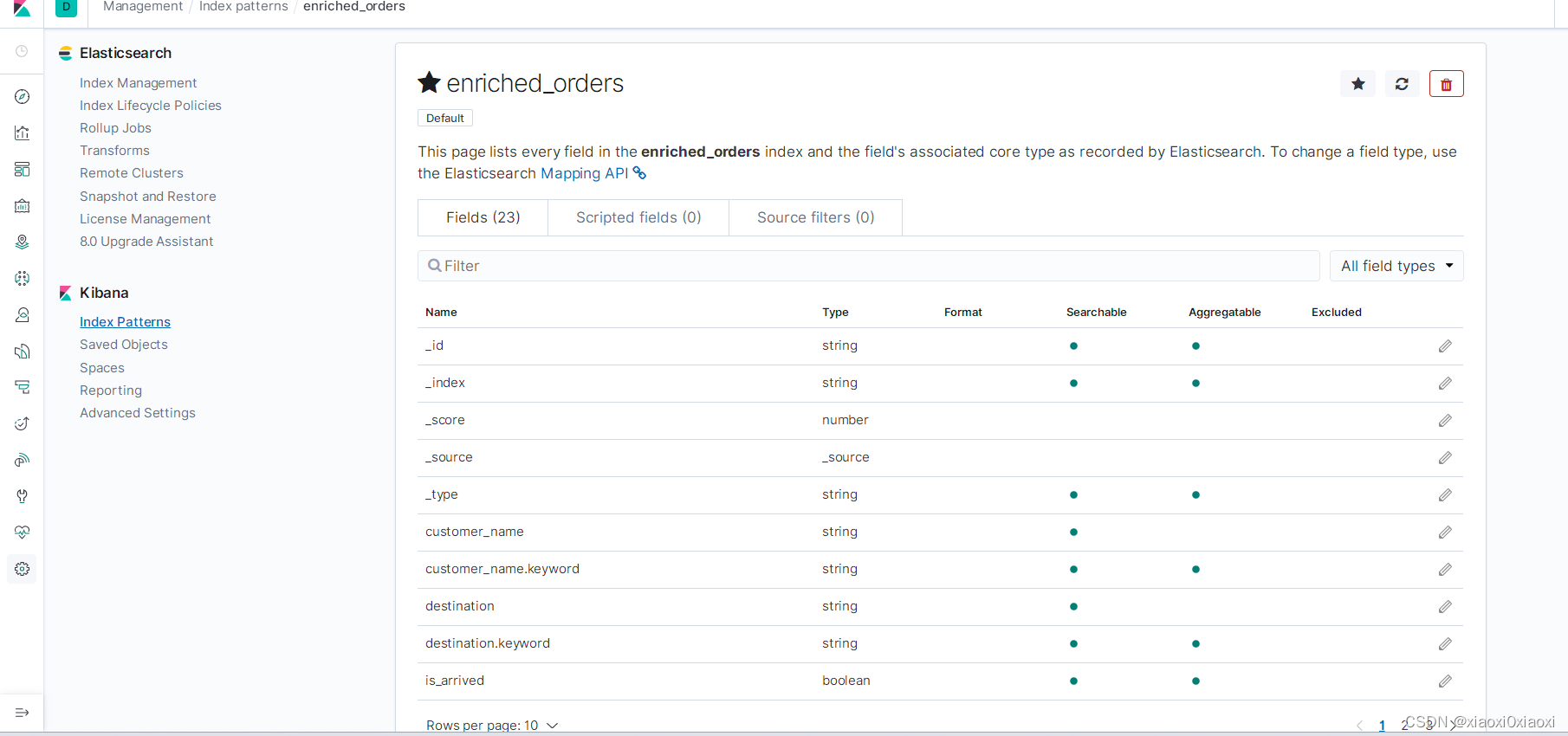

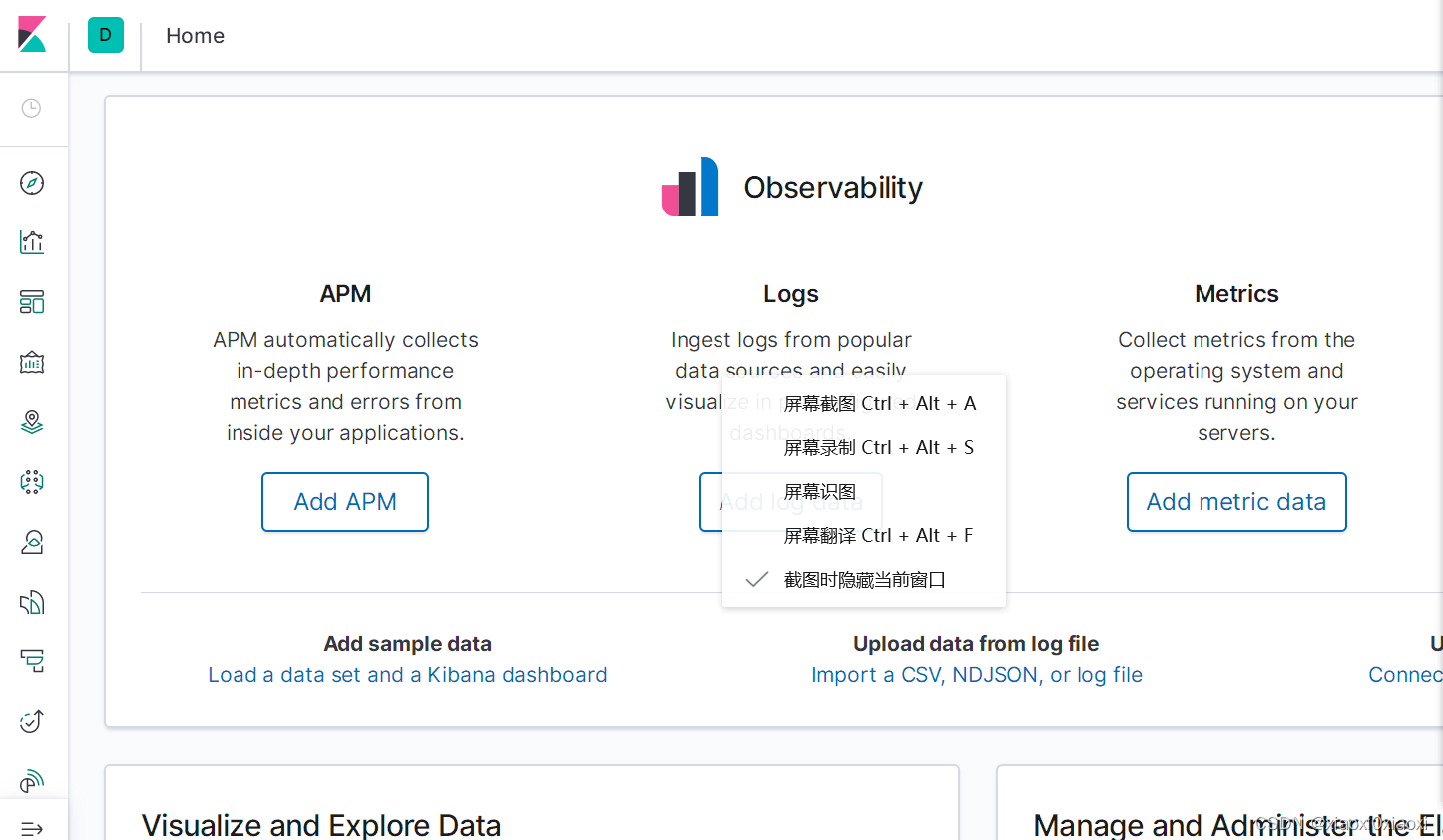

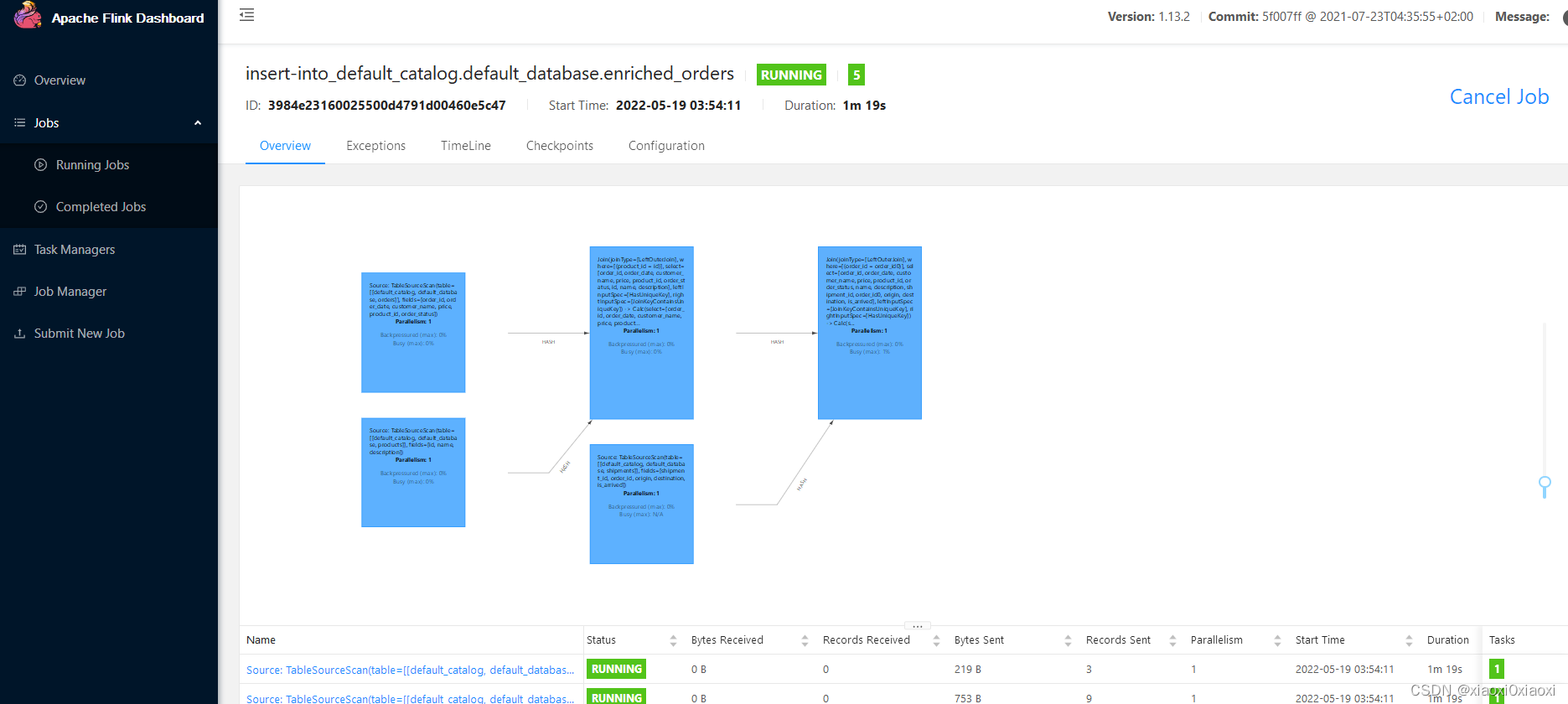

打开页面验证容器是否运行成功http://localhost:5601/，http://localhost:8081/
