昇腾推理卡Atlas300IDuo跑sd-webui

于 2024-05-17 11:06:29 发布
阅读量608 收藏 10
点赞数 26
分类专栏： 人工智能 昇腾AI 文章标签： 人工智能 stable diffusion
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/weixin_50005386/article/details/138999633
版权

Atlas300IDuo跑的sd-webui

参考：https://www.hiascend.com/software/mindie

环境准备

cpu: Kunpeng920
npu: Atlas300 IDuo * 4
memory：256GB

安装环境

驱动安装：https://www.hiascend.com/document/detail/zh/quick-installation/24.0.RC1/quickinstg/800_3000/quickinstg_800_3000_0001.html
cann安装：https://www.hiascend.com/document/detail/zh/CANNCommunityEdition/80RC2alpha001/softwareinst/instg/instg_0001.html
mindie安装：https://www.hiascend.com/document/detail//zh/mindie/10RC1/description/releasenote/download
mindie官方提供镜像：https://ascendhub.huawei.com/

下载源码

源代码路径：
https://gitee.com/ascend/ModelZoo-PyTorch/tree/master/MindIE/MindIE-Torch/built-in/foundation/sd-webui
branch：master
tag: e10748482de9f8be5371c470127e6098d41ed0e4

SD-WebUI-TorchAIE推理指导

参考：Model-PyTorch/MindIE/MindIE-Torch/built-in/foundation/sd-webui/torch_aie_extension/readme.md

  • 1、打开命令行终端，导入环境变量：
source /usr/local/Ascend/mindie/set_env.sh
source /usr/local/Ascend/ascend-toolkit/set_env.sh

  • 2、代码修改，修改clip和cross_attention，用于trace正确的模型
    进入/home/ModelZoo-PyTorch/MindIE/MindIE-Torch/built-in/foundation/sd-webui/torch_aie_extension目录执行命令：

    python sd_webui_patch.py

  • 3、sd-webui部署

    • 1、下载sd-webui的官方源码：
    git clone https://github.com/AUTOMATIC1111/stable-diffusion-webui.git

    • 2、将Model-PyTorch/MindIE/MindIE-Torch/built-in/foundation/sd-webui/torch_aie_extension/复制到stable-diffusion-webui/extension目录下；

    • 3、下载权重文件参考,本次使用的是sd1.5的模型，其他自行下载；

      • 提供几个1.5的模型：

        beautifulRealistic_v7：https://tools.obs.cn-south-292.ca-aicc.com:443/cache/sd-webui/models/beautifulRealistic_v7.safetensors

        天清：https://tools.obs.cn-south-292.ca-aicc.com:443/cache/sd-webui/models/TQing%20v3.4_v3.4.safetensors

        下载放至：stable-diffusion-webui/models/Stable-diffusion目录下

      • 使用魔塔社区下载模型：

        git lfs install
        git clone https://www.modelscope.cn/AI-ModelScope/stable-diffusion-v1-5.git

        复制大模型文件到指定目录：
cp stable-diffusion-v1-5/v1-5-pruned-emaonly.safetensors ../../../models/Stable-diffusion

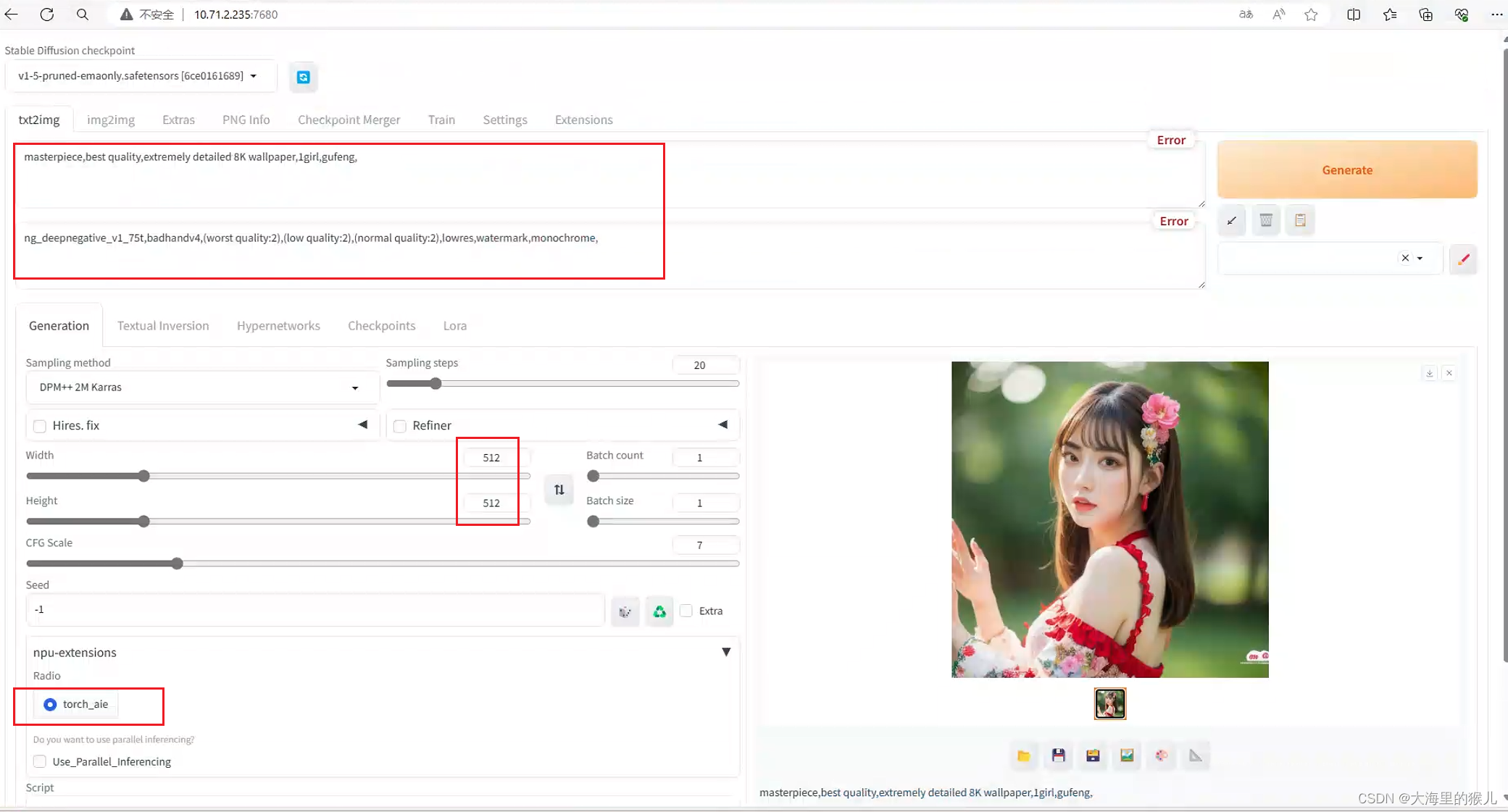

运行功能

在stable-diffusion-webui工程路径下执行命令启动webui，自动安装需要的环境

python launch.py --skip-torch-cuda-test --port 7860 --enable-insecure-extension-access --listen --log-startup --disable-safe-unpickle --no-half --skip-prepare-environment

在这里插入图片描述

存在的问题：推理速度很慢，一张512*512的图片生成需要18分钟。太慢了，感觉使用cpu来跑的。。。。。。后续蹲优化；

QA

  • 问题一

    安装requirements.txt的时候

    ERROR: Could not find a version that satisfies the requirement tb-nightly (from versions: none)
    ERROR: No matching distribution found for tb-nightly

    的出现报错

    解决方式：

    pip install tb-nightly -i http://mirrors.aliyun.com/pypi/simple --trusted-host mirrors.aliyun.com

  • 问题二、运行的时候出现问题ModuleNotFoundError: No module named ‘_bz2’


Traceback (most recent call last):
  File "/home/stable-diffusion-webui/launch.py", line 48, in <module>
    main()
  File "/home/stable-diffusion-webui/launch.py", line 44, in main
    start()
  File "/home/stable-diffusion-webui/modules/launch_utils.py", line 465, in start
    import webui
  File "/home/stable-diffusion-webui/webui.py", line 13, in <module>
    initialize.imports()
  File "/home/stable-diffusion-webui/modules/initialize.py", line 26, in imports
    from modules import paths, timer, import_hook, errors  # noqa: F401
  File "/home/stable-diffusion-webui/modules/paths.py", line 60, in <module>
    import sgm  # noqa: F401
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/__init__.py", line 1, in <module>
    from .models import AutoencodingEngine, DiffusionEngine
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/models/__init__.py", line 1, in <module>
    from .autoencoder import AutoencodingEngine
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/models/autoencoder.py", line 12, in <module>
    from ..modules.diffusionmodules.model import Decoder, Encoder
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/modules/__init__.py", line 1, in <module>
    from .encoders.modules import GeneralConditioner
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/modules/encoders/modules.py", line 7, in <module>
    import open_clip
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/__init__.py", line 1, in <module>
    from .coca_model import CoCa
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/coca_model.py", line 9, in <module>
    from .transformer import (
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/transformer.py", line 10, in <module>
    from .utils import to_2tuple
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/utils.py", line 6, in <module>
    from torchvision.ops.misc import FrozenBatchNorm2d
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/__init__.py", line 5, in <module>
    from torchvision import datasets, io, models, ops, transforms, utils
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/datasets/__init__.py", line 1, in <module>
    from ._optical_flow import FlyingChairs, FlyingThings3D, HD1K, KittiFlow, Sintel
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/datasets/_optical_flow.py", line 12, in <module>
    from .utils import _read_pfm, verify_str_arg
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/datasets/utils.py", line 1, in <module>
    import bz2
  File "/usr/local/python3.10.2/lib/python3.10/bz2.py", line 17, in <module>
    from _bz2 import BZ2Compressor, BZ2Decompressor
ModuleNotFoundError: No module named '_bz2'
    • 解决方法：复制/usr/lib/python3.10/lib-dynload/_bz2.cpython-310-aarch64-linux-gnu.so 至/usr/local/python3.10.2/lib/python3.10/lib-dynload目录下，并分配可读权限:chmod a+r ./_bz2.cpython-310-aarch64-linux-gnu.so

  • 问题三

    运行报错ModuleNotFoundError: No module named ‘_lzma’

    Traceback (most recent call last):
  File "/home/stable-diffusion-webui/launch.py", line 48, in <module>
    main()
  File "/home/stable-diffusion-webui/launch.py", line 44, in main
    start()
  File "/home/stable-diffusion-webui/modules/launch_utils.py", line 465, in start
    import webui
  File "/home/stable-diffusion-webui/webui.py", line 13, in <module>
    initialize.imports()
  File "/home/stable-diffusion-webui/modules/initialize.py", line 26, in imports
    from modules import paths, timer, import_hook, errors  # noqa: F401
  File "/home/stable-diffusion-webui/modules/paths.py", line 60, in <module>
    import sgm  # noqa: F401
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/__init__.py", line 1, in <module>
    from .models import AutoencodingEngine, DiffusionEngine
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/models/__init__.py", line 1, in <module>
    from .autoencoder import AutoencodingEngine
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/models/autoencoder.py", line 12, in <module>
    from ..modules.diffusionmodules.model import Decoder, Encoder
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/modules/__init__.py", line 1, in <module>
    from .encoders.modules import GeneralConditioner
  File "/home/stable-diffusion-webui/repositories/generative-models/sgm/modules/encoders/modules.py", line 7, in <module>
    import open_clip
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/__init__.py", line 1, in <module>
    from .coca_model import CoCa
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/coca_model.py", line 9, in <module>
    from .transformer import (
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/transformer.py", line 10, in <module>
    from .utils import to_2tuple
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/open_clip/utils.py", line 6, in <module>
    from torchvision.ops.misc import FrozenBatchNorm2d
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/__init__.py", line 5, in <module>
    from torchvision import datasets, io, models, ops, transforms, utils
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/datasets/__init__.py", line 1, in <module>
    from ._optical_flow import FlyingChairs, FlyingThings3D, HD1K, KittiFlow, Sintel
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/datasets/_optical_flow.py", line 12, in <module>
    from .utils import _read_pfm, verify_str_arg
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torchvision/datasets/utils.py", line 6, in <module>
    import lzma
  File "/usr/local/python3.10.2/lib/python3.10/lzma.py", line 27, in <module>
    from _lzma import *
ModuleNotFoundError: No module named '_lzma'

    • 解决方法：

      sudo apt-get install liblzma-dev

      pip install backports.lzma

      修改 lzma.py文件

      find / -name lzma.py找到源码文件路径
      vim /usr/local/python/lib/python3.10.xxx/lzma.py

      #修改前
from _lzma import *
from _lzma import _encode_filter_properties, _decode_filter_properties

#修改后
try:
    from _lzma import *
    from _lzma import _encode_filter_properties, _decode_filter_properties
except ImportError:
    from backports.lzma import *
    from backports.lzma import _encode_filter_properties, _decode_filter_properties

  • 问题四、运行报错ImportError: libGL.so.1

    Traceback (most recent call last):
  File "/home/stable-diffusion-webui/launch.py", line 48, in <module>
    main()
  File "/home/stable-diffusion-webui/launch.py", line 44, in main
    start()
  File "/home/stable-diffusion-webui/modules/launch_utils.py", line 465, in start
    import webui
  File "/home/stable-diffusion-webui/webui.py", line 13, in <module>
    initialize.imports()
  File "/home/stable-diffusion-webui/modules/initialize.py", line 39, in imports
    from modules import processing, gradio_extensons, ui  # noqa: F401
  File "/home/stable-diffusion-webui/modules/processing.py", line 14, in <module>
    import cv2
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/cv2/__init__.py", line 181, in <module>
    bootstrap()
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/cv2/__init__.py", line 153, in bootstrap
    native_module = importlib.import_module("cv2")
  File "/usr/local/python3.10.2/lib/python3.10/importlib/__init__.py", line 126, in import_module
    return _bootstrap._gcd_import(name[level:], package, level)
ImportError: libGL.so.1: cannot open shared object file: No such file or directory

    • 解决办法：

      ubuntu: sudo apt-get install libgl1-mesa-glx

      centos: yum install mesa-libGL -y

  • 问题五、运行报错libgthread-2.0.so.0:

    No module 'xformers'. Proceeding without it.
Warning: caught exception 'Torch not compiled with CUDA enabled', memory monitor disabled
initialize shared: done in 0.196s
Traceback (most recent call last):
  File "/home/stable-diffusion-webui/launch.py", line 48, in <module>
    main()
  File "/home/stable-diffusion-webui/launch.py", line 44, in main
    start()
  File "/home/stable-diffusion-webui/modules/launch_utils.py", line 465, in start
    import webui
  File "/home/stable-diffusion-webui/webui.py", line 13, in <module>
    initialize.imports()
  File "/home/stable-diffusion-webui/modules/initialize.py", line 39, in imports
    from modules import processing, gradio_extensons, ui  # noqa: F401
  File "/home/stable-diffusion-webui/modules/processing.py", line 14, in <module>
    import cv2
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/cv2/__init__.py", line 181, in <module>
    bootstrap()
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/cv2/__init__.py", line 153, in bootstrap
    native_module = importlib.import_module("cv2")
  File "/usr/local/python3.10.2/lib/python3.10/importlib/__init__.py", line 126, in import_module
    return _bootstrap._gcd_import(name[level:], package, level)
ImportError: libgthread-2.0.so.0: cannot open shared object file: No such file or directory

    • 解决办法：

      apt-get install libglib2.0-0

  • 问题六、运行报错Can’t load tokenizer for 'openai/clip-vit-large-patch14

    reating model quickly: OSError
Traceback (most recent call last):
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 966, in _bootstrap
    self._bootstrap_inner()
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 1009, in _bootstrap_inner
    self.run()
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 946, in run
    self._target(*self._args, **self._kwargs)
  File "/home/stable-diffusion-webui/modules/initialize.py", line 149, in load_model
    shared.sd_model  # noqa: B018
  File "/home/stable-diffusion-webui/modules/shared_items.py", line 175, in sd_model
    return modules.sd_models.model_data.get_sd_model()
  File "/home/stable-diffusion-webui/modules/sd_models.py", line 620, in get_sd_model
    load_model()
  File "/home/stable-diffusion-webui/modules/sd_models.py", line 723, in load_model
    sd_model = instantiate_from_config(sd_config.model)
  File "/home/stable-diffusion-webui/repositories/stable-diffusion-stability-ai/ldm/util.py", line 89, in instantiate_from_config
    return get_obj_from_str(config["target"])(**config.get("params", dict()))
  File "/home/stable-diffusion-webui/repositories/stable-diffusion-stability-ai/ldm/models/diffusion/ddpm.py", line 563, in __init__
    self.instantiate_cond_stage(cond_stage_config)
  File "/home/stable-diffusion-webui/repositories/stable-diffusion-stability-ai/ldm/models/diffusion/ddpm.py", line 630, in instantiate_cond_stage
    model = instantiate_from_config(config)
  File "/home/stable-diffusion-webui/repositories/stable-diffusion-stability-ai/ldm/util.py", line 89, in instantiate_from_config
    return get_obj_from_str(config["target"])(**config.get("params", dict()))
  File "/home/stable-diffusion-webui/repositories/stable-diffusion-stability-ai/ldm/modules/encoders/modules.py", line 103, in __init__
    self.tokenizer = CLIPTokenizer.from_pretrained(version)
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/transformers/tokenization_utils_base.py", line 1809, in from_pretrained
    raise EnvironmentError(
OSError: Can't load tokenizer for 'openai/clip-vit-large-patch14'. If you were trying to load it from 'https://huggingface.co/models', make sure you don't have a local directory with the same name. Otherwise, make sure 'openai/clip-vit-large-patch14' is the correct path to a directory containing all relevant files for a CLIPTokenizer tokenizer.

    • 解决办法：

      进入stable-diffusion-webui路径下

      1、新建openai目录

      2、git lfs install

      3、git clone https://www.modelscope.cn/AI-ModelScope/clip-vit-large-patch14.git

      4、cd clip-vit-large-patch14执行git lfs pull

  • 问题七、运行报错：


Creating model from config: /home/stable-diffusion-webui/configs/v1-inference.yaml
loading stable diffusion model: RuntimeError
Traceback (most recent call last):
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 966, in _bootstrap
    self._bootstrap_inner()
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 1009, in _bootstrap_inner
    self.run()
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 946, in run
    self._target(*self._args, **self._kwargs)
  File "/home/stable-diffusion-webui/modules/initialize.py", line 149, in load_model
    shared.sd_model  # noqa: B018
  File "/home/stable-diffusion-webui/modules/shared_items.py", line 175, in sd_model
    return modules.sd_models.model_data.get_sd_model()
  File "/home/stable-diffusion-webui/modules/sd_models.py", line 620, in get_sd_model
    load_model()
  File "/home/stable-diffusion-webui/modules/sd_models.py", line 748, in load_model
    load_model_weights(sd_model, checkpoint_info, state_dict, timer)
  File "/home/stable-diffusion-webui/modules/sd_models.py", line 393, in load_model_weights
    model.load_state_dict(state_dict, strict=False)
  File "/home/stable-diffusion-webui/modules/sd_disable_initialization.py", line 223, in <lambda>
    module_load_state_dict = self.replace(torch.nn.Module, 'load_state_dict', lambda *args, **kwargs: load_state_dict(module_load_state_dict, *args, **kwargs))
  File "/home/stable-diffusion-webui/modules/sd_disable_initialization.py", line 221, in load_state_dict
    original(module, state_dict, strict=strict)
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/nn/modules/module.py", line 2138, in load_state_dict
    load(self, state_dict)
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/nn/modules/module.py", line 2126, in load
    load(child, child_state_dict, child_prefix)
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/nn/modules/module.py", line 2126, in load
    load(child, child_state_dict, child_prefix)
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/nn/modules/module.py", line 2126, in load
    load(child, child_state_dict, child_prefix)
  [Previous line repeated 1 more time]
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/nn/modules/module.py", line 2120, in load
    module._load_from_state_dict(
  File "/home/stable-diffusion-webui/modules/sd_disable_initialization.py", line 225, in <lambda>
    linear_load_from_state_dict = self.replace(torch.nn.Linear, '_load_from_state_dict', lambda *args, **kwargs: load_from_state_dict(linear_load_from_state_dict, *args, **kwargs))
  File "/home/stable-diffusion-webui/modules/sd_disable_initialization.py", line 191, in load_from_state_dict
    module._parameters[name] = torch.nn.parameter.Parameter(torch.zeros_like(param, device=device, dtype=dtype), requires_grad=param.requires_grad)
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/_meta_registrations.py", line 4507, in zeros_like
    res = aten.empty_like.default(
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/_ops.py", line 448, in __call__
    return self._op(*args, **kwargs or {})
  File "/usr/local/python3.10.2/lib/python3.10/site-packages/torch/_refs/__init__.py", line 4681, in empty_like
    return torch.empty_permuted(
RuntimeError: unknown format type:117


Stable diffusion model failed to load
Applying attention optimization: InvokeAI... done.
Exception in thread Thread-6 (load_model):
Traceback (most recent call last):
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 1009, in _bootstrap_inner
    self.run()
  File "/usr/local/python3.10.2/lib/python3.10/threading.py", line 946, in run
    self._target(*self._args, **self._kwargs)
  File "/home/stable-diffusion-webui/modules/initialize.py", line 154, in load_model
    devices.first_time_calculation()
  File "/home/stable-diffusion-webui/modules/devices.py", line 265, in first_time_calculation
    x = torch.zeros((1, 1)).to(device, dtype)
RuntimeError: unknown format type:-748707168

解决办法：

把stable-diffusion-webui退回到1.7.0的版本；
git checkout v1.7.0

大海里的猴儿
关注
  • 26
    点赞
  • 踩
  • 10
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
专栏目录
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
