一、寻址方式的变化
实模式:CS*4 + ip = 物理地址

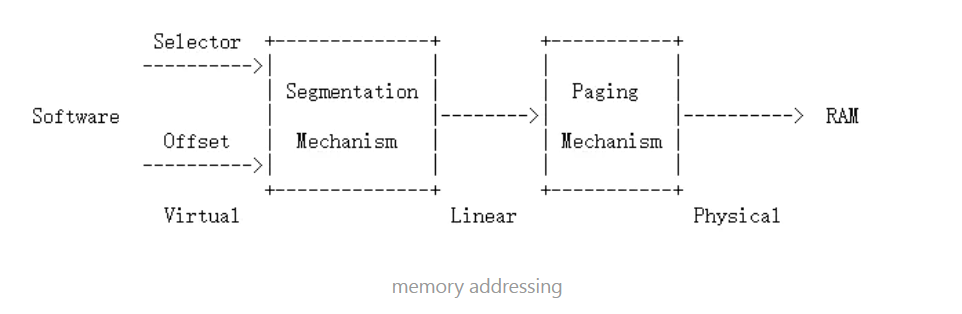

保护模式 :以 Segmentation Mechanism 的方式来寻址,addr = selector+ ip
之后在保护模式寻址的基础上引入 paging (也就是说,通过 addr = selector+ ip 得到的地址是虚拟地址,仍然需要通过 map 映射成为实际的物理地址),这样能够更好的解决内存碎片的问题。
在这个实验中通过 bootmain 开启 PG 后所有的地址都是虚拟地址了。

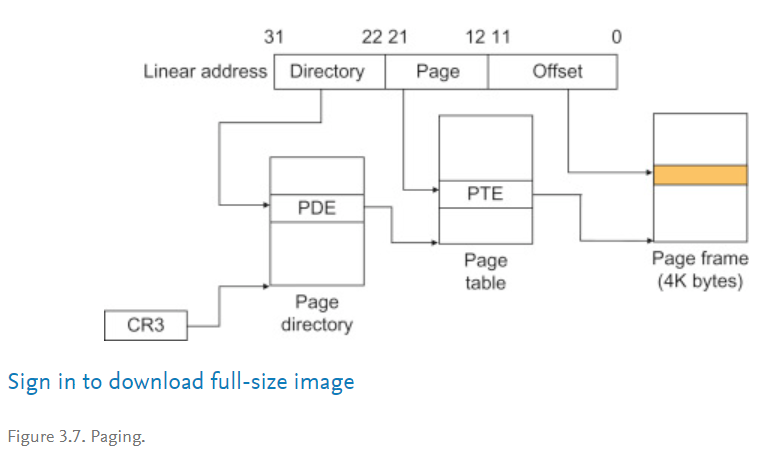

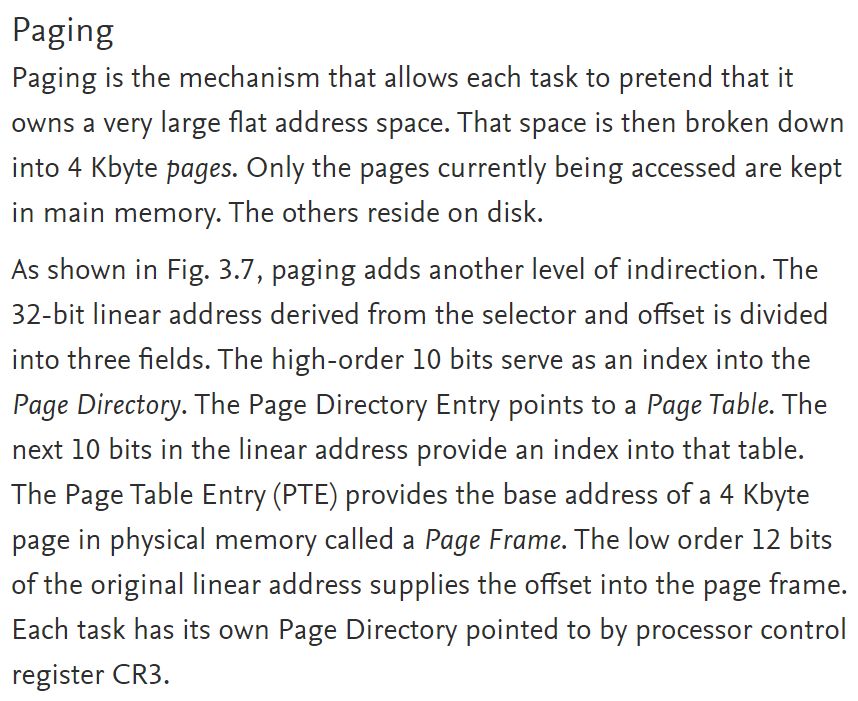

paging 的寻址方式如下图所示,虚拟地址和物理地址的偏移量是一致的,差的是虚拟页面到物理页面的转换。

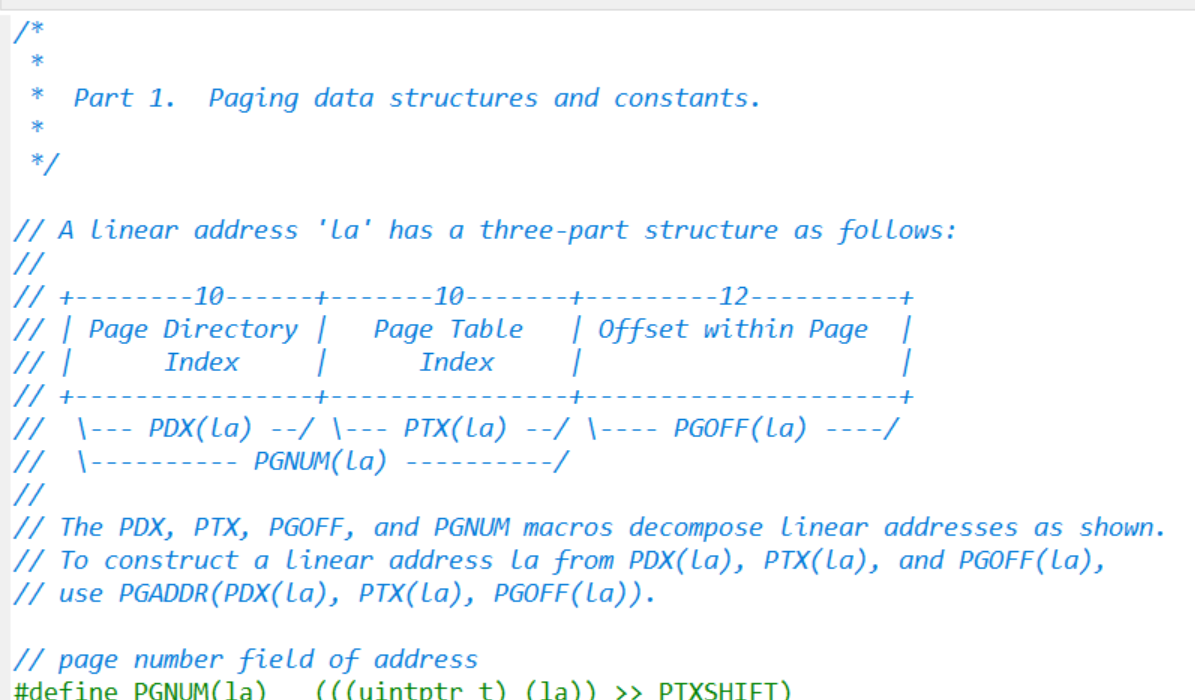

具体在程序中的实现

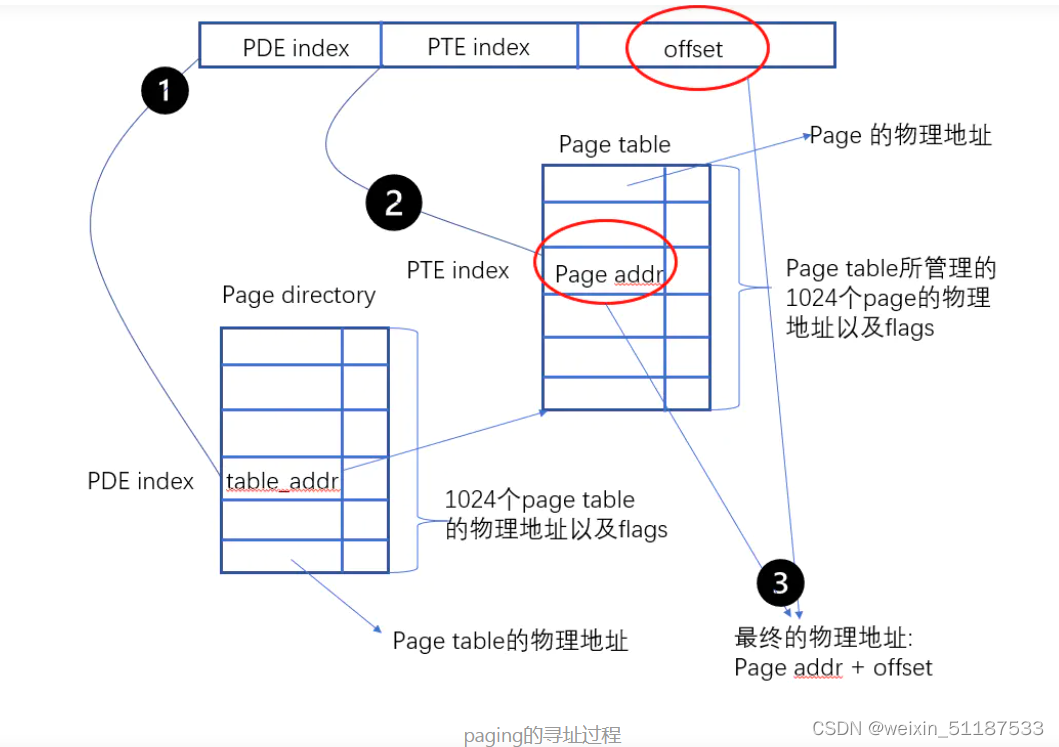

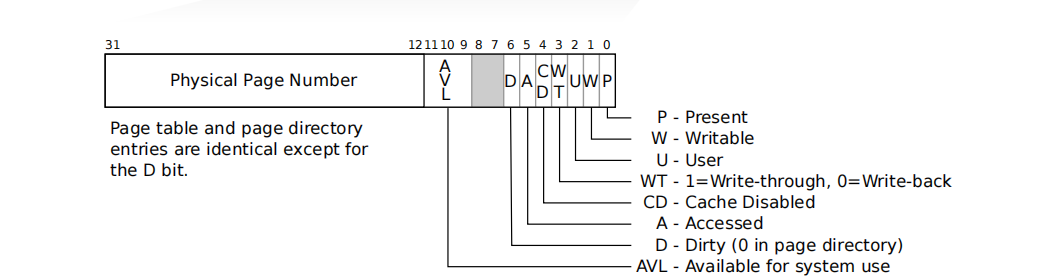

page directory 和 page table 里面存放的是什么地址?
都是物理地址,page directory 存放的是 page table 的物理地址,page table 存放的是映射的物理地址。

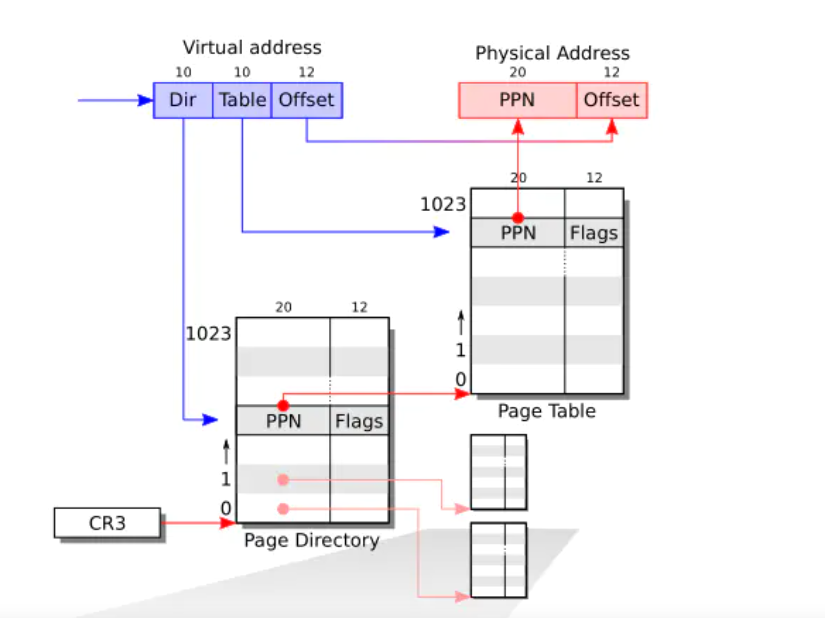

猜测 xv6 使用的是二级页表。果真如此:This two-level
structure allows a page table to omit entire page table pages in the common case in which large ranges of virtual addresses have no mappings.
有一篇文章讲得非常详细:Page Directory Table

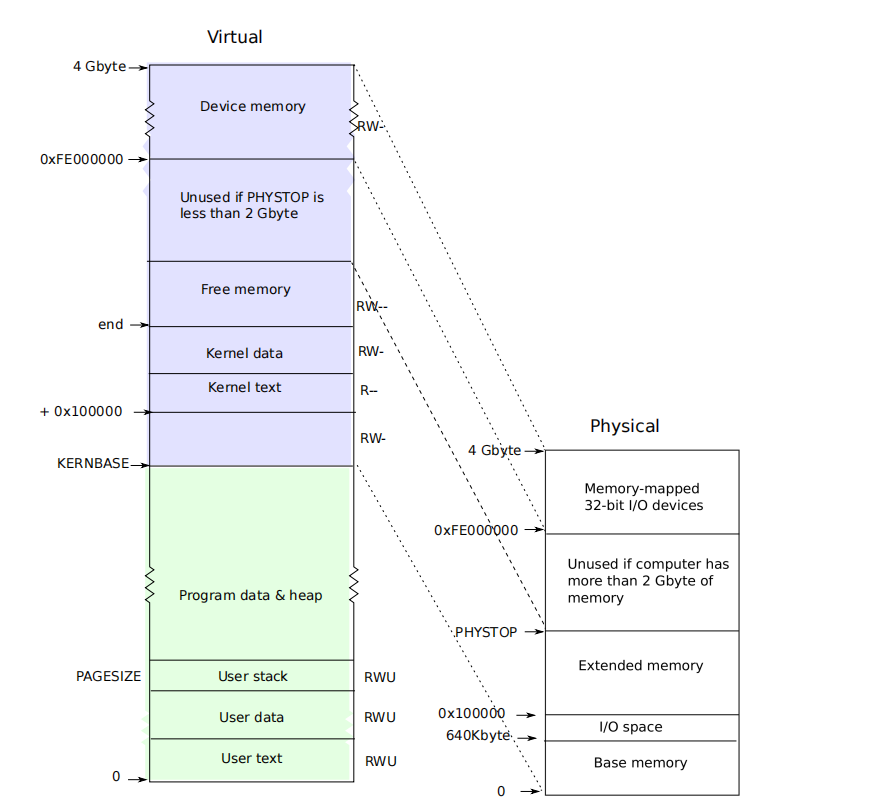

二、程序能够使用的地址空间从 KERNBASE 到 4g 都是可以使用的。

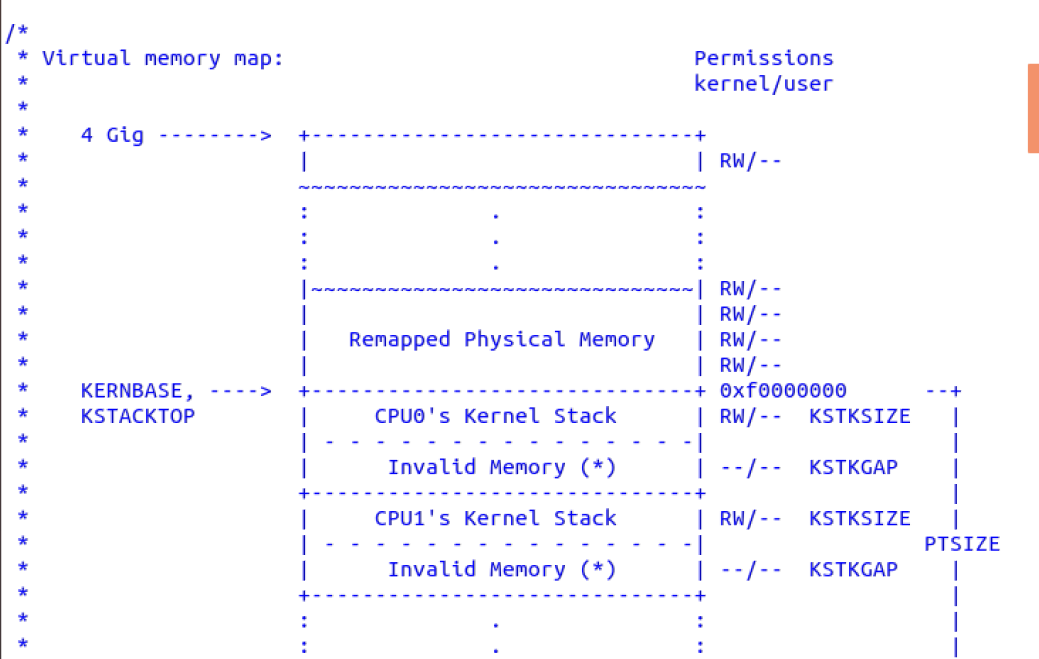

inc/memlayout.c 当中描述内存空间分配的部分。
Exercise 1. In the file kern/pmap.c, you must implement code for the following functions (probably in the order given).
boot_alloc()
mem_init() (only up to the call to check_page_free_list(1))
page_init()
page_alloc()
page_free()
check_page_free_list() and check_page_alloc() test your physical page allocator. You should boot JOS and see whether check_page_alloc() reports success. Fix your code so that it passes. You may find it helpful to add your own assert()s to verify that your assumptions are correct.
分页要做些什么事情?
1、划分分页后的地址空间

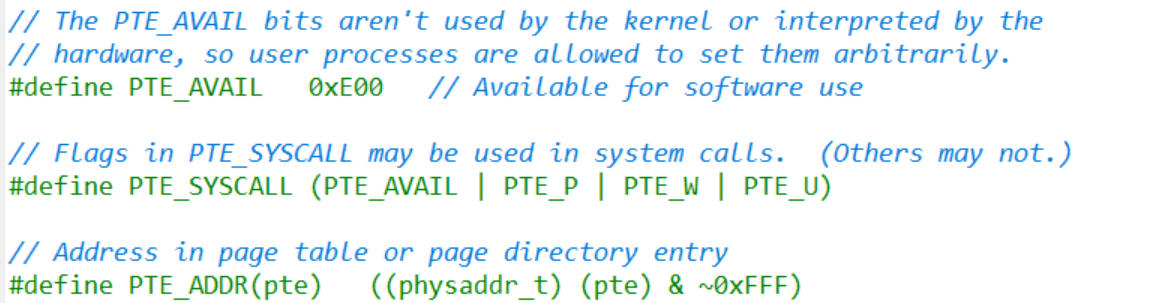

kern/pmap.h

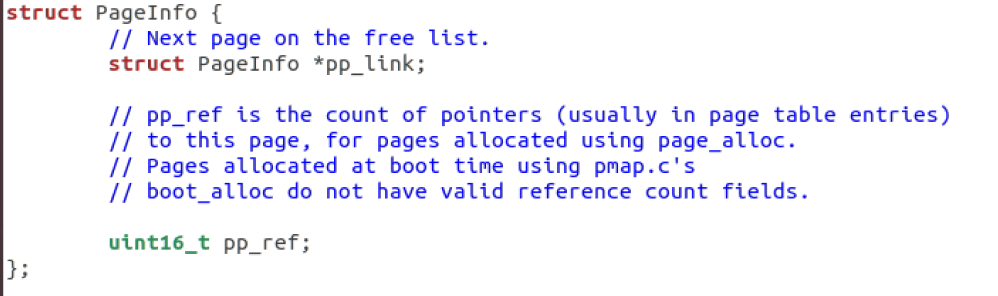

inc/memlayout.c 定义了 PageInfo 结构,
这里是用链表来记录内存的分配情况吗?

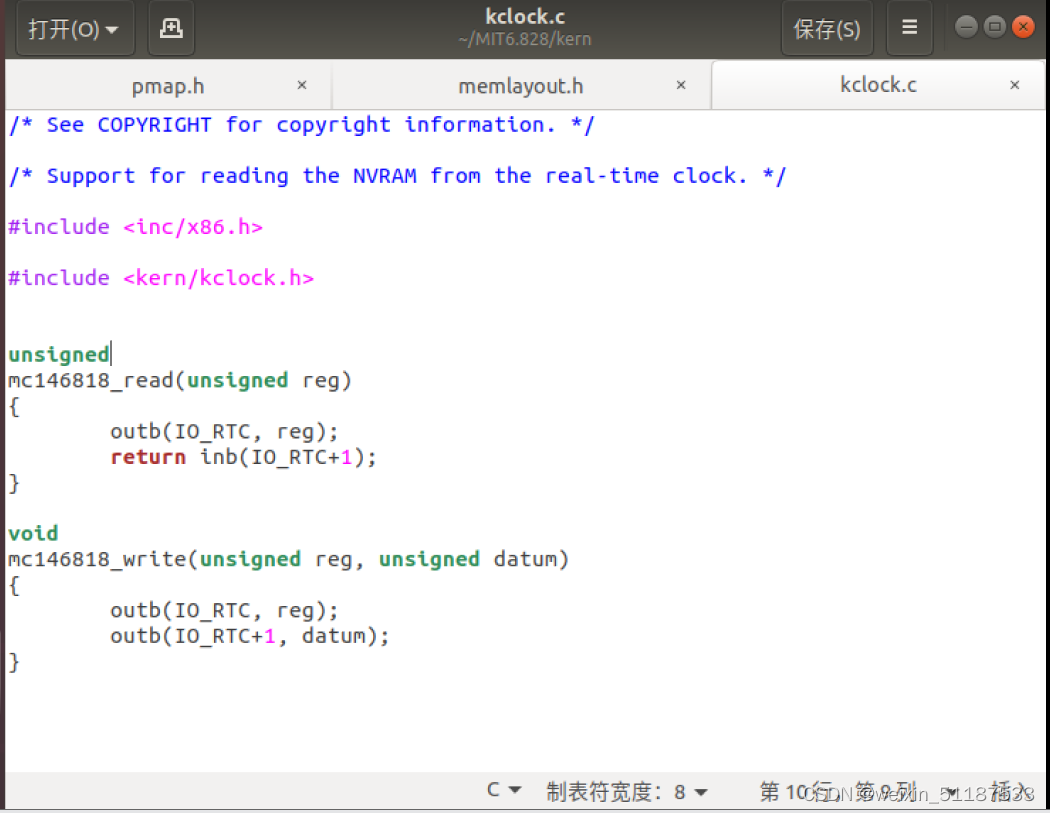

kclock.h 和 kclock.c 用来读取 NVRAM(非易失性随机访问存储器,断电之后所存储的数据不丢失的随机访问存储器)。
/* See COPYRIGHT for copyright information. */
#ifndef JOS_KERN_KCLOCK_H
#define JOS_KERN_KCLOCK_H
#ifndef JOS_KERNEL
# error "This is a JOS kernel header; user programs should not #include it"
#endif
#define IO_RTC 0x070 /* RTC port */
#define MC_NVRAM_START 0xe /* start of NVRAM: offset 14 */
#define MC_NVRAM_SIZE 50 /* 50 bytes of NVRAM */
/* NVRAM bytes 7 & 8: base memory size */
#define NVRAM_BASELO (MC_NVRAM_START + 7) /* low byte; RTC off. 0x15 */
#define NVRAM_BASEHI (MC_NVRAM_START + 8) /* high byte; RTC off. 0x16 */
/* NVRAM bytes 9 & 10: extended memory size (between 1MB and 16MB) */
#define NVRAM_EXTLO (MC_NVRAM_START + 9) /* low byte; RTC off. 0x17 */
#define NVRAM_EXTHI (MC_NVRAM_START + 10) /* high byte; RTC off. 0x18 */
/* NVRAM bytes 38 and 39: extended memory size (between 16MB and 4G) */
#define NVRAM_EXT16LO (MC_NVRAM_START + 38) /* low byte; RTC off. 0x34 */
#define NVRAM_EXT16HI (MC_NVRAM_START + 39) /* high byte; RTC off. 0x35 */
unsigned mc146818_read(unsigned reg);
void mc146818_write(unsigned reg, unsigned datum);
#endif // !JOS_KERN_KCLOCK_H
1、boot_alloc ()
n 是请求分配的物理内存大小。
这个函数并不真正的分配内存,真正分配内存的是 page_alloc() 。
n > 0 这个函数是返回可用的虚拟地址。
n == 0 这个函数返回第一个可用的未分配的虚拟地址。
// This simple physical memory allocator is used only while JOS is setting
// up its virtual memory system. page_alloc() is the real allocator.
//
// If n>0, allocates enough pages of contiguous physical memory to hold 'n'
// bytes. Doesn't initialize the memory. Returns a kernel virtual address.
//
// If n==0, returns the address of the next free page without allocating
// anything.
//
// If we're out of memory, boot_alloc should panic.
// This function may ONLY be used during initialization,
// before the page_free_list list has been set up.
// Note that when this function is called, we are still using entry_pgdir,
// which only maps the first 4MB of physical memory.
static void *
boot_alloc(uint32_t n)
{
static char *nextfree; // virtual address of next byte of free memory
char *result;
// Initialize nextfree if this is the first time.
// 'end' is a magic symbol automatically generated by the linker,
// which points to the end of the kernel's bss segment:
// the first virtual address that the linker did *not* assign
// to any kernel code or global variables.
if (!nextfree) {
extern char end[];
nextfree = ROUNDUP((char *) end, PGSIZE);
}
//没有在内核中分配过地址,故获取内核栈的末尾地址作为分配内存的起始地址
// Allocate a chunk large enough to hold 'n' bytes, then update
// nextfree. Make sure nextfree is kept aligned
// to a multiple of PGSIZE.
//
// LAB 2: Your code here.
//分配的内存地址的起始位置
result = nextfree;
//roundup()根据分配的大小按照 PGSIZE 的取整,得到的nextfree 指向分配完成后下一个空闲的地址空间
nextfree = ROUNDUP(result + n, PGSIZE);
if((uint32_t)nextfree - KERNBASE > (npages*PGSIZE))
panic("Out of memory!\n");
//返回分配的空间的起始位置
//在没有分配过空间的时候,返回的是内核栈后的第一个空白地址
return result;
}
这个函数只是简单的划分以下要分配的地址,像分配的页初始化、在内核中记录啥的都没有做。(也做不了,因为还没有页表咋记录)
第一次调用返回内存栈的后的地址,这个地址用于存放页表记录页的分配情况。
2.mem_init()

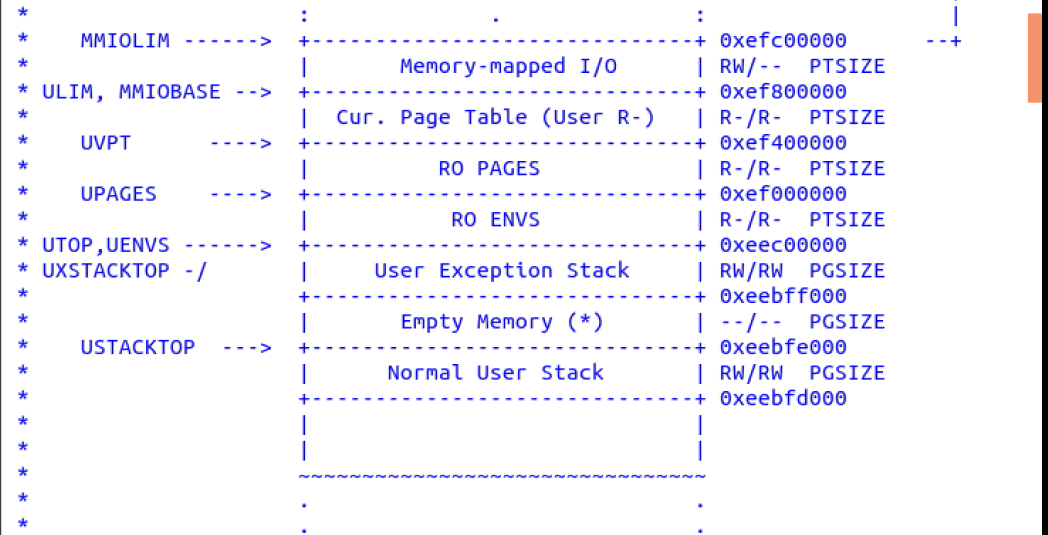

UVPT 是什么?
#if JOS_USER
/*
* The page directory entry corresponding to the virtual address range
* [UVPT, UVPT + PTSIZE) points to the page directory itself. Thus, the page
* directory is treated as a page table as well as a page directory.
*
* One result of treating the page directory as a page table is that all PTEs
* can be accessed through a "virtual page table" at virtual address UVPT (to
* which uvpt is set in lib/entry.S). The PTE for page number N is stored in
* uvpt[N]. (It's worth drawing a diagram of this!)
*
* A second consequence is that the contents of the current page directory
* will always be available at virtual address (UVPT + (UVPT >> PGSHIFT)), to
* which uvpd is set in lib/entry.S.
*/
extern volatile pte_t uvpt[]; // VA of "virtual page table"
extern volatile pde_t uvpd[]; // VA of current page directory
#endif

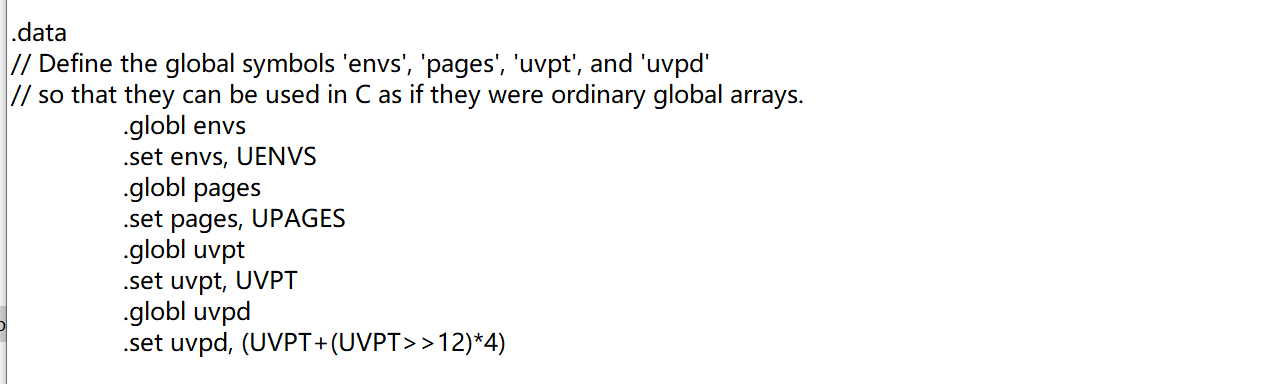

lib/entry.S
在 lab 2 的exercise 1 当中只实现了为页表数组分配空间并初始化
void
mem_init(void)
{
uint32_t cr0;
size_t n;
// Find out how much memory the machine has (npages & npages_basemem).
i386_detect_memory();
//npages是剩余物理内存的页数,每页的大小是PGSIZE。因此一共能分配的空间大小为(npages*PGSIZE)
//npages_basemem 不晓得这个是什么?
// Remove this line when you're ready to test this function.
// panic("mem_init: This function is not finished\n");
//猜测这句话和perror 类似,输出错误号并终止程序。
//
// create initial page directory.
kern_pgdir = (pde_t *) boot_alloc(PGSIZE);
//获取分配的内存的起始地址,指定分配大小是一个页,这个页紧跟操作系统的内核之后
memset(kern_pgdir, 0, PGSIZE);
//初始化分配后的地址
//
// Recursively insert PD in itself as a page table, to form
// a virtual page table at virtual address UVPT.
// (For now, you don't have understand the greater purpose of the
// following line.)
// Permissions: kernel R, user R

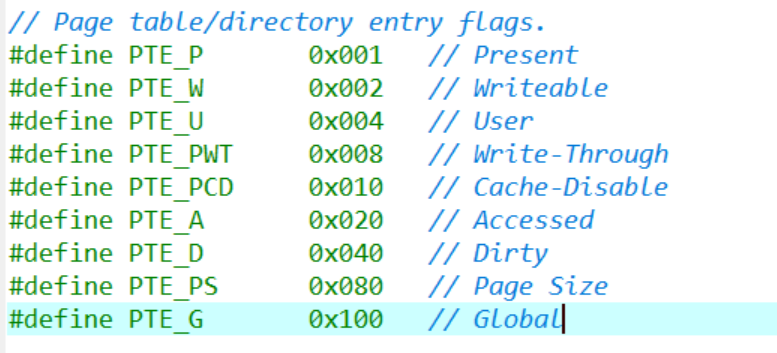

kern_pgdir[PDX(UVPT)] = PADDR(kern_pgdir) | PTE_U | PTE_P;

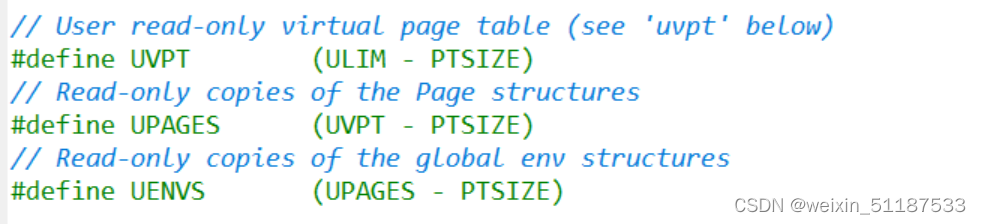

//这一条指令就是再为页目录表添加第一个页目录表项。通过查看memlayout.h文件,我们可以看到,UVPT的定义是一段虚拟地址的起始地址,0xef400000,从这个虚拟地址开始,存放的就是这个操作系统的页表kern_pgdir,所以我们必须把它和页表kern_pgdir的物理地址映射起来,PADDR(kern_pgdir)就是在计算kern_pgdir所对应的真实物理地址。
//其实不太明白这个是什么?
//
// Allocate an array of npages 'struct PageInfo's and store it in 'pages'.
// The kernel uses this array to keep track of physical pages: for
// each physical page, there is a corresponding struct PageInfo in this
// array. 'npages' is the number of physical pages in memory. Use memset
// to initialize all fields of each struct PageInfo to 0.
// Your code goes here:
//存放页面信息的数组的大小
size_t sizes = sizeof(struct PageInfo) * npages;
//为这个数组分配空间
pages = (struct PageInfo*)boot_alloc(sizes);
//初始化该空间
memset(pages, 0, sizes);
//意思大概是:每个页的信息都存放在一个叫做 PageInfo 的数据结构当中,所有页面的 PageInfo 汇集形成了一个数组。分配页表首先需要为这个数组分配空间。
//
3.page_init()
这个函数有两个功能:
- 初始化页面的数组(程序不可用的标记为已经用过了)
- 并且将程序可用的数组加入 free_page_list 当中。
void
page_init(void)
{
// LAB 4:
// Change your code to mark the physical page at MPENTRY_PADDR
// as in use
// The example code here marks all physical pages as free.
// However this is not truly the case. What memory is free?
// 1) Mark physical page 0 as in use.
// This way we preserve the real-mode IDT and BIOS structures
// in case we ever need them. (Currently we don't, but...)
// 2) The rest of base memory, [PGSIZE, npages_basemem * PGSIZE)
// is free.
// 3) Then comes the IO hole [IOPHYSMEM, EXTPHYSMEM), which must
// never be allocated.
// 4) Then extended memory [EXTPHYSMEM, ...).
// Some of it is in use, some is free. Where is the kernel
// in physical memory? Which pages are already in use for
// page tables and other data structures?
//
// Change the code to reflect this.
// NB: DO NOT actually touch the physical memory corresponding to
// free pages!
//1.mark page 0 as in use
// 这样我们就可以保留实模式IDT和BIOS结构,以备不时之需。
pages[0].pp_ref = 1;
pages[0].pp_link = NULL;
size_t i;
size_t kernel_end_page = PADDR(boot_alloc(0)) / PGSIZE;
size_t mpentry = MPENTRY_PADDR / PGSIZE;
for (i = 1; i < npages; i++) {
if (i >= npages_basemem && i < kernel_end_page) {
//extend mem 程序不可用
pages[i].pp_ref = 1;
pages[i].pp_link = NULL;
} else if (i == mpentry) {
//估计是 I/O 那一块儿,程序不可用
pages[i].pp_ref = 1;
pages[i].pp_link = NULL;
} else {
//其他的地方程序可用
pages[i].pp_ref = 0;
//所以后面这两步操作我没有看懂
//指向上一个可以用的空间
pages[i].pp_link = page_free_list;
//将 page_free_list 指向当前的空间。
//感觉 page_free_list 就起到一个 temp 的作用,不是不存储所有的空闲页。
//不是的,是空间页表从 index 大的空闲页指向index小的空闲页,然后 page_free_list 保存的是空闲页的 index 最大的页面。作为空闲页表的head
page_free_list = &pages[i];
}
}
}
//没有看懂上面的代码
//有些不明白内核已经占有的空间是否也要按照页来划分?是否也需要记录到页表当中?
//看了一下图,应该是分了的。具体功能分区再由内核自己决定。
//因此这些被内核占有的内存应该在页表数组中标记为不可用
//对于不可用的页面标记成已经用过了,但是如何判断留给 I/O 操作的地址只有一个?
下面是其他我认为比较好的实现
// 1.mark page 0 as in use
// 这样我们就可以保留实模式IDT和BIOS结构,以备不时之需。
pages[0].pp_ref = 1;
// 2.
size_t i;
for (i = 1; i < npages_basemem; i++) {
pages[i].pp_ref = 0;
pages[i].pp_link = page_free_list;
page_free_list = &pages[i];
}
// 3.[IOPHYSMEM, EXTPHYSMEM)
// mark I/O hole
for (;i<EXTPHYSMEM/PGSIZE;i++) {
pages[i].pp_ref = 1;
}
// 4. Extended memory
// 还要注意哪些内存已经被内核、页表使用了!
// first需要向上取整对齐。同时此时已经工作在虚拟地址模式(entry.S对内存进行了映射)下,
// 需要求得first的物理地址
physaddr_t first_free_addr = PADDR(boot_alloc(0));
size_t first_free_page = first_free_addr/PGSIZE;
for(;i<first_free_page;i++) {
pages[i].pp_ref = 1;
}
// mark other pages as free
for(;i<npages;i++) {
pages[i].pp_ref = 0;
pages[i].pp_link = page_free_list;
page_free_list = &pages[i];
}
总的来说这个函数具体干了两件事情。
1.初始化 pages 数组。内核的空间,留给 I/O 设备的空间都是程序不可以用的。其他都是可以用的。
2.将空闲的页面从index 小 到 index 大加入 page_free_list 当中。最后 page_free_list 作为空闲页页表的开头开始从 index 大向 index 小来分配内存。
3、page_alloc()
真正的分配内存空间的内容。
1.从 page_list_free 当中取出一个可用的页面
2.更新 page_list_free 信息
3.根据具体的申请来决定是否需要初始化页为0.
//
// Allocates a physical page. If (alloc_flags & ALLOC_ZERO), fills the entire
// returned physical page with '\0' bytes. Does NOT increment the reference
// count of the page - the caller must do these if necessary (either explicitly
// or via page_insert).
//
// Be sure to set the pp_link field of the allocated page to NULL so
// page_free can check for double-free bugs.
//
// Returns NULL if out of free memory.
//
// Hint: use page2kva and memset
struct PageInfo *
page_alloc(int alloc_flags)
{
// Fill this function in
//如果没有空闲的页面,说明内存超出了范围,提示错误,就不分配了
if (page_free_list == NULL) {
cprintf("page_alloc: out of free memory\n");
return NULL;
}
//获取空闲列表当中的第一个
struct PageInfo *addr = page_free_list;
//空闲列表的指针移动到下一个空闲的位置
page_free_list = page_free_list->pp_link;
addr->pp_link = NULL;
//如果空闲页面分配过了,就不能再指向空闲页面了
//page2kva 返回值 KernelBase + 物理页号<<PGSHIFT, 虚拟地址
//如果传递的 alloc_flags 当中有 ALLOC_ZERO 说明分配内存的时候指定了要将内存初始化为0.
if (alloc_flags & ALLOC_ZERO) {
memset(page2kva(addr), 0, PGSIZE);
}
return addr;
//返回分配后的地址。
}
4、page_free()
这个函数实现两个功能
1)检查页表是否还在使用。是就报错
2)归还页面。(无需清零什么的,因为申请 使用的时候会清零)
//
// Return a page to the free list.
// (This function should only be called when pp->pp_ref reaches 0.)
//
void
page_free(struct PageInfo *pp)
{
// Fill this function in
// Hint: You may want to panic if pp->pp_ref is nonzero or
// pp->pp_link is not NULL.
if (pp->pp_ref != 0 || pp->pp_link != NULL) {
panic("page_free: can not free the memory");
return;
}
pp->pp_link = page_free_list;
page_free_list = pp;
}

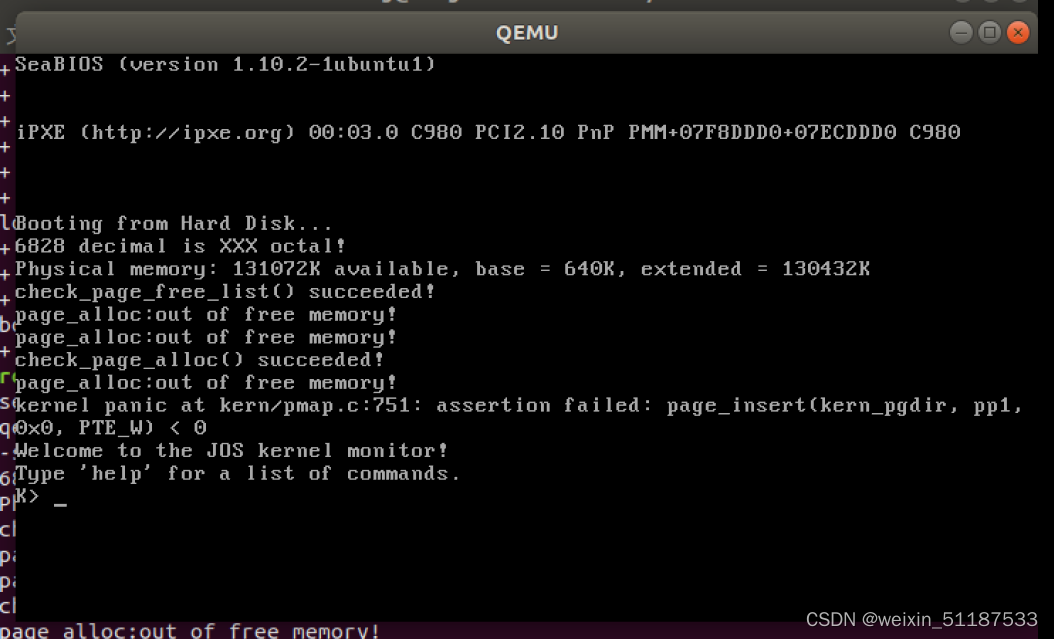

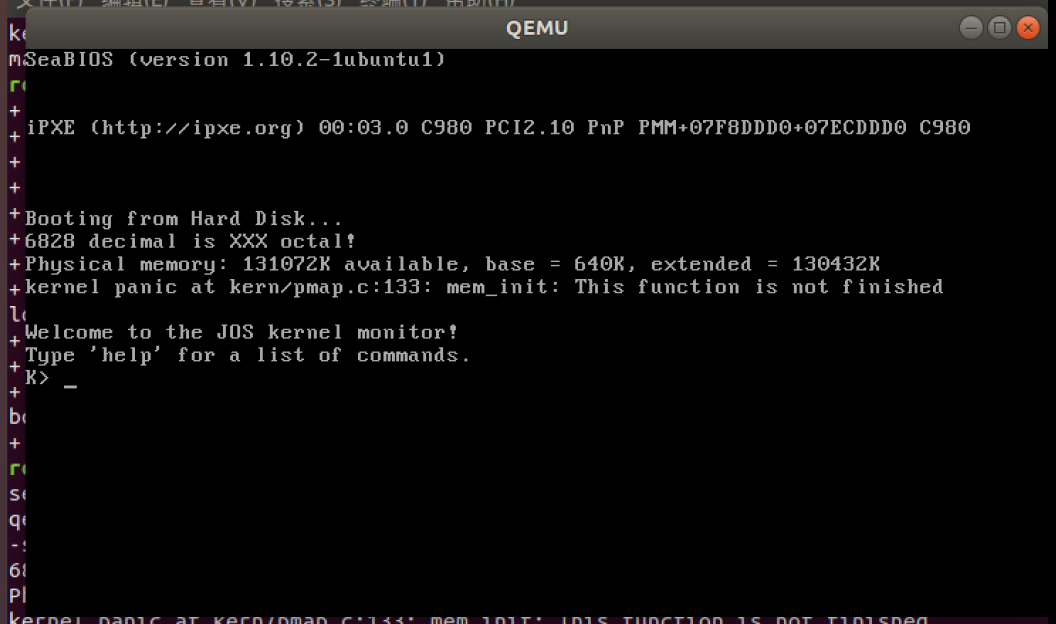

第一次测试的结果
如何测试?
先使用 make clean 删除之前的编译结果,
之后再使用 make 重新编译
再使用 make qemu 来查看运行的结果。
修改了 page_init ()后再来一次,勉强算是成功的。
