UR5e机器人运动学仿真

function r = mdl_ur5()

    deg = pi/180;

    % robot length values (metres)

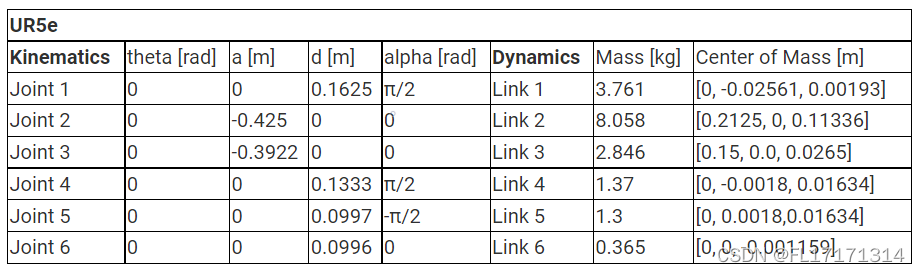

    a = [0, -0.42500, -0.39225, 0, 0, 0]';

    d = [0.089459, 0, 0, 0.10915, 0.09465, 0.0823]';

    alpha = [1.570796327, 0, 0, 1.570796327, -1.570796327, 0]';

    theta = zeros(6,1);

    DH = [theta d a alpha];

    mass = [3.7000, 8.3930, 2.33, 1.2190, 1.2190, 0.1897];

    center_of_mass = [
        0,-0.02561, 0.00193
        0.2125, 0, 0.11336
        0.15, 0, 0.0265
        0, -0.0018, 0.01634
        0, -0.0018, 0.01634
        0, 0, -0.001159];

    % and build a serial link manipulator

    % offsets from the table on page 4, "Mico" angles are the passed joint
    % angles.  "DH Algo" are the result after adding the joint angle offset.

    robot = SerialLink(DH, ...
        'name', 'UR5', 'manufacturer', 'Universal Robotics');

    % add the mass data, no inertia available
    links = robot.links;
    for i=1:6
        links(i).m = mass(i);
        links(i).r = center_of_mass(i,:);
    end


    % place the variables into the global workspace
    if nargin == 1
        r = robot;
    elseif nargin == 0
        assignin('caller', 'ur5', robot);
        assignin('caller', 'qz', [0 0 0 0 0 0]); % zero angles
        assignin('caller', 'qr', [180 0 0 0 90 0]*deg); % vertical pose as per Fig 2
    end
end
