⛄二、部分源代码
classdef main < matlab.apps.AppBase
% Properties that correspond to app components
properties (Access = public)
UIFigure matlab.ui.Figure
Panel_2 matlab.ui.container.Panel
enter_people_num_text matlab.ui.control.Label
enter_people_num_label matlab.ui.control.Label
all_people_num_text matlab.ui.control.Label
all_people_num_label matlab.ui.control.Label
server_area_label matlab.ui.control.Label
gate_label matlab.ui.control.Label
call_label_button matlab.ui.control.Button
ask_label_button matlab.ui.control.Button
Lamp matlab.ui.control.Lamp
sale_label_button matlab.ui.control.Button
call_people_allnum_text matlab.ui.control.Label
call_people_allnum_label matlab.ui.control.Label
call_people_bk matlab.ui.control.Label
ask_people_allnum_text matlab.ui.control.Label
sale_people_allnum_text matlab.ui.control.Label
ask_people_allnum_label matlab.ui.control.Label
sale_people_allnum_label matlab.ui.control.Label
Panel matlab.ui.container.Panel
help_button matlab.ui.control.Button
mouse_button matlab.ui.container.Panel
Lamp3 matlab.ui.control.Lamp
call_button matlab.ui.control.Label
ask_button matlab.ui.control.Label
sale_button matlab.ui.control.Label
call_label2 matlab.ui.control.Label
ask_label2 matlab.ui.control.Label
sale_label2 matlab.ui.control.Label
call_time_rate matlab.ui.control.NumericEditField
Label_13 matlab.ui.control.Label
ask_time_rate matlab.ui.control.NumericEditField
Label_12 matlab.ui.control.Label
sale_time_rate matlab.ui.control.NumericEditField
Label_11 matlab.ui.control.Label
call_rate matlab.ui.control.NumericEditField
Label_6 matlab.ui.control.Label
ask_rate matlab.ui.control.NumericEditField
Label_5 matlab.ui.control.Label
sale_rate matlab.ui.control.NumericEditField
Label_4 matlab.ui.control.Label
start matlab.ui.control.Button
keyboard_character matlab.ui.container.Panel
Lamp2 matlab.ui.control.Lamp
call_character matlab.ui.control.Label
ask_character matlab.ui.control.Label
sale_character matlab.ui.control.Label
call_label matlab.ui.control.Label
ask_label matlab.ui.control.Label
sale_label matlab.ui.control.Label

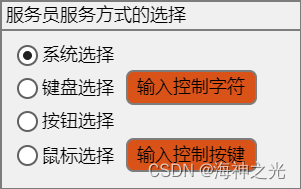

selectGroup matlab.ui.container.ButtonGroup
mouse_select_button matlab.ui.control.Button
mouse_select matlab.ui.control.RadioButton
keyboard_select_button matlab.ui.control.Button
button_select matlab.ui.control.RadioButton
keyboard_select matlab.ui.control.RadioButton
system_select matlab.ui.control.RadioButton
cinema matlab.ui.control.Label
Panel_3 matlab.ui.container.Panel
all_io_data_button matlab.ui.control.Button
percent_label matlab.ui.control.Label
server_occupy matlab.ui.control.Label
server_occupy_label matlab.ui.control.Label
sLabel_3 matlab.ui.control.Label
sLabel_2 matlab.ui.control.Label
sLabel matlab.ui.control.Label
call_period matlab.ui.control.Label
ask_period matlab.ui.control.Label
sale_period matlab.ui.control.Label
call_period_label matlab.ui.control.Label
ask_period_label matlab.ui.control.Label
sale_period_label matlab.ui.control.Label
time_label matlab.ui.control.Label
time matlab.ui.control.Label
endButton matlab.ui.control.Button
sale_people_bk matlab.ui.control.Label
ask_people_bk matlab.ui.control.Label
draw_2 matlab.ui.control.UIAxes
draw matlab.ui.control.UIAxes
end
properties (Access = private)
Property % Description
enter_people_num = 0; %此刻进入电影院的人数
sale_people_num = 0; %此刻进入电影院买票的人数
ask_people_num = 0; %此刻进入电影院咨询的人数
call_people_num = 0; %此刻电话咨询的人数
all_people_num = 0; %在电影院的总人数
sale_people_allnum = 0; %等待买票的总人数
ask_people_allnum = 0; %等待现场咨询的总人数
call_people_allnum = 0; %等待电话咨询的总人数
process_sale_num = 0; %已经处理完售票的人数
process_ask_num = 0; %已经处理完现场咨询的人数
process_call_num = 0; %已经处理完电话咨询的人数
people_dest=[]; %每次进来的人的目的地
people_interval = 6; %进入口每个人的间隔
stop_simulate = 0; %是否停止仿真
server_laststate = 0; %服务员的上一状态
server_state = 0; %服务员的现在状态
datetimer2; %定时器2
key_sale='a'; %键盘控制字符，'a'对应处理售票
key_ask='s'; %键盘控制字符，'s'对应处理现场咨询
key_call='d'; %键盘控制字符，'d'对应处理电话咨询
server_sale_time = []; %售票处的每个人等待时间列表
server_ask_time = []; %现场咨询处的每个人等待时间列表
server_call_time = []; %电话咨询处的每个人等待时间列表
server_time = 0; %服务员的工作时间
server_sale_pause_list = []; %服务员服务每个买票人的时间列表
server_ask_pause_list =[]; %服务员服务每个现场咨询人的时间列表
server_call_pause_list = []; %服务员服务每个电话咨询人的时间列表
mouse_dir=struct('left',1,'middle',2,'right',3); %鼠标控制按键
work_state = 0;
end
properties (Access = public)
%模型历来仿真的输入输出参数列表
input_output=[];
subtable;
end
methods (Access = private)
function draw_people(app,x,y) %画人
people_size = 3 ;
rectangle(app.draw,'Position',[x,y,people_size,people_size],'LineWidth',1,'EdgeColor','r','FaceColor','r');
text(app.draw,x,y+people_size/2,'人','Color','white');
end
function draw_server(app,x,y) %画服务员
server_length = 14;
server_width = 5;
rectangle(app.draw_2,'Position',[x,y,server_width,server_length],'LineWidth',1,'EdgeColor','black','FaceColor','black');
text(app.draw_2,x+1,y+server_length/2,{'服','务','员'},'FontSize',15,'Color','white');
end
function people_move(app,where) %人移动
dest_x = 90;
dest_y = [];
%生成此刻进来人的初始y坐标
original_y = (-app.ask_people_num)*app.people_interval:app.people_interval:(app.sale_people_num-1)*app.people_interval;
original_y = fliplr(original_y);%翻转一下
for i=1:length(where)
%根据每个人的不同去向选择不同y坐标
if where(i) == 0
dest_y = [dest_y 35];
elseif where(i) == 1
dest_y = [dest_y 7];
end
end
%运动更新到对应位置
x = linspace(0,dest_x,25);
if ~isempty(dest_y) %判断此时是否无人
k = (dest_y-original_y)/dest_x;
b = dest_y-k*dest_x;
y = k'.*x+b';
for i=1:length(x)
h = get(app.draw, 'children');
for j=1:app.enter_people_num
delete(h(2*j-1));
delete(h(2*j));
end
for j=1:app.enter_people_num
draw_people(app,x(i),y(j,i));
end
pause(0.0001);
end
end
end
function timer_init(app) %定时器1初始化
datetimer = timer;
datetimer.StartDelay = 0;
datetimer.Period = 1;
datetimer.ExecutionMode = 'fixedRate';
datetimer.BusyMode = 'queue';
datetimer.TimerFcn = @(~,~) get_current_time(app);
start(datetimer);
end
function timer2_init(app) %定时器2初始化
app.datetimer2 = timer;
app.datetimer2.StartDelay = 0;
app.datetimer2.Period = 5; %设置单位时间为5s
app.datetimer2.ExecutionMode = 'fixedRate';
app.datetimer2.BusyMode = 'queue';
app.datetimer2.TimerFcn = @(~,~) generate_people_num(app);
start(app.datetimer2);
end
function get_current_time(app) %获取当前时间
T = clock;
set(app.time,'Text',[num2str(T(4)),':',num2str(T(5))]);
end
function generate_people_num(app) %产生顾客人数并移动至对应位置
%生成三种人数，服从泊松分布
app.sale_people_num = random('poisson',app.sale_rate.Value,1);
app.ask_people_num = random('poisson',app.ask_rate.Value,1);
app.call_people_num = random('poisson',app.call_rate.Value,1);
%在影院的各类总人数计算
app.enter_people_num = app.sale_people_num + app.ask_people_num;
app.sale_people_allnum = app.sale_people_allnum + app.sale_people_num;
app.ask_people_allnum = app.ask_people_allnum + app.ask_people_num;
app.call_people_allnum = app.call_people_allnum + app.call_people_num;
app.all_people_num = app.all_people_num + app.enter_people_num;
%数量可视化
app.all_people_num_text.Text = string(app.all_people_num);
app.enter_people_num_text.Text = string(app.enter_people_num);
%生成对应去向
app.people_dest = zeros(1,app.sale_people_num);
app.people_dest = [app.people_dest ones(1,app.ask_people_num)];
for i=1:app.sale_people_num
draw_people(app,0,(i-1)*app.people_interval);
end
for i=1:app.ask_people_num
draw_people(app,0,-i*app.people_interval);
end
people_move(app,app.people_dest); %运动更新到相应位置
app.sale_people_allnum_text.Text = string(app.sale_people_allnum);
app.ask_people_allnum_text.Text = string(app.ask_people_allnum);
app.call_people_allnum_text.Text = string(app.call_people_allnum);
%电话咨询有人，指示灯亮红灯
if app.call_people_allnum>0
app.Lamp.Color = 'r';
end
%记录到达的人开始等待的时间
nowtime = ones(1,app.sale_people_num)*toc;
app.server_sale_time = [app.server_sale_time nowtime];
nowtime = ones(1,app.ask_people_num)*toc;
app.server_ask_time = [app.server_ask_time nowtime];
nowtime = ones(1,app.call_people_num)*toc;
app.server_call_time = [app.server_call_time nowtime];
end
function server_process(app) %服务员处理函数
switch app.server_state
case 1
app.process_sale_num = app.process_sale_num + 1;
app.server_sale_time(app.process_sale_num) = toc - app.server_sale_time(app.process_sale_num) ; %获取等待时间
pausetime = exprnd(app.sale_time_rate.Value); %负指数分布处理时间
pause(pausetime);
app.sale_people_allnum = app.sale_people_allnum - 1; %处理完人数减一
app.sale_people_allnum_text.Text = string(app.sale_people_allnum); %更新可视化数量
app.server_sale_pause_list = [app.server_sale_pause_list pausetime]; %处理时间列表
case 2
app.process_ask_num = app.process_ask_num + 1;
app.server_ask_time(app.process_ask_num) = toc - app.server_ask_time(app.process_ask_num); %获取等待时间
pausetime = exprnd(app.ask_time_rate.Value); %负指数分布处理时间
pause(pausetime);
app.ask_people_allnum = app.ask_people_allnum - 1; %处理完人数减一
app.ask_people_allnum_text.Text = string(app.ask_people_allnum); %更新可视化数量
app.server_ask_pause_list = [app.server_ask_pause_list pausetime]; %处理时间列表
case 3
app.process_call_num = app.process_call_num + 1;
app.server_call_time(app.process_call_num) = toc - app.server_call_time(app.process_call_num); %获取等待时间
pausetime = exprnd(app.call_time_rate.Value); %负指数分布处理时间
pause(pausetime);
app.call_people_allnum = app.call_people_allnum - 1; %处理完人数减一
app.call_people_allnum_text.Text = string(app.call_people_allnum); %更新可视化数量
app.server_call_pause_list = [app.server_call_pause_list pausetime]; %处理时间列表
end
if app.call_people_allnum == 0
app.Lamp.Color = 'g'; %无人电话，则绿灯亮
end
end
function initialize(app)
app.enter_people_num = 0; %此刻进入电影院的人数
app.sale_people_num = 0; %此刻进入电影院买票的人数
app.ask_people_num = 0; %此刻进入电影院咨询的人数
app.call_people_num = 0; %此刻电话咨询的人数
app.all_people_num = 0; %在电影院的总人数
app.sale_people_allnum = 0; %等待买票的总人数
app.ask_people_allnum = 0; %等待现场咨询的总人数
app.call_people_allnum = 0; %等待电话咨询的总人数
app.process_sale_num = 0; %已经处理完售票的人数
app.process_ask_num = 0; %已经处理完现场咨询的人数
app.process_call_num = 0; %已经处理完电话咨询的人数
app.people_dest=[]; %每次进来的人的目的地
app.people_interval = 6; %进入口每个人的间隔
app.stop_simulate = 0; %是否停止仿真
app.server_laststate = 0; %服务员的上一状态
app.server_state = 0; %服务的现在状态
app.server_sale_time = []; %售票处的每个人等待时间列表
app.server_ask_time = []; %现场咨询处的每个人等待时间列表
app.server_call_time = []; %电话咨询处的每个人等待时间列表
app.server_time = 0; %服务员的工作时间
app.server_sale_pause_list = []; %服务员服务每个买票人的时间列表
app.server_ask_pause_list =[]; %服务员服务每个现场咨询人的时间列表
app.server_call_pause_list = []; %服务员服务每个电话咨询人的时间列表
%服务员回到原点
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,30,-7);
%输出清零
app.sale_period.Text = '';
app.ask_period.Text = '';
app.call_period.Text = '';
app.server_occupy.Text ='';
end
function not_system_process(app,server_x,server_y,dest_x,sale_y,ask_y,call_y,pausetime,update_rate)
while(1)
pause(0.000001); %暂停极小一段时间留以程序反应，使得能够终止仿真
if app.stop_simulate == 1
stop(app.datetimer2); %暂停定时器2
delete(app.datetimer2); %删除定时器2
app.work_state = 0;
break
end
if (app.sale_people_allnum + app.ask_people_allnum) > 0 %如果影院里仍然有人的话
%根据选择的状态是否有人，来进行后续操作
if (app.server_state == 1 && app.sale_people_allnum>0) || (app.server_state == 2 && app.ask_people_allnum>0)
switch app.server_state
case 1
dest_y = sale_y;
case 2
dest_y = ask_y ;
end
if app.server_laststate == 0 %服务员上一状态在初始位置
%运动更新到对应位置
x = linspace(server_x,dest_x,update_rate);
k = (dest_y-server_y)/(dest_x-server_x);
b = dest_y- k * dest_x;
y = k*x+b;
for i=1:length(x)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,x(i),y(i));
pause(pausetime);
end
elseif app.server_laststate ~= app.server_state %服务员的位置发生变化
%判断服务员的上一状态位置
switch app.server_laststate
case 1
source_y = sale_y;
case 2
source_y = ask_y;
case 3
source_y = call_y;
end
%运动更新到对应位置
y = linspace(source_y,dest_y,update_rate);
for i=1:length(y)
h = get(app.draw_2,'children');
delete(h);
draw_server(app,dest_x,y(i));
pause(pausetime);
end
end
app.server_laststate = app.server_state;
server_process(app);
end
else
if app.call_people_allnum > 0
if app.server_state == 3
dest_y = call_y;
if app.server_laststate == 0 %服务员上一状态在初始位置
%运动更新到对应位置
x = linspace(server_x,dest_x,update_rate);
k = (dest_y-server_y)/(dest_x-server_x);
b = dest_y- k * dest_x;
y = k*x+b;
for i=1:length(x)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,x(i),y(i));
pause(pausetime);
end
elseif app.server_laststate == 1 %服务员上一状态在现场售票处
%运动更新到对应位置
y = linspace(sale_y,call_y,update_rate);
for i=1:length(y)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,dest_x,y(i));
pause(pausetime);
end
elseif app.server_laststate == 2 %服务员上一状态在现场咨询处
%运动更新到对应位置
y = linspace(ask_y,call_y,update_rate);
for i=1:length(y)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,dest_x,y(i));
pause(pausetime);
end
end
app.server_laststate = app.server_state;
server_process(app);
end
else
%如果都没有人的话服务员回到初始位置
if app.server_state ~=0
app.server_state =0;
app.server_laststate = app.server_state;
%运动更新到对应位置
x = linspace(dest_x,server_x,update_rate);
k = (dest_y - server_y)/(dest_x - server_x);
b = dest_y - k * dest_x;
y = k * x + b;
for i=1:length(x)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,x(i),y(i));
pause(pausetime);
end
end
end
end
end
end
end
methods (Access = public)
function keyboard_input(app,key_sale,key_ask,key_call) %将输入的键盘控制字符数据传递到主界面app属性
app.key_sale = key_sale;
app.key_ask = key_ask;
app.key_call = key_call;
end
function mouse_input(app,subfigure) %将选择的鼠标控制按键数据传递到主界面app属性
app.mouse_dir=struct(subfigure.sale.Value,1,subfigure.ask.Value,2,subfigure.call.Value,3);
end
end
% Callbacks that handle component events
methods (Access = private)
% Code that executes after component creation
function startupFcn(app)
app.UIFigure.Name = '电影院售票与咨询系统';
stop(timerfind); %暂停所有计时器
delete(timerfind); %删除所有计时器
timer_init(app); %开启定时器1
draw_server(app,30,-7); %画出服务员初始位置
end
% Button pushed function: start
function startButtonPushed(app, event)
if app.work_state
run errortip3.mlapp;
elseif app.sale_rate.Value<0||app.sale_rate.Value>5||...
app.ask_rate.Value<0||app.ask_rate.Value>5||...
app.call_rate.Value<0||app.call_rate.Value>5||...
app.sale_time_rate.Value<0.2||app.ask_time_rate.Value<0.2||app.call_time_rate.Value<0.2
run errortip4.mlapp;
else
app.stop_simulate = 0;
app.work_state = 1;
initialize(app);
server_x = 30; %服务员的初始位置
server_y = -7;
sale_y = 29; %售票处位置
ask_y = 0; %现场咨询处位置
call_y =-29; %电话咨询处位置
dest_x = 7; %服务员处理位置的横坐标
pausetime = 0.0001; %人和服务员运动更新暂停时间
update_rate = 10; %决定人和服务员的运动速度
tic %开始计时
timer2_init(app); %开启定时器2，进行仿真
if app.system_select.Value %服务员系统自动产生服务
while(1)
pause(0.000001); %暂停极小一段时间留以程序反应，使得能够终止仿真
if app.stop_simulate == 1
stop(app.datetimer2); %暂停定时器2
delete(app.datetimer2); %删除定时器2
app.work_state = 0;
break
end
if (app.sale_people_allnum + app.ask_people_allnum) > 0 %如果影院里仍然有人的话
app.server_laststate = app.server_state;
if app.sale_people_allnum == 0 %售票处没人
dest_y = ask_y;
app.server_state = 2; %去现场咨询处
elseif app.ask_people_allnum == 0 %现场咨询处没人
dest_y = sale_y;
app.server_state = 1; %去现场售票处
else
%二者随机选择
if rand(1) > 0.5
dest_y = sale_y;
app.server_state = 1; %在现场售票处
else
dest_y = ask_y;
app.server_state = 2; %在现场咨询处
end
end
if app.server_laststate == 0 %服务员上一状态在初始位置
%运动更新到对应位置
x = linspace(server_x,dest_x,update_rate);
k = (dest_y-server_y)/(dest_x-server_x);
b = dest_y- k * dest_x;
y = k*x+b;
for i=1:length(x)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,x(i),y(i));
pause(pausetime);
end
elseif app.server_laststate ~= app.server_state %服务员的位置发生变化
%判断服务员的上一状态位置
switch app.server_laststate
case 1
source_y = sale_y;
case 2
source_y = ask_y;
case 3
source_y = call_y;
end
%运动更新到对应位置
y = linspace(source_y,dest_y,update_rate);
for i=1:length(y)
h = get(app.draw_2,'children');
delete(h);
draw_server(app,dest_x,y(i));
pause(pausetime);
end
end
server_process(app);
else
if app.call_people_allnum > 0 %电话咨询处有人等待
app.server_laststate = app.server_state;
app.server_state = 3;
dest_y = call_y;
switch app.server_laststate
case 0 %服务员上一状态在初始位置
%运动更新到对应位置
x = linspace(server_x,dest_x,update_rate);
k = (dest_y-server_y)/(dest_x-server_x);
b = dest_y- k * dest_x;
y = k*x+b;
for i=1:length(x)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,x(i),y(i));
pause(pausetime);
end
case 1 %服务员上一状态在现场售票处
%运动更新到对应位置
y = linspace(sale_y,call_y,update_rate);
for i=1:length(y)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,dest_x,y(i));
pause(pausetime);
end
case 2 %服务员上一状态在现场咨询处
%运动更新到对应位置
y = linspace(ask_y,call_y,update_rate);
for i=1:length(y)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,dest_x,y(i));
pause(pausetime);
end
end
server_process(app);
else
%如果都没有人的话服务员回到初始位置
if app.server_state ~=0
app.server_state =0;
%运动更新到对应位置
x = linspace(dest_x,server_x,update_rate);
k = (dest_y - server_y)/(dest_x - server_x);
b = dest_y - k * dest_x;
y = k * x + b;
for i=1:length(x)
h = get(app.draw_2, 'children');
delete(h);
draw_server(app,x(i),y(i));
pause(pausetime);
end
end
end
end
end
else
%非系统自动产生服务处理函数
not_system_process(app,server_x,server_y,dest_x,sale_y,ask_y,call_y,pausetime,update_rate);
end
end
end
% Button pushed function: endButton
function endButtonPushed(app, event)
if ~app.work_state
run errortip5.mlapp;
else
app.server_time = toc; %记录服务员的总工作时间
app.stop_simulate = 1 ; %停止仿真
rate = (sum(app.server_sale_pause_list)+sum(app.server_ask_pause_list)+sum(app.server_call_pause_list))/app.server_time; %计算服务员工作时间的占用率
app.server_occupy.Text = string(rate*100);
%计算各类服务的平均等待时间
if app.process_sale_num
app.server_sale_time = sum(app.server_sale_time(1:app.process_sale_num))/app.process_sale_num;
end
if app.process_ask_num
app.server_ask_time = sum(app.server_ask_time(1:app.process_ask_num))/app.process_ask_num;
end
if app.process_call_num
app.server_call_time = sum(app.server_call_time(1:app.process_call_num))/app.process_call_num;
end
app.sale_period.Text = string(app.server_sale_time);
app.ask_period.Text = string(app.server_ask_time);
app.call_period.Text = string(app.server_call_time);
if app.system_select.Value
server_mode ='系统选择';
elseif app.keyboard_select.Value
server_mode = '键盘选择';
elseif app.button_select.Value
server_mode = '按钮选择';
elseif app.mouse_select.Value
server_mode = '鼠标选择';
end
app.input_output = [app.input_output;{app.sale_rate.Value,app.ask_rate.Value,app.call_rate.Value,...
app.sale_time_rate.Value,app.ask_time_rate.Value,app.call_time_rate.Value,...
server_mode,app.server_sale_time,app.server_ask_time,app.server_call_time,rate*100}];
end
end
% Button pushed function: sale_label_button
function sale_label_buttonButtonPushed(app, event)
if app.button_select.Value && app.sale_people_allnum > 0
app.server_state = 1;
end
end
% Button pushed function: ask_label_button
function ask_label_buttonButtonPushed(app, event)
if app.button_select.Value && app.ask_people_allnum > 0
app.server_state = 2;
end
end
% Button pushed function: call_label_button
function call_label_buttonButtonPushed(app, event)
if app.button_select.Value && app.call_people_allnum > 0 && ((app.sale_people_allnum + app.ask_people_allnum) == 0)
app.server_state = 3;
end
end
% Selection changed function: selectGroup
function selectGroupSelectionChanged(app, event)
if app.keyboard_select.Value
app.Lamp2.Color = 'r';
app.Lamp3.Color = 'g';
elseif app.mouse_select.Value
app.Lamp3.Color = 'r';
app.Lamp2.Color = 'g';
else
app.Lamp2.Color = 'g';
app.Lamp3.Color = 'g';
end
end
% Button pushed function: keyboard_select_button
function keyboard_select_buttonButtonPushed(app, event)
character(app); %打开键盘控制字符输入界面
end
% Key press function: UIFigure
function UIFigureKeyPress(app, event)
key = event.Key; %储存按键状态
if app.keyboard_select.Value %如果选中'键盘选择'
switch key
case app.key_sale
if app.sale_people_allnum > 0
%如果售票处等待人数大于0，则改变服务员状态为售票服务
app.server_state = 1;
end
case app.key_ask
if app.ask_people_allnum > 0
%如果现场咨询处等待人数大于0，则改变服务员状态为现场咨询服务
app.server_state = 2;
end
case app.key_call
if app.call_people_allnum > 0 && ((app.sale_people_allnum + app.ask_people_allnum) == 0)
%如果电话咨询处等待人数大于0并且售票处和现场咨询处均无人，则改变服务员状态为电话咨询服务
app.server_state = 3;
end
end
end
end
% Window button down function: UIFigure
function UIFigureWindowButtonDown(app, event)
%选中'鼠标选择'并且鼠标点击在灰黑色区域内
if app.mouse_select.Value && app.UIFigure.CurrentPoint(1)>210 &&...
app.UIFigure.CurrentPoint(1)<910 && app.UIFigure.CurrentPoint(2)>5 &&...
app.UIFigure.CurrentPoint(2)<770
origin_s = app.server_state; %保存原来的状态
switch app.UIFigure.SelectionType
case 'normal' %左键
app.server_state = app.mouse_dir.left;
case 'alt' %右键
app.server_state = app.mouse_dir.right;
case 'extend' %滚轮
app.server_state = app.mouse_dir.middle;
end
switch app.server_state
case 1
if ~app.sale_people_allnum
%如果鼠标点击售票按键，但是售票无人等待，则继续保持原状态
app.server_state = origin_s;
end
case 2
if ~app.ask_people_allnum
%如果鼠标点击现场咨询按键，但是现场咨询无人等待，则继续保持原状态
app.server_state = origin_s;
end
case 3
if (app.sale_people_allnum + app.ask_people_allnum) > 0 || app.call_people_allnum == 0
%如果鼠标点击电话咨询按键吗，但是售票或现场咨询有人或者电话咨询无人，则继续保持原状态
app.server_state = origin_s;
end
end
end
end
% Button pushed function: mouse_select_button
function mouse_select_buttonButtonPushed(app, event)
mouse(app); %打开鼠标按键选择界面
end
% Button pushed function: help_button
function help_buttonButtonPushed(app, event)
run help.mlapp; %打开使用帮助界面
end
% Button pushed function: all_io_data_button
function all_io_data_buttonButtonPushed(app, event)
app.subtable = all_io_data();
app.subtable.UITable.Data = [app.subtable.UITable.Data;app.input_output];
end
end
% Component initialization
methods (Access = private)
% Create UIFigure and components
function createComponents(app)
% Create UIFigure and hide until all components are created
app.UIFigure = uifigure('Visible', 'off');
app.UIFigure.Color = [0.6549 0.651 0.6706];
app.UIFigure.Position = [100 100 1159 777];
app.UIFigure.Name = 'MATLAB App';
app.UIFigure.WindowButtonDownFcn = createCallbackFcn(app, @UIFigureWindowButtonDown, true);
app.UIFigure.KeyPressFcn = createCallbackFcn(app, @UIFigureKeyPress, true);
app.UIFigure.HandleVisibility = 'on';
% Create draw
app.draw = uiaxes(app.UIFigure);
app.draw.XLim = [0 100];
app.draw.YLim = [-50 50];
app.draw.XColor = 'none';
app.draw.XTick = [0 10 20 30 40 50 60 70 80 90 100];
app.draw.XTickLabelRotation = 0;
app.draw.XTickLabel = '';
app.draw.YColor = 'none';
app.draw.YTickLabelRotation = 0;
app.draw.YTickLabel = '';
app.draw.ZTickLabelRotation = 0;
app.draw.Color = 'none';
app.draw.GridColor = [0.149 0.149 0.149];
app.draw.Position = [204 12 506 746];
% Create draw_2
app.draw_2 = uiaxes(app.UIFigure);
app.draw_2.XLim = [0 40];
app.draw_2.YLim = [-50 50];
app.draw_2.XColor = [0.502 0.502 0.502];
app.draw_2.XTickLabelRotation = 0;
app.draw_2.XTickLabel = '';
app.draw_2.YColor = [0.502 0.502 0.502];
app.draw_2.YTickLabelRotation = 0;
app.draw_2.YTickLabel = '';
app.draw_2.ZTickLabelRotation = 0;
app.draw_2.Color = [0.502 0.502 0.502];
app.draw_2.XGrid = 'on';
app.draw_2.YGrid = 'on';
app.draw_2.GridColor = [0.149 0.149 0.149];
app.draw_2.Position = [697 3 238 774];
% Create ask_people_bk
app.ask_people_bk = uilabel(app.UIFigure);
app.ask_people_bk.BackgroundColor = [0.7765 0.9216 0.6549];
app.ask_people_bk.Position = [503 431 192 37];
app.ask_people_bk.Text = '';
% Create sale_people_bk
app.sale_people_bk = uilabel(app.UIFigure);
app.sale_people_bk.BackgroundColor = [0.7765 0.9216 0.6549];
app.sale_people_bk.Position = [503 630 192 37];
app.sale_people_bk.Text = '';
% Create Panel_3
app.Panel_3 = uipanel(app.UIFigure);
app.Panel_3.ForegroundColor = [1 1 1];
app.Panel_3.Title = ' 模型输出';
app.Panel_3.BackgroundColor = [0.749 0.6 0.5961];
app.Panel_3.FontName = '楷体';
app.Panel_3.FontSize = 20;
app.Panel_3.Position = [917 188 242 588];
% Create endButton
app.endButton = uibutton(app.Panel_3, 'push');
app.endButton.ButtonPushedFcn = createCallbackFcn(app, @endButtonPushed, true);
app.endButton.BackgroundColor = [0.7294 0.2863 0.2941];
app.endButton.Position = [19 43 86 49];
app.endButton.Text = '仿真结束确认';
% Create time
app.time = uilabel(app.Panel_3);
app.time.FontSize = 15;
app.time.FontColor = [0.149 0.149 0.149];
app.time.Position = [100 517 92 22];
app.time.Text = '0';
% Create time_label
app.time_label = uilabel(app.Panel_3);
app.time_label.FontSize = 15;
app.time_label.FontColor = [0.149 0.149 0.149];
app.time_label.Position = [22 517 80 22];
app.time_label.Text = '实时时间：';
% Create sale_period_label
app.sale_period_label = uilabel(app.Panel_3);
app.sale_period_label.FontSize = 18;
app.sale_period_label.FontColor = [1 1 1];
app.sale_period_label.Position = [17 456 222 23];
app.sale_period_label.Text = '现场售票服务平均等待时间';
% Create ask_period_label
app.ask_period_label = uilabel(app.Panel_3);
app.ask_period_label.FontSize = 18;
app.ask_period_label.FontColor = [1 1 1];
app.ask_period_label.Position = [17 367 222 23];
app.ask_period_label.Text = '现场咨询服务平均等待时间';
% Create call_period_label
app.call_period_label = uilabel(app.Panel_3);
app.call_period_label.FontSize = 18;
app.call_period_label.FontColor = [1 1 1];
app.call_period_label.Position = [17 277 222 23];
app.call_period_label.Text = '电话咨询服务平均等待时间';
% Create sale_period
app.sale_period = uilabel(app.Panel_3);
app.sale_period.BackgroundColor = [1 1 1];
app.sale_period.FontSize = 18;
app.sale_period.Position = [84 420 88 23];
app.sale_period.Text = '';
% Create ask_period
app.ask_period = uilabel(app.Panel_3);
app.ask_period.BackgroundColor = [1 1 1];
app.ask_period.FontSize = 18;
app.ask_period.Position = [84 327 88 23];
app.ask_period.Text = '';
% Create call_period
app.call_period = uilabel(app.Panel_3);
app.call_period.BackgroundColor = [1 1 1];
app.call_period.FontSize = 18;
app.call_period.Position = [84 230 88 23];
app.call_period.Text = '';
% Create sLabel
app.sLabel = uilabel(app.Panel_3);
app.sLabel.FontSize = 18;
app.sLabel.Position = [182 420 25 23];
app.sLabel.Text = 's';
% Create sLabel_2
app.sLabel_2 = uilabel(app.Panel_3);
app.sLabel_2.FontSize = 18;
app.sLabel_2.Position = [182 327 25 23];
app.sLabel_2.Text = 's';
% Create sLabel_3
app.sLabel_3 = uilabel(app.Panel_3);
app.sLabel_3.FontSize = 18;
app.sLabel_3.Position = [182 230 25 23];
app.sLabel_3.Text = 's';
% Create server_occupy_label
app.server_occupy_label = uilabel(app.Panel_3);
app.server_occupy_label.FontSize = 18;
app.server_occupy_label.FontColor = [1 1 1];
app.server_occupy_label.Position = [17 173 222 23];
app.server_occupy_label.Text = '服务员在工作时间的占用率';
% Create server_occupy
app.server_occupy = uilabel(app.Panel_3);
app.server_occupy.BackgroundColor = [1 1 1];
app.server_occupy.FontSize = 18;
app.server_occupy.Position = [84 130 88 23];
app.server_occupy.Text = '';
% Create percent_label
app.percent_label = uilabel(app.Panel_3);
app.percent_label.FontSize = 18;
app.percent_label.Position = [182 130 25 23];
app.percent_label.Text = '%';
% Create all_io_data_button
app.all_io_data_button = uibutton(app.Panel_3, 'push');
app.all_io_data_button.ButtonPushedFcn = createCallbackFcn(app, @all_io_data_buttonButtonPushed, true);
app.all_io_data_button.BackgroundColor = [0.8196 0.6 0.2196];
app.all_io_data_button.FontColor = [0.149 0.149 0.149];
app.all_io_data_button.Position = [132 44 99 48];
app.all_io_data_button.Text = {'模型总输入输出'; '参数表格'};
% Create cinema
app.cinema = uilabel(app.UIFigure);
app.cinema.FontName = '楷体';
app.cinema.FontSize = 30;
app.cinema.FontColor = [1 1 1];
app.cinema.Position = [514 726 95 49];
app.cinema.Text = '电影院';
% Create Panel
app.Panel = uipanel(app.UIFigure);
app.Panel.ForegroundColor = [1 1 1];
app.Panel.Title = ' 初始条件设置';
app.Panel.BackgroundColor = [0.749 0.6 0.5961];
app.Panel.FontName = '楷体';
app.Panel.FontSize = 20;
app.Panel.Position = [0 3 205 775];
% Create selectGroup
app.selectGroup = uibuttongroup(app.Panel);
app.selectGroup.SelectionChangedFcn = createCallbackFcn(app, @selectGroupSelectionChanged, true);
app.selectGroup.Title = '服务员服务方式的选择';
app.selectGroup.Position = [1 358 202 127];
% Create system_select
app.system_select = uiradiobutton(app.selectGroup);
app.system_select.Text = '系统选择';
app.system_select.Position = [11 79 70 22];
app.system_select.Value = true;
% Create keyboard_select
app.keyboard_select = uiradiobutton(app.selectGroup);
app.keyboard_select.Text = '键盘选择';
app.keyboard_select.Position = [11 57 70 22];
% Create button_select
app.button_select = uiradiobutton(app.selectGroup);
app.button_select.Text = '按钮选择';
app.button_select.Position = [11 35 70 22];
% Create keyboard_select_button
app.keyboard_select_button = uibutton(app.selectGroup, 'push');
app.keyboard_select_button.ButtonPushedFcn = createCallbackFcn(app, @keyboard_select_buttonButtonPushed, true);
app.keyboard_select_button.BackgroundColor = [0.851 0.3255 0.098];
app.keyboard_select_button.Position = [84 57 87 23];
app.keyboard_select_button.Text = '输入控制字符';
% Create mouse_select
app.mouse_select = uiradiobutton(app.selectGroup);
app.mouse_select.Text = '鼠标选择';
app.mouse_select.Position = [11 12 70 22];
% Create mouse_select_button
app.mouse_select_button = uibutton(app.selectGroup, 'push');
app.mouse_select_button.ButtonPushedFcn = createCallbackFcn(app, @mouse_select_buttonButtonPushed, true);
app.mouse_select_button.BackgroundColor = [0.851 0.3255 0.098];
app.mouse_select_button.Position = [84 12 87 23];
app.mouse_select_button.Text = '输入控制按键';
% Create keyboard_character
app.keyboard_character = uipanel(app.Panel);
app.keyboard_character.Title = '键盘选择对应字符';
app.keyboard_character.Position = [1 235 202 103];
% Create sale_label
app.sale_label = uilabel(app.keyboard_character);
app.sale_label.Position = [10 55 65 22];
app.sale_label.Text = '现场售票：';
% Create ask_label
app.ask_label = uilabel(app.keyboard_character);
app.ask_label.Position = [10 30 65 22];
app.ask_label.Text = '现场咨询：';
% Create call_label
app.call_label = uilabel(app.keyboard_character);
app.call_label.Position = [10 7 65 22];
app.call_label.Text = '电话咨询：';
% Create sale_character
app.sale_character = uilabel(app.keyboard_character);
app.sale_character.FontColor = [1 0 0];
app.sale_character.Position = [70 55 25 22];
app.sale_character.Text = 'a';
% Create ask_character
app.ask_character = uilabel(app.keyboard_character);
app.ask_character.FontColor = [1 0 0];
app.ask_character.Position = [69 30 25 22];
app.ask_character.Text = 's';
% Create call_character
app.call_character = uilabel(app.keyboard_character);
app.call_character.FontColor = [1 0 0];
app.call_character.Position = [69 7 25 22];
app.call_character.Text = 'd';
% Create Lamp2
app.Lamp2 = uilamp(app.keyboard_character);
app.Lamp2.Position = [105 86 13 13];
% Create start
app.start = uibutton(app.Panel, 'push');
app.start.ButtonPushedFcn = createCallbackFcn(app, @startButtonPushed, true);
app.start.BackgroundColor = [0.7294 0.2863 0.2941];
app.start.Position = [54 39 92 48];
app.start.Text = '确认仿真开始';
% Create Label_4
app.Label_4 = uilabel(app.Panel);
app.Label_4.HorizontalAlignment = 'right';
app.Label_4.FontColor = [1 1 1];
app.Label_4.Position = [37 702 95 22];
app.Label_4.Text = '售票人员到达率';
% Create sale_rate
app.sale_rate = uieditfield(app.Panel, 'numeric');
app.sale_rate.Position = [141 702 56 22];
app.sale_rate.Value = 0.5;
% Create Label_5
app.Label_5 = uilabel(app.Panel);
app.Label_5.HorizontalAlignment = 'right';
app.Label_5.FontColor = [1 1 1];
app.Label_5.Position = [37 663 95 22];
app.Label_5.Text = '咨询人员到达率';
% Create ask_rate
app.ask_rate = uieditfield(app.Panel, 'numeric');
app.ask_rate.Position = [141 663 56 22];
app.ask_rate.Value = 0.8;
% Create Label_6
app.Label_6 = uilabel(app.Panel);
app.Label_6.HorizontalAlignment = 'right';
app.Label_6.FontColor = [1 1 1];
app.Label_6.Position = [37 623 95 22];
app.Label_6.Text = '电话人员到达率';
% Create call_rate
app.call_rate = uieditfield(app.Panel, 'numeric');
app.call_rate.Position = [141 623 56 22];
app.call_rate.Value = 1;
% Create Label_11
app.Label_11 = uilabel(app.Panel);
app.Label_11.HorizontalAlignment = 'right';
app.Label_11.FontColor = [1 1 1];
app.Label_11.Position = [7 585 125 22];
app.Label_11.Text = '现场售票服务时长参数';
% Create sale_time_rate
app.sale_time_rate = uieditfield(app.Panel, 'numeric');
app.sale_time_rate.Position = [141 585 56 22];
app.sale_time_rate.Value = 1;
% Create Label_12
app.Label_12 = uilabel(app.Panel);
app.Label_12.HorizontalAlignment = 'right';
app.Label_12.FontColor = [1 1 1];
app.Label_12.Position = [7 542 125 22];
app.Label_12.Text = '现场咨询服务时长参数';
% Create ask_time_rate
app.ask_time_rate = uieditfield(app.Panel, 'numeric');
app.ask_time_rate.Position = [141 542 56 22];
app.ask_time_rate.Value = 1;
% Create Label_13
app.Label_13 = uilabel(app.Panel);
app.Label_13.HorizontalAlignment = 'right';
app.Label_13.FontColor = [1 1 1];
app.Label_13.Position = [5 504 125 22];
app.Label_13.Text = '电话咨询服务时长参数';
% Create call_time_rate
app.call_time_rate = uieditfield(app.Panel, 'numeric');
app.call_time_rate.Position = [139 504 56 22];
app.call_time_rate.Value = 1;
% Create mouse_button
app.mouse_button = uipanel(app.Panel);
app.mouse_button.Title = '鼠标选择对应按键';
app.mouse_button.Position = [1 105 203 112];
% Create sale_label2
app.sale_label2 = uilabel(app.mouse_button);
app.sale_label2.Position = [10 64 65 22];
app.sale_label2.Text = '现场售票：';
% Create ask_label2
app.ask_label2 = uilabel(app.mouse_button);
app.ask_label2.Position = [10 39 65 22];
app.ask_label2.Text = '现场咨询：';
% Create call_label2
app.call_label2 = uilabel(app.mouse_button);
app.call_label2.Position = [10 16 65 22];
app.call_label2.Text = '电话咨询：';
% Create sale_button
app.sale_button = uilabel(app.mouse_button);
app.sale_button.FontColor = [1 0 0];
app.sale_button.Position = [69 64 37 22];
app.sale_button.Text = 'left';
% Create ask_button
app.ask_button = uilabel(app.mouse_button);
app.ask_button.FontColor = [1 0 0];
app.ask_button.Position = [69 39 41 22];
app.ask_button.Text = 'middle';
% Create call_button
app.call_button = uilabel(app.mouse_button);
app.call_button.FontColor = [1 0 0];
app.call_button.Position = [69 16 37 22];
app.call_button.Text = 'right';
% Create Lamp3
app.Lamp3 = uilamp(app.mouse_button);
app.Lamp3.Position = [105 95 13 13];
% Create help_button
app.help_button = uibutton(app.Panel, 'push');
app.help_button.ButtonPushedFcn = createCallbackFcn(app, @help_buttonButtonPushed, true);
app.help_button.Position = [1 1 63 23];
app.help_button.Text = '使用帮助';
% Create sale_people_allnum_label
app.sale_people_allnum_label = uilabel(app.UIFigure);
app.sale_people_allnum_label.FontSize = 15;
app.sale_people_allnum_label.FontColor = [0.149 0.149 0.149];
app.sale_people_allnum_label.Position = [514 637 125 22];
app.sale_people_allnum_label.Text = '现场买票总人数：';
% Create ask_people_allnum_label
app.ask_people_allnum_label = uilabel(app.UIFigure);
app.ask_people_allnum_label.FontSize = 15;
app.ask_people_allnum_label.FontColor = [0.149 0.149 0.149];
app.ask_people_allnum_label.Position = [514 439 125 22];
app.ask_people_allnum_label.Text = '现场咨询总人数：';
% Create sale_people_allnum_text
app.sale_people_allnum_text = uilabel(app.UIFigure);
app.sale_people_allnum_text.FontSize = 15;
app.sale_people_allnum_text.FontColor = [1 0 0];
app.sale_people_allnum_text.Position = [638 637 25 22];
app.sale_people_allnum_text.Text = '0';
% Create ask_people_allnum_text
app.ask_people_allnum_text = uilabel(app.UIFigure);
app.ask_people_allnum_text.FontSize = 15;
app.ask_people_allnum_text.FontColor = [1 0 0];
app.ask_people_allnum_text.Position = [638 439 25 22];
app.ask_people_allnum_text.Text = '0';
% Create call_people_bk
app.call_people_bk = uilabel(app.UIFigure);
app.call_people_bk.BackgroundColor = [0.7765 0.9216 0.6549];
app.call_people_bk.Position = [502 210 192 37];
app.call_people_bk.Text = '';
% Create call_people_allnum_label
app.call_people_allnum_label = uilabel(app.UIFigure);
app.call_people_allnum_label.FontSize = 15;
app.call_people_allnum_label.FontColor = [0.149 0.149 0.149];
app.call_people_allnum_label.Position = [514 218 125 22];
app.call_people_allnum_label.Text = '电话咨询总人数：';
% Create call_people_allnum_text
app.call_people_allnum_text = uilabel(app.UIFigure);
app.call_people_allnum_text.FontSize = 15;
app.call_people_allnum_text.FontColor = [1 0 0];
app.call_people_allnum_text.Position = [638 218 25 22];
app.call_people_allnum_text.Text = '0';
% Create sale_label_button
app.sale_label_button = uibutton(app.UIFigure, 'push');
app.sale_label_button.ButtonPushedFcn = createCallbackFcn(app, @sale_label_buttonButtonPushed, true);
app.sale_label_button.BackgroundColor = [0.7843 0.8 0.7569];
app.sale_label_button.Position = [708 609 27 79];
app.sale_label_button.Text = {'现'; '场'; '售'; '票'; '处'};
% Create Lamp
app.Lamp = uilamp(app.UIFigure);
app.Lamp.Position = [661 219 20 20];
% Create ask_label_button
app.ask_label_button = uibutton(app.UIFigure, 'push');
app.ask_label_button.ButtonPushedFcn = createCallbackFcn(app, @ask_label_buttonButtonPushed, true);
app.ask_label_button.BackgroundColor = [0.7843 0.8 0.7569];
app.ask_label_button.Position = [708 407 27 81];
app.ask_label_button.Text = {'现'; '场'; '咨'; '询'; '处'};
% Create call_label_button
app.call_label_button = uibutton(app.UIFigure, 'push');
app.call_label_button.ButtonPushedFcn = createCallbackFcn(app, @call_label_buttonButtonPushed, true);
app.call_label_button.BackgroundColor = [0.7843 0.8 0.7569];
app.call_label_button.Position = [708 189 25 81];
app.call_label_button.Text = {'电'; '话'; '咨'; '询'; '处'};
% Create gate_label
app.gate_label = uilabel(app.UIFigure);
app.gate_label.BackgroundColor = [0.9176 0.902 0.8706];
app.gate_label.FontName = '楷体';
app.gate_label.FontSize = 20;
app.gate_label.Position = [204 297 25 211];
app.gate_label.Text = {'入'; '口'};
% Create server_area_label
app.server_area_label = uilabel(app.UIFigure);
app.server_area_label.BackgroundColor = [0.4667 0.6745 0.1882];
app.server_area_label.FontSize = 20;
app.server_area_label.FontColor = [1 1 1];
app.server_area_label.Position = [765 723 102 25];
app.server_area_label.Text = ' 服务区域';
% Create Panel_2
app.Panel_2 = uipanel(app.UIFigure);
app.Panel_2.Title = ' 模型状态';
app.Panel_2.BackgroundColor = [0.7765 0.9216 0.6549];
app.Panel_2.FontName = '楷体';
app.Panel_2.FontSize = 20;
app.Panel_2.Position = [917 1 242 187];
% Create all_people_num_label
app.all_people_num_label = uilabel(app.Panel_2);
app.all_people_num_label.FontSize = 15;
app.all_people_num_label.FontColor = [0.149 0.149 0.149];
app.all_people_num_label.Position = [13 110 95 22];
app.all_people_num_label.Text = '影院总人数：';
% Create all_people_num_text
app.all_people_num_text = uilabel(app.Panel_2);
app.all_people_num_text.FontSize = 15;
app.all_people_num_text.FontColor = [1 0 0];
app.all_people_num_text.Position = [107 110 25 22];
app.all_people_num_text.Text = '0';
% Create enter_people_num_label
app.enter_people_num_label = uilabel(app.Panel_2);
app.enter_people_num_label.FontSize = 15;
app.enter_people_num_label.FontColor = [0.149 0.149 0.149];
app.enter_people_num_label.Position = [7 69 125 22];
app.enter_people_num_label.Text = '此刻进影院人数：';
% Create enter_people_num_text
app.enter_people_num_text = uilabel(app.Panel_2);
app.enter_people_num_text.FontSize = 15;
app.enter_people_num_text.FontColor = [1 0 0];
app.enter_people_num_text.Position = [131 67 25 22];
app.enter_people_num_text.Text = '0';
% Show the figure after all components are created
app.UIFigure.Visible = 'on';
end
end
% App creation and deletion
methods (Access = public)
% Construct app
function app = main
% Create UIFigure and components
createComponents(app)
% Register the app with App Designer
registerApp(app, app.UIFigure)
% Execute the startup function
runStartupFcn(app, @startupFcn)
if nargout == 0
clear app
end
end
% Code that executes before app deletion
function delete(app)
% Delete UIFigure when app is deleted
delete(app.UIFigure)
end
end
end
⛄三、运行结果
⛄四、matlab版本及参考文献
1 matlab版本
2014a
2 参考文献
[1]李昕.MATLAB数学建模[M].清华大学出版社.2017
[2]王健,赵国生.MATLAB数学建模与仿真[M].清华大学出版社.2016
[3]余胜威.MATLAB数学建模经典案例实战[M].清华大学出版社.2015
3 备注
简介此部分摘自互联网，仅供参考，若侵权，联系删除
扫一扫
108
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
