前后端分离 基础（新增与查询）

目录

一，后端

1.1 修改settings---->搜索Maven

1.2 application.yml文件与jdbc.properties文件 对应数据库的账号密码

application.yml

 1.4 jdbc.properties

1.3 generatorConfig.xml

jdbc驱动jar包

1.4 从本地导入pom依赖

POM

1.5 自动生成

 1.6 各个层的编写

Mapper.xml

mapper

service

impl（实现层）

Contrpller

二，前端

actions.js

BookLsit.vue页面

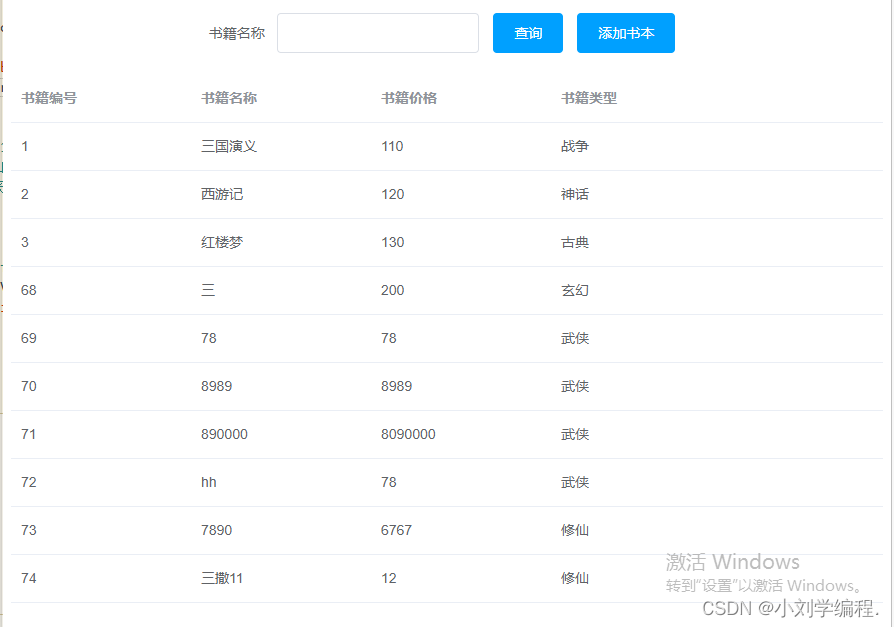

页面展示：

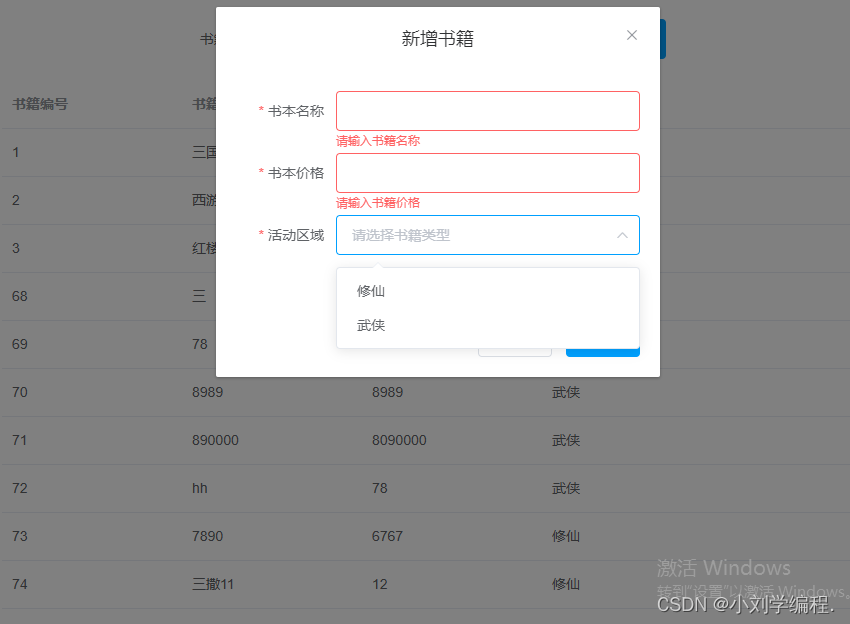

 新增：

---

前言：本期是从导入MAVEN项目后准备自动生成开始编写的

后端的配置以及生成代码加编写模糊查询方法

前端的界面搭建和事件以及获取后台的接口

一，后端

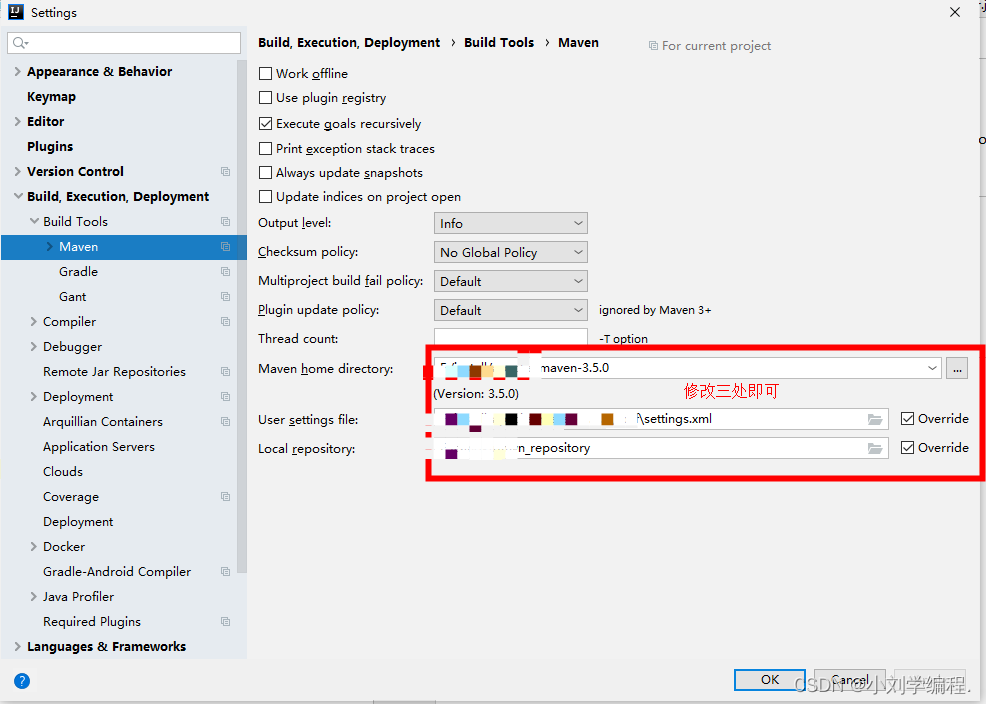

1.1 修改settings---->搜索Maven

1.2 application.yml文件与jdbc.properties文件 对应数据库的账号密码

application.yml

server:
  port: 8080
  servlet:
    context-path: /spboot
spring:
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/bookshop?useUnicode=true&characterEncoding=utf8&useSSL=false
    username: root
    password: 123456
    druid:
      initial-size: 5
      min-idle: 5
      max-active: 20
      max-wait: 60000
      time-between-eviction-runs-millis: 60000
      min-evictable-idle-time-millis: 30000
      validation-query: SELECT 1 FROM DUAL
      test-while-idle: true
      test-on-borrow: true
      test-on-return: false
      pool-prepared-statements: true
      max-pool-prepared-statement-per-connection-size: 20
      filter:
        stat:
          merge-sql: true
          slow-sql-millis: 5000
      web-stat-filter:
        enabled: true
        url-pattern: /*
        exclusions: "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*"
        session-stat-enable: true
        session-stat-max-count: 100
      stat-view-servlet:
        enabled: true
        url-pattern: /druid/*
        reset-enable: true
        login-username: admin
        login-password: admin
        allow: 127.0.0.1
        #deny: 192.168.1.100
  freemarker:
    cache: false
    charset: UTF-8
    content-type: text/html
    suffix: .ftl
    template-loader-path: classpath:/templates
mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.zking.spboot.model
  configuration:
    map-underscore-to-camel-case: true
logging:
  level:
    com.zking.spboot.mapper: debug
pagehelper:
  helperDialect: mysql
  reasonable: true
  supportMethodsArguments: true
  params: count=countSql

 1.4 jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/bookshop?useUnicode=true&characterEncoding=UTF-8
jdbc.username=root
jdbc.password=123456

1.3 generatorConfig.xml

jdbc驱动jar包

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!-- 引入配置文件 -->
    <properties resource="jdbc.properties"/>

    <!--指定数据库jdbc驱动jar包的位置-->
    <classPathEntry location="F:\cangku\mvn_repository\mysql\mysql-connector-java\5.1.24\mysql-connector-java-5.1.24.jar"/>

    <!-- 一个数据库一个context -->
    <context id="infoGuardian">
        <!-- 注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/><!-- 是否取消注释 -->
            <property name="suppressDate" value="true"/> <!-- 是否生成注释代时间戳 -->
        </commentGenerator>

        <!-- jdbc连接 -->
        <jdbcConnection driverClass="${jdbc.driver}"
                        connectionURL="${jdbc.url}" userId="${jdbc.username}" password="${jdbc.password}"/>

        <!-- 类型转换 -->
        <javaTypeResolver>
            <!-- 是否使用bigDecimal， false可自动转化以下类型（Long, Integer, Short, etc.） -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 01 指定javaBean生成的位置 -->
        <!-- targetPackage：指定生成的model生成所在的包名 -->
        <!-- targetProject：指定在该项目下所在的路径  -->
        <javaModelGenerator targetPackage="com.zking.spboot.model"
                            targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
            <!-- 是否对model添加构造函数 -->
            <property name="constructorBased" value="true"/>
            <!-- 是否针对string类型的字段在set的时候进行trim调用 -->
            <property name="trimStrings" value="false"/>
            <!-- 建立的Model对象是否 不可改变  即生成的Model对象不会有 setter方法，只有构造方法 -->
            <property name="immutable" value="false"/>
        </javaModelGenerator>

        <!-- 02 指定sql映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.zking.spboot.mapper"
                         targetProject="src/main/resources">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>

        <!-- 03 生成XxxMapper接口 -->
        <!-- type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象 -->
        <!-- type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象 -->
        <!-- type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口 -->
        <javaClientGenerator targetPackage="com.zking.spboot.mapper"
                             targetProject="src/main/java" type="XMLMAPPER">
            <!-- 是否在当前路径下新加一层schema,false路径com.oop.eksp.user.model， true:com.oop.eksp.user.model.[schemaName] -->
            <property name="enableSubPackages" value="false"/>
        </javaClientGenerator>

        <!-- 配置表信息 -->
        <!-- schema即为数据库名 -->
        <!-- tableName为对应的数据库表 -->
        <!-- domainObjectName是要生成的实体类 -->
        <!-- enable*ByExample是否生成 example类 -->
        <!--<table schema="" tableName="t_book" domainObjectName="Book"-->
               <!--enableCountByExample="false" enableDeleteByExample="false"-->
               <!--enableSelectByExample="false" enableUpdateByExample="false">-->
            <!--&lt;!&ndash; 忽略列，不生成bean 字段 &ndash;&gt;-->
            <!--&lt;!&ndash; <ignoreColumn column="FRED" /> &ndash;&gt;-->
            <!--&lt;!&ndash; 指定列的java数据类型 &ndash;&gt;-->
            <!--&lt;!&ndash; <columnOverride column="LONG_VARCHAR_FIELD" jdbcType="VARCHAR" /> &ndash;&gt;-->
        <!--</table>-->

        <table schema="" tableName="t_book" domainObjectName="Book"
               enableCountByExample="false" enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false">
<!--            &lt;!&ndash; 忽略列，不生成bean 字段 &ndash;&gt;-->
<!--            &lt;!&ndash; <ignoreColumn column="FRED" /> &ndash;&gt;-->
<!--            &lt;!&ndash; 指定列的java数据类型 &ndash;&gt;-->
<!--            &lt;!&ndash; <columnOverride column="LONG_VARCHAR_FIELD" jdbcType="VARCHAR" /> &ndash;&gt;-->
        </table>

    </context>
</generatorConfiguration>

1.4 从本地导入pom依赖

POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.zking</groupId>
    <artifactId>spboot</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spboot</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
        <mysql.version>5.1.44</mysql.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!--druid-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>

        <!--pagehelper-->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.2.3</version>
        </dependency>

        <!--freemarker-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-freemarker</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.2</version>
                <dependencies>
                    <!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>${mysql.version}</version>
                    </dependency>
                </dependencies>
                <configuration>
                    <overwrite>true</overwrite>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

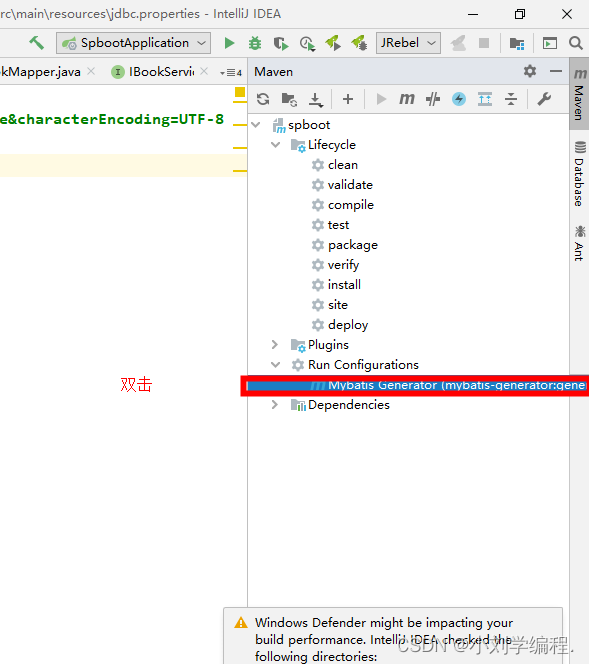

1.5 自动生成

 1.6 各个层的编写

Mapper.xml

 <select id="query" resultMap="BaseResultMap" parameterType="com.zking.spboot.model.Book" >
    select
    <include refid="Base_Column_List" />
    from t_book where 1=1
    <if test="null!=bookname and ''!=bookname">
      and bookname like CONCAT('%',#{bookname},'%')
    </if>
  </select>

mapper

package com.zking.spboot.mapper;

import com.zking.spboot.model.Book;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository
public interface BookMapper {

    List<Book> query(Book book);

    int deleteByPrimaryKey(Integer id);

    int insert(Book record);

    int insertSelective(Book record);

    Book selectByPrimaryKey(Integer id);

    int updateByPrimaryKeySelective(Book record);

    int updateByPrimaryKey(Book record);
}

service

package com.zking.spboot.service;

import com.zking.spboot.model.Book;

import java.util.List;

/**
 * @author ljj
 * @site www.xiaomage.com
 * @company
 * @create  2022-11-21 14:16
 */
public interface IBookService {
    List<Book> query(Book book);


    int insert(Book record);

}

impl（实现层）

package com.zking.spboot.service;

import com.zking.spboot.mapper.BookMapper;
import com.zking.spboot.model.Book;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * @author ljj
 * @site www.xiaomage.com
 * @company
 * @create  2022-11-21 14:16
 */
@Service
public class BookServiceImpl implements IBookService {

    @Autowired
    private BookMapper bookMapper;

    @Override
    public List<Book> query(Book book) {
        return bookMapper.query(book);
    }

    @Override
    public int insert(Book record) {
        return bookMapper.insert(record);
    }
}

Contrpller

package com.zking.spboot.controller;

import com.zking.spboot.model.Book;
import com.zking.spboot.service.IBookService;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

/**
 * @author ljj
 * @site www.xiaomage.com
 * @company
 * @create  2022-11-21 14:18
 */
@RestController
@RequestMapping("/book")
public class BookController {

    @Autowired
    private IBookService bookService;

    @RequestMapping("/query")
    public JsonResponseBody<?> query(Book book){
        List<Book> books = bookService.query(book);
        return new JsonResponseBody<>(200,"OK",books);
    }

    @RequestMapping("/add")
    public JsonResponseBody<?> add(Book book){
        bookService.insert(book);
        return new JsonResponseBody<>();
    }


    @AllArgsConstructor
    @NoArgsConstructor
    @Data
    class JsonResponseBody<T>{
        private int code=200;
        private String msg;
        private T data;
    }

}

二，前端

actions.js

/**
 * 对后台请求的地址的封装，URL格式如下：
 * 模块名_实体名_操作
 */
export default {
	//服务器
	'SERVER': 'http://localhost:8080/spboot',
	'ALL':'/book/query',
	'ADD':'/book/add',
	//获得请求的完整地址，用于mockjs测试时使用
	'getFullPath': k => {
		return this.SERVER + this[k];
	}
}

BookLsit.vue页面

<template>
	<div>
		<h1 align="center">SpringBoot阶段机试，ts={{ts}}</h1>
		<!-- 搜索框 -->
		<el-form :inline="true">
			<el-form-item label="书籍名称">
				<el-input v-model="bookname"></el-input>
			</el-form-item>
			<el-form-item>
				<el-button type="primary" @click="query">查询</el-button>
				<el-button type="primary" @click="open">添加书本</el-button>
			</el-form-item>
		</el-form>
		<!-- 数据表格 -->
		<el-table :data="tableData" style="width: 100%">
			<el-table-column prop="id" label="书籍编号" width="180">
			</el-table-column>
			<el-table-column prop="bookname" label="书籍名称" width="180">
			</el-table-column>
			<el-table-column prop="price" label="书籍价格" width="180">
			</el-table-column>
			<el-table-column prop="booktype" label="书籍类型">
			</el-table-column>
		</el-table>
		<!-- 弹出层 -->
		<el-dialog @close="close()" title="新增书籍" :visible.sync="dialogFormVisible">
			<el-form :rules="rules" ref="book" :model="book">
				<el-form-item prop="bookname" label="书本名称" :label-width="formLabelWidth">
					<el-input v-model="book.bookname" autocomplete="off"></el-input>
				</el-form-item>
				<el-form-item prop="price" label="书本价格" :label-width="formLabelWidth">
					<el-input v-model="book.price" autocomplete="off"></el-input>
				</el-form-item>
				<el-form-item prop="booktype" label="活动区域" :label-width="formLabelWidth">
					<el-select style="width: 100%;" v-model="book.booktype" placeholder="请选择书籍类型">
						<el-option label="修仙" value="修仙"></el-option>
						<el-option label="武侠" value="武侠"></el-option>
					</el-select>
				</el-form-item>
			</el-form>
			<div slot="footer" class="dialog-footer">
				<el-button @click="dialogFormVisible = false">取 消</el-button>
				<el-button type="primary" @click="save">确 定</el-button>
			</div>
		</el-dialog>
	</div>
</template>

<script>
	export default {
		data: function() {
			return {
				ts: new Date().getTime(),
				bookname: '',
				tableData: [],
				dialogFormVisible: false,
				formLabelWidth: '100px',
				book: {
					bookname: '',
					price: '',
					booktype: ''
				},
				rules: {
					bookname: [{
						required: true,
						message: '请输入书籍名称',
						trigger: 'blur'
					}, ],
					price: [{
						required: true,
						message: '请输入书籍价格',
						trigger: 'blur'
					}, ],
					booktype: [{
						required: true,
						message: '请选择书籍类型',
						trigger: 'change'
					}, ],
				}
			};
		},
		methods: {
			close: function() {
				alert(111);
				this.$refs['book'].resetFields();
			},
			save: function() {
				this.$refs['book'].validate((valid) => {
					if (valid) {
						// 请求路径
						let url = this.axios.urls.ADD;
						// 发送请求
						this.axios.post(url, this.book).then(resp => {
							let rs = resp.data;
							if (rs.code == 200) {
								this.dialogFormVisible = false;
								this.query();
							}else{

							}
						}).catch(err => {

						});
					} else {
						console.log('error submit!!');
						return false;
					}
				});
			},
			open: function() {
				this.dialogFormVisible = true;
			},
			query: function() {
				// 查询参数
				let params = {
					bookname: this.bookname
				}
				// 请求路径
				let url = this.axios.urls.ALL;
				// 发起请求
				this.axios.post(url, params).then(resp => {
					let rs = resp.data;
					console.log(rs);
					this.tableData = rs.data;
				}).catch(err => {

				});
			}
		}
	}
</script>

<style>
</style>

页面展示：

 新增：
