How to Use Swagger Documentation for Lumen/Laravel

1.应用场景

主要用于如何在Lumen/Laravel中使用Swagger接口文档.

2.学习/操作

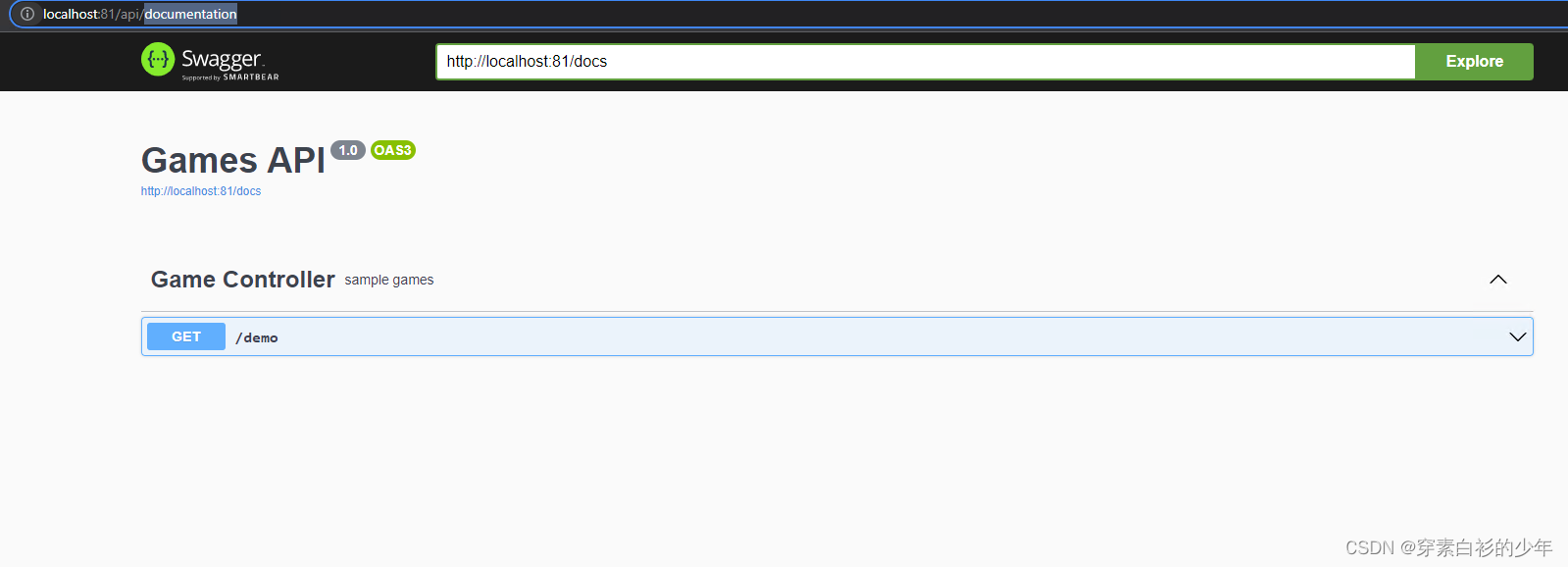

1.文档阅读 Swagger UI https://github.com/DarkaOnLine/SwaggerLume https://github.com/zircote/swagger-php/tree/master/Examples/petstore.swagger.io 2021-09-29 - 接口文档 - 学习/实践_william_n的博客-CSDN博客_接口文档怎么整理 2.整理输出 Configuration Run php artisan swagger-lume:publish-config to publish configs (config/swagger-lume.php) Run php artisan swagger-lume:publish-views to publish views (resources/views/vendor/swagger-lume) Run php artisan swagger-lume:publish to publish everything Run php artisan swagger-lume:generate to generate docs Access this locally using localhost:81/api/documentation Usage Add annotations to your php files to generate swagger documentation. Swagger uses Open API specification. Information Annotation for information. /** * @OA\\Info(title="My First API", version="0.1") */ Tag Annotation for arranging API together. /** * @OA\\Tag( * name="user", * description="Operations about user", * @OA\\ExternalDocumentation( * description="Find out more about our store", * url="<http://swagger.io>" * ) * ) */ Schema Annotation for Models. <?php /** * @OA\\Schema( * @OA\\Xml(name="Category") * ) */ class Category { /** * @OA\\Property(format="int64") * @var int */ public $id; /** * @OA\\Property() * @var string */ public $name; } Get Annotation for Get Endpoint /** * @OA\\Get( * path="/demo", * @OA\\Response(response="200", description="An example resource") * ) */ Post Annotation for Post Endpoint /** * Add a new pet to the store * * @OA\\Post( * path="/pet", * tags={"pet"}, * operationId="addPet", * @OA\\Response( * response=405, * description="Invalid input" * ), * security={ * {"petstore_auth": {"write:pets", "read:pets"}} * }, * requestBody={"$ref": "#/components/requestBodies/Pet"} * ) */ public function addPet() { } Put Annotation for Update Endpoint /** * Update an existing pet * * @OA\\Put( * path="/pet", * tags={"pet"}, * operationId="updatePet", * @OA\\Response( * response=400, * description="Invalid ID supplied" * ), * @OA\\Response( * response=404, * description="Pet not found" * ), * @OA\\Response( * response=405, * description="Validation exception" * ), * security={ * {"petstore_auth": {"write:pets", "read:pets"}} * }, * requestBody={"$ref": "#/components/requestBodies/Pet"} * ) */ public function updatePet() { } Delete Annotation for Delete Endpoint /** * @OA\\Delete( * path="/pet/{petId}", * tags={"pet"}, * summary="Deletes a pet", * operationId="deletePet", * @OA\\Parameter( * name="api_key", * in="header", * required=false, * @OA\\Schema( * type="string" * ) * ), * @OA\\Parameter( * name="petId", * in="path", * description="Pet id to delete", * required=true, * @OA\\Schema( * type="integer", * format="int64" * ), * ), * @OA\\Response( * response=400, * description="Invalid ID supplied", * ), * @OA\\Response( * response=404, * description="Pet not found", * ), * security={ * {"petstore_auth": {"write:pets", "read:pets"}} * }, * ) */ public function deletePet() { For more examples visit: https://github.com/zircote/swagger-php/tree/master/Examples/petstore.swagger.io https://github.com/DarkaOnLine/SwaggerLume Sample Swagger Documentation: Swagger UI 后续补充 ...

3.问题/补充

TBD

4.参考

Swagger UI https://github.com/DarkaOnLine/SwaggerLume https://github.com/zircote/swagger-php/tree/master/Examples/petstore.swagger.io 2021-09-29 - 接口文档 - 学习/实践_william_n的博客-CSDN博客_接口文档怎么整理

后续补充

...
