nacos 2.0 源码学习之服务注册

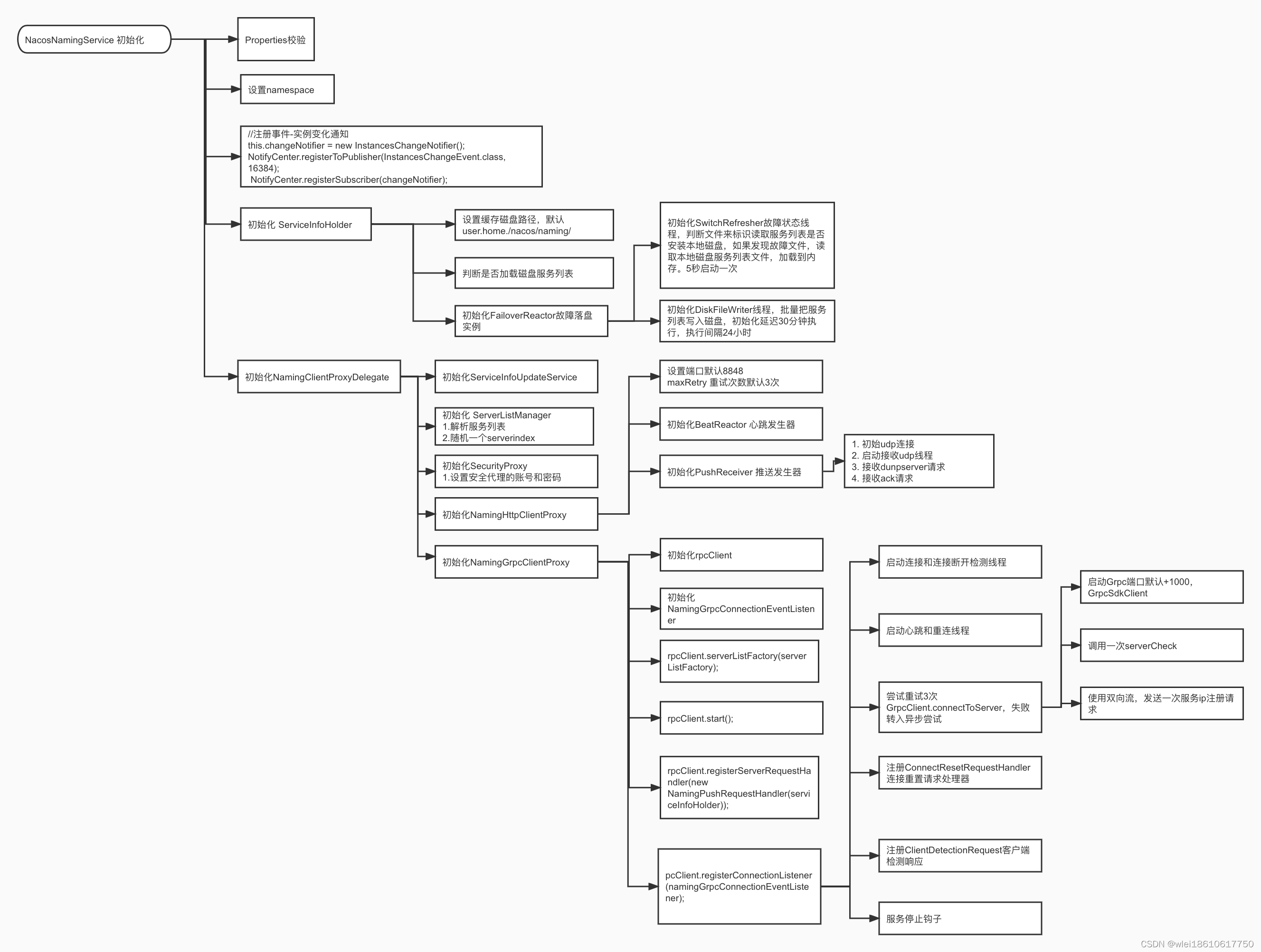

NamingFactory 实例化的过程

NamingFactory的初始化

NamingFactory 初始化有两种方式：

1. 按照serverList初始化
2. 传入Properties初始化
   NamingFactory 工厂类中没有什么特殊的处理，仅用反射调用NacosNamingService的构造方法。

NacosNamingService 参数

namespace

服务的命名空间

logName

日志名称

serviceInfoHolder

服务列表

changeNotifier

实例变化通知时间器

clientProxy

请求nacos服务代理类

按照serverList初始化

先看一下源码NamingFactory.createNamingService(String serverList)

public static NamingService createNamingService(String serverList) throws NacosException {
        try {
            Class<?> driverImplClass = Class.forName("com.alibaba.nacos.client.naming.NacosNamingService");//反射调用
            Constructor constructor = driverImplClass.getConstructor(String.class);
            NamingService vendorImpl = (NamingService) constructor.newInstance(serverList);
            return vendorImpl;
        } catch (Throwable e) {
            throw new NacosException(NacosException.CLIENT_INVALID_PARAM, e);
        }
    }

按照Properties初始化

源码：

public static NamingService createNamingService(Properties properties) throws NacosException {
        try {
            Class<?> driverImplClass = Class.forName("com.alibaba.nacos.client.naming.NacosNamingService");
            Constructor constructor = driverImplClass.getConstructor(Properties.class);
            NamingService vendorImpl = (NamingService) constructor.newInstance(properties);
            return vendorImpl;
        } catch (Throwable e) {
            throw new NacosException(NacosException.CLIENT_INVALID_PARAM, e);
        }
    }

NacosNamingService的初始化

NacosNamingService有两个构造方法，分别为：接收字符串的serverList和接收Properties的构造器。
最终都会调用init(Properties properties)方法。这个是初始化的关键代码。

private void init(Properties properties) throws NacosException {
        ValidatorUtils.checkInitParam(properties);
        this.namespace = InitUtils.initNamespaceForNaming(properties);//
        InitUtils.initSerialization();
        InitUtils.initWebRootContext(properties);
        initLogName(properties);

        this.changeNotifier = new InstancesChangeNotifier();//注册事件-实例变化通知
        NotifyCenter.registerToPublisher(InstancesChangeEvent.class, 16384);
        NotifyCenter.registerSubscriber(changeNotifier);
        this.serviceInfoHolder = new ServiceInfoHolder(namespace, properties);
        this.clientProxy = new NamingClientProxyDelegate(this.namespace, serviceInfoHolder, properties, changeNotifier);
    }

1. checkInitParam 检查context path.的合法性
2. 初始化namespace，默认为：public
3. 初始化JacksonUtils
4. 初始化nacos远程连接url的上下文
5. 初始化注册事件-实例变化通知
6. 注册事件InstancesChangeEvent
7. 初始化ServiceInfoHolder，后面文章会讲初始化过程
8. 初始化NamingClientProxyDelegate

ServiceInfoHolder

属性

1. serviceInfoMap 保存服务列表
2. failoverReactor 故障发生器
3. pushEmptyProtection 是否推空保护

先看源码

public ServiceInfoHolder(String namespace, Properties properties) {
        initCacheDir(namespace);//设置cacheDir
        if (isLoadCacheAtStart(properties)) {//是否加载本地磁盘
            this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(DiskCache.read(this.cacheDir));
        } else {
            this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(16);
        }
        this.failoverReactor = new FailoverReactor(this, cacheDir);//故障转移落盘
        this.pushEmptyProtection = isPushEmptyProtect(properties);//是否推空保护
    }

    private void initCacheDir(String namespace) {
        String jmSnapshotPath = System.getProperty("JM.SNAPSHOT.PATH");
        if (!StringUtils.isBlank(jmSnapshotPath)) {
            cacheDir =
                    jmSnapshotPath + File.separator + "nacos" + File.separator + "naming" + File.separator + namespace;
        } else {
            cacheDir = System.getProperty("user.home") + File.separator + "nacos" + File.separator + "naming"
                    + File.separator + namespace;
        }
    }

1. 初始化故障落盘路径，默认为：~/nacos/naming/“namespace”
2. 通过参数 namingLoadCacheAtStart 判断是否加载磁盘服务列表
3. 初始化故障发生器FailoverReactor
4. 设置 pushEmptyProtection 推空保护

FailoverReactor 故障发生器

属性

1. failoverDir 故障后读取文件的路径
2. serviceInfoHolder
3. executorService 任务线程池
4. serviceMap 服务列表
5. switchParams 存放是否启动了故障读盘标识
6. DAY_PERIOD_MINUTES= 24 * 60; 落盘任务启动间隔时间

初始化

public FailoverReactor(ServiceInfoHolder serviceInfoHolder, String cacheDir) {
        this.serviceInfoHolder = serviceInfoHolder;
        this.failoverDir = cacheDir + "/failover";
        // init executorService
        this.executorService = new ScheduledThreadPoolExecutor(1, new ThreadFactory() {
            @Override
            public Thread newThread(Runnable r) {
                Thread thread = new Thread(r);
                thread.setDaemon(true);
                thread.setName("com.alibaba.nacos.naming.failover");
                return thread;
            }
        });
        this.init();
    }

public void init() {

        executorService.scheduleWithFixedDelay(new SwitchRefresher(), 0L, 5000L, TimeUnit.MILLISECONDS);

        executorService.scheduleWithFixedDelay(new DiskFileWriter(), 30, DAY_PERIOD_MINUTES, TimeUnit.MINUTES);

        // backup file on startup if failover directory is empty.
        executorService.schedule(new Runnable() {
            @Override
            public void run() {
                try {
                    File cacheDir = new File(failoverDir);

                    if (!cacheDir.exists() && !cacheDir.mkdirs()) {
                        throw new IllegalStateException("failed to create cache dir: " + failoverDir);
                    }

                    File[] files = cacheDir.listFiles();
                    if (files == null || files.length <= 0) {
                        new DiskFileWriter().run();
                    }
                } catch (Throwable e) {
                    NAMING_LOGGER.error("[NA] failed to backup file on startup.", e);
                }

            }
        }, 10000L, TimeUnit.MILLISECONDS);
    }

1. 设置故障落盘文件标识 this.failoverDir = cacheDir + “/failover”;
2. 设置任务调度线程池
3. 启动SwitchRefresher线程为：立即执行，下次执行间隔5秒
4. 启动服务列表落盘线程DiskFileWriter：延迟30分钟执行，间隔24小时
5. 执行一次DiskFileWriter

SwitchRefresher

故障落盘标识批量，通过读取**~/nacos/naming/“namespace”/failover/00-00—000-VIPSRV_FAILOVER_SWITCH-000—00-00** 文件来设置failover-mode故障落盘标识。

                File switchFile = new File(failoverDir + UtilAndComs.FAILOVER_SWITCH);
                if (!switchFile.exists()) {
                    switchParams.put("failover-mode", "false");
                    NAMING_LOGGER.debug("failover switch is not found, " + switchFile.getName());
                    return;
                }

                long modified = switchFile.lastModified();

                if (lastModifiedMillis < modified) {//判断文件修改时间，减少读取文件次数
                    lastModifiedMillis = modified;
                    String failover = ConcurrentDiskUtil.getFileContent(failoverDir + UtilAndComs.FAILOVER_SWITCH,
                            Charset.defaultCharset().toString());
                    if (!StringUtils.isEmpty(failover)) {
                        String[] lines = failover.split(DiskCache.getLineSeparator());

                        for (String line : lines) {
                            String line1 = line.trim();
                            if ("1".equals(line1)) {
                                switchParams.put("failover-mode", "true");
                                NAMING_LOGGER.info("failover-mode is on");
                                new FailoverFileReader().run();
                            } else if ("0".equals(line1)) {
                                switchParams.put("failover-mode", "false");
                                NAMING_LOGGER.info("failover-mode is off");
                            }
                        }
                    } else {
                        switchParams.put("failover-mode", "false");
                    }
                }

DiskFileWriter

读取serviceInfoHolder.getServiceInfoMap()，循环写入**~/nacos/naming/“namespace”/**

1. 文件名称为：groupName@@serviceName@@clusters
2. 文件内容为json格式

NamingClientProxyDelegate

属性

1. securityInfoRefreshIntervalMills 安全信息刷新时间
2. serverListManager 服务列表
3. serviceInfoUpdateService 服务更新service
4. serviceInfoHolder
5. httpClientProxy http代理工具类
6. grpcClientProxy GRpc工具类
7. securityProxy 与nacos连接加密代理服务
8. executorService
