springcloudAlibaba整合knife4j整合swagger整合gateway，并且同步到Yapi上

1.gateway模块

1.pom引入

   		<dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>

        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>2.0.3</version>
        </dependency>

2.代码层面,两个java文件

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import reactor.core.publisher.Mono;
import springfox.documentation.swagger.web.*;

import java.util.Optional;

@RestController
@RequestMapping("/swagger-resources")
public class SwaggerHandler {
    @Autowired(required = false)
    private SecurityConfiguration securityConfiguration;
    @Autowired(required = false)
    private UiConfiguration uiConfiguration;
    private final SwaggerResourcesProvider swaggerResources;

    @Autowired
    public SwaggerHandler(SwaggerResourcesProvider swaggerResources) {
        this.swaggerResources = swaggerResources;
    }


    @GetMapping("/configuration/security")
    public Mono<ResponseEntity<SecurityConfiguration>> securityConfiguration() {
        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(securityConfiguration).orElse(SecurityConfigurationBuilder.builder().build()), HttpStatus.OK));
    }

    @GetMapping("/configuration/ui")
    public Mono<ResponseEntity<UiConfiguration>> uiConfiguration() {
        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(uiConfiguration).orElse(UiConfigurationBuilder.builder().build()), HttpStatus.OK));
    }

    @GetMapping("")
    public Mono<ResponseEntity> swaggerResources() {
        return Mono.just((new ResponseEntity<>(swaggerResources.get(), HttpStatus.OK)));
    }
}


import lombok.AllArgsConstructor;
import org.springframework.cloud.gateway.config.GatewayProperties;
import org.springframework.cloud.gateway.route.RouteLocator;
import org.springframework.cloud.gateway.support.NameUtils;
import org.springframework.context.annotation.Primary;
import org.springframework.stereotype.Component;
import springfox.documentation.swagger.web.SwaggerResource;
import springfox.documentation.swagger.web.SwaggerResourcesProvider;

import java.util.ArrayList;
import java.util.List;

@Component
@Primary
@AllArgsConstructor
public class SwaggerProvider implements SwaggerResourcesProvider {
    public static final String API_URI = "/v2/api-docs";
    private final RouteLocator routeLocator;
    private final GatewayProperties gatewayProperties;


    @Override
    public List<SwaggerResource> get() {
        List<SwaggerResource> resources = new ArrayList<>();
        List<String> routes = new ArrayList<>();
        routeLocator.getRoutes().subscribe(route -> routes.add(route.getId()));
        gatewayProperties.getRoutes().stream().filter(routeDefinition -> routes.contains(routeDefinition.getId()))
                .forEach(routeDefinition -> routeDefinition.getPredicates().stream()
                        .filter(predicateDefinition -> ("Path").equalsIgnoreCase(predicateDefinition.getName()))
                        .forEach(predicateDefinition -> resources.add(swaggerResource(routeDefinition.getId(),
                                predicateDefinition.getArgs().get(NameUtils.GENERATED_NAME_PREFIX + "0")
                                        .replace("/**", API_URI)))));
        return resources;
    }

    private SwaggerResource swaggerResource(String name, String location) {
        SwaggerResource swaggerResource = new SwaggerResource();
        swaggerResource.setName(name);
        swaggerResource.setLocation(location);
        swaggerResource.setSwaggerVersion("2.0");
        return swaggerResource;
    }
}

2.其他微服务模块，例如用户服务

1.pom引入同上

  		<dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>

        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>2.0.3</version>
        </dependency>

2.新建配置类 Swagger2Config

import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import com.google.common.base.Predicate;
import com.google.common.base.Predicates;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiOperation;
import lombok.Getter;
import lombok.Setter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import springfox.bean.validators.configuration.BeanValidatorPluginsConfiguration;
import springfox.documentation.RequestHandler;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

@Configuration
@EnableSwagger2
@Import(BeanValidatorPluginsConfiguration.class)
@EnableKnife4j
@ConfigurationProperties(prefix="swagger")
@Getter
@Setter
public class Swagger2Config {

    private String title;

    private String contact;

    private String version;

    private String license;

    private String licenseUrl;

    private String termsOfServiceUrl;

    private String description;

    private String basePackage;

    /**
     * 创建RestApi 并包扫描controller
     * @return
     */
    @Bean
    public Docket createRestApi() {
        List<Parameter> pars = new ArrayList<Parameter>();
        ParameterBuilder token = new ParameterBuilder();
        token.name("token").description("token")
                .modelRef(new ModelRef("string")).parameterType("header")
                .required(false).build();

        pars.add(token.build());
//        pars.add(accessToken.build());
//        ApiSelector.DEFAULT.getRequestHandlerSelector()
        Predicate<RequestHandler> predicate = RequestHandlerSelectors.withClassAnnotation(Api.class);
        predicate = Predicates.or(predicate, RequestHandlerSelectors.withClassAnnotation(ApiModel.class));
        predicate = Predicates.or(predicate, RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class));

        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                //分组名称
                // .groupName("2.X版本")
                .select()
                // // 对所有api进行监控
                // .apis(RequestHandlerSelectors.any())
//                .apis(RequestHandlerSelectors.basePackage(basePackage))
                //不显示错误的接口地址
                .paths(PathSelectors.any())
                //错误路径不监控
                .paths(Predicates.not(PathSelectors.regex("/error.*")))
                .build()
                .globalOperationParameters(pars);
    }

    /**
     * 创建Swagger页面 信息
     * @return
     */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder().
                title(title).
                contact(contact).
                version(version).
                license(license).
                licenseUrl(licenseUrl).
                termsOfServiceUrl(termsOfServiceUrl).
                description(description)
                .build();
    }
}

3.配置yml

swagger:
  enabled: true
  title: 用户服务
#  base-package: com.carbonease.procostra
  version: V2.0
  description: 用户服务
  license: Apache License, Version 2.0
  license-url: https://www.apache.org/licenses/LICENSE-2.0.html
  terms-of-service-url: http://localhost:${server.port}/doc.html
  contact: wzw13407261642@126.com
  authorization: #有auth2 并使用以前的swagger-ui
    key-name: Authorization

大功告成：
swagger地址：http://127.0.0.1:18000/swagger-ui.html#/

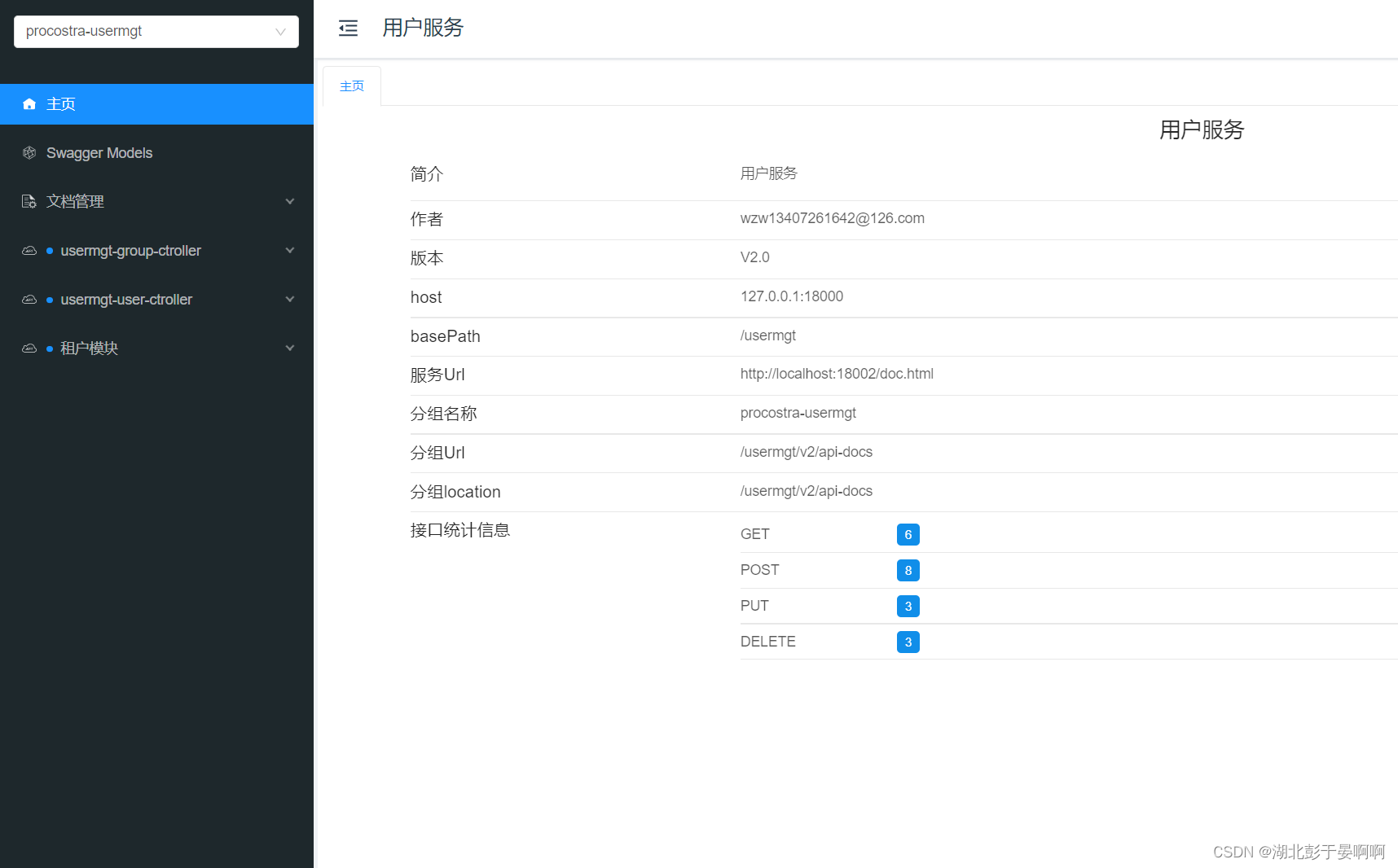

knife4j地址：http://127.0.0.1:18000/doc.html#/home

在这里插入图片描述

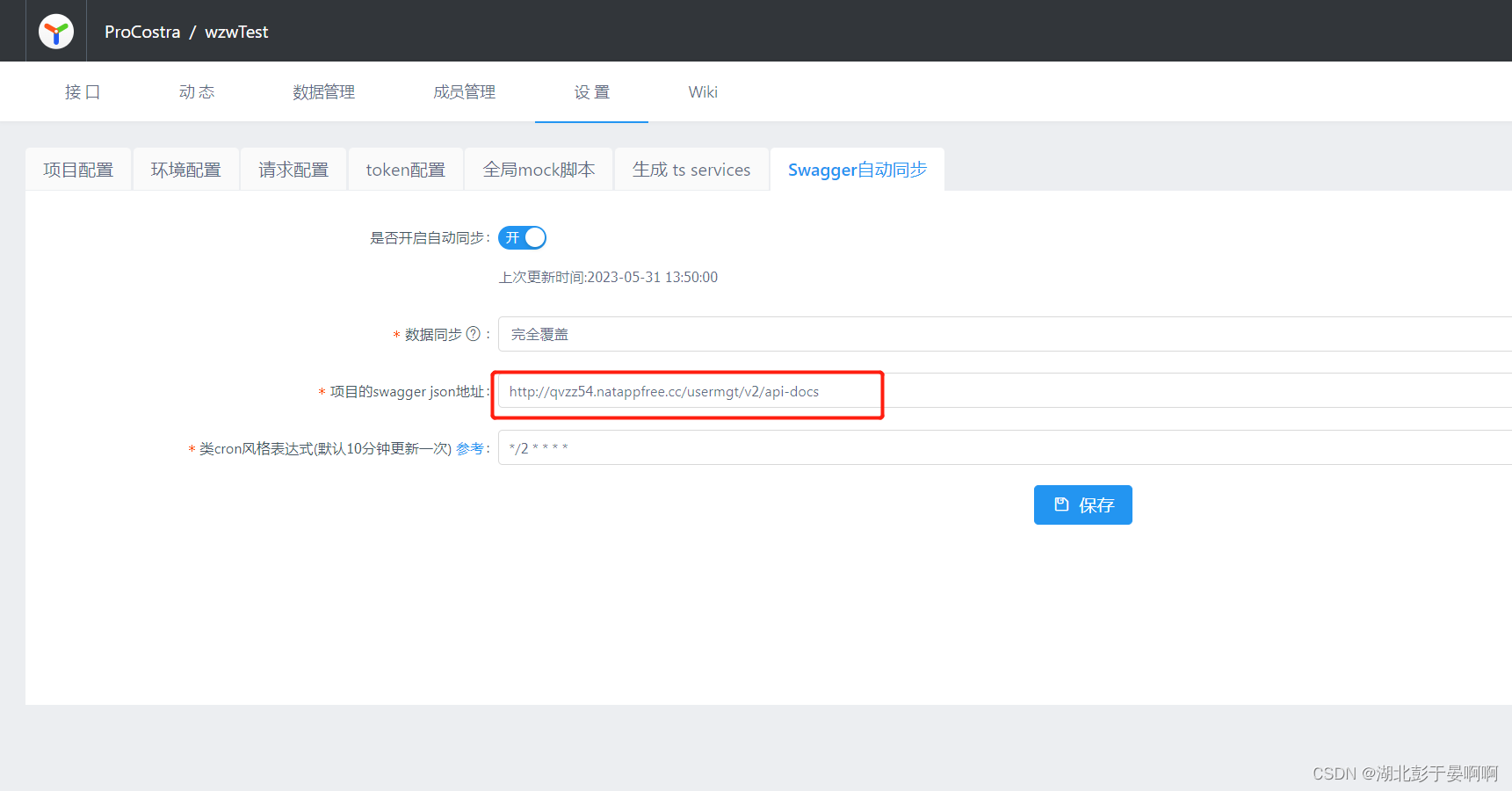

将api同步到Yapi
在这里插入图片描述

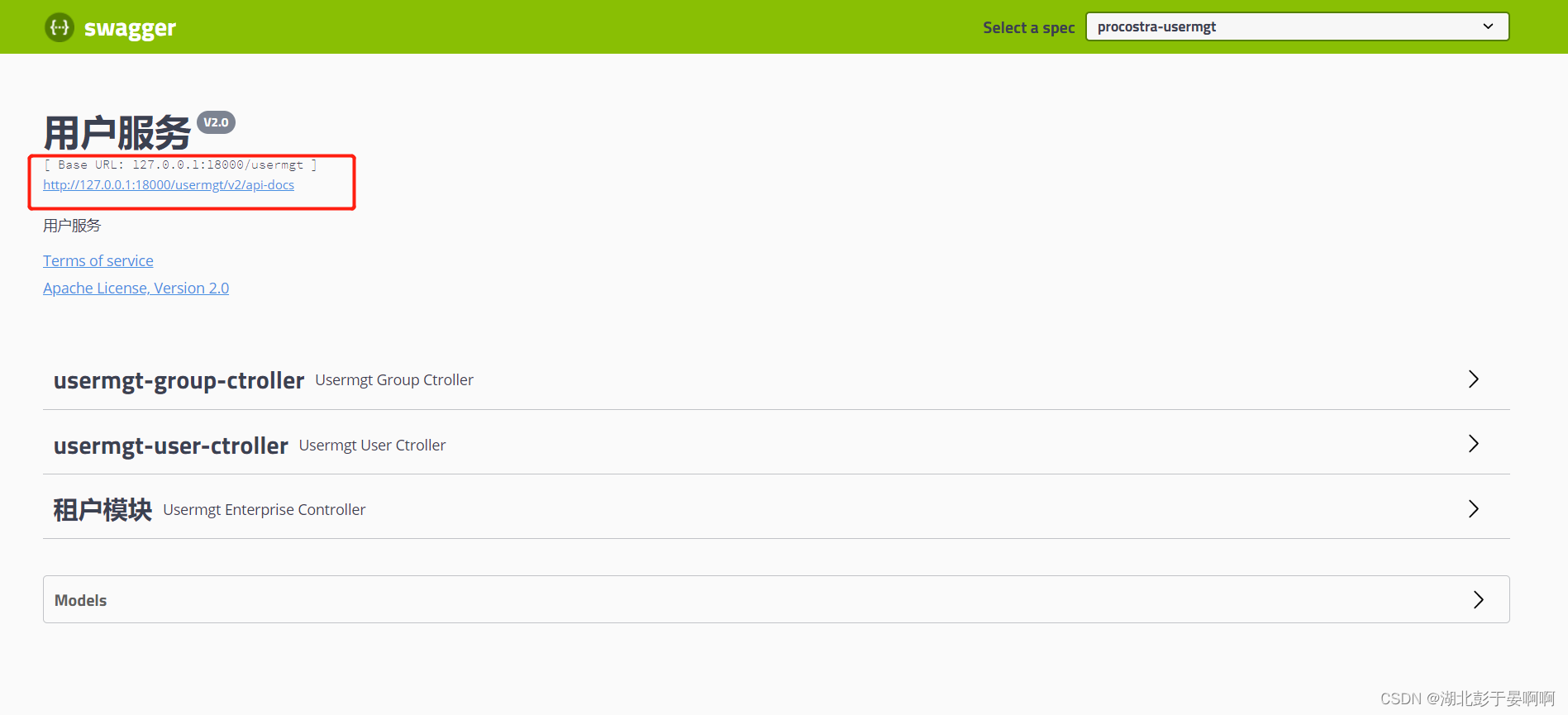

这里项目的swagger json地址就是下面swagger中的地址，但是需要能访问到，我这里测试所以用内网穿透测试了一下没问题，只要遵循swagger的api书写了，相关的注释都会同步到Yapi上

在这里插入图片描述

优化

如果微服务变多，那么每个服务都需要加业务服务中的Swagger2Config，可以将 Swagger2Config 和需要的pom抽取到一个公共模块中，业务模块只需要引入然后配置yml内容即可。

1.新建模块 swagger-starter
2.模块中引入pom

  		<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>

        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>2.0.3</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.24</version>
        </dependency>

3.写配置类

import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import com.google.common.base.Predicate;
import com.google.common.base.Predicates;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiOperation;
import lombok.Data;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import springfox.bean.validators.configuration.BeanValidatorPluginsConfiguration;
import springfox.documentation.RequestHandler;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

@Configuration
@EnableSwagger2
@Import(BeanValidatorPluginsConfiguration.class)
@EnableKnife4j
@ConfigurationProperties(prefix = "swagger")
@ConditionalOnProperty(prefix = "swagger",name = "enabled",havingValue = "true")
@Data
public class Swagger2Config {

    private String title;

    private String contact;

    private String version;

    private String license;

    private String licenseUrl;

    private String termsOfServiceUrl;

    private String description;

    private String basePackage;

    /**
     * 创建RestApi 并包扫描controller
     *
     * @return
     */
    @Bean
    public Docket createRestApi() {
        List<Parameter> pars = new ArrayList<Parameter>();
        ParameterBuilder token = new ParameterBuilder();
        token.name("token").description("token")
                .modelRef(new ModelRef("string")).parameterType("header")
                .required(false).build();

        pars.add(token.build());
//        pars.add(accessToken.build());
//        ApiSelector.DEFAULT.getRequestHandlerSelector()
        Predicate<RequestHandler> predicate = RequestHandlerSelectors.withClassAnnotation(Api.class);
        predicate = Predicates.or(predicate, RequestHandlerSelectors.withClassAnnotation(ApiModel.class));
        predicate = Predicates.or(predicate, RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class));

        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                //分组名称
                // .groupName("2.X版本")
                .select()
                // // 对所有api进行监控
                // .apis(RequestHandlerSelectors.any())
//                .apis(RequestHandlerSelectors.basePackage(basePackage))
                //不显示错误的接口地址
                .paths(PathSelectors.any())
                //错误路径不监控
                .paths(Predicates.not(PathSelectors.regex("/error.*")))
                .build()
                .globalOperationParameters(pars);
    }

    /**
     * 创建Swagger页面 信息
     *
     * @return
     */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder().
                title(title).
                contact(contact).
                version(version).
                license(license).
                licenseUrl(licenseUrl).
                termsOfServiceUrl(termsOfServiceUrl).
                description(description)
                .build();
    }
}

在resources下新建 META-INF，在 META-INF 下新建文件 spring.factories ，内容如下

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.wzw.swaggerstarter.config.Swagger2Config

5.业务模块工程引入此模块，网关模块请勿引入此模块

     	<dependency>
            <groupId>com.wzw</groupId>
            <artifactId>swagger-starter</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

6.在业务模块中配置yml文件

swagger:
  enabled: false
  title: entry服务
  #  base-package: com.carbonease.procostra
  version: V2.0
  description: entry服务
  license: Apache License, Version 2.0
  license-url: https://www.apache.org/licenses/LICENSE-2.0.html
  terms-of-service-url: http://localhost:${server.port}/doc.html
  contact: wzw13407261642@126.com
  authorization: #有auth2 并使用以前的swagger-ui
    key-name: Authorization
