SAP PP 空bom 清单及处理

 维护bom的人员，可能把bom里面的 项目删除了，但是留着空bom，会导致后续的一些业务问题，搞一个报表，把空bom的清单给出来，这样就很好处理了。





重点上代码

*&---------------------------------------------------------------------*
*& REPORT ZRPT_MM_BOM_NULL_GET
*&
*&---------------------------------------------------------------------*
*& author 8256
*& date 20210118
*& from
*& Tcode
*&---------------------------------------------------------------------*
REPORT ZRPT_MM_BOM_NULL_GET.

TABLES: MAST,mara.

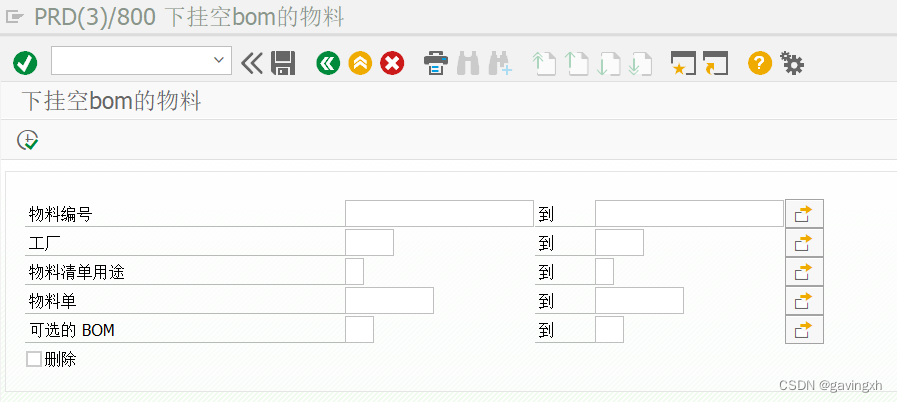

SELECTION-SCREEN BEGIN OF BLOCK 001 WITH FRAME TITLE TEXT-001.
SELECT-OPTIONS S_MATNR FOR MAST-MATNR.          "物料编号
SELECT-OPTIONS S_WERKS FOR MAST-WERKS.          "工厂
SELECT-OPTIONS S_STLAN FOR MAST-STLAN.          "物料清单用途
SELECT-OPTIONS S_STLNR FOR MAST-STLNR.          "物料单
SELECT-OPTIONS S_STLAL FOR MAST-STLAL.          "可选的 BOM
PARAMETERS:pLVORM like mara-LVORM."删除标记
SELECTION-SCREEN END OF BLOCK 001.

TYPES:
  BEGIN OF TYP_DATA,
    MATNR TYPE MAST-MATNR,          "物料编号
    WERKS TYPE MAST-WERKS,          "工厂
    STLAN TYPE MAST-STLAN,          "物料清单用途
    STLNR TYPE MAST-STLNR,          "物料单
    STLAL TYPE MAST-STLAL,          "可选的 BOM
    LOSVN TYPE MAST-LOSVN,          "从批量
    LOSBS TYPE MAST-LOSBS,          "到批量
    ANDAT TYPE MAST-ANDAT,          "日期记录创建于
    ANNAM TYPE MAST-ANNAM,          "创建记录的用户
    AEDAT TYPE MAST-AEDAT,          "更改日期
    AENAM TYPE MAST-AENAM,          "对象更改人员的名称
    CSLTY TYPE MAST-CSLTY,          "标志: 配置物料(物料变式)
    LVORM TYPE MARA-LVORM,         "删除标记
  END OF TYP_DATA.

  DATA:
    STDATUM LIKE SY-DATUM,
    STUZEIT LIKE SY-UZEIT,
    GT_DATA     TYPE TABLE OF TYP_DATA,
    GS_DATA     TYPE TYP_DATA,
    GT_FIELDCAT TYPE LVC_T_FCAT,
    GS_FIELDCAT TYPE LVC_S_FCAT,
    GS_LAYOUT   TYPE LVC_S_LAYO.

INITIALIZATION.
  %_S_MATNR_%_APP_%-TEXT = '物料编号'.
  %_S_WERKS_%_APP_%-TEXT = '工厂'.
  %_S_STLAN_%_APP_%-TEXT = '物料清单用途'.
  %_S_STLNR_%_APP_%-TEXT = '物料单'.
  %_S_STLAL_%_APP_%-TEXT = '可选的 BOM'.
  %_PLVORM_%_APP_%-TEXT = '删除'.

START-OF-SELECTION.
  STDATUM = SY-DATUM.
  STUZEIT = SY-UZEIT.
  PERFORM GET_DATA.
  PERFORM PROCESS_DATA.
  PERform WRITERPTRUNRECORD.
  PERFORM DISPLAY_DATA.

*&---------------------------------------------------------------------*
*&      FORM  GET_DATA
*&---------------------------------------------------------------------*
*       获取数据
*----------------------------------------------------------------------*
FORM GET_DATA.
  SELECT
    MAST~MATNR          "物料编号
    MAST~WERKS          "工厂
    MAST~STLAN          "物料清单用途
    MAST~STLNR          "物料单
    MAST~STLAL          "可选的 BOM
    MAST~LOSVN          "从批量
    MAST~LOSBS          "到批量
    MAST~ANDAT          "日期记录创建于
    MAST~ANNAM          "创建记录的用户
    MAST~AEDAT          "更改日期
    MAST~AENAM          "对象更改人员的名称
    MAST~CSLTY          "标志: 配置物料(物料变式)
    MARA~LVORM
    INTO TABLE GT_DATA
    FROM MAST
    JOIN MARA ON MARA~MATNR = MAST~MATNR
    WHERE MAST~MATNR IN S_MATNR
      AND MARA~LVORM  = PLVORM
      AND MAST~WERKS IN S_WERKS
      AND MAST~STLAN IN S_STLAN
      AND MAST~STLNR IN S_STLNR
      AND MAST~STLAL IN S_STLAL and
      MAST~STLNR not in ( select STLNR from STPO ) and
      MAST~STLNR not in ( select STLNR from STAS )."永久bom
ENDFORM.                    "GET_DATA
*&---------------------------------------------------------------------*
*&      FORM  WRITERPTRUNRECORD
*&---------------------------------------------------------------------*
*       获取数据
*----------------------------------------------------------------------*
FORM WRITERPTRUNRECORD.

 GET TIME.
 CALL FUNCTION 'ZSYS_RPT_RUNRECORD'
 EXPORTING
   TCODE    = SY-TCODE
   PROGRAMM = SY-CPROG
*   bukrs = GS_BW-BUKRS
*   werks  = GS_BW-werks
   DATUMRST  = STDATUM
   UZEITRST  =  STUZEIT
   BATCH =  SY-BATCH
   DATUMREND = SY-datum
   UZEITREND = sy-UZEIT
   DATUMC   = '20210118'
   RUNNER   = SY-UNAME
   RPTSRC   = 'BOM维护' .

ENDFORM.                    "WRITERPTRUNRECORD
*&---------------------------------------------------------------------*
*&      FORM  PROCESS_DATA
*&---------------------------------------------------------------------*
*       处理数据
*----------------------------------------------------------------------*
FORM PROCESS_DATA.

ENDFORM.                    "PROCESS_DATA
*&---------------------------------------------------------------------*
*&      Form  BUILD_FIELDCAT
*&---------------------------------------------------------------------*
*       TEXT
*----------------------------------------------------------------------*
FORM BUILD_FIELDCAT USING P_FIELDNAME   TYPE FIELDNAME
                          P_QFIELDNAME  TYPE LVC_QFNAME
                          P_CFIELDNAME  TYPE LVC_CFNAME
                          P_REF_TABLE   TYPE LVC_RTNAME
                          P_REF_FIELD   TYPE LVC_RFNAME
                          P_CONVEXIT    TYPE CONVEXIT
                          P_EMPHASIZE   TYPE LVC_EMPHSZ
                          P_SCRTEXT_L   TYPE SCRTEXT_L
                          P_NO_ZERO     TYPE XFLAG.
  GS_FIELDCAT-FIELDNAME     = P_FIELDNAME.
  GS_FIELDCAT-QFIELDNAME    = P_QFIELDNAME.
  GS_FIELDCAT-CFIELDNAME    = P_CFIELDNAME.
  GS_FIELDCAT-REF_TABLE     = P_REF_TABLE.
  GS_FIELDCAT-REF_FIELD     = P_REF_FIELD.
  GS_FIELDCAT-CONVEXIT      = P_CONVEXIT.
  GS_FIELDCAT-EMPHASIZE     = P_EMPHASIZE.
  GS_FIELDCAT-SCRTEXT_L     = P_SCRTEXT_L.
  GS_FIELDCAT-NO_ZERO   = P_NO_ZERO.
  GS_FIELDCAT-COLDDICTXT    = 'L'.
  APPEND GS_FIELDCAT TO GT_FIELDCAT.
  CLEAR: GS_FIELDCAT.
ENDFORM.                    "BUILD_FIELDCAT
*&---------------------------------------------------------------------*
*&      FORM  DISPLAY_DATA
*&---------------------------------------------------------------------*
*       显示数据
*----------------------------------------------------------------------*

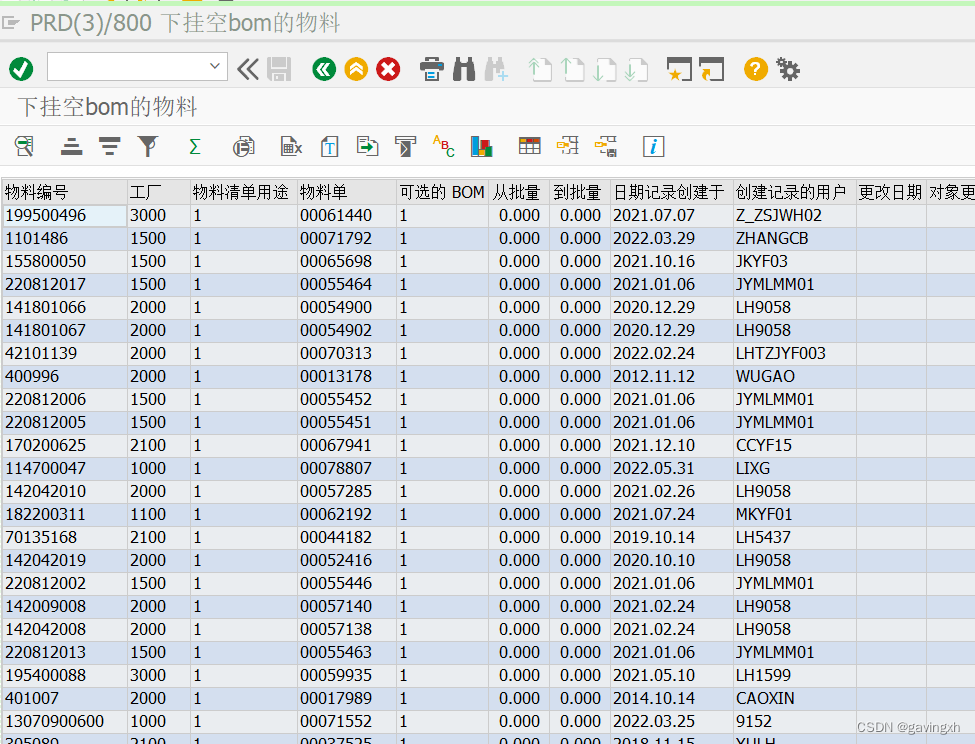

FORM DISPLAY_DATA.
  PERFORM BUILD_FIELDCAT USING 'MATNR' '' '' 'MAST' 'MATNR' '' '' '物料编号' 'X'.
  PERFORM BUILD_FIELDCAT USING 'WERKS' '' '' 'MAST' 'WERKS' '' '' '工厂' ''.
  PERFORM BUILD_FIELDCAT USING 'STLAN' '' '' 'MAST' 'STLAN' '' '' '物料清单用途' ''.
  PERFORM BUILD_FIELDCAT USING 'STLNR' '' '' 'MAST' 'STLNR' '' '' '物料单' ''.
  PERFORM BUILD_FIELDCAT USING 'STLAL' '' '' 'MAST' 'STLAL' '' '' '可选的 BOM' ''.
  PERFORM BUILD_FIELDCAT USING 'LOSVN' '' '' 'MAST' 'LOSVN' '' '' '从批量' ''.
  PERFORM BUILD_FIELDCAT USING 'LOSBS' '' '' 'MAST' 'LOSBS' '' '' '到批量' ''.
  PERFORM BUILD_FIELDCAT USING 'ANDAT' '' '' 'MAST' 'ANDAT' '' '' '日期记录创建于' ''.
  PERFORM BUILD_FIELDCAT USING 'ANNAM' '' '' 'MAST' 'ANNAM' '' '' '创建记录的用户' ''.
  PERFORM BUILD_FIELDCAT USING 'AEDAT' '' '' 'MAST' 'AEDAT' '' '' '更改日期' ''.
  PERFORM BUILD_FIELDCAT USING 'AENAM' '' '' 'MAST' 'AENAM' '' '' '对象更改人员的名称' ''.
  PERFORM BUILD_FIELDCAT USING 'CSLTY' '' '' 'MAST' 'CSLTY' '' '' '标志: 配置物料(物料变式)' ''.
  PERFORM BUILD_FIELDCAT USING 'LVORM' '' '' 'MARA' 'LVORM' '' '' '集团级的删除' ''.

  gs_layout-cwidth_opt = 'X'.
  gs_layout-zebra = 'X'.

  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      I_CALLBACK_PROGRAM       = SY-REPID
"      I_CALLBACK_PF_STATUS_SET = 'PF_STATUS_ALV'
      I_CALLBACK_USER_COMMAND  = 'USER_COMMAND_ALV'
      IT_FIELDCAT_LVC          = GT_FIELDCAT
      IS_LAYOUT_LVC            = GS_LAYOUT
      I_DEFAULT                = 'X'
      I_SAVE                   = 'A'
    TABLES
      T_OUTTAB                 = GT_DATA
    EXCEPTIONS
      OTHERS                   = 1.
ENDFORM.                    "DISPLAY_DATA
**&---------------------------------------------------------------------*
**&      FORM  PF_STATUS_ALV
**&---------------------------------------------------------------------*
**       TEXT
**----------------------------------------------------------------------*
*FORM PF_STATUS_ALV USING RT_EXTAB TYPE SLIS_T_EXTAB .
*  SET PF-STATUS 'STATUS_ALV' EXCLUDING RT_EXTAB.
*ENDFORM.                    "PF_STATUS_ALV
*&---------------------------------------------------------------------*
*&      FORM  USER_COMMAND_ALV
*&---------------------------------------------------------------------*
*       TEXT
*----------------------------------------------------------------------*
FORM USER_COMMAND_ALV USING R_UCOMM     LIKE SY-UCOMM
                            RS_SELFIELD TYPE SLIS_SELFIELD.
  CASE R_UCOMM.
    WHEN '&IC1'.
      CASE RS_SELFIELD-FIELDNAME.
        WHEN ''.
*          CHECK RS_SELFIELD-VALUE IS NOT INITIAL.
*          SET PARAMETER ID 'MBN' FIELD RS_SELFIELD-VALUE.
*          CALL TRANSACTION 'MB03' AND SKIP FIRST SCREEN.
      ENDCASE.
  ENDCASE.
ENDFORM.                    "USER_COMMAND_ALV

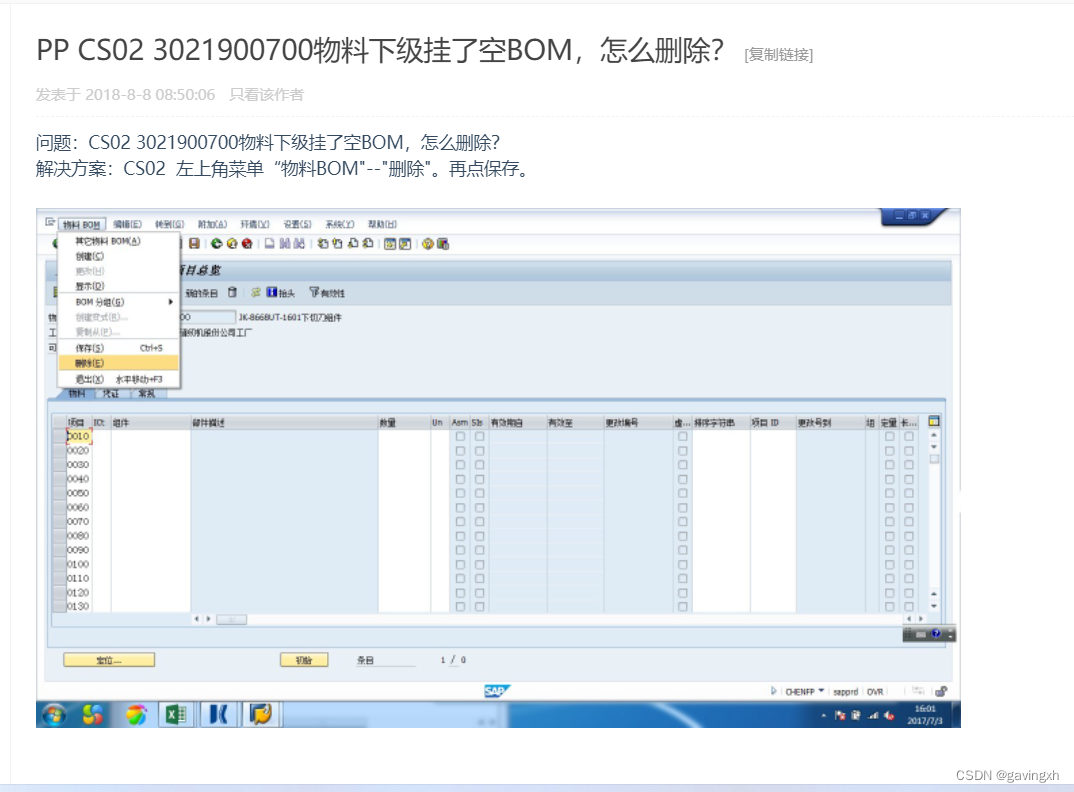

空bom的删除处理
