1.准备

概念：Ray job至少有三种情况，

第一种：先起ray集群，再往运行中的ray集群提交作业：https://docs.ray.io/en/latest/cluster/running-applications/job-submission/cli.html#
第二种：部署kuberay-operator，生成RayJob的kubernetes自定义CR，然后提交RayJob：https://github.com/ray-project/kuberay/blob/master/docs/guidance/rayjob.md
第三种：ray集成volcano（使用queue和podgroup）：https://github.com/ray-project/kuberay/blob/master/docs/guidance/volcano-integration.md

本篇博客主要是体验第二种

准备：

先有kubernetes集群，本篇博客运行在华为云CCE上，已经有了kubernetes，支持helm插件等
本地安装kubectl和helm等工具

计划：

安装kuberay-operator 0.5.1 helm chart，镜像版本为0.5.0
安装kuberay-apiserver 0.5.1 helm chart，镜像版本为0.5.0
job使用rayproject/ray:v2.4.0版本

2. 下载

搜索kuberay相关组件：

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# helm search repo kuberay
WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /root/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /root/.kube/config
NAME                            CHART VERSION   APP VERSION     DESCRIPTION
kuberay/kuberay-apiserver       0.5.1                           A Helm chart for kuberay-apiserver
kuberay/kuberay-operator        0.5.1                           A Helm chart for Kubernetes
kuberay/ray-cluster             0.5.1                           A Helm chart for Kubernetes

下载：

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# helm fetch kuberay/kuberay-apiserver
WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /root/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /root/.kube/config
root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# helm fetch kuberay/ray-cluster
WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /root/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /root/.kube/config

解压：

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# tar -xvf kuberay-operator-0.5.1.tgz
kuberay-operator/Chart.yaml
kuberay-operator/values.yaml
kuberay-operator/templates/_helpers.tpl
kuberay-operator/templates/deployment.yaml
kuberay-operator/templates/leader_election_role.yaml
kuberay-operator/templates/leader_election_role_binding.yaml
kuberay-operator/templates/ray_rayjob_editor_role.yaml
kuberay-operator/templates/ray_rayjob_viewer_role.yaml
kuberay-operator/templates/ray_rayservice_editor_role.yaml
kuberay-operator/templates/ray_rayservice_viewer_role.yaml
kuberay-operator/templates/role.yaml
kuberay-operator/templates/rolebinding.yaml
kuberay-operator/templates/service.yaml
kuberay-operator/templates/serviceaccount.yaml
kuberay-operator/.helmignore
kuberay-operator/README.md
kuberay-operator/crds/ray.io_rayclusters.yaml
kuberay-operator/crds/ray.io_rayjobs.yaml
kuberay-operator/crds/ray.io_rayservices.yaml
root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# tar -xvf kuberay-apiserver-0.5.1.tgz
kuberay-apiserver/Chart.yaml
kuberay-apiserver/values.yaml
kuberay-apiserver/templates/_helpers.tpl
kuberay-apiserver/templates/deployment.yaml
kuberay-apiserver/templates/ingress.yaml
kuberay-apiserver/templates/role.yaml
kuberay-apiserver/templates/rolebinding.yaml
kuberay-apiserver/templates/service.yaml
kuberay-apiserver/templates/serviceaccount.yaml
kuberay-apiserver/.helmignore
kuberay-apiserver/README.md

3.下载镜像

下载镜像并且提交到华为云SWR

docker pull kuberay/operator:v0.5.0
docker tag kuberay/operator:v0.5.0  swr.cn-north-7.myhuaweicloud.com/modelarts-idm-auto/kuberay/operator:v0.5.0
docker push  swr.cn-north-7.myhuaweicloud.com/modelarts-idm-auto/kuberay/operator:v0.5.0

docker pull kuberay/apiserver:v0.5.0
docker tag kuberay/apiserver:v0.5.0  swr.cn-north-7.myhuaweicloud.com/modelarts-idm-auto/kuberay/apiserver:v0.5.0
docker push  swr.cn-north-7.myhuaweicloud.com/modelarts-idm-auto/kuberay/apiserver:v0.5.0


docker tag rayproject/ray:2.4.0  swr.cn-north-7.myhuaweicloud.com/modelarts-idm-auto/rayproject/ray:2.4.0
docker push  swr.cn-north-7.myhuaweicloud.com/modelarts-idm-auto/rayproject/ray:2.4.0

4.修改helm chart

替换kuberay-operator中的values：
在这里插入图片描述
替换kuberay-apiserver中的values：

5.安装kuberay的相关组件

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# helm install kuberay-operator  kuberay-operator
WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /root/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /root/.kube/config
NAME: kuberay-operator
LAST DEPLOYED: Wed May 10 20:46:00 2023
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None
root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# helm install kuberay-apiserver kuberay-apiserver
WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /root/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /root/.kube/config
NAME: kuberay-apiserver
LAST DEPLOYED: Wed May 10 20:46:46 2023
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None

登录华为云CCE查看Kuberay相关组件是否安装好：
路径：CCE=》工作负载=》kuberay-operator或者kuberay-apiserver=>容器配置=》镜像访问凭证=》default-secert=》提交

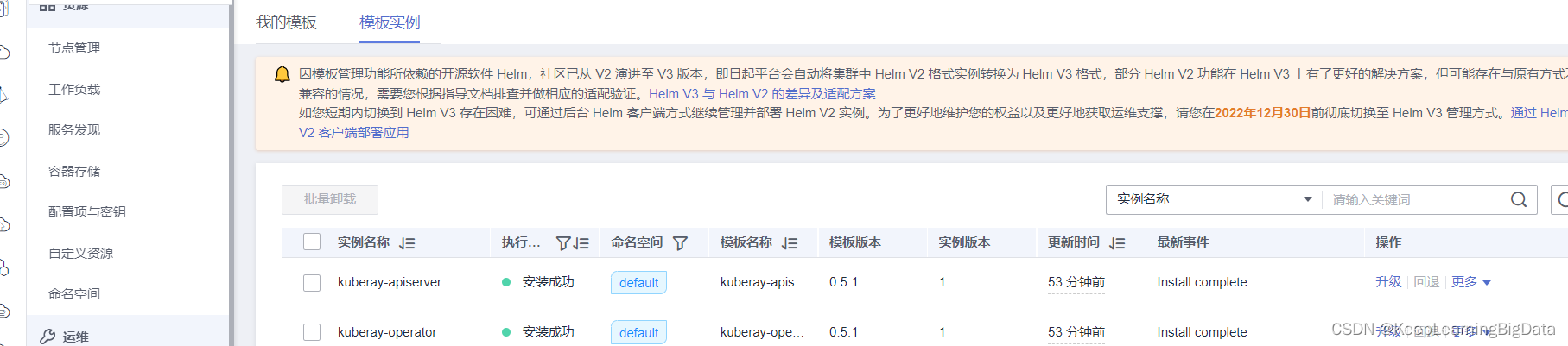

在这里插入图片描述

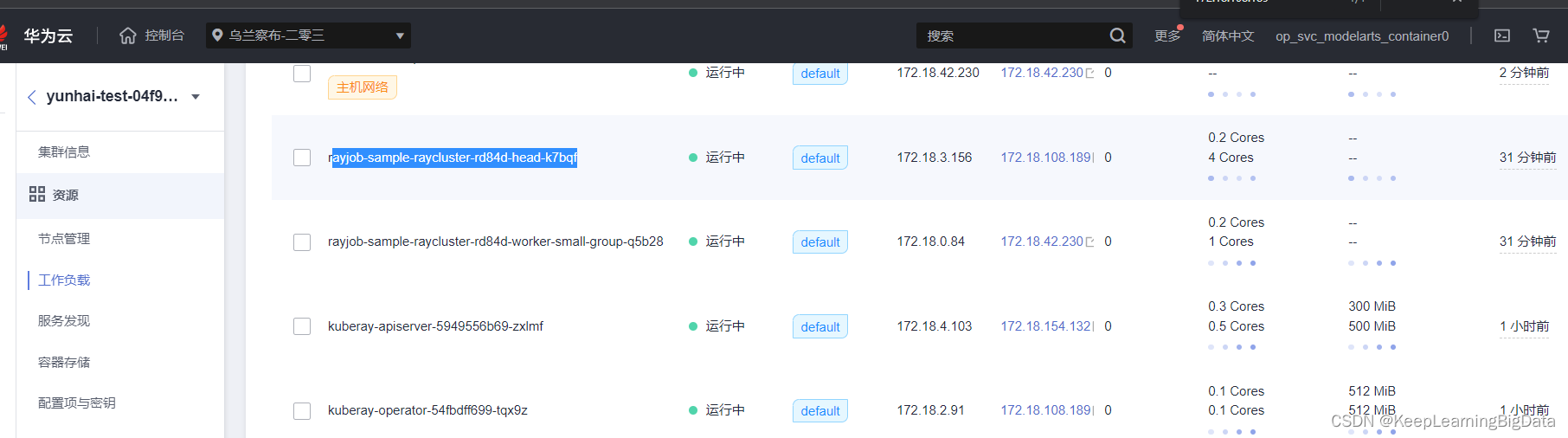

在这里插入图片描述
如果镜像拉取不成功，需要配置default secret：

6.下载ray job配置文件：

文件源：https://github.com/ray-project/kuberay/blob/master/ray-operator/config/samples/ray_v1alpha1_rayjob.yaml

修改1：修改runtime，去掉pip依赖包安装，runtimeEnv为base64编码，

{
    "pip": [ ],
    "env_vars": {"counter_name": "test_counter"}
}

base64之后为：
ewogICAgInBpcCI6IFsgXSwKICAgICJlbnZfdmFycyI6IHsiY291bnRlcl9uYW1lIjogInRlc3RfY291bnRlciJ9Cn0K

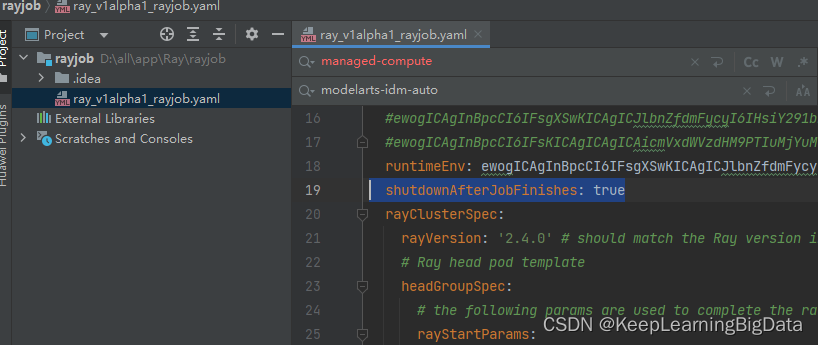

修改处：
在这里插入图片描述

修改2：

增加 serviceType: “ClusterIP”
在这里插入图片描述

修改3：

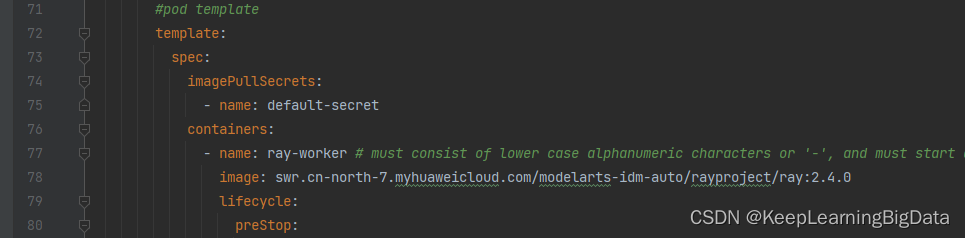

增加 imagePullSecrets
在这里插入图片描述

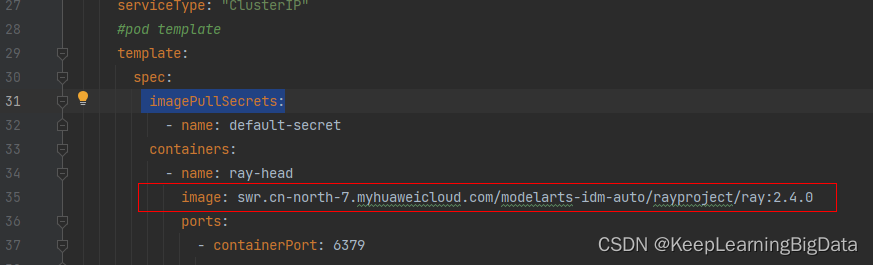

修改4：修改镜像地址：

在这里插入图片描述

6 启动rayjob

1）提交job

提交job之后会先启动ray集群，然后再submitrayjob

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray/rayjob# kubectl apply -f ray_v1alpha1_rayjob.yaml
rayjob.ray.io/rayjob-sample created
configmap/ray-job-code-sample created

2) 查看集群

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# kubectl get rayclusters -o wide
NAME                             AGE
ray2-kuberay                     49d
rayjob-sample-raycluster-rd84d   26m

3）查看rayjob

 kubectl describe rayjobs rayjob-sample

在这里插入图片描述

4）查看ray dashbord

获取service名字或地址：

^Croot@DESKTOP-3813A3M:/mnt/d/all/app/Ray# kubectget svc
NAME                                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                                         AGE
kuberay-apiserver-service                 NodePort    10.247.162.162   <none>        8888:31888/TCP,8887:31887/TCP                   36m
kuberay-operator                          ClusterIP   10.247.236.242   <none>        8080/TCP                                        37m
kubernetes                                ClusterIP   10.247.0.1       <none>        443/TCP                                         56d
notebook-proxy                            NodePort    10.247.154.164   <none>        80:30528/TCP                                    49d
ray2-kuberay-head-svc                     ClusterIP   10.247.206.89    <none>        10001/TCP,6379/TCP,8265/TCP,8080/TCP,8000/TCP   49d
rayjob-sample-raycluster-rd84d-head-svc   ClusterIP   10.247.255.69    <none>        8080/TCP,6379/TCP,8265/TCP,10001/TCP,8000/TCP   6s

配置转发，方便本地访问

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray# kubectl port-forward service/rayjob-sample-raycluster-rd84d-head-svc 8265:8265
Forwarding from 127.0.0.1:8265 -> 8265
Forwarding from [::1]:8265 -> 8265
Handling connection for 8265
Handling connection for 8265
Handling connection for 8265

浏览器打开127.0.0.1:8265地址既可以访问

查看cluster：

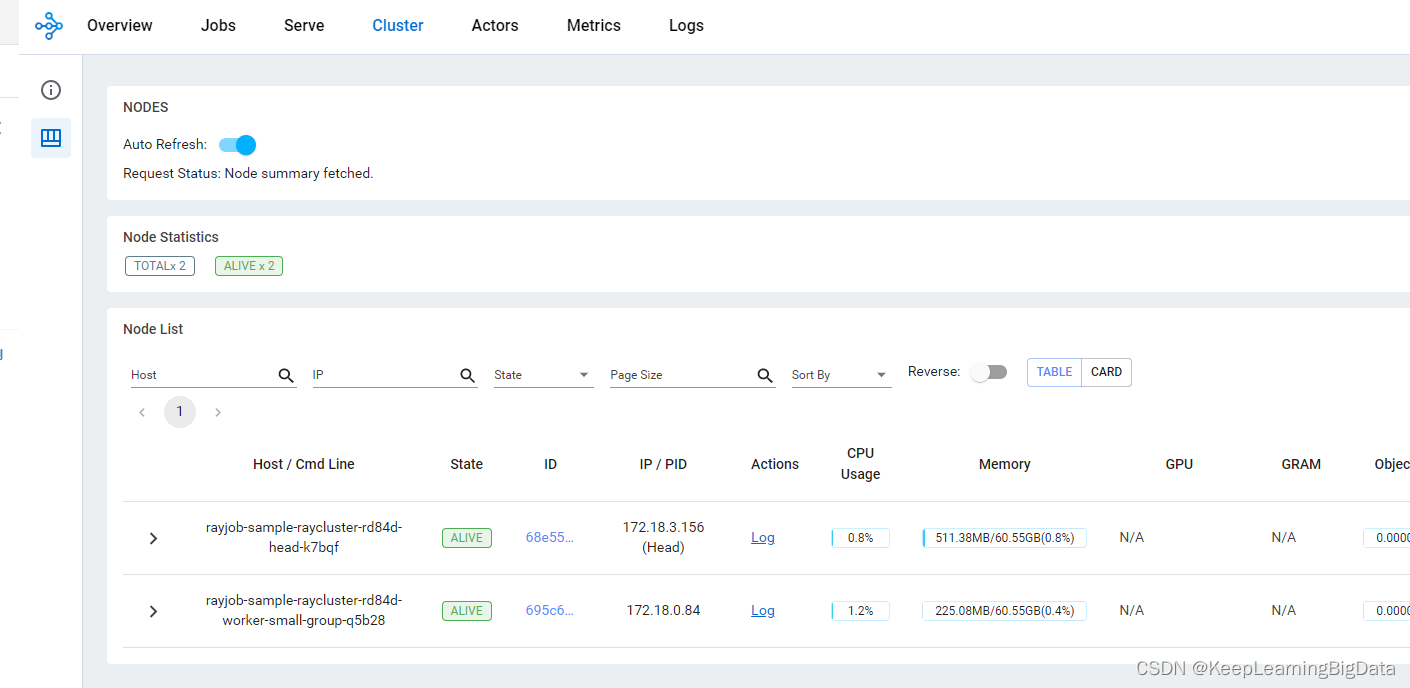

在这里插入图片描述
查看job：

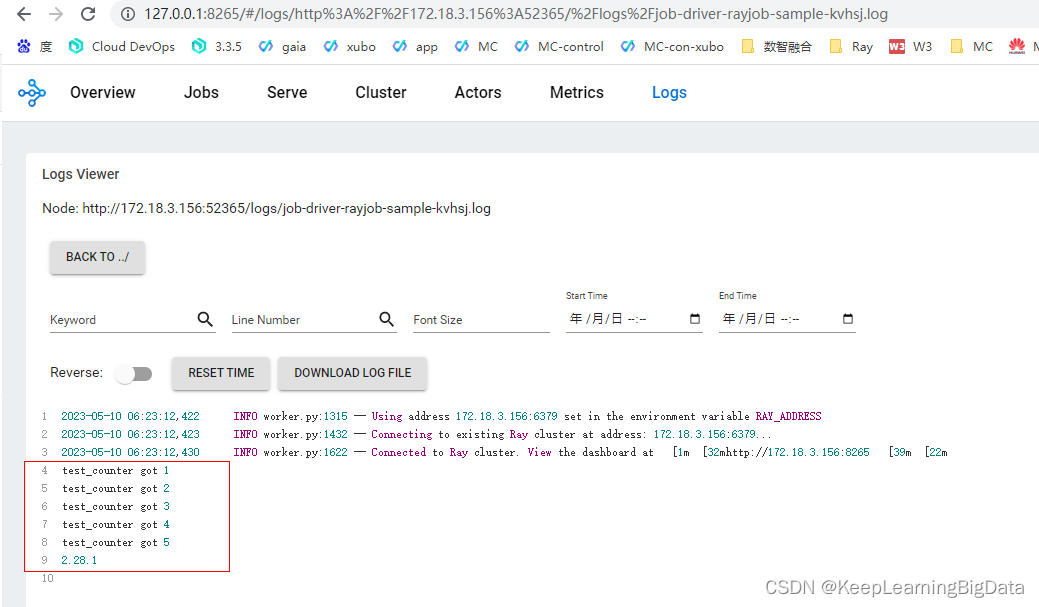

查看job运行日志：

5）删除rayjob(可选)：

root@DESKTOP-3813A3M:/mnt/d/all/app/Ray/rayjob# kubectl delete -f ray_v1alpha1_rayjob.yaml
rayjob.ray.io "rayjob-sample" deleted
configmap "ray-job-code-sample" deleted
