Picasso源码分析4

0使用手册

http://square.github.io/picasso/

1使用方法简介

Picasso.with(context)
.load(url)
.resize(50, 50)
.centerCrop()
.into(imageView)

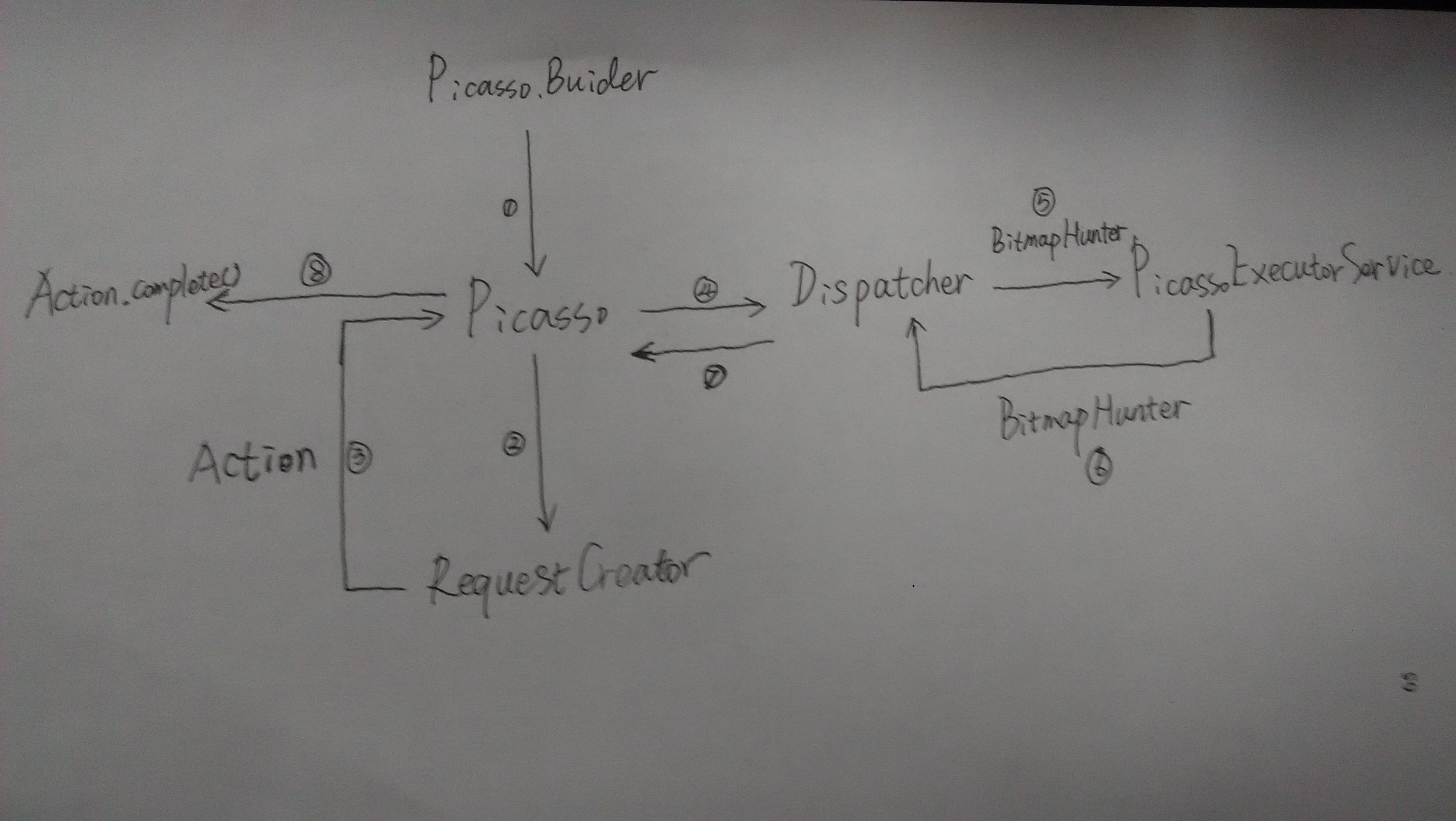

2 基本原理

1. 先使用Picasso.Builder生成一个单例Picasso，
2. load的时候生成一个RequestCreator，再设置不同的Reqeust参数，into的时候生成一个Request，
3. 再将Request和Target组合成Action，
4. 由Picasso交给Dispatcher后台执行，
5. Dispatcher用Action生成BitmapHunter，交于PicassoExecutorService执行，BitmapHunter下载完成，执行相应的变换后，
6. 用Handler通知Dispatcher缓存在内存中，
7. Dispatcher再用Handler通知Picasso调用Action.complete()方法

3数据结构分析

RequestHandler: 根据Request获取相应的内容。FileRequestHandler使用ContentResolver从文件中获取。NetworkRequestHandler使用Downloader从网络获取。ResourceRequestHandler从apk资源中获取。ContactsPhotoRequestHandler使用ContentResolver从通讯录中获取。ContentStreamRequestHandler使用ContentResolver获取。

Downloader： 从网络获取时需要下载。UrlConnectionDownloader使用UrlConnection从网络下载，HttpResponseCache可以让UrlConnection使用文件缓存数据。OkHttpDownloader使用OkHttp库来下载图片，OkHttpClient.setCache可以让OkHttp使用文件缓存

Stats：统计数据，缓存的命中率等等

Action：包含Request，Target和PlaceHolder，和异步加载后的回调，complete，error，cancel。

BitmapHunter： 异步Runnable任务。

4源代码分析

1. Picasso.Builder.build()

 /**
 2. 构造Picasso,使用Picasso.with会构造默认的方法，如果要自定义Picasso，则需要使用Builder，并在构造好了
 3. 之后使用Picasso.setSingletonInstance.
   */
/** Create the {@link Picasso} instance. */
    public Picasso build() {
      Context context = this.context;

      if (downloader == null) {
        downloader = Utils.createDefaultDownloader(context);
      }
      if (cache == null) {
        cache = new LruCache(context);
      }
      if (service == null) {
        service = new PicassoExecutorService();
      }
      if (transformer == null) {
        transformer = RequestTransformer.IDENTITY;
      }

      Stats stats = new Stats(cache);

      Dispatcher dispatcher = new Dispatcher(context, service, HANDLER, downloader, cache, stats);

      return new Picasso(context, dispatcher, cache, listener, transformer, requestHandlers, stats,
          defaultBitmapConfig, indicatorsEnabled, loggingEnabled);
    }


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

1. RequestCreator.into()

 /**
     * 调用into方法时，使用Request.Builder创建一个Request，然后交给Dispatcher调度执行。
     * @param target
     */
  public void into(Target target) {
    long started = System.nanoTime();
    checkMain();

    if (target == null) {
      throw new IllegalArgumentException("Target must not be null.");
    }
    //当target是ImageView时，需要deferred，生成DeferredRequestCreator,利用ImageView的addOnPreDrawListener()当需要绘制的时候再来进行加载
    if (deferred) {
      throw new IllegalStateException("Fit cannot be used with a Target.");
    }

      //url为空或者resourceid为空，直接Cancel
    if (!data.hasImage()) {
      picasso.cancelRequest(target);
      target.onPrepareLoad(setPlaceholder ? getPlaceholderDrawable() : null);
      return;
    }

    Request request = createRequest(started);
    String requestKey = createKey(request);

    if (shouldReadFromMemoryCache(memoryPolicy)) {
      Bitmap bitmap = picasso.quickMemoryCacheCheck(requestKey);
      if (bitmap != null) {
        picasso.cancelRequest(target);
        target.onBitmapLoaded(bitmap, MEMORY);
        return;
      }
    }

    target.onPrepareLoad(setPlaceholder ? getPlaceholderDrawable() : null);

    Action action =
        new TargetAction(picasso, target, request, memoryPolicy, networkPolicy, errorDrawable,
            requestKey, tag, errorResId);
    picasso.enqueueAndSubmit(action);
  }


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

1. BitmapHunter.hunt()

  Bitmap hunt() throws IOException {
    Bitmap bitmap = null;

    //判断是否从内存加载
    if (shouldReadFromMemoryCache(memoryPolicy)) {
      bitmap = cache.get(key);
      if (bitmap != null) {
        stats.dispatchCacheHit();
        loadedFrom = MEMORY;
        if (picasso.loggingEnabled) {
          log(OWNER_HUNTER, VERB_DECODED, data.logId(), "from cache");
        }
        return bitmap;
      }
    }

      //使用RequestHandler加载图片
    data.networkPolicy = retryCount == 0 ? NetworkPolicy.OFFLINE.index : networkPolicy;
    RequestHandler.Result result = requestHandler.load(data, networkPolicy);
    if (result != null) {
      loadedFrom = result.getLoadedFrom();
      exifRotation = result.getExifOrientation();

      bitmap = result.getBitmap();

      //如果得到的不是图片而是InputStream，则转换成Bitmap
      if (bitmap == null) {
        InputStream is = result.getStream();
        try {
          bitmap = decodeStream(is, data);
        } finally {
          Utils.closeQuietly(is);
        }
      }
    }

    if (bitmap != null) {
      if (picasso.loggingEnabled) {
        log(OWNER_HUNTER, VERB_DECODED, data.logId());
      }
      stats.dispatchBitmapDecoded(bitmap);
        //进行裁剪，旋转等变换
      if (data.needsTransformation() || exifRotation != 0) {
        synchronized (DECODE_LOCK) {
          if (data.needsMatrixTransform() || exifRotation != 0) {
            bitmap = transformResult(data, bitmap, exifRotation);
            if (picasso.loggingEnabled) {
              log(OWNER_HUNTER, VERB_TRANSFORMED, data.logId());
            }
          }
          if (data.hasCustomTransformations()) {
            bitmap = applyCustomTransformations(data.transformations, bitmap);
            if (picasso.loggingEnabled) {
              log(OWNER_HUNTER, VERB_TRANSFORMED, data.logId(), "from custom transformations");
            }
          }
        }
        if (bitmap != null) {
          stats.dispatchBitmapTransformed(bitmap);
        }
      }
    }

    return bitmap;
  }


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

1. Dispatcher.performComplete()

//先判断是否要写内存缓存，然后将当前的hunter批量。
  //批量的原因是在Picasso的Handler当前可能还有没有处理的。再Dispatcher这一级别再缓冲一下
  void performComplete(BitmapHunter hunter) {
    if (shouldWriteToMemoryCache(hunter.getMemoryPolicy())) {
      cache.set(hunter.getKey(), hunter.getResult());
    }
    hunterMap.remove(hunter.getKey());
    batch(hunter);
    if (hunter.getPicasso().loggingEnabled) {
      log(OWNER_DISPATCHER, VERB_BATCHED, getLogIdsForHunter(hunter), "for completion");
    }
  }


1
2
3
4
5
6
7
8
9
10
11
12


1
2
3
4
5
6
7
8
9
10
11
12

1. Picasso.comple()

//从Hunter中取出结果，调用Action.complete，or Action.error
  void complete(BitmapHunter hunter) {
    Action single = hunter.getAction();
    List<Action> joined = hunter.getActions();

    boolean hasMultiple = joined != null && !joined.isEmpty();
    boolean shouldDeliver = single != null || hasMultiple;

    if (!shouldDeliver) {
      return;
    }

    Uri uri = hunter.getData().uri;
    Exception exception = hunter.getException();
    Bitmap result = hunter.getResult();
    LoadedFrom from = hunter.getLoadedFrom();

    if (single != null) {
      deliverAction(result, from, single);
    }

    if (hasMultiple) {
      //noinspection ForLoopReplaceableByForEach
      for (int i = 0, n = joined.size(); i < n; i++) {
        Action join = joined.get(i);
        deliverAction(result, from, join);
      }
    }

    if (listener != null && exception != null) {
      listener.onImageLoadFailed(this, uri, exception);
    }
  }
