前言：本文不是纯文本翻译，加入了对概念的理解，纯文本翻译，请看文后的一个链接。
Model/View Programming
Introduction to Model/View Programming
Qt 4 introduced a new set of item view classes that use a model/view architecture to manage the relationship between data and the way it is presented to the user. The separation of functionality introduced by this architecture gives developers greater flexibility to customize the presentation of items, and provides a standard model interface to allow a wide range of data sources to be used with existing item views. In this document, we give a brief introduction to the model/view paradigm, outline the concepts involved, and describe the architecture of the item view system. Each of the components in the architecture is explained, and examples are given that show how to use the classes provided.
Qt4推出了一套新的项视图类，它使用Model/View架构来管理数据与表示层的关系。Model/View架构带来的功能上的分离给了开发人员更大的弹性来定制数据项的表示，并且他还提供一个标准的model接口，使得更多的数据源可以被项视图类使用。本文简要介绍了Model/View架构，对涉及的概念做了简单的概述，阐述了项视图系统。架构中的每一个组件都将一一作出解释，同时将用实例对如何使用这些类进行说明。
t4推出了一套新的项视图类，它使用Model/View架构来管理数据与表示层的关系。Model/View架构带来的功能上的分离给了开发人员更大的弹性来定制数据项的表示，并且他还提供一个标准的model接口，使得更多的数据源可以被项视图类使用。本文简要介绍了Model/View架构，对涉及的概念做了简单的概述，阐述了项视图系统。架构中的每一个组件都将一一作出解释，同时将用实例对如何使用这些类进行说明。Qt4推出了一套新的项视图类，它使用Model/View架构来管理数据与表示层的关系。Model/View架构带来的功能上的分离给了开发人员更大的弹性来定制数据项的表示，并且他还提供一个标准的model接口，使得更多的数据源可以被项视图类使用。本文简要介绍了Model/View架构，对涉及的概念做了简单的概述，阐述了项视图系统。架构中的每一个组件都将一一作出解释，同时将用实例对如何使用这些类进行说明
The model/view architecture
Model-View-Controller (MVC) is a design pattern originating from Smalltalk that is often used when building user interfaces. In Design Patterns, Gamma et al. write:
MVC consists of three kinds of objects. The Model is the application object, the View is its screen presentation, and the Controller defines the way the user interface reacts to user input. Before MVC, user interface designs tended to lump these objects together. MVC decouples them to increase flexibility and reuse.
Model-View-Controller(MVC)， 是从Smalltalk发展而来的一种设计模式，常被用于构建用户界面。在设计模式中对MVC模式的描述如下：MVC由3种对象组成：模型是应用程序对象，视图是它的屏幕显示方式，控制器定义用户接口对用户输入反应的方式。在MVC设计模式之前，用户界面设计倾向于三者揉合在一起，MVC对它们进行了解耦，提高了灵活性与重用性。
If the view and the controller objects are combined, the result is the model/view architecture. This still separates the way that data is stored from the way that it is presented to the user, but provides a simpler framework based on the same principles.
如果VIEW和controller是结合的，那么MVC变成了M + View架构的方式，这种方式把数据存储和数据展示给用户的方式给分开了，但是，提供了一个简单的框架，实习了相同的原理。
This separation makes it possible to display the same data in several different views, and to implement new types of views, without changing the underlying data structures. To allow flexible handling of user input, we introduce the concept of the delegate. The advantage of having a delegate in this framework is that it allows the way items of data are rendered and edited to be customized.
M-V-C的分离则提供了更加多样化的视图，和视图的处理方法。比如可以更弹性的控制用户输入，比如用delegate的方式，这个框架的好处就是让数据的展现和编辑变得更定制化。
The model/view architecture
The model communicates with a source of data, providing an interface for the other components in the architecture. The nature of the communication depends on the type of data source, and the way the model is implemented.
The view obtains model indexes from the model; these are references to items of data. By supplying model indexes to the model, the view can retrieve items of data from the data source.
In standard views, a delegate renders the items of data. When an item is edited, the delegate communicates with the model directly using model indexes.
MVC 由三种对象组成，Model和数据进行交互（如管理数据库）并且提供一个接口给其他组件，交互的方式取决于数据类型和模式的实现方法。View从模式的index（模型索引）的值里面获取模式，通过引用访问数据。通过模式的Index的值，View可以从数据源获取数据。 在标准的Views中，Delegate渲染数据项，当某个数据项被编辑时，Delegate通过模型索引与Model直接进行交互。
Generally, the model/view classes can be separated into the three groups described above: models, views, and delegates. Each of these components is defined by abstract classes that provide common interfaces and, in some cases, default implementations of features. Abstract classes are meant to be subclassed in order to provide the full set of functionality expected by other components; this also allows specialized components to be written.
通常，MV类可以被描述为三个组，models, views, and delegates.这些组件通过抽象类来定义，抽象类提供了共同的接口，在某些情况下，还提供了默认的实现。抽象类意味着需要子类化，以便为其他组件提供完整的功能，同时也可以用来实现定制的组件。
Models, views, and delegates communicate with each other using signals and slots:
· Signals from the model inform the view about changes to the data held by the data source.
· Signals from the view provide information about the user's interaction with the items being displayed.
· Signals from the delegate are used during editing to tell the model and view about the state of the editor.
Models、Views、Delegates之间通过信号-槽机制来进行通讯：
l 从Model发出的信号通知View关于数据源中的数据发生的改变。
l 从View发出的信号提供了有关被显示的数据项与用户交互的信息。
l 从Delegate发射的信号被用于在编辑时通知Model和View关于当前编辑器的状态信息。
Model/View架构中，所有模型类具有共同的抽象基类QAbstractItemModel，所有视图类具有共同的抽象基类QAbstractItemView，所有委托类具有共同的抽象基类QabstractItemDelegate。
Models、Views、Delegates之间通过信号-槽机制来进行通讯：
l 从Model发出的信号通知View关于数据源中的数据发生的改变。
l 从View发出的信号提供了有关被显示的数据项与用户交互的信息。
l 从Delegate发射的信号被用于在编辑时通知Model和View关于当前编辑器的状态信息。
Model/View架构中，所有模型类具有共同的抽象基类QAbstractItemModel，
所有视图类具有共同的抽象基类QAbstractItemView，
所有委托类具有共同的抽象基类QabstractItemDelegate。
Models
All item models are based on the QAbstractItemModel class. This class defines an interface that is used by views and delegates to access data. The data itself does not have to be stored in the model; it can be held in a data structure or repository provided by a separate class, a file, a database, or some other application component.
The basic concepts surrounding models are presented in the section on Model Classes.
所有的Models都基于QAbstractItemModel类，QAbstractItemModel类定义了用于Views和Delegates访问数据的接口。
数据本身不是必需存储在Model,也可存储在一个数据结构或另外的类、文件、数据库或别的程序组件中。

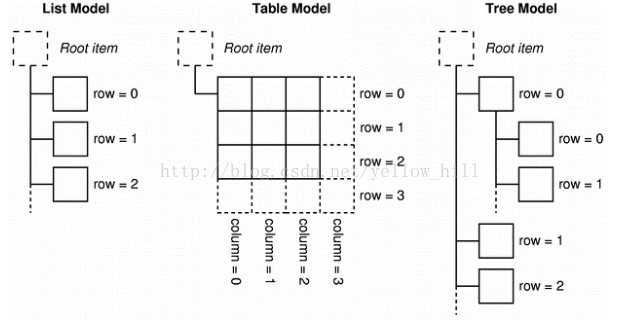

QAbstractItemModel provides an interface to data that is flexible enough to handle views that represent data in the form of tables, lists, and trees. However, when implementing new models for list and table-like data structures, the QAbstractListModel and QAbstractTableModel classes are better starting points because they provide appropriate default implementations of common functions. Each of these classes can be subclassed to provide models that support specialized kinds of lists and tables.
QAbstractItemModel提供给数据一个接口，它足够灵活，足以满足Views对数据的显示，
无论数据用以下何种形式表现:tables、lists、trees。
然而，当重新实现一个Model时，如果Model基于table或list形式的数据结构，
最好以QAbstractListModel与QAbstractTableModel为起点，因为它们提供了适当的常规功能的缺省实现。
这些类可以被子类化以支持特殊的定制需求。
The process of subclassing models is discussed in the section on Creating New Models.
子类化model的过程在Create New Model部分讨论
Qt provides some ready-made models that can be used to handle items of data:
· QStringListModel is used to store a simple list of QString items.
· QStandardItemModel manages more complex tree structures of items, each of which can contain arbitrary data.
· QFileSystemModel provides information about files and directories in the local filing system.
· QSqlQueryModel, QSqlTableModel, and QSqlRelationalTableModel are used to access databases using model/view conventions.
If these standard models do not meet your requirements, you can subclass QAbstractItemModel,QAbstractListModel, or QAbstractTableModel to create your own custom models.
QT提供了一些现成的Models用于处理数据项：
l QStringListModel：用于存储简单的QString列表。
l QStandardItemModel ：管理复杂的树型结构数据项，每项都可以包含任意数据。
l QDirModel ：提供本地文件系统中的文件与目录信息。
l QSqlQueryModel、QSqlTableModel、QSqlRelationTableModel：用来访问数据库。
当标准Model不能满足需要时，可以子类化QAbstractItemModel,QAbstractListModel或是QAbstractTableModel来定制自己的Model。
Views
Complete implementations are provided for different kinds of views: QListView displays a list of items, QTableView displays data from a model in a table, and QTreeView shows model items of data in a hierarchical list. Each of these classes is based on the QAbstractItemView abstract base class. Although these classes are ready-to-use implementations, they can also be subclassed to provide customized views.
The available views are examined in the section on View Classes.
不同的View都完整实现了各自的功能：
QListView把数据显示为一个列表，
QTableView把Model中的数据以表格的形式表现，
QTreeView用具有层次结构的列表来显示Model中的数据。
QListView、QTableView、QTreeView都基于QAbstractItemView抽象基类，虽然他们都被完整的实现，
但仍然可以用于子类化以便满足自定义视图的需求。
Delegates
QAbstractItemDelegate is the abstract base class for delegates in the model/view framework. Since Qt 4.4, the default delegate implementation is provided by QStyledItemDelegate, and this is used as the default delegate by Qt's standard views. However, QStyledItemDelegate and QItemDelegate are independent alternatives to painting and providing editors for items in views. The difference between them is that QStyledItemDelegate uses the current style to paint its items. We therefore recommend using QStyledItemDelegate as the base class when implementing custom delegates or when working with Qt style sheets.
Delegates are described in the section on Delegate Classes.
QAbstractItemDelegate是Model/View架构中的用于Delegate的抽象基类。从Qt4.4开始，默认委托实现由 QStyledItemDelegate提供，并且它被作为Qt标准视图的默认委托来使用,但是，QStyledItemDelegate 和 QItemDelegate是为视图项提供绘制和编辑器的两个独立的委托。他们之间的不同在于，QStyledItemDelegate使用当前的样式来绘制它的项。因此在实现自定义委托或使用Qt样式表时，我们建议使用QStyledItemDelegate作为基类。
Sorting
There are two ways of approaching sorting in the model/view architecture; which approach to choose depends on your underlying model.
If your model is sortable, i.e, if it reimplements the QAbstractItemModel::sort() function, bothQTableView and QTreeView provide an API that allows you to sort your model data programmatically. In addition, you can enable interactive sorting (i.e. allowing the users to sort the data by clicking the view's headers), by connecting the QHeaderView::sortIndicatorChanged() signal to theQTableView::sortByColumn() slot or the QTreeView::sortByColumn() slot, respectively.
The alternative approach, if your model do not have the required interface or if you want to use a list view to present your data, is to use a proxy model to transform the structure of your model before presenting the data in the view. This is covered in detail in the section on Proxy Models.
在model/view架构中，有两种方法可以实现排序，选择哪种方法依赖于底层Model。如果model是可排序的，即模型重新实现了QAbstractItemModel::sort()函数，QTableView与QTreeView都提供了API,允许以编程的方式对Model数据进行排序。此外，可以通过把QHeaderView：:sortIndicatorChanged()信号与QTableView::sortByColumn()槽或QTreeView::sortByColumn()槽的分别进行连接，也可以进行互动式的排序（比如，允许用户单击表头来对数据进行排序）。
如果模型没有所要求的接口，或想用列表视图Listview来显示数据，另一个方法是就在视图显示数据之前使用代理模型（PROXY MODEL）来转换模型的结构。
Convenience classes
A number of convenience classes are derived from the standard view classes for the benefit of applications that rely on Qt's item-based item view and table classes. They are not intended to be subclassed, but simply exist to provide a familiar interface to the equivalent classes in Qt 3. Examples of such classes include QListWidget, QTreeWidget, and QTableWidget; these provide similar behavior to the QListBox, QListView, and QTable classes in Qt 3.
These classes are less flexible than the view classes, and cannot be used with arbitrary models. We recommend that you use a model/view approach to handling data in item views unless you strongly need an item-based set of classes.
If you wish to take advantage of the features provided by the model/view approach while still using an item-based interface, consider using view classes, such as QListView, QTableView, and QTreeViewwith QStandardItemModel.
为了使应用程序可以使用Qt基于项的视图和表格类，从标准的视图类中衍生出了一些项视图的便利类。他们的存在不是用于子类化，只是为了给Qt3中相应的类提供一个类似的接口。这些类包括QListWidget、QTreeWidget和QTableWidget，他们分别提供了Qt3中的QListBox、QListView、和QTable相似的行为。
这些类没有视图类那么灵活，也不能用于任意模型。除非你强烈需要一套基于项的便利类，否则我们推荐你在处理项视图数据时使用模型/视图的方法。
如果希望利用模型/视图方法所提供的特性，同时又想使用基于项的接口，那就考虑把QStandardItemModel类与视图类如QListView、QTableView和 QTreeView等搭配使用。
Using models and views
The following sections explain how to use the model/view pattern in Qt. Each section includes an an example and is followed by a section showing how to create new components.
下面的章节是QT的MV的使用的例子。
Two models included in Qt
Two of the standard models provided by Qt are QStandardItemModel and QFileSystemModel.QStandardItemModel is a multi-purpose model that can be used to represent various different data structures needed by list, table, and tree views. This model also holds the items of data.QFileSystemModel is a model that maintains information about the contents of a directory. As a result, it does not hold any items of data itself, but simply represents files and directories on the local filing system.
QFileSystemModel provides a ready-to-use model to experiment with, and can be easily configured to use existing data. Using this model, we can show how to set up a model for use with ready-made views, and explore how to manipulate data using model indexes.
Qt提供了两个标准的Models:QStandardItemModel和QFileSystemModel。 QStandardItemModel是一个多用途的Model，是一种可用于表示被list、table、tree等Views所需要的各种不同数据的数据结构。QStandardItemModel本身持有数据。QFileSystemModel维护目录内容的相关信息，本身不持有数据，只是对本地文件系统中的文件与目录的简单显示。QFileSystemModel是一个现成的Model,它很容易进行配置以用于现存的数据。使用QFileSystemModel可以很好地展示如何给一个现成的View设定Model,研究如何用Model indexes来操纵数据。
Using views with an existing model
The QListView and QTreeView classes are the most suitable views to use with QFileSystemModel. The example presented below displays the contents of a directory in a tree view next to the same information in a list view. The views share the user's selection so that the selected items are highlighted in both views.

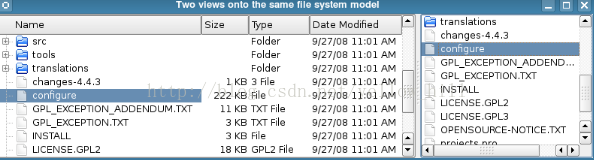

QListView与QTreeView很适合与QFileSystemModel搭配使用。下面的例子在树形视图与列表视图显示了相同的信息。两个视图共享用户选择，用户选中的项在两个视图中都会被高亮。
We set up a QFileSystemModel so that it is ready for use, and create some views to display the contents of a directory. This shows the simplest way to use a model. The construction and use of the model is performed from within a single main() function:
先创建一个QFileSystemModel以供使用，再创建多个Views去显示目录的内容。Model的创建与使用都在main()函数中完成：
int main(int argc,char *argv[]){
QApplication app(argc, argv);
QSplitter *splitter =new QSplitter;
QFileSystemModel *model = new QFileSystemModel; //创建一个新的模型
model->setRootPath(QDir::currentPath());The model is set up to use data from a certain file system. The call to setRootPath() tell the model which drive on the file system to expose to the views.
We create two views so that we can examine the items held in the model in two different ways:
模型从某一文件系统设置Model去使用数据，调用setRootPath()告知模型文件系统上哪个驱动器呈现给Views，我们创建了两个Views，以便我们用两种不同的方式检查模型中的Items
QTreeView *tree =new QTreeView(splitter);
tree->setModel(model);
tree->setRootIndex(model->index(QDir::currentPath()));
QListView *list =new QListView(splitter);
list->setModel(model);
list->setRootIndex(model->index(QDir::currentPath()));The views are constructed in the same way as other widgets.
Setting up a view to display the items in the model is simply a matter of calling its setModel() function with the directory model as the argument. We filter the data supplied by the model by calling the setRootIndex() function on each view, passing a suitable model index from the file system model for the current directory.
Views的构造方式与其他组件相同。 设置View以显示模型中的项是很简单的，仅仅是使用目录模型作为参数来调用其成员setModel()函数。 我们通过在每个视图上调用setRootIndex()函数来过滤模型提供的数据，以当前文件目录的文件系统模型索引作为合适的模型索引传递
The index() function used in this case is unique to QFileSystemModel; we supply it with a directory and it returns a model index. Model indexes are discussed in Model Classes.
The rest of the function just displays the views within a splitter widget, and runs the application's event loop:
函数的剩余部分只是显示分离组件中的视图，并运行应用程序的事件循环
splitter->setWindowTitle("Two views onto the same file system model");
splitter->show();
return app.exec();}In the above example, we neglected to mention how to handle selections of items. This subject is covered in more detail in the section about Handling Selections in Item Views.
在上面的例子中，我们忽略了如何处理项的选择。 此主题在项视图中处理选择的部分中有更详细的说明。
Model classes
Before examining how selections are handled, you may find it useful to examine the concepts used in the model/view framework.
Basic concepts
In the model/view architecture, the model provides a standard interface that views and delegates use to access data.
Model/View架构中，Model为View和Delegates使用数据提供了标准接口。
In Qt, the standard interface is defined by the QAbstractItemModel class. No matter how the items of data are stored in any underlying data structure, all subclasses ofQAbstractItemModel represent the data as a hierarchical structure containing tables of items. Views use this convention to access items of data in the model, but they are not restricted in the way that they present this information to the user.
在Model/View架构中，Model提供了一个标准接口，便于View和Delegates访问数据。 在Qt中，标准接口由QAbstractItemModel类定义。 无论数据项如何存储在任何基础数据结构中，QAbstractItemModel的所有子类都将数据表示为包含items表格的层次结构。 View使用此约定来访问Model中的数据项，但它们不会限制在向用户呈现此信息的方式中。
Models also notify any attached views about changes to data through the signals and slots mechanism.
模型还通过信号和槽机制通知任何附加的关于数据变化的视图。
This section describes some basic concepts that are central to the way item of data are accessed by other components via a model class. More advanced concepts are discussed in later sections.
本节介绍一些基本概念，这些基本概念对于通过模型类访问其他组件的数据项方式至关重要。更高级的概念将在后面的章节中讨论。
Model indexes模型索引
To ensure that the representation of the data is kept separate from the way it is accessed, the concept of a model index is introduced. Each piece of information that can be obtained via a model is represented by a model index. Views and delegates use these indexes to request items of data to display.
As a result, only the model needs to know how to obtain data, and the type of data managed by the model can be defined fairly generally. Model indexes contain a pointer to the model that created them, and this prevents confusion when working with more than one model.
为了确保数据显示与数据访问分离，引入了模型索引的概念。通过Model获取的数据项可以通过模型索引显示。Views和Delegates都使用索引来访问数据项，然后显示出来。因此，只有Model需要了解如何获取数据，并且Model管理的数据类型可以定义地非常广泛。模型索引包含一个指向创建它们的Model的指针，这样可以避免使用多个Model时引起混淆。
QAbstractItemModel *model = index.model();
Model indexes provide temporary references to pieces of information, and can be used to retrieve or modify data via the model. Since models may reorganize their internal structures from time to time, model indexes may become invalid, and should not be stored. If a long-term reference to a piece of information is required, a persistent model index must be created. This provides a reference to the information that the model keeps up-to-date. Temporary model indexes are provided by theQModelIndex class, and persistent model indexes are provided by the QPersistentModelIndex class.
模型索引提供对信息块的临时引用，通过它可以用来提取或修改Model中的数据。由于Model会实时重新组织内部的结构，使得模型索引失效，因此不应保存模型索引。如果需要一个对信息块的长期引用，必须创建一个永久的模型索引。这样会为不断更新的Model信息提供一个引用。临时模型索引由QModelIndex类提供，而永久模型索引则由QPersistentModelIndex类提供。
To obtain a model index that corresponds to an item of data, three properties must be specified to the model: a row number, a column number, and the model index of a parent item. The following sections describe and explain these properties in detail.
为了获取相应数据项的模型索引，必须指定Model的三个属性：行数，列数，父项的模型索引。
下面的章节将详细介绍
Rows and columns
In its most basic form, a model can be accessed as a simple table in which items are located by their row and column numbers. This does not mean that the underlying pieces of data are stored in an array structure; the use of row and column numbers is only a convention to allow components to communicate with each other. We can retrieve information about any given item by specifying its row and column numbers to the model, and we receive an index that represents the item:
在Model最基本的形式中，Model可以使用简单的表格进行存取，表格中的项根据行号和列号确定。但这并不意味底层数据以数组结构储存，使用行号和列号只是组件之间相互通信的一个约定。我们可以提取任何指定行号和列号的Model项的信息，同时得到一个代表这个项的索引。
QModelIndex index = model->index(row, column, ...);
Models that provide interfaces to simple, single level data structures like lists and tables do not need any other information to be provided but, as the above code indicates, we need to supply more information when obtaining a model index。
Model为简单且单一层次数据结构如列表和表格提供接口的模型不需要提供任何其他的信息，但是，就像上面的例子所标明的一样，当要获得一个模型索引时我们要提供更多的信息。
Rows and columns

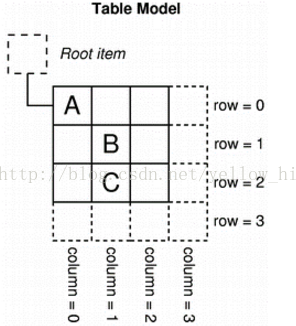

The diagram shows a representation of a basic table model in which each item is located by a pair of row and column numbers. We obtain a model index that refers to an item of data by passing the relevant row and column numbers to the model.
图表显示了一个基本的tableModel，表格的每一项用一对行列数来定位。通过行列数，可以获取代表一个数据项的模型索引。
QModelIndex indexA = model->index(0,0,QModelIndex());QModelIndex indexB = model->index(1,1,QModelIndex());QModelIndex indexC = model->index(2,1,QModelIndex());Top level items in a model are always referenced by specifying QModelIndex() as their parent item. This is discussed in the next section.
Model的顶层项总是通过指定QModelIndex()函数来作为他们的父项引用。
Parents of items
The table-like interface to item data provided by models is ideal when using data in a table or list view; the row and column number system maps exactly to the way the views display items.
However, structures such as tree views require the model to expose a more flexible interface to the items within.
As a result, each item can also be the parent of another table of items, in much the same way that a top-level item in a tree view can contain another list of items.
When requesting an index for a model item, we must provide some information about the item's parent. Outside the model, the only way to refer to an item is through a model index, so a parent model index must also be given:
当在一个表格或列表视图中使用数据时，Model提供的表格型数据接口是较为理想的。行列号系统正好映射到Views显示项目的方式。
然而，诸如树型视图的结构要求Model提供对其内部项要有更灵活的接口。
因此，每一个项也可能是另外一个表的父项，同样地，树型视图的顶级项也可以包含另一个列表。
所以，当需要Model项一个索引时，我们必须提供一些关于这个项的父项的一些信息，例如下面的例题里面放入parent接口。
在Model外，引用一个项的唯一方法就是通过模型索引，所以一个父项的模型索引也必须要提供。
QModelIndex index = model->index(row, column, parent);

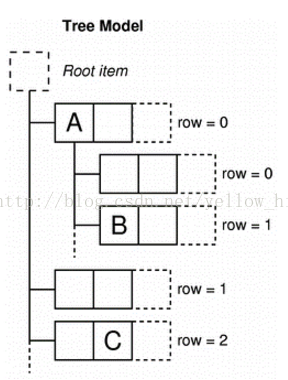

The diagram shows a representation of a tree model in which each item is referred to by a parent, a row number, and a column number.
图表显示了一个树Model的表示法，树Model的项由父项，行和列号定位。项”A”和项”C”代表Model中的顶层成员。
Items "A" and "C" are represented as top-level siblings in the model:
QModelIndex indexA = model->index(0,0,QModelIndex());QModelIndex indexC = model->index(2,1,QModelIndex());
Item "A" has a number of children. A
model index for item "B" is obtained with the following code:
Item roles
Items in a model can perform various roles for other components, allowing different kinds of data to be supplied for different situations. For example, Qt::DisplayRole is used to access a string that can be displayed as text in a view. Typically, items contain data for a number of different roles, and the standard roles are defined by Qt::ItemDataRole.
We can ask the model for the item's data by passing it the model index corresponding to the item, and by specifying a role to obtain the type of data we want:
QVariant value = model->data(index, role);
Item roles
The role indicates to the model which type of data is being referred to. Views can display the roles in different ways, so it is important to supply appropriate information for each role.
The Creating New Models section covers some specific uses of roles in more detail.
Most common uses for item data are covered by the standard roles defined in Qt::ItemDataRole. By supplying appropriate item data for each role, models can provide hints to views and delegates about how items should be presented to the user. Different kinds of views have the freedom to interpret or ignore this information as required. It is also possible to define additional roles for application-specific purposes.
Summary
· Model indexes give views and delegates information about the location of items provided by models in a way that is independent of any underlying data structures.
· Items are referred to by their row and column numbers, and by the model index of their parent items.
· Model indexes are constructed by models at the request of other components, such as views and delegates.
· If a valid model index is specified for the parent item when an index is requested using index(), the index returned refers to an item beneath that parent item in the model. The index obtained refers to a child of that item.
· If an invalid model index is specified for the parent item when an index is requested using index(), the index returned refers to a top-level item in the model.
· The role distinguishes between the different kinds of data associated with an item.
Using model indexes
To demonstrate how data can be retrieved from a model, using model indexes, we set up aQFileSystemModel without a view and display the names of files and directories in a widget. Although this does not show a normal way of using a model, it demonstrates the conventions used by models when dealing with model indexes.
We construct a file system model in the following way:
QFileSystemModel *model = new QFileSystemModel;
QModelIndex parentIndex = model->index(QDir::currentPath());
int numRows = model->rowCount(parentIndex);
In this case, we set up a default QFileSystemModel, obtain a parent index using a specific implementation of index() provided by that model, and we count the number of rows in the model using the rowCount() function.
For simplicity, we are only interested in the items in the first column of the model. We examine each row in turn, obtaining a model index for the first item in each row, and read the data stored for that item in the model.
for (int row = 0; row < numRows; ++row) {
QModelIndex index = model->index(row, 0, parentIndex);
To obtain a model index, we specify the row number, column number (zero for the first column), and the appropriate model index for the parent of all the items that we want. The text stored in each item is retrieved using the model's data() function. We specify the model index and the DisplayRole to obtain data for the item in the form of a string.
QString text = model->data(index,Qt::DisplayRole).toString();
// Display the text in a widget.
}
The above example demonstrates the basic principles used to retrieve data from a model:
· The dimensions of a model can be found using rowCount() and columnCount(). These functions generally require a parent model index to be specified.
· Model indexes are used to access items in the model. The row, column, and parent model index are needed to specify the item.
· To access top-level items in a model, specify a null model index as the parent index with QModelIndex().
· Items contain data for different roles. To obtain the data for a particular role, both the model index and the role must be supplied to the model.
Further reading
New models can be created by implementing the standard interface provided byQAbstractItemModel. In the Creating New Models section, we demonstrate this by creating a convenient ready-to-use model for holding lists of strings.
View classes
Concepts
In the model/view architecture, the view obtains items of data from the model and presents them to the user. The way that the data is presented need not resemble the representation of the data provided by the model, and may be completely different from the underlying data structure used to store items of data.
The separation of content and presentation is achieved by the use of a standard model interface provided by QAbstractItemModel, a standard view interface provided by QAbstractItemView, and the use of model indexes that represent items of data in a general way. Views typically manage the overall layout of the data obtained from models. They may render individual items of data themselves, or use delegates to handle both rendering and editing features.
As well as presenting data, views handle navigation between items, and some aspects of item selection. The views also implement basic user interface features, such as context menus and drag and drop. A view can provide default editing facilities for items, or it may work with a delegate to provide a custom editor.
A view can be constructed without a model, but a model must be provided before it can display useful information. Views keep track of the items that the user has selected through the use of selectionswhich can be maintained separately for each view, or shared between multiple views.
Some views, such as QTableView and QTreeView, display headers as well as items. These are also implemented by a view class, QHeaderView. Headers usually access the same model as the view that contains them. They retrieve data from the model using the QAbstractItemModel::headerData() function, and usually display header information in the form of a label. New headers can be subclassed from the QHeaderView class to provide more specialized labels for views.
Using an existing view
Qt provides three ready-to-use view classes that present data from models in ways that are familiar to most users. QListView can display items from a model as a simple list, or in the form of a classic icon view. QTreeView displays items from a model as a hierarchy of lists, allowing deeply nested structures to be represented in a compact way. QTableView presents items from a model in the form of a table, much like the layout of a spreadsheet application.
The default behavior of the standard views shown above should be sufficient for most applications. They provide basic editing facilities, and can be customized to suit the needs of more specialized user interfaces.
Using a model
We take the string list model that we created as an example model, set it up with some data, and construct a view to display the contents of the model. This can all be performed within a single function:
int main(int argc,char *argv[]){
QApplication app(argc, argv);
// Unindented for quoting purposes:QStringList numbers;
numbers <<"One" <<"Two" <<"Three" <<"Four" <<"Five";
QAbstractItemModel *model =new StringListModel(numbers);
Note that the StringListModel is declared as a QAbstractItemModel. This allows us to use the abstract interface to the model, and ensures that the code still works, even if we replace the string list model with a different model.
The list view provided by QListView is sufficient for presenting the items in the string list model. We construct the view, and set up the model using the following lines of code:
QListView *view =new QListView;
view->setModel(model);
The view is shown in the normal way:
view->show();
return app.exec();}
The view renders the contents of a model, accessing data via the model's interface. When the user tries to edit an item, the view uses a default delegate to provide an editor widget.
The above image shows how a QListView represents the data in the string list model. Since the model is editable, the view automatically allows each item in the list to be edited using the default delegate.
Using multiple views of a model
Providing multiple views onto the same model is simply a matter of setting the same model for each view. In the following code we create two table views, each using the same simple table model which we have created for this example:
QTableView *firstTableView = new QTableView;
QTableView *secondTableView = new QTableView;
firstTableView->setModel(model);
secondTableView->setModel(model);
The use of signals and slots in the model/view architecture means that changes to the model can be propagated to all the attached views, ensuring that we can always access the same data regardless of the view being used.
The above image shows two different views onto the same model, each containing a number of selected items. Although the data from the model is shown consistently across view, each view maintains its own internal selection model. This can be useful in certain situations but, for many applications, a shared selection model is desirable.
Handling selections of items
The mechanism for handling selections of items within views is provided by the QItemSelectionModelclass. All of the standard views construct their own selection models by default, and interact with them in the normal way. The selection model being used by a view can be obtained through theselectionModel() function, and a replacement selection model can be specified withsetSelectionModel(). The ability to control the selection model used by a view is useful when we want to provide multiple consistent views onto the same model data.
Generally, unless you are subclassing a model or view, you don't need to manipulate the contents of selections directly. However, the interface to the selection model can be accessed, if required, and this is explored in Handling Selections in Item Views.
Sharing selections among views
Although it is convenient that the view classes provide their own selection models by default, when we use more than one view onto the same model it is often desirable that both the model's data and the user's selection are shown consistently in all views. Since the view classes allow their internal selection models to be replaced, we can achieve a unified selection between views with the following line:
secondTableView->setSelectionModel(firstTableView->selectionModel());
The second view is given the selection model for the first view. Both views now operate on the same selection model, keeping both the data and the selected items synchronized.
In the example shown above, two views of the same type were used to display the same model's data. However, if two different types of view were used, the selected items may be represented very differently in each view; for example, a contiguous selection in a table view can be represented as a fragmented set of highlighted items in a tree view.
Delegate classes
Concepts
Unlike the Model-View-Controller pattern, the model/view design does not include a completely separate component for managing interaction with the user. Generally, the view is responsible for the presentation of model data to the user, and for processing user input. To allow some flexibility in the way this input is obtained, the interaction is performed by delegates. These components provide input capabilities and are also responsible for rendering individual items in some views. The standard interface for controlling delegates is defined in the QAbstractItemDelegate class.
Delegates are expected to be able to render their contents themselves by implementing the paint()and sizeHint() functions. However, simple widget-based delegates can subclass QItemDelegateinstead of QAbstractItemDelegate, and take advantage of the default implementations of these functions.
Editors for delegates can be implemented either by using widgets to manage the editing process or by handling events directly. The first approach is covered later in this section, and it is also shown in the Spin Box Delegate example.
The Pixelator example shows how to create a custom delegate that performs specialized rendering for a table view.
Using an existing delegate
The standard views provided with Qt use instances of QItemDelegate to provide editing facilities. This default implementation of the delegate interface renders items in the usual style for each of the standard views: QListView, QTableView, and QTreeView.
All the standard roles are handled by the default delegate used by the standard views. The way these are interpreted is described in the QItemDelegate documentation.
The delegate used by a view is returned by the itemDelegate() function. The setItemDelegate()function allows you to install a custom delegate for a standard view, and it is necessary to use this function when setting the delegate for a custom view.
A simple delegate
The delegate implemented here uses a QSpinBox to provide editing facilities, and is mainly intended for use with models that display integers. Although we set up a custom integer-based table model for this purpose, we could easily have used QStandardItemModel instead, since the custom delegate controls data entry. We construct a table view to display the contents of the model, and this will use the custom delegate for editing.
We subclass the delegate from QItemDelegate because we do not want to write custom display functions. However, we must still provide functions to manage the editor widget:
class SpinBoxDelegate : publicQItemDelegate
{
Q_OBJECT
public:
SpinBoxDelegate(QObject *parent = 0);
QWidget *createEditor(QWidget *parent, const QStyleOptionViewItem &option,
constQModelIndex &index) const;
void setEditorData(QWidget *editor, const QModelIndex &index) const;
void setModelData(QWidget *editor,QAbstractItemModel *model,
constQModelIndex &index) const;
void updateEditorGeometry(QWidget *editor,
constQStyleOptionViewItem &option, constQModelIndex &index) const;
};
Note that no editor widgets are set up when the delegate is constructed. We only construct an editor widget when it is needed.
Providing an editor
In this example, when the table view needs to provide an editor, it asks the delegate to provide an editor widget that is appropriate for the item being modified. The createEditor() function is supplied with everything that the delegate needs to be able to set up a suitable widget:
QWidget *SpinBoxDelegate::createEditor(QWidget *parent,
const QStyleOptionViewItem &/* option */,
const QModelIndex &/* index */) const{
QSpinBox *editor =new QSpinBox(parent);
editor->setMinimum(0);
editor->setMaximum(100);
return editor;}
Note that we do not need to keep a pointer to the editor widget because the view takes responsibility for destroying it when it is no longer needed.
We install the delegate's default event filter on the editor to ensure that it provides the standard editing shortcuts that users expect. Additional shortcuts can be added to the editor to allow more sophisticated behavior; these are discussed in the section on Editing Hints.
The view ensures that the editor's data and geometry are set correctly by calling functions that we define later for these purposes. We can create different editors depending on the model index supplied by the view. For example, if we have a column of integers and a column of strings we could return either a QSpinBox or a QLineEdit, depending on which column is being edited.
The delegate must provide a function to copy model data into the editor. In this example, we read the data stored in the display role, and set the value in the spin box accordingly.
void SpinBoxDelegate::setEditorData(QWidget *editor,
const QModelIndex &index)const{
int value = index.model()->data(index,Qt::EditRole).toInt();
QSpinBox *spinBox =static_cast<QSpinBox*>(editor);
spinBox->setValue(value);}
In this example, we know that the editor widget is a spin box, but we could have provided different editors for different types of data in the model, in which case we would need to cast the widget to the appropriate type before accessing its member functions.
Submitting data to the model
When the user has finished editing the value in the spin box, the view asks the delegate to store the edited value in the model by calling the setModelData() function.
void SpinBoxDelegate::setModelData(QWidget *editor,QAbstractItemModel *model,
const QModelIndex &index)const{
QSpinBox *spinBox =static_cast<QSpinBox*>(editor);
spinBox->interpretText();
int value = spinBox->value();
model->setData(index, value,Qt::EditRole);}
Since the view manages the editor widgets for the delegate, we only need to update the model with the contents of the editor supplied. In this case, we ensure that the spin box is up-to-date, and update the model with the value it contains using the index specified.
The standard QItemDelegate class informs the view when it has finished editing by emitting thecloseEditor() signal. The view ensures that the editor widget is closed and destroyed. In this example, we only provide simple editing facilities, so we need never emit this signal.
All the operations on data are performed through the interface provided by QAbstractItemModel. This makes the delegate mostly independent from the type of data it manipulates, but some assumptions must be made in order to use certain types of editor widgets. In this example, we have assumed that the model always contains integer values, but we can still use this delegate with different kinds of models because QVariant provides sensible default values for unexpected data.
Updating the editor's geometry
It is the responsibility of the delegate to manage the editor's geometry. The geometry must be set when the editor is created, and when the item's size or position in the view is changed. Fortunately, the view provides all the necessary geometry information inside a view option object.
void SpinBoxDelegate::updateEditorGeometry(QWidget *editor,
const QStyleOptionViewItem &option,const QModelIndex &/* index */) const{
editor->setGeometry(option.rect);}
In this case, we just use the geometry information provided by the view option in the item rectangle. A delegate that renders items with several elements would not use the item rectangle directly. It would position the editor in relation to the other elements in the item.
Editing hints
After editing, delegates should provide hints to the other components about the result of the editing process, and provide hints that will assist any subsequent editing operations. This is achieved by emitting the closeEditor() signal with a suitable hint. This is taken care of by the defaultQItemDelegate event filter which we installed on the spin box when it was constructed.
The behavior of the spin box could be adjusted to make it more user friendly. In the default event filter supplied by QItemDelegate, if the user hits Return to confirm their choice in the spin box, the delegate commits the value to the model and closes the spin box. We can change this behavior by installing our own event filter on the spin box, and provide editing hints that suit our needs; for example, we might emit closeEditor() with the EditNextItem hint to automatically start editing the next item in the view.
Another approach that does not require the use of an event filter is to provide our own editor widget, perhaps subclassing QSpinBox for convenience. This alternative approach would give us more control over how the editor widget behaves at the cost of writing additional code. It is usually easier to install an event filter in the delegate if you need to customize the behavior of a standard Qt editor widget.
Delegates do not have to emit these hints, but those that do not will be less integrated into applications, and will be less usable than those that emit hints to support common editing actions.
Handling selections in item views
Concepts
The selection model used in the item view classes offers many improvements over the selection model used in Qt 3. It provides a more general description of selections based on the facilities of the model/view architecture. Although the standard classes for manipulating selections are sufficient for the item views provided, the selection model allows you to create specialized selection models to suit the requirements for your own item models and views.
Information about the items selected in a view is stored in an instance of the QItemSelectionModelclass. This maintains model indexes for items in a single model, and is independent of any views. Since there can be many views onto a model, it is possible to share selections between views, allowing applications to show multiple views in a consistent way.
Selections are made up of selection ranges. These efficiently maintain information about large selections of items by recording only the starting and ending model indexes for each range of selected items. Non-contiguous selections of items are constructed by using more than one selection range to describe the selection.
Selections are applied to a collection of model indexes held by a selection model. The most recent selection of items applied is known as the current selection. The effects of this selection can be modified even after its application through the use of certain types of selection commands. These are discussed later in this section.
Current item and selected items
In a view, there is always a current item and a selected item - two independent states. An item can be the current item and selected at the same time. The view is responsible for ensuring that there is always a current item as keyboard navigation, for example, requires a current item.
The table below highlights the differences between current item and selected items.
| Current Item | Selected Items |
| There can only be one current item. | There can be multiple selected items. |
| The current item will be changed with key navigation or mouse button clicks. | The selected state of items is set or unset, depending on several pre-defined modes - e.g., single selection, multiple selection, etc. - when the user interacts with the items. |
| The current item will be edited if the edit key, F2, is pressed or the item is double-clicked (provided that editing is enabled). | The current item can be used together with an anchor to specify a range that should be selected or deselected (or a combination of the two). |
| The current item is indicated by the focus rectangle. | The selected items are indicated with the selection rectangle. |
When manipulating selections, it is often helpful to think of QItemSelectionModel as a record of the selection state of all the items in an item model. Once a selection model is set up, collections of items can be selected, deselected, or their selection states can be toggled without the need to know which items are already selected. The indexes of all selected items can be retrieved at any time, and other components can be informed of changes to the selection model via the signals and slots mechanism.
Using a selection model
The standard view classes provide default selection models that can be used in most applications. A selection model belonging to one view can be obtained using the view's selectionModel() function, and shared between many views with setSelectionModel(), so the construction of new selection models is generally not required.
A selection is created by specifying a model, and a pair of model indexes to a QItemSelection. This uses the indexes to refer to items in the given model, and interprets them as the top-left and bottom-right items in a block of selected items. To apply the selection to items in a model requires the selection to be submitted to a selection model; this can be achieved in a number of ways, each having a different effect on the selections already present in the selection model.
Selecting items
To demonstrate some of the principal features of selections, we construct an instance of a custom table model with 32 items in total, and open a table view onto its data:
TableModel *model =new TableModel(8,4, &app);
QTableView *table =new QTableView(0);
table->setModel(model);
QItemSelectionModel *selectionModel = table->selectionModel();
The table view's default selection model is retrieved for later use. We do not modify any items in the model, but instead select a few items that the view will display at the top-left of the table. To do this, we need to retrieve the model indexes corresponding to the top-left and bottom-right items in the region to be selected:
QModelIndex topLeft;
QModelIndex bottomRight;
topLeft = model->index(0,0,QModelIndex());
bottomRight = model->index(5,2,QModelIndex());
To select these items in the model, and see the corresponding change in the table view, we need to construct a selection object then apply it to the selection model:
QItemSelection selection(topLeft, bottomRight);
selectionModel->select(selection,QItemSelectionModel::Select);
The selection is applied to the selection model using a command defined by a combination ofselection flags. In this case, the flags used cause the items recorded in the selection object to be included in the selection model, regardless of their previous state. The resulting selection is shown by the view.
The selection of items can be modified using various operations that are defined by the selection flags. The selection that results from these operations may have a complex structure, but it is represented efficiently by the selection model. The use of different selection flags to manipulate the selected items is described when we examine how to update a selection.
Reading the selection state
The model indexes stored in the selection model can be read using the selectedIndexes() function. This returns an unsorted list of model indexes that we can iterate over as long as we know which model they are for:
QModelIndexList indexes = selectionModel->selectedIndexes();
QModelIndex index;
foreach(index, indexes) {
QString text =QString("(%1,%2)").arg(index.row()).arg(index.column());
model->setData(index, text);
}
The above code uses Qt's convenient foreach keyword to iterate over, and modify, the items corresponding to the indexes returned by the selection model.
The selection model emits signals to indicate changes in the selection. These notify other components about changes to both the selection as a whole and the currently focused item in the item model. We can connect the selectionChanged() signal to a slot, and examine the items in the model that are selected or deselected when the selection changes. The slot is called with twoQItemSelection objects: one contains a list of indexes that correspond to newly selected items; the other contains indexes that correspond to newly deselected items.
In the following code, we provide a slot that receives the selectionChanged() signal, fills in the selected items with a string, and clears the contents of the deselected items.
void MainWindow::updateSelection(const QItemSelection &selected,
const QItemSelection &deselected){
QModelIndex index;
QModelIndexList items = selected.indexes();
foreach (index, items) {
QString text =QString("(%1,%2)").arg(index.row()).arg(index.column());
model->setData(index, text);
}
items = deselected.indexes();
foreach (index, items)
model->setData(index,"");}
We can keep track of the currently focused item by connecting the currentChanged() signal to a slot that is called with two model indexes. These correspond to the previously focused item, and the currently focused item.
In the following code, we provide a slot that receives the currentChanged() signal, and uses the information provided to update the status bar of a QMainWindow:
void MainWindow::changeCurrent(const QModelIndex ¤t,
const QModelIndex &previous){
statusBar()->showMessage(
tr("Moved from (%1,%2) to (%3,%4)")
.arg(previous.row()).arg(previous.column())
.arg(current.row()).arg(current.column()));}
Monitoring selections made by the user is straightforward with these signals, but we can also update the selection model directly.
Updating a selection
Selection commands are provided by a combination of selection flags, defined byQItemSelectionModel::SelectionFlag. Each selection flag tells the selection model how to update its internal record of selected items when either of the select() functions are called. The most commonly used flag is the Select flag which instructs the selection model to record the specified items as being selected. The Toggle flag causes the selection model to invert the state of the specified items, selecting any deselected items given, and deselecting any currently selected items. The Deselect flag deselects all the specified items.
Individual items in the selection model are updated by creating a selection of items, and applying them to the selection model. In the following code, we apply a second selection of items to the table model shown above, using the Toggle command to invert the selection state of the items given.
QItemSelection toggleSelection;
topLeft = model->index(2,1,QModelIndex());
bottomRight = model->index(7,3,QModelIndex());
toggleSelection.select(topLeft, bottomRight);
selectionModel->select(toggleSelection,QItemSelectionModel::Toggle);
The results of this operation are displayed in the table view, providing a convenient way of visualizing what we have achieved:
By default, the selection commands only operate on the individual items specified by the model indexes. However, the flag used to describe the selection command can be combined with additional flags to change entire rows and columns. For example if you call select() with only one index, but with a command that is a combination of Select and Rows, the entire row containing the item referred to is selected. The following code demonstrates the use of the Rows and Columns flags:
QItemSelection columnSelection;
topLeft = model->index(0,1,QModelIndex());
bottomRight = model->index(0,2,QModelIndex());
columnSelection.select(topLeft, bottomRight);
selectionModel->select(columnSelection,
QItemSelectionModel::Select |QItemSelectionModel::Columns);
QItemSelection rowSelection;
topLeft = model->index(0,0,QModelIndex());
bottomRight = model->index(1,0,QModelIndex());
rowSelection.select(topLeft, bottomRight);
selectionModel->select(rowSelection,
QItemSelectionModel::Select |QItemSelectionModel::Rows);
Although only four indexes are supplied to the selection model, the use of the Columns and Rowsselection flags means that two columns and two rows are selected. The following image shows the result of these two selections:
The commands performed on the example model have all involved accumulating a selection of items in the model. It is also possible to clear the selection, or to replace the current selection with a new one.
To replace the current selection with a new selection, combine the other selection flags with theCurrent flag. A command using this flag instructs the selection model to replace its current collection of model indexes with those specified in a call to select(). To clear all selections before you start adding new ones, combine the other selection flags with the Clear flag. This has the effect of resetting the selection model's collection of model indexes.
Selecting all items in a model
To select all items in a model, it is necessary to create a selection for each level of the model that covers all items in that level. We do this by retrieving the indexes corresponding to the top-left and bottom-right items with a given parent index:
QModelIndex topLeft = model->index(0,0, parent);
QModelIndex bottomRight = model->index(model->rowCount(parent)-1,
model->columnCount(parent)-1, parent);
A selection is constructed with these indexes and the model. The corresponding items are then selected in the selection model:
QItemSelection selection(topLeft, bottomRight);
selectionModel->select(selection,QItemSelectionModel::Select);
This needs to be performed for all levels in the model. For top-level items, we would define the parent index in the usual way:
QModelIndex parent =QModelIndex();
For hierarchical models, the hasChildren() function is used to determine whether any given item is the parent of another level of items.
Creating new models
The separation of functionality between the model/view components allows models to be created that can take advantage of existing views. This approach lets us present data from a variety of sources using standard graphical user interface components, such as QListView, QTableView, andQTreeView.
The QAbstractItemModel class provides an interface that is flexible enough to support data sources that arrange information in hierarchical structures, allowing for the possibility that data will be inserted, removed, modified, or sorted in some way. It also provides support for drag and drop operations.
The QAbstractListModel and QAbstractTableModel classes provide support for interfaces to simpler non-hierarchical data structures, and are easier to use as a starting point for simple list and table models.
In this section, we create a simple read-only model to explore the basic principles of the model/view architecture. Later in this section, we adapt this simple model so that items can be modified by the user.
For an example of a more complex model, see the Simple Tree Model example.
The requirements of QAbstractItemModel subclasses is described in more detail in the Model Subclassing Reference document.
Designing a model
When creating a new model for an existing data structure, it is important to consider which type of model should be used to provide an interface onto the data. If the data structure can be represented as a list or table of items, you can subclass QAbstractListModel or QAbstractTableModel since these classes provide suitable default implementations for many functions.
However, if the underlying data structure can only be represented by a hierarchical tree structure, it is necessary to subclass QAbstractItemModel. This approach is taken in the Simple Tree Modelexample.
In this section, we implement a simple model based on a list of strings, so the QAbstractListModelprovides an ideal base class on which to build.
Whatever form the underlying data structure takes, it is usually a good idea to supplement the standard QAbstractItemModel API in specialized models with one that allows more natural access to the underlying data structure. This makes it easier to populate the model with data, yet still enables other general model/view components to interact with it using the standard API. The model described below provides a custom constructor for just this purpose.
A read-only example model
The model implemented here is a simple, non-hierarchical, read-only data model based on the standard QStringListModel class. It has a QStringList as its internal data source, and implements only what is needed to make a functioning model. To make the implementation easier, we subclassQAbstractListModel because it defines sensible default behavior for list models, and it exposes a simpler interface than the QAbstractItemModel class.
When implementing a model it is important to remember that QAbstractItemModel does not store any data itself, it merely presents an interface that the views use to access the data. For a minimal read-only model it is only necessary to implement a few functions as there are default implementations for most of the interface. The class declaration is as follows:
class StringListModel :public QAbstractListModel{
Q_OBJECT
public:
StringListModel(const QStringList &strings,QObject *parent =0)
:QAbstractListModel(parent), stringList(strings) {}
int rowCount(const QModelIndex &parent = QModelIndex())const;
QVariant data(const QModelIndex &index,int role)const;
QVariant headerData(int section,Qt::Orientation orientation,
int role =Qt::DisplayRole)const;
private:
QStringList stringList;};
Apart from the model's constructor, we only need to implement two functions: rowCount() returns the number of rows in the model and data() returns an item of data corresponding to a specified model index.
Well behaved models also implement headerData() to give tree and table views something to display in their headers.
Note that this is a non-hierarchical model, so we don't have to worry about the parent-child relationships. If our model was hierarchical, we would also have to implement the index() and parent()functions.
The list of strings is stored internally in the stringList private member variable.
Dimensions of the model
We want the number of rows in the model to be the same as the number of strings in the string list. We implement the rowCount() function with this in mind:
int StringListModel::rowCount(const QModelIndex &parent)const{
return stringList.count();}
Since the model is non-hierarchical, we can safely ignore the model index corresponding to the parent item. By default, models derived from QAbstractListModel only contain one column, so we do not need to reimplement the columnCount() function.
Model headers and data
For items in the view, we want to return the strings in the string list. The data() function is responsible for returning the item of data that corresponds to the index argument:
QVariant StringListModel::data(const QModelIndex &index,int role)const{
if (!index.isValid())
return QVariant();
if (index.row() >= stringList.size())
return QVariant();
if (role ==Qt::DisplayRole)
return stringList.at(index.row());
else
return QVariant();}
We only return a valid QVariant if the model index supplied is valid, the row number is within the range of items in the string list, and the requested role is one that we support.
Some views, such as QTreeView and QTableView, are able to display headers along with the item data. If our model is displayed in a view with headers, we want the headers to show the row and column numbers. We can provide information about the headers by subclassing the headerData()function:
QVariant StringListModel::headerData(int section,Qt::Orientation orientation,
int role)const{
if (role !=Qt::DisplayRole)
return QVariant();
if (orientation ==Qt::Horizontal)
return QString("Column %1").arg(section);
else
return QString("Row %1").arg(section);}
Again, we return a valid QVariant only if the role is one that we support. The orientation of the header is also taken into account when deciding the exact data to return.
Not all views display headers with the item data, and those that do may be configured to hide them. Nonetheless, it is recommended that you implement the headerData() function to provide relevant information about the data provided by the model.
An item can have several roles, giving out different data depending on the role specified. The items in our model only have one role, DisplayRole, so we return the data for items irrespective of the role specified. However, we could reuse the data we provide for the DisplayRole in other roles, such as theToolTipRole that views can use to display information about items in a tooltip.
An editable model
The read-only model shows how simple choices could be presented to the user but, for many applications, an editable list model is much more useful. We can modify the read-only model to make the items editable by changing the data() function we implemented for read-only, and by implementing two extra functions: flags() and setData(). The following function declarations are added to the class definition:
Qt::ItemFlags flags(const QModelIndex &index)const;
bool setData(const QModelIndex &index,const QVariant &value,
int role =Qt::EditRole);
Making the model editable
A delegate checks whether an item is editable before creating an editor. The model must let the delegate know that its items are editable. We do this by returning the correct flags for each item in the model; in this case, we enable all items and make them both selectable and editable:
Qt::ItemFlags StringListModel::flags(const QModelIndex &index)const{
if (!index.isValid())
return Qt::ItemIsEnabled;
return QAbstractItemModel::flags(index) | Qt::ItemIsEditable;}
Note that we do not have to know how the delegate performs the actual editing process. We only have to provide a way for the delegate to set the data in the model. This is achieved through thesetData() function:
bool StringListModel::setData(const QModelIndex &index,
const QVariant &value,int role){
if (index.isValid() && role ==Qt::EditRole) {
stringList.replace(index.row(), value.toString());
emit dataChanged(index, index);
return true;
}
return false;}
In this model, the item in the string list that corresponds to the model index is replaced by the value provided. However, before we can modify the string list, we must make sure that the index is valid, the item is of the correct type, and that the role is supported. By convention, we insist that the role is the EditRole since this is the role used by the standard item delegate. For boolean values, however, you can use Qt::CheckStateRole and set the Qt::ItemIsUserCheckable flag; a checkbox is then used for editing the value. The underlying data in this model is the same for all roles, so this detail just makes it easier to integrate the model with standard components.
When the data has been set, the model must let the views know that some data has changed. This is done by emitting the dataChanged() signal. Since only one item of data has changed, the range of items specified in the signal is limited to just one model index.
Also the data() function needs to be changed to add the Qt::EditRole test:
QVariant StringListModel::data(const QModelIndex &index,int role)const{
if (!index.isValid())
return QVariant();
if (index.row() >= stringList.size())
return QVariant();
if (role ==Qt::DisplayRole || role == Qt::EditRole)
return stringList.at(index.row());
else
return QVariant();}
Inserting and removing rows
It is possible to change the number of rows and columns in a model. In the string list model it only makes sense to change the number of rows, so we only reimplement the functions for inserting and removing rows. These are declared in the class definition:
bool insertRows(int position,int rows,const QModelIndex &index = QModelIndex());
bool removeRows(int position,int rows,const QModelIndex &index = QModelIndex());
Since rows in this model correspond to strings in a list, the insertRows() function inserts a number of empty strings into the string list before the specified position. The number of strings inserted is equivalent to the number of rows specified.
The parent index is normally used to determine where in the model the rows should be added. In this case, we only have a single top-level list of strings, so we just insert empty strings into that list.
bool StringListModel::insertRows(int position,int rows,const QModelIndex &parent){
beginInsertRows(QModelIndex(), position, position+rows-1);
for (int row = 0; row < rows; ++row) {
stringList.insert(position,"");
}
endInsertRows();
return true;}
The model first calls the beginInsertRows() function to inform other components that the number of rows is about to change. The function specifies the row numbers of the first and last new rows to be inserted, and the model index for their parent item. After changing the string list, it callsendInsertRows() to complete the operation and inform other components that the dimensions of the model have changed, returning true to indicate success.
The function to remove rows from the model is also simple to write. The rows to be removed from the model are specified by the position and the number of rows given. We ignore the parent index to simplify our implementation, and just remove the corresponding items from the string list.
bool StringListModel::removeRows(int position,int rows,const QModelIndex &parent){
beginRemoveRows(QModelIndex(), position, position+rows-1);
for (int row = 0; row < rows; ++row) {
stringList.removeAt(position);
}
endRemoveRows();
return true;}
The beginRemoveRows() function is always called before any underlying data is removed, and specifies the first and last rows to be removed. This allows other components to access the data before it becomes unavailable. After the rows have been removed, the model emitsendRemoveRows() to finish the operation and let other components know that the dimensions of the model have changed.
Next steps
We can display the data provided by this model, or any other model, using the QListView class to present the model's items in the form of a vertical list. For the string list model, this view also provides a default editor so that the items can be manipulated. We examine the possibilities made available by the standard view classes in View Classes.
The Model Subclassing Reference document discusses the requirements of QAbstractItemModelsubclasses in more detail, and provides a guide to the virtual functions that must be implemented to enable various features in different types of models.
Item view convenience classes
Qt 4 also introduced some standard widgets to provide classic item-based container widgets. These behave in a similar way to the item view classes in Qt 3, but have been rewritten to use the underlying model/view framework for performance and maintainability. The old item view classes are still available in the compatibility library (see the Porting Guide for more information).
The item-based widgets have been given names which reflect their uses: QListWidget provides a list of items, QTreeWidget displays a multi-level tree structure, and QTableWidget provides a table of cell items. Each class inherits the behavior of the QAbstractItemView class which implements common behavior for item selection and header management.
List widgets
Single level lists of items are typically displayed using a QListWidget and a number ofQListWidgetItems. A list widget is constructed in the same way as any other widget:
QListWidget *listWidget =new QListWidget(this);
List items can be added directly to the list widget when they are constructed:
new QListWidgetItem(tr("Sycamore"), listWidget);
new QListWidgetItem(tr("Chestnut"), listWidget);
new QListWidgetItem(tr("Mahogany"), listWidget);
They can also be constructed without a parent list widget and added to a list at some later time:
QListWidgetItem *newItem = new QListWidgetItem;
newItem->setText(itemText);
listWidget->insertItem(row, newItem);
Each item in a list can display a text label and an icon. The colors and font used to render the text can be changed to provide a customized appearance for items. Tooltips, status tips, and "What's This?" help are all easily configured to ensure that the list is properly integrated into the application.
newItem->setToolTip(toolTipText);
newItem->setStatusTip(toolTipText);
newItem->setWhatsThis(whatsThisText);
By default, items in a list are presented in the order of their creation. Lists of items can be sorted according to the criteria given in Qt::SortOrder to produce a list of items that is sorted in forward or reverse alphabetical order:
listWidget->sortItems(Qt::AscendingOrder);
listWidget->sortItems(Qt::DescendingOrder);
Tree widgets
Trees or hierarchical lists of items are provided by the QTreeWidget and QTreeWidgetItemclasses. Each item in the tree widget can have child items of its own, and can display a number of columns of information. Tree widgets are created just like any other widget:
QTreeWidget *treeWidget =new QTreeWidget(this);
Before items can be added to the tree widget, the number of columns must be set. For example, we could define two columns, and create a header to provide labels at the top of each column:
treeWidget->setColumnCount(2);
QStringList headers;
headers << tr("Subject") << tr("Default");
treeWidget->setHeaderLabels(headers);
The easiest way to set up the labels for each section is to supply a string list. For more sophisticated headers, you can construct a tree item, decorate it as you wish, and use that as the tree widget's header.
Top-level items in the tree widget are constructed with the tree widget as their parent widget. They can be inserted in an arbitrary order, or you can ensure that they are listed in a particular order by specifying the previous item when constructing each item:
QTreeWidgetItem *cities = new QTreeWidgetItem(treeWidget);
cities->setText(0, tr("Cities"));
QTreeWidgetItem *osloItem = new QTreeWidgetItem(cities);
osloItem->setText(0, tr("Oslo"));
osloItem->setText(1, tr("Yes"));
QTreeWidgetItem *planets = new QTreeWidgetItem(treeWidget, cities);
Tree widgets deal with top-level items slightly differently to other items from deeper within the tree. Items can be removed from the top level of the tree by calling the tree widget's takeTopLevelItem()function, but items from lower levels are removed by calling their parent item's takeChild() function. Items are inserted in the top level of the tree with the insertTopLevelItem() function. At lower levels in the tree, the parent item's insertChild() function is used.
It is easy to move items around between the top level and lower levels in the tree. We just need to check whether the items are top-level items or not, and this information is supplied by each item'sparent() function. For example, we can remove the current item in the tree widget regardless of its location:
QTreeWidgetItem *parent = currentItem->parent();
int index;
if (parent) {
index = parent->indexOfChild(treeWidget->currentItem());
delete parent->takeChild(index);
} else {
index = treeWidget->indexOfTopLevelItem(treeWidget->currentItem());
delete treeWidget->takeTopLevelItem(index);
}
Inserting the item somewhere else in the tree widget follows the same pattern:
QTreeWidgetItem *parent = currentItem->parent();
QTreeWidgetItem *newItem;
if (parent)
newItem =new QTreeWidgetItem(parent, treeWidget->currentItem());
else
newItem =new QTreeWidgetItem(treeWidget, treeWidget->currentItem());
Table widgets
Tables of items similar to those found in spreadsheet applications are constructed with theQTableWidget and QTableWidgetItem. These provide a scrolling table widget with headers and items to use within it.
Tables can be created with a set number of rows and columns, or these can be added to an unsized table as they are needed.
QTableWidget *tableWidget;
tableWidget =new QTableWidget(12,3,this);
Items are constructed outside the table before being added to the table at the required location:
QTableWidgetItem *newItem = new QTableWidgetItem(tr("%1").arg(
pow(row, column+1)));
tableWidget->setItem(row, column, newItem);
Horizontal and vertical headers can be added to the table by constructing items outside the table and using them as headers:
QTableWidgetItem *valuesHeaderItem = new QTableWidgetItem(tr("Values"));
tableWidget->setHorizontalHeaderItem(0, valuesHeaderItem);
Note that the rows and columns in the table begin at zero.
Common features
There are a number of item-based features common to each of the convenience classes that are available through the same interfaces in each class. We present these in the following sections with some examples for different widgets. Look at the list of Model/View Classes for each of the widgets for more details about the use of each function used.
Hidden items
It is sometimes useful to be able to hide items in an item view widget rather than remove them. Items for all of the above widgets can be hidden and later shown again. You can determine whether an item is hidden by calling the isItemHidden() function, and items can be hidden withsetItemHidden().
Since this operation is item-based, the same function is available for all three convenience classes.
Selections
The way items are selected is controlled by the widget's selection mode (QAbstractItemView::SelectionMode). This property controls whether the user can select one or many items and, in many-item selections, whether the selection must be a continuous range of items. The selection mode works in the same way for all of the above widgets.
|
| Single item selections: Where the user needs to choose a single item from a widget, the defaultSingleSelection mode is most suitable. In this mode, the current item and the selected item are the same. |
|
| Multi-item selections: In this mode, the user can toggle the selection state of any item in the widget without changing the existing selection, much like the way non-exclusive checkboxes can be toggled independently. |
|
| Extended selections: Widgets that often require many adjacent items to be selected, such as those found in spreadsheets, require the ExtendedSelection mode. In this mode, continuous ranges of items in the widget can be selected with both the mouse and the keyboard. Complex selections, involving many items that are not adjacent to other selected items in the widget, can also be created if modifier keys are used. If the user selects an item without using a modifier key, the existing selection is cleared. |
The selected items in a widget are read using the selectedItems() function, providing a list of relevant items that can be iterated over. For example, we can find the sum of all the numeric values within a list of selected items with the following code:
QList<QTableWidgetItem *> selected = tableWidget->selectedItems();
QTableWidgetItem *item;
int number =0;
double total =0;
foreach (item, selected) {
bool ok;
double value = item->text().toDouble(&ok);
if (ok && !item->text().isEmpty()) {
total += value;
number++;
}
}
Note that for the single selection mode, the current item will be in the selection. In the multi-selection and extended selection modes, the current item may not lie within the selection, depending on the way the user formed the selection.
Searching
It is often useful to be able to find items within an item view widget, either as a developer or as a service to present to users. All three item view convenience classes provide a commonfindItems() function to make this as consistent and simple as possible.
Items are searched for by the text that they contain according to criteria specified by a selection of values from Qt::MatchFlags. We can obtain a list of matching items with the findItems() function:
QTreeWidgetItem *item;
QList<QTreeWidgetItem *> found = treeWidget->findItems(
itemText,Qt::MatchWildcard);
foreach (item, found) {
treeWidget->setItemSelected(item,true);
// Show the item->text(0) for each item.
}
The above code causes items in a tree widget to be selected if they contain the text given in the search string. This pattern can also be used in the list and table widgets.
Using Drag and Drop with Item Views
Qt's drag and drop infrastructure is fully supported by the model/view framework. Items in lists, tables, and trees can be dragged within the views, and data can be imported and exported as MIME-encoded data.
The standard views automatically support internal drag and drop, where items are moved around to change the order in which they are displayed. By default, drag and drop is not enabled for these views because they are configured for the simplest, most common uses. To allow items to be dragged around, certain properties of the view need to be enabled, and the items themselves must also allow dragging to occur.
The requirements for a model that only allows items to be exported from a view, and which does not allow data to be dropped into it, are fewer than those for a fully-enabled drag and drop model.
See also the Model Subclassing Reference for more information about enabling drag and drop support in new models.
Using convenience views
Each of the types of item used with QListWidget, QTableWidget, and QTreeWidget is configured to use a different set of flags by default. For example, each QListWidgetItem or QTreeWidgetItem is initially enabled, checkable, selectable, and can be used as the source of a drag and drop operation; each QTableWidgetItem can also be edited and used as the target of a drag and drop operation.
Although all of the standard items have one or both flags set for drag and drop, you generally need to set various properties in the view itself to take advantage of the built-in support for drag and drop:
· To enable item dragging, set the view's dragEnabled property to true.
· To allow the user to drop either internal or external items within the view, set the view's viewport()'s acceptDropsproperty to true.
· To show the user where the item currently being dragged will be placed if dropped, set the view'sshowDropIndicator property. This provides the user with continuously updating information about item placement within the view.
For example, we can enable drag and drop in a list widget with the following lines of code:
QListWidget *listWidget =new QListWidget(this);
listWidget->setSelectionMode(QAbstractItemView::SingleSelection);
listWidget->setDragEnabled(true);
listWidget->viewport()->setAcceptDrops(true);
listWidget->setDropIndicatorShown(true);
The result is a list widget which allows the items to be copied around within the view, and even lets the user drag items between views containing the same type of data. In both situations, the items are copied rather than moved.
To enable the user to move the items around within the view, we must set the list widget'sdragDropMode:
listWidget->setDragDropMode(QAbstractItemView::InternalMove);
Using model/view classes
Setting up a view for drag and drop follows the same pattern used with the convenience views. For example, a QListView can be set up in the same way as a QListWidget:
QListView *listView =new QListView(this);
listView->setSelectionMode(QAbstractItemView::ExtendedSelection);
listView->setDragEnabled(true);
listView->setAcceptDrops(true);
listView->setDropIndicatorShown(true);
Since access to the data displayed by the view is controlled by a model, the model used also has to provide support for drag and drop operations. The actions supported by a model can be specified by reimplementing the QAbstractItemModel::supportedDropActions() function. For example, copy and move operations are enabled with the following code:
Qt::DropActions DragDropListModel::supportedDropActions()const{
return Qt::CopyAction |Qt::MoveAction;}
Although any combination of values from Qt::DropActions can be given, the model needs to be written to support them. For example, to allow Qt::MoveAction to be used properly with a list model, the model must provide an implementation of QAbstractItemModel::removeRows(), either directly or by inheriting the implementation from its base class.
Enabling drag and drop for items
Models indicate to views which items can be dragged, and which will accept drops, by reimplementing the QAbstractItemModel::flags() function to provide suitable flags.
For example, a model which provides a simple list based on QAbstractListModel can enable drag and drop for each of the items by ensuring that the flags returned contain the Qt::ItemIsDragEnabled andQt::ItemIsDropEnabled values:
Qt::ItemFlags DragDropListModel::flags(const QModelIndex &index)const{
Qt::ItemFlags defaultFlags = QStringListModel::flags(index);
if (index.isValid())
return Qt::ItemIsDragEnabled |Qt::ItemIsDropEnabled | defaultFlags;
else
return Qt::ItemIsDropEnabled | defaultFlags;}
Note that items can be dropped into the top level of the model, but dragging is only enabled for valid items.
In the above code, since the model is derived from QStringListModel, we obtain a default set of flags by calling its implementation of the flags() function.
Encoding exported data
When items of data are exported from a model in a drag and drop operation, they are encoded into an appropriate format corresponding to one or more MIME types. Models declare the MIME types that they can use to supply items by reimplementing the QAbstractItemModel::mimeTypes() function, returning a list of standard MIME types.
For example, a model that only provides plain text would provide the following implementation:
QStringList DragDropListModel::mimeTypes()const{
QStringList types;
types <<"application/vnd.text.list";
return types;}
The model must also provide code to encode data in the advertised format. This is achieved by reimplementing the QAbstractItemModel::mimeData() function to provide a QMimeData object, just as in any other drag and drop operation.
The following code shows how each item of data, corresponding to a given list of indexes, is encoded as plain text and stored in a QMimeData object.
QMimeData *DragDropListModel::mimeData(const QModelIndexList &indexes)const{
QMimeData *mimeData =new QMimeData();
QByteArray encodedData;
QDataStream stream(&encodedData,QIODevice::WriteOnly);
foreach (const QModelIndex &index, indexes) {
if (index.isValid()) {
QString text = data(index,Qt::DisplayRole).toString();
stream << text;
}
}
mimeData->setData("application/vnd.text.list", encodedData);
return mimeData;}
Since a list of model indexes is supplied to the function, this approach is general enough to be used in both hierarchical and non-heirarchical models.
Note that custom datatypes must be declared as meta objects and that stream operators must be implemented for them. See the QMetaObject class description for details.
Inserting dropped data into a model
The way that any given model handles dropped data depends on both its type (list, table, or tree) and the way its contents is likely to be presented to the user. Generally, the approach taken to accommodate dropped data should be the one that most suits the model's underlying data store.
Different types of model tend to handle dropped data in different ways. List and table models only provide a flat structure in which items of data are stored. As a result, they may insert new rows (and columns) when data is dropped on an existing item in a view, or they may overwrite the item's contents in the model using some of the data supplied. Tree models are often able to add child items containing new data to their underlying data stores, and will therefore behave more predictably as far as the user is concerned.
Dropped data is handled by a model's reimplementation of QAbstractItemModel::dropMimeData(). For example, a model that handles a simple list of strings can provide an implementation that handles data dropped onto existing items separately to data dropped into the top level of the model (i.e., onto an invalid item).
The model first has to make sure that the operation should be acted on, the data supplied is in a format that can be used, and that its destination within the model is valid:
bool DragDropListModel::dropMimeData(const QMimeData *data,
Qt::DropAction action,int row,int column,const QModelIndex &parent){
if (action ==Qt::IgnoreAction)
return true;
if (!data->hasFormat("application/vnd.text.list"))
return false;
if (column >0)
return false;
A simple one column string list model can indicate failure if the data supplied is not plain text, or if the column number given for the drop is invalid.
The data to be inserted into the model is treated differently depending on whether it is dropped onto an existing item or not. In this simple example, we want to allow drops between existing items, before the first item in the list, and after the last item.
When a drop occurs, the model index corresponding to the parent item will either be valid, indicating that the drop occurred on an item, or it will be invalid, indicating that the drop occurred somewhere in the view that corresponds to top level of the model.
int beginRow;
if (row != -1)
beginRow = row;
We initially examine the row number supplied to see if we can use it to insert items into the model, regardless of whether the parent index is valid or not.
else if (parent.isValid())
beginRow = parent.row();
If the parent model index is valid, the drop occurred on an item. In this simple list model, we find out the row number of the item and use that value to insert dropped items into the top level of the model.
else
beginRow = rowCount(QModelIndex());
When a drop occurs elsewhere in the view, and the row number is unusable, we append items to the top level of the model.
In hierarchical models, when a drop occurs on an item, it would be better to insert new items into the model as children of that item. In the simple example shown here, the model only has one level, so this approach is not appropriate.
Decoding imported data
Each implementation of dropMimeData() must also decode the data and insert it into the model's underlying data structure.
For a simple string list model, the encoded items can be decoded and streamed into a QStringList:
QByteArray encodedData = data->data("application/vnd.text.list");
QDataStream stream(&encodedData,QIODevice::ReadOnly);
QStringList newItems;
int rows =0;
while (!stream.atEnd()) {
QString text;
stream >> text;
newItems << text;
++rows;
}
The strings can then be inserted into the underlying data store. For consistency, this can be done through the model's own interface:
insertRows(beginRow, rows,QModelIndex());
foreach (const QString &text, newItems) {
QModelIndex idx = index(beginRow,0,QModelIndex());
setData(idx, text);
beginRow++;
}
return true;}
Note that the model will typically need to provide implementations of theQAbstractItemModel::insertRows() and QAbstractItemModel::setData() functions.
Proxy models
In the model/view framework, items of data supplied by a single model can be shared by any number of views, and each of these can possibly represent the same information in completely different ways. Custom views and delegates are effective ways to provide radically different representations of the same data. However, applications often need to provide conventional views onto processed versions of the same data, such as differently-sorted views onto a list of items.
Although it seems appropriate to perform sorting and filtering operations as internal functions of views, this approach does not allow multiple views to share the results of such potentially costly operations. The alternative approach, involving sorting within the model itself, leads to the similar problem where each view has to display items of data that are organized according to the most recent processing operation.
To solve this problem, the model/view framework uses proxy models to manage the information supplied between individual models and views. Proxy models are components that behave like ordinary models from the perspective of a view, and access data from source models on behalf of that view. The signals and slots used by the model/view framework ensure that each view is updated appropriately no matter how many proxy models are placed between itself and the source model.
Using proxy models
Proxy models can be inserted between an existing model and any number of views. Qt is supplied with a standard proxy model, QSortFilterProxyModel, that is usually instantiated and used directly, but can also be subclassed to provide custom filtering and sorting behavior. TheQSortFilterProxyModel class can be used in the following way:
QSortFilterProxyModel *filterModel = new QSortFilterProxyModel(parent);
filterModel->setSourceModel(stringListModel);
QListView *filteredView =new QListView;
filteredView->setModel(filterModel);
Since proxy models are inherit from QAbstractItemModel, they can be connected to any kind of view, and can be shared between views. They can also be used to process the information obtained from other proxy models in a pipeline arrangement.
The QSortFilterProxyModel class is designed to be instantiated and used directly in applications. More specialized proxy models can be created by subclassing this classes and implementing the required comparison operations.
Customizing proxy models
Generally, the type of processing used in a proxy model involves mapping each item of data from its original location in the source model to either a different location in the proxy model. In some models, some items may have no corresponding location in the proxy model; these models are filtering proxy models. Views access items using model indexes provided by the proxy model, and these contain no information about the source model or the locations of the original items in that model.
QSortFilterProxyModel enables data from a source model to be filtered before being supplied to views, and also allows the contents of a source model to be supplied to views as pre-sorted data.
Custom filtering models
The QSortFilterProxyModel class provides a filtering model that is fairly versatile, and which can be used in a variety of common situations. For advanced users, QSortFilterProxyModel can be subclassed, providing a mechanism that enables custom filters to be implemented.
Subclasses of QSortFilterProxyModel can reimplement two virtual functions that are called whenever a model index from the proxy model is requested or used:
· filterAcceptsColumn() is used to filter specific columns from part of the source model.
· filterAcceptsRow() is used to filter specific rows from part of the source model.
The default implementations of the above functions in QSortFilterProxyModel return true to ensure that all items are passed through to views; reimplementations of these functions should return false to filter out individual rows and columns.
Custom sorting models
QSortFilterProxyModel instances use Qt's built-in qStableSort() function to set up mappings between items in the source model and those in the proxy model, allowing a sorted hierarchy of items to be exposed to views without modifying the structure of the source model. To provide custom sorting behavior, reimplement the lessThan() function to perform custom comparisons.
Custom data models
QIdentityProxyModel instances do not sort or filter the structure of the source model, but provide a base class for creating a data proxy. This could be useful on top of a QFileSystemModel for example to provide different colours for the BackgroundRole for different types of files.
Model subclassing reference
Model subclasses need to provide implementations of many of the virtual functions defined in theQAbstractItemModel base class. The number of these functions that need to be implemented depends on the type of model - whether it supplies views with a simple list, a table, or a complex hierarchy of items. Models that inherit from QAbstractListModel and QAbstractTableModel can take advantage of the default implementations of functions provided by those classes. Models that expose items of data in tree-like structures must provide implementations for many of the virtual functions in QAbstractItemModel.
The functions that need to be implemented in a model subclass can be divided into three groups:
· Item data handling: All models need to implement functions to enable views and delegates to query the dimensions of the model, examine items, and retrieve data.
· Navigation and index creation: Hierarchical models need to provide functions that views can call to navigate the tree-like structures they expose, and obtain model indexes for items.
· Drag and drop support and MIME type handling: Models inherit functions that control the way that internal and external drag and drop operations are performed. These functions allow items of data to be described in terms of MIME types that other components and applications can understand.
For more information, see the "Item View Classes" Chapter of C++ GUI Programming with Qt 4.
Item data handling
Models can provide varying levels of access to the data they provide: They can be simple read-only components, some models may support resizing operations, and others may allow items to be edited.
Read-Only access
To provide read-only access to data provided by a model, the following functions must be implemented in the model's subclass:
| Used by other components to obtain information about each item provided by the model. In many models, the combination of flags should include Qt::ItemIsEnabled andQt::ItemIsSelectable. | |
| Used to supply item data to views and delegates. Generally, models only need to supply data forQt::DisplayRole and any application-specific user roles, but it is also good practice to provide data for Qt::ToolTipRole, Qt::AccessibleTextRole, and Qt::AccessibleDescriptionRole. See theQt::ItemDataRole enum documentation for information about the types associated with each role. | |
| Provides views with information to show in their headers. The information is only retrieved by views that can display header information. | |
| Provides the number of rows of data exposed by the model. |
These four functions must be implemented in all types of model, including list models (QAbstractListModel subclasses) and table models (QAbstractTableModel subclasses).
Additionally, the following functions must be implemented in direct subclasses ofQAbstractTableModel and QAbstractItemModel:
| Provides the number of columns of data exposed by the model. List models do not provide this function because it is already implemented in QAbstractListModel. |
Editable items
Editable models allow items of data to be modified, and may also provide functions to allow rows and columns to be inserted and removed. To enable editing, the following functions must be implemented correctly:
| Must return an appropriate combination of flags for each item. In particular, the value returned by this function must include Qt::ItemIsEditable in addition to the values applied to items in a read-only model. | |
| Used to modify the item of data associated with a specified model index. To be able to accept user input, provided by user interface elements, this function must handle data associated with Qt::EditRole. The implementation may also accept data associated with many different kinds of roles specified by Qt::ItemDataRole. After changing the item of data, models must emit the dataChanged() signal to inform other components of the change. | |
| Used to modify horizontal and vertical header information. After changing the item of data, models must emit the headerDataChanged() signal to inform other components of the change. |
Resizable models
All types of model can support the insertion and removal of rows. Table models and hierarchical models can also support the insertion and removal of columns. It is important to notify other components about changes to the model's dimensions both before and after they occur. As a result, the following functions can be implemented to allow the model to be resized, but implementations must ensure that the appropriate functions are called to notify attached views and delegates:
| Used to add new rows and items of data to all types of model. Implementations must callbeginInsertRows() before inserting new rows into any underlying data structures, and callendInsertRows() immediately afterwards. | |
| Used to remove rows and the items of data they contain from all types of model. Implementations must call beginRemoveRows() before inserting new columns into any underlying data structures, and call endRemoveRows() immediately afterwards. | |
| Used to add new columns and items of data to table models and hierarchical models. Implementations must call beginInsertColumns() before rows are removed from any underlying data structures, and call endInsertColumns() immediately afterwards. | |
| Used to remove columns and the items of data they contain from table models and hierarchical models. Implementations must call beginRemoveColumns() before columns are removed from any underlying data structures, and call endRemoveColumns() immediately afterwards. |
Generally, these functions should return true if the operation was successful. However, there may be cases where the operation only partly succeeded; for example, if less than the specified number of rows could be inserted. In such cases, the model should return false to indicate failure to enable any attached components to handle the situation.
The signals emitted by the functions called in implementations of the resizing API give attached components the chance to take action before any data becomes unavailable. The encapsulation of insert and remove operations with begin and end functions also enable the model to managepersistent model indexes correctly.
Normally, the begin and end functions are capable of informing other components about changes to the model's underlying structure. For more complex changes to the model's structure, perhaps involving internal reorganization or sorting of data, it is necessary to emit the layoutChanged() signal to cause any attached views to be updated.
Lazy population of model data
Lazy population of model data effectively allows requests for information about the model to be deferred until it is actually needed by views.
Some models need to obtain data from remote sources, or must perform time-consuming operations to obtain information about the way the data is organized. Since views generally request as much information as possible in order to accurately display model data, it can be useful to restrict the amount of information returned to them to reduce unnecessary follow-up requests for data.
In hierarchical models where finding the number of children of a given item is an expensive operation, it is useful to ensure that the model's rowCount() implementation is only called when necessary. In such cases, the hasChildren() function can be reimplemented to provide an inexpensive way for views to check for the presence of children and, in the case of QTreeView, draw the appropriate decoration for their parent item.
Whether the reimplementation of hasChildren() returns true or false, it may not be necessary for the view to call rowCount() to find out how many children are present. For example, QTreeView does not need to know how many children there are if the parent item has not been expanded to show them.
If it is known that many items will have children, reimplementing hasChildren() to unconditionally return true is sometimes a useful approach to take. This ensures that each item can be later examined for children while making initial population of model data as fast as possible. The only disadvantage is that items without children may be displayed incorrectly in some views until the user attempts to view the non-existent child items.
Navigation and model index creation
Hierarchical models need to provide functions that views can call to navigate the tree-like structures they expose, and obtain model indexes for items.
Parents and children
Since the structure exposed to views is determined by the underlying data structure, it is up to each model subclass to create its own model indexes by providing implementations of the following functions:
| Given a model index for a parent item, this function allows views and delegates to access children of that item. If no valid child item - corresponding to the specified row, column, and parent model index, can be found, the function must return QModelIndex(), which is an invalid model index. | |
| Provides a model index corresponding to the parent of any given child item. If the model index specified corresponds to a top-level item in the model, or if there is no valid parent item in the model, the function must return an invalid model index, created with the empty QModelIndex() constructor. |
Both functions above use the createIndex() factory function to generate indexes for other components to use. It is normal for models to supply some unique identifier to this function to ensure that the model index can be re-associated with its corresponding item later on.
Drag and drop support and MIME type handling
The model/view classes support drag and drop operations, providing default behavior that is sufficient for many applications. However, it is also possible to customize the way items are encoded during drag and drop operations, whether they are copied or moved by default, and how they are inserted into existing models.
Additionally, the convenience view classes implement specialized behavior that should closely follow that expected by existing developers. The Convenience Views section provides an overview of this behavior.
MIME data
By default, the built-in models and views use an internal MIME type (application/x-qabstractitemmodeldatalist) to pass around information about model indexes. This specifies data for a list of items, containing the row and column numbers of each item, and information about the roles that each item supports.
Data encoded using this MIME type can be obtained by calling QAbstractItemModel::mimeData() with a QModelIndexList containing the items to be serialized.
When implementing drag and drop support in a custom model, it is possible to export items of data in specialized formats by reimplementing the following function:
| This function can be reimplemented to return data in formats other than the defaultapplication/x-qabstractitemmodeldatalist internal MIME type. Subclasses can obtain the default QMimeData object from the base class and add data to it in additional formats. |
For many models, it is useful to provide the contents of items in common format represented by MIME types such as text/plain and image/png. Note that images, colors and HTML documents can easily be added to a QMimeData object with the QMimeData::setImageData(),QMimeData::setColorData(), and QMimeData::setHtml() functions.
Accepting dropped data
When a drag and drop operation is performed over a view, the underlying model is queried to determine which types of operation it supports and the MIME types it can accept. This information is provided by the QAbstractItemModel::supportedDropActions() andQAbstractItemModel::mimeTypes() functions. Models that do not override the implementations provided by QAbstractItemModel support copy operations and the default internal MIME type for items.
When serialized item data is dropped onto a view, the data is inserted into the current model using its implementation of QAbstractItemModel::dropMimeData(). The default implementation of this function will never overwrite any data in the model; instead, it tries to insert the items of data either as siblings of an item, or as children of that item.
To take advantage of QAbstractItemModel's default implementation for the built-in MIME type, new models must provide reimplementations of the following functions:
| These functions enable the model to automatically insert new data using the existing implementation provided by QAbstractItemModel::dropMimeData(). | |
| Allows the new rows and columns to be populated with items. | |
| This function provides more efficient support for populating new items. |
To accept other forms of data, these functions must be reimplemented:
| Used to return a combination of drop actions, indicating the types of drag and drop operations that the model accepts. | |
| Used to return a list of MIME types that can be decoded and handled by the model. Generally, the MIME types that are supported for input into the model are the same as those that it can use when encoding data for use by external components. | |
| Performs the actual decoding of the data transferred by drag and drop operations, determines where in the model it will be set, and inserts new rows and columns where necessary. How this function is implemented in subclasses depends on the requirements of the data exposed by each model. |
If the implementation of the dropMimeData() function changes the dimensions of a model by inserting or removing rows or columns, or if items of data are modified, care must be taken to ensure that all relevant signals are emitted. It can be useful to simply call reimplementations of other functions in the subclass, such as setData(), insertRows(), and insertColumns(), to ensure that the model behaves consistently.
In order to ensure drag operations work properly, it is important to reimplement the following functions that remove data from the model:
For more information about drag and drop with item views, refer to Using drag and drop with item views.
Convenience views
The convenience views (QListWidget, QTableWidget, and QTreeWidget) override the default drag and drop functionality to provide less flexible, but more natural behavior that is appropriate for many applications. For example, since it is more common to drop data into cells in a QTableWidget, replacing the existing contents with the data being transferred, the underlying model will set the data of the target items rather than insert new rows and columns into the model. For more information on drag and drop in convenience views, you can see Using drag and drop with item views.
Performance optimization for large amounts of data
The canFetchMore() function checks if the parent has more data available and returns true or false accordingly. The fetchMore() function fetches data based on the parent specified. Both these functions can be combined, for example, in a database query involving incremental data to populate aQAbstractItemModel. We reimplement canFetchMore() to indicate if there is more data to be fetched and fetchMore() to populate the model as required.
Another example would be dynamically populated tree models, where we reimplement fetchMore()when a branch in the tree model is expanded.
If your reimplementation of fetchMore() adds rows to the model, you need to call beginInsertRows()and endInsertRows(). Also, both canFetchMore() and fetchMore() must be reimplemented as their default implementation returns false and does nothing.
The model/view classes
These classes use the model/view design pattern in which the underlying data (in the model) is kept separate from the way the data is presented and manipulated by the user (in the view).
| Used to display and edit data items from a model | |
| The abstract interface for item model classes | |
| The basic functionality for item view classes | |
| Abstract model that can be subclassed to create one-dimensional list models | |
| Base class for proxy item models that can do sorting, filtering or other data processing tasks | |
| Abstract model that can be subclassed to create table models | |
| Model/view implementation of a column view | |
| Mapping between a section of a data model to widgets | |
| Data model for the local filesystem | |
| Header row or header column for item views | |
| Proxies its source model unmodified | |
| Display and editing facilities for data items from a model | |
| Makes it possible to create item editor creator bases without subclassing QItemEditorCreatorBase | |
| Abstract base class that must be subclassed when implementing new item editor creators | |
| Widgets for editing item data in views and delegates | |
| Manages information about selected items in a model | |
| Keeps track of a view's selected items | |
| Manages information about a range of selected items in a model | |
| List or icon view onto a model | |
| Item-based list widget | |
| Item for use with the QListWidget item view class | |
| Used to locate data in a data model | |
| Used to locate data in a data model | |
| Support for sorting and filtering data passed between another model and a view | |
| Item for use with the QStandardItemModel class | |
| The possibility to register widgets without having to subclass QItemEditorCreatorBase | |
| Generic model for storing custom data | |
| Model that supplies strings to views | |
| Display and editing facilities for data items from a model | |
| Default model/view implementation of a table view | |
| Item-based table view with a default model | |
| Item for use with the QTableWidget class | |
| Way to interact with selection in a model without using model indexes and a selection model | |
| Default model/view implementation of a tree view | |
| Tree view that uses a predefined tree model | |
| Item for use with the QTreeWidget convenience class | |
| Way to iterate over the items in a QTreeWidget instance |
Related examples
· Dir View
· Chart
参考链接：
中文参考：
http://blog.csdn.net/hello_world_lvlcoder/article/details/57072445
模块继承参考：
http://cep.xray.aps.anl.gov/software/qt4-x11-4.2.2-browser/classes.html
扫一扫
9433
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
