刮刮乐 和 划动打码实现

实现思路：将一个UIImageVIew  覆盖到一个label上 通过获取滑动轨迹 擦除图片

  CGContextClearRect(ref, rect);

-(void)createSubViews {

    /**

     注意:

     1. 这两个控件的位置要相同

     2. 一定要先创建下面的label, 再创建图片

     */



    // 展示刮出来的效果的view

    UILabel *labelL        = [[UILabel alloc] initWithFrame:CGRectMake(20, 100, 280, 200)];

    labelL.text            = @"特等奖：一亿";

    labelL.numberOfLines   = 0;

    labelL.backgroundColor = [UIColor brownColor];

    labelL.font            = [UIFont systemFontOfSize:30];

    labelL.textAlignment   = NSTextAlignmentCenter;

    [self.view addSubview:labelL];



    // 被刮的图片

    self.imageView       = [[UIImageView alloc] initWithFrame:labelL.frame];

    self.imageView.image = [UIImage imageNamed:@"1.jpg"];

    [self.view addSubview:self.imageView];

}

-(void)touchesMoved:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event {



    // 触摸任意位置

    UITouch *touch = touches.anyObject;

    // 触摸位置在图片上的坐标

    CGPoint cententPoint = [touch locationInView:self.imageView];

    // 设置清除点的大小

    CGRect  rect = CGRectMake(cententPoint.x, cententPoint.y, 10, 10);

    // 默认是去创建一个透明的视图

    UIGraphicsBeginImageContextWithOptions(self.imageView.bounds.size, NO, 0);

    // 获取上下文(画板)

    CGContextRef ref = UIGraphicsGetCurrentContext();

    // 把imageView的layer映射到上下文中

    [self.imageView.layer renderInContext:ref];

    // 清除划过的区域

    CGContextClearRect(ref, rect);

    // 获取图片

    UIImage *image = UIGraphicsGetImageFromCurrentImageContext();

    // 结束图片的画板, (意味着图片在上下文中消失)

    UIGraphicsEndImageContext();



    self.imageView.image = image;

}

//链接：http://www.jianshu.com/p/7c2042764e0c

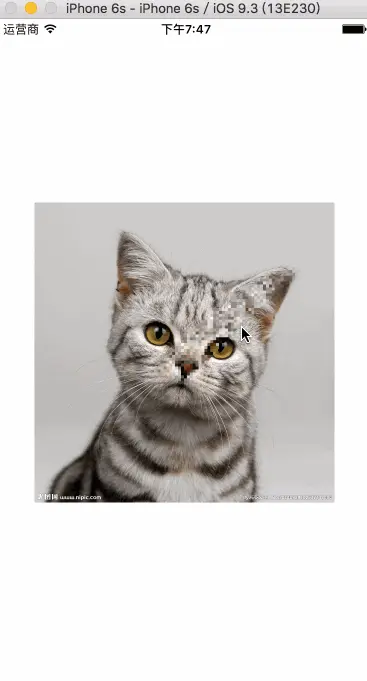

马赛克大概是最糟糕的发明之一 ，如何打码呢？  如下：

本文简单介绍下实现手指涂抹的位置变成马赛克的效果。
其实原理比较简单，和刮刮卡效果的原理差不多。放两张bounds相同的图片叠加在一起。顶部的图片为原图，底部的图片为原图处理后的马赛克图片。
1）创建一个ScratchCardView的类，这里借用一下前人写过刮刮卡demo的一个类HYScratchCardView：

#import <UIKit/UIKit.h>
@interface HYScratchCardView : UIView
/**
 要刮的底图.
 */
@property (nonatomic, strong) UIImage *image;
/**
 涂层图片.
 */
@property (nonatomic, strong) UIImage *surfaceImage;

#import "HYScratchCardView.h"

@interface HYScratchCardView ()

@property (nonatomic, strong) UIImageView *surfaceImageView;

@property (nonatomic, strong) CALayer *imageLayer;

@property (nonatomic, strong) CAShapeLayer *shapeLayer;
//设置手指的涂抹路径
@property (nonatomic, assign) CGMutablePathRef path;


@end

@implementation HYScratchCardView

- (void)dealloc
{
    if (self.path) {
        CGPathRelease(self.path);
    }
}

-(instancetype)initWithFrame:(CGRect)frame
{
    self = [super initWithFrame:frame];
    if (self) {
        //添加imageview（surfaceImageView）到self上
        self.surfaceImageView = [[UIImageView alloc]initWithFrame:self.bounds];
        [self addSubview:self.surfaceImageView];
        //添加layer（imageLayer）到self上
        self.imageLayer = [CALayer layer];
        self.imageLayer.frame = self.bounds;
        [self.layer addSublayer:self.imageLayer];

        self.shapeLayer = [CAShapeLayer layer];
        self.shapeLayer.frame = self.bounds;
        self.shapeLayer.lineCap = kCALineCapRound;
        self.shapeLayer.lineJoin = kCALineJoinRound;
        self.shapeLayer.lineWidth = 10.f;
        self.shapeLayer.strokeColor = [UIColor blueColor].CGColor;
        self.shapeLayer.fillColor = nil;//此处设置颜色有异常效果，可以自己试试

        [self.layer addSublayer:self.shapeLayer];
        self.imageLayer.mask = self.shapeLayer;

        self.path = CGPathCreateMutable();
    }
    return self;
}

- (void)setImage:(UIImage *)image
{
    //底图
    _image = image;
    self.imageLayer.contents = (id)image.CGImage;
}

- (void)setSurfaceImage:(UIImage *)surfaceImage
{
    //顶图
    _surfaceImage = surfaceImage;
    self.surfaceImageView.image = surfaceImage;
}

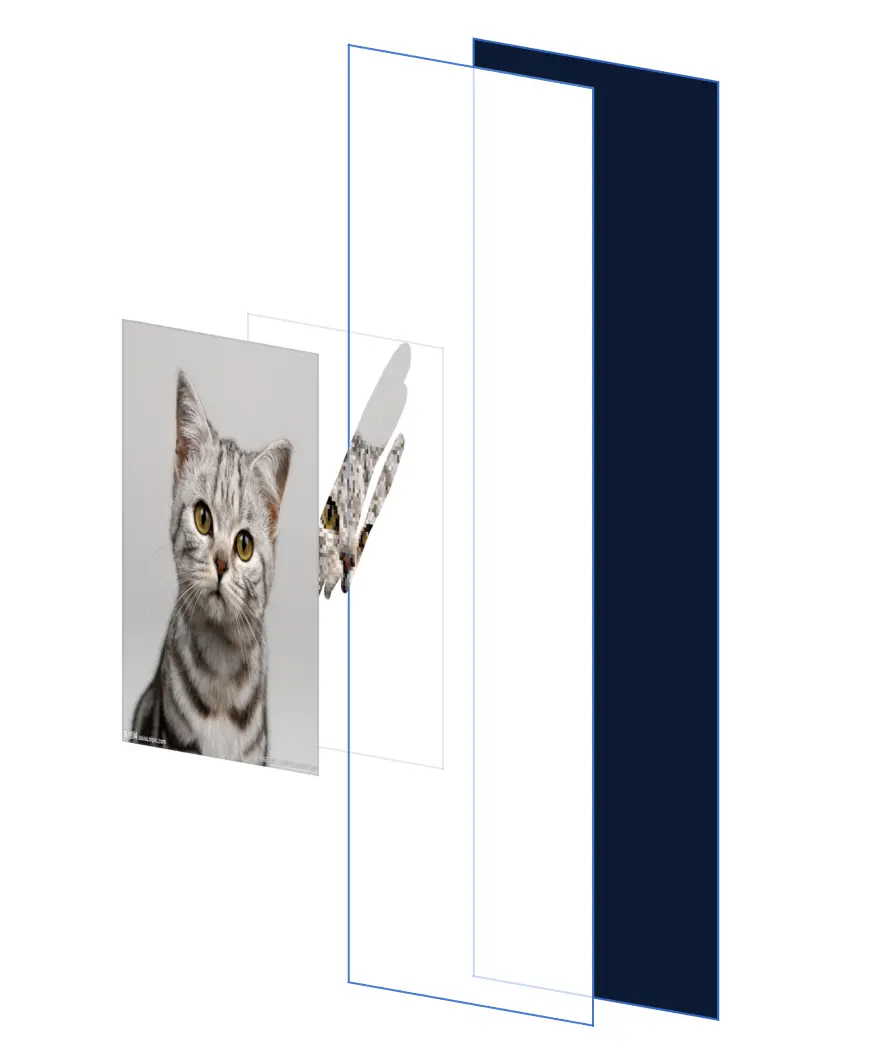

2）在添加完surfaceImageView和imageLayer之后再添加CAShapeLayer（CAShapeLayer是一个通过矢量图形来绘制的图层子类。用CGPath来定义想要绘制的图形），由于马赛克图片（imageLayer）在下面而原图在（surfaceImageView）所以需要将imagLayer的mask（面罩属性）赋值给 self.shapeLayer，使self.shapeLayer能显示在surfaceImageView之上。之后再创建路径self.path = CGPathCreateMutable();

屏幕快照 2016-08-17 下午5.18.03.png

3）接下来就是确定touch经过的路径了，CGPathMoveToPoint为开始一条可变路径， CGPathAddLineToPoint为路径追加，这两个函数都是通过点的添加来实现路径。讲touch所得的路径copy给self.path。再讲path赋给shapeLayer.path

- (void)touchesBegan:(NSSet *)touches withEvent:(UIEvent *)event
{
    [super touchesBegan:touches withEvent:event];
    UITouch *touch = [touches anyObject];
    CGPoint point = [touch locationInView:self];
    CGPathMoveToPoint(self.path, NULL, point.x, point.y);
    CGMutablePathRef path = CGPathCreateMutableCopy(self.path);
    self.shapeLayer.path = path;
    CGPathRelease(path);

}

- (void)touchesMoved:(NSSet *)touches withEvent:(UIEvent *)event
{
    [super touchesMoved:touches withEvent:event];
    UITouch *touch = [touches anyObject];
    CGPoint point = [touch locationInView:self];
    CGPathAddLineToPoint(self.path, NULL, point.x, point.y);
    CGMutablePathRef path = CGPathCreateMutableCopy(self.path);
    self.shapeLayer.path = path;
    CGPathRelease(path);

}

- (void)touchesEnded:(NSSet *)touches withEvent:(UIEvent *)event
{
    [super touchesEnded:touches withEvent:event];

}

4）之后就是添加到viewcontroller上

#import "ViewController.h"
#import "HYScratchCardView.h"


@interface ViewController ()

@property (nonatomic,strong)HYScratchCardView * hys;

@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];


    _hys = [[HYScratchCardView alloc]initWithFrame:CGRectMake(CGRectGetMaxX(self.view.bounds)/2-150, CGRectGetMaxY(self.view.bounds)/2-150, 300, 300)];

    UIImage * image = [UIImage imageNamed:@"p2.jpg"];

    //顶图
    _hys.surfaceImage = image;
    //低图，此函数为马赛克算法
    _hys.image = [self transToMosaicImage:image blockLevel:10];

    [self.view addSubview:_hys];

}


链接：http://www.jianshu.com/p/e4bebae1b36f
