实体源码方式 搭建 Prometheus+node 并注册为系统systemctl 服务 + 基础 grafana模板导入使用

# 安装Prometheus

#!/bin/bash

# 防止报错先 删除用户和目录
userdel prometheus
rm -rf /var/lib/prometheus
rm -rf /usr/local/prometheus/



#下载解压
#wget https://github.com/prometheus/prometheus/releases/download/v2.19.2/prometheus-2.19.2.linux-amd64.tar.gz
tar zxvf prometheus-2.12.0.linux-amd64.tar.gz
mv prometheus-2.12.0.linux-amd64 /usr/local/prometheus

#创建用户
groupadd prometheus
useradd -g prometheus -m -d /var/lib/prometheus -s /sbin/nologin prometheus
chown prometheus.prometheus -R /usr/local/prometheus

# 创建systemd服务
cat > /etc/systemd/system/prometheus.service <<EOF
[Unit]
Description=prometheus
After=network.target
[Service]
Type=simple
User=prometheus
ExecStart=/usr/local/prometheus/prometheus --config.file=/usr/local/prometheus/prometheus.yml --storage.tsdb.path=/var/lib/prometheus/data
Restart=on-failure
[Install]
WantedBy=multi-user.target
EOF

# 启动Prometheus
systemctl daemon-reload
systemctl start prometheus
systemctl status prometheus
systemctl enable prometheus

# 安装 node_exporter

#!/bin/bash

# 防止报错先 删除用户和目录
userdel prometheus
rm -rf /var/lib/prometheus
rm -rf /usr/local/prometheus/
rm -rf /usr/local/node_exporter

#下载解压
#wget https://github.com/prometheus/prometheus/releases/download/v2.19.2/prometheus-2.19.2.linux-amd64.tar.gz
tar -zxvf node_exporter-0.18.1.linux-amd64.tar.gz
mv node_exporter-0.18.1.linux-amd64 /usr/local/node_exporter

#创建用户
groupadd prometheus
useradd -g prometheus -m -d /var/lib/prometheus -s /sbin/nologin prometheus
chown prometheus.prometheus -R /usr/local/prometheus

# 创建systemd服务
cat > /etc/systemd/system/node_exporter.service <<EOF
[Unit]
Description=node_exporter
After=network.target
[Service]
Type=simple
User=prometheus
ExecStart=/usr/local/node_exporter/node_exporter
Restart=on-failure
[Install]
WantedBy=multi-user.target
EOF

# 启动node_exporter
systemctl daemon-reload
systemctl enable node_exporter
systemctl start node_exporter
systemctl status node_exporter

# 查看配置文件

grep -v "#" /usr/local/prometheus/prometheus.yml |grep -v "^$"

global:
alerting:
  alertmanagers:
  - static_configs:
    - targets:
rule_files:
scrape_configs:
  - job_name: 'node'
    static_configs:
      - targets:
        - '10.69.15.78:9100'
        - '10.69.15.67:9100'
        - '10.69.15.30:9100'
        - '10.69.15.20:9100'
        - '10.69.15.21:9100'

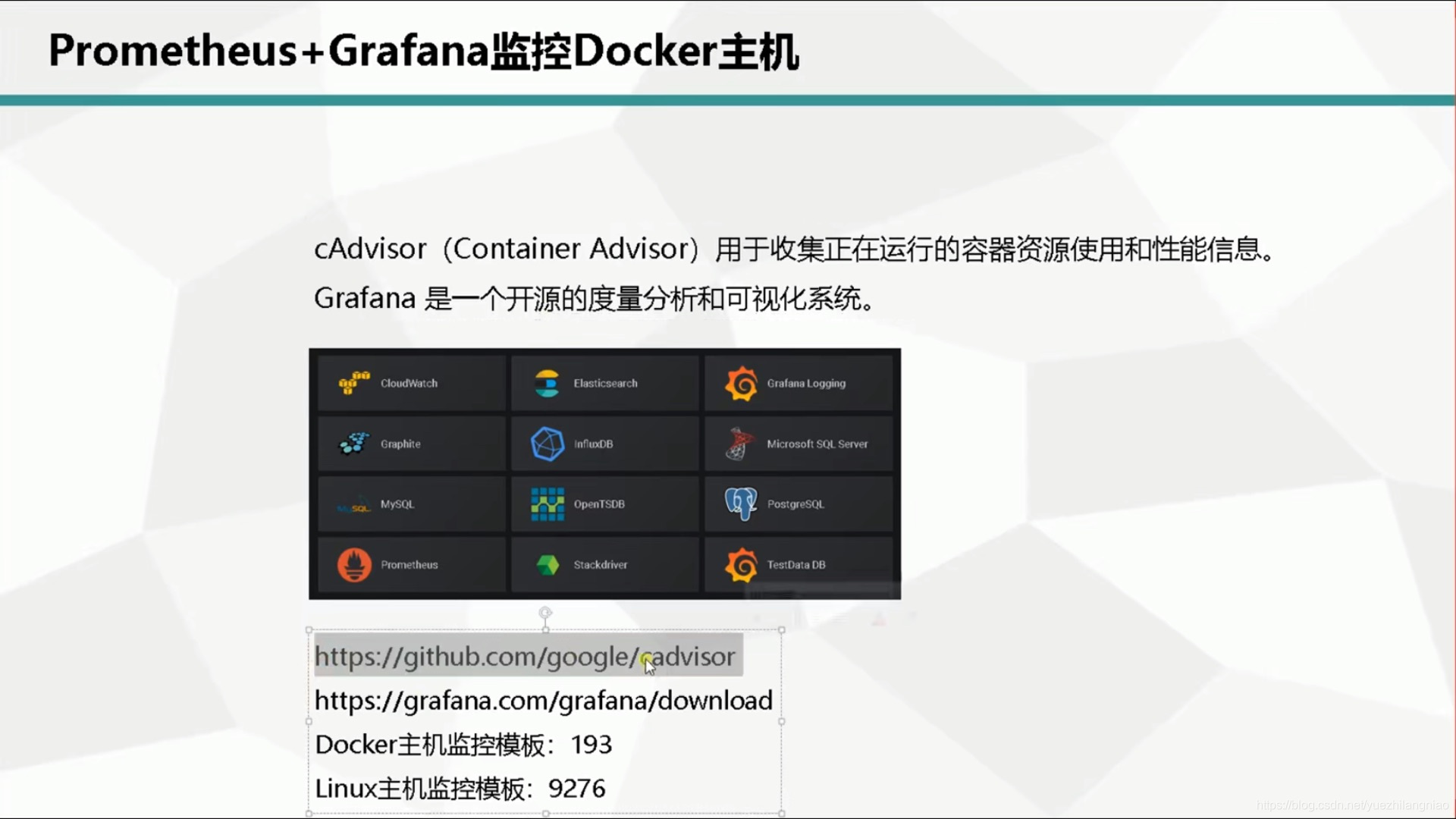

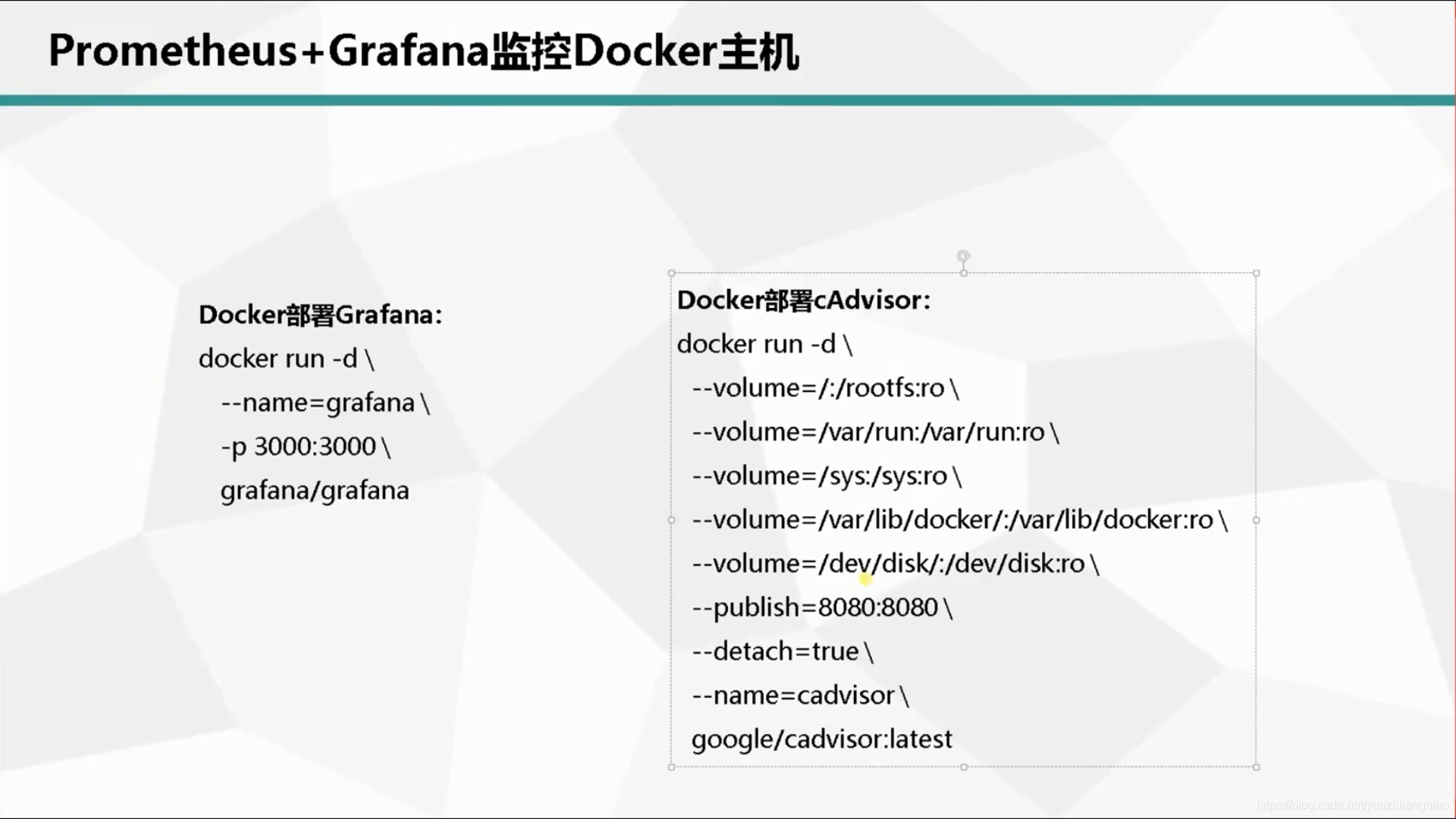

# grafana使用模板   linux 9276    docker使用  193   附 监控docker 插件和命令  暂未测试

# 推荐漂亮容器模板 8919
