canal高可用和mysql节点自动切换的部署，可以参考我的这篇文章
1. 全量数据导出同步
1.1 active mysql查看
因为我们部署了mysql节点自动切换，我们需要查看现在同步的是哪一台mysql服务器
- 先查看example实例运行的服务器
[zk: canal1:2181,canal2:2181,canal3:2181(CONNECTED) 0] get /otter/canal/destinations/example/running
{"active":true,"address":"192.168.23.31:11111"}
[zk: canal1:2181,canal2:2181,canal3:2181(CONNECTED) 1]
可以看到example实例运行在canal1上
2. 然后我们查看canal1的example日志
[root@canal1 example]#
[root@canal1 example]# pwd
/root/canal.deployer-1.1.5/logs/example
[root@canal1 example]#
[root@canal1 example]#
[root@canal1 example]# tail example.log
......省略部分......
2021-06-25 09:29:07.624 [destination = example , address = canal2/192.168.23.32:3306 , EventParser] WARN c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - prepare to find start position by switch ::1624526107000
2021-06-25 09:29:08.770 [destination = example , address = canal2/192.168.23.32:3306 , EventParser] WARN c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - ---> find start position successfully, EntryPosition[included=false,journalName=mysql-bin.000001,position=3348,serverId=2,gtid=,timestamp=1624459434000] cost : 1104ms , the next step is binlog dump
[root@canal1 example]#
[root@canal1 example]#
可以看到当前active的mysql为canal2
1.2 canal2 mysql数据的全量导出
1.2.1. 我们先看mysql的数据
[root@canal2 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 22
Server version: 8.0.25 MySQL Community Server - GPL
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql>
mysql> show databases;
+--------------------+
| Database |
+--------------------+
| db1 |
| db2 |
| information_schema |
| mysql |
| performance_schema |
| sys |
+--------------------+
6 rows in set (0.01 sec)
mysql> use db1;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed
mysql> show tables;
+---------------+
| Tables_in_db1 |
+---------------+
| tb1_1 |
| tb1_2 |
+---------------+
2 rows in set (0.00 sec)
mysql> select * from tb1_1;
+------+-------+--------+
| idA | nameA | scoreA |
+------+-------+--------+
| 1 | 1 | 1.10 |
| 2 | 2 | 2.20 |
| 3 | 3 | 3.30 |
+------+-------+--------+
3 rows in set (0.00 sec)
mysql> select * from tb1_2;
+------+-------+------+
| idA | nameA | ageA |
+------+-------+------+
| 1 | 1 | 1 |
| 2 | 2 | 2 |
| 3 | 3 | 3 |
+------+-------+------+
3 rows in set (0.00 sec)
mysql> use db2;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed
mysql> show tables;
+---------------+
| Tables_in_db2 |
+---------------+
| tb2_1 |
| tb2_2 |
+---------------+
2 rows in set (0.00 sec)
mysql> select * from tb2_1;
+------+-------+--------+
| idB | nameB | scoreB |
+------+-------+--------+
| 1 | 1 | 1.10 |
| 2 | 2 | 2.20 |
| 3 | 3 | 3.30 |
+------+-------+--------+
3 rows in set (0.00 sec)
mysql> select * from tb2_2;
+------+-------+------+
| idB | nameB | ageB |
+------+-------+------+
| 1 | 1 | 1 |
| 2 | 2 | 2 |
| 3 | 3 | 3 |
+------+-------+------+
3 rows in set (0.00 sec)
mysql>
1.2.2. 导出mysql的全量数据
[root@canal2 ~]#
[root@canal2 ~]# mysqldump -u root -pRoot_123 --databases db1 db2 --flush-logs --lock-all-tables --master-data=1 --column_statistics=0 --ignore-table=db1.tb1 --ignore-table=db2.tb1 > /root/db.sql
mysqldump: [Warning] Using a password on the command line interface can be insecure.
[root@canal2 ~]#

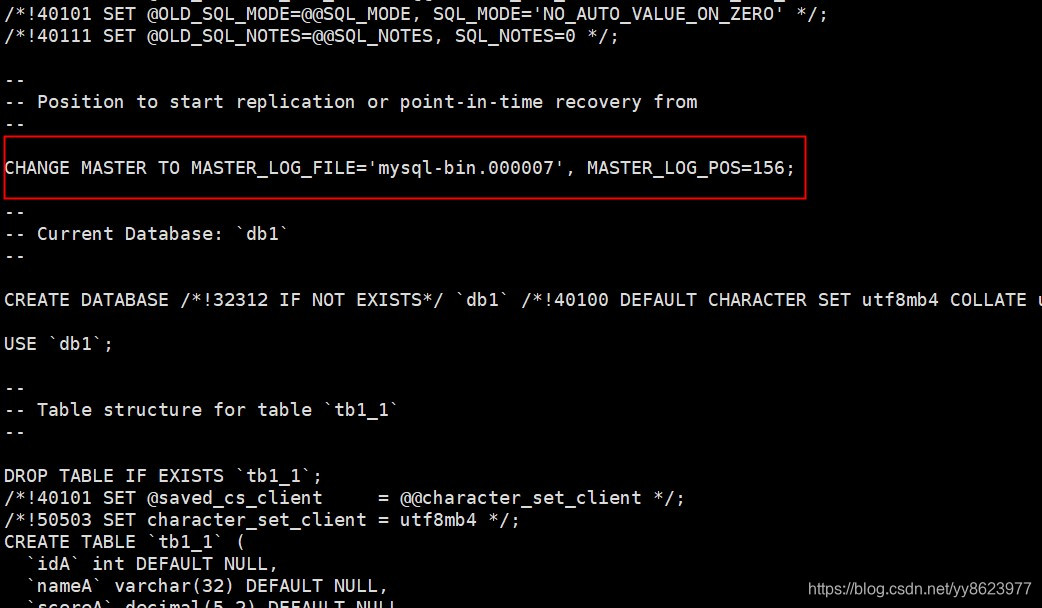

查看db.sql中，刷新后的binlog日志文件名和position, 并把红框那行注释
1.2.3. 将全量数据db.sql导入到canal3上的mysql
我们这里采用mysql来做练习，mysql可以直接运行命令source xxx.sql进行数据导入；如果是其它的数据库，可以先导入到中间mysql数据库，然后再用kettle等ETL工具，或自己写代码实现都可以，导入到自己想要的目标数据库
canal3上的mysql安装可以参考mysql 8.0.25安装
将db.sql上传到canal3, 进行全量导入
[root@canal3 ~]#
[root@canal3 ~]# ls
anaconda-ks.cfg apache-zookeeper-3.6.3-bin canal.deployer-1.1.5 db.sql jdk1.8.0_291 mysql-8.0.25
[root@canal3 ~]#
[root@canal3 ~]# pwd
/root
[root@canal3 ~]#
[root@canal3 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 15
Server version: 8.0.25 MySQL Community Server - GPL
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> source db.sql;
Query OK, 0 rows affected (0.00 sec)
Query OK, 0 rows affected (0.01 sec)
......省略部分......
Query OK, 0 rows affected (0.00 sec)
Query OK, 0 rows affected (0.00 sec)
mysql>
mysql> show databases;
+--------------------+
| Database |
+--------------------+
| db1 |
| db2 |
| information_schema |
| mysql |
| performance_schema |
| sys |
+--------------------+
6 rows in set (0.00 sec)
mysql>
2. example instance的配置
2.1 修改conf/canal.properties
此步骤3台服务器同步修改， 内容如下
canal.destinations =
这里我们取消默认的example, 改用自动扫描，会扫描conf目录下的文件夹名(除了metrics和spring)，来做example实例, 一般一个example实例对应一个数据库的同步
然后重启canal服务
2.2 删除conf/example，建立新的example实例
在canal1的/root目录下准备两个example实例，步骤如下
[root@canal1 conf]# ls
canal_local.properties canal.properties example logback.xml metrics spring
[root@canal1 conf]#
[root@canal1 conf]# pwd
/root/canal.deployer-1.1.5/conf
[root@canal1 conf]#
[root@canal1 conf]# cp -r example/ ~
[root@canal1 conf]#
[root@canal1 conf]# cd ~
[root@canal1 ~]#
[root@canal1 ~]# mv example/ example_db1
[root@canal1 ~]#
[root@canal1 ~]# cp -r example_db1/ example_db2
[root@canal1 ~]#
[root@canal1 ~]# ll example_db1/
总用量 164
-rw-r--r--. 1 root root 163840 6月 25 11:01 h2.mv.db
-rwxr-xr-x. 1 root root 2621 6月 25 11:01 instance.properties
[root@canal1 ~]#
[root@canal1 ~]# rm example_db1/h2.mv.db -rf
[root@canal1 ~]#
[root@canal1 ~]# ll example_db2/
总用量 164
-rw-r--r--. 1 root root 163840 6月 25 11:02 h2.mv.db
-rwxr-xr-x. 1 root root 2621 6月 25 11:02 instance.properties
[root@canal1 ~]#
[root@canal1 ~]# rm example_db2/h2.mv.db -rf
[root@canal1 ~]#
example_db1/instance.properties设置了binlog的读取起始点，且只同步db1数据库的数据，内容如下
[root@canal1 ~]#
[root@canal1 ~]# cat example_db1/instance.properties
#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal2为1232，canal3为1233
canal.instance.mysql.slaveId=1231
# enable gtid use true/false
canal.instance.gtidon=false
# position info
canal.instance.master.address=canal2:3306
canal.instance.master.journal.name=mysql-bin.000007
canal.instance.master.position=156
canal.instance.master.timestamp=
canal.instance.master.gtid=
# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=
# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal
canal.instance.standby.address = canal1:3306
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=
# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=Canal_123
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==
# table regex
canal.instance.filter.regex=db1\\.tb\\d_\\d
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch
# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#################################################
# 需要开启心跳检查
canal.instance.detecting.enable = true
# 心跳检查sql
canal.instance.detecting.sql = select 1
# 心跳检查频率
canal.instance.detecting.interval.time = 3
# 心跳检查失败次数阀值，超过该阀值后会触发mysql链接切换，比如切换到standby机器上继续消费binlog
canal.instance.detecting.retry.threshold = 3
# 心跳检查超过失败次数阀值后，是否开启master/standby的切换
canal.instance.detecting.heartbeatHaEnable = true
[root@canal1 ~]#
example_db2/instance.properties设置了binlog的读取起始点，且只同步db2数据库的数据，内容如下
[root@canal1 ~]#
[root@canal1 ~]# cat example_db2/instance.properties
#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal2为1242，canal3为1243
canal.instance.mysql.slaveId=1241
# enable gtid use true/false
canal.instance.gtidon=false
# position info
canal.instance.master.address=canal2:3306
canal.instance.master.journal.name=mysql-bin.000007
canal.instance.master.position=156
canal.instance.master.timestamp=
canal.instance.master.gtid=
# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=
# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal
canal.instance.standby.address = canal1:3306
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=
# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=Canal_123
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==
# table regex
canal.instance.filter.regex=db2\\.tb\\d_\\d
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch
# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#################################################
# 需要开启心跳检查
canal.instance.detecting.enable = true
# 心跳检查sql
canal.instance.detecting.sql = select 1
# 心跳检查频率
canal.instance.detecting.interval.time = 3
# 心跳检查失败次数阀值，超过该阀值后会触发mysql链接切换，比如切换到standby机器上继续消费binlog
canal.instance.detecting.retry.threshold = 3
# 心跳检查超过失败次数阀值后，是否开启master/standby的切换
canal.instance.detecting.heartbeatHaEnable = true
[root@canal1 ~]#
删除3台服务器的conf/example目录，并将example_db1和example_db2放到3台服务器的conf目录下，并修改canal2和canal3的instance.properties的canal.instance.mysql.slaveId参数
3. client端代码的开发
3.1 对db1和db2的数据进行修改
[root@canal2 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 22
Server version: 8.0.25 MySQL Community Server - GPL
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql>
mysql> insert into db1.tb1_1 values(4,'4',4.4),(5,'5',5.5);
Query OK, 2 rows affected (0.00 sec)
Records: 2 Duplicates: 0 Warnings: 0
mysql> delete from db1.tb1_2 where idA in (2,3);
Query OK, 2 rows affected (0.00 sec)
mysql> update db2.tb2_1 set scoreB=2.22 where idB=2;
Query OK, 1 row affected (0.00 sec)
Rows matched: 1 Changed: 1 Warnings: 0
mysql> update db2.tb2_1 set scoreB=3.33 where idB=3;
Query OK, 1 row affected (0.00 sec)
Rows matched: 1 Changed: 1 Warnings: 0
mysql> alter table db2.tb2_2 drop column ageB;
Query OK, 0 rows affected (0.04 sec)
Records: 0 Duplicates: 0 Warnings: 0
mysql>
3.2 pom.xml添加的依赖
<dependency>
<groupId>com.alibaba.otter</groupId>
<artifactId>canal.client</artifactId>
<version>1.1.5</version>
</dependency>
<dependency>
<groupId>com.alibaba.otter</groupId>
<artifactId>canal.protocol</artifactId>
<version>1.1.5</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.25</version>
</dependency>
3.3 重复测试的脚本
因为测试的时候，有时候会删除client在zookeeper的消费position, 和让canal server重新从instance.properties设置的position开始消费，所以需要重启canal server
[root@canal1 ~]#
[root@canal1 ~]# pwd
/root
[root@canal1 ~]#
[root@canal1 ~]# cat example_db1_repeat_test.sh
#!/usr/bin/env bash
# 删除zk的canal client position
/root/apache-zookeeper-3.6.3-bin/bin/zkCli.sh -server canal1:2181,canal2:2181,canal3:2181 delete /otter/canal/destinations/example_db1/1001/cursor
/root/apache-zookeeper-3.6.3-bin/bin/zkCli.sh -server canal1:2181,canal2:2181,canal3:2181 delete /otter/canal/destinations/example_db2/1001/cursor
canal_servers=('canal1' 'canal2' 'canal3')
# 重启3台服务的canal server
for canal_server in ${canal_servers[@]}
do
ssh root@${canal_server} << begin2end
source /root/.bashrc
/root/canal.deployer-1.1.5/bin/restart.sh
exit
begin2end
done
[root@canal1 ~]#
3.4 db_sync.java开发
这里我们采用tcp解析binlog的方式来同步，也可以用kafka的模式，或者采用adpter适配器的方式，大致原理都是一样的
执行db2数据库的同步，需注释db1的参数，开启db2的参数
import com.alibaba.otter.canal.client.CanalConnector;
import com.alibaba.otter.canal.client.CanalConnectors;
import com.alibaba.otter.canal.protocol.CanalEntry;
import com.alibaba.otter.canal.protocol.Message;
import com.google.protobuf.InvalidProtocolBufferException;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.ArrayList;
import java.util.List;
public class db_sync {
public static void main(String[] args) {
// db1的参数
String destination="example_db1";
String subscribe="db1\\.tb\\d_\\d";
String db="db1";
// db2的参数
// String destination = "example_db2";
// String subscribe = "db2\\.tb\\d_\\d";
// String db="db2";
CanalConnector connector = CanalConnectors.newClusterConnector("192.168.23.31:2181,192.168.23.32:2181,192.168.23.33:2181", destination, "", "");
Connection mysql_conn = null;
Statement st = null;
try {
mysql_conn = DriverManager.getConnection("jdbc:mysql://192.168.23.33:3306/"+db+"?useSSL=false&serverTimezone=UTC&useUnicode=true&characterEncoding=UTF-8", "root", "Root_123");
st = mysql_conn.createStatement();
connector.connect();
connector.subscribe(subscribe);
// 回滚上次未提交完成的batch
connector.rollback();
while (true) {
Message message = connector.getWithoutAck(5000);
long batchId = message.getId();
int batchSize = message.getEntries().size();
if (!(batchId == -1 || batchSize == 0)) {
try {
List<CanalEntry.Entry> entries = message.getEntries();
dealEntrys(entries, st); // st是地址传递
connector.ack(batchId);
} catch (Exception e) {
connector.rollback(batchId);
e.printStackTrace();
}
}
try {
Thread.sleep(1000L);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
} catch (SQLException e) {
e.printStackTrace();
} finally {
connector.disconnect();
try {
mysql_conn.close();
} catch (SQLException e) {
e.printStackTrace();
}
}
}
public static void dealEntrys(List<CanalEntry.Entry> entries, Statement st) {
// 循环处理事务
for (CanalEntry.Entry entry : entries) {
if (entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONBEGIN || entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONEND) {
continue;
}
CanalEntry.RowChange rowChange = null;
try {
rowChange = CanalEntry.RowChange.parseFrom(entry.getStoreValue());
} catch (InvalidProtocolBufferException e) {
e.printStackTrace();
}
CanalEntry.EventType eventType = rowChange.getEventType();
String schemaName = entry.getHeader().getSchemaName();
String tableName = entry.getHeader().getTableName();
System.out.println(String.format("binlog[%s:%s], name[%s.%s], eventType: %s",
entry.getHeader().getLogfileName(),
entry.getHeader().getLogfileOffset(),
schemaName,
tableName,
eventType
));
// 表结构更改的同步
if (eventType == CanalEntry.EventType.ALTER) {
if (rowChange.getIsDdl()) {
try {
System.out.println(rowChange.getSql());
st.execute(rowChange.getSql());
} catch (SQLException e) {
e.printStackTrace();
}
}
}
// 循环处理每条数据；比如一个insert命令，可以插入多条数据
for (CanalEntry.RowData rowData : rowChange.getRowDatasList()) {
if (eventType == CanalEntry.EventType.INSERT) {
printColumn(rowData.getAfterColumnsList());
insertData(rowData.getAfterColumnsList(), st, schemaName, tableName);
} else if (eventType == CanalEntry.EventType.DELETE) {
printColumn(rowData.getBeforeColumnsList());
deleteData(rowData.getBeforeColumnsList(), st, schemaName, tableName);
} else {
System.out.println("<<<<<<<<<<before<<<<<<<<<<<<<<");
printColumn(rowData.getBeforeColumnsList());
System.out.println("<<<<<<<<<<after<<<<<<<<<<<<<<");
printColumn(rowData.getAfterColumnsList());
updateData(rowData.getAfterColumnsList(), st, schemaName, tableName);
}
}
}
}
public static void printColumn(List<CanalEntry.Column> columns) {
// 循环处理列
for (CanalEntry.Column column : columns) {
System.out.println(column.getName() + ":" + column.getValue() + ", update = " + column.getUpdated());
}
}
// 插入数据同步
public static void insertData(List<CanalEntry.Column> columns, Statement st, String schemaName, String tableName) {
String sql = "insert into " + schemaName + "." + tableName + "(";
ArrayList<String> key_array = new ArrayList<>();
ArrayList<String> value_array = new ArrayList<>();
for (CanalEntry.Column column : columns) {
key_array.add(column.getName());
if (column.getMysqlType().startsWith("varchar")) {
value_array.add("'" + column.getValue() + "'");
} else {
value_array.add(column.getValue());
}
}
boolean first = true;
for (String key : key_array) {
if (first) {
sql = sql + key;
first = false;
} else {
sql = sql + ", " + key;
}
}
sql = sql + ") values(";
first = true;
for (String value : value_array) {
if (first) {
sql = sql + value;
first = false;
} else {
sql = sql + ", " + value;
}
}
sql = sql + ")";
try {
System.out.println(sql);
st.executeUpdate(sql);
} catch (SQLException e) {
e.printStackTrace();
}
}
// 删除数据同步
public static void deleteData(List<CanalEntry.Column> columns, Statement st, String schemaName, String tableName) {
String sql = "delete from " + schemaName + "." + tableName + " where ";
boolean first = true;
for (CanalEntry.Column column : columns) {
if (first) {
if (column.getMysqlType().startsWith("varchar")) {
sql = sql + column.getName() + " = " + "'" + column.getValue() + "'";
} else {
sql = sql + column.getName() + " = " + column.getValue();
}
first = false;
} else {
if (column.getMysqlType().startsWith("varchar")) {
sql = sql + " and " + column.getName() + " = " + "'" + column.getValue() + "'";
} else {
sql = sql + " and " + column.getName() + " = " + column.getValue();
}
}
}
try {
System.out.println(sql);
st.executeUpdate(sql);
} catch (SQLException e) {
e.printStackTrace();
}
}
// 更新数据同步
public static void updateData(List<CanalEntry.Column> columns, Statement st, String schemaName, String tableName) {
String sql = "update " + schemaName + "." + tableName + " set ";
boolean set_first = true;
boolean condition_first = true;
String set = "";
String condition = "";
for (CanalEntry.Column column : columns) {
if (column.getUpdated()) {
if (set_first) {
if (column.getMysqlType().startsWith("varchar")) {
set = set + column.getName() + " = " + "'" + column.getValue() + "'";
} else {
set = set + column.getName() + " = " + column.getValue();
}
} else {
if (column.getMysqlType().startsWith("varchar")) {
set = set + ", " + column.getName() + " = " + "'" + column.getValue() + "'";
} else {
set = set + ", " + column.getName() + " = " + column.getValue();
}
}
set_first = false;
} else {
if (condition_first) {
if (column.getMysqlType().startsWith("varchar")) {
condition = condition + column.getName() + " = " + "'" + column.getValue() + "'";
} else {
condition = condition + column.getName() + " = " + column.getValue();
}
} else {
if (column.getMysqlType().startsWith("varchar")) {
condition = condition + " and " + column.getName() + " = " + "'" + column.getValue() + "'";
} else {
condition = condition + " and " + column.getName() + " = " + column.getValue();
}
}
condition_first = false;
}
}
sql = sql + set + " where " + condition;
try {
System.out.println(sql);
st.executeUpdate(sql);
} catch (SQLException e) {
e.printStackTrace();
}
}
}
具体的entry解析请参考EntryProtocol
3.5 打印的消息和canal3上数据库的结果
3.5.1 db1数据库同步
binlog[mysql-bin.000007:367], name[db1.tb1_1], eventType: INSERT
idA:4, update = true
nameA:4, update = true
scoreA:4.40, update = true
insert into db1.tb1_1(idA, nameA, scoreA) values(4, '4', 4.40)
idA:5, update = true
nameA:5, update = true
scoreA:5.50, update = true
insert into db1.tb1_1(idA, nameA, scoreA) values(5, '5', 5.50)
binlog[mysql-bin.000007:662], name[db1.tb1_2], eventType: DELETE
idA:2, update = false
nameA:2, update = false
ageA:2, update = false
delete from db1.tb1_2 where idA = 2 and nameA = '2' and ageA = 2
idA:3, update = false
nameA:3, update = false
ageA:3, update = false
delete from db1.tb1_2 where idA = 3 and nameA = '3' and ageA = 3
mysql>
mysql> use db1;
Database changed
mysql>
mysql> show tables;
+---------------+
| Tables_in_db1 |
+---------------+
| tb1_1 |
| tb1_2 |
+---------------+
2 rows in set (0.00 sec)
mysql>
mysql> select * from tb1_1;
+------+-------+--------+
| idA | nameA | scoreA |
+------+-------+--------+
| 1 | 1 | 1.10 |
| 2 | 2 | 2.20 |
| 3 | 3 | 3.30 |
| 4 | 4 | 4.40 |
| 5 | 5 | 5.50 |
+------+-------+--------+
5 rows in set (0.00 sec)
mysql>
mysql> select * from tb1_2;
+------+-------+------+
| idA | nameA | ageA |
+------+-------+------+
| 1 | 1 | 1 |
+------+-------+------+
1 row in set (0.00 sec)
mysql>
3.5.2 db2数据库同步
binlog[mysql-bin.000007:970], name[db2.tb2_1], eventType: UPDATE
<<<<<<<<<<before<<<<<<<<<<<<<<
idB:2, update = false
nameB:2, update = false
scoreB:2.20, update = false
<<<<<<<<<<after<<<<<<<<<<<<<<
idB:2, update = false
nameB:2, update = false
scoreB:2.22, update = true
update db2.tb2_1 set scoreB = 2.22 where idB = 2 and nameB = '2'
binlog[mysql-bin.000007:1277], name[db2.tb2_1], eventType: UPDATE
<<<<<<<<<<before<<<<<<<<<<<<<<
idB:3, update = false
nameB:3, update = false
scoreB:3.30, update = false
<<<<<<<<<<after<<<<<<<<<<<<<<
idB:3, update = false
nameB:3, update = false
scoreB:3.33, update = true
update db2.tb2_1 set scoreB = 3.33 where idB = 3 and nameB = '3'
binlog[mysql-bin.000009:233], name[db2.tb2_2], eventType: ALTER
alter table tb2_2 drop column ageB
mysql>
mysql> use db2;
Database changed
mysql>
mysql> show tables;
+---------------+
| Tables_in_db2 |
+---------------+
| tb2_1 |
| tb2_2 |
+---------------+
2 rows in set (0.00 sec)
mysql>
mysql> select * from tb2_1;
+------+-------+--------+
| idB | nameB | scoreB |
+------+-------+--------+
| 1 | 1 | 1.10 |
| 2 | 2 | 2.20 |
| 3 | 3 | 3.33 |
+------+-------+--------+
3 rows in set (0.00 sec)
mysql>
mysql> select * from tb2_2;
+------+-------+
| idB | nameB |
+------+-------+
| 1 | 1 |
| 2 | 2 |
| 3 | 3 |
+------+-------+
3 rows in set (0.00 sec)
mysql>
扫一扫
142
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
