openstack-iass搭建 二

紧接着上一节

一、继续基本配置

controller

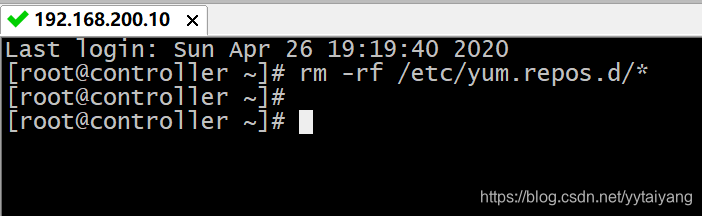

1、配置YUM文件先删除一下 /etc/yum.repos.d/*下的所有内容

然后编辑一个centos.repo文件

内容如下。
[centos]
name=centos
baseurl=file:///opt/centos
gpgcheck=0
enabled=1
[iaas]
name=iaas
baseurl=file:///opt/iaas/iaas-repo
gpgcheck=0
enabled=1

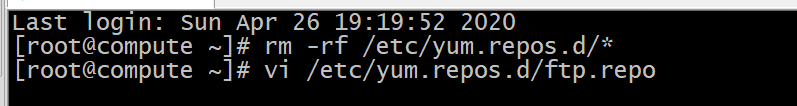

compute

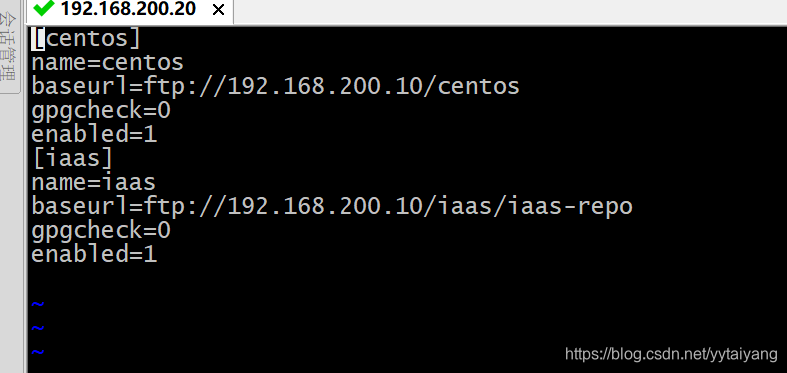

ftp.repo文件的内容如下

name=centos
baseurl=ftp://192.168.200.10/centos
gpgcheck=0
enabled=1
[iaas]
name=iaas
baseurl=ftp://192.168.200.10/iaas/iaas-repo
gpgcheck=0
enabled=1

controller

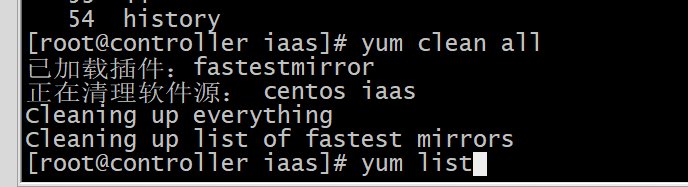

验证一下 yum 配置是否正确，这里注意 compute节点先别验证

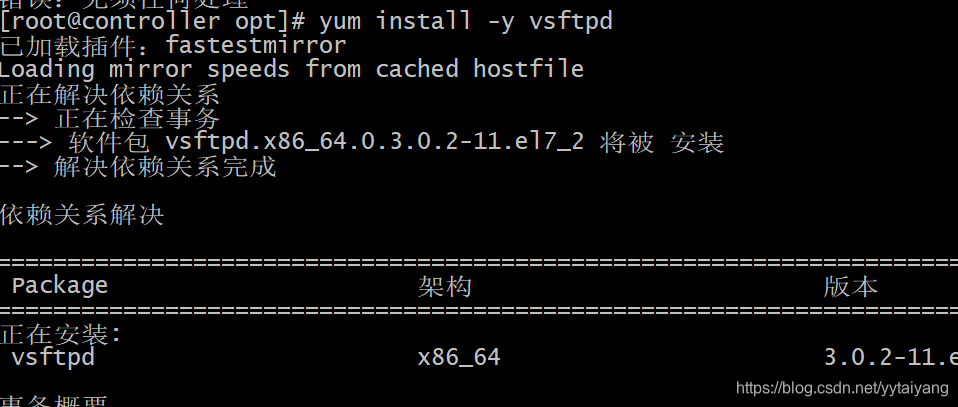

安装vsftpd服务

vi /etc/vsftpd/vsftpd.conf修改配置文件，只需要加上一行anon_root=/opt/即可

[root@controller opt]# systemctl restart vsftpd    #重启一下vsftpd服务
[root@controller opt]# chkconfig vsftpd on   #加入开机自启
注意：正在将请求转发到“systemctl enable vsftpd.service”。
Created symlink from /etc/systemd/system/multi-user.target.wants/vsftpd.service to /usr/lib/systemd/system/vsftpd.service.
[root@controller opt]#

compute

检查一下compute的源配置
[root@compute ~]# yum clean all
[root@compute ~]# yum list

Iaas-xiandian安装和配置

controller和compute

[root@controller opt]# yum install -y iaas-xiandian  安装
[root@controller opt]# cd /etc/xiandian/
[root@controller xiandian]# sed -i 's/^#//g' openrc.sh // 正则表达式，除去每一行的#
[root@controller xiandian]# vi openrc.sh // 编辑环境
如下。

#--------------------system Config--------------------##
#Controller Server Manager IP. example:x.x.x.x
HOST_IP=192.168.100.10  #controller

#Controller Server hostname. example:controller
HOST_NAME=controller

#Compute Node Manager IP. example:x.x.x.x
HOST_IP_NODE=192.168.200.20

#Compute Node hostname. example:compute
HOST_NAME_NODE=compute

#--------------------Rabbit Config ------------------##
#user for rabbit. example:openstack
RABBIT_USER=openstack

#Password for rabbit user .example:000000
RABBIT_PASS=000000

#--------------------MySQL Config---------------------##
#Password for MySQL root user . exmaple:000000
DB_PASS=000000

#--------------------Keystone Config------------------##
#Password for Keystore admin user. exmaple:000000
DOMAIN_NAME=demo
ADMIN_PASS=000000
DEMO_PASS=000000

#Password for Mysql keystore user. exmaple:000000
KEYSTONE_DBPASS=000000

#--------------------Glance Config--------------------##
#Password for Mysql glance user. exmaple:000000
GLANCE_DBPASS=000000

#Password for Keystore glance user. exmaple:000000
GLANCE_PASS=000000

#--------------------Nova Config----------------------##
#Password for Mysql nova user. exmaple:000000
NOVA_DBPASS=000000

#Password for Keystore nova user. exmaple:000000
NOVA_PASS=000000

#--------------------Neturon Config-------------------##
#Password for Mysql neutron user. exmaple:000000
NEUTRON_DBPASS=000000

#Password for Keystore neutron user. exmaple:000000
NEUTRON_PASS=000000

#metadata secret for neutron. exmaple:000000
METADATA_SECRET=000000

#External Network Interface. example:eth1
INTERFACE_NAME=ifcfg-eno16777736

#First Vlan ID in VLAN RANGE for VLAN Network. exmaple:101
minvlan=

#Last Vlan ID in VLAN RANGE for VLAN Network. example:200
maxvlan=

#--------------------Cinder Config--------------------##
#Password for Mysql cinder user. exmaple:000000
CINDER_DBPASS=000000

#Password for Keystore cinder user. exmaple:000000
CINDER_PASS=000000

#Cinder Block Disk. example:md126p3
BLOCK_DISK=d=md126p4

#--------------------Trove Config--------------------##
#Password for Mysql Trove User. exmaple:000000
TROVE_DBPASS=000000

#Password for Keystore Trove User. exmaple:000000
TROVE_PASS=000000

#--------------------Swift Config---------------------##
#Password for Keystore swift user. exmaple:000000
SWIFT_PASS=000000

#The NODE Object Disk for Swift. example:md126p4.
OBJECT_DISK=md126p5

#The NODE IP for Swift Storage Network. example:x.x.x.x.
STORAGE_LOCAL_NET_IP=192.168.200.20   #compute

#--------------------Heat Config----------------------##
#Password for Mysql heat user. exmaple:000000
HEAT_DBPASS=000000

#Password for Keystore heat user. exmaple:000000
HEAT_PASS=000000

#--------------------Ceilometer Config----------------##
#Password for Mysql ceilometer user. exmaple:000000
CEILOMETER_DBPASS=000000

#Password for Keystore ceilometer user. exmaple:000000
CEILOMETER_PASS=000000

#--------------------AODH Config----------------##
#Password for Mysql AODH user. exmaple:000000
AODH_DBPASS=000000

#Password for Keystore AODH user. exmaple:000000
AODH_PASS=000000

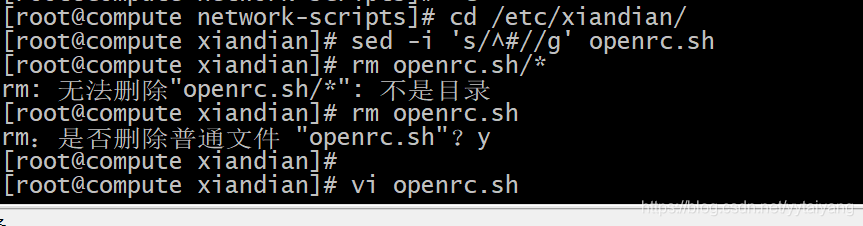

然后compute节点我是先删除该文件然后再复制过去

之后再将两个节点的虚拟机都重启

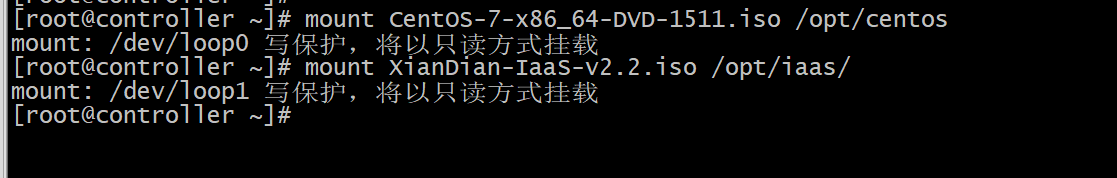

重启后要重新挂载镜像

controller 节点
iaas-pre-host.sh
iaas-install-mysql.sh
iaas-install-keystone.sh
iaas-install-glance.sh
iaas-install-nova-controller.sh
iaas-install-neutron-controller.sh
iaas-install-neutron-controller-gre.sh
iaas-install-dashboard.sh

compute
iaas-pre-host.sh
iaas-install-nova-compute.sh
iaas-install-neutron-compute.sh
iaas-install-neutron-compute-gre.sh

注：脚本安装完成之后，可以打开http://192.168.146.10/dashboard界面时，说明没问题。不考虑效率时，可以先将controller脚本安装后，再进行compute脚本的安装。反之，controller和compute在安装neutron之前，可以并行，安装neutron时，须先让controller先行，后者是compute。

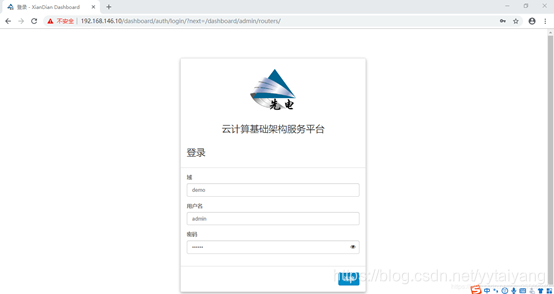

dashboard云主机申请
登录成功的话就是OK了。 后面的明天再发
