SpringBoot拦截器-【源码分析】-拦截器的执行时机和原理

1. 编写一个拦截器实现HandlerInterceptor接口

2. 拦截器注册到容器中（实现WebMvcConfigurer的addInterceptors()）

3. 指定拦截规则（注意，如果是拦截所有，静态资源也会被拦截】

编写一个实现HandlerInterceptor接口的拦截器：

@Slf4j
public class LoginInterceptor implements HandlerInterceptor {

    /**
     * 目标方法执行之前
     */
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {

        String requestURI = request.getRequestURI();
        log.info("preHandle拦截的请求路径是{}",requestURI);

        //登录检查逻辑
        HttpSession session = request.getSession();

        Object loginUser = session.getAttribute("loginUser");

        if(loginUser != null){
            //放行
            return true;
        }

        //拦截住。未登录。跳转到登录页
        request.setAttribute("msg","请先登录");
//        re.sendRedirect("/");
        request.getRequestDispatcher("/").forward(request,response);
        return false;
    }

    /**
     * 目标方法执行完成以后
     */
    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        log.info("postHandle执行{}",modelAndView);
    }

    /**
     * 页面渲染以后
     */
    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        log.info("afterCompletion执行异常{}",ex);
    }
}

拦截器注册到容器中 && 指定拦截规则：

@Configuration
public class AdminWebConfig implements WebMvcConfigurer{
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new LoginInterceptor())//拦截器注册到容器中
                .addPathPatterns("/**")  //所有请求都被拦截包括静态资源
                .excludePathPatterns("/","/login","/css/**","/fonts/**","/images/**",
                        "/js/**","/aa/**"); //放行的请求
}

拦截器-【源码分析】-拦截器的执行时机和原理

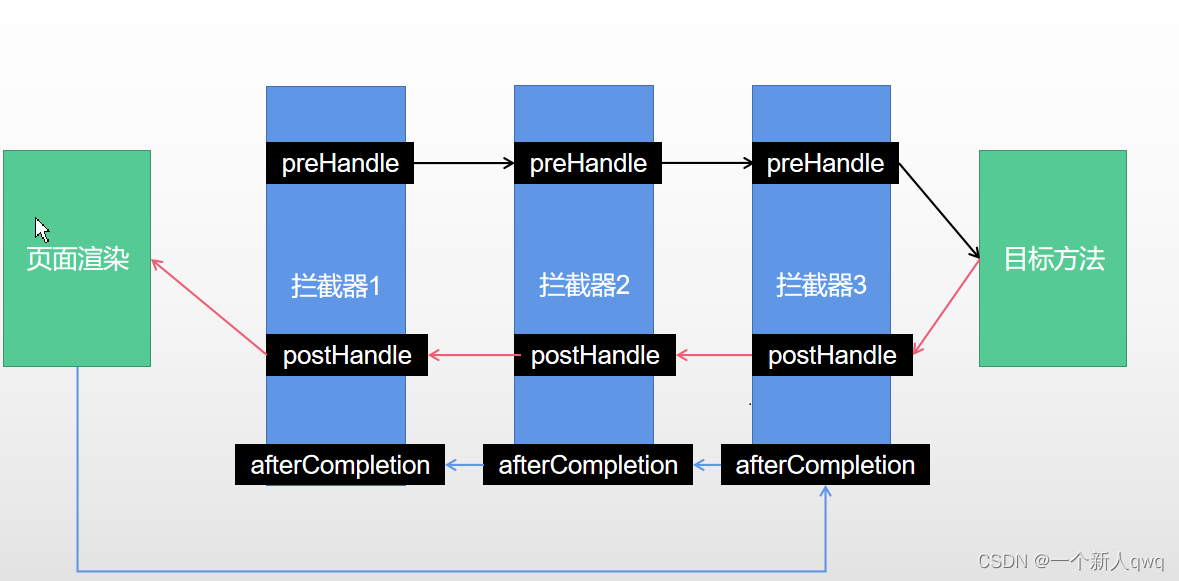

1. 根据当前请求，找到HandlerExecutionChain（可以处理请求的handler以及handler的所有 拦截器）
2. 先来顺序执行 所有拦截器的 preHandle()方法。
   • 如果当前拦截器preHandle()返回为true。则执行下一个拦截器的preHandle()
   • 如果当前拦截器返回为false。直接倒序执行所有已经执行了的拦截器的 afterCompletion();。
3. 如果任何一个拦截器返回false，直接跳出不执行目标方法。
4. 所有拦截器都返回true，才执行目标方法。
5. 倒序执行所有拦截器的postHandle()方法。
6. 前面的步骤有任何异常都会直接倒序触发 afterCompletion()。
7. 页面成功渲染完成以后，也会倒序触发 afterCompletion()。

DispatcherServlet中涉及到HandlerInterceptor的地方：

public class DispatcherServlet extends FrameworkServlet {

    ...

	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

            	...

                //该方法内调用HandlerInterceptor的preHandle()
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

            	...
                //该方法内调用HandlerInterceptor的postHandle()
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
        	processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			...
		}
	}

	private void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response,
			@Nullable HandlerExecutionChain mappedHandler, Exception ex) throws Exception {

		if (mappedHandler != null) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
			mappedHandler.triggerAfterCompletion(request, response, ex);
		}
		throw ex;
	}

	private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
			@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
			@Nullable Exception exception) throws Exception {

        ...

		if (mappedHandler != null) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
			// Exception (if any) is already handled..
			mappedHandler.triggerAfterCompletion(request, response, null);
		}
	}
}

public class HandlerExecutionChain {

    ...

	boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
		for (int i = 0; i < this.interceptorList.size(); i++) {
			HandlerInterceptor interceptor = this.interceptorList.get(i);
            //HandlerInterceptor的preHandle方法
			if (!interceptor.preHandle(request, response, this.handler)) {

				triggerAfterCompletion(request, response, null);
				return false;
			}
			this.interceptorIndex = i;
		}
		return true;
	}

   	void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
			throws Exception {

		for (int i = this.interceptorList.size() - 1; i >= 0; i--) {
			HandlerInterceptor interceptor = this.interceptorList.get(i);

            //HandlerInterceptor接口的postHandle方法
			interceptor.postHandle(request, response, this.handler, mv);
		}
	}

    void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, @Nullable Exception ex) {
		for (int i = this.interceptorIndex; i >= 0; i--) {
			HandlerInterceptor interceptor = this.interceptorList.get(i);
			try {
                //HandlerInterceptor接口的afterCompletion方法
				interceptor.afterCompletion(request, response, this.handler, ex);
			}
			catch (Throwable ex2) {
				logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
			}
		}
	}


}
