Android service AIDL 使用笔记

一、AS环境支持

在Android中加入AIDL支持,在build.gradle.kts中加入 aidl = true; 如下：

// build.gradle.kts 中 在buildTypes 下加入
    buildTypes {
        release {
            isMinifyEnabled = false
            proguardFiles(
                getDefaultProguardFile("proguard-android-optimize.txt"),
                "proguard-rules.pro"
            )
        }
    }
    buildFeatures{
        aidl = true
    }

二 创建服务端文件创建

1）service文件和注册

1.1 创建service文件

 // MyRemoteService.java
public class MyRemoteService extends Service {
    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        Log.e("TAG","MyRemoteService -> onBind()");
        return new StudentService();
    }

    @Override
    public boolean onUnbind(Intent intent) {
        Log.e("TAG","MyRemoteService -> onUnbind()");
        return super.onUnbind(intent);
    }

    class StudentService extends IStudentAIDLService.Stub {

        @Override
        public Student getStudentById(int id) throws RemoteException {
            Log.e("TAG","MyRemoteService -> StudentService -> getStudentById() id = "  + id);

            return new Student(id,"TOM",10000);
        }
    }
}

1.2 service文件注册

在服务端AndroidManifest.xml文件中添加如下代码：

        <service
            android:name=".remoteservice.MyRemoteService"  #MyRemoteService.java
            android:enabled="true"
            android:exported="true">						#外部可以访问
            <intent-filter>
                <action android:name="com.XXX.MyRemoteService" />  #定义一个action
            </intent-filter>
        </service>

2）创建Bean文件(Student.java)

此处创建bean文件应该在Java文件夹下非aidl文件夹下。

public class Student implements Parcelable {
    private int id;
    private String name;
    private double price;

    public Student(int id, String name, double price) {
        this.id = id;
        this.name = name;
        this.price = price;
    }

    protected Student(Parcel in) {
        id = in.readInt();
        name = in.readString();
        price = in.readDouble();
    }

    public static final Creator<Student> CREATOR = new Creator<Student>() {
        @Override
        public Student createFromParcel(Parcel in) {
            return new Student(in);
        }

        @Override
        public Student[] newArray(int size) {
            return new Student[size];
        }
    };

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public double getPrice() {
        return price;
    }

    public void setPrice(double price) {
        this.price = price;
    }

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", price=" + price +
                '}';
    }

    @Override
    public int describeContents() {

        return 0;
    }

    @Override
    public void writeToParcel(@NonNull Parcel dest, int flags) {
        dest.writeInt(id);
        dest.writeString(name);
        dest.writeDouble(price);
    }
}

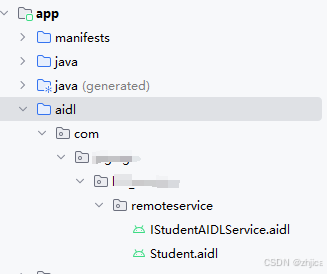

3）创建aidl文件

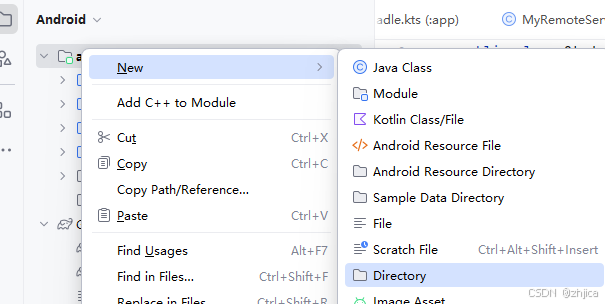

1）创建AIDL文件夹

按照上述图创建即可。

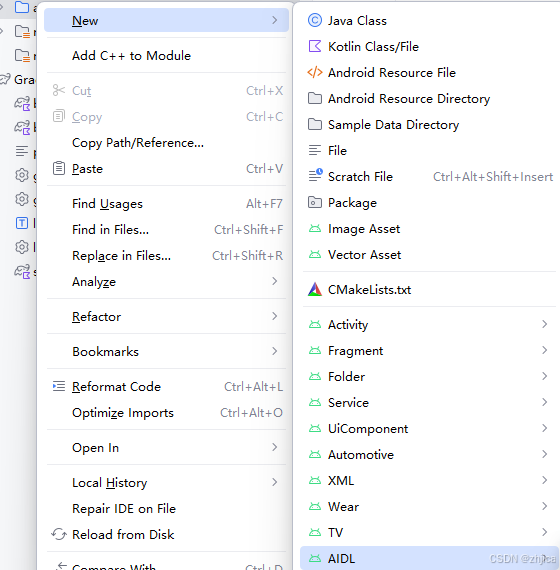

2）创建AIDL文件

// IStudentAIDLService.aidl
package com.xxx.xxxx.remoteservice;
import com.xxx.xxxx.remoteservice.Student;

interface IStudentAIDLService {
    Student getStudentById(int id);
}

// Student.aidl
package com.xxx.xxxx.remoteservice;
parcelable Student;

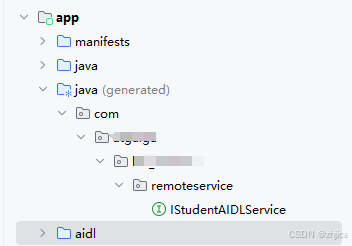

创建完成aidl相关文件后，会在java(generated)中生成一个文件，如图：

至此服务端带AIDL的Service创建完成。

三、客户端调用service(bindService)

1 在于服务端相同命名空间中创建bean文件和aidl文件，如果无法创建aidl文件根据as环境配置配置as环境。

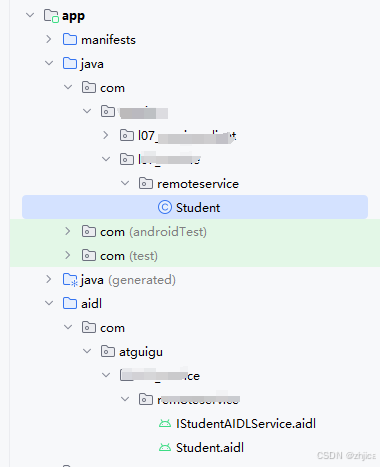

具体文件结构如下：

2 配置客户端AndroidManifest.xml

在此文件中加入访问权限，没有加入访问权限将无法访问MyRemoteService。

    <uses-permission android:name="android.permission.QUERY_ALL_PACKAGES"
        tools:ignore="QueryAllPackagesPermission" />

    <queries>
        <package android:name="com.xxx.xxxx"/>
    </queries>

3 绑定服务器service

public class MainActivity extends AppCompatActivity {

    private EditText et_aidl_id;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        EdgeToEdge.enable(this);
        setContentView(R.layout.activity_main);
        ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {
            Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());
            v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);
            return insets;
        });

        et_aidl_id = findViewById(R.id.et_aidl_id);

    }

    private ServiceConnection conn;
    private IStudentAIDLService studentAIDLService;
    public void bindRemoteService(View view){
        if (conn == null){
            conn = new ServiceConnection() {
                @Override
                public void onServiceConnected(ComponentName name, IBinder service) {
                    Log.e("TAG","bindRemoteService() -> onServiceConnected()");
                    studentAIDLService = IStudentAIDLService.Stub.asInterface(service);
                }

                @Override
                public void onServiceDisconnected(ComponentName name) {

                }
            };

            Intent intent = new Intent("com.xxx.MyRemoteService");
            intent.setAction("com.XXX.MyRemoteService");
            intent.setPackage("com.XXX.l07_service");

            boolean bindService = bindService(intent, conn, Context.BIND_AUTO_CREATE);

            Log.e("TAG","bindRemoteService() 绑定远程service " + bindService);
        }else{
            Log.e("TAG","bindRemoteService() 已经绑定远程service");
        }

    }

    public void invokeRemote(View view) throws RemoteException {
        if(studentAIDLService != null){
            int id = Integer.parseInt(et_aidl_id.getText().toString());
            Student student = studentAIDLService.getStudentById(id);

            Toast.makeText(this,student.toString(), Toast.LENGTH_SHORT).show();
        }
    }

    public void unbindRemoteService(View view){
        if (conn!=null){
            unbindService(conn);
            studentAIDLService = null;
            conn = null;
            Log.e("TAG","unbindRemoteService() 解除绑定远程service");
        }else{
            Log.e("TAG","unbindRemoteService() 已经解除绑定远程service");
        }
    }
}

至此完成所有创建工作。
