实现Launcher还是比较容易,我想做手机桌面的这个点应该用得比较多,最近看到一个自定义launcher的效果不会实现,是一种圆弧形的,我还要去想想怎么布局还有用什么控件去实现,这里我就简单实现一个launcher。

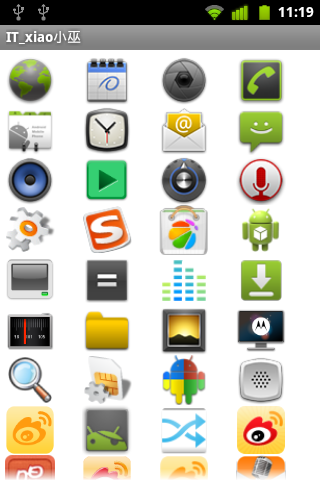

界面效果如图:
点击菜单键就好出现launcher的发送方式,如果设置为默认,每次启动都是右边的界面了。
下面看具体是实现:
先在AndroidMenifest.xml增加两行
- <?xml version="1.0" encoding="utf-8"?>
- <manifest xmlns:android="http://schemas.android.com/apk/res/android"
- package="com.wwj.launcher"
- android:versionCode="1"
- android:versionName="1.0" >
- <uses-sdk
- android:minSdkVersion="8"
- android:targetSdkVersion="17" />
- <application
- android:allowBackup="true"
- android:icon="@drawable/ic_launcher"
- android:label="@string/app_name"
- android:theme="@style/AppTheme" >
- <activity
- android:name="com.wwj.launcher.HeyWwj"
- android:label="@string/app_name" >
- <intent-filter>
- <action android:name="android.intent.action.MAIN" />
- <category android:name="android.intent.category.LAUNCHER" />
- <!-- 增加以下两行 -->
- <category android:name="android.intent.category.HOME"/>
- <category android:name="android.intent.category.DEFAULT"/>
- </intent-filter>
- </activity>
- </application>
- </manifest>
/LanchuerTest/src/com/wwj/launcher/HeyWwj.java
Activity
- package com.wwj.launcher;
- import java.util.List;
- import android.app.Activity;
- import android.content.ComponentName;
- import android.content.Intent;
- import android.content.pm.ResolveInfo;
- import android.os.Bundle;
- import android.view.View;
- import android.widget.AdapterView;
- import android.widget.AdapterView.OnItemClickListener;
- import android.widget.GridView;
- public class HeyWwj extends Activity {
- private GridView mGridView;
- private List<ResolveInfo> mApps;
- @Override
- protected void onCreate(Bundle savedInstanceState) {
- super.onCreate(savedInstanceState);
- setContentView(R.layout.activity_main);
- loadApps();
- mGridView = (GridView) findViewById(R.id.gridView1);
- mGridView.setAdapter(new AppAdapter(this, mApps));
- mGridView.setOnItemClickListener(new OnItemClickListener() {
- @Override
- public void onItemClick(AdapterView<?> parent, View view,
- int position, long id) {
- ResolveInfo info = mApps.get(position);
- // 应用的包名
- String pkg = info.activityInfo.packageName;
- // 应用的主Activity
- String cls = info.activityInfo.name;
- ComponentName componentName = new ComponentName(pkg, cls);
- Intent intent = new Intent();
- intent.setComponent(componentName);
- startActivity(intent);
- }
- });
- }
- /**
- * 加载app
- */
- private void loadApps() {
- Intent intent = new Intent(Intent.ACTION_MAIN, null);
- intent.addCategory(Intent.CATEGORY_LAUNCHER);
- mApps = getPackageManager().queryIntentActivities(intent, 0);
- }
- }
自定义适配器
/LanchuerTest/src/com/wwj/launcher/AppAdapter.Java
- package com.wwj.launcher;
- import java.util.List;
- import android.content.Context;
- import android.content.pm.ResolveInfo;
- import android.view.View;
- import android.view.ViewGroup;
- import android.widget.BaseAdapter;
- import android.widget.GridView;
- import android.widget.ImageView;
- import android.widget.ImageView.ScaleType;
- public class AppAdapter extends BaseAdapter {
- List<ResolveInfo> mApps;
- Context context;
- public AppAdapter(Context context, List<ResolveInfo> apps) {
- super();
- this.context = context;
- this.mApps = apps;
- }
- @Override
- public int getCount() {
- return mApps.size();
- }
- @Override
- public Object getItem(int position) {
- return mApps.get(position);
- }
- @Override
- public long getItemId(int position) {
- return position;
- }
- @Override
- public View getView(int position, View convertView, ViewGroup parent) {
- ImageView iv;
- if (convertView == null) {
- iv = new ImageView(context);
- iv.setScaleType(ScaleType.FIT_CENTER);
- iv.setLayoutParams(new GridView.LayoutParams(50,50));
- } else {
- iv = (ImageView) convertView;
- }
- ResolveInfo info = mApps.get(position);
- iv.setImageDrawable(info.activityInfo.loadIcon(context.getPackageManager()));
- return iv;
- }
- }
以上就大功告成了,是不是比较简单。不过一般涉及到复杂的需求,也就是比较复杂的界面效果就没那么容易了,这就要靠你们自己的聪明才智了,做出炫丽酷的效果,小巫在这方面就显得力不从心。
