c# picturebox上画图

在Form上添加 一个pictureBox,一个button控件

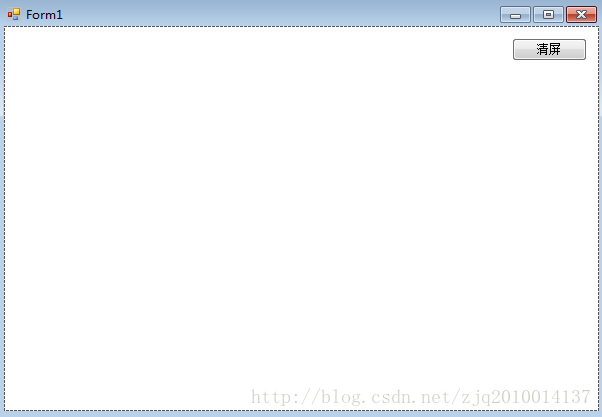

如图所示:

这样我们的绘画面板就弄好了,把pictureBox的dock属性设置为fill,按键为清屏的作用。

private Point p1, p2;//定义两个点(启点,终点)
private static bool drawing=false;//设置一个启动标志
private void pictureBox1_MouseDown(object sender, MouseEventArgs e)
        {

              p1 = new Point(e.X, e.Y);
              p2 = new Point(e.X, e.Y);
                drawing = true;

        }

private void pictureBox1_MouseUp(object sender, MouseEventArgs e)
        {
            drawing = false;
        }
private void pictureBox1_MouseMove(object sender, MouseEventArgs e)

        {

            Graphics g = pictureBox1.CreateGraphics();
            if(e.Button ==MouseButtons.Left)
            {
                if (drawing)
                {
                    //drawing = true;
                    Point currentPoint = new Point(e.X, e.Y);
                    g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;//消除锯齿
                    g.DrawLine(new Pen(Color.Blue, 2),  p2,currentPoint);

                    p2.X = currentPoint.X;
                    p2.Y = currentPoint.Y;
                }

            }

        }
//清屏操作
private void button1_Click(object sender, EventArgs e)
        {
            Graphics g = pictureBox1.CreateGraphics();
            g.Clear(Color.White);
        }
