依赖导入
IDEA中使用maven骨架搭建web工程
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.jtyhnet</groupId>
<artifactId>day01</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>day01 Maven Webapp</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.7</maven.compiler.source>
<maven.compiler.target>1.7</maven.compiler.target>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<scope>test</scope>
</dependency>
<!--spring相关-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.0.5.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.0.5.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>5.0.5.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.0.5.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.0.5.RELEASE</version>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.8.7</version>
</dependency>
<!--servlet及jsp-->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.0</version>
</dependency>
<!--mybatis-->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.4.5</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.1</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.26</version>
</dependency>
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.1.2</version>
</dependency>
<dependency>
<groupId>jstl</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
</dependencies>
<build>
<finalName>day01</finalName>
<pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>

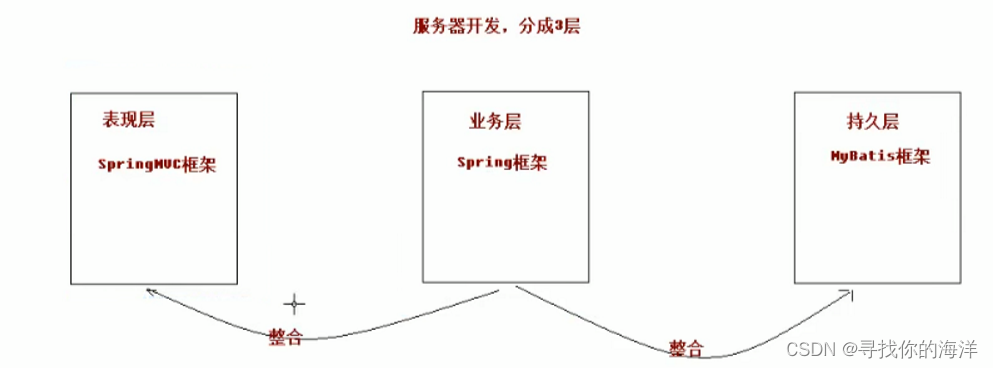

普通方式建立SSM工程
先按照原来学习内容,将SSM各个框架配置好,测试功能正常后进一步整合
涉及内容较多,整理后开发顺序如下:
| 步骤 | 代码 | 配置文件 |
|---|---|---|
| 1 | 通用配置文件编写 jdbc.properties log4j.properties | |
| 2 | 配置实体类javaBean | |
| 3 | 新建页面jsp | |
| 4 | 配置controller | 配置spring配置文件ApplicationContext.xml 开启component-scan exclude剔除controller 配置web.xml 配置context-param 配置CharacterEncodingFilter 配置listener 配置DispatcherServlet 配置spring-mvc.xml 开启component-scan include只扫描controller 配置视图解析器InternalResourceViewResolver 配置过滤静态资源<mvc:default-servlet-handler/> 开启springmvc注解支持 |
| 5 | 配置service及service实现类 | |
| 6 | 配置dao层mapper接口 | 配置Mybatis核心配置文件SqlMapConfig.xml 配置mapper.xml |
通用配置文件设置
jdbc.properties
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql:///test
jdbc.username=root
jdbc.password=root
log4j.properties
### direct log messages to stdout ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.out
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n
### direct messages to file mylog.log ###
log4j.appender.file=org.apache.log4j.FileAppender
log4j.appender.file.File=c:/mylog.log
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n
### set log levels - for more verbose logging change 'info' to 'debug' ###
log4j.rootLogger=debug, stdout
配置实体类
package com.jtyhnet.domain;
public class Account {
private int id;
private String name;
private double money;
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public double getMoney() {
return money;
}
public void setMoney(double money) {
this.money = money;
}
@Override
public String toString() {
return "Account{" +
"id=" + id +
", name='" + name + '\'' +
", money=" + money +
'}';
}
}
新建页面jsp
add.jsp
<%--
Created by IntelliJ IDEA.
User: Administrator
Date: 2021/12/31
Time: 21:10
To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<html>
<head>
<title>添加用户</title>
</head>
<body>
<h1>保存账户信息表单</h1>
<form action="${pageContext.request.contextPath}/save.action" method="post">
用户名称:<input type="text" name="name"><br>
账户金额:<input type="text" name="money"><br>
<input type="submit" value="添加"><br>
</form>
</body>
</html>
account.jsp
<%--
Created by IntelliJ IDEA.
User: Administrator
Date: 2021/12/31
Time: 21:48
To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>账户信息</title>
</head>
<body>
<table border="1">
<tr>
<th>账户id</th>
<th>账户名称</th>
<th>账户金额</th>
</tr>
<c:forEach items="${accountList}" var="account">
<tr>
<td>${account.id}</td>
<td>${account.name}</td>
<td>${account.money}</td>
</tr>
</c:forEach>
</table>
</body>
</html>
配置controller
package com.jtyhnet.controller;
import com.jtyhnet.domain.Account;
import com.jtyhnet.service.AccountService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.ModelAndView;
import java.io.IOException;
import java.util.Date;
import java.util.List;
@Controller
public class AccountController {
@Autowired
private AccountService accountService;
@RequestMapping("/save.action")
@ResponseBody
public String save(Account account) throws IOException {
System.out.println(new Date()+" : controller执行");
accountService.save(account);
return "save success--------------";
}
@RequestMapping("findAll.action")
public ModelAndView findAll() throws IOException {
List<Account> accountList = accountService.findAll();
ModelAndView modelAndView = new ModelAndView();
modelAndView.setViewName("account");
modelAndView.addObject("accountList",accountList);
return modelAndView;
}
}
配置spring配置文件ApplicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">
<!--开启注解扫描,希望只处理service和dao,controller不需要spring框架处理-->
<context:component-scan base-package="com.jtyhnet">
<!--配置哪些注解不扫描-->
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
</beans>
配置spring-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">
<!--开启注解扫描,只扫描controller注解-->
<context:component-scan base-package="com.jtyhnet">
<context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!--视图解析器-->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"/>
<property name="suffix" value=".jsp"/>
</bean>
<!--过滤静态资源-->
<mvc:default-servlet-handler/>
<!--开启springmvc注解支持-->
<mvc:annotation-driven/>
</beans>
配置web.xml
<!DOCTYPE web-app PUBLIC
"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd" >
<web-app>
<display-name>Archetype Created Web Application</display-name>
<!--设置配置文件路径-->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:ApplicationContext.xml</param-value>
</context-param>
<!--解决中文乱码过滤器-->
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!--配置spring监听器 默认只加载WEB-INF目录下的ApplicationContext.xml配置文件-->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!--配置前端控制器-->
<servlet>
<servlet-name>DispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!--加载springmvc配置文件-->
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring-mvc.xml</param-value>
</init-param>
<!--启动服务器创建该servlet-->
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>DispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
配置service
package com.jtyhnet.service;
import com.jtyhnet.domain.Account;
import java.io.IOException;
import java.util.List;
public interface AccountService {
List<Account> findAll() throws IOException;
void save(Account account) throws IOException;
}
实现类
package com.jtyhnet.service.impl;
import com.jtyhnet.domain.Account;
import com.jtyhnet.mapper.AccountMapper;
import com.jtyhnet.service.AccountService;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.springframework.stereotype.Service;
import java.io.IOException;
import java.io.InputStream;
import java.util.Date;
import java.util.List;
@Service("accountService")
public class AccountServiceImpl implements AccountService {
@Override
public List<Account> findAll() throws IOException {
System.out.println(new Date()+" : service执行");
InputStream resourceAsStream = Resources.getResourceAsStream("SqlMapConfig.xml");
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
SqlSession sqlSession = sqlSessionFactory.openSession();
AccountMapper accountMapper = sqlSession.getMapper(AccountMapper.class);
List<Account> accountList = accountMapper.findAll();
sqlSession.close();
return accountList;
}
@Override
public void save(Account account) throws IOException {
System.out.println(new Date()+" : service执行");
InputStream resourceAsStream = Resources.getResourceAsStream("SqlMapConfig.xml");
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
SqlSession sqlSession = sqlSessionFactory.openSession();
AccountMapper accountMapper = sqlSession.getMapper(AccountMapper.class);
accountMapper.save(account);
sqlSession.commit();
sqlSession.close();
}
}
配置dao层mapper接口
package com.jtyhnet.mapper;
import com.jtyhnet.domain.Account;
import java.util.List;
public interface AccountMapper {
List<Account> findAll();
void save(Account account);
}
配置mybatis核心配置文件SqlMapConfig.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<properties resource="jdbc.properties"/>
<typeAliases>
<typeAlias type="com.jtyhnet.domain.Account" alias="account"/>
</typeAliases>
<environments default="mysql">
<environment id="mysql">
<transactionManager type="JDBC"></transactionManager>
<dataSource type="POOLED">
<property name="driver" value="${jdbc.driver}"/>
<property name="url" value="${jdbc.url}"/>
<property name="username" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
</dataSource>
</environment>
</environments>
<mappers>
<mapper resource="com/jtyhnet/mapper/AccountMapper.xml"/>
</mappers>
</configuration>
配置AccountMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.jtyhnet.mapper.AccountMapper">
<select id="findAll" resultType="account">
select * from account
</select>
<insert id="save" parameterType="account">
insert into account values (#{id},#{name},#{money})
</insert>
</mapper>
测试功能正常
SSM工程整合
分析上述即可发现,service实现类中存在大量重复代码,可以把mapper类交给spring控制,事务控制通过声明式事务控制来实现
@Override
public void save(Account account) throws IOException {
System.out.println(new Date()+" : service执行");
InputStream resourceAsStream = Resources.getResourceAsStream("SqlMapConfig.xml");
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
SqlSession sqlSession = sqlSessionFactory.openSession();
AccountMapper accountMapper = sqlSession.getMapper(AccountMapper.class);
accountMapper.save(account);
sqlSession.commit();
sqlSession.close();
}
配置SqlSessionFactory及mapper
<!--加载jdbc.properties-->
<context:property-placeholder location="classpath:jdbc.properties"/>
<!--配置数据源-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
</bean>
<!--配置mybatis的SqlSessionFactory-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:SqlMapConfig-spring.xml"/>
</bean>
<!--配置mapper扫描,让spring容器产生mapper实现类-->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.jtyhnet.mapper"/>
</bean>
@Repository注解加入到spring容器
package com.jtyhnet.mapper;
import com.jtyhnet.domain.Account;
import org.springframework.stereotype.Repository;
import java.util.List;
@Repository
public interface AccountMapper {
List<Account> findAll();
void save(Account account);
}
配置声明式事务控制
<!--配置声明式事务控制-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="*"/>
</tx:attributes>
</tx:advice>
<aop:config>
<aop:pointcut id="txPointcut" expression="execution(* com.jtyhnet.service.impl.*.*(..))"/>
<aop:advisor advice-ref="txAdvice" pointcut-ref="txPointcut"/>
</aop:config>
修改mybatis核心配置文件,剔除无用部分
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<typeAliases>
<typeAlias type="com.jtyhnet.domain.Account" alias="account"/>
</typeAliases>
</configuration>
完整ApplicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
">
<!--开启注解扫描,希望只处理service和dao,controller不需要spring框架处理-->
<context:component-scan base-package="com.jtyhnet">
<!--配置哪些注解不扫描-->
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!--加载jdbc.properties-->
<context:property-placeholder location="classpath:jdbc.properties"/>
<!--配置数据源-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
</bean>
<!--配置mybatis的SqlSessionFactory-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:SqlMapConfig-spring.xml"/>
</bean>
<!--配置mapper扫描,让spring容器产生mapper实现类-->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.jtyhnet.mapper"/>
</bean>
<!--配置声明式事务控制-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="*"/>
</tx:attributes>
</tx:advice>
<aop:config>
<aop:pointcut id="txPointcut" expression="execution(* com.jtyhnet.service.impl.*.*(..))"/>
<aop:advisor advice-ref="txAdvice" pointcut-ref="txPointcut"/>
</aop:config>
</beans>
修改service
package com.jtyhnet.service.impl;
import com.jtyhnet.domain.Account;
import com.jtyhnet.mapper.AccountMapper;
import com.jtyhnet.service.AccountService;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.io.IOException;
import java.io.InputStream;
import java.util.Date;
import java.util.List;
@Service("accountService")
public class AccountServiceImpl implements AccountService {
@Autowired
private AccountMapper accountMapper;
@Override
public List<Account> findAll() throws IOException {
/* System.out.println(new Date()+" : service执行");
InputStream resourceAsStream = Resources.getResourceAsStream("SqlMapConfig.xml");
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
SqlSession sqlSession = sqlSessionFactory.openSession();
AccountMapper accountMapper = sqlSession.getMapper(AccountMapper.class);
List<Account> accountList = accountMapper.findAll();
sqlSession.close();
return accountList;*/
List<Account> accountList = accountMapper.findAll();
return accountList;
}
@Override
public void save(Account account) throws IOException {
/* System.out.println(new Date()+" : service执行");
InputStream resourceAsStream = Resources.getResourceAsStream("SqlMapConfig.xml");
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
SqlSession sqlSession = sqlSessionFactory.openSession();
AccountMapper accountMapper = sqlSession.getMapper(AccountMapper.class);
accountMapper.save(account);
sqlSession.commit();
sqlSession.close();*/
accountMapper.save(account);
}
}
完成整合
本文档详细介绍了如何在IDEA中使用Maven骨架搭建一个基于SSM(Spring、SpringMVC、Mybatis)的Web工程,并逐步展示了从创建基本配置文件、编写实体类、配置Controller、Service、Dao到整合Spring声明式事务的全过程。通过整合,实现了数据访问的事务管理,简化了Service层的代码,提高了代码的可维护性。
587

被折叠的 条评论
为什么被折叠?
