*IPv6:采用 128 位 2 进制数码表示
1.表示方式:8*16进制的一串数字
2.任意位数的 0 可以用 ::表示
Internet Protocol Version 6
3.设置:

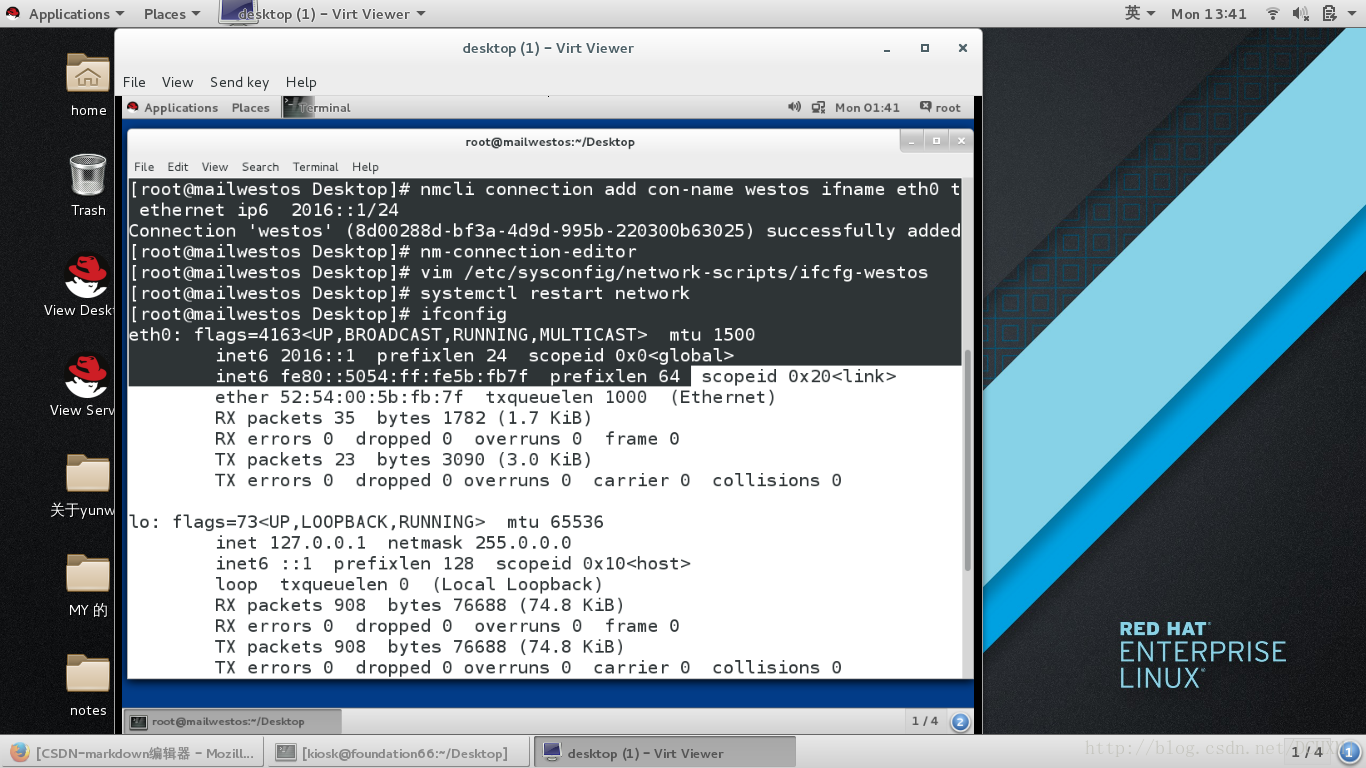

1.nmcli connection add con-name westos ifname eth0 type ethernet ip6 2016::1/64 #设置IP
2.nm-connection-eth0 (delete eth0) #删除原有的IPV4
3.vim /etc/sysconfig/network-scrips/ifcfg-westos
dhcp——>none #将 dhcp 状态改为 none
4.systemctl restart network
5..检测:

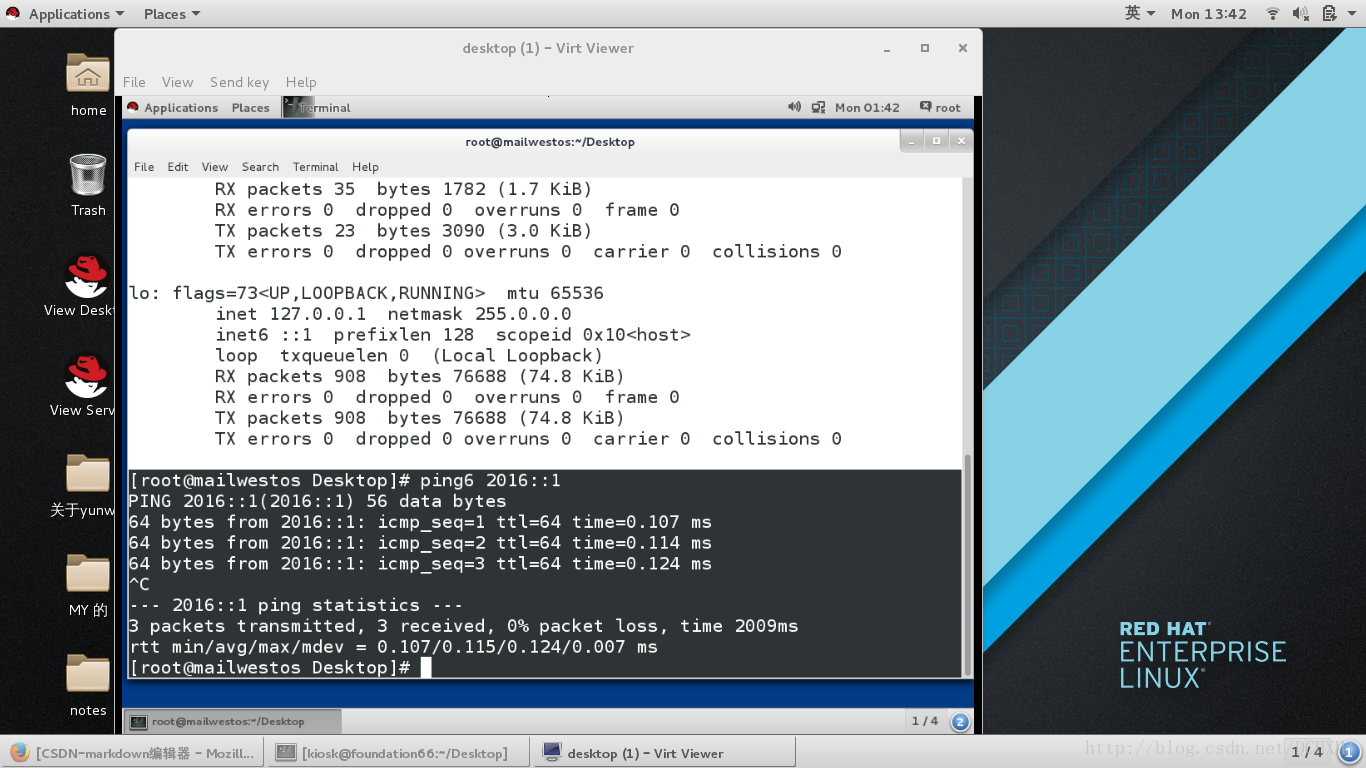

#ping6 IP6
*高级网络桥接
*用网络桥接实现共享上网主机和客户主机除了利用软件之外,还可以用系统自带 的网络桥接建立连接网络用双网卡的机器做主机
*brctl #桥接管理命令
-show #显示
-addbr #添加网桥
-delbr #删除桥接
-addif #添加网桥连接
-delif #删除网桥连接
1.cd /etc/sysconfig/network-scripts/
2.ls
3.mv ifcfg-br0 ifcfg-enp0s25 /mnt
4.nm-connection-editor
5.ls /mnt/
6.mv /mnt/ifcfg-* .
7.ls
8.reboot
*建立桥接
1.cd /etc/sysconfig/network-scripts/
2.vim ifcfg-ebp0s25
DEVICE=enp0s25
ONBOOT=yes
BOOTPROTO=none
BRIDGE=br0
TYPE=Ethernet
3.vim ifcfg-br0
DEVICE=br0
ONBOOT=yes
TYPE=Bridge #必须要首字母大写
IPADDR=172.25.254.30
PREFIX=24
DNS1=172.25.254.250
GATEWAY=172.25.254.250
4.systemctl stop NetworkManager.service #必须先关闭
5.systemctl restart network
6.systemctl start NetworkManager
7.brctl show
***bonding 的三种模式
#需要两块网卡
1.nmcli connection add con-name bond0 type bond mode active-backup ip4 172.25.254.30/24
2.ping 172.25.254.30 #此时ping不通
3.nmcil connection add con-name eth0 ifname eth0 type bond-slave master bond0
4.ping
5.nmcli connection add con-name eth1 ifname eth1 type bond-slave master bond0
6.ifconfig eth0 down
7.ifconfig eth0 up
#监控:whatch -n 1 cat /proc/net/bonding/bond0
*多块网卡阵列

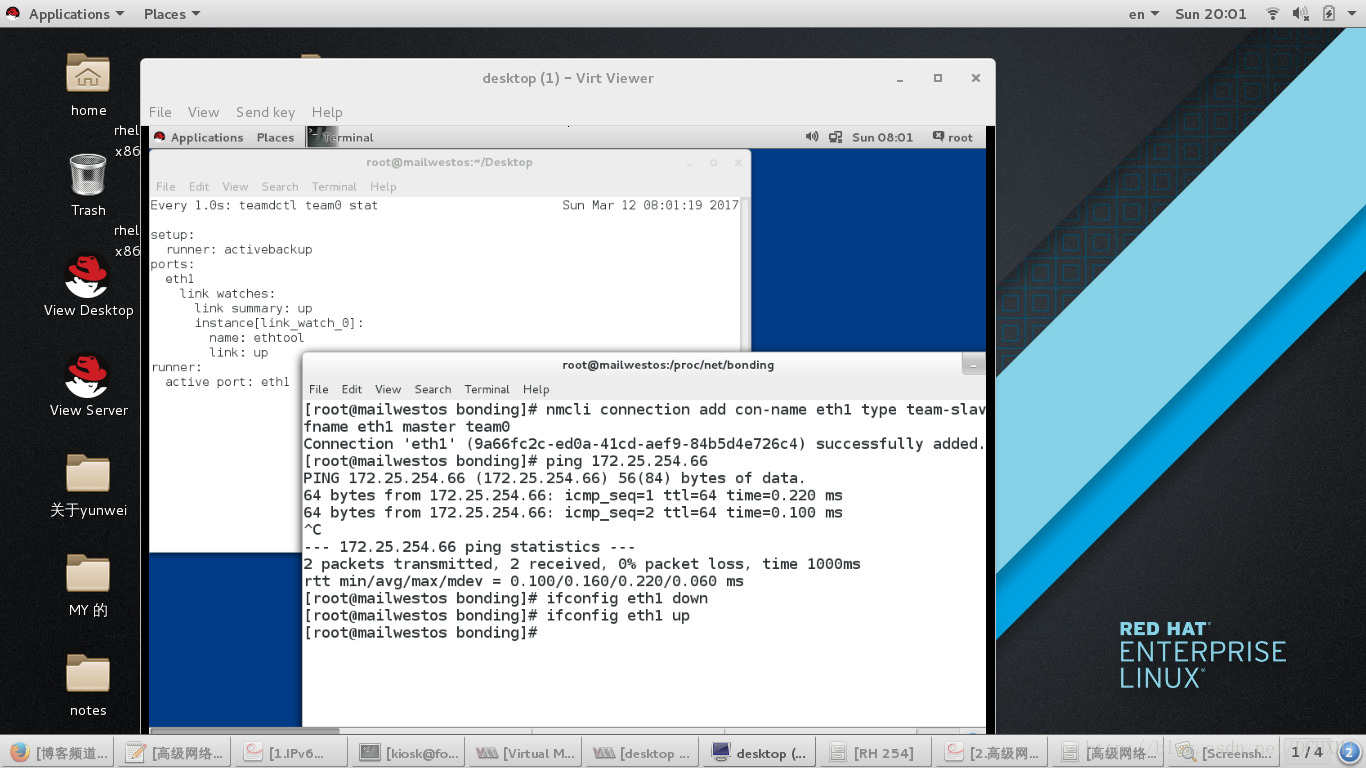

1.nmcli connection add con-name team0 ifname team0 type team config ‘{“runner”:{“name”:”activebackup”}}’ ip4 172.25.254.130/24
2.ifconfig
3.ping 172.25.254.130
4.nmcli connection add con-name eth0 type team-slave ifname eth0 master team0
5.nmcli connection add con-name eth1 type team-slave ifname eth1 master team0
6.ifconfig eth0 down
7.ifconfig eth0 up
#监控:whatch -n 1 teamdctl team0 stat
*建立:
1.brctl addbr br0
2.brctl show
3.brctl defif br0 eth0
4.ifconfig br0 172.25.254.130 netmask 255.255.255.0
5.ping
*删除
1.brctl delif br0 eth0
2.ifconfig br0 down #先 down ,再删除
3.brctl delbr br0
