【Android开发】布局管理器-线性布局

这里实现垂直布局和水平布局:

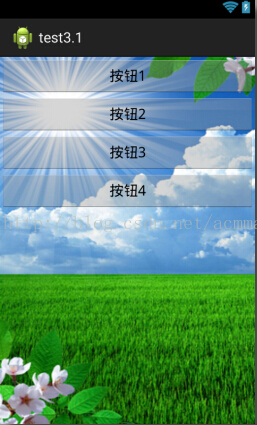

垂直布局效果图:


实现代码:

垂直线性布局
res/layout/main.xml:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:background="@drawable/backgroud"
    >

    <Button android:text="按钮1"
     android:id="@+id/button1"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     />
    <Button android:text="按钮2"
     android:id="@+id/button2"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     />
    <Button android:text="按钮3"
     android:id="@+id/button3"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     />
    <Button android:text="按钮4"
     android:id="@+id/button4"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     />


</LinearLayout>

MainActivity:
package com.example.test;


import android.app.Activity;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.OnTouchListener;
import android.widget.FrameLayout;


public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.main);

	}
}

水平线性布局:

只需要将android:orientation属性设置为horizontal,将各个按钮的layout_width属性值和layout_height属性值互换即可。

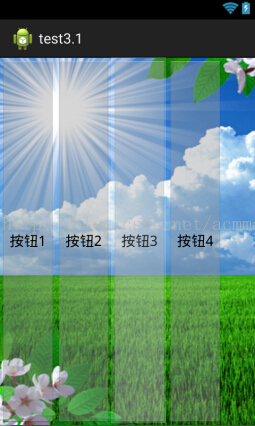

效果图:


转载请注明出处:http://blog.csdn.net/acmman/article/details/44728769
