【springmvc+mybatis项目实战】杰信商贸-26.出货表修饰+下载

上一次我们利用POI技术完成了出货表的取值、构建以及生产excel文件。下面我们继续利用POI技术来修饰我们之前构造的excel,然后将修饰完的excel能让用户下载。

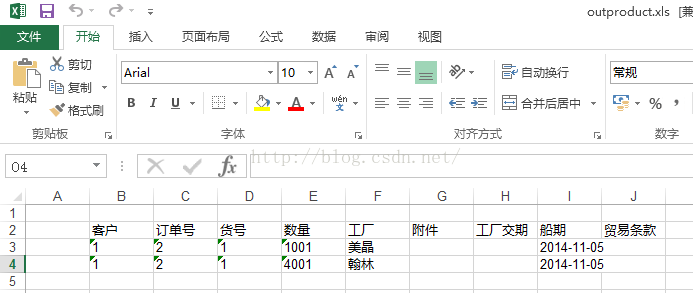

回顾一下之前用代码生成的excel

我们的表格并不是很好看,而且大部分表格的长度不足以存储数据,我们要对这个表进行完整的修改。

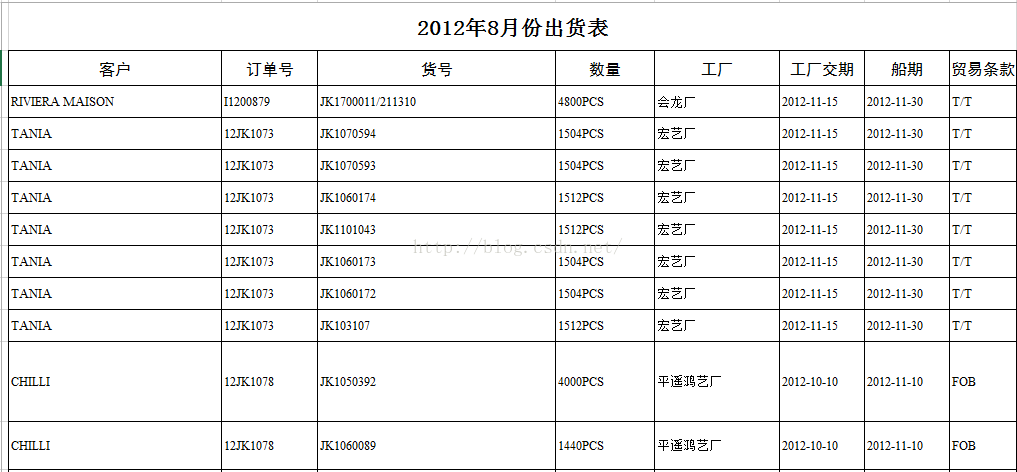

记不记得我们之前的出货表样板:

我们现在没有标题,所以要给它加一个标题,这个标题是需要单元格合并的,所以我们在这里设置它
//大标题,合并单元格
sheet.addMergedRegion(new CellRangeAddress(0,0,1,9));//开始行,结束行,开列,结束列
//合并单元格的内容是写在合并前第一个单元格中
nRow=sheet.createRow(rowNo++);
nCell=nRow.createCell(1);
nCell.setCellValue(inputDate.replaceFirst("-0","-").replaceFirst("-","年")+"月份出货表");//yyyy-MM

完整代码:
//打印
@RequestMapping("/cargo/outproduct/print.action")
public void print(String inputDate) throws IOException{  //inputDate格式:yyyy-MM

	List<OutProductVO> dataList=outProductService.find(inputDate);
	/*System.out.println(dataList.size());
	System.out.println(inputDate);*/


	Workbook wb=new HSSFWorkbook();
	Sheet sheet=wb.createSheet();
	Row nRow=null;
	Cell nCell=null;

	int rowNo=0;  //行号
	int cellNo=1;//列号

	//大标题,合并单元格
	sheet.addMergedRegion(new CellRangeAddress(0,0,1,9));//开会行,结束行,开始列,结束列
	//合并单元格的内容是写在合并前第一个单元格中
	nRow=sheet.createRow(rowNo++);
	nCell=nRow.createCell(1);
	nCell.setCellValue(inputDate.replaceFirst("-0","-").replaceFirst("-","年")+"月份出货表");//yyyy-MM

	//配置标题行
	String [] title=new String[]{"客户","订单号","货号","数量","工厂","附件","工厂交期","船期","贸易条款"};

	nRow=sheet.createRow(rowNo++);
	for (int i = 0; i < title.length; i++) {
		nCell=nRow.createCell(i+1);
		nCell.setCellValue(title[i]);
	}

	//处理数据
	for (int i = 0; i < dataList.size(); i++) {
		OutProductVO op=dataList.get(i);


		nRow=sheet.createRow(rowNo++);
		cellNo=1;//列号初始化

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getCustomName());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getcontractNo());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getProductNo());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getCnumber());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getFactoryName());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getExts());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getDelivery_preriod());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getShip_time());

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getTradeTerms());
	}

	OutputStream os=new FileOutputStream(new File("F:\\outproduct.xls"));
	wb.write(os);
	os.close();

}

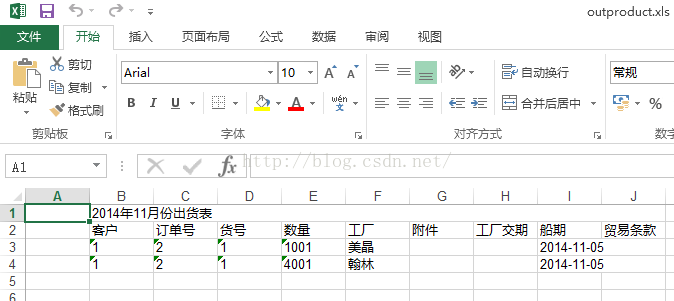

然后打印出来的效果是:



但是样式还是不好看,并且标题还不是居中的,我们再修改一下标题:
//声明样式对象和字体对象
CellStyle nStyle=wb.createCellStyle();
Font nFont=wb.createFont();

//大标题,合并单元格
sheet.addMergedRegion(new CellRangeAddress(0,0,1,9));//开会行,结束行,开始列,结束列
//合并单元格的内容是写在合并前第一个单元格中
nRow=sheet.createRow(rowNo++);
nRow.setHeightInPoints(36);//行高


nCell=nRow.createCell(1);
nCell.setCellValue(inputDate.replaceFirst("-0","-").replaceFirst("-","年")+"月份出货表");//yyyy-MM
nCell.setCellStyle(this.bigTitle(wb, nStyle, nFont));

其中bigTitle方法
//大标题样式
public CellStyle bigTitle(Workbook wb,CellStyle nStyle,Font nFont){
	nFont.setFontName("宋体");
	nFont.setFontHeightInPoints((short)16);
	//设置字体加粗
	nFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);
	//横向居中
	nStyle.setAlignment(CellStyle.ALIGN_CENTER);
	//纵向居中
	nStyle.setVerticalAlignment(CellStyle.VERTICAL_CENTER);
	nStyle.setFont(nFont);

	return nStyle;
}

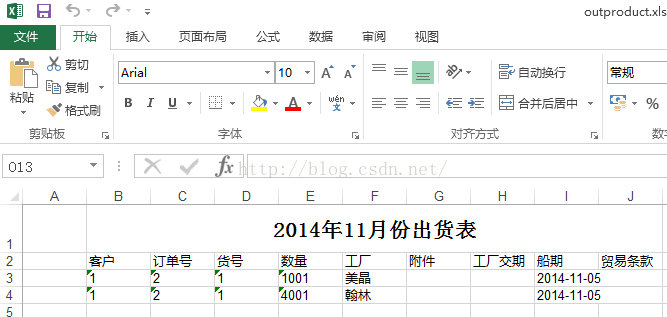

最后测试一下打印出来的结果:

符合我们的需求,我们接下来修饰一下我们下面的所有数据表格,设置字体与表格宽度等属性,修改后的完整代码为:
//打印
@RequestMapping("/cargo/outproduct/print.action")
public void print(String inputDate) throws IOException{  //inputDate格式:yyyy-MM

	List<OutProductVO> dataList=outProductService.find(inputDate);
	/*System.out.println(dataList.size());
	System.out.println(inputDate);*/


	Workbook wb=new HSSFWorkbook();
	Sheet sheet=wb.createSheet();
	Row nRow=null;
	Cell nCell=null;

	int rowNo=0;  //行号
	int cellNo=1;//列号

	//声明样式对象和字体对象
	CellStyle nStyle=wb.createCellStyle();
	Font nFont=wb.createFont();

	//设置表格宽度
	sheet.setColumnWidth(0,1*300);//列宽
	sheet.setColumnWidth(1,26*300);//列宽
	sheet.setColumnWidth(2,12*300);//列宽
	sheet.setColumnWidth(3,29*300);//列宽
	sheet.setColumnWidth(4,10*300);//列宽
	sheet.setColumnWidth(5,12*300);//列宽
	sheet.setColumnWidth(6,8*300);//列宽
	sheet.setColumnWidth(7,10*300);//列宽
	sheet.setColumnWidth(8,10*300);//列宽
	sheet.setColumnWidth(9,8*300);//列宽

	//大标题,合并单元格
	sheet.addMergedRegion(new CellRangeAddress(0,0,1,9));//开会行,结束行,开始列,结束列
	//合并单元格的内容是写在合并前第一个单元格中
	nRow=sheet.createRow(rowNo++);
	nRow.setHeightInPoints(36);//行高

	nCell=nRow.createCell(1);
	nCell.setCellValue(inputDate.replaceFirst("-0","-").replaceFirst("-","年")+"月份出货表");//yyyy-MM
	nCell.setCellStyle(this.bigTitle(wb, nStyle, nFont));

	//配置标题行
	String [] title=new String[]{"客户","订单号","货号","数量","工厂","附件","工厂交期","船期","贸易条款"};

	nRow=sheet.createRow(rowNo++);
	nRow.setHeightInPoints(26.25f);//标题的高
	nStyle=wb.createCellStyle();//重新初始化样式
	nFont=wb.createFont();//重新初始化字体
	for (int i = 0; i < title.length; i++) {
		nCell=nRow.createCell(i+1);
		nCell.setCellValue(title[i]);
		nCell.setCellStyle(this.Title(wb, nStyle, nFont));
	}

	nStyle=wb.createCellStyle();//重新初始化样式
	nFont=wb.createFont();//重新初始化字体

	//处理数据
	for (int i = 0; i < dataList.size(); i++) {
		OutProductVO op=dataList.get(i);


		nRow=sheet.createRow(rowNo++);
		nRow.setHeightInPoints(24);//数据框的高
		cellNo=1;//列号初始化

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getCustomName());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getcontractNo());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getProductNo());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getCnumber());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getFactoryName());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getExts());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getDelivery_preriod());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getShip_time());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

		nCell=nRow.createCell(cellNo++);
		nCell.setCellValue(op.getTradeTerms());
		nCell.setCellStyle(this.Text(wb, nStyle, nFont));

	}

	OutputStream os=new FileOutputStream(new File("F:\\outproduct.xls"));
	wb.write(os);
	os.close();

}


//大标题样式
public CellStyle bigTitle(Workbook wb,CellStyle nStyle,Font nFont){
	nFont.setFontName("宋体");
	nFont.setFontHeightInPoints((short)16);
	//设置字体加粗
	nFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);
	//横向居中
	nStyle.setAlignment(CellStyle.ALIGN_CENTER);
	//纵向居中
	nStyle.setVerticalAlignment(CellStyle.VERTICAL_CENTER);
	nStyle.setFont(nFont);

	return nStyle;
}


//标题样式
public CellStyle Title(Workbook wb,CellStyle nStyle,Font nFont){
	nFont.setFontName("黑体");
	nFont.setFontHeightInPoints((short)12);
	//设置字体加粗
	nFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);
	//横向居中
	nStyle.setAlignment(CellStyle.ALIGN_CENTER);
	//纵向居中
	nStyle.setVerticalAlignment(CellStyle.VERTICAL_CENTER);
	//表格线(上下左右的细线)
	nStyle.setBorderTop(CellStyle.BORDER_THIN);
	nStyle.setBorderLeft(CellStyle.BORDER_THIN);
	nStyle.setBorderRight(CellStyle.BORDER_THIN);
	nStyle.setBorderBottom(CellStyle.BORDER_THIN);

	nStyle.setFont(nFont);

	return nStyle;
}


//文字样式
public CellStyle Text(Workbook wb,CellStyle nStyle,Font nFont){
	nFont.setFontName("Times New Roman");
	nFont.setFontHeightInPoints((short)10);
	//横向居中
	nStyle.setAlignment(CellStyle.ALIGN_CENTER);
	//纵向居中
	nStyle.setVerticalAlignment(CellStyle.VERTICAL_CENTER);
	//表格线(上下左右的细线)
	nStyle.setBorderTop(CellStyle.BORDER_THIN);
	nStyle.setBorderLeft(CellStyle.BORDER_THIN);
	nStyle.setBorderRight(CellStyle.BORDER_THIN);
	nStyle.setBorderBottom(CellStyle.BORDER_THIN);

	nStyle.setFont(nFont);

	return nStyle;
}

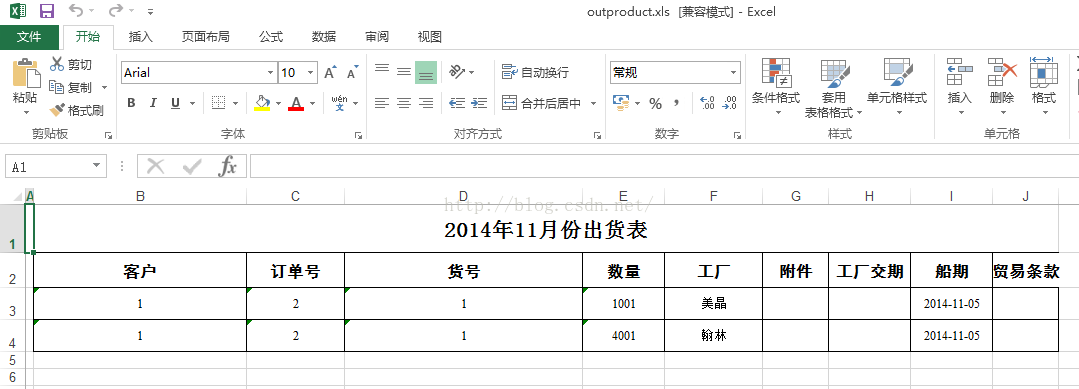

修饰后效果


为了方便之后的打印,我们还要思考以下问题:
1.添加页脚,因为要打印多张,以防打印出错。
2.要将表调整成横向,因为纵向打印会超出纸张的宽度。
3.每张都要添加标题栏,不然会弄混
4.内容样式稍有不同,就需要创建不同的格式的样式,写很多样式应用的语句。

这些问题我们之后再来解决,我们先给系统页面添加一个连接,好下载打印完成之后的文档:
我们将之前的生产文件代码:
OutputStream os=new FileOutputStream(new File("F:\\outproduct.xls"));
wb.write(os);
os.flush();
os.close();

修改为:
//下载(使用了我们的工具类)
DownloadUtil du=new DownloadUtil();
ByteArrayOutputStream bs=new ByteArrayOutputStream();
wb.write(bs);
du.download(bs, response, "出货表.xls");

其中DownloadUtil类是我们的工具类,此类的详细代码为:
package cn.hpu.jk.Util;

import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;


import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;


public class DownloadUtil {

	/**
	 * @param filePath 要下载的文件路径
	 * @param returnName 返回的文件名
	 * @param response HttpServletResponse
	 * @param delFlag 是否删除文件
	 */
	protected void download(String filePath,String returnName,HttpServletResponse response,boolean delFlag){
		this.prototypeDownload(new File(filePath), returnName, response, delFlag);
	}




	/**
	 * @param file 要下载的文件
	 * @param returnName 返回的文件名
	 * @param response HttpServletResponse
	 * @param delFlag 是否删除文件
	 */
	protected void download(File file,String returnName,HttpServletResponse response,boolean delFlag){
		this.prototypeDownload(file, returnName, response, delFlag);
	}

	/**
	 * @param file 要下载的文件
	 * @param returnName 返回的文件名
	 * @param response HttpServletResponse
	 * @param delFlag 是否删除文件
	 */
	public void prototypeDownload(File file,String returnName,HttpServletResponse response,boolean delFlag){
		// 下载文件
		FileInputStream inputStream = null;
		ServletOutputStream outputStream = null;
		try {
			if(!file.exists()) return;
			response.reset();
			//设置响应类型	PDF文件为"application/pdf",WORD文件为:"application/msword", EXCEL文件为:"application/vnd.ms-excel"。
			response.setContentType("application/octet-stream;charset=utf-8");


			//设置响应的文件名称,并转换成中文编码
			//returnName = URLEncoder.encode(returnName,"UTF-8");
			returnName = response.encodeURL(new String(returnName.getBytes(),"iso8859-1"));	//保存的文件名,必须和页面编码一致,否则乱码

			//attachment作为附件下载;inline客户端机器有安装匹配程序,则直接打开;注意改变配置,清除缓存,否则可能不能看到效果
			response.addHeader("Content-Disposition",   "attachment;filename="+returnName);

			//将文件读入响应流
			inputStream = new FileInputStream(file);
			outputStream = response.getOutputStream();
			int length = 1024;
			int readLength=0;
			byte buf[] = new byte[1024];
			readLength = inputStream.read(buf, 0, length);
			while (readLength != -1) {
				outputStream.write(buf, 0, readLength);
				readLength = inputStream.read(buf, 0, length);
			}
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			try {
				outputStream.flush();
			} catch (IOException e) {
				e.printStackTrace();
			}
			try {
				outputStream.close();
			} catch (IOException e) {
				e.printStackTrace();
			}
			try {
				inputStream.close();
			} catch (IOException e) {
				e.printStackTrace();
			}
			//删除原文件

			if(delFlag) {
				file.delete();
			}
		}
	}


	/**
	 * by tony 2013-10-17
	 * @param byteArrayOutputStream 将文件内容写入ByteArrayOutputStream
	 * @param response HttpServletResponse	写入response
	 * @param returnName 返回的文件名
	 */
	public void download(ByteArrayOutputStream byteArrayOutputStream, HttpServletResponse response, String returnName) throws IOException{
		response.setContentType("application/octet-stream;charset=utf-8");
		returnName = response.encodeURL(new String(returnName.getBytes(),"iso8859-1"));	//保存的文件名,必须和页面编码一致,否则乱码
		response.addHeader("Content-Disposition",   "attachment;filename=" + returnName);
		response.setContentLength(byteArrayOutputStream.size());

		ServletOutputStream outputstream = response.getOutputStream();	//取得输出流
		byteArrayOutputStream.writeTo(outputstream);	//写到输出流
		byteArrayOutputStream.close();	//关闭
		outputstream.flush();	//刷数据
	}
}

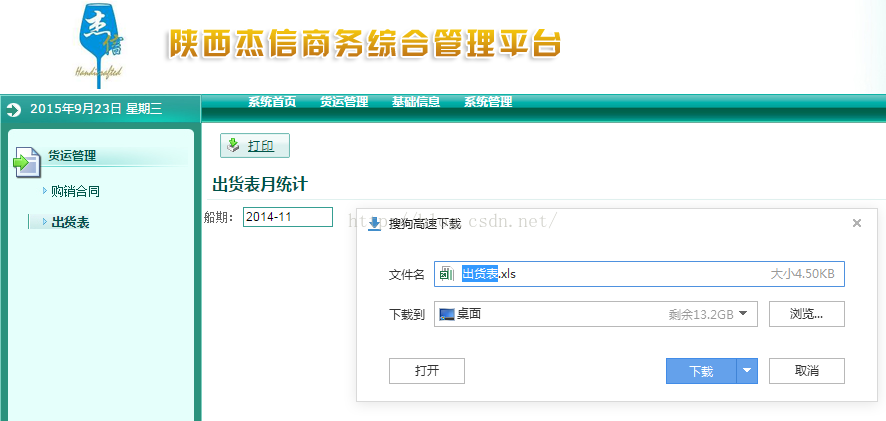

然后我们再重启服务器,选择日期点击打印之后,发现弹出了下载框:

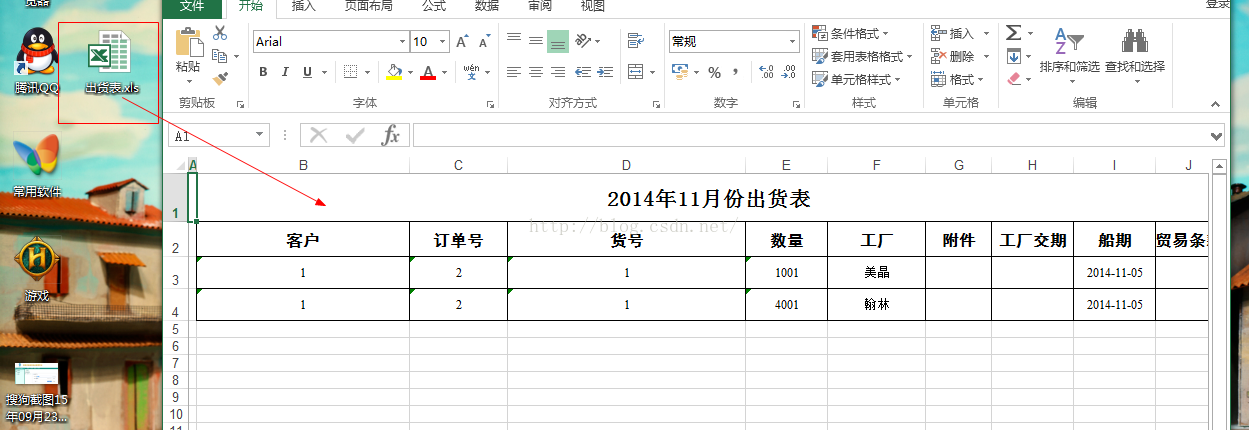

之后点击保存之后,发现我们已经将文件下载到桌面上了,打开之后发现内容完全正确:



好,至此我们的出货表的构造和打印完成!下一次我们将用另外一种更好方法来设计我们的出货表。

转载请注明出处:http://blog.csdn.net/acmman/article/details/48729217

  • 1
    点赞
  • 1
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

光仔December

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
