我们接下来要进行最复杂的一个打印，就是购销合同的打印---制式表单的打印，业界最复杂的报表打印。

a)分析技术难点：
1）插入图片，POI插入图片时，设定区域，自动缩放到这个区域中，图片要设置偏移量
HSSFPatriarch patriarch = sheet.createDrawingPatriarch(); //add picture
poiUtil.setPicture(wb, patriarch, path+"make/xlsprint/logo.jpg", curRow, 2, curRow+4, 2);

2）模板，对于购销合同它不能直接做模板。代码中不能做这个功能。Excel支持区域复制。但是目前POI不直接支持区域复制。（合并单元格在sheet对象中、图片、线等）（基于用户使用系统，以及POI不直接支持区域复制，所以它不能直接使用模板）
A.只是改变列宽
B.画一个sheet，利用poi支持sheet的复制，保留样式。

3）插入一根线，设置两个坐标，它直接连线，可以是直线，可以是斜线，可以设置偏移量
poiUtil.setLine(wb, patriarch, curRow, 2, curRow, 8); //draw line

4）合并单元格，特点：合并单元格的边线样式，它实际上是在合并前的单元格上设置的。特殊的地方：在单元格如果有样式，合并单元格的这几个格子都必须设置边线样式。
CellRangeAddress region = null;
region = new CellRangeAddress(curRow-1, curRow-1, 1, 3); //纵向合并单元格

不需要设置内容，只设置样式，补齐线。
for(int j=2;j<9;j++){
nCell = nRow.createCell(j);
nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));
}

5）换行
curStyle.setWrapText(true);

6）设置人民币符号（前缀）
format.getFormat("\"￥\"#,###,###.00");

7）设置公式，乘法，合计公式
nCell.setCellType(HSSFCell.CELL_TYPE_FORMULA);
nCell.setCellFormula("F"+String.valueOf(curRow)+"*H"+String.valueOf(curRow));

8）实现审单人的人名等量空格替换，实现它后面的位置不变（工具类）
utilFuns.fixSpaceStr(contract.getCheckBy(),26)

9）单元格自适应（工具类）
float height = poiUtil.getCellAutoHeight(printMap.get("Request"), 12f); //自动高度

10）数据和业务分离
一页数据封装到一个map中，以业务字段名称定义KEY，以string定义内容
所有页面封装到一个arraylist。
Map<String,String> pageMap = null;
List<Map> pageList = new ArrayList(); //打印页

11）插入分页符
if(p>0){
sheet.setRowBreak(curRow++); //在第startRow行设置分页符
}

12）公用的工具类PoiUtil poiUtil = new PoiUtil(); 样式，特殊内容封装

13）return format.getFormat("\"￥\"#,###,##0.00"); // 设置格式
0代表，这位值如果不为零，显示原来的内容，直接输出0
#代表，这位值如果存在，就直接显示，不存在，就不显示。

14）nCell.setCellType(HSSFCell.CELL_TYPE_NUMERIC);

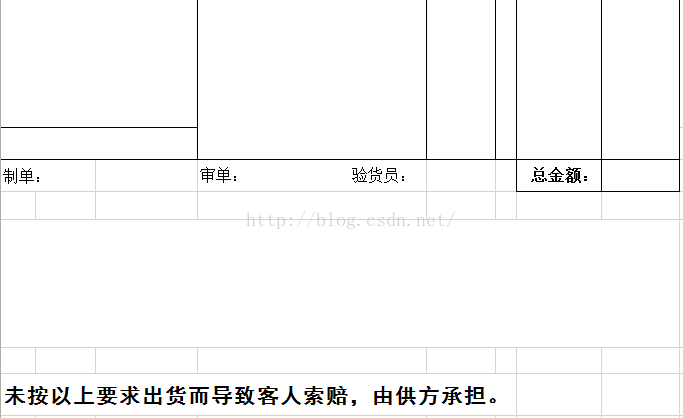

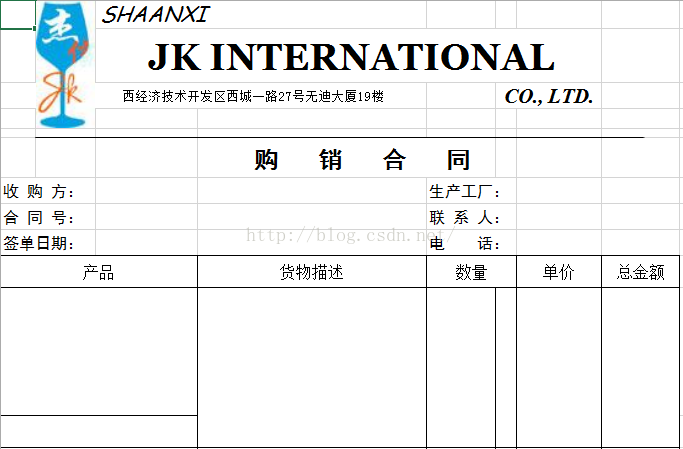

购销合同最总打印样式:

实现代码:

package cn.itcast.jk.print;

import java.io.ByteArrayOutputStream;
import java.io.FileInputStream;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletResponse;

import org.apache.poi.hssf.usermodel.HSSFCell;
import org.apache.poi.hssf.usermodel.HSSFCellStyle;
import org.apache.poi.hssf.usermodel.HSSFFont;
import org.apache.poi.hssf.usermodel.HSSFPatriarch;
import org.apache.poi.hssf.usermodel.HSSFRow;
import org.apache.poi.hssf.usermodel.HSSFSheet;
import org.apache.poi.hssf.usermodel.HSSFWorkbook;
import org.apache.poi.hssf.util.CellRangeAddress;


import cn.itcast.jk.vo.ContractProductVO;
import cn.itcast.jk.vo.ContractVO;
import cn.itcast.util.DownloadUtil;
import cn.itcast.util.UtilFuns;
import cn.itcast.util.file.PoiUtil;


//手工POI写excel文件
public class ContractPrint{



	public void print(ContractVO contract,String path, HttpServletResponse response) throws Exception{
		//相同厂家的信息一起打印
		List<ContractProductVO> oList = contract.getContractProducts();
		UtilFuns utilFuns = new UtilFuns();
		String tempXlsFile = path + "make/xlsprint/tCONTRACT.xls";		//获取模板文件

		//填写每页的内容，之后在循环每页读取打印
		Map<String,String> pageMap = null;
		List<Map> pageList = new ArrayList();			//打印页

		ContractProductVO oProduct = null;
		String stars = "";
		for(int j=0;j<contract.getImportNum();j++){		//重要程度
			stars += "★";
		}

		String oldFactory = "";
		for(int i=0;i<oList.size();i++){
			oProduct = oList.get(i);	//获得货物
			pageMap = new HashMap();	//每页的内容

			pageMap.put("Offeror", "收 购 方：" + contract.getOfferor());
			pageMap.put("Factory", "生产工厂：" + oProduct.getFactory().getFactoryName());
			pageMap.put("ContractNo", "合 同 号：" + contract.getContractNo());
			pageMap.put("Contractor", "联 系 人：" + oProduct.getFactory().getContractor());
			pageMap.put("SigningDate", "签单日期："+UtilFuns.formatDateTimeCN(UtilFuns.dateTimeFormat(contract.getSigningDate())));
			pageMap.put("Phone", "电    话：" + oProduct.getFactory().getPhone());
			pageMap.put("InputBy", "制单：" + contract.getInputBy());
			pageMap.put("CheckBy", "审单："+ utilFuns.fixSpaceStr(contract.getCheckBy(),26)+"验货员："+utilFuns.convertNull(contract.getInspector()));
			pageMap.put("Remark", "  "+contract.getRemark());
			pageMap.put("Request", "  "+contract.getCrequest());

			pageMap.put("ProductImage", oProduct.getProductImage());
			pageMap.put("ProductDesc", oProduct.getProductDesc());
			pageMap.put("Cnumber", String.valueOf(oProduct.getCnumber().doubleValue()));
			if(oProduct.getPackingUnit().equals("PCS")){
				pageMap.put("PackingUnit", "只");
			}else if(oProduct.getPackingUnit().equals("SETS")){
				pageMap.put("PackingUnit", "套");
			}
			pageMap.put("Price", String.valueOf(oProduct.getPrice().doubleValue()));
			pageMap.put("ProductNo", oProduct.getProductNo());

			oldFactory = oProduct.getFactory().getFactoryName();

			if(contract.getPrintStyle().equals("2")){
				i++;	//读取第二个货物信息
				if(i<oList.size()){
					oProduct = oList.get(i);

					if(oProduct.getFactory().getFactoryName().equals(oldFactory)){	//厂家不同另起新页打印，除去第一次的比较

						pageMap.put("ProductImage2", oProduct.getProductImage());
						pageMap.put("ProductDesc2", oProduct.getProductDesc());
						pageMap.put("Cnumber2", String.valueOf(oProduct.getCnumber().doubleValue()));
						if(oProduct.getPackingUnit().equals("PCS")){
							pageMap.put("PackingUnit2", "只");
						}else if(oProduct.getPackingUnit().equals("SETS")){
							pageMap.put("PackingUnit2", "套");
						}
						pageMap.put("Price2", String.valueOf(oProduct.getPrice().doubleValue()));
						//pageMap.put("Amount2", String.valueOf(oProduct.getAmount().doubleValue()));			//在excel中金额采用公式，所以无需准备数据
						pageMap.put("ProductNo2", oProduct.getProductNo());
					}else{
						i--;	//tip:list退回
					}
				}else{
					pageMap.put("ProductNo2", null);	//后面依据此判断是否有第二个货物
				}
			}

			pageMap.put("ContractDesc", stars+" 货物描述");			//重要程度 + 货物描述

			pageList.add(pageMap);
		}

		int cellHeight = 96;	//一个货物的高度			用户需求，一个货物按192高度打印，后来又嫌难看，打印高度和2款高度一样。
//		if(contract.getPrintStyle().equals("2")){
//			cellHeight = 96;	//两个货物的高度
//		}

		PoiUtil poiUtil = new PoiUtil();
		HSSFWorkbook wb = new HSSFWorkbook(new FileInputStream(tempXlsFile));	//打开excel文件
		HSSFFont defaultFont10 = poiUtil.defaultFont10(wb);		//设置字体
		HSSFFont defaultFont12 = poiUtil.defaultFont12(wb);		//设置字体
		HSSFFont blackFont = poiUtil.blackFont12(wb);			//设置字体
		Short rmb2Format = poiUtil.rmb2Format(wb);				//设置格式
		Short rmb4Format = poiUtil.rmb4Format(wb);				//设置格式



		HSSFSheet sheet = wb.getSheetAt(0);				//选择第一个工作簿
		wb.setSheetName(0, "购销合同");					//设置工作簿的名称




		//sheet.setDefaultColumnWidth((short) 20); 		// 设置每列默认宽度

//		POI分页符有BUG，必须在模板文件中插入一个分页符，然后再此处删除预设的分页符；最后在下面重新设置分页符。
//		sheet.setAutobreaks(false);
//		int iRowBreaks[] = sheet.getRowBreaks();
//		sheet.removeRowBreak(3);
//		sheet.removeRowBreak(4);
//		sheet.removeRowBreak(5);
//		sheet.removeRowBreak(6);

		CellRangeAddress region = null;
		HSSFPatriarch patriarch = sheet.createDrawingPatriarch();		//add picture


		HSSFRow nRow = null;
		HSSFCell nCell   = null;
		int curRow = 0;

		//打印每页
		Map<String,String> printMap = null;
		for(int p=0;p<pageList.size();p++){
			printMap = pageList.get(p);

			if(p>0){
				sheet.setRowBreak(curRow++);	//在第startRow行设置分页符
			}


			//设置logo图片
			poiUtil.setPicture(wb, patriarch, path+"make/xlsprint/logo.jpg", curRow, 2, curRow+4, 2);

			//header
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(21);

			nCell   = nRow.createCell((3));
			nCell.setCellValue("SHAANXI");
			nCell.setCellStyle(headStyle(wb));


			//header
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(41);

			nCell   = nRow.createCell((3));
			nCell.setCellValue("     JK INTERNATIONAL ");
			nCell.setCellStyle(tipStyle(wb));


			curRow++;

			//header
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(20);

			nCell   = nRow.createCell((1));
			nCell.setCellValue("                 西经济技术开发区西城一路27号无迪大厦19楼");
			nCell.setCellStyle(addressStyle(wb));

			//header
			nCell   = nRow.createCell((6));
			nCell.setCellValue(" CO., LTD.");
			nCell.setCellStyle(ltdStyle(wb));


			//header
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(15);

			nCell   = nRow.createCell((1));
			nCell.setCellValue("                   TEL: 0086-29-86339371  FAX: 0086-29-86303310               E-MAIL: ijackix@glass.cn");
			nCell.setCellStyle(telStyle(wb));

			//line
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(7);

			poiUtil.setLine(wb, patriarch, curRow, 2, curRow, 8);	//draw line


			//header
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(30);

			nCell   = nRow.createCell((4));
			nCell.setCellValue("    购   销   合   同");
			nCell.setCellStyle(titleStyle(wb));

			//Offeror
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(20);

			nCell   = nRow.createCell((1));
			nCell.setCellValue(printMap.get("Offeror"));
			nCell.setCellStyle(poiUtil.titlev12(wb, blackFont));


			//Facotry
			nCell   = nRow.createCell((5));
			nCell.setCellValue(printMap.get("Factory"));
			nCell.setCellStyle(poiUtil.titlev12(wb, blackFont));

			//ContractNo
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(20);

			nCell   = nRow.createCell(1);
			nCell.setCellValue(printMap.get("ContractNo"));
			nCell.setCellStyle(poiUtil.titlev12(wb, blackFont));

			//Contractor
			nCell  = nRow.createCell(5);
			nCell.setCellValue(printMap.get("Contractor"));
			nCell.setCellStyle(poiUtil.titlev12(wb, blackFont));

			//SigningDate
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(20);

			nCell = nRow.createCell(1);
			nCell.setCellValue(printMap.get("SigningDate"));
			nCell.setCellStyle(poiUtil.titlev12(wb, blackFont));

			//Phone
			nCell = nRow.createCell(5);
			nCell.setCellValue(printMap.get("Phone"));
			nCell.setCellStyle(poiUtil.titlev12(wb, blackFont));

			//importNum
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(24);

			region = new CellRangeAddress(curRow-1, curRow-1, 1, 3);	//纵向合并单元格
			sheet.addMergedRegion(region);

			nCell = nRow.createCell(1);
			nCell.setCellValue("产品");
			nCell.setCellStyle(thStyle(wb));

			nCell = nRow.createCell(2);
			nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));

			nCell = nRow.createCell(3);
			nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));

			nCell = nRow.createCell(4);
			nCell.setCellValue(printMap.get("ContractDesc"));
			nCell.setCellStyle(thStyle(wb));

			region = new CellRangeAddress(curRow-1, curRow-1, 5, 6);	//纵向合并单元格
			sheet.addMergedRegion(region);

			nCell = nRow.createCell(5);
			nCell.setCellValue("数量");
			nCell.setCellStyle(thStyle(wb));

			nCell = nRow.createCell(6);
			nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));

			nCell = nRow.createCell(7);
			nCell.setCellValue("单价");
			nCell.setCellStyle(thStyle(wb));

			nCell = nRow.createCell(8);
			nCell.setCellValue("总金额");
			nCell.setCellStyle(thStyle(wb));




			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(96);

			region = new CellRangeAddress(curRow-1, curRow-1, 1, 3);	//纵向合并单元格
			sheet.addMergedRegion(region);

			//插入产品图片
			if(UtilFuns.isNotEmpty(printMap.get("ProductImage"))){
				System.out.println(printMap.get("ProductImage"));
				poiUtil.setPicture(wb, patriarch, path+"ufiles/jquery/"+printMap.get("ProductImage"), curRow-1, 1, curRow, 3);
			}

			nCell = nRow.createCell(2);
			nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));

			nCell = nRow.createCell(3);
			nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));

			//ProductDesc
			region = new CellRangeAddress(curRow-1, curRow, 4, 4);	//纵向合并单元格
			sheet.addMergedRegion(region);

			nCell = nRow.createCell(4);
			nCell.setCellValue(printMap.get("ProductDesc"));
			nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));

			//Cnumber
			region = new CellRangeAddress(curRow-1, curRow, 5, 5);	//纵向合并单元格
			sheet.addMergedRegion(region);

			nCell = nRow.createCell(5);
			nCell.setCellType(HSSFCell.CELL_TYPE_NUMERIC);
			nCell.setCellValue(Double.parseDouble(printMap.get("Cnumber")));
			nCell.setCellStyle(poiUtil.numberrv10_BorderThin(wb, defaultFont10));

			//Unit
			region = new CellRangeAddress(curRow-1, curRow, 6, 6);	//纵向合并单元格
			sheet.addMergedRegion(region);

			nCell = nRow.createCell(6);
			nCell.setCellValue(printMap.get("PackingUnit"));
			nCell.setCellStyle(poiUtil.moneyrv10_BorderThin(wb, defaultFont10, rmb4Format));

			//Price
			region = new CellRangeAddress(curRow-1, curRow, 7, 7);	//纵向合并单元格
			sheet.addMergedRegion(region);

			nCell = nRow.createCell(7);
			nCell.setCellType(HSSFCell.CELL_TYPE_NUMERIC);
			nCell.setCellValue(Double.parseDouble(printMap.get("Price")));
			nCell.setCellStyle(poiUtil.moneyrv10_BorderThin(wb, defaultFont10, rmb4Format));


			//Amount
			region = new CellRangeAddress(curRow-1, curRow, 8, 8);	//纵向合并单元格
			sheet.addMergedRegion(region);

			nCell = nRow.createCell(8);
			if(UtilFuns.isNotEmpty(printMap.get("Cnumber")) && UtilFuns.isNotEmpty(printMap.get("Price"))){
				nCell.setCellType(HSSFCell.CELL_TYPE_FORMULA);
				nCell.setCellFormula("F"+String.valueOf(curRow)+"*H"+String.valueOf(curRow));
			}
			nCell.setCellStyle(poiUtil.moneyrv10_BorderThin(wb, defaultFont10, rmb4Format));


			curRow++;

			region = new CellRangeAddress(curRow-1, curRow-1, 1, 3);	//纵向合并单元格
			sheet.addMergedRegion(region);

			//ProductNo
			nRow = sheet.createRow(curRow-1);
			nRow.setHeightInPoints(24);

			nCell = nRow.createCell(1);
			nCell.setCellValue(printMap.get("ProductNo"));
			nCell.setCellStyle(poiUtil.notecv10_BorderThin(wb, defaultFont10));

			for(int j=2;j<9;j++){
				nCell = nRow.createCell(j);
				nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));
			}



			if(contract.getPrintStyle().equals("2") && UtilFuns.isNotEmpty(printMap.get("ProductNo2"))){
				nRow = sheet.createRow(curRow++);
				nRow.setHeightInPoints(96);

				region = new CellRangeAddress(curRow-1, curRow-1, 1, 3);	//纵向合并单元格
				sheet.addMergedRegion(region);

				//插入产品图片
				if(UtilFuns.isNotEmpty(printMap.get("ProductImage2"))){
					System.out.println(printMap.get("ProductImage2"));
					poiUtil.setPicture(wb, patriarch, path+"ufiles/jquery/"+printMap.get("ProductImage2"), curRow-1, 1, curRow, 3);
				}

				//ProductDesc
				region = new CellRangeAddress(curRow-1, curRow, 4, 4);	//纵向合并单元格
				sheet.addMergedRegion(region);

				nCell = nRow.createCell(4);
				nCell.setCellValue(printMap.get("ProductDesc2"));
				nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));

				//Cnumber
				region = new CellRangeAddress(curRow-1, curRow, 5, 5);	//纵向合并单元格
				sheet.addMergedRegion(region);

				nCell = nRow.createCell(5);
				nCell.setCellType(HSSFCell.CELL_TYPE_NUMERIC);
				nCell.setCellValue(Double.parseDouble(printMap.get("Cnumber2")));
				nCell.setCellStyle(poiUtil.numberrv10_BorderThin(wb, defaultFont10));

				//Unit
				region = new CellRangeAddress(curRow-1, curRow, 6, 6);	//纵向合并单元格
				sheet.addMergedRegion(region);

				nCell = nRow.createCell(6);
				nCell.setCellValue(printMap.get("PackingUnit2"));
				nCell.setCellStyle(poiUtil.moneyrv10_BorderThin(wb, defaultFont10, rmb4Format));

				//Price
				region = new CellRangeAddress(curRow-1, curRow, 7, 7);	//纵向合并单元格
				sheet.addMergedRegion(region);

				nCell = nRow.createCell(7);
				nCell.setCellType(HSSFCell.CELL_TYPE_NUMERIC);
				nCell.setCellValue(Double.parseDouble(printMap.get("Price2")));
				nCell.setCellStyle(poiUtil.moneyrv10_BorderThin(wb, defaultFont10, rmb4Format));


				//Amount
				region = new CellRangeAddress(curRow-1, curRow, 8, 8);	//纵向合并单元格
				sheet.addMergedRegion(region);

				nCell = nRow.createCell(8);
				if(UtilFuns.isNotEmpty(printMap.get("Cnumber2")) && UtilFuns.isNotEmpty(printMap.get("Price2"))){
					nCell.setCellType(HSSFCell.CELL_TYPE_FORMULA);
					nCell.setCellFormula("F"+String.valueOf(curRow)+"*H"+String.valueOf(curRow));
				}
				nCell.setCellStyle(poiUtil.moneyrv10_BorderThin(wb, defaultFont10, rmb4Format));

				curRow++;

				region = new CellRangeAddress(curRow-1, curRow-1, 1, 3);	//纵向合并单元格
				sheet.addMergedRegion(region);

				nRow = sheet.createRow(curRow-1);
				nRow.setHeightInPoints(24);

				nCell = nRow.createCell(1);
				nCell.setCellValue(printMap.get("ProductNo2"));
				nCell.setCellStyle(poiUtil.notecv10_BorderThin(wb, defaultFont10));

				//合并单元格画线
				for(int j=2;j<9;j++){
					nCell = nRow.createCell(j);
					nCell.setCellStyle(poiUtil.notehv10_BorderThin(wb, defaultFont10));
				}
			}


			//InputBy
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(24);

			nCell = nRow.createCell(1);
			nCell.setCellValue(printMap.get("InputBy"));
			nCell.setCellStyle(poiUtil.bnormalv12(wb,defaultFont12));

			//CheckBy+inspector

			nCell = nRow.createCell(4);
			nCell.setCellValue(printMap.get("CheckBy"));
			nCell.setCellStyle(poiUtil.bnormalv12(wb,defaultFont12));

			//if(contract.getPrintStyle().equals("2") && UtilFuns.isNotEmpty(printMap.get("ProductNo2"))){

				nCell = nRow.createCell(7);
				nCell.setCellValue("总金额：");
				nCell.setCellStyle(bcv12(wb));

				//TotalAmount
				nRow = sheet.createRow(curRow-1);
				nRow.setHeightInPoints(24);
				if(UtilFuns.isNotEmpty(printMap.get("Cnumber"))&&UtilFuns.isNotEmpty(printMap.get("Price"))){
					nCell  = nRow.createCell(8);
					nCell.setCellType(HSSFCell.CELL_TYPE_FORMULA);
					nCell.setCellFormula("SUM(I"+String.valueOf(curRow-4)+":I"+String.valueOf(curRow-1)+")");
					nCell.setCellStyle(poiUtil.moneyrv12_BorderThin(wb,defaultFont12,rmb2Format));
				}
			//}


			//note
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(21);

			nCell = nRow.createCell(2);
			nCell.setCellValue(printMap.get("Remark"));
			nCell.setCellStyle(noteStyle(wb));

			//Request
			region = new CellRangeAddress(curRow, curRow, 1, 8);	//指定合并区域
			sheet.addMergedRegion(region);

			nRow = sheet.createRow(curRow++);
			float height = poiUtil.getCellAutoHeight(printMap.get("Request"), 12f);		//自动高度
			nRow.setHeightInPoints(height);

			nCell = nRow.createCell(1);
			nCell.setCellValue(printMap.get("Request"));
			nCell.setCellStyle(requestStyle(wb));

			//space line
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(20);

			//duty
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(32);

			nCell = nRow.createCell(1);
			nCell.setCellValue("未按以上要求出货而导致客人索赔，由供方承担。");
			nCell.setCellStyle(dutyStyle(wb));

			//space line
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(32);

			//buyer
			nRow = sheet.createRow(curRow++);
			nRow.setHeightInPoints(25);

			nCell = nRow.createCell(1);
			nCell.setCellValue("    收购方负责人：");
			nCell.setCellStyle(dutyStyle(wb));

			//seller
			nCell = nRow.createCell(5);
			nCell.setCellValue("供方负责人：");
			nCell.setCellStyle(dutyStyle(wb));

			curRow++;


		}


		ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();			//生成流对象
		wb.write(byteArrayOutputStream);													//将excel写入流


		//工具类，封装弹出下载框：
		String outFile = "购销合同.xls";
		DownloadUtil down = new DownloadUtil();
		down.download(byteArrayOutputStream, response, outFile);


	}

	private HSSFCellStyle leftStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		curStyle.setWrapText(true);  						//换行
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置
		//fTitle.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)10);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		curStyle.setBorderLeft(HSSFCellStyle.BORDER_THIN);				//实线右边框
		curStyle.setBorderBottom(HSSFCellStyle.BORDER_THIN);				//实线右边框

		return curStyle;
	}

	private HSSFCellStyle headStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("Comic Sans MS");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setItalic(true);
		curFont.setFontHeightInPoints((short)16);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle tipStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("Georgia");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)28);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle addressStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("宋体");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		//fTitle.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)10);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle ltdStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("Times New Roman");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setItalic(true);
		curFont.setFontHeightInPoints((short)16);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle telStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("宋体");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		//fTitle.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)9);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle titleStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("黑体");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)18);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle requestStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		curStyle.setWrapText(true);  						//换行
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("宋体");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setFontHeightInPoints((short)10);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle dutyStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("黑体");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)16);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	private HSSFCellStyle noteStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("宋体");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)12);
		curStyle.setFont(curFont);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	public HSSFCellStyle thStyle(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();					//设置字体
		curFont.setFontName("宋体");
		curFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);	//加粗
		curFont.setFontHeightInPoints((short)12);
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);		//设置中文字体，那必须还要再对单元格进行编码设置

		curStyle.setBorderTop(HSSFCellStyle.BORDER_THIN);				//实线右边框
		curStyle.setBorderRight(HSSFCellStyle.BORDER_THIN);				//实线右边框
		curStyle.setBorderBottom(HSSFCellStyle.BORDER_THIN);			//实线右边框
		curStyle.setBorderLeft(HSSFCellStyle.BORDER_THIN);				//实线右边框

		curStyle.setAlignment(HSSFCellStyle.ALIGN_CENTER);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

	public HSSFCellStyle bcv12(HSSFWorkbook wb){
		HSSFCellStyle curStyle = wb.createCellStyle();
		HSSFFont curFont = wb.createFont();						//设置字体
		curFont.setFontName("Times New Roman");
		curFont.setCharSet(HSSFFont.DEFAULT_CHARSET);			//设置中文字体，那必须还要再对单元格进行编码设置

		curFont.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);		//加粗
		curFont.setFontHeightInPoints((short)12);
		curStyle.setFont(curFont);

		curStyle.setBorderTop(HSSFCellStyle.BORDER_THIN);				//实线
		curStyle.setBorderRight(HSSFCellStyle.BORDER_THIN);			//粗实线
		curStyle.setBorderBottom(HSSFCellStyle.BORDER_THIN);			//实线
		curStyle.setBorderLeft(HSSFCellStyle.BORDER_THIN);				//实线

		curStyle.setAlignment(HSSFCellStyle.ALIGN_RIGHT);
		curStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);		//单元格垂直居中

		return curStyle;
	}

}

打印出来的和前面的样板一样，至此我们完成购销合同的打印工作。

转载请注明出处：http://blog.csdn.net/acmman/article/details/48827101

光仔December

关注

2
点赞
踩
2

收藏

觉得还不错? 一键收藏
打赏
7
评论
【springmvc+mybatis项目实战】杰信商贸-29.购销合同技术难点分析

我们接下来要进行最复杂的一个打印，就是购销合同的打印---制式表单的打印，业界最复杂的报表打印。a)分析技术难点：1）插入图片，POI插入图片时，设定区域，自动缩放到这个区域中，图片要设置偏移量HSSFPatriarch patriarch = sheet.createDrawingPatriarch();//add picturepoiUtil.setPicture(wb
复制链接

扫一扫
