cas服务器登录页面添加验证码

本文的是以cas-4.1.5进行的，cas源代码下载官网：https://apereo.github.io/cas/4.2.x/index.html。

1、在cas工程的web.xml增加验证码功能的支持：

 <!-- 验证码功能 -->
	<servlet>
		<servlet-name>Kaptcha</servlet-name>
		<servlet-class>com.google.code.kaptcha.servlet.KaptchaServlet</servlet-class>
		<init-param>
			<param-name>kaptcha.border</param-name>
			<param-value>no</param-value>
		</init-param>
		<init-param>
			<param-name>kaptcha.textproducer.char.space</param-name>
			<param-value>5</param-value>
		</init-param>
		<init-param>
			<param-name>kaptcha.textproducer.char.length</param-name>
			<param-value>5</param-value>
		</init-param>
	</servlet>

	<servlet-mapping>
		<servlet-name>Kaptcha</servlet-name>
		<url-pattern>/captcha.jpg</url-pattern>
	</servlet-mapping>

2、新建一个类UsernamePasswordCredentialWithAuthCode,该类继承了

org.jasig.cas.authentication.UsernamePasswordCredential，添加一个验证码字段，

并且重写equals和hashCode方法，添加关于验证码比较的信息：

package org.spire.cas.core.authentication;

import javax.validation.constraints.NotNull;
import javax.validation.constraints.Size;

import org.apache.commons.lang3.builder.HashCodeBuilder;
import org.jasig.cas.authentication.UsernamePasswordCredential;

public class UsernamePasswordCredentialWithAuthCode extends
		UsernamePasswordCredential {
	/**
	 * 带验证码的登录界面
	 */
	private static final long serialVersionUID = 1L;
	/** 验证码*/
	@NotNull
	@Size(min = 1, message = "required.authcode")
	private String authcode;

	/**
	 *
	 * @return
	 */
	public final String getAuthcode() {
		return authcode;
	}

	/**
	 *
	 * @param authcode
	 */
	public final void setAuthcode(String authcode) {
		this.authcode = authcode;
	}

	@Override
	public boolean equals(final Object o) {
		if (this == o) {
			return true;
		}
		if (o == null || getClass() != o.getClass()) {
			return false;
		}

		final UsernamePasswordCredentialWithAuthCode that = (UsernamePasswordCredentialWithAuthCode) o;

		if (getPassword() != null ? !getPassword().equals(that.getPassword())
				: that.getPassword() != null) {
			return false;
		}

		if (getPassword() != null ? !getPassword().equals(that.getPassword())
				: that.getPassword() != null) {
			return false;
		}
		if (authcode != null ? !authcode.equals(that.authcode)
				: that.authcode != null)
			return false;

		return true;
	}

	@Override
	public int hashCode() {
		return new HashCodeBuilder().append(getUsername())
				.append(getPassword()).append(authcode).toHashCode();
	}

}

3.新建一个类AuthenticationViaFormActionWithAuthCode，该类继承了org.jasig.cas.web.flow.AuthenticationViaFormAction类，增加一个验证码方法validatorCode：

package org.spire.cas.core.authentication;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpSession;

import org.apache.commons.lang3.StringUtils;
import org.jasig.cas.authentication.Credential;
import org.jasig.cas.authentication.RootCasException;
import org.jasig.cas.web.flow.AuthenticationViaFormAction;
import org.jasig.cas.web.support.WebUtils;
import org.springframework.binding.message.MessageBuilder;
import org.springframework.binding.message.MessageContext;
import org.springframework.webflow.execution.RequestContext;

/**
 * 验证码校验类
 *
 * @author Langyou02
 *
 */
public class AuthenticationViaFormActionWithAuthCode extends
		AuthenticationViaFormAction {
	/**
	 * authcode check
	 */
	public final String validatorCode(final RequestContext context,
			final Credential credentials, final MessageContext messageContext)
			throws Exception {
		final HttpServletRequest request = WebUtils
				.getHttpServletRequest(context);
		HttpSession session = request.getSession();
		String authcode = (String) session
				.getAttribute(com.google.code.kaptcha.Constants.KAPTCHA_SESSION_KEY);
		session.removeAttribute(com.google.code.kaptcha.Constants.KAPTCHA_SESSION_KEY);

		UsernamePasswordCredentialWithAuthCode upc = (UsernamePasswordCredentialWithAuthCode) credentials;
		String submitAuthcode = upc.getAuthcode();
		if (StringUtils.isEmpty(submitAuthcode)
				|| StringUtils.isEmpty(authcode)) {
			populateErrorsInstance(new NullAuthcodeAuthenticationException(),
					messageContext);
			return "error";
		}
		if (submitAuthcode.equals(authcode)) {
			return "success";
		}
		populateErrorsInstance(new BadAuthcodeAuthenticationException(),
				messageContext);
		return "error";
	}

	private void populateErrorsInstance(final RootCasException e,
			final MessageContext messageContext) {

		try {
			messageContext.addMessage(new MessageBuilder().error()
					.code(e.getCode()).defaultText(e.getCode()).build());
		} catch (final Exception fe) {
			logger.error(fe.getMessage(), fe);
		}
	}
}

其中NullAuthcodeAuthenticationException和BadAuthcodeAuthenticationException是自定义的异常类，用于取得异常码：

/*
 * Licensed to Jasig under one or more contributor license
 * agreements. See the NOTICE file distributed with this work
 * for additional information regarding copyright ownership.
 * Jasig licenses this file to you under the Apache License,
 * Version 2.0 (the "License"); you may not use this file
 * except in compliance with the License.  You may obtain a
 * copy of the License at the following location:
 *
 *   http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing,
 * software distributed under the License is distributed on an
 * "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
 * KIND, either express or implied.  See the License for the
 * specific language governing permissions and limitations
 * under the License.
 */
package org.spire.cas.core.authentication;

import org.jasig.cas.authentication.RootCasException;

/**
 * The exception to throw when we know the authcode is null
 *
 * @author Scott Battaglia
 * @version $Revision$ $Date$
 * @since 3.0
 */
public class NullAuthcodeAuthenticationException extends RootCasException {

	/** Serializable ID for unique id. */
    private static final long serialVersionUID = 5501212207531289993L;

    /** Code description. */
    public static final String CODE = "required.authcode";

    /**
     * Constructs a TicketCreationException with the default exception code.
     */
    public NullAuthcodeAuthenticationException() {
        super(CODE);
    }

    /**
     * Constructs a TicketCreationException with the default exception code and
     * the original exception that was thrown.
     *
     * @param throwable the chained exception
     */
    public NullAuthcodeAuthenticationException(final Throwable throwable) {
        super(CODE, throwable);
    }}


/*
 * Licensed to Jasig under one or more contributor license
 * agreements. See the NOTICE file distributed with this work
 * for additional information regarding copyright ownership.
 * Jasig licenses this file to you under the Apache License,
 * Version 2.0 (the "License"); you may not use this file
 * except in compliance with the License.  You may obtain a
 * copy of the License at the following location:
 *
 *   http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing,
 * software distributed under the License is distributed on an
 * "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
 * KIND, either express or implied.  See the License for the
 * specific language governing permissions and limitations
 * under the License.
 */
package org.spire.cas.core.authentication;

import org.jasig.cas.authentication.RootCasException;

/**
 * The exception to throw when we know the authcoe is not correct
 *
 * @author Scott Battaglia
 * @version $Revision$ $Date$
 * @since 3.0
 */
public class BadAuthcodeAuthenticationException extends RootCasException {

	/** Serializable ID for unique id. */
    private static final long serialVersionUID = 5501212207531289993L;

    /** Code description. */
    public static final String CODE = "error.authentication.authcode.bad";

    /**
     * Constructs a TicketCreationException with the default exception code.
     */
    public BadAuthcodeAuthenticationException() {
        super(CODE);
    }

    /**
     * Constructs a TicketCreationException with the default exception code and
     * the original exception that was thrown.
     *
     * @param throwable the chained exception
     */
    public BadAuthcodeAuthenticationException(final Throwable throwable) {
        super(CODE, throwable);
    }}

4、在spire_cas工程的login_webflow.xml修改登录验证流程：

 <view-state id="viewLoginForm" view="casLoginView" model="credential">
        <binder>
            <binding property="username" required="true"/>
            <binding property="password" required="true"/>
            <binding property="authcode" required="true"/>
            <binding property="rememberMe" />
        </binder>
        <on-entry>
            <set name="viewScope.commandName" value="'credential'"/>

            <!--
            <evaluate expression="samlMetadataUIParserAction" />
            -->
        </on-entry>
        <transition on="submit" bind="true" validate="true" to="authcodeValidate">

        </transition>
    </view-state>
	<action-state id="authcodeValidate">
        <evaluate expression="authenticationViaFormAction.validatorCode(flowRequestContext, flowScope.credential, messageContext)" />
        <transition on="error" to="generateLoginTicket" />
        <transition on="success" to="realSubmit" />
    </action-state>

并修改cas-servlet.xmlbean id ="AuthenticationViaFormAction"的class="org.spire.cas.core.authentication.AuthenticationViaFormActionWithAuthCode";

5、增加国际化显示信息:

screen.welcome.label.authcode=\u9A8C\u8BC1\u7801:

screen.welcome.label.authcode.accesskey=a

required.authcode=\u5FC5\u987B\u5F55\u5165\u9A8C\u8BC1\u7801\u3002

error.authentication.authcode.bad=\u9A8C\u8BC1\u7801\u8F93\u5165\u6709\u8BEF\u3002

6、登录页面casLoginView.jsp添加验证码输入框：

	<section class="row fl-controls-left">
			<label for="authcode"><spring:message code="screen.welcome.label.authcode" /></label>
			<spring:message code="screen.welcome.label.authcode.accesskey" var="authcodeAccessKey" />
			<table>
				<tr>
					<td>
						<form:input cssClass="required" cssErrorClass="error" id="authcode" size="10" tabindex="2" path="authcode"  accesskey="${authcodeAccessKey}" htmlEscape="true" autocomplete="off" />
					</td>
					<td style="vertical-align: bottom;">
			  			<img οnclick="this.src='captcha.jpg?'+Math.random()" width="93" height="30" src="captcha.jpg">
                 	                </td>
				</tr>
			</table>
        </section>

7、如果要默认中文页面显示，修改cas-servlet.xml 下的local Resolver默认值为zh_CN：

 <bean id="localeResolver" class="org.springframework.web.servlet.i18n.CookieLocaleResolver" p:defaultLocale="zh_CN" />

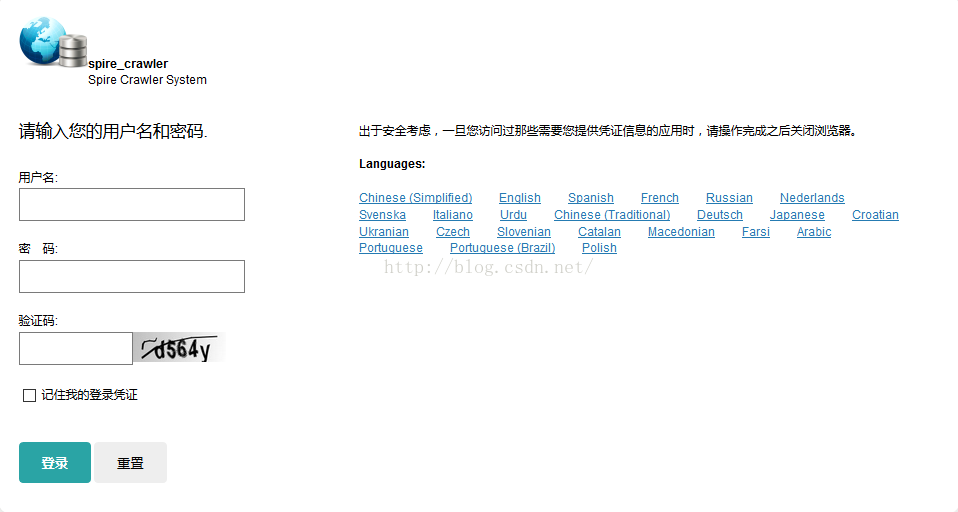

8、效果图（spire_cas是另外一个web工程登录跳转到cas服务器认证）：

9、参考博文：http://blog.csdn.net/zhu_tianwei/article/details/19153549
