ListView与RadioButton组合——自定义单选列表

Android自带的RadioButton单选框只支持添加文字,我们自己写Adapter实现自定义的RadioButton

首先item的XML源码

search_user_item.xml (现在只是文字+单选按钮+自定义背景,可以根据需要随意扩展)

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/search_user_list_item"
    android:layout_width="fill_parent"
    android:layout_height="30dp"
    android:layout_marginBottom="10dp"
    android:layout_marginTop="10dp"
    android:background="@drawable/more_item_press"
    android:gravity="center_vertical"
    android:orientation="horizontal" >

    <TextView
        android:id="@+id/search_user_name"
        android:layout_width="200dp"
        android:layout_height="wrap_content"
        android:layout_marginLeft="30dp"
        android:gravity="left"
        android:textColor="@android:color/black"
        android:textSize="16sp" />

    <RadioButton
        android:id="@+id/radio_btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="10dp" />

</LinearLayout>

Listview就是用系统自带的

    <ListView
        android:id="@+id/search_user_list"
        android:layout_width="fill_parent"
        android:layout_height="200dp"
        android:layout_marginLeft="5dp"
        android:layout_marginRight="5dp"
        android:paddingBottom="5dp"
        android:cacheColorHint="@android:color/transparent"
        android:divider="@null"
        android:listSelector="@android:color/transparent"
        android:visibility="gone" >
    </ListView>

再来是Adapter代码

SearchUserAdapter.java (具体改动写在代码注释里面)

package ouc.sei.suxin.android.ui.adapter;

import java.util.HashMap;
import java.util.List;

import ouc.sei.suxin.R;
import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.LinearLayout;
import android.widget.RadioButton;
import android.widget.TextView;

public class SearchUserAdapter extends BaseAdapter {

	private Context context;
	private List<String> userList;
	HashMap<String,Boolean> states=new HashMap<String,Boolean>();//用于记录每个RadioButton的状态,并保证只可选一个

	public SearchUserAdapter(Context context, List<String> userList)
	{
		this.context = context;
		this.userList= userList;
	}

	@Override
	public int getCount() {
		return userList.size();
	}

	@Override
	public Object getItem(int position) {
		return userList.get(position);
	}

	@Override
	public long getItemId(int position) {
		return position;
	}

	@Override
	public View getView(final int position, View convertView, ViewGroup parent) {
		ViewHolder holder;
		if (convertView == null) {
			convertView = LayoutInflater.from(context).inflate(R.layout.search_user_item, null);
			holder = new ViewHolder();
			holder.background = (LinearLayout) convertView.findViewById(R.id.search_user_list_item);
			holder.userName = (TextView) convertView.findViewById(R.id.search_user_name);
			convertView.setTag(holder);
		}else{
			holder=(ViewHolder) convertView.getTag();
		}
        final RadioButton radio=(RadioButton) convertView.findViewById(R.id.radio_btn);
		holder.rdBtn = radio;

		holder.userName.setText(userList.get(position));
		//根据Item位置分配不同背景
		if(userList.size() > 0)
		{
			if(userList.size() == 1)
			{
				holder.background.setBackgroundResource(R.drawable.more_item_press);
			}
			else{
				if(position == 0){
					holder.background.setBackgroundResource(R.drawable.more_itemtop_press);
				}
				else if(position == userList.size()-1){
					holder.background.setBackgroundResource(R.drawable.more_itembottom_press);
				}
				else{
					holder.background.setBackgroundResource(R.drawable.more_itemmiddle_press);
				}
			}
		}
	//当RadioButton被选中时,将其状态记录进States中,并更新其他RadioButton的状态使它们不被选中
        holder.rdBtn.setOnClickListener(new View.OnClickListener() {

            public void onClick(View v) {

                //重置,确保最多只有一项被选中
                for(String key:states.keySet()){
                    states.put(key, false);

                }
                states.put(String.valueOf(position), radio.isChecked());
                SearchUserAdapter.this.notifyDataSetChanged();
            }
        });

        boolean res=false;
        if(states.get(String.valueOf(position)) == null || states.get(String.valueOf(position))== false){
            res=false;
            states.put(String.valueOf(position), false);
        }
        else
            res = true;

        holder.rdBtn.setChecked(res);

		return convertView;
	}

	static class ViewHolder {
	   LinearLayout background;
           TextView userName;
           RadioButton rdBtn;
	}

}

List适配代码(与一般无异):

	adapter = new SearchUserAdapter(this, searchUserList);
	searchUserLV.setAdapter(adapter);
	searchUserLV.setVisibility(View.VISIBLE);
	setListViewHeightBasedOnChildren(searchUserLV);

这里还根据内容动态设置了一下,具体函数如下:

	public void setListViewHeightBasedOnChildren(ListView listView) {

		Adapter listAdapter = listView.getAdapter();

		if (listAdapter == null) {
			return;
		}

		int totalHeight = 0;
		int viewCount = listAdapter.getCount();
		for (int i = 0; i < viewCount; i++) {
			View listItem = listAdapter.getView(i, null, listView);
			listItem.measure(0, 0);
			totalHeight += listItem.getMeasuredHeight();
		}

		ViewGroup.LayoutParams params = listView.getLayoutParams();

		params.height = totalHeight
				+ (listView.getDividerHeight() * (listAdapter.getCount()-1)) + 10;//加10是为了适配自定义背景

		listView.setLayoutParams(params);
	}

当需要获取ListView中RadioButton的选择状态时,可以直接看Adapter中的states,具体如下:

	// 根据RadioButton的选择情况确定用户名
	for (int i = 0, j = searchUserLV.getCount(); i < j; i++) {
		View child = searchUserLV.getChildAt(i);
		RadioButton rdoBtn = (RadioButton) child
				.findViewById(R.id.radio_btn);
		if (rdoBtn.isChecked())
			searchUser = searchUserList.get(i);
	}

这里的searchUserList是调用后台服务获取的用户名列表,通过states获取选中用户名进行后续操作

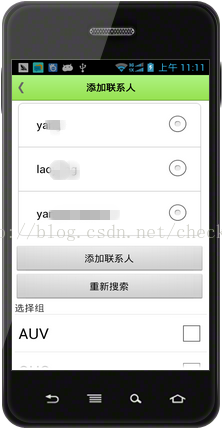

效果图:
