干货：解决方法：由于是因为index错误造成的，那么只要保证index值与当前positon保持一至即可，只要把添加监听器的方法加到初始化view中checkBox状态的代码之前即可。这样即始由于初始化造成调用了onCheckedChange()方法，也因为其中index值是最新的，而依然不会错乱。

主要是解决我以前的一篇博客仿微信添加群聊界面——addView里listview和checkbox混乱的问题

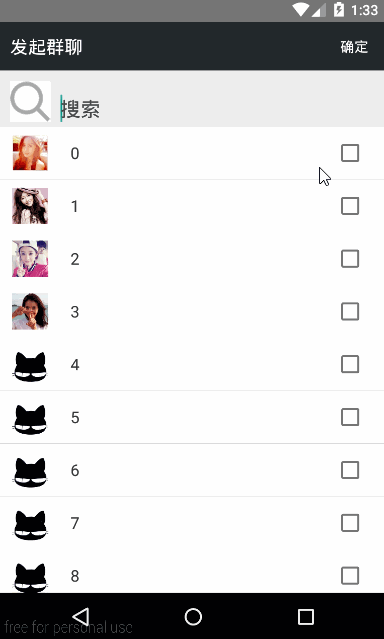

先来上BUG图，我在添加了数据，让listview能滚动起来后就发现了这个问题
这里写图片描述
大家看图，我只点击了0，滑动后结果10也被点击了，而且再滑回去，被选中的项也会发生变化。这个问题弄了好久，一直没有解决，后来看到了一篇博客Android ListView CheckBox状态错乱，这里他讲的很详细。
我的理解：
这里会出现这个问题的主要原因是convertView的使用，不管listView里显示多少条数据，都只是共用那么几个对象，然后我们的代码每一次把得到的对象重新赋值而已。正是在这赋值的时候出了问题，假设Android系统给我们生成了10个共用view对象，第一个view对象在第一屏的时候需要显示成”未选择”状态，而到了第二屏的时候，却要显示成”选择”状态，但由于是共用的同一个对象，根据第一点得知当checkBox的状态改变的时候,会调用onCheckedChanged()方法。
先看一下他给出的错误代码：

public class ListViewCheckBox extends Activity{

    private ListView listView;
    private List<A> list;
    private Adapter1 adapter1;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.listview_checkbox);
        initDate();
        listView = (ListView)findViewById(R.id.listView);
        adapter1 = new Adapter1();
        listView.setAdapter(adapter1);
    }


    /**
     * 模拟40个数据，奇数数据为选中状态，偶数数据为非选中状态
     */
    private void initDate(){
        list = new ArrayList<A>();
        A a;
        for(int i=0;i<40;i++){
            if(i%2==0){
                a = new A(i+"号位",A.TYPE_NOCHECKED);
                list.add(a);
            }else{
                a = new A(i+"号位",A.TYPE_CHECKED);
                list.add(a);
            }
        }
    }

    class Adapter1 extends BaseAdapter{

        @Override
        public int getCount() {
            return list.size();
        }

        @Override
        public Object getItem(int position) {
            return null;
        }

        @Override
        public long getItemId(int position) {
            return 0;
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent) {
            final int index = position;
            ViewHolder viewHolder;
            if(convertView == null){
                viewHolder = new ViewHolder();
                convertView = LayoutInflater.from(ListViewCheckBox.this).inflate(R.layout.listview_checkbox_item, null);
                viewHolder.layout = (LinearLayout)convertView.findViewById(R.id.layout);
                viewHolder.textView = (TextView)convertView.findViewById(R.id.textView);
                viewHolder.checkBox = (CheckBox)convertView.findViewById(R.id.checkBox);
                convertView.setTag(viewHolder);
            }else{
                viewHolder = (ViewHolder)convertView.getTag();
            }


            viewHolder.textView.setText(list.get(position).name);
            if(list.get(position).type == A.TYPE_CHECKED){
                viewHolder.checkBox.setChecked(true);
            }else{
                viewHolder.checkBox.setChecked(false);
            }

            /*点击checkBox所在行改变checkBox状态*/
            /*final ViewHolder vv = viewHolder;
            viewHolder.layout.setOnClickListener(new OnClickListener() {
                @Override
                public void onClick(View v) {
                    if(vv.checkBox.isChecked()){
                        vv.checkBox.setChecked(false);
                        list.get(index).type = TYPE_CHECKED;
                    }else{
                        vv.checkBox.setChecked(true);
                        list.get(index).type = TYPE_NOCHECKED;
                    }

                }
            });*/

            viewHolder.checkBox.setOnCheckedChangeListener(new OnCheckedChangeListener() {
                @Override
                public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
                    if(isChecked){
                        list.get(index).type = A.TYPE_CHECKED;
                    }else{
                        list.get(index).type = A.TYPE_NOCHECKED;
                    }
                }
            });

            return convertView;
        }
    }

    class ViewHolder{
        LinearLayout layout;
        TextView textView;
        CheckBox checkBox;
    }

    class A {

        public static final int TYPE_CHECKED = 1;
        public static final int TYPE_NOCHECKED = 0;

        String name;
        int type;

        public A(String name,int type){
            this.name = name;
            this.type = type;
        }
    }
}

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125

看代码添加监听器的代码在初始化checkBox属性的代码之后，也就是说当初始化checkBox属性时，由于可能改变其状态,导致调用了onCheckedChanged()方法，而这个监听器是在上一次初始化的时候添加的，那么当然其index就是上一次的positon值，而不是本次的，所以每次保存checkBox属性状态的时候，都把值赋到的list集合里其它对象上去了，而不是与本次index相关的对象上，这才是发生莫名其妙错乱的真正原因。

解决方法：由于是因为index错误造成的，那么只要保证index值与当前positon保持一至即可，只要把添加监听器的方法加到初始化view中checkBox状态的代码之前即可。这样即始由于初始化造成调用了onCheckedChange()方法，也因为其中index值是最新的，而依然不会错乱。

按照他的解决方案，我首先尝试了将他的代码跑一遍。（我略微修改了一下，方便观察）

public class MainActivity extends ActionBarActivity {
    private ListView listView;
    private List<A> list;
    private Adapter1 adapter1;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initDate();
        listView = (ListView)findViewById(R.id.list);
        adapter1 = new Adapter1();
        listView.setAdapter(adapter1);
    }


    /**
     * 模拟40个数据，奇数数据为选中状态，偶数数据为非选中状态
     */
    private void initDate(){
        list = new ArrayList<A>();
        A a;
        for(int i=0;i<40;i++){
            a = new A(i+"号位",A.TYPE_NOCHECKED);
            list.add(a);
        }
    }

    class Adapter1 extends BaseAdapter {

        @Override
        public int getCount() {
            return list.size();
        }

        @Override
        public Object getItem(int position) {
            return null;
        }

        @Override
        public long getItemId(int position) {
            return 0;
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent) {
            final int index = position;
            ViewHolder viewHolder;
            if(convertView == null){
                viewHolder = new ViewHolder();
                convertView = LayoutInflater.from(MainActivity.this).inflate(R.layout.listitem, null);
                viewHolder.layout = (LinearLayout)convertView.findViewById(R.id.layout);
                viewHolder.textView = (TextView)convertView.findViewById(R.id.textview);
                viewHolder.checkBox = (CheckBox)convertView.findViewById(R.id.checkbox);
                convertView.setTag(viewHolder);
            }else{
                viewHolder = (ViewHolder)convertView.getTag();
            }

            viewHolder.checkBox.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
                @Override
                public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
                    if(isChecked){
                        list.get(index).type = A.TYPE_CHECKED;
                    }else{
                        list.get(index).type = A.TYPE_NOCHECKED;
                    }
                }
            });

            viewHolder.textView.setText(list.get(position).name);
            if(list.get(position).type == A.TYPE_CHECKED){
                viewHolder.checkBox.setChecked(true);
            }else{
                viewHolder.checkBox.setChecked(false);
            }
            return convertView;
        }
    }

    class ViewHolder{
        LinearLayout layout;
        TextView textView;
        CheckBox checkBox;
    }

    class A {

        public static final int TYPE_CHECKED = 1;
        public static final int TYPE_NOCHECKED = 0;

        String name;
        int type;

        public A(String name,int type){
            this.name = name;
            this.type = type;
        }
    }
}

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101

效果图：
这里写图片描述
好，这里可以看到不会出现错位混乱的问题了，接下来修改之前那篇博客的代码，首先我们来按照上面的代码来修改：

public class MainActivity extends ActionBarActivity {

    // 可滑动的显示选中用户的View
    private LinearLayout menuLinerLayout;

    private ListView listView;
    private List<User> allUserList;
    private EditText editText;
    private TextView tv_checked;
    private ImageView iv_search;
    private ListAdapter adapter;
    private List<String> addList = new ArrayList<String>();
    private int total = 0;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();
        initData();
    }

    private void initData() {
        User angelbaby = new User("0",R.mipmap.a1,0);
        User tangyan = new User("1",R.mipmap.a2,0);
        User zhaoliying = new User("2",R.mipmap.a3,0);
        User gaoyuanyuan = new User("3",R.mipmap.a4,0);
        User cat = new User("4",R.mipmap.a5,0);
        User cat1 = new User("5",R.mipmap.a5,0);
        User cat2 = new User("6",R.mipmap.a5,0);
        User cat3 = new User("7",R.mipmap.a5,0);
        User cat4 = new User("8",R.mipmap.a5,0);
        User cat5 = new User("9",R.mipmap.a5,0);
        User cat6 = new User("10",R.mipmap.a5,0);
        User cat7 = new User("11",R.mipmap.a5,0);
        User cat8 = new User("12",R.mipmap.a5,0);
        User cat9 = new User("13",R.mipmap.a5,0);
        User cat10 = new User("14",R.mipmap.a5,0);
        User cat11 = new User("15",R.mipmap.a5,0);
        User cat12 = new User("16",R.mipmap.a5,0);


        allUserList = new ArrayList<User>();
        allUserList.add(angelbaby);
        allUserList.add(tangyan);
        allUserList.add(zhaoliying);
        allUserList.add(gaoyuanyuan);
        allUserList.add(cat);
        allUserList.add(cat1);
        allUserList.add(cat2);
        allUserList.add(cat3);
        allUserList.add(cat4);
        allUserList.add(cat5);
        allUserList.add(cat6);
        allUserList.add(cat7);
        allUserList.add(cat8);
        allUserList.add(cat9);
        allUserList.add(cat10);
        allUserList.add(cat11);
        allUserList.add(cat12);

        adapter = new ListAdapter(MainActivity.this,allUserList);

        listView.setAdapter(adapter);

        //搜索栏搜索
        editText.addTextChangedListener(new TextWatcher() {
            @Override
            public void beforeTextChanged(CharSequence s, int start, int count, int after) {

            }

            @Override
            public void onTextChanged(CharSequence s, int start, int before, int count) {
                if (s.length() > 0) {
                    String str_s = editText.getText().toString().trim();
                    List<User> user_temp = new ArrayList<User>();
                    for (User user : allUserList) {
                        String uesrname = user.getName();
                        if (uesrname.contains(str_s)) {
                            user_temp.add(user);
                        }
                        adapter = new ListAdapter(MainActivity.this, user_temp);
                        listView.setAdapter(adapter);
                    }
                } else {
                    adapter = new ListAdapter(MainActivity.this, allUserList);
                    listView.setAdapter(adapter);
                }
            }

            @Override
            public void afterTextChanged(Editable s) {

            }
        });

        listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(final AdapterView<?> parent, final View view,
                                    final int position, long id) {
                CheckBox checkBox = (CheckBox) view.findViewById(R.id.checkbox);
                checkBox.toggle();
            }
        });


    }

    private void initView() {
        listView = (ListView) findViewById(R.id.list);
        menuLinerLayout = (LinearLayout) findViewById(R.id.linearLayoutMenu);
        editText = (EditText) findViewById(R.id.et_search);
        tv_checked = (TextView) findViewById(R.id.tv_checked);
        iv_search = (ImageView) findViewById(R.id.iv_search);

    }

    //显示选择的头像
    private void showCheckImage(Bitmap bitmap, User glufineid) {
        total++;
        // 包含TextView的LinearLayout
        // 参数设置
        android.widget.LinearLayout.LayoutParams menuLinerLayoutParames = new LinearLayout.LayoutParams(
                75, 75, 1);
        View view = LayoutInflater.from(this).inflate(
                R.layout.header_item, null);
        ImageView images = (ImageView) view.findViewById(R.id.iv_avatar);
        menuLinerLayoutParames.setMargins(6, 6, 6, 6);

        // 设置id，方便后面删除
        view.setTag(glufineid);
        if (bitmap == null) {
            images.setImageResource(R.mipmap.default_useravatar);
        } else {
            images.setImageBitmap(bitmap);
        }

        menuLinerLayout.addView(view, menuLinerLayoutParames);
        tv_checked.setText("确定(" + total + ")");
        if (total > 0) {
            if (iv_search.getVisibility() == View.VISIBLE) {
                iv_search.setVisibility(View.GONE);
            }
        }
        addList.add(glufineid.getName());
    }

    //删除选择的头像
    private void deleteImage(User glufineid) {
        View view = (View) menuLinerLayout.findViewWithTag(glufineid);

        menuLinerLayout.removeView(view);
        total--;
        tv_checked.setText("确定(" + total + ")");
        addList.remove(glufineid.getName());
        if (total < 1) {
            if (iv_search.getVisibility() == View.GONE) {
                iv_search.setVisibility(View.VISIBLE);
            }
            tv_checked.setText("确定");
        }
    }

    /**
     * adapter
     */
    private class ListAdapter extends BaseAdapter {

        private LayoutInflater layoutInflater;
        private Context context;
        private List<User> list = null;


        public ListAdapter(Context context,List<User> list){
            this.context = context;
            this.list = list;
        }

        @Override
        public int getCount() {
            return this.list.size();
        }

        @Override
        public User getItem(int position) {
            return (User) list.get(position);
        }

        @Override
        public long getItemId(int position) {
            return position;
        }


        @Override
        public View getView(final int position, View convertView, ViewGroup parent) {
            final int index = position;
            User user = getItem(position);
             ViewHolder viewHolder = null;
            if (convertView == null) {
                viewHolder = new ViewHolder();
                convertView = LayoutInflater.from(context).inflate(R.layout.listitem,null);
                viewHolder.imageView = (ImageView) convertView.findViewById(R.id.imageview);
                viewHolder.textView = (TextView) convertView.findViewById(R.id.textview);
                viewHolder.checkBox = (CheckBox) convertView.findViewById(R.id.checkbox);
                viewHolder.layout = (LinearLayout) convertView.findViewById(R.id.layout);
                convertView.setTag(viewHolder);
            }else {
                viewHolder = (ViewHolder) convertView.getTag();
            }
            final ImageView imageView = (ImageView) convertView.findViewById(R.id.imageview);
            viewHolder.checkBox.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {

                @Override
                public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {

                    if (isChecked) {
                        list.get(index).type = User.TYPE_CHECKED;
                        Bitmap bitmap = null;
                        bitmap = ((BitmapDrawable) imageView.getDrawable()).getBitmap();
                        showCheckImage(bitmap, list.get(index));
                    } else {
                        list.get(index).type = User.TYPE_NOCHECKED;
                        // 用户显示在滑动栏删除
                        deleteImage(list.get(index));
                    }
                }
            });

            if(list.get(index).type == User.TYPE_CHECKED){
                viewHolder.checkBox.setChecked(true);
            }else{
                viewHolder.checkBox.setChecked(false);
            }
            viewHolder.imageView.setImageResource(user.getHeader());
            viewHolder.textView.setText(user.getName());
            return convertView;
        }


    }
    private class ViewHolder {
        ImageView imageView;
        TextView textView;
        CheckBox checkBox;
    }

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246

User类：

public class User {

    public static final int TYPE_CHECKED = 1;
    public static final int TYPE_NOCHECKED = 0;

    public String name;
    public int header;
    public int type;

    public User(String name, int header,int type) {
        this.name = name;
        this.header = header;
        this.type = type;
    }

    public String getName() {
        return name;
    }

    public int getHeader() {
        return header;
    }

}

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

好，先来看看效果
这里写图片描述
这里很明显可以看到，虽然checkbox的点击不会混乱了，但在listview的滑动过程中，仍然会执行onCheckedChanged 方法，在搜索栏中仍会造成混乱，感觉这个归根结底还是在listview的滚动过程中，已点击的checkbox在滚出屏幕后，就类似于被点击了一下，isChecked就被设为了false，就执行了onCheckedChanged 方法。不知道我这说的明不明白，就是理解这一句

第一个view对象在第一屏的时候需要显示成”未选择”状态，而到了第二屏的时候，却要显示成”选择”状态，但由于是共用的同一个对象，根据第一点得知当checkBox的状态改变的时候,会调用onCheckedChanged()方法

所以这么修改还是有问题的，接下里我们接着修改，既然在滚动中会一直执行onCheckedChanged 方法，那么我们就干脆不写这个方法好了，简单干脆，使用setOnClickListener 来处理点击事件好了，那么代码：

public class MainActivity extends ActionBarActivity {

    // 可滑动的显示选中用户的View
    private LinearLayout menuLinerLayout;

    private ListView listView;
    private List<User> allUserList;
    private EditText editText;
    private TextView tv_checked;
    private ImageView iv_search;
    private ListAdapter adapter;
    private List<String> addList = new ArrayList<String>();
    private int total = 0;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();
        initData();
    }

    private void initData() {
        User angelbaby = new User("0",R.mipmap.a1,0);
        User tangyan = new User("1",R.mipmap.a2,0);
        User zhaoliying = new User("2",R.mipmap.a3,0);
        User gaoyuanyuan = new User("3",R.mipmap.a4,0);
        User cat = new User("4",R.mipmap.a5,0);
        User cat1 = new User("5",R.mipmap.a5,0);
        User cat2 = new User("6",R.mipmap.a5,0);
        User cat3 = new User("7",R.mipmap.a5,0);
        User cat4 = new User("8",R.mipmap.a5,0);
        User cat5 = new User("9",R.mipmap.a5,0);
        User cat6 = new User("10",R.mipmap.a5,0);
        User cat7 = new User("11",R.mipmap.a5,0);
        User cat8 = new User("12",R.mipmap.a5,0);
        User cat9 = new User("13",R.mipmap.a5,0);
        User cat10 = new User("14",R.mipmap.a5,0);
        User cat11 = new User("15",R.mipmap.a5,0);
        User cat12 = new User("16",R.mipmap.a5,0);


        allUserList = new ArrayList<User>();
        allUserList.add(angelbaby);
        allUserList.add(tangyan);
        allUserList.add(zhaoliying);
        allUserList.add(gaoyuanyuan);
        allUserList.add(cat);
        allUserList.add(cat1);
        allUserList.add(cat2);
        allUserList.add(cat3);
        allUserList.add(cat4);
        allUserList.add(cat5);
        allUserList.add(cat6);
        allUserList.add(cat7);
        allUserList.add(cat8);
        allUserList.add(cat9);
        allUserList.add(cat10);
        allUserList.add(cat11);
        allUserList.add(cat12);

        adapter = new ListAdapter(MainActivity.this,allUserList);

        listView.setAdapter(adapter);

        //搜索栏搜索
        editText.addTextChangedListener(new TextWatcher() {
            @Override
            public void beforeTextChanged(CharSequence s, int start, int count, int after) {

            }

            @Override
            public void onTextChanged(CharSequence s, int start, int before, int count) {
                if (s.length() > 0) {
                    String str_s = editText.getText().toString().trim();
                    List<User> user_temp = new ArrayList<User>();
                    for (User user : allUserList) {
                        String uesrname = user.getName();
                        if (uesrname.contains(str_s)) {
                            user_temp.add(user);
                        }
                        adapter = new ListAdapter(MainActivity.this, user_temp);
                        listView.setAdapter(adapter);
                    }
                } else {
                    adapter = new ListAdapter(MainActivity.this, allUserList);
                    listView.setAdapter(adapter);
                }
            }

            @Override
            public void afterTextChanged(Editable s) {

            }
        });
    }

    private void initView() {
        listView = (ListView) findViewById(R.id.list);
        menuLinerLayout = (LinearLayout) findViewById(R.id.linearLayoutMenu);
        editText = (EditText) findViewById(R.id.et_search);
        tv_checked = (TextView) findViewById(R.id.tv_checked);
        iv_search = (ImageView) findViewById(R.id.iv_search);

    }

    //显示选择的头像
    private void showCheckImage(Bitmap bitmap, User glufineid) {
        total++;
        // 包含TextView的LinearLayout
        // 参数设置
        android.widget.LinearLayout.LayoutParams menuLinerLayoutParames = new LinearLayout.LayoutParams(
                75, 75, 1);
        View view = LayoutInflater.from(this).inflate(
                R.layout.header_item, null);
        ImageView images = (ImageView) view.findViewById(R.id.iv_avatar);
        menuLinerLayoutParames.setMargins(6, 6, 6, 6);

        // 设置id，方便后面删除
        view.setTag(glufineid);
        if (bitmap == null) {
            images.setImageResource(R.mipmap.default_useravatar);
        } else {
            images.setImageBitmap(bitmap);
        }

        menuLinerLayout.addView(view, menuLinerLayoutParames);
        tv_checked.setText("确定(" + total + ")");
        if (total > 0) {
            if (iv_search.getVisibility() == View.VISIBLE) {
                iv_search.setVisibility(View.GONE);
            }
        }
        addList.add(glufineid.getName());
    }

    //删除选择的头像
    private void deleteImage(User glufineid) {
        View view = (View) menuLinerLayout.findViewWithTag(glufineid);

        menuLinerLayout.removeView(view);
        total--;
        tv_checked.setText("确定(" + total + ")");
        addList.remove(glufineid.getName());
        if (total < 1) {
            if (iv_search.getVisibility() == View.GONE) {
                iv_search.setVisibility(View.VISIBLE);
            }
            tv_checked.setText("确定");
        }
    }

    /**
     * adapter
     */
    private class ListAdapter extends BaseAdapter {

        private LayoutInflater layoutInflater;
        private Context context;
        private List<User> list = null;


        public ListAdapter(Context context,List<User> list){
            this.context = context;
            this.list = list;
        }

        @Override
        public int getCount() {
            return this.list.size();
        }

        @Override
        public User getItem(int position) {
            return (User) list.get(position);
        }

        @Override
        public long getItemId(int position) {
            return position;
        }


        @Override
        public View getView(final int position, View convertView, ViewGroup parent) {
            final int index = position;
            User user = getItem(position);
             ViewHolder viewHolder = null;
            if (convertView == null) {
                viewHolder = new ViewHolder();
                convertView = LayoutInflater.from(context).inflate(R.layout.listitem,null);
                viewHolder.imageView = (ImageView) convertView.findViewById(R.id.imageview);
                viewHolder.textView = (TextView) convertView.findViewById(R.id.textview);
                viewHolder.checkBox = (CheckBox) convertView.findViewById(R.id.checkbox);
                viewHolder.layout = (LinearLayout) convertView.findViewById(R.id.layout);
                convertView.setTag(viewHolder);
            }else {
                viewHolder = (ViewHolder) convertView.getTag();
            }
            final ImageView imageView = (ImageView) convertView.findViewById(R.id.imageview);
            viewHolder.checkBox.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    if (list.get(index).type == User.TYPE_CHECKED){
                        list.get(index).type = User.TYPE_NOCHECKED;
                        deleteImage(list.get(index));
                    } else {
                        (list.get(index)).type = User.TYPE_CHECKED;
                        Bitmap bitmap = null;
                        bitmap = ((BitmapDrawable) imageView.getDrawable()).getBitmap();
                        showCheckImage(bitmap, list.get(index));
                    }
                }
            });

            final ViewHolder finalViewHolder = viewHolder;
            viewHolder.layout.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    if (list.get(index).type == User.TYPE_CHECKED){
                        list.get(index).type = User.TYPE_NOCHECKED;
                        deleteImage(list.get(index));
                        finalViewHolder.checkBox.setChecked(false);
                    } else {
                        (list.get(index)).type = User.TYPE_CHECKED;
                        Bitmap bitmap = null;
                        bitmap = ((BitmapDrawable) imageView.getDrawable()).getBitmap();
                        showCheckImage(bitmap, list.get(index));
                        finalViewHolder.checkBox.setChecked(true);
                    }
                }
            });
            if(list.get(index).type == User.TYPE_CHECKED){
                viewHolder.checkBox.setChecked(true);
            }else{
                viewHolder.checkBox.setChecked(false);
            }
            viewHolder.imageView.setImageResource(user.getHeader());
            viewHolder.textView.setText(user.getName());
            return convertView;
        }


    }
    private class ViewHolder {
        ImageView imageView;
        TextView textView;
        CheckBox checkBox;
        LinearLayout layout;
    }

}

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
