kptr_restrict 向用户空间内核中的指针(/proc/kallsyms-modules显示value全部为0) | LinuxDeviceDrivers/study/debug/filesystem/procfs/kptr_restrict |
本作品采用知识共享署名-非商业性使用-相同方式共享 4.0 国际许可协议进行许可, 转载请注明出处, 谢谢合作
因本人技术水平和知识面有限, 内容如有纰漏或者需要修正的地方, 欢迎大家指正, 也欢迎大家提供一些其他好的调试工具以供收录, 鄙人在此谢谢啦
1 /proc/kallsyms显示value全部为0
今天一个同事问我 cat /proc/kallsyms
显示 value
全部为 0
. 我在手机端试了一下, 果然如此.
切换到 root
用户运行, 依然是 0
. 感到十分奇怪, 因为内核发生 crash
或者打开 trace
的时候, 都是调用的 sprint_ symbol
来打印的. 为啥内核可以, 用户态 cat
就不行呢?
后来发现是系统为了保护这些符号地址泄露, 而用的一种保护手段, 从而使除 root
用户外的普通用户不能直接查看符号地址.
2 kptr_restrict 介绍
原因在于内核文件 kallsyms.c
中的显示符号地址命令中做了如下限制.
seq_printf(m, "%pK %c %s\n", (void *)iter->value, iter->type, iter->name);
只需要把其中的 %pK
换成 %p
就可以让普通用户查看符号地址了. 很多提权漏洞一般会用到此处的修改来获取符号地址
内核提供控制变量 /proc/sys/kernel/kptr_restrict
来进行修改. 从内核文档 Documentation/sysctl/kernel.txt
中可以看到 kptr_restrict
用于控制内核的一些输出打印.
Documentation/printk-formats.txt
有更加详细的描述, 除了我们平时遇到的一些打印格式之外, 还有一些比较特殊的格式(我以前没注意到).
==============================================================
kptr_restrict:
This toggle indicates whether restrictions are placed on
exposing kernel addresses via /proc and other interfaces.
When kptr_restrict is set to (0), the default, there are no restrictions.
When kptr_restrict is set to (1), kernel pointers printed using the %pK
format specifier will be replaced with 0's unless the user has CAP_SYSLOG
and effective user and group ids are equal to the real ids. This is
because %pK checks are done at read() time rather than open() time, so
if permissions are elevated between the open() and the read() (e.g via
a setuid binary) then %pK will not leak kernel pointers to unprivileged
users. Note, this is a temporary solution only. The correct long-term
solution is to do the permission checks at open() time. Consider removing
world read permissions from files that use %pK, and using dmesg_restrict
to protect against uses of %pK in dmesg(8) if leaking kernel pointer
values to unprivileged users is a concern.
When kptr_restrict is set to (2), kernel pointers printed using
%pK will be replaced with 0's regardless of privileges.
==============================================================
kptr_restrict | 权限描述 |
---|---|
2 | 内核将符号地址打印为全0, root和普通用户都没有权限 |
1 | root用户有权限读取, 普通用户没有权限 |
0 | root和普通用户都可以读取 |
kptr_restrict
值为 2
时, 所有用户都无法读取内核符号地址.

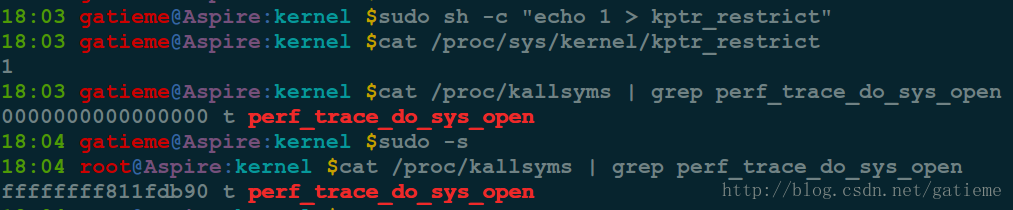

kptr_restrict
值为 1
时, 普通用户都无法读取内核符号地址, root
用户可以查看.
kptr_restrict
值为 0
时, 所有用户都可以读取内核地址.
注意
kptr_restrict
对内核中很多地址和符号表的信息导出都有影响, 比如/proc/modules
等.
3 kptr_restrict的设计
时间 | 作者 | 特性 | 描述 | 是否合入主线 | 链接 |
---|---|---|---|---|---|
2010/12/23 | Dan Rosenberg drosenberg@vsecurity.com | kptr_restrict for hiding kernel pointers from unprivileged users | 引入 kptr_restrict 限制都内核指针的读取 | v7 ☑ 2.6.38-rc1 | v7 PatchWork ------- v7 PatchWork ------- commit 455cd5ab305c |
2017/11/19 | Tobin C. Harding me@tobin.cc | hash addresses printed with %p | 内核中 %p 打印的地址会暴露内核态地址信息, 是极其不安全的, 因此限制 %p 的打印信息, 它将打印一个散列值, 并不是实际的地址. 如果想要打印实际地址, 需要显式指定 %px. | v11 ☑ 4.15-rc2 | PatchWork ------- 关键 commit 57e734423add |
2017/11/29 | Linus Torvalds torvalds@linux-foundation.org | vsprintf: don’t use ‘restricted_pointer()’ when not restricting | 如果发现 kptr_restrict 为 0, 则直接跳过 restricted_pointer() 流程. 这个补丁将影响 kptr_restrict 为 0 时, %pK 等同于 %p 输出散列地址. | v1 4.15-rc2 | commit ef0010a30935 (“vsprintf: don’t use ‘restricted_pointer()’ when not restricting”) |
2018/02/16 | Andy Shevchenko andriy.shevchenko@linux.intel.com | lib/vsprintf: Deduplicate pointer_string() | 简单的重构, 删除了一些重复的判断, 逻辑没有任何修正 | PatchWork ------- 关键 commit 496a9a5f3806 | |
2019/04/17 | Petr Mladek pmladek@suse.com | hvsprintf: Prevent silent crashes and consolidate error handling | 修复上面补丁引入的一个小问题, 限制 restricted_pointer 中 kptr_restrict 为 0 时, 输出散列地址. | v7 ☑ 5.2-rc1 | PatchWork ------- 关键 commit 1ac2f9789c4b |
2020/02/19 | Ilya Dryomov idryomov@gmail.com | vsprintf: don’t obfuscate NULL and error pointers | 同样的, 之前 NULL 指针和错误指针的输出也很混乱, 进行了归一化. | v2 ☑ 5.7-rc7 | PatchWork ------- 关键 commit 7bd57fbc4a4d |
3.1 v4.14 之前的设计
在 linux 2.6.38 中 commit 455cd5ab305c ("kptr_restrict for hiding kernel pointers from unprivileged users")
引入了 kptr_restrict
用来限制用户态读取内核指针的显示.

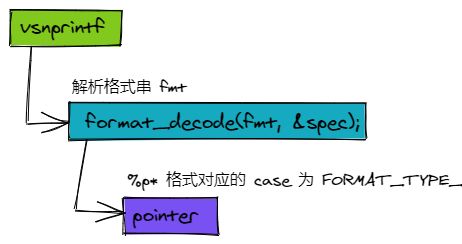

具体处理 kptr_restrict 实现在 pointer 函数中, 该函数用于处理指针格式的 fmt 输出, 源码位于 lib/vsprintf.c, v4.13.9, line 1794
, 自 2.6.x 到 4.14 之前的版本这段流程没有太大的改动.
// https://elixir.bootlin.com/linux/v4.13.9/source/lib/vsprintf.c#L1794
static noinline_for_stack
char *pointer(const char *fmt, char *buf, char *end, void *ptr,
struct printf_spec spec)
{
// ......
case 'K':
switch (kptr_restrict) {
case 0:
/* Always print %pK values */
break;
case 1: {
const struct cred *cred;
/*
* kptr_restrict==1 cannot be used in IRQ context
* because its test for CAP_SYSLOG would be meaningless.
*/
if (in_irq() || in_serving_softirq() || in_nmi()) {
if (spec.field_width == -1)
spec.field_width = default_width;
return string(buf, end, "pK-error", spec);
}
/*
* Only print the real pointer value if the current
* process has CAP_SYSLOG and is running with the
* same credentials it started with. This is because
* access to files is checked at open() time, but %pK
* checks permission at read() time. We don't want to
* leak pointer values if a binary opens a file using
* %pK and then elevates privileges before reading it.
*/
cred = current_cred();
if (!has_capability_noaudit(current, CAP_SYSLOG) ||
!uid_eq(cred->euid, cred->uid) ||
!gid_eq(cred->egid, cred->gid))
ptr = NULL;
break;
}
case 2:
default:
/* Always print 0's for %pK */
ptr = NULL;
break;
}
break;
// ......
}
可见, kptr_restrict
-
为 0 时, 未作任何处理, 直接输出, 这样对所有用户都没有限制.
-
为 1 时, 中断上下文则不允许输出, 否则则校验了用户的权限.
-
为 2 时, 将指针直接置 NULL, 这样所有用户都只能看到全 0.
整体思路还是比较清晰的. 想要详细了解实现全貌的, 可以直接查阅该特性合入时的 patchwork 或者 commit.
时间 | 作者 | 特性 | 描述 | 是否合入主线 | 链接 |
---|---|---|---|---|---|
2010/12/23 | Dan Rosenberg drosenberg@vsecurity.com | kptr_restrict for hiding kernel pointers from unprivileged users | 引入 kptr_restrict 限制都内核指针的读取 | v7 ☑ 2.6.38-rc1 | v7 PatchWork ------- v7 PatchWork ------- commit 455cd5ab305c |
3.2 v4.15 开始的设计
3.2.1 printk 地址散列化
在 linux 4.15 中 commit 57e734423add (“vsprintf: refactor %pK code out of pointer()”) 将 point 中对 %pK
(kptr_restrict) 的处理都封装到了 restricted_pointer 函数中. 这个修改比较简单, 就不详细描述了. 想要详细了解的同学可以查看提交的 commit
这次修改所属的 patchset 最主要是为了限制 %p 直接暴露内核的地址. 在早期内核中, 我们可以通过 System.map 或者 vmlinux 获取内核符号的地址信息, 内核中也较多的使用 %p 输出一些调试信息, 帮助用户显示一些符号的地址. 但是随着内核不断的演进, 开发者们发现, 随意暴露内核的地址是十分不安全的.
内核实现了越老越多的安全特性, 比如内核地址随机化等等. 正常情况下, kernel image 会按照 vmlinux 链接脚本中的链接地址去映射虚拟地址, 如果开启kaslr, 则会重新再映射一次, 映射到 链接地址 + offset的新地址上去. 如果 offset 每次开机都由 bootloader 随机生成, 那么每次开机后, kernel image最后映射的虚拟地址都不一样, 这就是内核地址随机化.
通过反汇编 vmlinux 以及读取 System.map 得不到内核中函数或者汇编语句的真正地址, 因为攻击者并不知道 kaslr 的 offset. 但是 %p 暴露内核地址将打破了这个限定. 攻击者通过 %p 打印中获取到的地址和 vmlinux 中该符号的地址进行比较, 就可以直接获取到 offset 偏移, 进而整个地址随机化机制将形同虚设.
最直接的办法就是将 %p 的打印全部处理掉.
-
没必要的从内核中删除掉
-
有必要但是可以限制的限制下(比如替换成 %pK).
-
特殊流程下, 要绕过限制直接打印实际地址的, 不做修改(比如 crash 流程输出 PANIC 日志的时候, 有必要输出实际地址.).
但是这些打印太多了, 改起来太麻烦了. 因此社区讨论后, 提出了一种新的方案.
-
限制 %p 的输出, 不再输出实际的地址, 而是输出一个散列化的地址.
-
想要在 crash 等流程输出实际地址时, 则使用 %px 输出内核符号的实际地址.
这样不用繁多的删动 %p 打印, 只需要限制 %p 的输出即可. 对于那些有必要输出实际地址的流程, 将 %p 替换为 %px, 这种路径通常是极少的, 改动起来也很少.
3.2.2 对 %pK 输出的影响
那么在 %p 的输出被散列的情况下, 对 %pK 输出的影响是什么呢?
首先我们看下实现
// https://elixir.bootlin.com/linux/v5.1/source/lib/vsprintf.c#L1481
static noinline_for_stack
char *restricted_pointer(char *buf, char *end, const void *ptr,
struct printf_spec spec)
{
switch (kptr_restrict) {
case 0:
/* Always print %pK values */
break;
case 1: {
const struct cred *cred;
/*
* kptr_restrict==1 cannot be used in IRQ context
* because its test for CAP_SYSLOG would be meaningless.
*/
if (in_irq() || in_serving_softirq() || in_nmi()) {
if (spec.field_width == -1)
spec.field_width = 2 * sizeof(ptr);
return string(buf, end, "pK-error", spec);
}
/*
* Only print the real pointer value if the current
* process has CAP_SYSLOG and is running with the
* same credentials it started with. This is because
* access to files is checked at open() time, but %pK
* checks permission at read() time. We don't want to
* leak pointer values if a binary opens a file using
* %pK and then elevates privileges before reading it.
*/
cred = current_cred();
if (!has_capability_noaudit(current, CAP_SYSLOG) ||
!uid_eq(cred->euid, cred->uid) ||
!gid_eq(cred->egid, cred->gid))
ptr = NULL;
break;
}
case 2:
default:
/* Always print 0's for %pK */
ptr = NULL;
break;
}
return pointer_string(buf, end, ptr, spec);
}
kptr_restrict | 实现 | 输出 |
---|---|---|
0 | 不做任何处理, 直接 pointer_string 输出 | 不限制, 所有用户都可以看到实际地址 |
1 | 如果有权限(root 用户等), 直接 pointer_string 输出, 否则置 NULL | 部分限制, 普通用户看到全 0, root 等用户看到实际地址 |
2 | 直接置 NULL | 全限制, 任何用户都看到全 0 |
想要详细了解具体实现的, 可以直接查阅该特性合入时的 patchwork (“hash addresses printed with %p”) 或者 commit 57e734423add (“vsprintf: refactor %pK code out of pointer()”).
, 可以直接查看 restricted_pointer 函数, v5.1, Line 1481
.

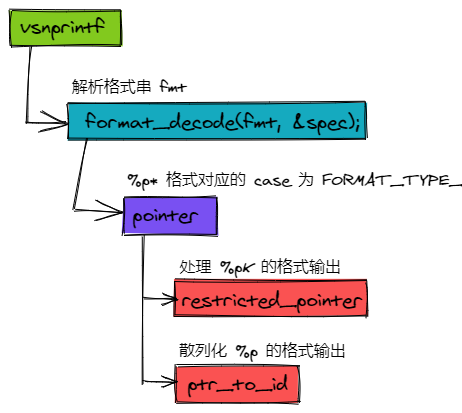

上面的提交是最早一版本实现, 后来 Linus 提交了 commit ef0010a30935 (“vsprintf: don’t use ‘restricted_pointer()’ when not restricting”).
static noinline_for_stack
char *pointer(const char *fmt, char *buf, char *end, void *ptr,
struct printf_spec spec)
{
// ......
case 'K':
if (!kptr_restrict)
break;
return restricted_pointer(buf, end, ptr, spec);
// ......
/* default is to _not_ leak addresses, hash before printing */
return ptr_to_id(buf, end, ptr, spec);
}
这个提交在发现如果 kptr_restrict 为 0 的时候, 就不再走 restricted_pointer() 流程, 而是走标准的 %p 格式处理流程, 这个会打印散列的地址. 这本身是合理的, 但是 kptr_restrict 的影响发生了变化. 当然只是 kptr_restrict == 0 时, 等同于 %p, 输出的是散列地址.
kptr_restrict | 实现 | 输出 |
---|---|---|
0 | 不做任何处理, 直接跳过 restricted_pointer() 流程, 使用 ptr_to_id() 输出散列地址 | 限制, 所有用户都可以看到散列地址, 相当于 %p 输出. |
1 | 如果有权限(root 用户等), 直接 pointer_string() 输出, 否则置 NULL | 部分限制, 普通用户看到全 0, root 等用户看到实际地址 |
2 | 直接置 NULL | 全限制, 任何用户都看到全 0 |
但是大家发现没发现, 上面的补丁其实有个问题, 存在一个空隙. 如果在处理 %pK 输出
-
在走到 pointer 的时候, 判断 kptr_restrict 不为 0, 走到 restricted_pointer() 流程.
-
restricted_pointer() 流程中, 如果会继续检查 kptr_restrict 的值, 去做不同的处理.
这里就有间隙了. 前后两次判断 kptr_restrict 的过程中, 并没有加锁, 因此如果前后读取的过程中 kptr_restrict 的值被修改了, 那么行为会变的很奇怪. 因为在 restricted_pointer 流程中, 如果发现 kptr_restrict 为 0, 则是直接用 pointer_string() 输出了实际地址的. 而如果在 restricted_pointer 函数外面, 则等同于 %p, 输出的散列地址. 可见不同时机 %pK 的输出在 kptr_restrict == 0 的时候表现竟然不一样.
这有两种处理办法, 一种是加锁, 让这段流程成为临界区, 互斥执行. 但是这显然没必要. 另外一种方法最简单, 不保证互斥, 只是在 restricted_pointer 流程中如果发现用户期望不限制(kptr_restrict == 0), 则同样打印散列地址.
时间 | 作者 | 特性 | 描述 | 是否合入主线 | 链接 |
---|---|---|---|---|---|
2017/11/19 | Tobin C. Harding me@tobin.cc | hash addresses printed with %p | 内核中 %p 打印的地址会暴露内核态地址信息, 是极其不安全的, 因此限制 %p 的打印信息, 它将打印一个散列值, 并不是实际的地址. 如果想要打印实际地址, 需要显式指定 %px. | v11 ☑ 4.15-rc2 | PatchWork ------- 关键 commit 57e734423add |
2017/11/29 | Linus Torvalds torvalds@linux-foundation.org | vsprintf: don’t use ‘restricted_pointer()’ when not restricting | 如果发现 kptr_restrict 为 0, 则直接跳过 restricted_pointer() 流程. 这个补丁将影响 kptr_restrict 为 0 时, %pK 等同于 %p 输出散列地址. | v1 4.15-rc2 | commit ef0010a30935 (“vsprintf: don’t use ‘restricted_pointer()’ when not restricting”) |
2019/04/17 | Petr Mladek pmladek@suse.com | hvsprintf: Prevent silent crashes and consolidate error handling | 修复上面补丁引入的一个小问题, 限制 restricted_pointer 中 kptr_restrict 为 0 时, 输出散列地址. | v7 ☑ 5.2-rc1 | PatchWork ------- 关键 commit 1ac2f9789c4b |
3.2.3 v5.7 的修正
时间 | 作者 | 特性 | 描述 | 是否合入主线 | 链接 |
---|---|---|---|---|---|
2020/02/19 | Ilya Dryomov idryomov@gmail.com | vsprintf: don’t obfuscate NULL and error pointers | 同样的, 之前 NULL 指针和错误指针的输出也很混乱, 进行了归一化. | v2 ☑ 5.7-rc7 | PatchWork ------- 关键 commit 7bd57fbc4a4d |
进一步处理了 errr-ptr 和 NULL-ptr 的输出, 让在所有情况下, 显示都保持清晰, 一致.
ptr error-ptr NULL
%p: 0000000001f8cc5b fffffffffffffff2 0000000000000000
%pK, kptr = 0: 0000000001f8cc5b fffffffffffffff2 0000000000000000
%px: ffff888048c04020 fffffffffffffff2 0000000000000000
%pK, kptr = 1: ffff888048c04020 fffffffffffffff2 0000000000000000
%pK, kptr = 2: 0000000000000000 0000000000000000 0000000000000000
3.2.4 示例
我们制作一个非常简单的用例, 分别用 %p, %pK, %px 打印一下子驱动中指针指向的数组的地址(指针的值)和指针本身的地址.
#include <linux/init.h>
#include <linux/module.h>
#include <linux/proc_fs.h>
#include <linux/seq_file.h>
#include <linux/percpu.h>
#include <linux/sched.h>
#include <linux/version.h>
#define SIZE 10
int array[SIZE];
int *p_arr = array;
static int __init exam_seq_init(void)
{
pr_info("%%p = %p, %%pK = %pK, %%px = %px\n", p_arr, p_arr, p_arr);
pr_info("%%p = %p, %%pK = %pK, %%px = %px\n", &p_arr, &p_arr, &p_arr);
return 0;
}
static void __exit exam_seq_exit(void)
{
}
module_init(exam_seq_init);
module_exit(exam_seq_exit);
MODULE_LICENSE("GPL");
我们写个脚本, 分别在 kptr_restrict 为 0, 1, 2 时插入模块, 显示下 %p* 的输出.
#cat test.sh
#!/bin/bash
dmesg -c
for kptr in `seq 0 2`
do
echo $kptr > /proc/sys/kernel/kptr_restrict
KPTR=`cat /proc/sys/kernel/kptr_restrict`
echo "/proc/sys/kernel/kptr_restrict: $KPTR"
insmod ./kptr_restrict_test.ko
dmesg -c
done
可以看到输出的内容与我的分析一致.
4 参考
Introducing Linux Kernel Symbols
Is there a way to set kptr_restrict to 0?
kptr_restrict for hiding kernel pointers from unprivileged users
-
