ww可以根据DLG图批量生成假三维模型,这对于小区等特征相似的建筑物模型的构建是非常有用的。下面来看如何一步步实现假三维模型的加载:
1、Shp文件的制作

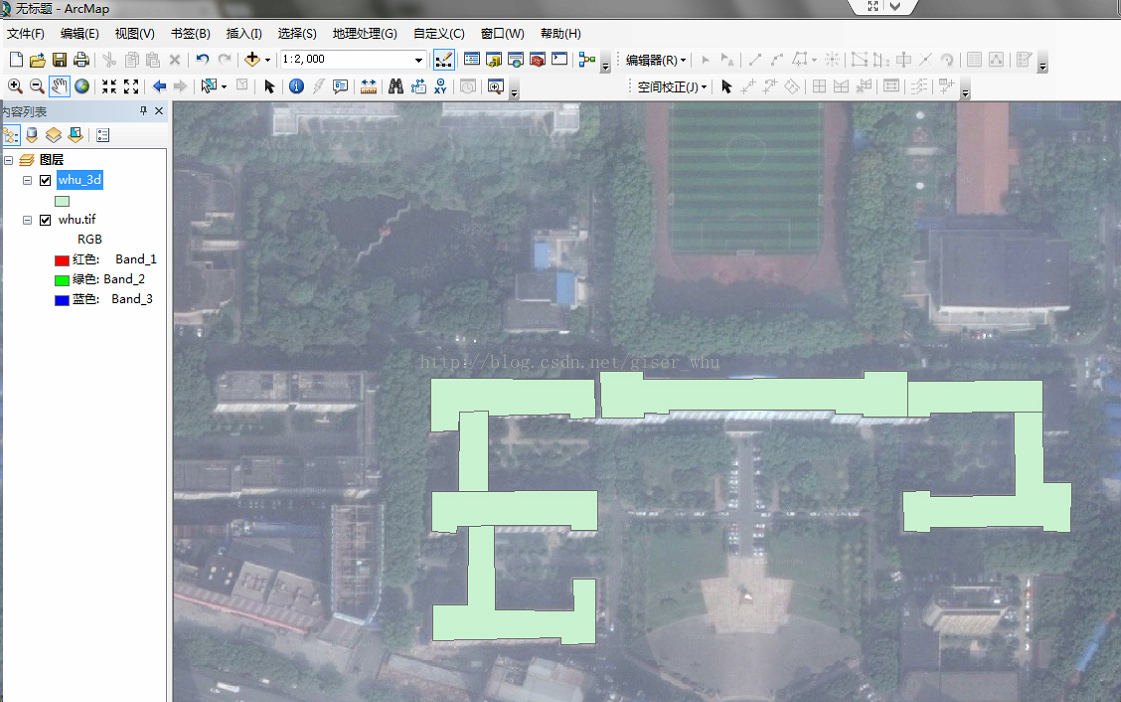

首先在arcmap下数字化几个建筑物,并新建height字段存储建筑物的高度。
2、代码实现
/**
*
* @方法名称: init3DModel ;
* @方法描述: 导入简易三维模型 ;
* @参数 :@param filePath :shp文件路径
* @返回类型: void ;
* @创建人:bluce;
* @创建时间:2015年2月3日 下午6:10:22;
* @throws
*/
private void init3DModel(String filePath)
{
Shapefile shapefile = new Shapefile(filePath);
RenderableLayer layer = new RenderableLayer();
layer.setName("简易三维模型");
layer.setPickEnabled(true);
try
{
while (shapefile.hasNext())
{
ShapefileRecord record = shapefile.nextRecord();
layer.addRenderable(makeShape(record));
}
wwPanel.getWorldWindowGLCanvas().getModel().getLayers()
.add(layer);
}
finally
{
shapefile.close();
}
}
/**
*
* @方法名称: makeShape ;
* @方法描述: 根据shp文件每条记录创建模型 ;
* @参数 :@param record
* @参数 :@return
* @返回类型: ExtrudedPolygon ;
* @创建人:bluce;
* @创建时间:2015年2月3日 下午6:11:08;
* @throws
*/
private ExtrudedPolygon makeShape(ShapefileRecord record)
{
String IMAGE_PATH = "F:\\data\\wwj\\build123sm.jpg";
Double height = null;
String[] heightKeys = new String[]
{ "height", "Height", "HEIGHT" };
for (String key : heightKeys)
{
Object o = record.getAttributes().getValue(key);
if (o != null)
{
height = Double.parseDouble(o.toString());
}
}
// 顶部属性
ShapeAttributes capAttrs = new BasicShapeAttributes();
capAttrs.setOutlineMaterial(Material.GRAY);
capAttrs.setInteriorMaterial(Material.CYAN);
// 边属性
ShapeAttributes sideAttributes = new BasicShapeAttributes();
sideAttributes.setInteriorMaterial(Material.LIGHT_GRAY);
sideAttributes.setOutlineMaterial(Material.DARK_GRAY);
sideAttributes.setImageSource(IMAGE_PATH);
// 创建拉伸多边形
VecBuffer vb = record.getPointBuffer(0);
Polygon pgonAirspace = new Polygon(vb.getLocations()); // 根据点串构建多边形
//纹理
ArrayList<String> textures = new ArrayList<String>();
for (int i = 0; i < pgonAirspace.getLocations().size(); i++)
{
textures.add(IMAGE_PATH);
}
ExtrudedPolygon polygon = new ExtrudedPolygon(
pgonAirspace.getLocations(), height, textures);
polygon.setCapAttributes(capAttrs);
polygon.setSideAttributes(sideAttributes);
polygon.setAltitudeMode(WorldWind.CLAMP_TO_GROUND);
return polygon;
}

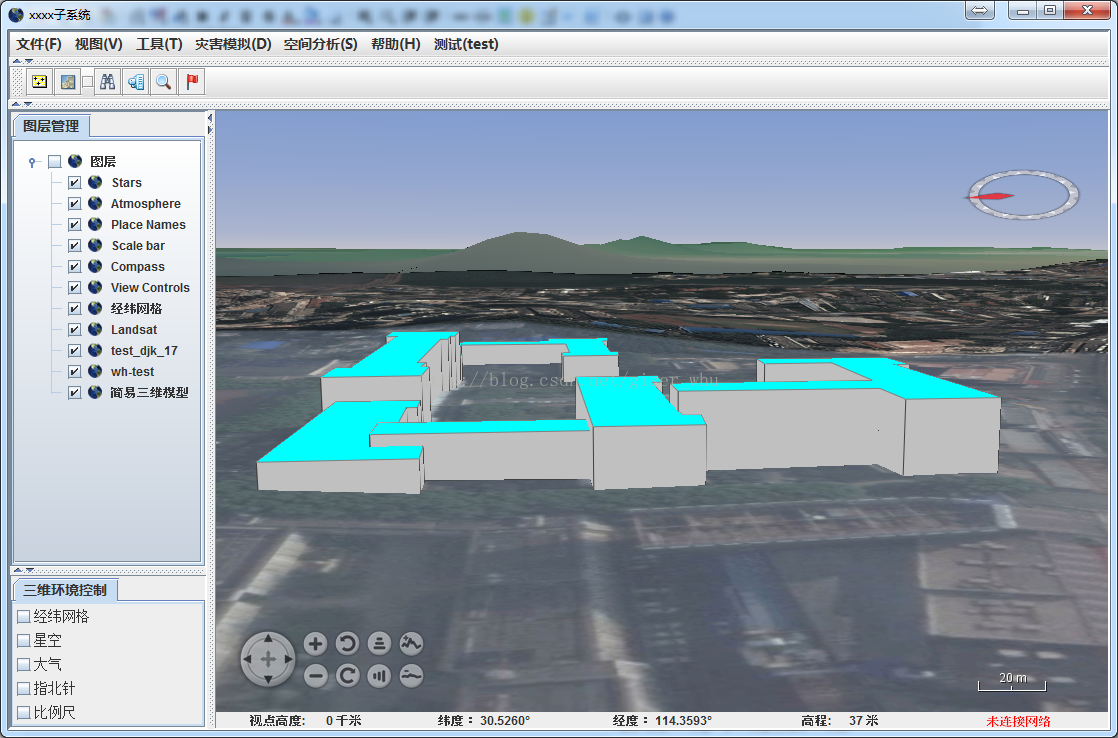

效果如下图所示:
3、问题
发现模型加载不了纹理啊,查了几遍不知道问题出在哪里,希望懂的朋友看到留言给指点下啊,不胜感激。
----------------------------------------------2015年7月26日----------------------------------------------

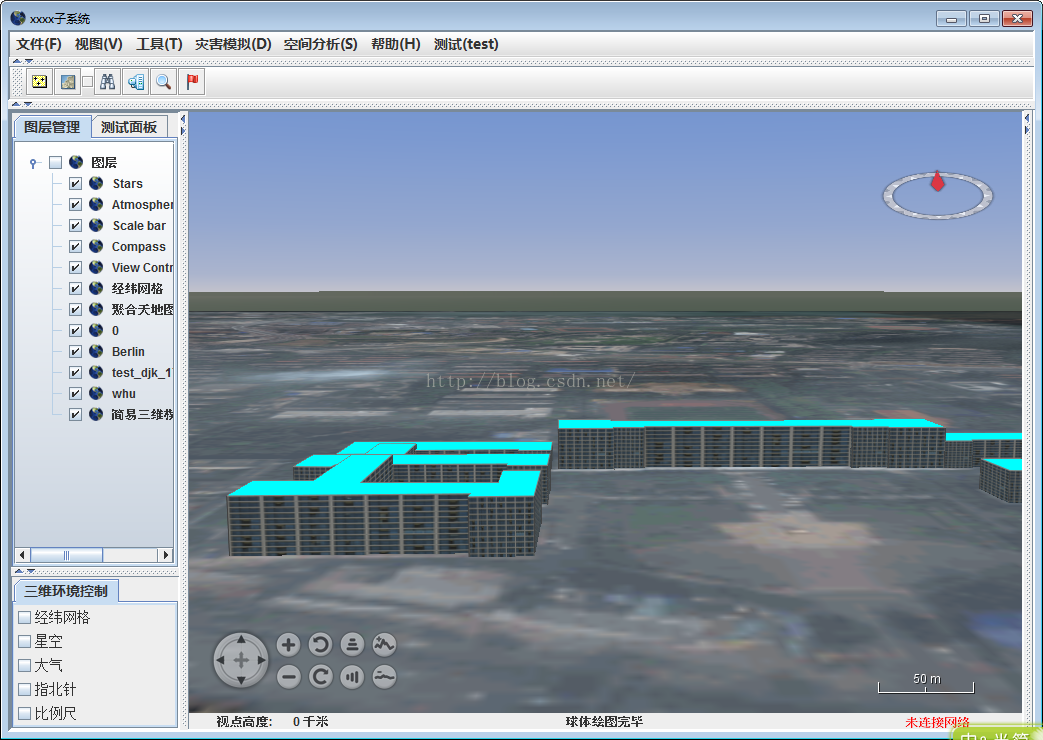

感谢Q_H_Wang提供的解决方案: 加载不上纹理的是因为 pgonAirspace.getLocations().获取的坐标集合第一个元素与最后一个一样造成的,除掉最后一个元素即可加载。所以只需在添加纹理的地方加个减一即可:
ArrayList<String> textures = new ArrayList<String>();
for (int i = 0; i < pgonAirspace.getLocations().size() - 1; i++)
{
textures.add(IMAGE_PATH);
}
