iOS Safari阅读模式分析过程

3717人阅读 评论(0) 收藏 举报
分类:
本文为Safari阅读模式分析过程记录,没有做很好的整理。最终的输出见另一篇iOS Safari阅读模式研究

1. Break on evaluate
  b JSC::evaluate(JSC::ExecState*, JSC::ScopeChainNode*, JSC::SourceCode const&, JSC::JSValue, JSC::JSValue*)

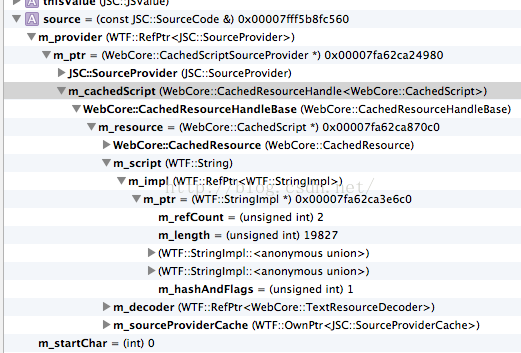

  dump the source content from JSC::SourceCode


Printing description of source.m_provider.m_ptr->m_url:
(WTF::String) m_url = { length = 0, contents = '' } {
  m_impl = {
    m_ptr = 0x0000000000000000 { length = 0, is8bit = 0, contents = '' }
  }
}

Printing description of source.m_provider.m_ptr->m_source:
(WTF::String) m_source = { length = 66370, contents = '/*
 * Copyright © 2010 Apple Inc. All rights reserved.
 */

 ……


2. Call Stack


3. (lldb) image list
[  0] 396DF4E9-18D6-3C39-B1FB-E783D7F9B947 0x00001000 /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator6.1.sdk/Applications/MobileSafari.app/MobileSafari

-> JSEvaluateScript
0x70224(0x702a5) ->
0x6fdc8(0x6fe19) ->
0x6fd9a(0x6fdb5) -> XREF:-[ReaderTestProcessor _processReaderTestResult:tabDocument:] & -[ReaderContext isReaderAvailable]
0x6eac5(0x6eae5) -> -[ReaderContext isReaderAvailable]
0xa3d84(0xa3dd3) -> XREF:-[TabDocument _detectReaderAvailabilityOnWebThread]
HandleRunSource

i. 查找起点

  3483 -> 0xa3d15  -[TabDocument _detectReaderAvailabilityOnWebThread]
  3490 -> 0xa3f56(0xa404b)  -[TabDocument _detectReaderAvailabilityNow]

ii. 谁发起了_detectReaderAvailabilityNow
-[BrowserController stopFromAddressView:]
-[TabDocument _progressDidStall]
-[TabDocument webView:didFinishLoadForFrame:]
    ->   -[TabDocument detectReaderAvailabilitySoon]

  3496->0xa4279  -[TabDocument detectReaderAvailabilitySoon]
  3274-> 0x9c16b (0x9c1ad) -[TabDocument webView:didFinishLoadForFrame:]

4. (FAILED)
b -[UIView setHidden:]
(lldb) showParameters 3
$56 = 0x09a43aa0 <ReaderButtonView: 0x1a39ca50; baseClass = UIButton; frame = (276 2; 49 27); alpha = 0; opaque = NO; layer = <CALayer: 0x1a398610>>
0x08d60840: "setHidden:"



5.
b -[UIView setFrame:]
(lldb) showParameters 3
$26 = 0x0a984730 <ReaderButtonView: 0x9af39d0; baseClass = UIButton; frame = (276 2; 49 27); alpha = 0; opaque = NO; layer = <CALayer: 0x9a6fb60>>
0x07b37881: "setFrame:"
0x07b3788b: "addSubview:"


96 -> 0x6d38 (0x6f9d):  -[AddressView _layoutReloadButtonForProgressViewFrame:forEditing:textField:showInactiveFieldWhileEditing:]
257 -> 0x126a4 (0x1288a): -[AddressView layoutReaderButton]
3482 -> 0xa3927 (0xa3caf): -[TabDocument _didDetectReaderAvailability:]
3485 -> 0xa3e3f (0xa3e6b): (MEM:didDetectReaderAvailability)
-[AddressViewaccessibility(SafeCategory) layoutReaderButton]


6. (FAILED)
根据WebKit Objective-C Programming Guide, 获取JS数据需要先获取window对象:
    id win =  [webview windowScriptObject];
前且所有的JS对象是使用WebScriptObject包装起来的。

Summary: WebCore`-[WebScriptObject valueForKey:]        Address: WebCore[0x00d35b30] (WebCore.__TEXT.__text + 13843984)
(lldb) b WebCore`-[WebScriptObject valueForKey:]
Breakpoint 14: where = WebCore`-[WebScriptObject valueForKey:], address = 0x03581700



7.
TabDocument::
- (void)_detectReaderAvailabilityNow;     // IMP=0x000a3f56
- (void)_detectReaderAvailabilityOnWebThread;     // IMP=0x000a3d15
- (void)_didDetectReaderAvailability:(BOOL)arg1;     // IMP=0x000a3927


8.
  var ReaderArticleFinderJS = new ReaderArticleFinder(document);




6fdc8(6fe24) -> 1b3ba(1b3d6) -> isReaderModeAvailable

9. break at JSObjectGetProperty
(lldb) p/x `*(int*)($ebp+16)`
(int) $33 = 0x000debdf
(lldb) mem read `$33`
0x000debdf: 69 73 52 65 61 64 65 72 4d 6f 64 65 41 76 61 69  isReaderModeAvai
0x000debef: 6c 61 62 6c 65 00 70 72 65 70 61 72 65 54 6f 54  lable.prepareToT

10. 还需要再获取对象

450 -> 0x1b774(0x1b777) ->  return ReaderArticleFinderJS
1656 -> 0x5a70c (0x5a76e) ->
2193 -> 0x70224 (0x70315) ->
2186 -> 0x6fdc8 (0x6fe19) ->
2185 ->0x6fd9a(0x6fdb5) -> XREF:-[ReaderTestProcessor _processReaderTestResult:tabDocument:] & -[ReaderContext isReaderAvailable]
2125 ->0x6eac5(0x6eae5) -> -[ReaderContext isReaderAvailable]
3484 -> 0xa3d84(0xa3dd3) -> XREF:-[TabDocument _detectReaderAvailabilityOnWebThread]


11. click the "Reader" button
0.


a.再次确认Reader Mode


2193->0x70224 (0x702a5)
2186->0x6fdc8(0x6fe19)
2195->0x70372(0x70387) WebThreadLock, call 6fdc8.
2146->0x6f3cd(0x6f3f1) -> -[ReaderContext createArticleFinder]
978-> 0x38445(0x384f5) [BrowserController setShowingReader:animated]
122 -> 0x995c(0x99bc) ->
        bShowing = [[BrowserController sharedBrowserController] isShowingReader];
        [[BrowserController sharedBrowserController] setShowingReader:bShowing animated:YES]



b. 显示出内容
i.加载html文件

-> loadRequest (Reader~ipad.html)
2132 ->0x6ee1e (0x6ee96) [ReaderContext loadReaderDocument]
2118 ->0x6e85b (0x6e959) [ReaderContext createWebViewIfNeeded]
3491->0xa4053 (0xa4097) [TabDocument createBrowserReaderViewIfNeeded]
979 ->0x38549 (0x38610) [BrowserController showReaderForTabDocument]
978-> 0x38445(0x38526)  [BrowserController setShowingReader:animated]
122 ->0x995c(0x99bc)
     bShowing = [[BrowserController sharedBrowserController] isShowingReader];
        [[BrowserController sharedBrowserController] setShowingReader:bShowing animated:YES]

ii. 在WebView允许修改window object时,执行阅读模式处理脚本

 2205 -> 0x705ce (0x7066f)
 2127 -> 0x6eb17 (0x6eb62) -[ReaderContext initReaderJSController:]
1296 -> 0x4952c (0x49588) [BrowserReaderView uiWebView:didClearWindowObject:forFrame]

iii. 页面加载后会执行JS:
     <body class="preloading" onload="ReaderJS.loaded();" onscroll="articleHasScrolled();">
