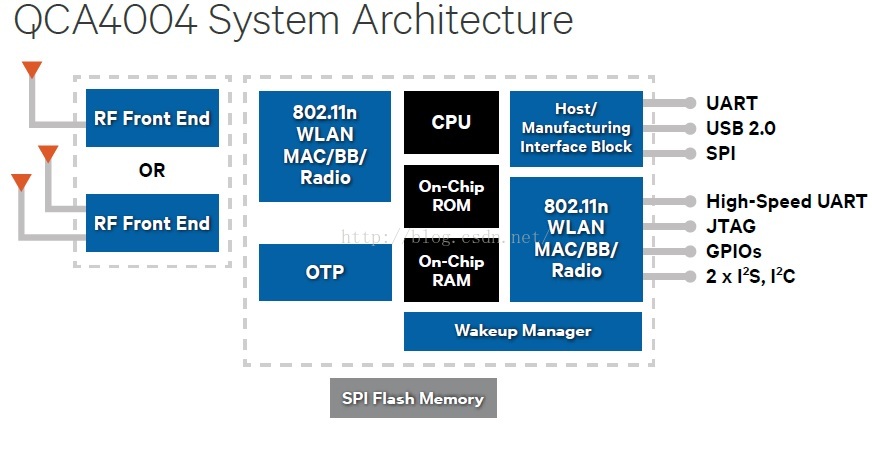

QCA4004简介
Solution Highlights
The QCA4004 is single-stream (1x1) IEEE 802.11n
chip-on-board solution featuring:
£ Qualcomm’s industry-leading 802.11n Wi-Fi®
– Dual-band 2.4 GHz/5 GHz
– Integrated high-power, high-efficiency power amplifier
– Antenna diversity
– Full security support: WPS, WPA, WPA2, WEP
£ Low energy
– Power saving modes
– Fast wake-up times
– Support for Quad SPI flash for faster wake times
£ Integrated networking and security
– IPv4/IPv6 Networking
– SSL Client with AES encryption
£ AllJoyn® software to ensure seamless connectivity and services
£ Hostless mode
– Wake Up Manager which consists of ultra-low power clock,state retention RAM, and GPIO expansion
– RTOS and Toolchain for code on chip
£ Sensor attach GPIOs and I2C Master with up to 4 slaves
Features
£ AllJoyn connectivity software and service frameworks ensure seamless communication between devices, allowing developers to deliver new amazing proximity based experience and enhancing ease-of-use for consumers
– Control Panel Service Framework
– Onboarding Service Framework
– Notification Framework
– Config Service
– Security
£ IEEE 802.11n Single Stream 1x1
£ Dual-band 2.4 GHz/5 GHz
£ Integrated PA, LNA with support for external PA, and LNA
£ Single or dual Rx front end for receive diversity
£ On-chip processor and memory
£ Green Tx power savings
£ Low power Rx listen
£ Lower power modes
– IEEE Sleep with low power consumption and optimal state transition times
– Power optimized listen, receive, transmit, and associated operating modes
– Suspend mode (QCA4004) for hostless mode of operation with very low power consumption
– Store and recall for hosted mode of operating to maintain while minimizing power consumption
£ Data rates up to 10 Mbps
£ Full security support: WPS, WPA, WPA2, WEP
£ Integrated IPv4/IPv6 networking stack
£ SSL security
£ HTTP, DNS services
£ On-chip user development for hostless applications
– Real-time operating system (RTOS) on the chip central processing unit
– Supported tool chain
£ Manufacturing tools for configuration and test
淘宝有卖此开发板的,链接如下,但是技术资料不全,不如DFRobot
本开发板以QCA4004模块为核心,通过排针的方式预留所有接口,配合板上电源电路、指示灯、按键、串口电路达到用户自由定制的目的。
本开发板主要适合以下用户:
1、QCA4004模块的初学者
2、有一定基础需要在软硬件设计方面提高者
3、技术开发人员
https://item.taobao.com/item.htm?spm=a230r.1.14.13.oXLRNR&id=523029156810&ns=1&abbucket=1#detail
