二叉排序树(BST,Binary Sort Tree)具有这样的性质:对于二叉树中的任意节点,如果它有左子树或右子树,则该节点的数据成员大于左子树所有节点的数据成员,且小于右子树所有节点的数据成员。排序二叉树的中序遍历结果是从小到大排列的。
二叉排序树的查找和插入比较好理解,主要来看一下删除时的情况。

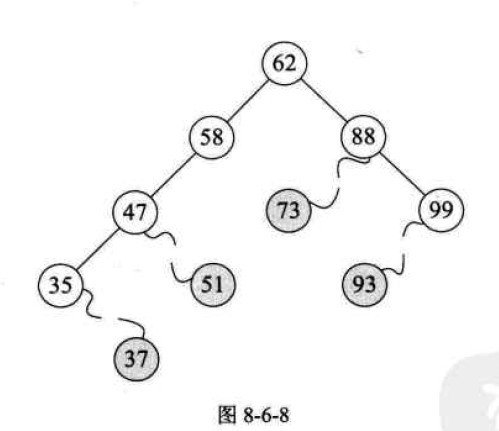

如果需要查找并删除如图8-6-8中的37, 51, 73,93这些在二叉排序树中是叶子的结点,那是很容易的,毕竟删除它们对整棵树来说,其他结点的结构并未受到影响。
对于要删除的结点只有左子树或只有右子树的情况,相对也比较好解决。那就是结点删除后,将它的左子树或右子树整个移动到删除结点的位置即可,可以理解为独子继承父业。比如图8-6-9,就是先删除35和99两结点,再删除58结点的变化图,最终,整个结构还是一个二叉排序树。

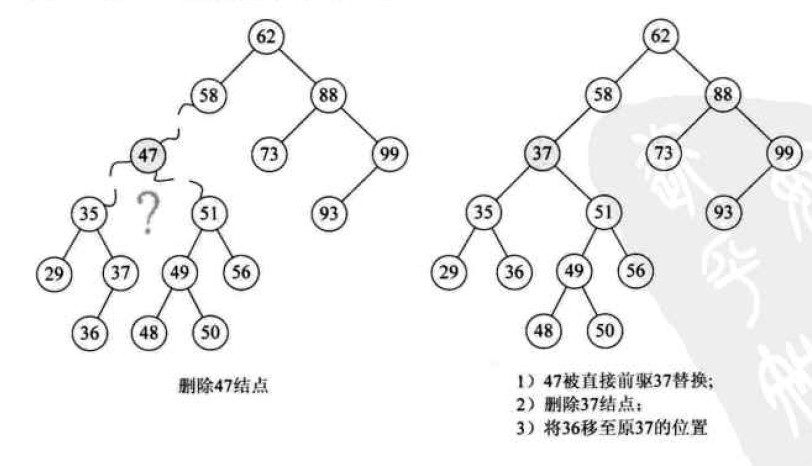

但是对于要删除的结点既有左子树又有右子树的情况怎么办呢?比如图8-6-10中的47结点若要删除了,它的两儿子和子孙们怎么办呢?
前人总结的比较好的方法就是,找到需要删除的结点p的直接前驱(或直接后继)s,用s来替换结点p,然后再删除此结点s,如图8-6-12所示。
注意:这里的前驱和后继是指中序遍历时的顺序。
Deletion
There are three possible cases to consider:
• Deleting a leaf (node with no children): Deleting a leaf is easy, as we can simply remove it from the tree.
• Deleting a node with one child: Remove the node and replace it with its child.
• Deleting a node with two children: Call the node to be deleted N. Do not delete N. Instead, choose either its in-order successor node or its in-
order predecessor node, R. Replace the value of N with the value of R, then delete R.
As with all binary trees, a node's in-order successor is the left-most child of its right subtree, and a node's in-order predecessor is the right-most
child of its left subtree. In either case, this node will have zero or one children. Delete it according to one of the two simpler cases above.
下面来看代码:(参考《linux c 编程一站式学习》
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 |
/************************************************************************* > File Name: binarysearchtree.h > Author: Simba > Mail: dameng34@163.com > Created Time: Sat 29 Dec 2012 06:05:55 PM CST ************************************************************************/ #ifndef BST_H #define BST_H typedef struct node *link; struct node { unsigned char item; link left, right; }; link search(link t, unsigned char key); link insert(link t, unsigned |
