Spark SQL Catalyst源码分析之Analyzer

    /** Spark SQL源码分析系列文章*/

    前面几篇文章讲解了Spark SQL的核心执行流程和Spark SQL的Catalyst框架的Sql Parser是怎样接受用户输入sql,经过解析生成Unresolved Logical Plan的。我们记得Spark SQL的执行流程中另一个核心的组件式Analyzer,本文将会介绍Analyzer在Spark SQL里起到了什么作用。

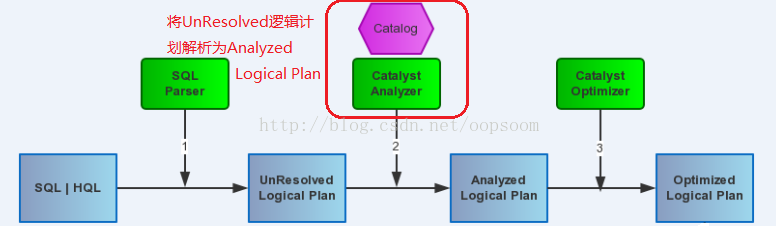

    Analyzer位于Catalyst的analysis package下,主要职责是将Sql Parser 未能Resolved的Logical Plan 给Resolved掉。



一、Analyzer构造

    Analyzer会使用Catalog和FunctionRegistry将UnresolvedAttribute和UnresolvedRelation转换为catalyst里全类型的对象。

    Analyzer里面有fixedPoint对象,一个Seq[Batch].

class Analyzer(catalog: Catalog, registry: FunctionRegistry, caseSensitive: Boolean)
  extends RuleExecutor[LogicalPlan] with HiveTypeCoercion {

  // TODO: pass this in as a parameter.
  val fixedPoint = FixedPoint(100)

  val batches: Seq[Batch] = Seq(
    Batch("MultiInstanceRelations", Once,
      NewRelationInstances),
    Batch("CaseInsensitiveAttributeReferences", Once,
      (if (caseSensitive) Nil else LowercaseAttributeReferences :: Nil) : _*),
    Batch("Resolution", fixedPoint,
      ResolveReferences ::
      ResolveRelations ::
      NewRelationInstances ::
      ImplicitGenerate ::
      StarExpansion ::
      ResolveFunctions ::
      GlobalAggregates ::
      typeCoercionRules :_*),
    Batch("AnalysisOperators", fixedPoint,
      EliminateAnalysisOperators)
  )
    Analyzer里的一些对象解释:

    FixedPoint:相当于迭代次数的上限。

  /** A strategy that runs until fix point or maxIterations times, whichever comes first. */
  case class FixedPoint(maxIterations: Int) extends Strategy

    Batch: 批次,这个对象是由一系列Rule组成的,采用一个策略(策略其实是迭代几次的别名吧,eg:Once)

  /** A batch of rules. */,
  protected case class Batch(name: String, strategy: Strategy, rules: Rule[TreeType]*)
    Rule:理解为一种规则,这种规则会应用到Logical Plan 从而将UnResolved 转变为Resolved

abstract class Rule[TreeType <: TreeNode[_]] extends Logging {

  /** Name for this rule, automatically inferred based on class name. */
  val ruleName: String = {
    val className = getClass.getName
    if (className endsWith "$") className.dropRight(1) else className
  }

  def apply(plan: TreeType): TreeType
}

    Strategy:最大的执行次数,如果执行次数在最大迭代次数之前就达到了fix point,策略就会停止,不再应用了。

  /**
   * An execution strategy for rules that indicates the maximum number of executions. If the
   * execution reaches fix point (i.e. converge) before maxIterations, it will stop.
   */
  abstract class Strategy { def maxIterations: Int }

   Analyzer解析主要是根据这些Batch里面定义的策略和Rule来对Unresolved的逻辑计划进行解析的。

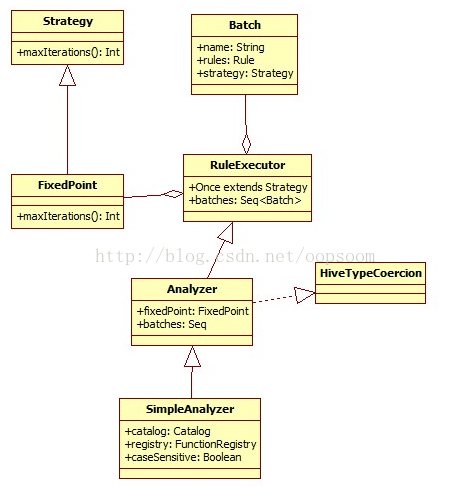

   这里Analyzer类本身并没有定义执行的方法,而是要从它的父类RuleExecutor[LogicalPlan]寻找,Analyzer也实现了HiveTypeCosercion,这个类是参考Hive的类型自动兼容转换的原理。如图:



    RuleExecutor:执行Rule的执行环境,它会将包含了一系列的Rule的Batch进行执行,这个过程都是串行的。

    具体的执行方法定义在apply里:

    可以看到这里是一个while循环,每个batch下的rules都对当前的plan进行作用,这个过程是迭代的,直到达到Fix Point或者最大迭代次数。

 def apply(plan: TreeType): TreeType = {
    var curPlan = plan

    batches.foreach { batch =>
      val batchStartPlan = curPlan
      var iteration = 1
      var lastPlan = curPlan
      var continue = true

      // Run until fix point (or the max number of iterations as specified in the strategy.
      while (continue) {
        curPlan = batch.rules.foldLeft(curPlan) {
          case (plan, rule) =>
            val result = ru
