Hibernate是什么?
对于学习Java的开发者来说,这个问题不应该是一个问题。
一句话: Hibernate 是针对Java环境的对象/关系映射的解决方案,或者说是第三方库。
它的作用就是省去了开发者花在Java类对应数据库表,Java数据对应到SQL数据类型的时间。减少了开发者花在处理SQL和JDBC的时间。
在开发角度来说,最大的不同是:
使用 JDBC开发时,基本还是组出SQL,通过JDBC API来执行SQL。
而使用 Hibernate,对Java 对象进行save 或其他操作,就会自动保存到数据库中,也就是使用Hibernate 更体现了面向对象的概念, 当然, hibernae 的好处远不止于此。
如何获取hibernate
下载:
到hibernate 的官方网站下载。目前的最新版是 4.3.5.Final, 下载地址:
也可以到 :
下载
目录结构

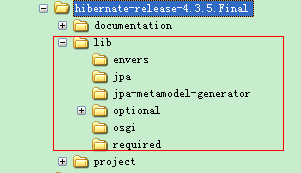

解压下载后的 zip 档, 解压后的目录结构如下:
documentation -- 存放了hibernate 的快速入门文档,开发手册,API文档等英文文档
project -- 存放了一些测试的例子
lib - 存放了jar 包,里面又分成了几个子目录。
lib/required -- 一些核心包, 开发时需要把这个目录下的所有文件放到项目的classpath 下
lib/jpa - 主要是hibernate-entitymanager.jar , 依赖于 required里的jar 档。主要是JPA用的(Java Persistence API)
lib/events
lib/Optional
在Eclipse中建立测试项目
这里使用mysql 数据库测试, 要下载一个 Mysql JDBC 的jar 档。
到 http://dev.mysql.com/downloads/connector/j/ 下载

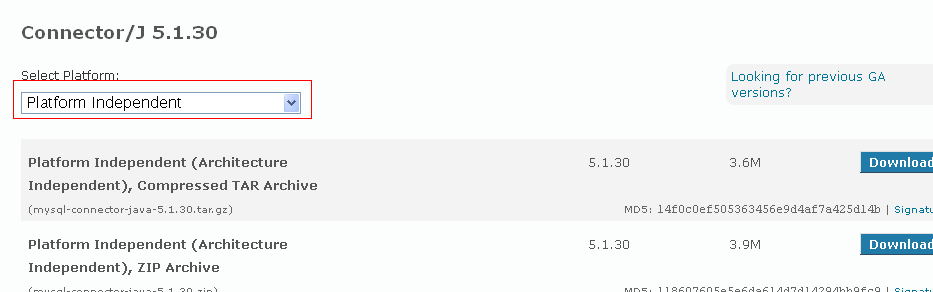

下载页面如下:
不过下载这个, 需要登录oralce 网站。

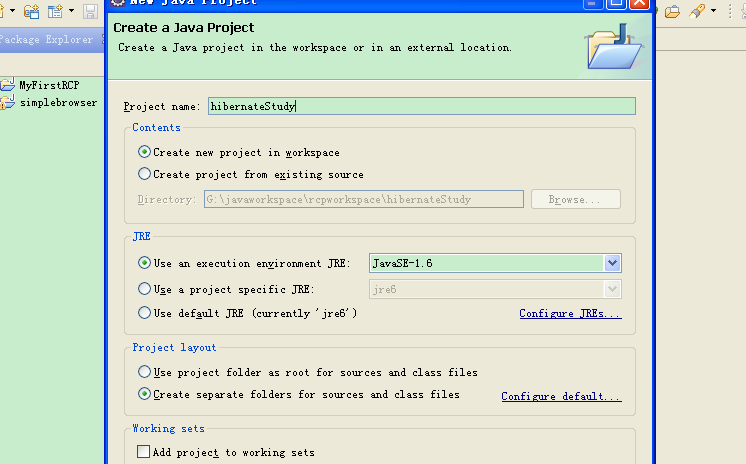

在Eclipse 中建立一个Java Project

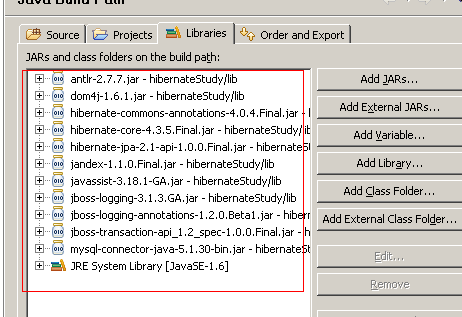

1. 建立lib 目录, 将 hibernate lib\required 目录下所有的jar 当和mysql jdbc 档(mysql-connector-java-5.1.30-bin.jar)放入lib 目录。 并导入
2. 在src 根目录下建立 hibernate.cfg.xml, 内容如下:
<?xml version='1.0' encoding='utf-8'?>
<!DOCTYPE hibernate-configuration PUBLIC
"-//Hibernate/Hibernate Configuration DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
<session-factory>
<!-- Database connection settings -->
<property name="connection.driver_class">com.mysql.jdbc.Driver</property>
<property name="connection.url">jdbc:mysql://localhost:3306/test</property>
<property name="connection.username">root</property>
<property name="connection.password">123456</property>
<!-- JDBC connection pool (use the built-in) -->
<property name="connection.pool_size">1</property>
<!-- SQL dialect-->
<property name="dialect">org.hibernate.dialect.MySQLDialect</property>
<!-- Disable the second-level cache
<property name="cache.provider_class">org.hibernate.cache.internal.NoCacheProvider</property> -->
<!-- Echo all executed SQL to stdout -->
<property name="show_sql">true</property>
<!-- Drop and re-create the database schema on startup-->
<property name="hbm2ddl.auto">create</property>
<!-- Names the annotated entity class -->
<mapping resource="com/oscar999/Usr.hbm.xml"/>
</session-factory>
</hibernate-configuration>
3. 在src 下, 新建 com.oscar999 包, 加入Usr.hbm.xml, 内容如下:
<?xml version="1.0"?>
<!--
~ Hibernate, Relational Persistence for Idiomatic Java
~
~ Copyright (c) 2010, Red Hat Inc. or third-party contributors as
~ indicated by the @author tags or express copyright attribution
~ statements applied by the authors. All third-party contributions are
~ distributed under license by Red Hat Inc.
~
~ This copyrighted material is made available to anyone wishing to use, modify,
~ copy, or redistribute it subject to the terms and conditions of the GNU
~ Lesser General Public License, as published by the Free Software Foundation.
~
~ This program is distributed in the hope that it will be useful,
~ but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY
~ or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License
~ for more details.
~
~ You should have received a copy of the GNU Lesser General Public License
~ along with this distribution; if not, write to:
~ Free Software Foundation, Inc.
~ 51 Franklin Street, Fifth Floor
~ Boston, MA 02110-1301 USA
-->
<!DOCTYPE hibernate-mapping PUBLIC
"-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping package="com.oscar999">
<class name="Usr" table="D_USER">
<id name="emp_id" column="EMP_ID">
<generator class="assigned"/>
</id>
<property name="user_name" column="USER_NAME"/>
<property name="email_addr" column="EMAIL_ADDR"/>
<property name="location" column="LOCATION"/>
<property name="title" column="TITLE"/>
<property name="mobile" column="MOBILE"/>
<property name="extnum" column="EXTNUM"/>
<property name="hire_date" type="timestamp" column="HIRE_DATE"/>
<property name="resign_date" type="timestamp" column="RESIGN_DATE"/>
<property name="active" column="ACTIVE"/>
</class>
</hibernate-mapping>
4. 在同包目录下, 加入 Usr.java
package com.oscar999;
import java.util.Date;
public class Usr {
private String emp_id;
private String user_name;
private String email_addr;
private String location;
private String title;
private String mobile;
private String extnum;
private Date hire_date;
private Date resign_date;
private String active;
public Usr() {
// this form used by Hibernate
}
public Usr(String emp_id) {
this.emp_id = emp_id;
}
public String getEmp_id() {
return emp_id;
}
public void setEmp_id(String emp_id) {
this.emp_id = emp_id;
}
public String getUser_name() {
return user_name;
}
public void setUser_name(String user_name) {
this.user_name = user_name;
}
public String getEmail_addr() {
return email_addr;
}
public void setEmail_addr(String email_addr) {
this.email_addr = email_addr;
}
public String getLocation() {
return location;
}
public void setLocation(String location) {
this.location = location;
}
public String getTitle() {
return title;
}
public void setTitle(String title) {
this.title = title;
}
public String getMobile() {
return mobile;
}
public void setMobile(String mobile) {
this.mobile = mobile;
}
public String getExtnum() {
return extnum;
}
public void setExtnum(String extnum) {
this.extnum = extnum;
}
public Date getHire_date() {
return hire_date;
}
public void setHire_date(Date hire_date) {
this.hire_date = hire_date;
}
public Date getResign_date() {
return resign_date;
}
public void setResign_date(Date resign_date) {
this.resign_date = resign_date;
}
public String getActive() {
return active;
}
public void setActive(String active) {
this.active = active;
}
}
5. 接下来就是写测试文件了 TestMySQL.java
/*
* @author: oscar999
* @Date:2014-6-3
* Copyright (c) oscar999. All rights reserved.
*/
package com.oscar999;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.boot.registry.StandardServiceRegistryBuilder;
import org.hibernate.cfg.Configuration;
import org.hibernate.service.ServiceRegistry;
/**
* <description>
*
* @see
* @see
*
* @version 0.1, 2014-6-3
* @author oscar999
* @since JDK1.5
*/
public class TestMySQL {
public static void main(String[] args) {
Configuration configuration = new Configuration().configure();
ServiceRegistry serviceRegistry = new StandardServiceRegistryBuilder().applySettings(
configuration.getProperties()).build();
SessionFactory sessionFactory = configuration.buildSessionFactory(serviceRegistry);
Session session = sessionFactory.openSession();
session.beginTransaction();
session.save(new Usr("oscar999"));
session.getTransaction().commit();
session.close();
sessionFactory.close();
}
}

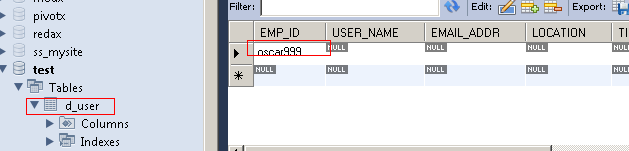

用workbench 查看db 的话, 就可以看到结果了。
再贴一下, 如果是oracle, hibernate.cfg.xml 如何配置:
<?xml version='1.0' encoding='utf-8'?>
<!DOCTYPE hibernate-configuration PUBLIC
"-//Hibernate/Hibernate Configuration DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
<session-factory>
<!-- Database connection settings -->
<property name="connection.driver_class">oracle.jdbc.driver.OracleDriver</property>
<property name="connection.url">jdbc:oracle:thin:@localhost:1521:yoursid</property>
<property name="connection.username">yourusername</property>
<property name="connection.password">yourpassword</property>
<!-- JDBC connection pool (use the built-in) -->
<property name="connection.pool_size">1</property>
<!-- SQL dialect-->
<property name="dialect">org.hibernate.dialect.OracleDialect</property>
<!-- Disable the second-level cache
<property name="cache.provider_class">org.hibernate.cache.internal.NoCacheProvider</property> -->
<!-- Echo all executed SQL to stdout -->
<property name="show_sql">true</property>
<!-- Drop and re-create the database schema on startup-->
<property name="hbm2ddl.auto">create</property>
<!-- Names the annotated entity class -->
<mapping resource="com/oscar999/Usr.hbm.xml"/>
</session-factory>
</hibernate-configuration>
