一直想同归串口给CC2530下程序,就看了一下官方的文档。里面讲的不是太详细,加上自己英语也不好。理解不了,胡乱瞎搞了两天,就成功了。今天做下总结.

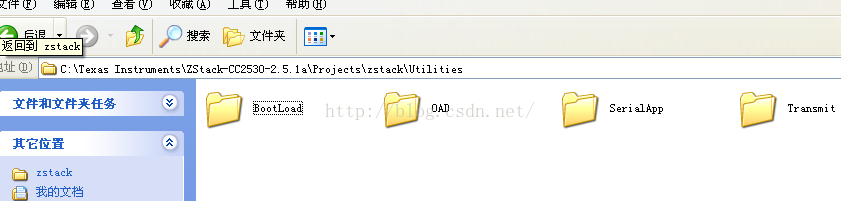

1 首先打开$INSTALL_DIR$\Projects\zstack\Utilities\BootLoad\CC253x\Boot.eww。就是boot文件。
打开

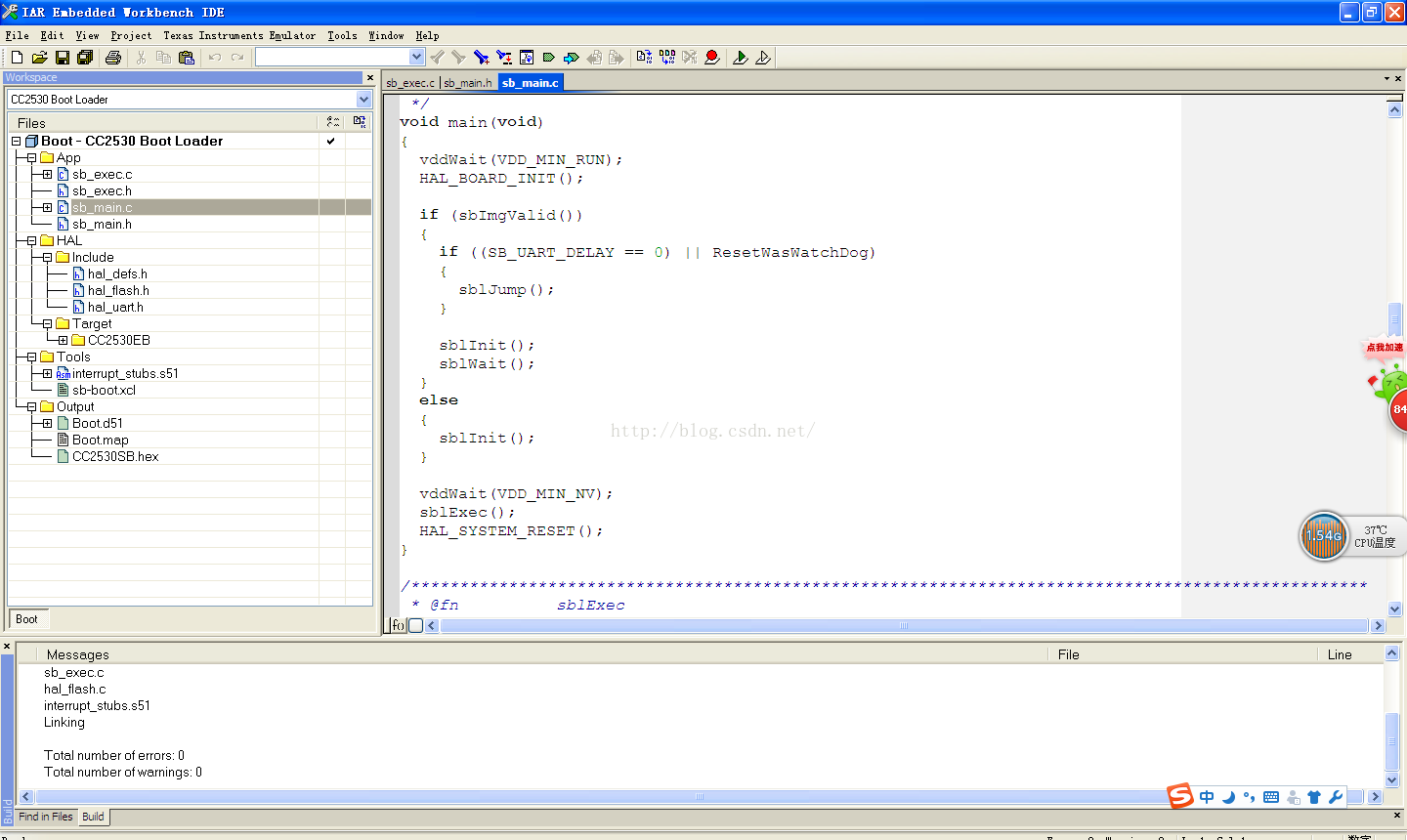

编译看有没有错误,有可能出现
Error[e72]: Segment PDATA_Z must be defined in a segment definition option (-Z, -b or -P)
我在网上找到了解决方法;http://feibit.com/forum.php?mod=viewthread&tid=9459
没有错误就可以下载进去了CC2530
第二部分,生成bin文件,
TI给的文档很详细,照着做就行了。有三点要注意

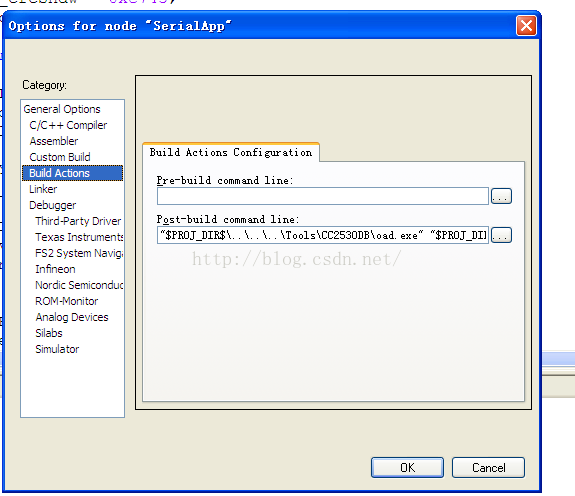

1 TI给的3条命令要修改成自己的名字(第一条不改) 命令之间加空格。
"$PROJ_DIR$\..\..\..\Tools\CC2530DB\oad.exe"
"$PROJ_DIR$\RouterEB\Exe\GenericApp.sim"
"$PROJ_DIR$\RouterEB\Exe\GenericApp.bin"

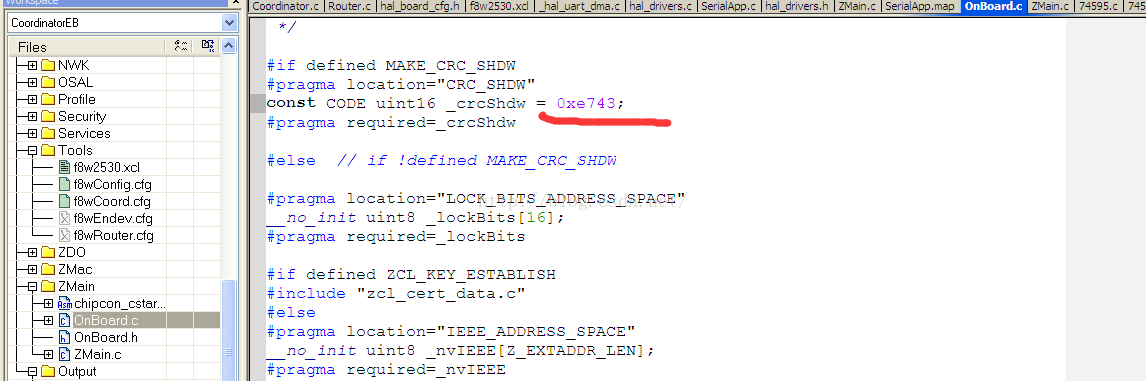

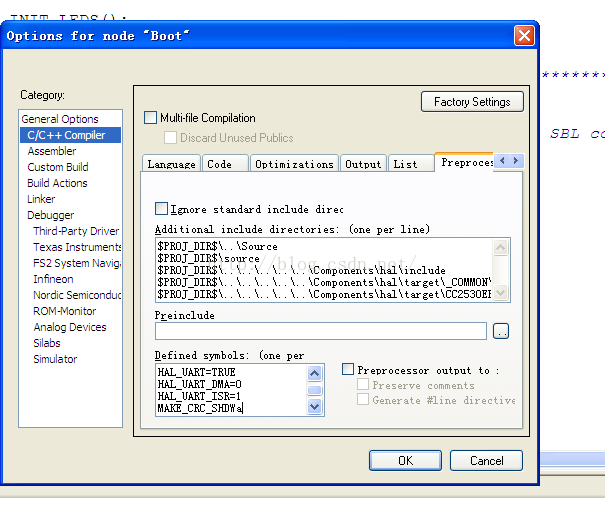

2定义关键字MAKE_CRC_SHDW

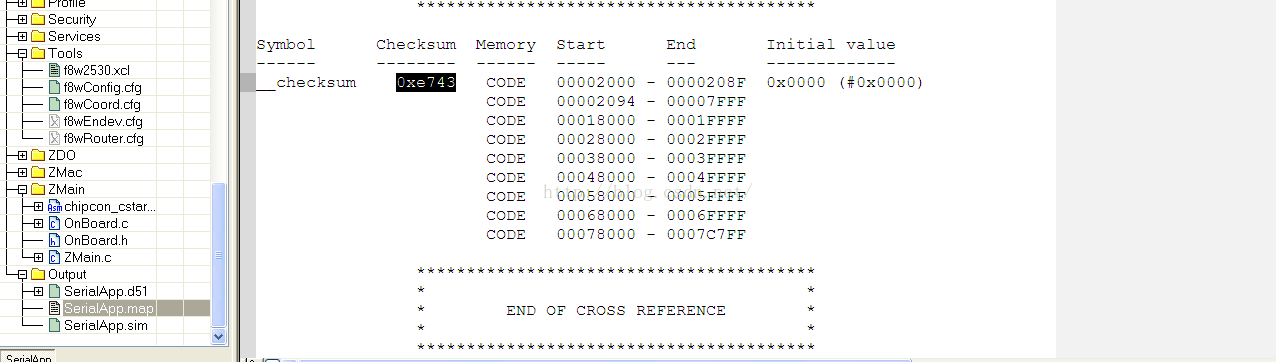

3. CRC Shadow 把他改成一样
最后连好串口,打开官方下载软件就下载成功了
下载进去就会发现第一次可以跳转。重启之后就不行了。这是因为有两个按键控制的跳转。
/**************************************************************************************************
* @fn main
*
* @brief C-code main functionality.
*
* input parameters
*
* None.
*
* output parameters
*
* None.
*
* @return None.
**************************************************************************************************
*/
void main(void)
{
vddWait(VDD_MIN_RUN);//检查电压
HAL_BOARD_INIT();//初始化时钟,按键 P0_1 p2-0
if (sbImgValid()) //代码是否有效 CRC Shadow 匹配
{
if ((SB_UART_DELAY == 0) || ResetWasWatchDog)//看门狗复位就会直接跳转到代码区(上电只执行一次串口下载)
{
sblJump();//接跳转到代码区
}
sblInit();//初始化串口
sblWait();//跳转等待
}
else
{
sblInit();//初始化串口
}
vddWait(VDD_MIN_NV);//检查写flsh电压
sblExec();//写入代码
HAL_SYSTEM_RESET();
}
/**************************************************************************************************
* @fn sblExec
*
* @brief Infinite SBL execute loop that jumps upon receiving a code enable.
*
* input parameters
*
* None.
*
* output parameters
*
* None.
*
* @return None.
**************************************************************************************************
*/
static void sblExec(void)
{
uint32 dlyCnt = 0;
while (1)
{
HalUARTPollISR();
if (sbExec() && sbImgValid())
{
SB_TURN_ON_LED1();
SB_TURN_ON_LED2();
// Delay to allow the SB_ENABLE_CMD response to be flushed.
for (dlyCnt = 0; dlyCnt < 0x40000; dlyCnt++)
{
HalUARTPollISR();//串口写代码
}
sblJump();//跳转
}
else if (dlyCnt++ & 0x4000)
{
SB_TOGGLE_LED1();
}
}
}
/**************************************************************************************************
* @fn sblInit
*
* @brief SBL initialization.
*
* input parameters
*
* None.
*
* output parameters
*
* None.
*
* @return None.
*/
static void sblInit(void)
{
halUARTCfg_t uartConfig;
/* This is in place of calling HalDmaInit() which would require init of the other 4 DMA
* descriptors in addition to just Channel 0.
*/
HAL_DMA_SET_ADDR_DESC0(&dmaCh0);
HalUARTInitISR();
uartConfig.configured = TRUE;
uartConfig.baudRate = HAL_UART_BR_115200;
uartConfig.flowControl = FALSE;
uartConfig.flowControlThreshold = 0; // CC2530 by #define - see hal_board_cfg.h
uartConfig.rx.maxBufSize = 0; // CC2530 by #define - see hal_board_cfg.h
uartConfig.tx.maxBufSize = 0; // CC2530 by #define - see hal_board_cfg.h
uartConfig.idleTimeout = 0; // CC2530 by #define - see hal_board_cfg.h
uartConfig.intEnable = TRUE;
uartConfig.callBackFunc = NULL;
HalUARTOpenISR(&uartConfig);
SB_INIT_LEDS();
}
/**************************************************************************************************
* @fn sblJump
*
* @brief Execute a simple long jump from non-banked SBL code to non-banked RC code space.
*
* input parameters
*
* None.
*
* output parameters
*
* None.
*
* @return None.
*/
static void sblJump(void)
{
SB_TURN_ON_LED1();
SB_TURN_ON_LED2();
// while (SB1_PRESS || SB2_PRESS);判断按键
SB_TURN_OFF_LED1();
SB_TURN_OFF_LED2();
asm("LJMP 0x2000\n"); // Immediate jump to run-code.
HAL_SYSTEM_RESET();//复位
}
/**************************************************************************************************
* @fn sblWait
*
* @brief A timed-out wait loop that exits early upon receiving a force code/sbl byte.
*
* input parameters
*
* None.
*
* output parameters
*
* None.
*
* @return None.
**************************************************************************************************
*/
static void sblWait(void)
{
uint32 dlyCnt = SB_UART_DELAY;
while (1)
{
uint8 ch;
HalUARTPollISR();//读串口数据,等待命令。
if (HalUARTReadISR(&ch, 1))
{
if (ch == SB_FORCE_BOOT)
{
break;
}
else if (ch == SB_FORCE_RUN)
{
dlyCnt = 0;
}
}
if (SB1_PRESS)//如果P0_1为高就跳出(进入下载模式)
{
break;
}
if(SB2_PRESS || (dlyCnt-- == 0)) //( (dlyCnt-- == 0)) P2_0位高或者等待1分到就跳转
{
sblJump();
}
// RR-xing LED display while waiting.
if (dlyCnt & 0x2000)
{
SB_TURN_OFF_LED2();
SB_TURN_ON_LED1();
}
else
{
SB_TURN_OFF_LED1();
SB_TURN_ON_LED2();
}
}
SB_TURN_OFF_LED1();
SB_TURN_OFF_LED2();
}
/**************************************************************************************************
* @fn vddWait
*
* @brief Loop waiting for 16 reads of the Vdd over the requested limit.
*
* input parameters
*
* @param vdd - Vdd level to wait for.
*
* output parameters
*
* None.
*
* @return None.
**************************************************************************************************
*/
static void vddWait(uint8 vdd)
{
uint8 cnt = 16;
do {
do {
ADCCON3 = 0x0F;
while (!(ADCCON1 & 0x80));
} while (ADCH < vdd);
} while (--cnt);
}
/**************************************************************************************************
*/
