spring的启动过程04.1-value注解替换过程

概述：

在上篇《 spring的启动过程04-bean后置处理器》文章中讲解了bean后置处理器的原理，这篇文章结合具体的处理器讲解spring@Value注解的处理过程。

spring容器会在两种场景用到properties文件的属性值，第一种替换XML文件中的占位符详情请查阅《spring的启动过程03.1-占位符替换过程-xml配置的参数》，第二种就是业务代码中采用@Value注解方式。

    @Value(value = "${alias}")
    private String alias;
    @Value(value = "${password}")
    private String password;

原理：

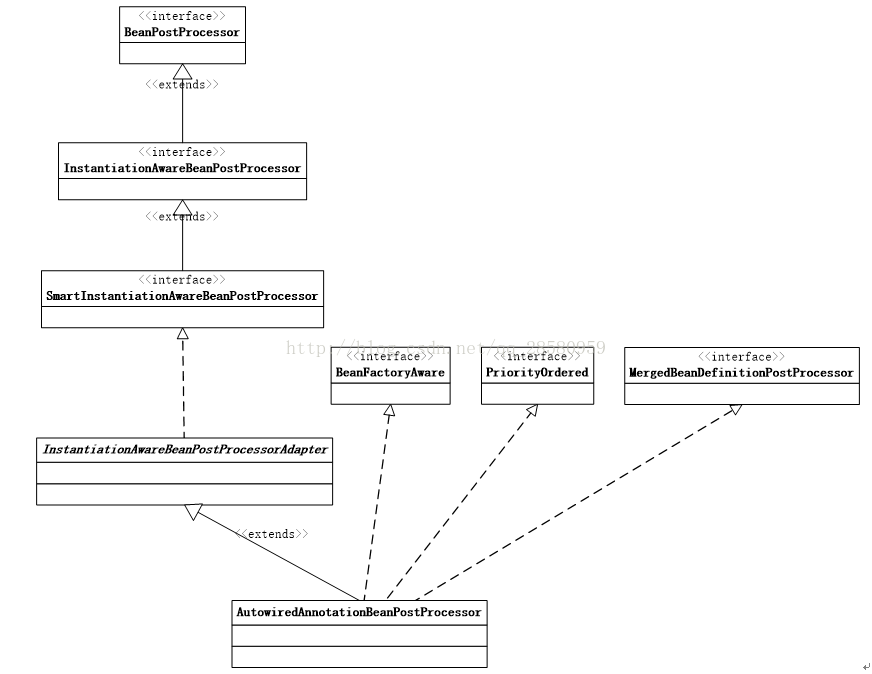

spring框架采用bean后置处理器来拦截bean属性值的注入，先看下AutowiredAnnotationBeanPostProcessor的静态类图。

核心方法触发点：

	/**
	 * 创建Bean过程中设置属性值
	 * Populate the bean instance in the given BeanWrapper with the property values
	 * from the bean definition.
	 * @param beanName the name of the bean
	 * @param mbd the bean definition for the bean
	 * @param bw BeanWrapper with bean instance
	 */
	protected void populateBean(String beanName, RootBeanDefinition mbd, BeanWrapper bw) {
		PropertyValues pvs = mbd.getPropertyValues();
		.....
		boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
		boolean needsDepCheck = (mbd.getDependencyCheck() != RootBeanDefinition.DEPENDENCY_CHECK_NONE);

		if (hasInstAwareBpps || needsDepCheck) {
			PropertyDescriptor[] filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
			if (hasInstAwareBpps) {
				for (BeanPostProcessor bp : getBeanPostProcessors()) {
					if (bp instanceof InstantiationAwareBeanPostProcessor) {
						InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
						pvs = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
						if (pvs == null) {
							return;
						}
					}
				}
			}
			if (needsDepCheck) {
				checkDependencies(beanName, mbd, filteredPds, pvs);
			}
		}
		applyPropertyValues(beanName, mbd, bw, pvs);
	}

遍历所有InstantiationAwareBeanPostProcessor实例设置属性字段值。

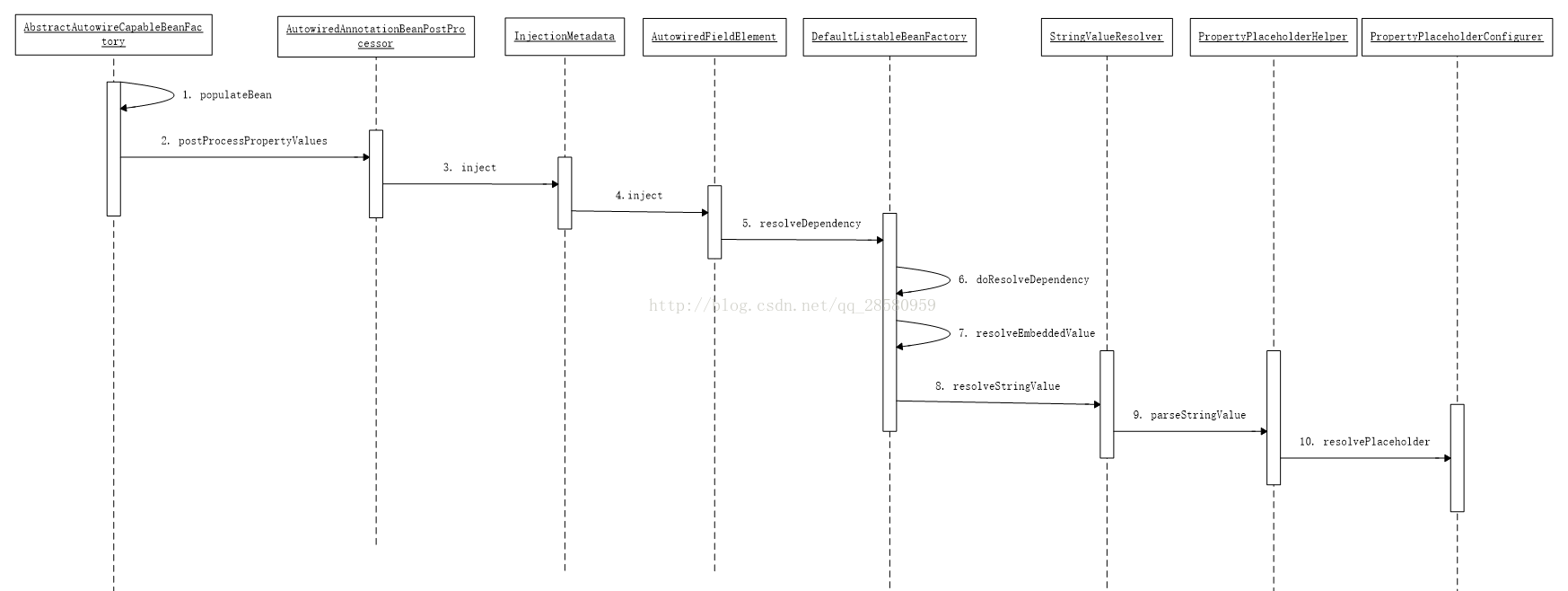

看下 属性替换的整个流程：

流程中用到了StringValueResolver类最终解析属性值，看下该类何时注入到bean工厂中

	protected void doProcessProperties(ConfigurableListableBeanFactory beanFactoryToProcess,
			StringValueResolver valueResolver) {
		BeanDefinitionVisitor visitor = new BeanDefinitionVisitor(valueResolver);
		String[] beanNames = beanFactoryToProcess.getBeanDefinitionNames();
		// 替换占位符
		for (String curName : beanNames) {
			// Check that we're not parsing our own bean definition,
			// to avoid failing on unresolvable placeholders in properties file locations.
			if (!(curName.equals(this.beanName) && beanFactoryToProcess.equals(this.beanFactory))) {
				BeanDefinition bd = beanFactoryToProcess.getBeanDefinition(curName);
				try {
					visitor.visitBeanDefinition(bd);
				}
				catch (Exception ex) {
					throw new BeanDefinitionStoreException(bd.getResourceDescription(), curName, ex.getMessage(), ex);
				}
			}
		}
		// New in Spring 2.5: resolve placeholders in alias target names and aliases as well.
		beanFactoryToProcess.resolveAliases(valueResolver);

		// New in Spring 3.0: resolve placeholders in embedded values such as annotation attributes.
		// 把value注解处理器加入到bean工厂，该处理器解析value注解注入值
		beanFactoryToProcess.addEmbeddedValueResolver(valueResolver);
	}

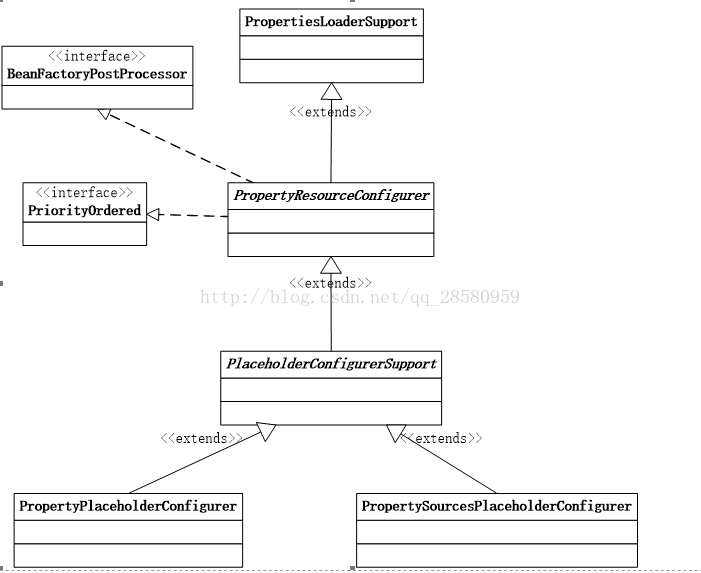

spring在执行bean工厂后置处理器的过程中会创建value标签解析器。负责创建该解析器的主要有

看下创建处理器的代码

1. PropertySourcesPlaceholderConfigurer

	/**
	 * Visit each bean definition in the given bean factory and attempt to replace ${...} property
	 * placeholders with values from the given properties.
	 */
	@Override
	protected void processProperties(ConfigurableListableBeanFactory beanFactoryToProcess, Properties props)
			throws BeansException {

		StringValueResolver valueResolver = new PlaceholderResolvingStringValueResolver(props);
		doProcessProperties(beanFactoryToProcess, valueResolver);
	}

2. PropertySourcesPlaceholderConfigurer

	/**
	 * Visit each bean definition in the given bean factory and attempt to replace ${...} property
	 * placeholders with values from the given properties.
	 */
	protected void processProperties(ConfigurableListableBeanFactory beanFactoryToProcess,
			final ConfigurablePropertyResolver propertyResolver) throws BeansException {

		propertyResolver.setPlaceholderPrefix(this.placeholderPrefix);
		propertyResolver.setPlaceholderSuffix(this.placeholderSuffix);
		propertyResolver.setValueSeparator(this.valueSeparator);

		StringValueResolver valueResolver = new StringValueResolver() {
			@Override
			public String resolveStringValue(String strVal) {
				String resolved = ignoreUnresolvablePlaceholders ?
						propertyResolver.resolvePlaceholders(strVal) :
						propertyResolver.resolveRequiredPlaceholders(strVal);
				return (resolved.equals(nullValue) ? null : resolved);
			}
		};

		doProcessProperties(beanFactoryToProcess, valueResolver);
	}

看下PropertyPlaceholderConfigurer类处理器调用的核心代码


	/**
	 * Resolve the given placeholder using the given properties, performing
	 * a system properties check according to the given mode.
	 * <p>The default implementation delegates to {@code resolvePlaceholder
	 * (placeholder, props)} before/after the system properties check.
	 * <p>Subclasses can override this for custom resolution strategies,
	 * including customized points for the system properties check.
	 * @param placeholder the placeholder to resolve
	 * @param props the merged properties of this configurer
	 * @param systemPropertiesMode the system properties mode,
	 * according to the constants in this class
	 * @return the resolved value, of null if none
	 * @see #setSystemPropertiesMode
	 * @see System#getProperty
	 * @see #resolvePlaceholder(String, java.util.Properties)
	 */
	protected String resolvePlaceholder(String placeholder, Properties props, int systemPropertiesMode) {
		String propVal = null;
		// 默认采用locations配置的文件属性

		if (systemPropertiesMode == SYSTEM_PROPERTIES_MODE_OVERRIDE) {
			// 加载系统参数
			propVal = resolveSystemProperty(placeholder);
		}
		if (propVal == null) {
			// 从locations中加载参数
			propVal = resolvePlaceholder(placeholder, props);
		}
		if (propVal == null && systemPropertiesMode == SYSTEM_PROPERTIES_MODE_FALLBACK) {
			// 如果从locations中没有发现参数，加载系统参数
			propVal = resolveSystemProperty(placeholder);
		}
		return propVal;
	}

	/**
	 * Resolve the given key as JVM system property, and optionally also as
	 * system environment variable if no matching system property has been found.
	 * @param key the placeholder to resolve as system property key
	 * @return the system property value, or {@code null} if not found
	 * @see #setSearchSystemEnvironment
	 * @see System#getProperty(String)
	 * @see System#getenv(String)
	 */
	protected String resolveSystemProperty(String key) {
		try {
			String value = System.getProperty(key);
			if (value == null && this.searchSystemEnvironment) {
				value = System.getenv(key);
			}
			return value;
		}
		catch (Throwable ex) {
			return null;
		}
	}

看下PropertySourcesPlaceholderConfigurer类处理器调用的核心代码

	protected <T> T getProperty(String key, Class<T> targetValueType, boolean resolveNestedPlaceholders) {
		if (this.propertySources != null) {
			for (PropertySource<?> propertySource : this.propertySources) {
				if (debugEnabled) {
					logger.debug(String.format("Searching for key '%s' in [%s]", key, propertySource.getName()));
				}
				//获取参数值，参数值为env和配置的locations文件中的属性值
				Object value = propertySource.getProperty(key);
				if (value != null) {
					Class<?> valueType = value.getClass();
					if (resolveNestedPlaceholders && value instanceof String) {
						value = resolveNestedPlaceholders((String) value);
					}
					if (!this.conversionService.canConvert(valueType, targetValueType)) {
					}
					return this.conversionService.convert(value, targetValueType);
				}
			}
		}
		return null;
	}

客户端使用引入方式：

第一种：

	<context:property-placeholder location="classpath:remote.properties" ignore-resource-not-found="true" ignore-unresolvable="true" />

该种方式默认的处理类为：org.springframework.context.support.PropertySourcesPlaceholderConfigurer

设置属性localOverride为true则location参数的优先级要大于系统变量。默认为false

第二种：

	<bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
		<property name="ignoreUnresolvablePlaceholders" value="true" />
		<property name="ignoreResourceNotFound" value="true" />
		<property name="locations">
           <list>
              <value>classpath:conf/*.properties</value>
           </list>
		</property>
		<property name="fileEncoding" value="UTF-8" />
		<property name="order" value="-128" />
	</bean>

设置属性systemPropertiesMode为2标识系统参数优先级最高。默认为1

来看下上述两种方式参数的来源，从源码中可以看出优先级。

1. PropertyPlaceholderConfigurer

	/**
	 * {@linkplain #mergeProperties Merge}, {@linkplain #convertProperties convert} and
	 * {@linkplain #processProperties process} properties against the given bean factory.
	 * @throws BeanInitializationException if any properties cannot be loaded
	 */
	@Override
	public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
		try {
			Properties mergedProps = mergeProperties();

			// Convert the merged properties, if necessary.
			convertProperties(mergedProps);

			// Let the subclass process the properties.
			processProperties(beanFactory, mergedProps);
		}
		catch (IOException ex) {
			throw new BeanInitializationException("Could not load properties", ex);
		}
	}

2. PropertySourcesPlaceholderConfigurer

	@Override
	public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
		if (this.propertySources == null) {
			this.propertySources = new MutablePropertySources();
			if (this.environment != null) {
				this.propertySources.addLast(
					new PropertySource<Environment>(ENVIRONMENT_PROPERTIES_PROPERTY_SOURCE_NAME, this.environment) {
						@Override
						public String getProperty(String key) {
							return this.source.getProperty(key);
						}
					}
				);
			}
			try {
				PropertySource<?> localPropertySource =
						new PropertiesPropertySource(LOCAL_PROPERTIES_PROPERTY_SOURCE_NAME, mergeProperties());
				if (this.localOverride) {
					this.propertySources.addFirst(localPropertySource);
				}
				else {
					this.propertySources.addLast(localPropertySource);
				}
			}
			catch (IOException ex) {
				throw new BeanInitializationException("Could not load properties", ex);
			}
		}

		processProperties(beanFactory, new PropertySourcesPropertyResolver(this.propertySources));
		this.appliedPropertySources = this.propertySources;
	}

总结：

spring通过bean工厂后置处理器处理beanDefinition对象中属性值占位符的替换功能并注册@value注解处理器到bean工厂中。在装饰bean属性的过程中会触发bean后置处理器处理@value注解并设置属性值，@value注解处理器从bean工厂中获得。
