OCP-1Z0-053-V12.02-94题

94.Multiple RMAN sessions are connected to the database instance.

Examine the following output when backup commands are running in server sessions: What could have

helped you to correlate server sessions with channels?

A. Implement RMAN multiplexing

B. Set the DEBUG ON in the RMAN script

C. Specify the command ID in the RMAN script

D. Use a tag with the RMAN BACKUP command

Answer: C

答案解析：

参考：监控和优化RMAN：http://blog.csdn.net/rlhua/article/details/12510975

当有多个RMAN 会话正在运行时，最好使用 SET COMMAND ID命令在备份期间将某个进程与某个通道相关联，如下所示：

1.在每个会话中，将命令ID 设置为不同的值，然后备份所需的对象。例如，在会话1 中输入下列内容：

RUN

{

SET COMMAND ID TO 'sess1';

BACKUP DATABASE;

}

在会话2 中运行的作业中将命令ID 设置为一个字符串，如sess2：

RUN

{

SET COMMAND ID TO 'sess2';

BACKUP DATABASE;

}

2.启动SQL*Plus 会话，然后在执行RMAN 作业时查询联接的V$SESSION和

V$PROCESS视图。例如，输入：

SELECT SID, SPID, CLIENT_INFO

FROM V$PROCESS p, V$SESSION s

WHERE p.ADDR = s.PADDR

AND CLIENT_INFO LIKE '%id=sess%';



如果在RMAN 作业中运行SET COMMAND ID命令，则CLIENT_INFO列会以下列格式显示：

id=command_id,rman channel=channel_id

例如，下面显示了一个示例输出：

SID SPID CLIENT_INFO

---- ------------ ------------------------------

11 8358 id=sess1

15 8638 id=sess2

14 8374 id=sess1,rman channel=c1

9 8642 id=sess2,rman channel=c1

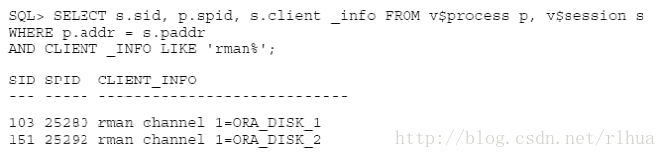

sys@TEST0924> SELECT s.sid, p.spid, s.client_info FROM v$process p, v$session s WHERE p.addr = s.paddr  AND CLIENT_INFO LIKE 'rman%';





 SID SPID                     CLIENT_INFO

---- ------------------------ ------------------------------

  68 410                      rman channel=ORA_DISK_1

 160 722                      rman channel=ORA_DISK_1



sys@TEST0924> SELECT s.sid, p.spid, s.client_info FROM v$process p, v$session s WHERE p.addr = s.paddr  AND CLIENT_INFO like '%id=sess%';



 SID SPID                     CLIENT_INFO

---- ------------------------ ------------------------------

   7 653                      id=sess1



Matching Server Sessions with Channels in Multiple RMAN Sessions

If more than one RMAN session is active, then it is possible for theV$SESSION.CLIENT_INFO column to yield the same information for a channel in each session. For example:

SID SPID CLIENT_INFO

---- ------------ ------------------------------

14 8374 rman channel=ORA_SBT_TAPE_1

9 8642 rman channel=ORA_SBT_TAPE_1

In this case, you have the following methods for determining which channel corresponds to whichSID value.

Obtaining the Channel ID from the RMAN Output

In this method, you must first obtain the sid values from the RMAN output and then use these values in your SQL query.

To correlate a process with a channel during a backup:

1. In an active session, run the RMAN job as usual and examine the output to get thesid for the channel. For example, the output may show:

   Starting backup at 21-AUG-01

   allocated channel: ORA_SBT_TAPE_1

   channel ORA_SBT_TAPE_1: sid=14 devtype=SBT_TAPE

2. Start a SQL*Plus session and then query the joined V$SESSION and V$PROCESS views while the RMAN job is executing. For example, enter:

   COLUMN CLIENT_INFO FORMAT a30

   COLUMN SID FORMAT 999

   COLUMN SPID FORMAT 9999

   SELECT s.SID, p.SPID, s.CLIENT_INFO

   FROM V$PROCESS p, V$SESSION s

   WHERE p.ADDR = s.PADDR

   AND CLIENT_INFO LIKE 'rman%'

   /

   Use the sid value obtained from the first step to determine which channel corresponds to which server session:

   SID SPID CLIENT_INFO

   ---------- ------------ ------------------------------

   14 2036 rman channel=ORA_SBT_TAPE_1

   12 2066 rman channel=ORA_SBT_TAPE_1

Correlating Server Sessions with Channels by Using SET COMMAND ID

In this method, you specify a command ID string in the RMAN backup script. You can then queryV$SESSION.CLIENT_INFO for this string.

To correlate a process with a channel during a backup:

1. In each session, set the COMMAND ID to a different value after allocating the channels and then back up the desired object. For example, enter the following in session 1:

   RUN

   {

   ALLOCATE CHANNEL c1 TYPE disk;

   SET COMMAND ID TO 'sess1';

   BACKUP DATABASE;

   }

   Set the command ID to a string such as sess2 in the job running in session 2:

   RUN

   {

   ALLOCATE CHANNEL c1 TYPE sbt;

   SET COMMAND ID TO 'sess2';

   BACKUP DATABASE;

   }

2. Start a SQL*Plus session and then query the joined V$SESSION and V$PROCESS views while the RMAN job is executing. For example, enter:

   SELECT SID, SPID, CLIENT_INFO

   FROM V$PROCESS p, V$SESSION s

   WHERE p.ADDR = s.PADDR

   AND CLIENT_INFO LIKE '%id=sess%';

   If you run the SET COMMAND ID command in the RMAN job, then theCLIENT_INFO column displays in the following format:

   id=command_id,rman channel=channel_id

   For example, the following shows sample output:

   SID SPID CLIENT_INFO

   ---- ------------ ------------------------------

   11 8358 id=sess1

   15 8638 id=sess2

   14 8374 id=sess1,rman channel=c1

   9 8642 id=sess2,rman channel=c1

   The rows that contain the string rman channel show the channel performing the backup. The remaining rows are for the connections to the target database.

官方参考：http://docs.oracle.com/cd/E11882_01/backup.112/e10642/rcmtroub.htm#sthref1769
