前言：
开发IOS7已经有一月的时间了，最近在准备推研的事，有点想往CV方向发展，于是开始自学openCV。
关注CSDN已经很久了，也从很多博主那学到了很多知识，于是我也从这周开启自己的blog之旅，从零开始学openCV，从零开始做笔记写blog，哈哈~
好了，废话不多说，进入正题。。
IOS7下使用openCV
Mac OS下要使用openCV当然要编译，但是如果只是在ios下使用openCV的话，只需要将bulid好的opencv2.framework导入到工程中即可。
opencv2.framework在openCV官网上下载即可，传送门：opencv2.framework
下面我们在Xcode下新建一个Single View Appliction，命名为CvForIOS。

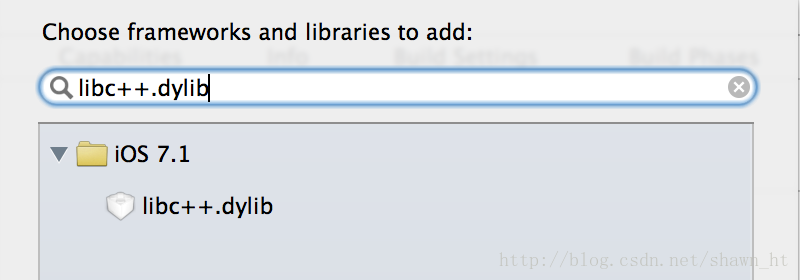

将下载好的opencv2.framework拷贝到新建好的工程目录下，然后导入到工程目录下Frameworks中，还有IOS7.1下的libc++.dylib也要导入。

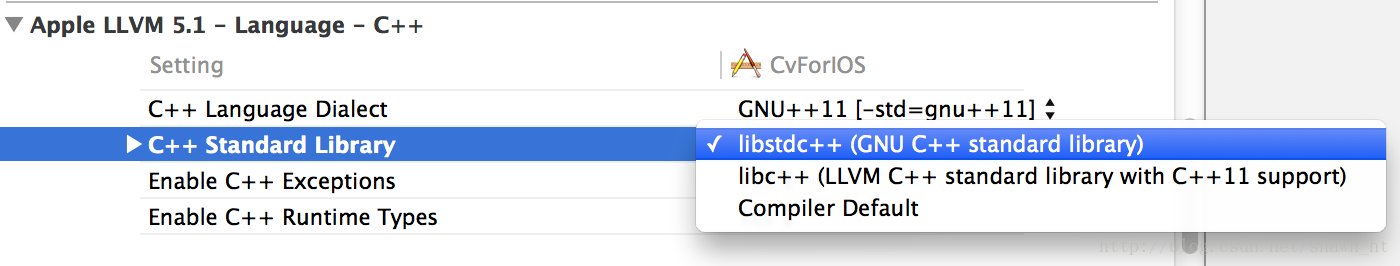

然后需要在Build Settings中，将“C++ Standard Library”设置成libstdc++。
因为opencv中的MIN宏和UIKit的MIN宏有冲突。所以需要在.pch文件中，先定义opencv的头文件，否则会有编译错误。
找到CvForIOS-Preix.pch修改如下：
//
// Prefix header
//
// The contents of this file are implicitly included at the beginning of every source file.
//
#import
#ifndef __IPHONE_5_0
#warning "This project uses features only available in iOS SDK 5.0 and later."
#endif
#ifdef __cplusplus
#import
#endif
#ifdef __OBJC__
#import
#import
#endif
至此，前期的配置工作已经完成。
第一个案例：用openCV对手机上的照片进行方框滤波
由于IOS一般都是用UIImage类型来存储显示图像，要用openCV对图像进行操作，就必须要能让cv::mat与UIImage之间自由转换。
在这里我们使用github上的开源代码，传送门：aptogo
代码如下:
#import
@interface UIImage (UIImage_OpenCV)
@property(nonatomic, readonly) cv::Mat CVMat;
@property(nonatomic, readonly) cv::Mat CVGrayscaleMat;
+(UIImage *)imageWithCVMat:(const cv::Mat&)cvMat;
-(id)initWithCVMat:(const cv::Mat&)cvMat;
+ (cv::Mat)cvMatFromUIImage:(UIImage *)image; //新添加方法
@end
#import "OpenCV.h"
static void ProviderReleaseDataNOP(void *info, const void *data, size_t size)
{
// Do not release memory
return;
}
@implementation UIImage (UIImage_OpenCV)
-(cv::Mat)CVMat
{
CGColorSpaceRef colorSpace = CGImageGetColorSpace(self.CGImage);
CGFloat cols = self.size.width;
CGFloat rows = self.size.height;
cv::Mat cvMat(rows, cols, CV_8UC4); // 8 bits per component, 4 channels
CGContextRef contextRef = CGBitmapContextCreate(cvMat.data, // Pointer to backing data
cols, // Width of bitmap
rows, // Height of bitmap
8, // Bits per component
cvMat.step[0], // Bytes per row
colorSpace, // Colorspace
kCGImageAlphaNoneSkipLast |
kCGBitmapByteOrderDefault); // Bitmap info flags
CGContextDrawImage(contextRef, CGRectMake(0, 0, cols, rows), self.CGImage);
CGContextRelease(contextRef);
return cvMat;
}
-(cv::Mat)CVGrayscaleMat
{
CGColorSpaceRef colorSpace = CGColorSpaceCreateDeviceGray();
CGFloat cols = self.size.width;
CGFloat rows = self.size.height;
cv::Mat cvMat = cv::Mat(rows, cols, CV_8UC1); // 8 bits per component, 1 channel
CGContextRef contextRef = CGBitmapContextCreate(cvMat.data, // Pointer to backing data
cols, // Width of bitmap
rows, // Height of bitmap
8, // Bits per component
cvMat.step[0], // Bytes per row
colorSpace, // Colorspace
kCGImageAlphaNone |
kCGBitmapByteOrderDefault); // Bitmap info flags
CGContextDrawImage(contextRef, CGRectMake(0, 0, cols, rows), self.CGImage);
CGContextRelease(contextRef);
CGColorSpaceRelease(colorSpace);
return cvMat;
}
+ (UIImage *)imageWithCVMat:(const cv::Mat&)cvMat
{
return [[[UIImage alloc] initWithCVMat:cvMat] autorelease];
}
- (id)initWithCVMat:(const cv::Mat&)cvMat
{
NSData *data = [NSData dataWithBytes:cvMat.data length:cvMat.elemSize() * cvMat.total()];
CGColorSpaceRef colorSpace;
if (cvMat.elemSize() == 1)
{
colorSpace = CGColorSpaceCreateDeviceGray();
}
else
{
colorSpace = CGColorSpaceCreateDeviceRGB();
}
CGDataProviderRef provider = CGDataProviderCreateWithCFData((CFDataRef)data);
CGImageRef imageRef = CGImageCreate(cvMat.cols, // Width
cvMat.rows, // Height
8, // Bits per component
8 * cvMat.elemSize(), // Bits per pixel
cvMat.step[0], // Bytes per row
colorSpace, // Colorspace
kCGImageAlphaPremultipliedLast | kCGBitmapByteOrderDefault, // Bitmap info flags
provider, // CGDataProviderRef
NULL, // Decode
false, // Should interpolate
kCGRenderingIntentDefault); // Intent
self = [self initWithCGImage:imageRef];
CGImageRelease(imageRef);
CGDataProviderRelease(provider);
CGColorSpaceRelease(colorSpace);
return self;
}
//新添加方法
+ (cv::Mat)cvMatFromUIImage:(UIImage *)image
{
CGColorSpaceRef colorSpace = CGImageGetColorSpace( image.CGImage );
CGFloat cols = image.size.width;
CGFloat rows = image.size.height;
cv::Mat cvMat( rows, cols, CV_8UC4 );
CGContextRef contextRef = CGBitmapContextCreate( cvMat.data, cols, rows, 8, cvMat.step[0], colorSpace, kCGImageAlphaNoneSkipLast | kCGBitmapByteOrderDefault );
CGContextDrawImage( contextRef, CGRectMake(0, 0, cols, rows), image.CGImage );
CGContextRelease( contextRef );
//CGColorSpaceRelease( colorSpace );
return cvMat;
}
@end

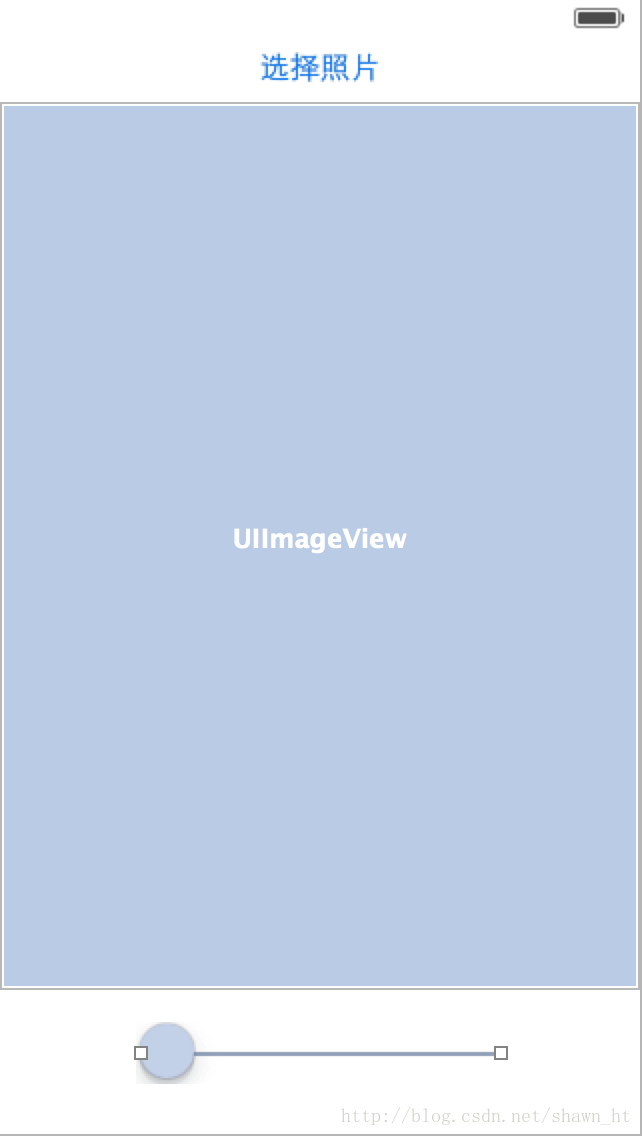

好了，接下来我们终于可以进入正题，首先在main.storyboard上添加一个按钮，一个UIImageView控件，一个UISlider，布局如下：

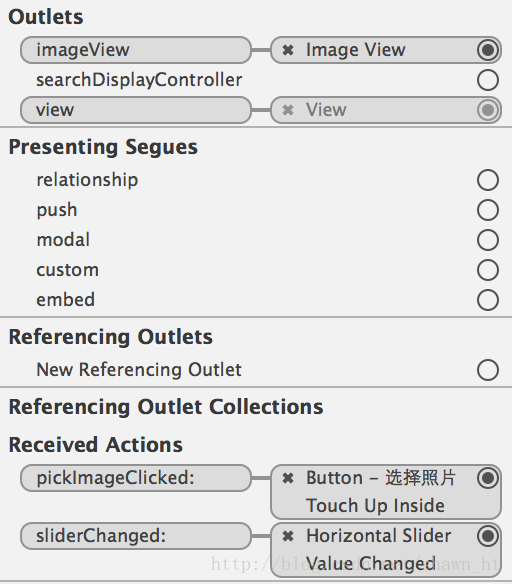

各控件的消息响应和连接如下：
将视图控制器实现文件的后缀名改为.mm，让viewController实现UIImagePickerControllerDelegate和UIActionSheetDelegate协议
具体实现代码如下：
头文件：
//
// xhtViewController.h
// CvForIOS
//
// Created by Panda on 14-5-25.
// Copyright (c) 2014年 xht. All rights reserved.
//
#import
@interface xhtViewController : UIViewController
- (IBAction)pickImageClicked:(id)sender;
@property (retain, nonatomic) IBOutlet UIImageView *imageView;
- (IBAction)sliderChanged:(id)sender;
@end
实现文件：
//
// xhtViewController.m
// CvForIOS
//
// Created by Panda on 14-5-25.
// Copyright (c) 2014年 xht. All rights reserved.
//
#import "xhtViewController.h"
#import "opencv2/opencv.hpp"
#import "OpenCV.h"
#import
UIImage *image = nil;
@interface xhtViewController ()
@end
@implementation xhtViewController
- (void)viewDidLoad
{
[super viewDidLoad];
// Do any additional setup after loading the view, typically from a nib.
}
- (void)didReceiveMemoryWarning
{
[super didReceiveMemoryWarning];
// Dispose of any resources that can be recreated.
}
- (IBAction)pickImageClicked:(id)sender {
UIActionSheet *actionSheet = [[UIActionSheet alloc] initWithTitle:@"Pick" delegate:self cancelButtonTitle:@"Cancel" destructiveButtonTitle:nil otherButtonTitles:@"Pick From Library",nil];
[actionSheet showInView:self.view];
}
- (void)dealloc {
[_imageView release];
[super dealloc];
}
#pragma mark - UIActionSheetDelegate methods
- (void)actionSheet:(UIActionSheet *)actionSheet clickedButtonAtIndex:(NSInteger)buttonIndex
{
UIImagePickerController *mediaUI = [[UIImagePickerController alloc] init];
mediaUI.sourceType = UIImagePickerControllerSourceTypePhotoLibrary;
mediaUI.mediaTypes = [UIImagePickerController availableMediaTypesForSourceType: UIImagePickerControllerSourceTypeSavedPhotosAlbum];
mediaUI.allowsEditing = NO;
mediaUI.delegate = self;
[self presentViewController:mediaUI animated:YES completion:nil];
}
#pragma mark - UIImagePickerControllerDelegate methods
- (void)imagePickerController:(UIImagePickerController *)picker didFinishPickingMediaWithInfo:(NSDictionary *)info
{
if(picker.sourceType == UIImagePickerControllerSourceTypeCamera)
{
image = [info objectForKey:UIImagePickerControllerOriginalImage];
}
else
{
NSString *mediaType = [info objectForKey:UIImagePickerControllerMediaType];
if (CFStringCompare ((CFStringRef) mediaType, kUTTypeImage, 0) == kCFCompareEqualTo)
{
image = (UIImage *) [info objectForKey:UIImagePickerControllerOriginalImage];
}
}
self.imageView.image = [image copy];
[picker dismissViewControllerAnimated:YES completion:nil];
}
- (void)imagePickerControllerDidCancel:(UIImagePickerController *)picker
{
[picker dismissViewControllerAnimated:YES completion:nil];
}
- (UIImage* )ImageBlurwithValue:(int)value withImage:(UIImage* )image
{
cv::Mat img;
img = [UIImage cvMatFromUIImage: image];
cv::boxFilter(img, img, -1, cv::Size(value+1,value+1));
return [UIImage imageWithCVMat:img];
}
- (IBAction)sliderChanged:(id)sender {
UISlider* slider = (UISlider* )sender;
self.imageView.image = [self ImageBlurwithValue: slider.value withImage:[image copy]];
}
@end

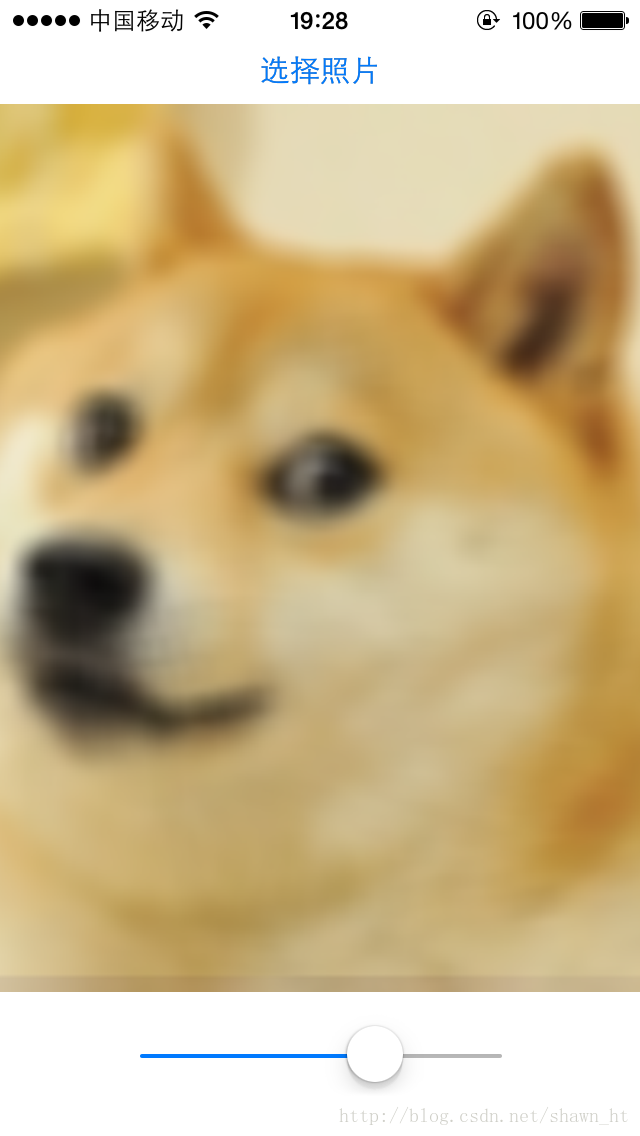

调用cv::boxFilter实现方框滤波，通过滑动条即可调整窗口的大小，最终效果如下：
doge经过方框滤波后还是那么带感，朦胧的眼神，哈哈！
总算是把准备工作做好了，接下来就可以用openCV在手机上玩耍了~
以后会在IOS7上用openCV实现更多更有意思的功能，最后整个案例的代码附上：cvForIOS
（转载请注明作者和出处：Shawn-HT http://blog.csdn.net/shawn_ht 未经允许请勿用于商业用途）
参考文章：http://blog.devtang.com/blog/2012/10/27/use-opencv-in-ios/
