1. 优先队列 大根堆 小根堆,先比较谁的优先级高
2.树,一般用递归来实现,也可以用循环和栈来实现。
可空;
如果非空,由根节点和若干个互不交叉的分支组成,每个分支也是树,称为子树
3.二叉树:
如果每个节点最多只有两个分支,就称为二叉树
每个节点都是两个分支的话就称为满二叉树;
相反是完全二叉树。
二叉查找树
约定:左小于根,右大于根或不小于根
2.树,一般用递归来实现,也可以用循环和栈来实现。
可空;
如果非空,由根节点和若干个互不交叉的分支组成,每个分支也是树,称为子树
3.二叉树:
如果每个节点最多只有两个分支,就称为二叉树
每个节点都是两个分支的话就称为满二叉树;
相反是完全二叉树。
二叉树的节点包括一个数据,两个指向左右两个子节点的指针

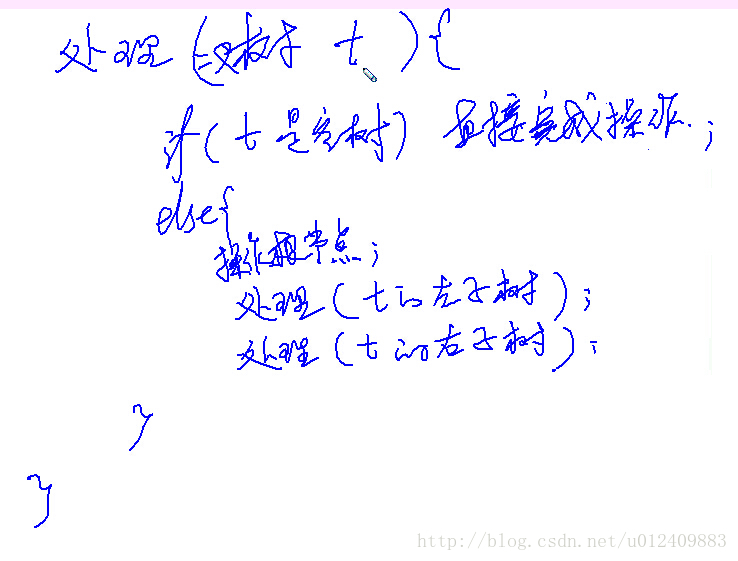

处理树的基本思路
二叉查找树
约定:左小于根,右大于根或不小于根
要插入的数比根节点小,所以只在左分支找,比根节点大就在右边找
删除一个结点
1 找到要删除的结点的指针t
2 将指针另存一份p
3 左右结点合并(左结点放到右结点的左下方)用insert函数可自动完成
4 将Pn指向合并后的子树
5 delete p
6 结点数n--
01tree.cpp
<span style="font-size:18px;">#include <iostream>
using namespace std;
#include <iomanip>
typedef char T;
class bst{
struct Node{
T data;
Node* L;
Node* R;
Node(const T& d):data(d),L(),R(){}
Node(const T& d,Node*l,Node*r):data(d),L(l),R(r){}
};
typedef Node* tree;
Node* rp;
int n;
public:
bst():rp(),n(){}
void clear(){clear(rp);n=0;}
~bst(){clear();}
void insert(const T& d){insert(rp,new Node(d));++n;}
tree& find(const T& d){return find(rp,d);}
void travel()const{travel(rp);cout<<endl;}
bool empty()const{return rp==NULL;}
bool remove(const T& d){删除节点
tree& t = find(d);
if(t==NULL) return false;
Node* p = t;
if(t->L!=NULL) insert(t->R, t->L);
t = t->R;
delete p;
--n;
return true;
}
const T& root()const{if(!rp) throw"空";return rp->data;}
int size()const{return n;}
void update(const T& olddata,const T& newdata){
if(remove(olddata)) insert(newdata);
}
void insert(tree& t, Node* p){//添加结点
if(t==NULL) t = p;
else if(p->data < t->data) insert(t->L,p);
else insert(t->R,p);
}
tree& find(tree& t, const T& d){//返回以d为根的子树的根指针
if(t==NULL) return t;//没找到
else if(d==t->data) return t;//找到了
else if(d<t->data) return find(t->L,d);
else return find(t->R,d);
}
void travel(tree t)const{//遍历
if(t!=NULL){
travel(t->L);
cout << t->data << ' ';
travel(t->R);
}
}
void clear(tree& t){
if(t!=NULL){
clear(t->L);
clear(t->R);
delete t; t=NULL;
}
}
int high(tree t){
if(t==NULL) return 0;
int lh = high(t->L);
int rh = high(t->R);
return 1+(lh>rh?lh:rh);
}</span><span style="font-size:18px;">
//树状打印 中间根结点 上边右结点 下面左结点</span><span style="font-size:18px;">
void print(tree t, int space, char sign){
if(t==NULL) return;
print(t->R,space+3,'/');
cout << setw(space+1) << sign << t->data << endl;
print(t->L,space+3,'\\');
}
void print(){ print(rp,0,'*');cout<<"---------"<<endl; }
};
int main()
{
bst b;
b.insert('k');b.insert('s');b.insert('f');b.insert('t');
b.insert('a');b.insert('m');b.insert('x');b.insert('e');
b.insert('w');b.insert('b');b.insert('u');b.insert('j');
b.print();
b.remove('k');b.remove('m');b.remove('j');b.remove('u');
b.print();
b.update('b','k');b.update('k','b');b.update('x','*');
b.print();
while(!b.empty()) b.remove(b.root());
cout<<"size:"<<b.size()<<endl;
b.print();
}
</span>
