[image2 @ 00000000051d7b80] Could find no file with path 'D:/素材/图片分离后的图片\tempOutImages/%04d.png' and index in the range 0-4
UnityEngine.Debug:Log (object)
TransparentProcessor/<>c:<MergeImagesToVideo>b__21_1 (object,System.Diagnostics.DataReceivedEventArgs) (at Assets/TransparentPNG2MP4/Scripts/Editor/TransparentProcessor.cs:351)
System.Threading._ThreadPoolWaitCallback:PerformWaitCallback ()
D:/素材/图片分离后的图片\tempOutImages/%04d.png: No such file or directory
UnityEngine.Debug:Log (object)
TransparentProcessor/<>c:<MergeImagesToVideo>b__21_1 (object,System.Diagnostics.DataReceivedEventArgs) (at Assets/TransparentPNG2MP4/Scripts/Editor/TransparentProcessor.cs:351)
System.Threading._ThreadPoolWaitCallback:PerformWaitCallback ()
Null
UnityEngine.Debug:Log (object)
TransparentProcessor/<>c:<MergeImagesToVideo>b__21_0 (object,System.Diagnostics.DataReceivedEventArgs) (at Assets/TransparentPNG2MP4/Scripts/Editor/TransparentProcessor.cs:350)
System.Threading._ThreadPoolWaitCallback:PerformWaitCallback ()
Null
UnityEngine.Debug:Log (object)
TransparentProcessor/<>c:<MergeImagesToVideo>b__21_1 (object,System.Diagnostics.DataReceivedEventArgs) (at Assets/TransparentPNG2MP4/Scripts/Editor/TransparentProcessor.cs:351)
System.Threading._ThreadPoolWaitCallback:PerformWaitCallback ()
Video Location：D:/素材/图片分离后的图片/output_LeftRight.mp4
UnityEngine.Debug:Log (object)
TransparentProcessor:MergeImagesToVideo (string,string) (at Assets/TransparentPNG2MP4/Scripts/Editor/TransparentProcessor.cs:361)
TransparentProcessor:OnGUI () (at Assets/TransparentPNG2MP4/Scripts/Editor/TransparentProcessor.cs:153)
UnityEngine.GUIUtility:ProcessEvent (int,intptr,bool&)为什么没有生成的视频呢
using PlasticPipe.PlasticProtocol.Messages;
using System.Diagnostics;
using System.IO;
using System.Threading;
using UnityEditor;
using UnityEngine;
public class TransparentProcessor : EditorWindow
{
public enum OutMode
{
UpDown,
LeftRight
}
private OutMode mode = OutMode.UpDown;
private string ffmpegPath, movPath, movFramesPath, srcFolder, outFolder;
private string[] files;
private int currentIndex = 0;
private int lineHeight = 40;
private bool isExtracting, isProcessing;
private GUIStyle yellowLabelStyle;
[MenuItem("Tools/Transparent Processor")]
public static void ShowWindow()
{
var window = GetWindow<TransparentProcessor>("Transparent Processor");
window.minSize = new Vector2(500f, 650f);
window.Show();
}
private void OnEnable()
{
movPath = "填入mov路径";
movFramesPath = Path.GetDirectoryName(Application.dataPath) + "/Frames";
ffmpegPath = Application.streamingAssetsPath + "/ffmpeg.exe";
srcFolder = Path.GetDirectoryName(Application.dataPath) + "/Input";
outFolder = Path.GetDirectoryName(Application.dataPath) + "/Output";
yellowLabelStyle = new GUIStyle(EditorStyles.label);
yellowLabelStyle.normal.textColor = Color.yellow;
}
private void OnDisable()
{
try
{
isProcessing = false;
EditorApplication.update -= ProcessImages;
}
catch { }
}
void OnGUI()
{
GUILayout.Space(10);
GUILayout.Label("FFMpeg Path", EditorStyles.boldLabel);
ffmpegPath = EditorGUILayout.TextArea(ffmpegPath, GUILayout.Height(lineHeight));
GUILayout.Space(10);
GUILayout.Label("Mov Setting", EditorStyles.boldLabel);
GUILayout.Label("Mov Path", EditorStyles.label);
movPath = EditorGUILayout.TextField(movPath, GUILayout.Height(lineHeight));
if (GUILayout.Button("Select Video"))
{
string path = EditorUtility.OpenFilePanel("Select Video File", "", "mov,mp4");
if (!string.IsNullOrEmpty(path))
{
movPath = path;
}
}
GUILayout.Label("Frames Output Path", EditorStyles.label);
movFramesPath = EditorGUILayout.TextField(movFramesPath, GUILayout.Height(lineHeight));
if (GUILayout.Button("Select Frames Folder"))
{
string path = EditorUtility.OpenFolderPanel("Select Frames Folder", "", "");
if (!string.IsNullOrEmpty(path))
{
movFramesPath = path;
}
}
if (GUILayout.Button("Clear Frames Folder"))
{
ClearOutputFolder(movFramesPath);
}
if (GUILayout.Button("Extract Frames"))
{
if (string.IsNullOrEmpty(movPath) || string.IsNullOrEmpty(movFramesPath))
{
EditorUtility.DisplayDialog("Error", "Please select both video and output paths.", "OK");
}
else
{
isExtracting = true;
ExtractFrames(movPath, movFramesPath);
}
}
if (isExtracting)
{
GUILayout.Label($"正在解压...请不要操作.\n> {movFramesPath}", yellowLabelStyle);
}
GUILayout.Space(10);
GUILayout.Label("Processing Setting", EditorStyles.boldLabel);
mode = (OutMode)EditorGUILayout.EnumPopup("Out Mode", mode);
GUILayout.Label("Source Folder:", EditorStyles.label);
srcFolder = EditorGUILayout.TextArea(srcFolder, GUILayout.Height(lineHeight));
if (GUILayout.Button("Select Source Folder"))
{
string path = EditorUtility.OpenFolderPanel("Select Source Folder", "", "");
if (!string.IsNullOrEmpty(path))
{
srcFolder = path;
}
}
GUILayout.Label("Output Folder:", EditorStyles.label);
outFolder = EditorGUILayout.TextArea(outFolder, GUILayout.Height(lineHeight));
if (GUILayout.Button("Select Output Folder"))
{
string path = EditorUtility.OpenFolderPanel("Select Output Folder", "", "");
if (!string.IsNullOrEmpty(path))
{
outFolder = path;
}
}
if (GUILayout.Button("1. Image Processing(图片通道分离)"))
{
var srcDirs = srcFolder.Split(new[] { '\n', '\r' }, System.StringSplitOptions.RemoveEmptyEntries);
var outDirs = outFolder.Split(new[] { '\n', '\r' }, System.StringSplitOptions.RemoveEmptyEntries);
if (srcDirs.Length > 0 && outDirs.Length > 0 && Directory.Exists(srcDirs[0]) && Directory.Exists(outDirs[0]))
{
files = Directory.GetFiles(srcDirs[0], "*.png");
System.Array.Sort(files);
currentIndex = 0;
isProcessing = true;
EditorApplication.update += ProcessImages;
}
else
{
EditorUtility.DisplayDialog("Error", "Source or Output folder does not exist or not specified!", "OK");
}
}
if (GUILayout.Button("2. Video Processing(分离后合成mp4)"))
{
MergeImagesToVideo(outFolder.Split(new[] { '\n', '\r' }, System.StringSplitOptions.RemoveEmptyEntries)[0], ffmpegPath);
}
if (GUILayout.Button("Image Resize(若图片通道分离后宽高不被2整除必选)"))
{
ResizeImagesInFolder(srcFolder.Split(new[] { '\n', '\r' }, System.StringSplitOptions.RemoveEmptyEntries)[0]);
}
if (GUILayout.Button("Clear Output Folder"))
{
ClearOutputFolder(outFolder);
}
if (isProcessing)
{
GUILayout.Label($"Processing {currentIndex}/{files.Length}");
}
}
private void ExtractFrames(string videoFilePath, string framesOutputPath)
{
if (!Directory.Exists(framesOutputPath))
{
Directory.CreateDirectory(framesOutputPath);
}
string ffmpegPath = Application.streamingAssetsPath + "/ffmpeg.exe";
string arguments = $"-i \"{videoFilePath}\" \"{Path.Combine(framesOutputPath, "frame_%04d.png")}\"";
Thread t = new Thread(() =>
{
ProcessStartInfo processInfo = new ProcessStartInfo(ffmpegPath, arguments)
{
CreateNoWindow = true,
UseShellExecute = false,
RedirectStandardOutput = true,
RedirectStandardError = true
};
using (Process process = new Process { StartInfo = processInfo })
{
process.OutputDataReceived += (sender, args) => UnityEngine.Debug.Log(args.Data);
process.ErrorDataReceived += (sender, args) => UnityEngine.Debug.Log(args.Data);
process.Start();
process.BeginOutputReadLine();
process.BeginErrorReadLine();
process.WaitForExit();
UnityEngine.Debug.Log("Frames extracted successfully.");
isExtracting = false;
}
});
t.Start();
}
void ClearOutputFolder(string outFolder)
{
var outDirs = outFolder.Split(new[] { '\n', '\r' }, System.StringSplitOptions.RemoveEmptyEntries);
if (outDirs.Length > 0 && Directory.Exists(outDirs[0]))
{
string[] files = Directory.GetFiles(outDirs[0], "*.png");
foreach (string file in files)
{
File.Delete(file);
}
EditorUtility.DisplayDialog("Success", "Output folder has been cleared.", "OK");
}
else
{
EditorUtility.DisplayDialog("Error", "Output folder does not exist or not specified!", "OK");
}
}
void ProcessImages()
{
if (currentIndex < files.Length)
{
string filePath = files[currentIndex];
ProcessImage(filePath, outFolder.Split(new[] { '\n', '\r' }, System.StringSplitOptions.RemoveEmptyEntries)[0]);
UnityEngine.Debug.Log($"Processed {currentIndex}/{files.Length}: {Path.GetFileName(filePath)}");
currentIndex++;
Repaint();
}
else
{
isProcessing = false;
EditorApplication.update -= ProcessImages;
EditorUtility.DisplayDialog("Processing Complete", "All images have been processed.", "OK");
}
}
void ProcessImage(string srcPath, string outDir)
{
byte[] srcBytes = File.ReadAllBytes(srcPath);
Texture2D srcTexture = new Texture2D(2, 2);
srcTexture.LoadImage(srcBytes);
int width = srcTexture.width;
int height = srcTexture.height;
Texture2D outTexture;
Color[] srcPixels = srcTexture.GetPixels();
Color[] outPixels;
if (mode == OutMode.UpDown)
{
outTexture = new Texture2D(width, height * 2);
outPixels = new Color[width * height * 2];
for (int y = 0; y < height; y++)
{
for (int x = 0; x < width; x++)
{
Color srcColor = srcPixels[x + y * width];
if (srcColor.r == 0 && srcColor.g == 0 && srcColor.b == 0 && srcColor.a == 0)
{
outPixels[x + y * width] = Color.black;
outPixels[x + (y + height) * width] = Color.black;
}
else
{
outPixels[x + y * width] = new Color(srcColor.a, srcColor.a, srcColor.a, 1);
outPixels[x + (y + height) * width] = new Color(srcColor.r, srcColor.g, srcColor.b, 1);
}
}
}
}
else
{
outTexture = new Texture2D(width * 2, height);
outPixels = new Color[width * 2 * height];
for (int y = 0; y < height; y++)
{
for (int x = 0; x < width; x++)
{
Color srcColor = srcPixels[x + y * width];
if (srcColor.r == 0 && srcColor.g == 0 && srcColor.b == 0 && srcColor.a == 0)
{
outPixels[x + y * width * 2] = Color.black;
outPixels[(x + width) + y * width * 2] = Color.black;
}
else
{
outPixels[x + y * width * 2] = new Color(srcColor.r, srcColor.g, srcColor.b, 1);
outPixels[(x + width) + y * width * 2] = new Color(srcColor.a, srcColor.a, srcColor.a, 1);
}
}
}
}
outTexture.SetPixels(outPixels);
outTexture.Apply();
byte[] outBytes = outTexture.EncodeToPNG();
string outPath = Path.Combine(outDir, Path.GetFileName(srcPath));
File.WriteAllBytes(outPath, outBytes);
DestroyImmediate(srcTexture);
DestroyImmediate(outTexture);
}
void MergeImagesToVideo(string outDir, string ffmpegPath)
{
string[] files = Directory.GetFiles(outDir, "*.png");
if (files.Length == 0)
{
EditorUtility.DisplayDialog("Error", "No PNG files found in the output folder!", "OK");
return;
}
// Ensure the files are sorted by name
System.Array.Sort(files);
string tempDir = Path.Combine(outDir, "tempOutImages");
Directory.CreateDirectory(tempDir);
for (int i = 0; i < files.Length; i++)
{
string srcFile = files[i];
string destFile = Path.Combine(tempDir, $"{i:D4}.png");
File.Copy(srcFile, destFile, true);
}
string arguments = $"-framerate 25 -i \"{tempDir}/%04d.png\" -c:v libx264 -pix_fmt yuv420p -hide_banner \"{outDir}/output_{mode}.mp4\"";
ProcessStartInfo startInfo = new ProcessStartInfo
{
FileName = ffmpegPath,
Arguments = arguments,
RedirectStandardOutput = true,
RedirectStandardError = true,
UseShellExecute = false,
CreateNoWindow = true
};
using (Process process = new Process { StartInfo = startInfo })
{
process.OutputDataReceived += (sender, args) => UnityEngine.Debug.Log(args.Data);
process.ErrorDataReceived += (sender, args) => UnityEngine.Debug.Log(args.Data);
process.Start();
process.BeginOutputReadLine();
process.BeginErrorReadLine();
process.WaitForExit();
}
Directory.Delete(tempDir, true);
EditorUtility.DisplayDialog("FFmpeg Complete", "Video has been created.", "OK");
UnityEngine.Debug.Log($"Video Location：{outDir}/output_{mode}.mp4");
}
private void ResizeImagesInFolder(string folderPath)
{
if (!Directory.Exists(folderPath))
{
UnityEngine.Debug.Log("The specified folder does not exist.");
return;
}
var pngFiles = Directory.GetFiles(folderPath, "*.png", SearchOption.AllDirectories);
UnityEngine.Debug.Log($"Found {pngFiles.Length} PNG files.\n");
foreach (var file in pngFiles)
{
ResizeImage(file);
}
AssetDatabase.Refresh();
}
private void ResizeImage(string filePath)
{
byte[] fileData = File.ReadAllBytes(filePath);
Texture2D texture = new Texture2D(2, 2);
texture.LoadImage(fileData);
int newWidth = GetNextMultipleOf2(texture.width);
int newHeight = GetNextMultipleOf2(texture.height);
if (newWidth != texture.width || newHeight != texture.height)
{
Texture2D resizedTexture = ResizeTexture(texture, newWidth, newHeight);
File.WriteAllBytes(filePath, resizedTexture.EncodeToPNG());
UnityEngine.Debug.Log($"{Path.GetFileName(filePath)} resized to {newWidth}x{newHeight}\n");
DestroyImmediate(resizedTexture);
}
else
{
UnityEngine.Debug.Log($"{Path.GetFileName(filePath)} is already of size {newWidth}x{newHeight}\n");
}
DestroyImmediate(texture);
}
private int GetNextMultipleOf2(int value)
{
return (value % 2 == 0) ? value : value + 1;
}
private Texture2D ResizeTexture(Texture2D source, int newWidth, int newHeight)
{
RenderTexture rt = RenderTexture.GetTemporary(newWidth, newHeight);
rt.filterMode = FilterMode.Bilinear;
RenderTexture.active = rt;
Graphics.Blit(source, rt);
Texture2D newTexture = new Texture2D(newWidth, newHeight);
newTexture.ReadPixels(new Rect(0, 0, newWidth, newHeight), 0, 0);
newTexture.Apply();
RenderTexture.active = null;
RenderTexture.ReleaseTemporary(rt);
return newTexture;
}
}
最新发布

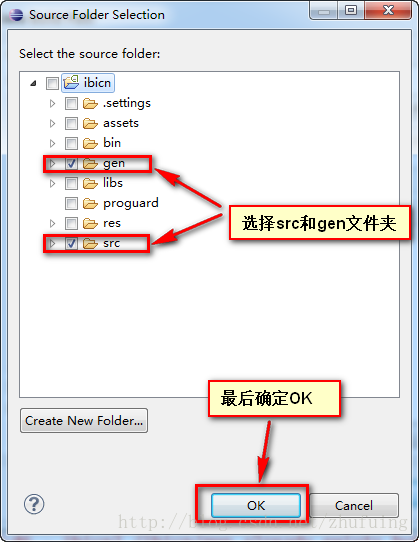

本文介绍了解决Eclipse中因.classpath配置错误导致的项目导入异常问题。具体表现为genalreadyexistsbutisnotasourcefolder错误提示，通常是因为Eclipse无法正确识别项目的源代码文件夹。文中提供了两种解决方案：一是通过Eclipse界面调整源码路径；二是手动编辑.classpath文件。
扫一扫
5434
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
