通过Graphics2D生成正太对数分布图

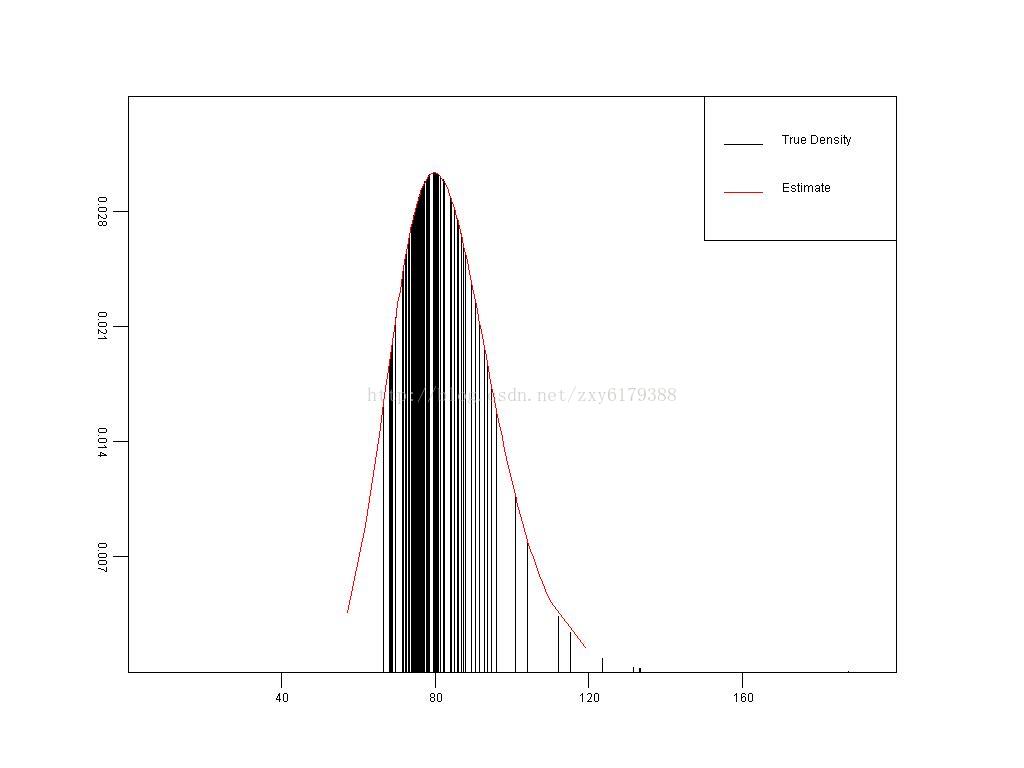

      根据两组数组，生成柱状图以及折线图。 效果图如下：

实现代码如下，注释描述的很详细了，就不讲解了：

package com.byit.menu;

import java.awt.Color;
import java.awt.Graphics2D;
import java.awt.geom.AffineTransform;
import java.awt.geom.Line2D;
import java.awt.geom.Rectangle2D;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;
import java.text.DecimalFormat;

import javax.imageio.ImageIO;

import com.byit.platform.util.PubUtil;

public class AxisImage {

	private boolean hisFlag= true;
	private boolean polyFlag= true;

	private int picWidth = 1024;
	private int picHeight = 768;

	/**
	 * 坐标轴目前默认为图片的4分之三大小，并且居中
	 */
	private int axisw = picWidth * 3 / 4;// 坐标轴的宽度
	private int axish = picHeight * 3 / 4;// 坐标轴的高度
	private int axisx = (picWidth - axisw) / 2;// 坐标轴距离图片左侧边缘的距离
	private int axisy = (picHeight - axish) / 2;// 坐标轴距离图片上方边距的距离

	/**
	 * 右上提示框坐标参数
	 */

	private int promptw = 0; // 提示框宽度
	private int prompth = 0; // 提示框高度
	private int promptx1 = 0;// 提示框左上起点坐标
	private int prompty1 = 0;

	private int promptx2 = 0;// 提示框右下起点坐标
	private int prompty2 = 0;

	private int promptx3 = 0;// 提示框右下起点坐标
	private int prompty3 = 0;// 提示框终点坐标

	/**
	 * 提示框内容参坐标数
	 */
	private int tipsLenth = 0;// 提示线长度
	private int tipsx1 = 0;// 第一条提示内容起点坐标
	private int tipsy1 =0;
	private int tipsx1e = 0;// 终点坐标
	private int tipsy1e = 0;// 终点坐标
	private int tipsx2 = 0;// 第二条提示内容起点坐标
	private int tipsy2 = 0;
	private int tipsx2e = 0;// 终点坐标
	private int tipsy2e = 0;// 终点坐标
	private int axisDownSub = 15;//下标长度
	private double oneElementWidthX=0;// 每个坐标X轴精度占据的长度
	private double oneElementWidthY=0;// 每个坐标Y轴精度占据的长度
	private static int hisArrLenth = 0 ;
	private static int polyArrLenth = 0 ;

	private double[] histogramX = null; //柱状图X轴
	private double[] histogramY = null; //柱状图Y轴

	private double[] polylineX = null; //折线图X轴
	private double[] polylineY = null; //折线图Y轴


	private BufferedImage bi = null;
	private Graphics2D g2 = null;
	private File file = null;


	public boolean isHisFlag() {
		return hisFlag;
	}
	/**
	 * 设置是否打印柱状图，默认为true
	 * @param hisFlag
	 */
	public void setHisFlag(boolean hisFlag) {
		this.hisFlag = hisFlag;
	}
	public boolean isPolyFlag() {
		return polyFlag;
	}
	/**
	 * 设置是否打印折线图，默认为true
	 * @param polyFlag
	 */
	public void setPolyFlag(boolean polyFlag) {
		this.polyFlag = polyFlag;
	}
	/**
	 * 获取图片宽度
	 * @return
	 */
	public int getPicWidth() {
		return picWidth;
	}
	/**
	 * 设置图片宽度，默认值为1024
	 * @param picWidth
	 */
	public void setPicWidth(int picWidth) {
		this.picWidth = picWidth;
	}
	/**
	 * 获取图片高度
	 * @return
	 */
	public  int getPicHeight() {
		return picHeight;
	}
	/**
	 * 设置图片高度，默认值为768
	 * @param picHeight
	 */
	public  void setPicHeight(int picHeight) {
		this.picHeight = picHeight;
	}
	/**
	 * 设置柱状图坐标。数组长度需统一
	 * @param x 柱状图X轴数据
	 * @param y 柱状图Y轴数据
	 */
	public  void setHistogram(double[] x,double[] y) {
		if(x==null||y==null||x.length==0||y.length==0){
			System.out.println("数组不能为空");
		}
		else if(x.length==y.length){
			this.histogramX=x;
			this.histogramY=y;
			hisArrLenth=x.length;
		} else {
			System.out.println("ERROR:柱状图数组长度不一致");
		}
	}

	/**
	 * 设置折线图坐标。数组长度需统一
	 * @param x
	 * @param y
	 */
	public  void setPolyLine(double[] x,double[] y) {
		if(x==null||y==null||x.length==0||y.length==0){
			System.out.println("数组不能为空");
		}
		else if(x.length==y.length){
			this.polylineX=x;
			this.polylineY=y;
			polyArrLenth=x.length;
		} else {
			System.out.println("ERROR:折线图数组长度不一致");
		}
	}

	public File getFile() {
		return file;
	}
	/**
	 * 设置生成图片位置默认为C盘
	 * @param file
	 */
	public void setFile(File file) {
		this.file = file;
	}
	public AxisImage(){
		init();
	}


	/**
	 * 计算参数
	 */
	private void init(){
		axisw = picWidth * 3 / 4;// 坐标轴的宽度
		axish = picHeight * 3 / 4;// 坐标轴的高度
		axisx = (picWidth - axisw) / 2;// 坐标轴距离图片左侧边缘的距离
		axisy = (picHeight - axish) / 2;// 坐标轴距离图片上方边距的距离
		promptw = axisw * 1 / 4; // 提示框宽度
		prompth = axish * 1 / 4; // 提示框高度
		promptx1 = axisw - promptw + axisx;// 提示框左上起点坐标
		prompty1 = axisy;
		promptx2 = axisw + axisx;// 提示框右下起点坐标
		prompty2 = axisy + prompth;
		promptx3 = promptx1;// 提示框右下起点坐标
		prompty3 = prompty2;// 提示框终点坐标
		tipsLenth = promptw * 1 / 5;// 提示线长度
		tipsx1 = promptx1 + 20;// 第一条提示内容起点坐标
		tipsy1 = axisy + (prompth * 1 / 3);
		tipsx1e = tipsx1 + tipsLenth;// 终点坐标
		tipsy1e = tipsy1;// 终点坐标
		tipsx2 = promptx1 + 20;// 第二条提示内容起点坐标
		tipsy2 = axisy + (prompth * 2 / 3);
		tipsx2e = tipsx2 + tipsLenth;// 终点坐标
		tipsy2e = tipsy2;// 终点坐标
		axisDownSub = 15;//下标长度
		 bi = new BufferedImage(picWidth, picHeight, BufferedImage.TYPE_INT_RGB);
		 g2 = (Graphics2D) bi.getGraphics();
		 file = new File("c://image.jpg");
	}



	public static void main(String[] args) throws IOException {

		double x[] = { 66.51735, 67.99290, 68.03937, 68.17945, 68.26451, 68.53912, 68.78240, 69.76701, 71.48474,
				71.49349, 71.61041, 71.80097, 71.85926, 72.26497, 72.42447, 72.52136, 73.01164, 73.42670, 73.87192,
				73.95811, 74.04925, 74.44888, 74.46081, 74.57221, 74.70525, 74.79978, 74.87349, 75.10031, 75.26910,
				75.27314, 75.34062, 75.60157, 75.68488, 75.72644, 75.97427, 76.10981, 76.25556, 76.44609, 76.72893,
				76.76861, 76.92616, 76.95070, 77.10785, 77.33795, 77.70276, 77.71285, 78.06742, 78.12773, 78.13893,
				78.31453, 78.37094, 78.62340, 79.46324, 79.76679, 80.01308, 80.04429, 80.19654, 80.40770, 80.65242,
				80.94278, 81.38741, 81.50586, 82.04338, 82.17103, 82.31215, 82.48748, 82.50726, 82.53808, 83.92527,
				83.93192, 84.09460, 84.35794, 84.94915, 85.15228, 85.83253, 85.93202, 86.06689, 86.07133, 86.15034,
				86.73605, 86.79122, 86.93343, 87.44626, 88.01052, 89.37358, 90.56689, 91.60573, 92.89265, 93.67812,
				94.66197, 96.01299, 100.86324, 104.06124, 112.14891, 115.12634, 123.47084, 131.75722, 133.32378,
				133.39636, 187.60977 };
		double y[] = { 0.01620721750518043, 0.018680329777074397, 0.018757638205890912, 0.018990271553027484,
				0.01913121111031898, 0.01958434865155712, 0.019983058747101604, 0.02156255872113014,
				0.024128960855586353, 0.024141252933342346, 0.02430464074377313, 0.02456742977322896,
				0.02464692706252103, 0.02518831054464121, 0.025395245215649984, 0.025519269301828407,
				0.026126704961675146, 0.02661352924102587, 0.02710635027688293, 0.027198131078343398,
				0.02729387983531682, 0.02769764901408549, 0.02770929494028185, 0.027816886742571607,
				0.02794262706722092, 0.028030136105431844, 0.02809730717453481, 0.02829810745392632,
				0.028441704061816384, 0.028445079639060542, 0.02850103550823336, 0.02870980906704646,
				0.028773897704059578, 0.028805402405391603, 0.028986790702632947, 0.029081273150083575,
				0.029179125850552868, 0.029301158634387113, 0.029469951690041973, 0.029492445444651072,
				0.029578867319686467, 0.029591912293486577, 0.029672786702218047, 0.02978287749886177,
				0.02993709727995609, 0.02994100816055078, 0.030066319126732816, 0.030085289342203374,
				0.03008873726537292, 0.03013972690683094, 0.030154883406218854, 0.03021543993545951,
				0.03033188039105794, 0.030342167078195925, 0.030338287062276113, 0.030337019182637325,
				0.030328345548057755, 0.030309518190870535, 0.030277909134270354, 0.03022694257160966,
				0.030121091336621424, 0.03008731468578369, 0.02990526455644281, 0.02985523208135455,
				0.029796944746510824, 0.029720227051724928, 0.029711275726741725, 0.029697209323152098,
				0.028920436430107447, 0.028916066986058735, 0.028807362722478934, 0.02862413248839518,
				0.028181385466879177, 0.028019687985944557, 0.0274448880626539, 0.02735672782247402,
				0.027235627664920256, 0.027231610286206336, 0.027159797643435703, 0.026609071328126666,
				0.02655559800097064, 0.0264165527117408, 0.02590132284881471, 0.025311455104784893,
				0.023804498184610536, 0.02241471348992983, 0.02117176565702193, 0.01961307025895549,
				0.018661784512994606, 0.017480030320616933, 0.01589059411282775, 0.010751618100699533,
				0.008005222273991584, 0.003396227516509402, 0.00239269738884818, 8.267933333062738E-4,
				2.61225876013346E-4, 2.0821474350606197E-4, 2.060252759721704E-4, 3.0214472993361264E-8 };

		double[] x1={57.087821906189085,61.86829668646384,65.44380903384717,66.89505223441292,67.08262528953466,67.1537114146997,67.55315528461333,68.30973099005645,69.86700058629107,69.91673288061753,70.00274426101426,70.29061741840201,70.54500424784342,70.62502824319151,71.09693232201074,71.17086262984385,71.17184289825569,71.50389356048164,71.7883330374566,71.81662714897821,72.07165753339419,72.8010062763422,73.06803645948806,73.9553153159744,74.05239914483197,74.40011861776259,74.48012780417062,74.58653159081715,74.62916270435953,75.18087783954779,75.56948598143467,76.14336856997399,76.26080748169719,77.04570620520252,77.14372033563772,78.00547601093457,78.48112260210435,79.5144595853992,80.02146069670127,80.80392076518011,81.12556223401566,82.28105400309575,82.45719693490885,83.36673051114917,83.83036245165579,84.03129754681467,84.08389010773504,84.2221344083095,84.35916164637327,84.93422330121743,85.0228962615539,85.03463038255056,85.22953150054086,85.35541332572895,85.65496983667116,85.67242793079159,85.71581705917895,86.00629325352,86.59174806237682,86.69363897621801,86.72225859684566,87.49775465201179,88.29474541884464,88.3220845781021,88.68917406844959,88.96120457864463,89.77756883559795,90.68308726679562,91.22687565491556,91.40018900974428,92.01543585538741,92.26523955418429,92.85891424375406,93.27214052310934,93.68382441712944,93.88157704356753,94.24242681436122,95.045279786781,95.17723406266161,96.35113967243367,96.52082262718706,97.03255548640439,97.21339218240152,98.12407358448557,99.15128548333513,99.56785816214983,99.90283094065677,100.13398881292308,101.09622664008035,101.26250041310169,102.75031441559763,103.53413791857635,104.16057027365471,105.14985995835553,105.23545051447715,107.20105424583014,107.92747435137335,108.79388499463151,110.07023239755166,119.10335275481114};
		double[] y1={0.0036347217615213608,0.008909546362932267,0.014416607562305346,0.016841559837040113,0.01715667957072753,0.017276068365196493,0.01794603137069616,0.019206033837249736,0.02171927321049496,0.0217969289235467,0.02193076827749751,0.02237423935171944,0.022760028331417336,0.02288013807324589,0.02357542781366693,0.02368224202198765,0.023683654311760664,0.02415585632829236,0.024550139833098894,0.024588824652643882,0.024932993090543955,0.025869929040009815,0.026194360125204548,0.027195173855162562,0.027297164159998503,0.027649800841545266,0.027728102094468934,0.02783056681603052,0.027871082640665262,0.02836727402460908,0.028684795419925316,0.029104148209240965,0.029182576235673365,0.029641356555713518,0.02969060025147046,0.03004612575127828,0.03018277403074368,0.030334789893238744,0.030337963691998808,0.030253126448055678,0.030187462825876088,0.02981005512801749,0.029733815534711914,0.029266070274262212,0.028982155233572497,0.02885007455030215,0.028814625689692324,0.02871973374104428,0.028623261901084246,0.028193079338534387,0.028123230775711737,0.028113919423036284,0.027956958051184935,0.027853308530825262,0.02759969975050787,0.027584623960533995,0.0275470172546612,0.027290261769822178,0.026747668958051255,0.026649997124195256,0.02662239708985035,0.02584844850336921,0.025006106861200156,0.024976465507401093,0.02457412856098657,0.02427107793319393,0.023339937097254054,0.02227688405935947,0.021627540475739043,0.021419325952077437,0.020676700598799162,0.020374107394217827,0.01965399550424387,0.019152973294984194,0.018654893685926342,0.018416241030844133,0.01798209625108659,0.017024412985902345,0.01686834326976188,0.015500936373598154,0.015306836807832264,0.014727649184102347,0.014525308269999026,0.013526369568220509,0.012443196318062746,0.012018089137311434,0.011682438034222066,0.011454089475752625,0.0105330171378685,0.010378758790826378,0.009064251166119966,0.008419844585697446,0.007928769924351686,0.007196244824320588,0.007135322208980008,0.005841145154551744,0.005412258665539971,0.004933988963128097,0.004292422768586651,0.0014620243145961713};

		AxisImage ai = new AxisImage();
		ai.setHistogram(x, y);
		ai.setPolyLine(x1, y1);
		ai.createAxisImagePanel();


//		createAxisImagePanel(x, y,x1,y1);
	}

	/**
	 * 生成图片坐标系模板
	 *
	 * @param x
	 *            x轴数据
	 * @param x
	 *            y轴数据
	 * @return
	 */
	private  boolean createAxisImagePanel() {



		try {
			g2.setBackground(Color.WHITE); // 设置背景颜色
			g2.fillRect(0, 0, picWidth, picHeight);

			// 设置坐标轴外部边框
			g2.setColor(Color.black);
			Rectangle2D rim = new Rectangle2D.Double(axisx, axisy, axisw, axish);// 创建矩形对象
			g2.draw(rim);

			// 设置坐标轴右上提示窗口

			Line2D promptx = new Line2D.Double(promptx1, prompty1, promptx3, prompty3);// 创建line对象
			g2.draw(promptx);// 提示框竖线
			Line2D prompty = new Line2D.Double(promptx2, prompty2, promptx3, prompty3);// 创建line对象
			g2.draw(prompty);// 提示框横线

			// 提示框内容
			Line2D tip1 = new Line2D.Double(tipsx1, tipsy1, tipsx1e, tipsy1e);// 创建line对象
			g2.draw(tip1);// 提示框竖线
			g2.drawString("True Density", tipsx1e + 20, tipsy1);

			// 提示框内容
			Line2D tip2 = new Line2D.Double(tipsx2, tipsy2, tipsx2e, tipsy2e);// 创建line对象
			g2.setColor(Color.red);
			g2.draw(tip2);// 提示框竖线
			g2.setColor(Color.black);
			g2.drawString("Estimate", tipsx2e + 20, tipsy2);



			double maxAndIntervalX[] =null;
			// 获取坐标系区间
			if(hisFlag&&polyFlag){
				if(PubUtil.getArrMaxValue(histogramX)>PubUtil.getArrMaxValue(polylineX)){
					maxAndIntervalX=getAxis(histogramX);
				}else {
					maxAndIntervalX=getAxis(polylineX);
				}
			}else if (hisFlag){
				maxAndIntervalX=getAxis(histogramX);
			}else if (polyFlag){
				maxAndIntervalX=getAxis(histogramX);
			} else {
				System.out.println("无生成图片数据");
				return false;
			}


			double[][] xDownAxis = getDownAxis(maxAndIntervalX,"x");//获取坐标数组

			for (int i = 1; i < xDownAxis.length; i++) {
				g2.draw(new Line2D.Double(xDownAxis[i][0],xDownAxis[i][1],xDownAxis[i][2],xDownAxis[i][3]));
				double downAxis=maxAndIntervalX[1] * i;
				String da=downAxis%1==0?new DecimalFormat("0").format(downAxis):String.valueOf(downAxis);
				g2.drawString(da,(int) (xDownAxis[i][0] - da.length()*3),(int) (xDownAxis[i][3] + 15));
			}



			double maxAndIntervalY[] =null;
			// 获取坐标系区间
			if(hisFlag&&polyFlag){
				if(PubUtil.getArrMaxValue(histogramY)>PubUtil.getArrMaxValue(polylineY)){
					maxAndIntervalY=getAxis(histogramY);
				}else {
					maxAndIntervalY=getAxis(polylineY);
				}
			}else if (hisFlag){
				maxAndIntervalY=getAxis(histogramY);
			}else if (polyFlag){
				maxAndIntervalY=getAxis(histogramY);
			}

			double[][] yDownAxis = getDownAxis(maxAndIntervalY,"y"); //获取坐标数组
	        AffineTransform atf = (AffineTransform) g2.getTransform().clone();//保存初始坐标系，在旋转后还原

			for (int i = 1; i < yDownAxis.length; i++) {
				g2.draw(new Line2D.Double(yDownAxis[i][0],yDownAxis[i][1],yDownAxis[i][2],yDownAxis[i][3]));
				double downAxis=maxAndIntervalY[1] * i;
				String da=downAxis%1==0?new DecimalFormat("0").format(downAxis):String.valueOf(downAxis);
				g2.translate(yDownAxis[i][2]-15, yDownAxis[i][3]-da.length()*3);
				g2.rotate(Math.PI*90/180);//旋转
				g2.drawString(da,0,0);
				g2.setTransform(atf);
			}
			if(hisFlag){
				createHistogram(histogramX,histogramY);
			}
			if(polyFlag){
				createPolyline(polylineX, polylineY);
			}

			ImageIO.write(bi, "jpg", file);
			System.out.println("生成图片");
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
			return false;
		}

		return true;
	}

	/**
	 * 生成柱状图
	 * @param x
	 * @param y
	 * @return
	 */
	private boolean createHistogram(double x[],double y[]){
		//生成柱状图
		try {
			for (int i = 0; i < hisArrLenth; i++) {
				double []axis=getHistogramLocation(x[i], y[i]);
				Line2D histogram = new Line2D.Double(axis[0], axis[1], axis[2], axis[3]);// 创建line对象
				g2.draw(histogram);
			}
		} catch (Exception e) {
			return false;
		}
		return true;
	}

	private boolean createPolyline(double x[],double y[]){
		try {
			g2.setColor(Color.RED);
			double [][]polyline = getPolylineLocation(x, y);
			for (int i = 0; i < polyline.length; i++) {
				Line2D histogram = new Line2D.Double(polyline[i][0], polyline[i][1], polyline[i][2], polyline[i][3]);// 创建line对象
				g2.draw(histogram);
			}
		} catch (Exception e) {
			return false;
			// TODO: handle exception
		}


		return true;
	}

	/**
	 * 获取坐标系
	 * @param axisFlag x轴或y轴
	 * @return
	 */
	private  double[][] getDownAxis(double[] axis,String axisFlag){
		double[][] result=new double[5][4];//返回结果
		if("x".equalsIgnoreCase(axisFlag)){
			 oneElementWidthX = axisw / axis[0];// 每个坐标轴精度占据的长度
			for (int i = 0; i < result.length; i++) {
				for (int j = 0; j < result[i].length; j=j+2) {
					result[i][j]=i * axis[1] * oneElementWidthX+axisx;
				}
				for (int j = 1; j < result[i].length; j=j+2) {
					result[i][j]= axish + axisy;
				}
				result[i][3]+=axisDownSub;
			}
		} else if ("y".equalsIgnoreCase(axisFlag)){
			 oneElementWidthY = axish / axis[0];// 每个坐标轴精度占据的长度
			for (int i = 0; i < result.length; i++) {
				for (int j = 0; j < result[i].length; j=j+2) {
					result[i][j]= axisx;
				}
				for (int j = 1; j < result[i].length; j=j+2) {
					result[i][j]= axisy+axish-(i * axis[1] * oneElementWidthY);
				}
				result[i][2]-=axisDownSub;
			}
		}


		return result;
	}
	/**
	 * 生成柱状图坐标系
	 * @param xdata x轴坐标
	 * @param ydata y轴坐标
	 * @return
	 */
	private  double[] getHistogramLocation(double xdata,double ydata){
		double[] result = new double[4];
		result[0] = xdata*oneElementWidthX+axisx;
		result[1] = axisy+axish;
		result[2] = result[0];
		result[3] = result[1]-(ydata*oneElementWidthY);
		return result;
	}

	/**
	 * 生成折线图坐标系
	 * @param xdata x轴坐标
	 * @param ydata y轴坐标
	 * @return
	 */
	private  double[][] getPolylineLocation(double xdata[],double ydata[]){
		double result[][] = new double[polyArrLenth-1][4];

		for (int i = 0; i < result.length; i++) {
			 result[i][0]=xdata[i]*oneElementWidthX+axisx;
			 result[i][1]=axisy+axish-(ydata[i]*oneElementWidthY);
			 result[i][2]=xdata[i+1]*oneElementWidthX+axisx;;
			 result[i][3]=axisy+axish-(ydata[i+1]*oneElementWidthY);
		}

		return result;
	}

	private static double[] getAxis(double[] x) {
		double max = PubUtil.getArrMaxValue(x);
		double interval = 0;
		int bit = 0;
		if (max > 100) {
			do {
				bit++;
				max /= 10;
			} while (max > 100);
		} else if (max < 10) {
			do {
				bit--;
				max *= 10;
			} while (max < 10);
		}
		interval = Math.ceil(max / 5);
		max = interval * 5;
		return new double[] { max * Math.pow(10, bit), interval * Math.pow(10, bit) };
	}

}
