本文描述了R1和R2使用PPP链路直连，R2将两条PPP链路捆绑为PPPMP直连，并配置了IP地址。R2对R1的PPP进行单向CHAP验证，同时R2和R3之间的PPP链路进行双向CHAP验证的过程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1、R1和R2使用PPP链路直连，R2和R3把2条PPP链路捆绑为PPP MP直连
2·按照照图示配置IP地址
3、R2对R1的PPP进行单向chap验证
4、R2和R3的PPP进行双向chap验证

1、R1和R2使用PPP链路直连，R2和R3把2条PPP链路捆绑为PPP MP直连

R1

[R1]int Serial 3/0/0
[R1-Serial3/0/0]ip add 19168.1.1 24

R2

[R2]int Mp-group 0/0/0
[R2-Mp-group0/0/0]q
[R2]int Serial 3/0/1
[R2-Serial3/0/1]ppp mp Mp-group 0/0/0
[R2-Serial4/0/0]int mp-group 0/0/0
[R2-Mp-group0/0/0]ip add 192.1608.2.2 24

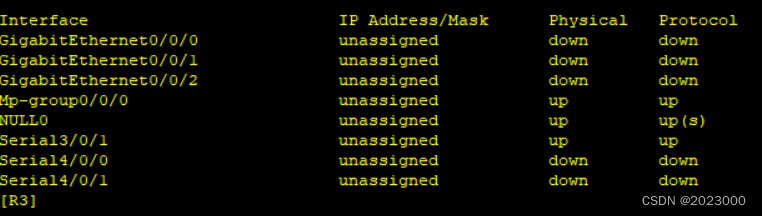

R3

[R3]interface m
[R3]interface MFR
[R3]interface Mp-group 0/0/0
[R3-Mp-group0/0/0]q
[R3]int s 3/0/0
[R3-Serial3/0/0]ppp mp Mp-group 0/0/0
Mar 24 2024 16:50:29-08:00 R3 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol PPP
on the interface Serial3/0/0 has entered the DOWN state.
[R3-Serial3/0/0]
[R3-Serial3/0/0]
Mar 24 2024 16:50:35-08:00 R3 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol PPP
on the interface Serial3/0/0 has entered the UP state.
[R3-Serial3/0/0]
Mar 24 2024 16:50:35-08:00 R3 %%01IFNET/4/LINK_STATE(l)[2]:The line protocol PPP
on the interface Mp-group0/0/0 has entered the UP state.
[R3-Serial3/0/0]ip add 192.168.2.2 24

3、R2对R1的PPP进行单向chap验证

[R2-aaa]local-user wangdaye password cipher wdy12345
Info: Add a new user.

[R2-aaa]local-user R1 service-type ppp

[R2-Serial3/0/0]ppp authentication-mode chap

R1

[R1-Serial3/0/0]ppp chap user wangdaye

[R1-Serial3/0/0]ppp chap password cipher wdy12345

4、R2和R3的PPP进行双向chap验证

[R2]aaa

[R2-aaa]local-user wangdaye password cipher wdy12345
[R2-aaa]local-user wangdaye service-type ppp
[R2-aaa]q
[R2]int s 3/0/1
[R2-Serial3/0/1]ppp a
[R2-Serial3/0/1]ppp authentication-mode chap
[R2-Serial3/0/1]

[R3]int s 3/0/0
[R3-Serial3/0/0]ppp chap user wangdaye
[R3-Serial3/0/0]ppp chap password cipher wdy12345
[R3-Serial3/0/0]q
[R3]int s 3/0/1
[R3-Serial3/0/1]ppp chap user wangdaye
[R3-Serial3/0/1]ppp chap password cipher wdy12345
[R3-Serial3/0/1]q

[R2]int s 3/0/1
[R2-Serial3/0/1]ppp cha
[R2-Serial3/0/1]ppp chap u
[R2-Serial3/0/1]ppp chap user wangdaye
[R2-Serial3/0/1]ppp cha
[R2-Serial3/0/1]ppp chap ps
[R2-Serial3/0/1]ppp chap pa
[R2-Serial3/0/1]ppp chap password c
[R2-Serial3/0/1]ppp chap password cipher wdy12345
[R2-Serial3/0/1]int s 4/0/0
[R2-Serial4/0/0]ppp chap pas
[R2-Serial4/0/0]ppp chap password c
[R2-Serial4/0/0]ppp chap password cipher wdy12345
[R2-Serial4/0/0]q
[R2]int s 3/0/1
