STM32CubeMX 超声波舵机队列传输freeRTOS工程步骤

前言：记录个人学习使用STMCubeMx软件，通过freeRTOS队列功能进行超声波与舵机两个线程任务之间的数据传输，并实现相应的功能。

创建基本工程框架STM32CubeMX 个人创建freeRTOS工程步骤-CSDN博客https://blog.csdn.net/2201_75674466/article/details/147881573?spm=1001.2014.3001.5502

一、超声波模块配置

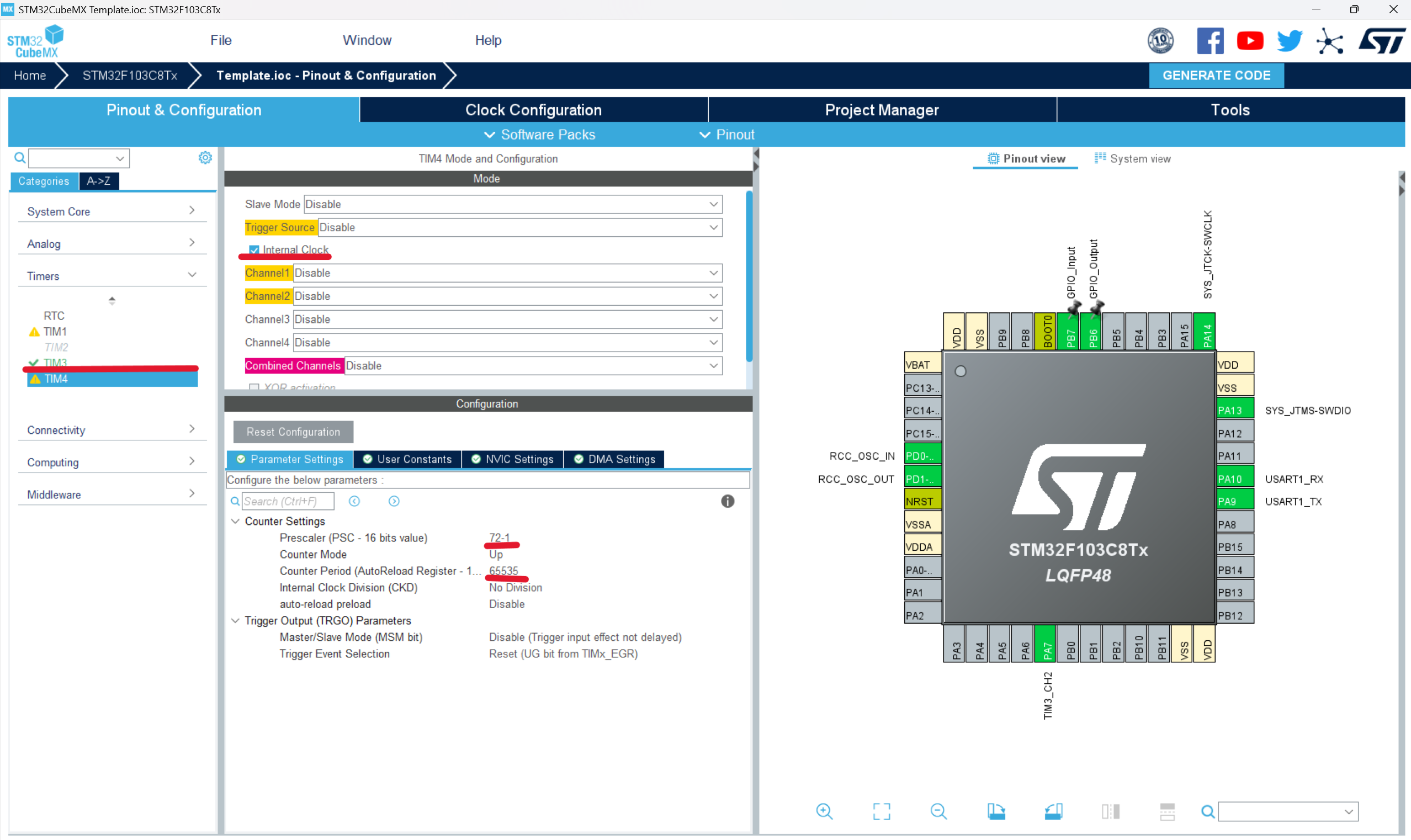

1、配置定时器（TIM4）

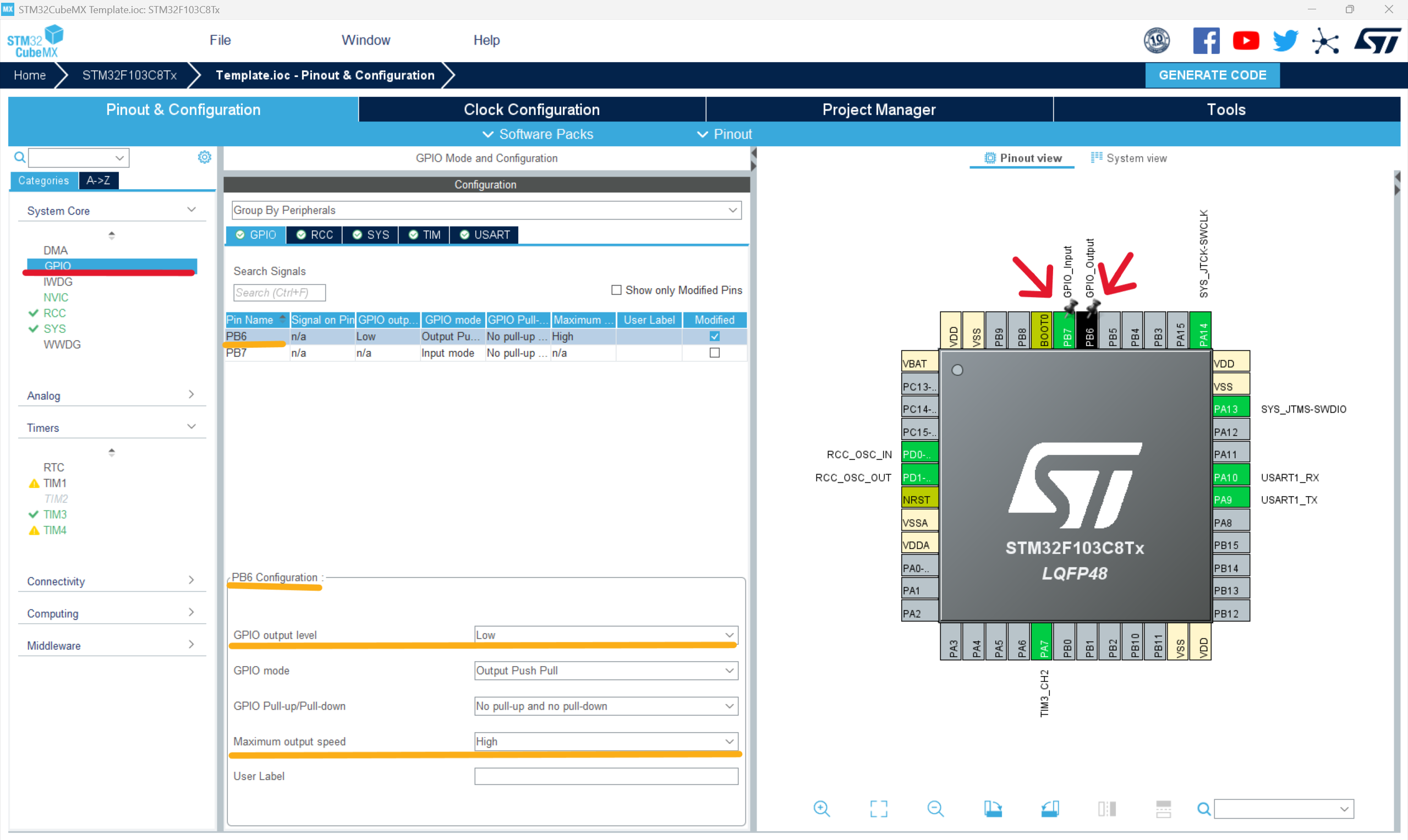

2、配置GPIO口

二、舵机配置

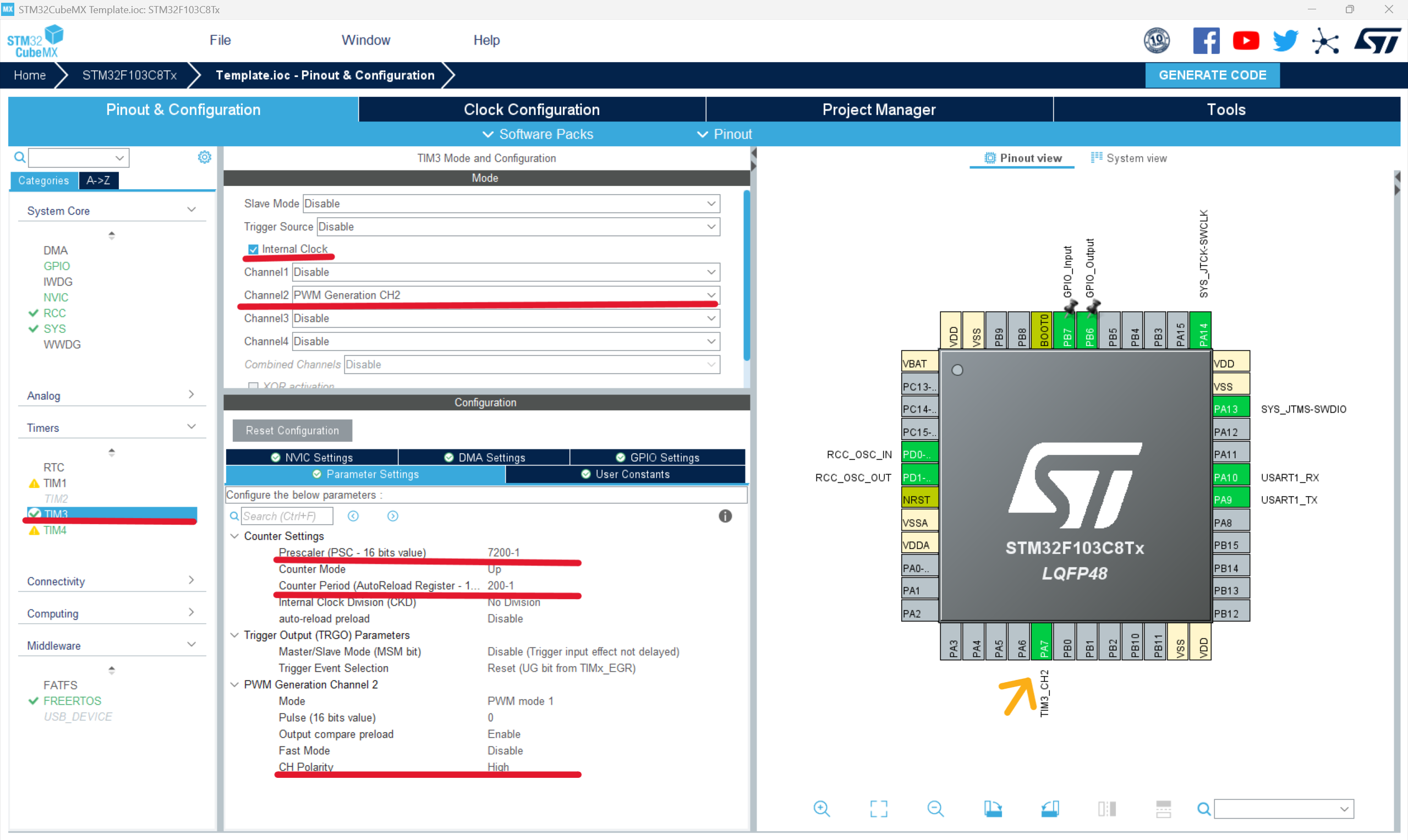

1、配置定时器（TIM3通道2）

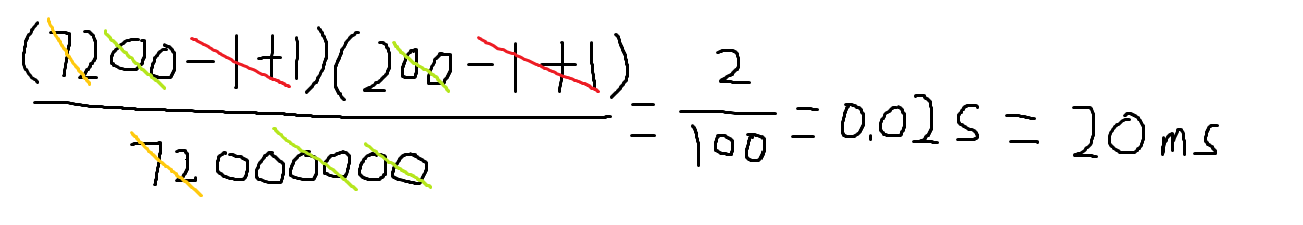

需要20ms定时器周期

2、配置GPIO 配置定时器后自动生成为PA7

三、创建线程（任务）

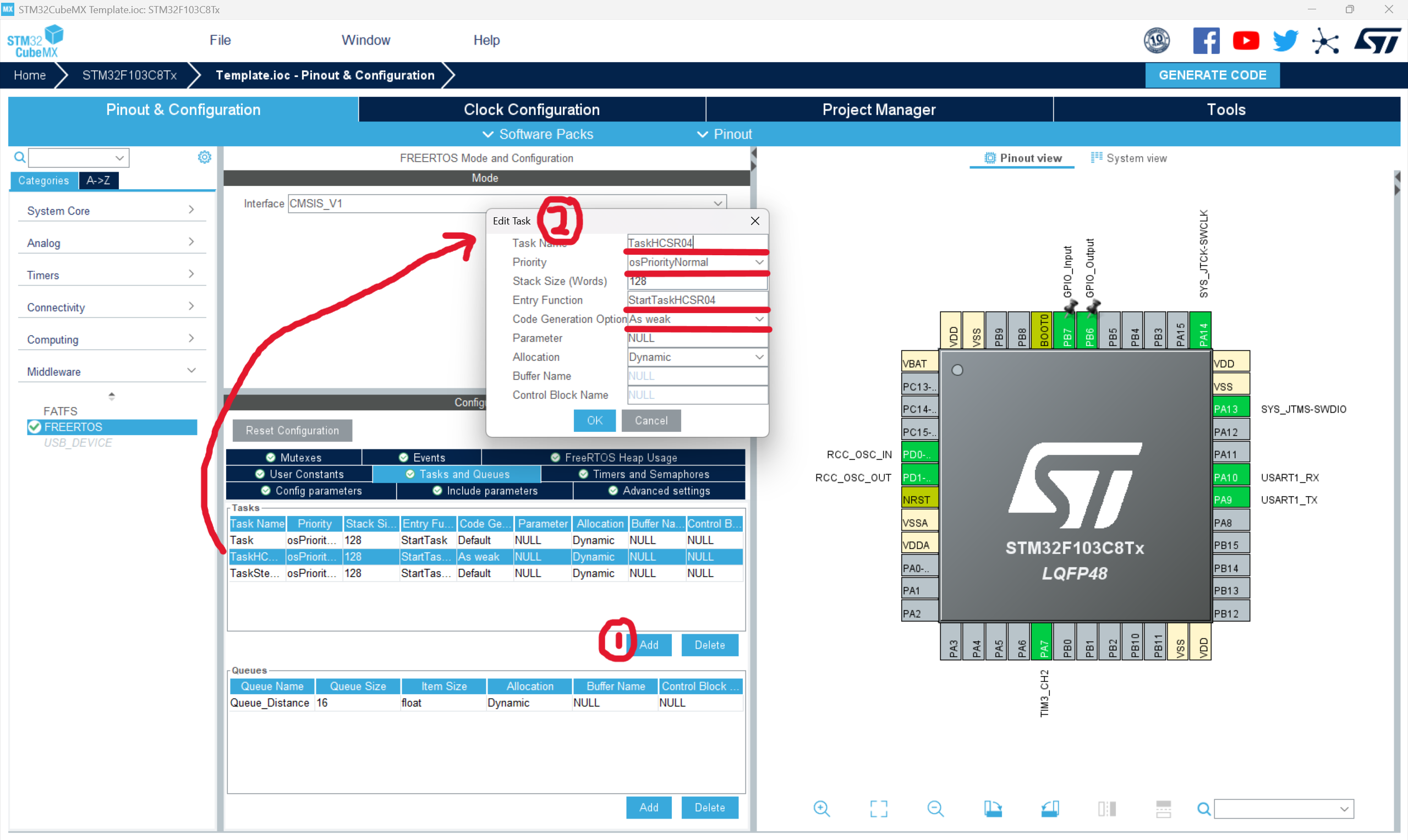

1、创建可复写__weak超声波线程

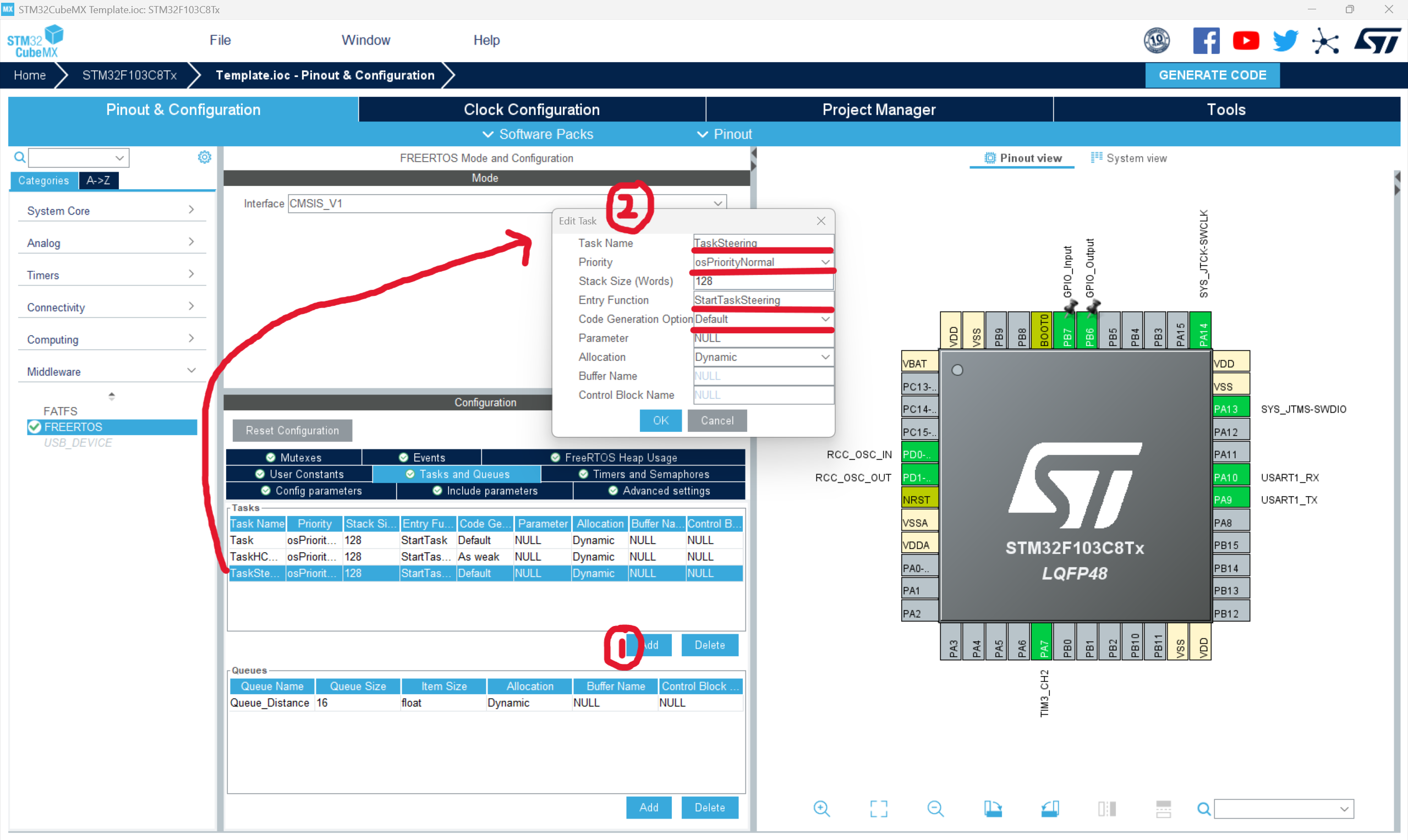

2、创建舵机操作线程

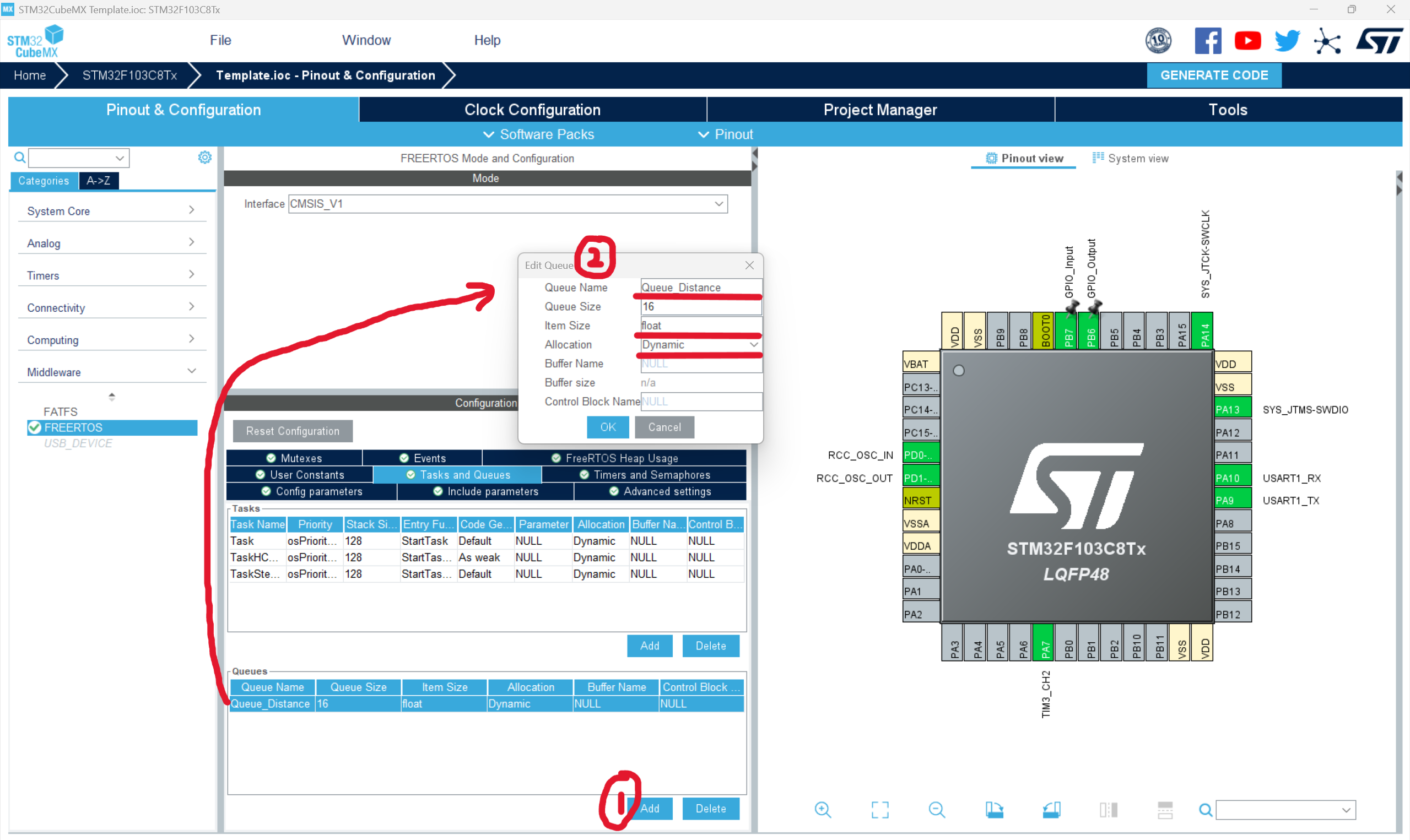

四、创建队列（float类型）

五、参考代码

1、main.c

（1）添加stdio头文件（测试板子复位后往串口发送数据，PC端是否成功接收）

/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "cmsis_os.h"
#include "tim.h"
#include "usart.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "stdio.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
void MX_FREERTOS_Init(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

（2）复位上电：测试串口发送功能

         初始化定时器TIM3产生PWM信号的占空比

         启动定时器TIM3通道2输出PWM信号

int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_USART1_UART_Init();
  MX_TIM3_Init();
  MX_TIM4_Init();
  /* USER CODE BEGIN 2 */
	/*复位上电：测试串口发送功能*/
	printf("successful!\r\n");
	/*初始化定时器TIM3产生PWM信号的占空比*/
	__HAL_TIM_SetCompare(&htim3, TIM_CHANNEL_2, (1.0 / 9.0) * 30 + 5.0);
	/*启动定时器TIM3通道2输出PWM信号*/
	HAL_TIM_PWM_Start(&htim3, TIM_CHANNEL_2);
  /* USER CODE END 2 */

  /* Call init function for freertos objects (in freertos.c) */
  MX_FREERTOS_Init();

  /* Start scheduler */
  osKernelStart();

  /* We should never get here as control is now taken by the scheduler */
  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

2、HCSR04.c

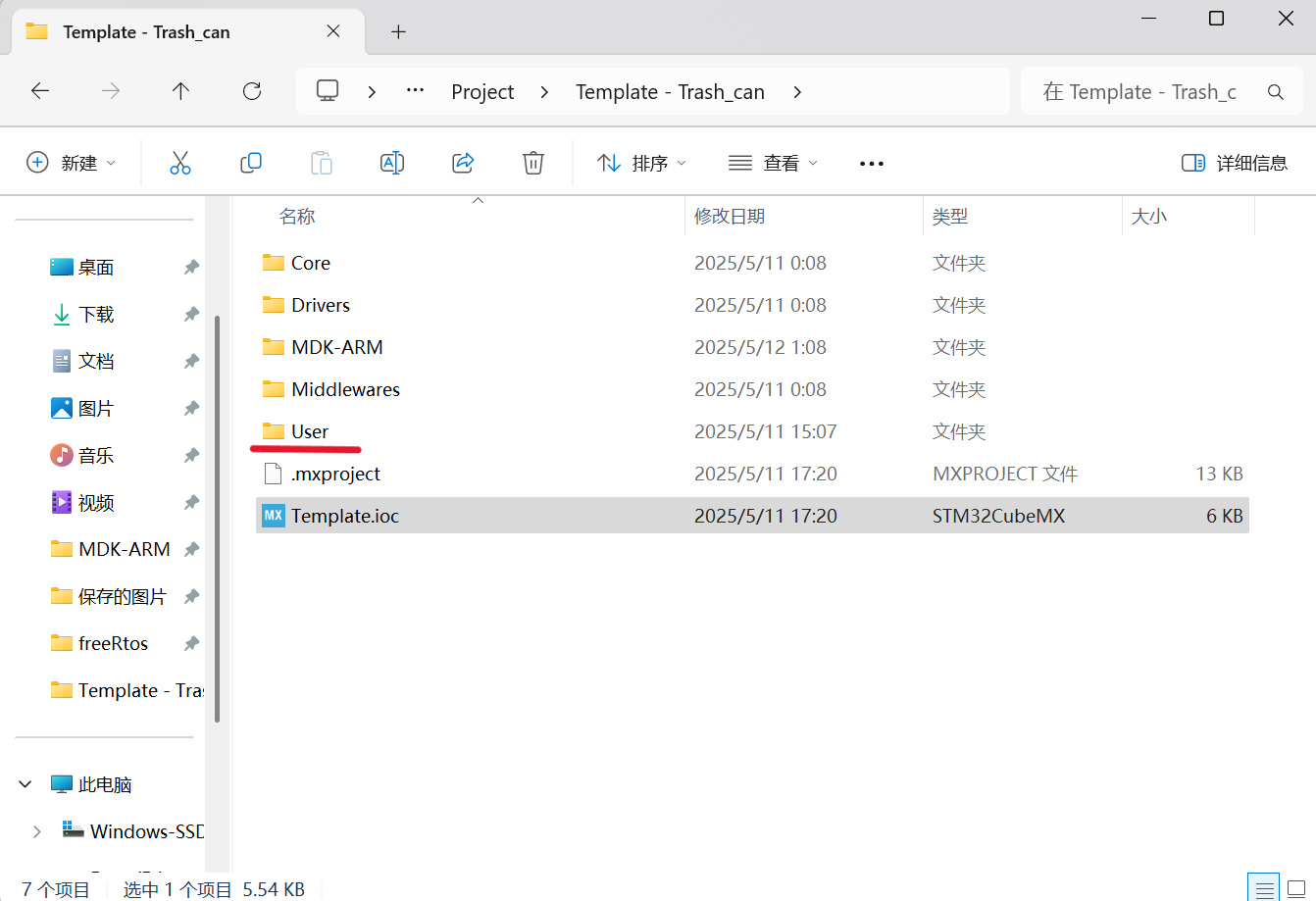

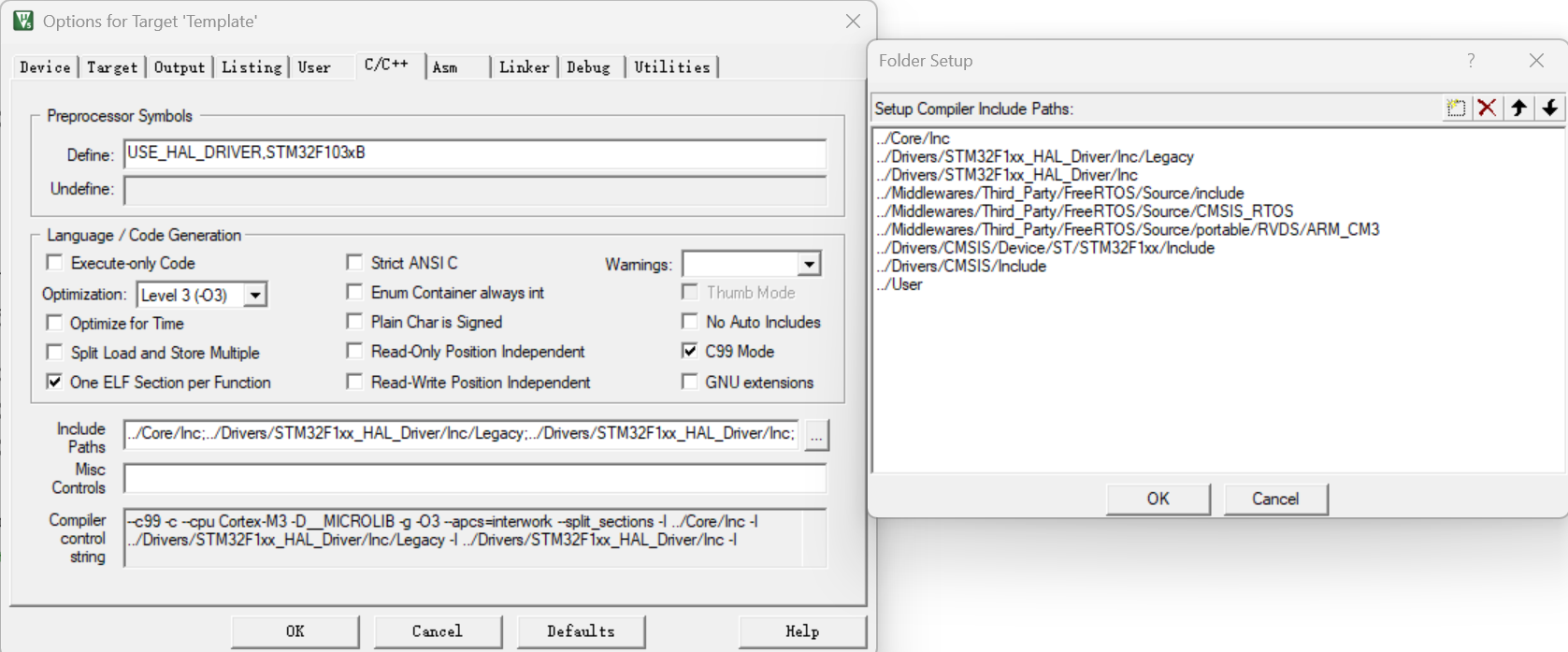

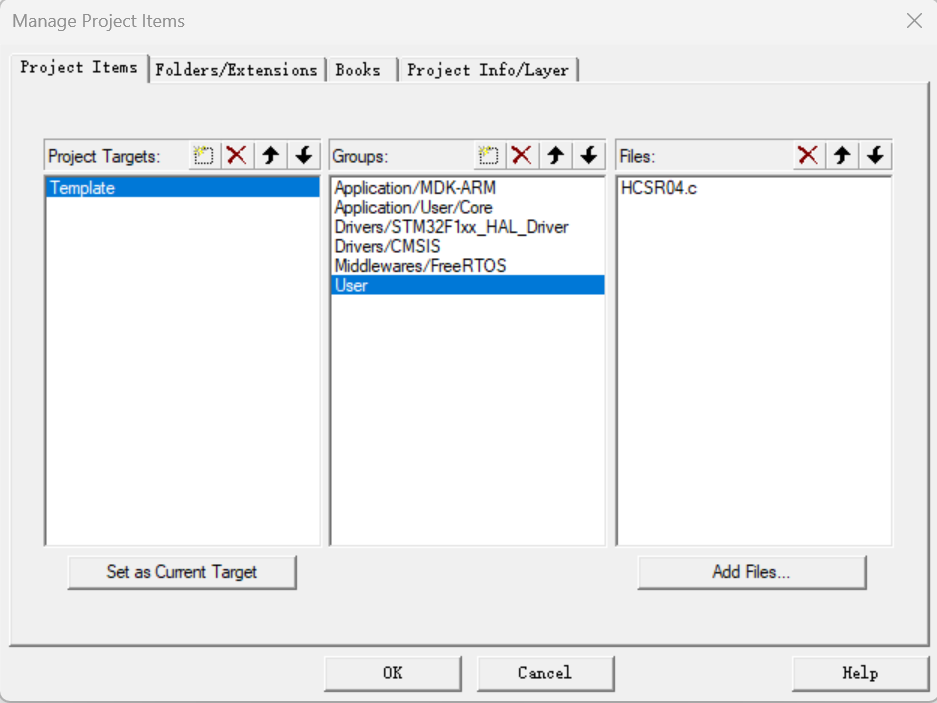

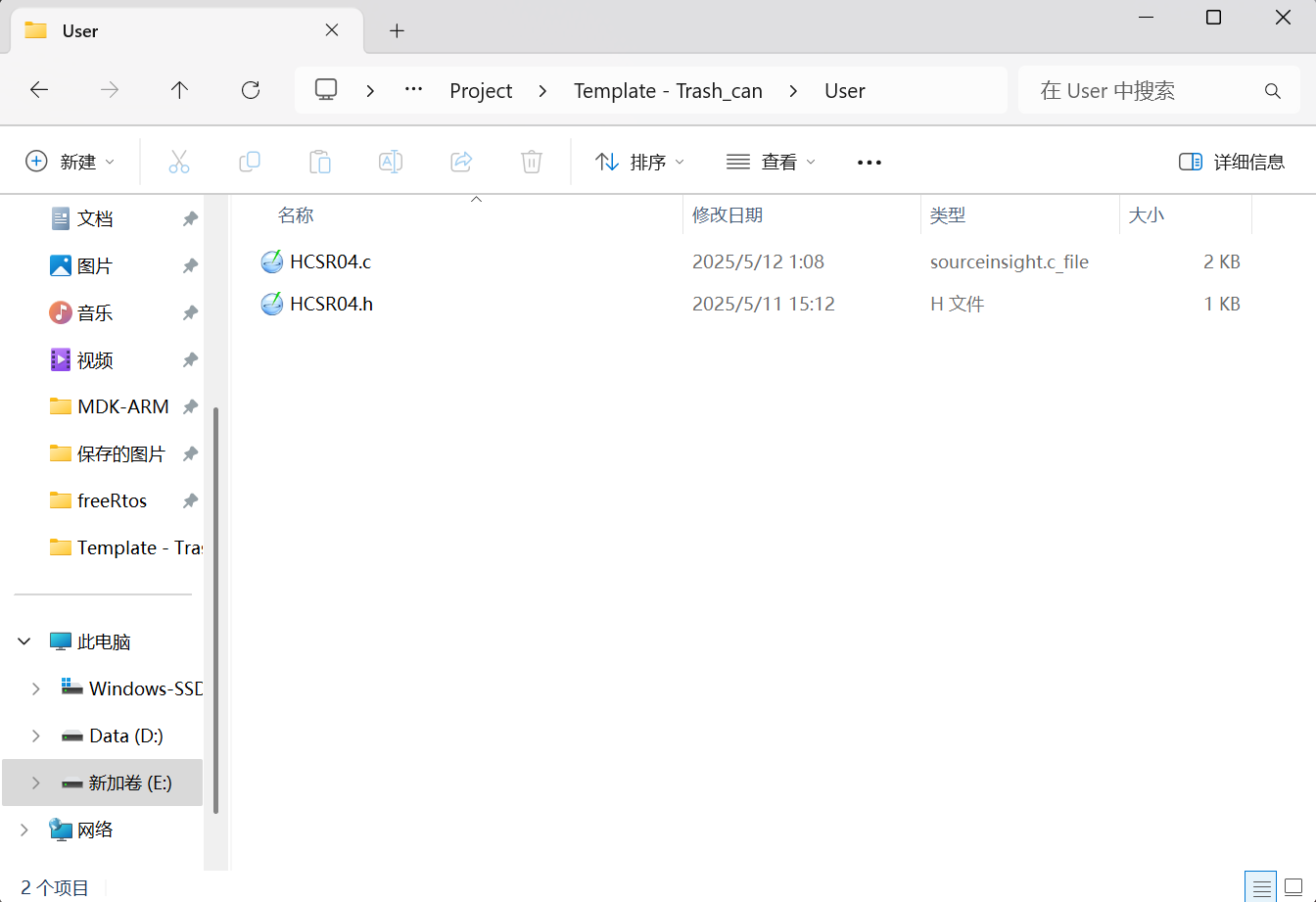

 （1）手动创建文件夹存放超声波.c文件并加载到项目中

（2）HCSR04.c代码

#include "FreeRTOS.h"
#include "task.h"
#include "main.h"
#include "cmsis_os.h"

#include "HCSR04.h"
#include "tim.h"
#include "stdio.h"

//调用外部freertos.c定义的队列句柄
extern osMessageQId Queue_DistanceHandle;

/*GPIO口宏定义*/
#define Write_Trig_High()     HAL_GPIO_WritePin(GPIOB, GPIO_PIN_6, GPIO_PIN_SET)
#define Write_Trig_Low()      HAL_GPIO_WritePin(GPIOB, GPIO_PIN_6, GPIO_PIN_RESET)
#define Read_Echo()           HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_7)

/*定时器延迟20us函数*/
void Timer4_delay_us(uint16_t n_us)
{
	__HAL_TIM_ENABLE(&htim4);
	__HAL_TIM_SetCounter(&htim4, 0);
	while(__HAL_TIM_GetCounter(&htim4) < ((1*n_us)-1));
	__HAL_TIM_DISABLE(&htim4);
}

//超声波模块运行
float HcSr04_Runing(void)
{
	//存放定时间4计时计数
	uint32_t cnt = 0;
	//存放获取超声波的距离
	float distance = 0;

	/*超声波Trig口输出20us高电平，驱动超声波模块发射超声波*/
	Write_Trig_High();
	Timer4_delay_us(20);
	Write_Trig_Low();

	//等待超声波模块发射成功超声波，Echo引脚会输出高电平
	while(Read_Echo() == GPIO_PIN_RESET);
	/*启动定时器TIM4并重置计数器，开始计时*/
	HAL_TIM_Base_Start(&htim4);
	__HAL_TIM_SetCounter(&htim4, 0);

	//等待超声波模块接收返回的超声波，Echo引脚会输出低电平
	while(Read_Echo() == GPIO_PIN_SET);
	/*关闭定时器TIM4并获取定时器计数值*/
	HAL_TIM_Base_Stop(&htim4);
	cnt = __HAL_TIM_GetCounter(&htim4);

	/*计算并返回距离值*/
	distance = (float)cnt/58.00;
	printf("receive %f\r\n", distance);
	return distance;
}

//重写freertos.c文件里面的超声波线程
void StartTaskHCSR04(void const * argument)
{
	/* USER CODE BEGIN StartTaskOperation */
	//存放超声波返回的测距值
	float val = 0;
	//存放队列状态标志
	BaseType_t send_status;
  /* Infinite loop */
  for(;;)
  {
		//获取超声波测距值
		val = HcSr04_Runing();
		/*往队列发送数据（阻塞等待）*/
		send_status = xQueueSend(Queue_DistanceHandle, &val, portMAX_DELAY) ;
		if(send_status == pdFALSE)
		{
			printf("Queue Send fail\r\n");
		}

		osDelay(100);
  }
  /* USER CODE END StartTaskOperation */
}

3、freertos.c

 (1)添加左侧项目栏tim.c的头文件tim.h，和stdio头文件

/* Includes ------------------------------------------------------------------*/
#include "FreeRTOS.h"
#include "task.h"
#include "main.h"
#include "cmsis_os.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "tim.h"
#include "stdio.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

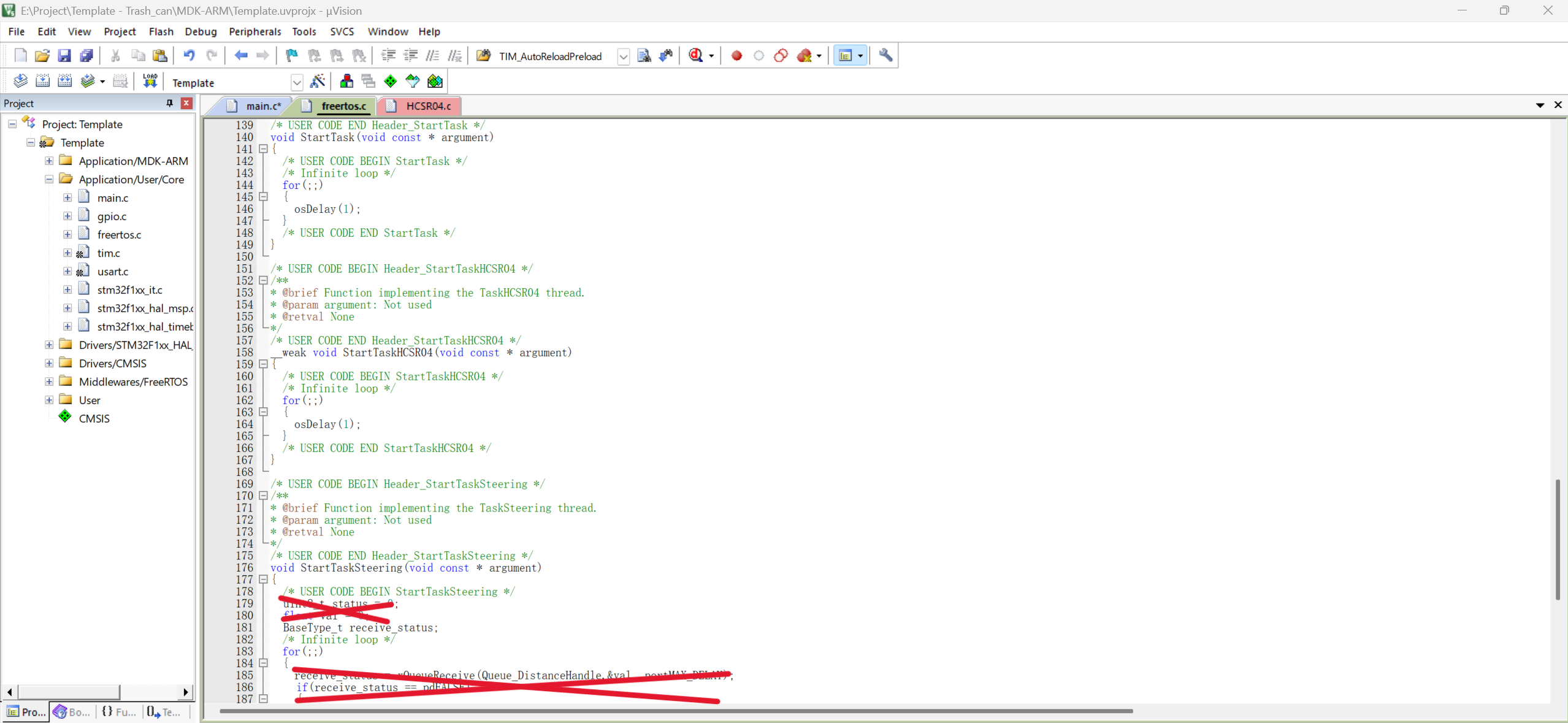

（2）cubeMx自动生成了三个线程（默认线程、可复写超声波线程、舵机操作线程）

 (3)舵机线程对应的代码

/* USER CODE BEGIN Header_StartTaskSteering */
/**
* @brief Function implementing the TaskSteering thread.
* @param argument: Not used
* @retval None
*/
/* USER CODE END Header_StartTaskSteering */
void StartTaskSteering(void const * argument)
{
  /* USER CODE BEGIN StartTaskSteering */
	//存放队列接收的数值
	float val = 0;
	//存放队列状态标志
	BaseType_t receive_status;
  /* Infinite loop */
  for(;;)
  {
    //获取队列接收数值（阻塞等待）
		receive_status = xQueueReceive(Queue_DistanceHandle,&val, portMAX_DELAY);

		/*判断队列是否成功接收信息（否：之间break退出此次循环）*/
		if(receive_status == pdFALSE)
		{
			printf("Queue Receive fail\r\n");
			break;
		}

		/*队列接收数值对应的舵机操作功能*/
		if(val < 10.0)
		{
			//设置定时器TIM3通道2的PWM输出占空比（实现开盖功能）
			__HAL_TIM_SetCompare(&htim3, TIM_CHANNEL_2, (1.0 / 9.0) * 0 + 5.0);
			//判断超声波模块通过队列传输后接收的测距值是否在判断条件中，若是进行阻塞直到不在判断条件
			while(val < 10.0)
			{
				/*不断获取队列接收数值（阻塞等待）*/
				receive_status = xQueueReceive(Queue_DistanceHandle,&val, portMAX_DELAY);
				osDelay(1);
			}
			//使用阻塞功能实现舵机开盖后有500ms的状态停留功能
			osDelay(500);
		}
		else
		{
			//设置定时器TIM3通道2的PWM输出占空比（实现关盖功能）
			__HAL_TIM_SetCompare(&htim3, TIM_CHANNEL_2, (1.0 / 9.0) * 30 + 5.0);

		}
		osDelay(1);
  }
  /* USER CODE END StartTaskSteering */
}

/* Private application code --------------------------------------------------*/
/* USER CODE BEGIN Application */

/* USER CODE END Application */
